TVE-1305133T3R PCIeModule- 5GHz

User Manual WMDQ-174AC Version: 1.0 Date:2015/05/21 5GHz 802.11ac/n/a 1.3Gbps WMDQ-174AC is a 5GHz Single Band 3T3R PCIe mini Card Module based on the Qualcomm QCA9880 solution which features improved transmission power and sensitivity by Gemtek. Using the QCA9880 external PA, it is the ideal cost effective solution for platform integration. With enhanced technologies such as advanced power management and receiver boost, it makes the WMDQ-174AC the ideal 5GHz 3T3R module. General Information PA SE5003L1-R Interface PCI Express 1.1 interface Operating Voltage DC 3.3V & 4.2V (for PA) with Advanced DC Power management support Antenna Connectors 3 x I-PEX connectors PCB Dimensions 50 x 50.8mm (WxL)- (20mm longer than standard full-size mini card) Temperature Range 0 to 45 °C (Operating), -20 to 80 °C (Storage) Security WEP, TKIP, AES, and WAPI hardware encryption Data rates 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n:  20MHz channel:  1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)  2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.)  3Nss: 195Mbps @ 800GI, 216.7Mbps @ 400GI (Max.)  40MHz channel:  1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)  2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI (Max.)  3Nss: 405Mbps @ 800GI, 450Mbps @ 400GI (Max.) 802.11ac:  20MHz channel:  1Nss: 78Mbps @ 800GI, 86.7Mbps @ 400GI (Max.)  2Nss: 156Mbps @ 800GI, 173.3Mbps @ 400GI (Max.)  3Nss: 260Mbps @ 800GI, 288.9Mbps @ 400GI (Max.)  40MHz channel:  1Nss: 180Mbps @ 800GI, 200Mbps @ 400GI (Max.)  2Nss: 360Mbps @ 800GI, 400Mbps @ 400GI (Max.)  3Nss: 540Mbps @ 800GI, 600Mbps @ 400GI (Max.)  80MHz channel:  1Nss: 390Mbps @ 800GI, 433.3Mbps @ 400GI (Max.)  2Nss: 780Mbps @ 800GI, 866.7Mbps @ 400GI (Max.)  3Nss: 1.17Gbps @ 800GI, 1.3Gbps @ 400GI (Max.) T x channel width support 20MHz / 40MHz /80MHz Standard/Compliance IEEE 802.11ac, 802.11n, 802.11a RF Spec Frequency band 5G Radio Stream 3T3R Transmit Power (Per Radio Stream) Tolerance ( +/- 2dBm) 802.11a 6Mbps: 23 dBm 802.11n HT20 MCS0: 23dBm 802.11n HT40 MCS0: 21dBm 802.11ac VHT20 MCS0: 23dBm 802.11ac VHT40 MCS0: 21dBm 802.11ac VHT80 MCS0: 12dBm Receive Sensitivity Tolerance ( +/- 2dBm) 802.11a: 6Mbps: -94dBm 54M: -80dBm 802.11n HT20/HT40: HT20 MCS0: -94dBm HT20 MCS7: -76dBm HT40 MCS0: -92dBm HT40 MCS7: -74 dBm 802.11ac VHT20/VHT40/VHT80: VHT20 MCS0: -94dbm VHT20 MCS8: -73dBm VHT40 MCS0: -92dBm VHT40 MCS9: -68dBm VHT80 MCS0: -90dBm VHT80 MCS9: -66dBm Dimension: 50mmx50mm Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/CANADA. Operation of this device is restricted to indoor use only This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, 3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: TVE-130513”. Manual Information to t…

Text truncated - open the document above for the full version.

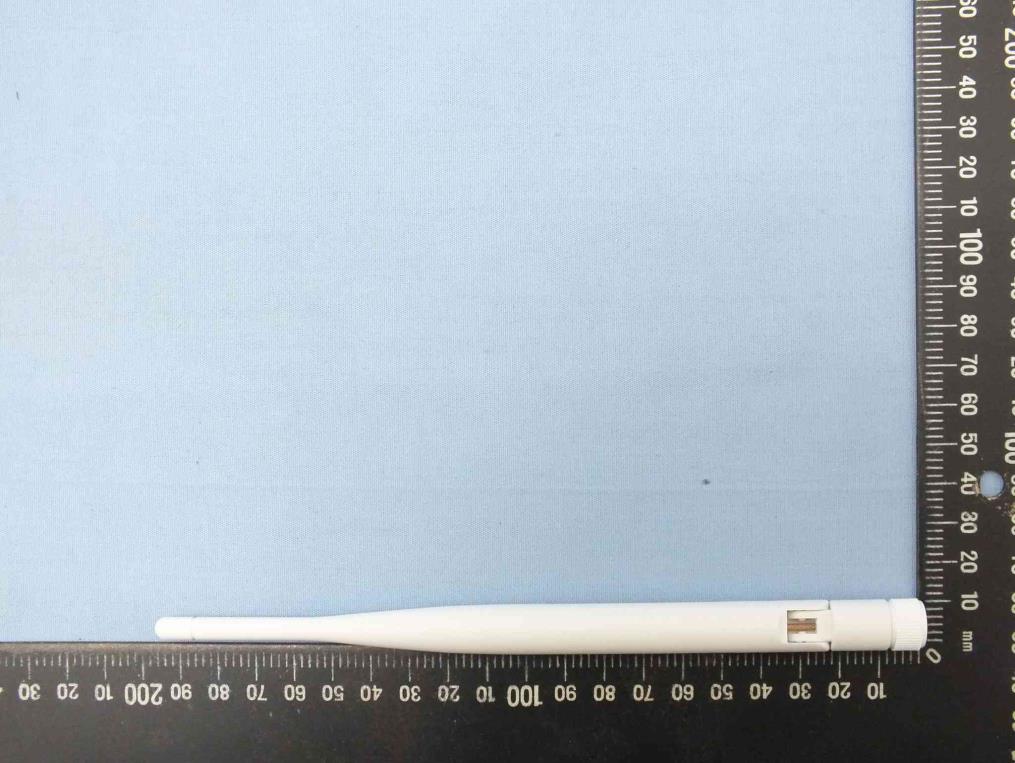

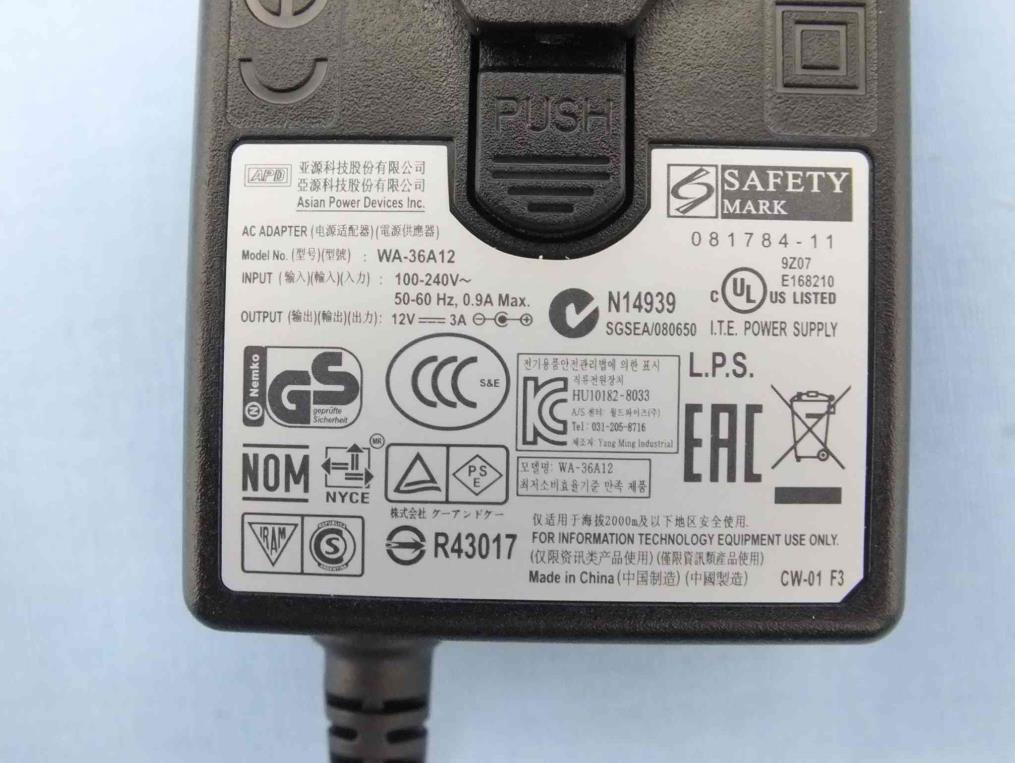

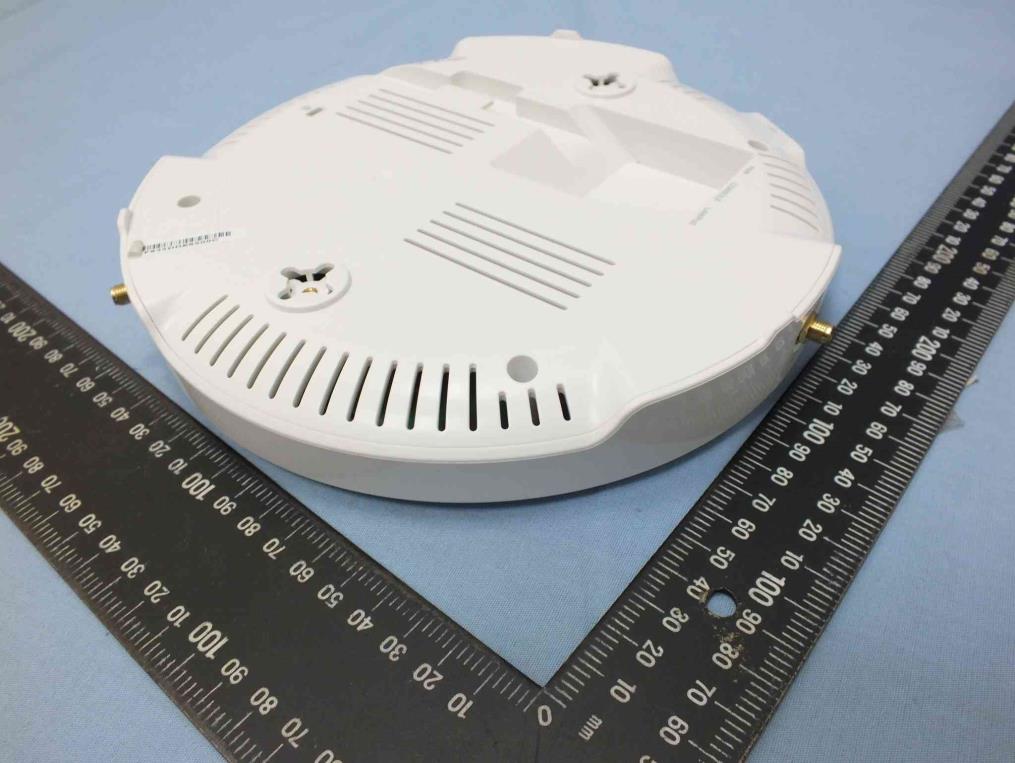

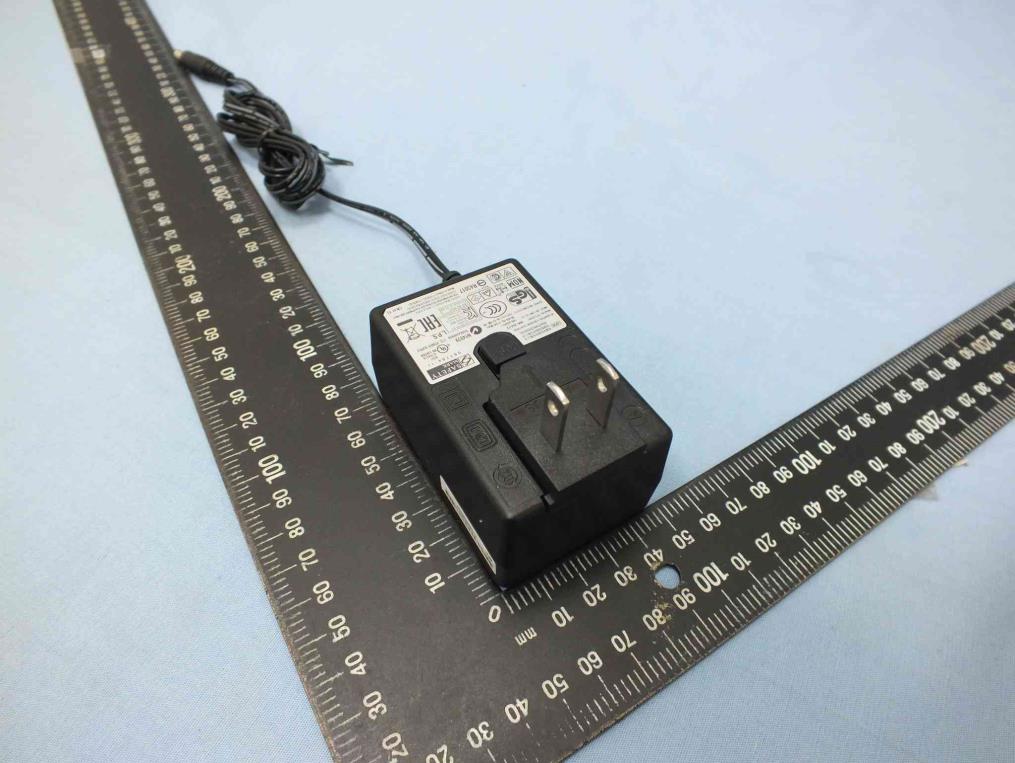

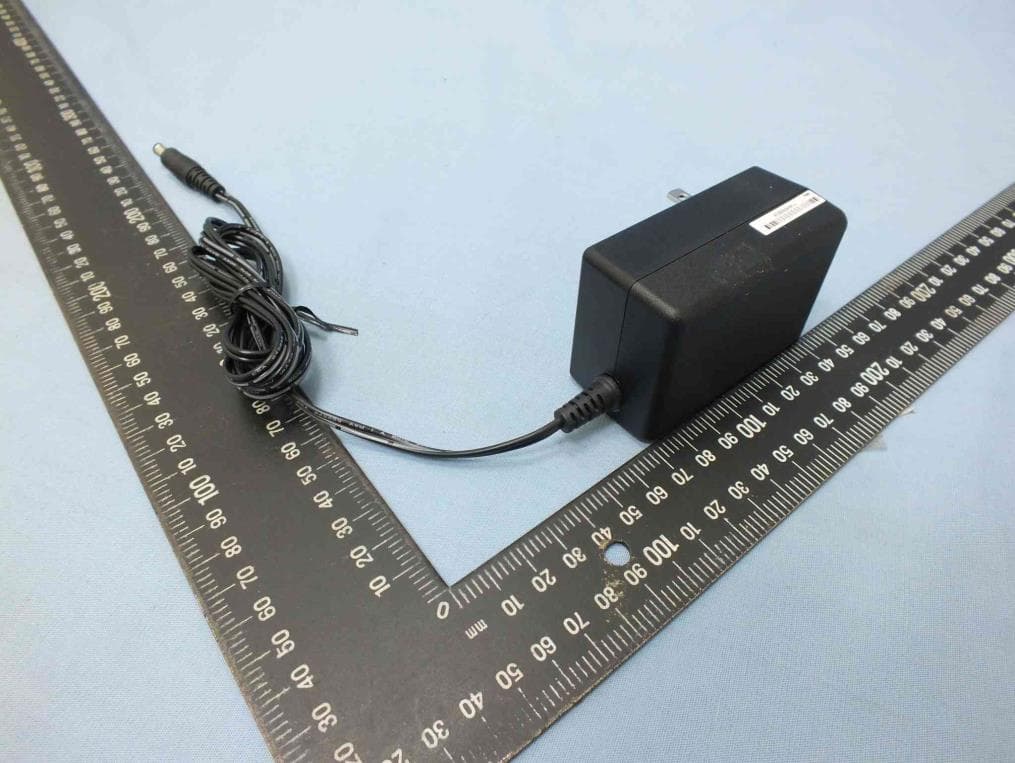

Project No.: 531001EX Page No. : 1 of 19 Information of Host The EUT (FCC ID: TVE-130513) will be installed in below hosts. Brand Name Model Name Producrt name Antenna type Description Fortinet FAP-S323C FortiAP-S323C Dipole The platform contains 2 certified wireless modules. Module 1. FCC ID: TVE-130513 Module 2. FCC ID: TVE-130503 Project No.: 531001EX Page No. : 2 of 19 Photographs of EUT Project No.: 531001EX Page No. : 3 of 19 Project No.: 531001EX Page No. : 4 of 19 Project No.: 531001EX Page No. : 5 of 19 Project No.: 531001EX Page No. : 6 of 19 Project No.: 531001EX Page No. : 7 of 19 Project No.: 531001EX Page No. : 8 of 19

Project No.: 531001IN Page No. : 1 of 17 Information of Host The EUT (FCC ID: TVE-130513) will be installed in below hosts. Brand Name Model Name Producrt name Antenna type Description Fortinet FAP-S321C FortiAP-S321C PIFA The platform contains 2 certified wireless modules. Module 1. FCC ID: TVE-130513 Module 2. FCC ID: TVE-130503 Project No.: 531001IN Page No. : 2 of 17 Photographs of EUT Project No.: 531001IN Page No. : 3 of 17 Project No.: 531001IN Page No. : 4 of 17 Project No.: 531001IN Page No. : 5 of 17

Project No.: 531001 Page No. : 1 of 20 Photographs of EUT Project No.: 531001 Page No. : 2 of 20 Project No.: 531001 Page No. : 3 of 20 Project No.: 531001 Page No. : 4 of 20 Project No.: 531001 Page No. : 5 of 20 Project No.: 531001 Page No. : 6 of 20 Project No.: 531001 Page No. : 7 of 20 Project No.: 531001 Page No. : 8 of 20 Project No.: 531001 Page No. : 9 of 20 Project No.: 531001 Page No. : 10 of 20 Project No.: 531001 Page No. : 11 of 20 Project No.: 531001 Page No. : 12 of 20 Project No.: 531001 Page No. : 13 of 20 Project No.: 531001 Page No. : 14 of 20 Project No.: 531001 Page No. : 15 of 20 Project No.: 531001 Page No. : 16 of 20

Project No.: 531001EX Page No. : 9 of 19 FCC ID: TVE-130513 FCC ID: TVE-130503 Project No.: 531001EX Page No. : 10 of 19 Project No.: 531001EX Page No. : 11 of 19 Project No.: 531001EX Page No. : 12 of 19 Project No.: 531001EX Page No. : 13 of 19 Project No.: 531001EX Page No. : 14 of 19 Project No.: 531001EX Page No. : 15 of 19 Project No.: 531001EX Page No. : 16 of 19 Project No.: 531001EX Page No. : 17 of 19 Project No.: 531001EX Page No. : 18 of 19 Photographs of Module FCC ID: TVE-130513 Project No.: 531001EX Page No. : 19 of 19 FCC ID: TVE-130503

Project No.: 531001IN Page No. : 6 of 17 FCC ID: TVE-130513 FCC ID: TVE-130503 Project No.: 531001IN Page No. : 7 of 17 Project No.: 531001IN Page No. : 8 of 17 Project No.: 531001IN Page No. : 9 of 17 Project No.: 531001IN Page No. : 10 of 17 Project No.: 531001IN Page No. : 11 of 17 Project No.: 531001IN Page No. : 12 of 17 Project No.: 531001IN Page No. : 13 of 17 Project No.: 531001IN Page No. : 14 of 17 Project No.: 531001IN Page No. : 15 of 17 Project No.: 531001IN Page No. : 16 of 17 Photographs of Module FCC ID: TVE-130513 Project No.: 531001IN Page No. : 17 of 17 FCC ID: TVE-130503

Project No.: 531001 Page No. : 17 of 20 Project No.: 531001 Page No. : 18 of 20 Project No.: 531001 Page No. : 19 of 20 Project No.: 531001 Page No. : 20 of 20

Report No.: FA531001 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : TVE-130513 Equipment : 3T3R PCIeModule- 5GHz Model No. : WMDQ-174AC Brand Name : Fortinet, Inc. Applicant : Fortinet Inc. Address : 899 Kifer Road Sunnyvale, CA 94086, USA Standard : 47 CFR FCC Part 2.1091 Received Date : Mar. 10, 2015 Tested Date : Mar. 16 ~ Apr. 09, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA531001 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 4 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA531001 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA531001 Rev. 01 Initial issue May 20, 2015 Report No.: FA531001 Page : 4 of 6 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 MPE EVALUATION RESULTS Frequency Range (MHz) Antenna type Antenna Gain (dBi) Maximum Conducted Power (dBm) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 5180~5240 Dipole 4.78 16.72 20 0.028 1 5745~5825 Dipole 5.67 25.66 20 0.270 1 5180~5240 PIFA 3.46 16.72 20 0.021 1 5745~5825 PIFA 4.34 25.66 20 0.199 1 Report No.: FA531001 Page : 5 of 6 Report Version: Rev. 01 1.4 Result of Maximum Permissible Exposure for Co-located The EUT (FCC ID: TVE-130513) will be installed in below hosts. Brand Name Model Name Producrt name Antenna type Description Fortinet FAP-S321C FortiAP-S321C PIFA The platform contains 2 certified wireless modules. Module 1. FCC ID: TVE-130513 Module 2. FCC ID: TVE-130503 Fortinet FAP-S323C FortiAP-S323C Dipole The platform contains 2 certified wireless modules. Module 1. FCC ID: TVE-130513 Module 2. FCC ID: TVE-130503 Evaluation result of FCC ID: TVE-130503. Frequency Range (MHz) Antenna type Antenna Gain (dBi) Maximum Conducted Power (dBm) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 Dipole 4.59 26.70 20 0.268 1 2412~2462 PIFA 6.38 26.70 20 0.404 1 CONCULSION: Both of the WLAN 2.4G & 5.0G can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density MPE evaluation for Model name: FAP-S321C = 0.404 / 1 + 0.199 / 1 = 0.603 MPE evaluation for Model name: FAP-S323C = 0.270 / 1 + 0.268 / 1 = 0.538 Therefore, the maximum calculation of this situation is 0.603, which is less than the “1” limit. Report No.: FA531001 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR531001 Page : 1 of 121 Report Version: Rev. 02 FCC Test Report FCC ID : TVE-130513 Equipment : 3T3R PCIeModule- 5GHz Model No. : WMDQ-174AC Brand Name : Fortinet, Inc. Applicant : Fortinet Inc. Address : 899 Kifer Road Sunnyvale, CA 94086, USA Standard : 47 CFR FCC Part 15.407 Received Date : Mar. 10, 2015 Tested Date : Mar. 16 ~ Apr. 09, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR531001 Page : 2 of 121 Report Version: Rev. 02 Table of Contents 1 GENERAL DESCRIPTION ............................................................................................................... 5 1.1 Information ........................................................................................................................................ 5 1.2 Local Support Equipment List ............................................................................................................ 9 1.3 Test Setup Chart ............................................................................................................................... 9 1.4 The Equipment List ......................................................................................................................... 10 1.5 Testing Applied Standards .............................................................................................................. 11 1.6 Measurement Uncertainty ............................................................................................................... 11 2 TEST CONFIGURATION ................................................................................................................ 11 2.1 Testing Condition ............................................................................................................................ 12 2.2 The Worst Test Modes and Channel Details .................................................................................... 12 3 TRANSMITTER TEST RESULTS ................................................................................................... 14 3.1 Conducted Emissions ..................................................................................................................... 14 3.2 Emission Bandwidth ........................................................................................................................ 23 3.3 RF Output Power ............................................................................................................................ 26 3.4 Peak Power Spectral Density .......................................................................................................... 28 3.5 Transmitter Radiated and Band Edge Emissions ............................................................................. 32 3.6 Frequency Stability........................................................................................................................ 119 4 TEST LABORATORY INFORMATION ......................................................................................... 121 Report No.: FR531001 Page : 3 of 121 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FR531001 Rev. 01 Initial issue May 20, 2015 FR531001 Rev. 02 Modify ANSI C63.10 version May 27, 2015 Report No.: FR531001 Page : 4 of 121 Report Version: Rev. 02 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.150MHz 57.14 (Margin -8.86dB) - QP Pass 15.407(b) 15.209 Radiated Emissions [dBuV/m at 3m]: 350.10MHz 44.50 (Margin -1.50dB) – QP [dBuV/m at 3m]: 5150.00MHz 52.50 (Margin -1.50dB) - AV Pass 15.407(a) Emission Bandwidth Meet the requirement of limit Pass 15.407(e) 6dB bandwidth Meet the requirement of limit Pass 15.407(a) RF Output Power Max Power [dBm]: 5150-5250MHz: 16.72 5725-5850MHz: 25.66 Pass 15.407(a) Peak Power Spectral Density Meet the requirement of limit Pass 15.407(g) Frequency Stability Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR531001 Page : 5 of 121 Report Version: Rev. 02 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5150-5250 a 5180-5240 36-48 [4] 3 6-54 Mbps 5150-5250 n (HT20) 5180-5240 36-48 [4] 3 MCS 0-23 5150-5250 n (HT40) 5190-5230 38-46 [2] 3 MCS 0-23 5150-5250 ac (VHT20) 5180-5240 36-48 [4] 3 MCS 0-9 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 3 MCS 0-9 5150-5250 ac (VHT80) 5210 42 [1] 3 MCS 0-9 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n/ac uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM, 256QAM modulation. RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5725-5850 a 5745-5825 149-165 [5] 3 6-54 Mbps 5725-5850 n (HT20) 5745-5825 149-165 [5] 3 MCS 0-23 5725-5850 n (HT40) 5755-5795 151-159 [2] 3 MCS 0-23 5725-5850 ac (VHT20) 5745-5825 149-165 [5] 3 MCS 0-9 5725-5850 ac (VHT40) 5755-5795 151-159 [2] 3 MCS 0-9 5725-5850 ac (VHT80) 5775 155 [1] 3 MCS 0-9 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n/ac uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM, 256QAM modulation. Report No.: FR531001 Page : 6 of 121 Report Version: Rev. 02 1.1.2 Antenna Details Ant. No. Model Type Connector Operating Frequency / Gain (dBi) 5150~5250MHz 5725~5850MHz 1 AK51010200 Dipole R-SMA 4.78 5.67 2 LG19 PIFA IPE…

Text truncated - open the document above for the full version.

Report No.: FR531001CO Page : 1 of 22 Report Version: Rev. 02 FCC Co-Location Test Report FCC ID : TVE-130513 Equipment : 3T3R PCIeModule- 5GHz Model No. : WMDQ-174AC Brand Name : Fortinet, Inc. Applicant : Fortinet Inc. Address : 899 Kifer Road Sunnyvale, CA 94086, USA Standard : 47 CFR FCC Part 15.247 47 CFR FCC Part 15.407 Received Date : Mar. 10, 2015 Tested Date : Apr. 09, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR531001CO Page : 2 of 22 Report Version: Rev. 02 Table of Contents 1 GENERAL DESCRIPTION ............................................................................................................... 5 1.1 Information ........................................................................................................................................ 5 1.2 The Equipment List ........................................................................................................................... 7 1.3 Test Standards ................................................................................................................................. 8 1.4 Measurement Uncertainty ................................................................................................................. 8 2 TEST CONFIGURATION .................................................................................................................. 9 2.1 Testing Condition .............................................................................................................................. 9 2.2 The Worst Test Modes and Channel Details ...................................................................................... 9 3 TRANSMITTER TEST RESULTS ................................................................................................... 10 3.1 Unwanted Emissions into Restricted Frequency Bands ................................................................... 10 4 TEST LABORATORY INFORMATION ........................................................................................... 22 Report No.: FR531001CO Page : 3 of 22 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FR531001CO Rev. 01 Initial issue May 20, 2015 FR531001CO Rev. 02 Modify ANSI C63.10 version May 27, 2015 Report No.: FR531001CO Page : 4 of 22 Report Version: Rev. 02 Summary of Test Results FCC Rules Test Items Measured Result 15.247(d) 15.407(b) 15.209 Radiated Emissions [dBuV/m at 3m]: 52.88MHz 37.76 (Margin -2.24dB) – QP Pass Report No.: FR531001CO Page : 5 of 22 Report Version: Rev. 02 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) Operating Frequency 802.11a/n/ac: 5180 MHz ~ 5240 MHz, 5745 ~ 5825 MHz Modulaton Type 802.11a/n/ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 1.1.2 Specification of Platform Information The EUT (FCC ID: TVE-130513) will be installed in below hosts. Brand Name Model Name Producrt name Antenna type Description Fortinet FAP-S321C FortiAP-S321C PIFA The platform contains 2 certified wireless modules. Module 1. FCC ID: TVE-130513 Module 2. FCC ID: TVE-130503 Fortinet FAP-S323C FortiAP-S323C Dipole The platform contains 2 certified wireless modules. Module 1. FCC ID: TVE-130513 Module 2. FCC ID: TVE-130503 1.1.3 Specification of the Wireless Certified Module FCC ID TVE-130503 Product Name 3T3R PCIeModule- 2.4GHz Brand Name Fortinet Model Name WMDQ-175AC Operating Frequency 802.11b/g/n: 2412 MHz ~ 2462 MHz Modulaton Type 802.11b: DSSS (DBPSK / DQPSK / CCK) 802.11g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) Report No.: FR531001CO Page : 6 of 22 Report Version: Rev. 02 1.1.4 Antenna Details of Specific platform Ant. No. Model Type Connector Operating Frequency / Gain (dBi) 2400~2483.5MHz 1 AK51010200 Dipole R-SMA 4.59 2 LG19 PIFA IPEX 6.38 3 FPC_ANT (Cable: 95mm) PIFA IPEX 4.16 4 FPC_ANT (Cable: 355mm) PIFA IPEX 2.87 5 FPC_ANT (Cable: 150mm) PIFA IPEX 3.57 Note: 1) There are six different cable lengths for Dipole antenna. They should be 100mm, 130mm, 180mm, 205mm, 230mm and 265mm. The shortest cable length 100mm and the longest cable length 265mm was chosen for final testing. 2) PIFA antenna with highest gain (model LG19) was chosen for final testing. Note: Above antennas are certified with wireless modules, FCC ID: TVE-130503. Ant. No. Model Type Connector Operating Frequency / Gain (dBi) 5150~5250MHz 5725~5850MHz 1 AK51010200 Dipole R-SMA 4.78 5.67 2 LG19 PIFA IPEX 3.46 4.34 3 FPC_ANT (Cable: 95mm) PIFA IPEX 2.78 3.32 4 FPC_ANT (Cable: 355mm) PIFA IPEX 2.21 0.91 5 FPC_ANT (Cable: 150mm) PIFA IPEX 2.42 3.11 Note: 1) There are six different cable lengths for Dipole antenna. They should be 100mm, 130mm, 180mm, 205mm, 230mm and 265mm. The shortest cable length 100mm and the longest cable length 265mm was chosen for final testing. 2) PIFA antenna with highest gain (model LG19) was chosen for final testing. Note: Above antennas are certified with wireless modules, FCC ID: TVE-130513. Report No.: FR531001CO Page : 7 of 22 Report Version: Rev. 02 1.2 The Equipment List Test Item Radiated Emission Test Site 966 chamber1 / (03CH01-W S) Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until Spectrum Analyzer R&S FSV40 101498 Dec. 09, 2014 Dec. 08, 2015 Receiver R&S ESR3 101658 Nov. 10, 2014 Nov. 09, 2015 Bilog Antenna SCHW ARZBECK VULB9168 VULB9168-522 Sep. 05, 2014 Sep. 04, 2015 Horn Antenna 1G-18G SCHW ARZBECK BBHA 9120 D BBHA 9120 D 1096 Dec. 11, 2014 Dec. 10, 2015 Horn Antenna 18G-40G SCHW ARZBECK BBHA 9170 BBHA 9170517 Nov. 10, 2014 Nov. 09, 2015 Loop Antenna R…

Text truncated - open the document above for the full version.

Report No.: FR531001CO Page: : 1 of 6 Report Version: Rev. 01 Photographs of the Test Configuration Dipole antenna Radiated Emission Below 1GHz Test Report No.: FR531001CO Page: : 2 of 6 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR531001CO Page: : 3 of 6 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR531001CO Page: : 4 of 6 Report Version: Rev. 01 PIFA antenna Radiated Emission Below 1GHz Test Report No.: FR531001CO Page: : 5 of 6 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR531001CO Page: : 6 of 6 Report Version: Rev. 01 Radiated Emission Above 1GHz Test

Report No.: FR531001 Page: : 1 of 16 Report Version: Rev. 01 Photographs of the Test Configuration Dipole antenna Conducted Emission Test Report No.: FR531001 Page: : 2 of 16 Report Version: Rev. 01 Conducted Emission Test Report No.: FR531001 Page: : 3 of 16 Report Version: Rev. 01 PIFA antenna Conducted Emission Test Report No.: FR531001 Page: : 4 of 16 Report Version: Rev. 01 Conducted Emission Test Report No.: FR531001 Page: : 5 of 16 Report Version: Rev. 01 Dipole antenna, 100mm antenna cable Radiated Emission Below 1GHz Test Report No.: FR531001 Page: : 6 of 16 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR531001 Page: : 7 of 16 Report Version: Rev. 01 Dipole antenna, 265mm antenna cable Radiated Emission Below 1GHz Test Report No.: FR531001 Page: : 8 of 16 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR531001 Page: : 9 of 16 Report Version: Rev. 01 Dipole antenna, 100mm antenna cable Radiated Emission Above 1GHz Test Report No.: FR531001 Page: : 10 of 16 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR531001 Page: : 11 of 16 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR531001 Page: : 12 of 16 Report Version: Rev. 01 PIFA antenna Radiated Emission Below 1GHz Test Report No.: FR531001 Page: : 13 of 16 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR531001 Page: : 14 of 16 Report Version: Rev. 01 PIFA antenna Radiated Emission Above 1GHz Test Report No.: FR531001 Page: : 15 of 16 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR531001 Page: : 16 of 16 Report Version: Rev. 01 Radiated Emission Above 1GHz Test
