TVE-26145033Secured Wireless Access Point

FortiAP 321C QuickStart Guide October 27, 2014 20-500-242877-20141027 Copyright© 2014 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. Performance and other metrics contained herein were attained in internal lab tests under ideal conditions, and actual performance and other results may vary. Network variables, different network environments and other conditions may affect performance results. Nothing herein represents any binding commitment by Fortinet, and Fortinet disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding written contract, signed by Fortinet’s General Counsel, with a purchaser that expressly warrants that the identified product will perform according to certain expressly-identified performance metrics and, in such event, only the specific performance metrics expressly identified in such binding written contract shall be binding on Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. Fortinet disclaims in full any covenants, representations,and guarantees pursuant hereto, whether express or implied. Fortinet reserves the right to change, modify, transfer, or otherwise revise this publication without notice, and the most current version of the publication shall be applicable. QuickStart Guide Register for Support Register your Fortinet product to receive: • Technical Support • New product features • Protection from new threats Vous devez enregistrer le produit pour recevoir: • Support technique • Nouvelles fonctionnalitées du produit • Protection contre de nouvelles menaces La reistrazione ti permette di usufruire di: • Supporto Tecnico • Nuove funzionalita • Proteezione dalle ultime minaccce Debe registrar el producto para recibir: • Apoyo técnico • Nuevas funcionalidades del producto • Protección contra ataques 登録のお願い 本日、フォーティネット製品の登録をしてください。 登録すると次のメリットがあります。 テクニカルサポート • 新機能の追加 • 新しい脅威への防御 请马上注册 您的飞塔产品 您在注册以后才能得到技术支持、新产品特点信息、最新威胁防护 https://support.fortinet.com Toll free: 1 866 648 4638 Phone: 1 408 486 7899 Fax: 1 408 235 7737 Email: [email protected] Box Includes 4 Wall/Ceiling Mounting Hardware Kit Mounting Bracket T-Rail Mounting Hardware Kit FortiAP 321C QuickStart Guide QuickStart Guide FortiAP 321C QuickStart Guide Video http://video.fortinet.com/video/38/fortigate-and-fortiwifi-quick-start-guide-5-0 Before You Begin Write down details that you may need from your network administrator or ISP. 5 DSL PPPoE Username Password Cable Modem DHCP It is normal to not require a hostname, but your ISP may require it. Hostname Static IP address IP Address Subnet Mask Default Gateway Primary/Secondary DNS 6 Installation 1 The unit can be mounted on a wall or ceiling using the provided wall/ceiling mounting hardware kit, and to an appropriate ceiling using the T-rail mounting hardware kit. To attach the unit to a wall or ceiling 1. Select an appropriate location, then mark the locations on the wall or ceiling where the anchors will be inserted. 2. Drill the mounting holes, then insert the anchors into the holes. 3. Attach the mounting bracket to the anchors using two P3.5x32 screws. 4. Insert two P2.6X12 screws into the bottom of the unit, leaving enough of the screws exposed so that the unit can be mounted to the mounting bracket. If extra space is required between the unit and the mounting bracket, use the spacers and P2.6x25 screws from the T-rail mounting hardware kit. 5. Mount the device on the mounted mounting bracket then rotate it clockwise to secure it in place. FortiAP 321C Mounting Anchors Mounting Bracket P2.6x12 Screws P3.5x32 Screws 7 To attach the unit to a T-rail 1. Attach the T-rail clips to the bottom of the unit using two P2.6X10 screws. If extra space is required to accommodate drop ceiling tiles, use the provided spacers and P2.6x25 screws. 2. Line up the connected T-rail clips with an appropriately sized rail, then press the unit into the rail until it snaps into place. Note: To protect your device from unauthorized removal, use the Kensington Security Slot to attach a cable lock (not included). Note: Two sizes of T-rail clips are included in the mounting kit: 2.38cm (15/16in) and 1.43cm (9/16in). P2.6x10 Screws Clips P2.6x25 Screws Clips Spacers Rail Clip Kensignton Security Slot 8 Basic Connections 1 Connect your FortiAP device to a FortiGate controller or an Internet connection. If you are using Power over Ethernet (PoE), ensure that the cable is connected to an applicable port on your FortiGate device or PoE injector. Optionally, connect your device to a power outlet using the optional power adapter. Optional Power Connection Ethernet Port Internet Caution: Adequate grounding must be provided to the FortiAP unit and the PoE injector, in compliance with your local electrical code or regulations. Warning: This device complies with IEEE 802.3af PoE specification. Do not use any PoE injectors that are not IEEE 802.3af compliant as they may damage your device. 9 FortiAP Setup 2 Cloud provisioning with FortiCloud FortiGate secured on local network OR A B Ethernet PortEthernet Port FortiAPFortiGate FortiCloud Internet FortiAP Ethernet Port FortiAP Setup Video http://video.fortinet.com/video/92/basic-fortiap-setup 10 1. Visit http://www.forticloud.com and sign in or create a new account. 2. Click the “Add Device” link, enter the unique FortiCloud key located on your FortiAP device, then click Submit. 3. Deploy the FortiAP to an existing AP network, or create a new AP network, then click Submit. 4. Follow the prompts to associate the FortiAP device to an SSID. 5. Connect your FortiAP to an Internet connection. This can be a modem or another s…

Text truncated - open the document above for the full version.

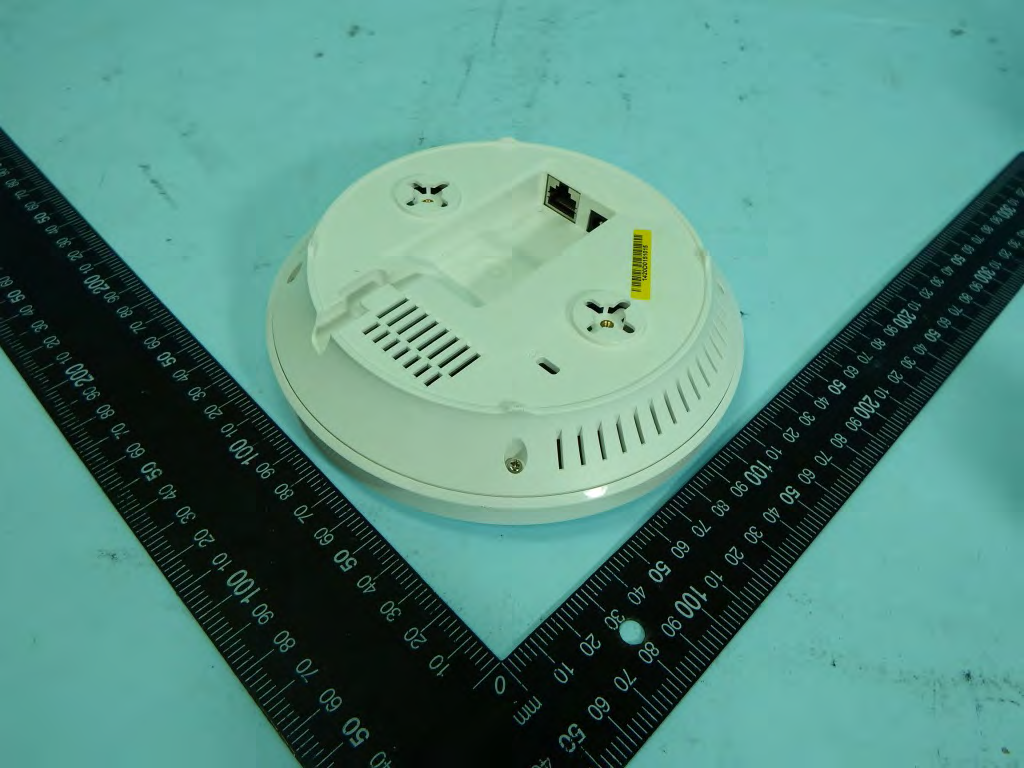

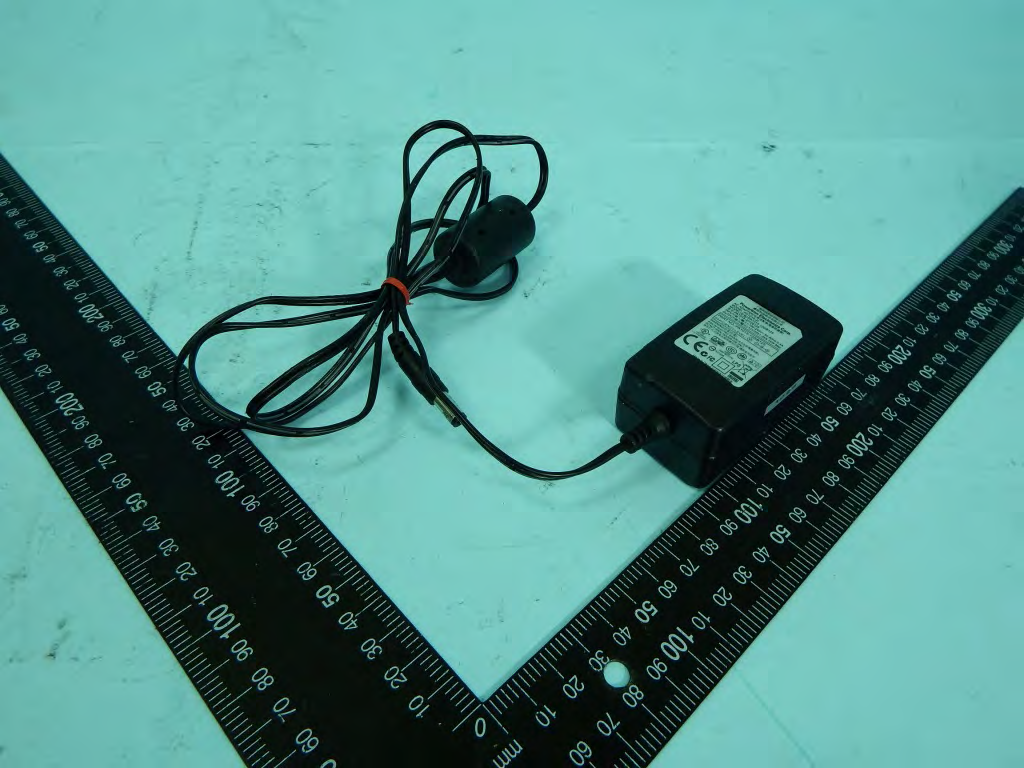

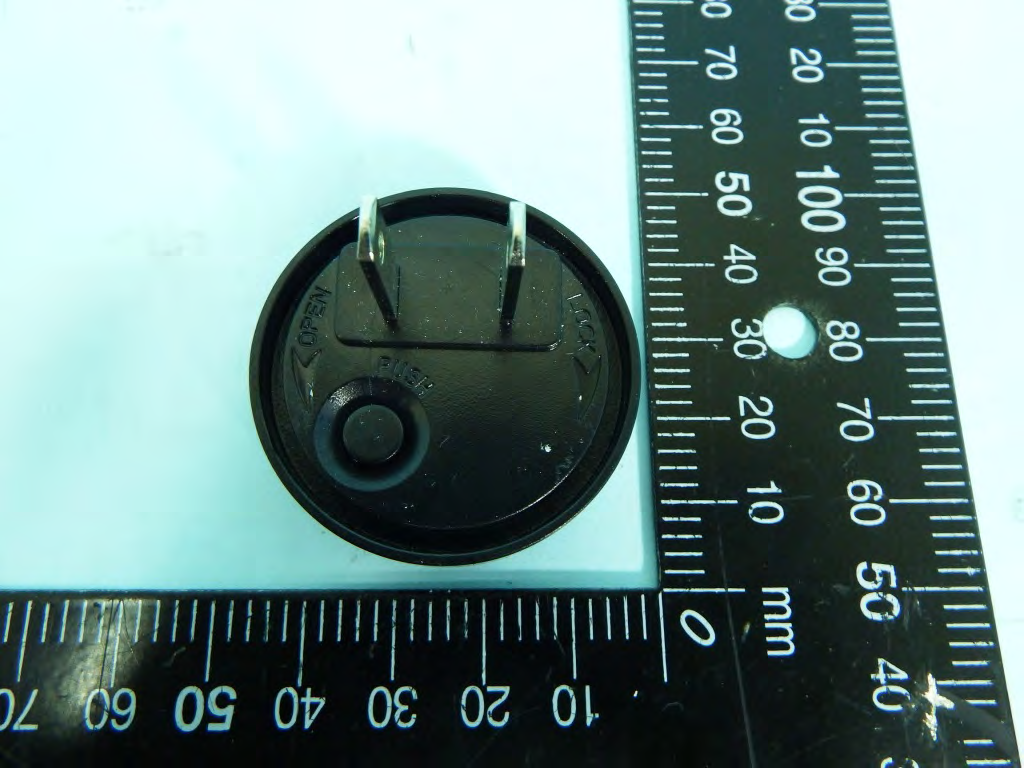

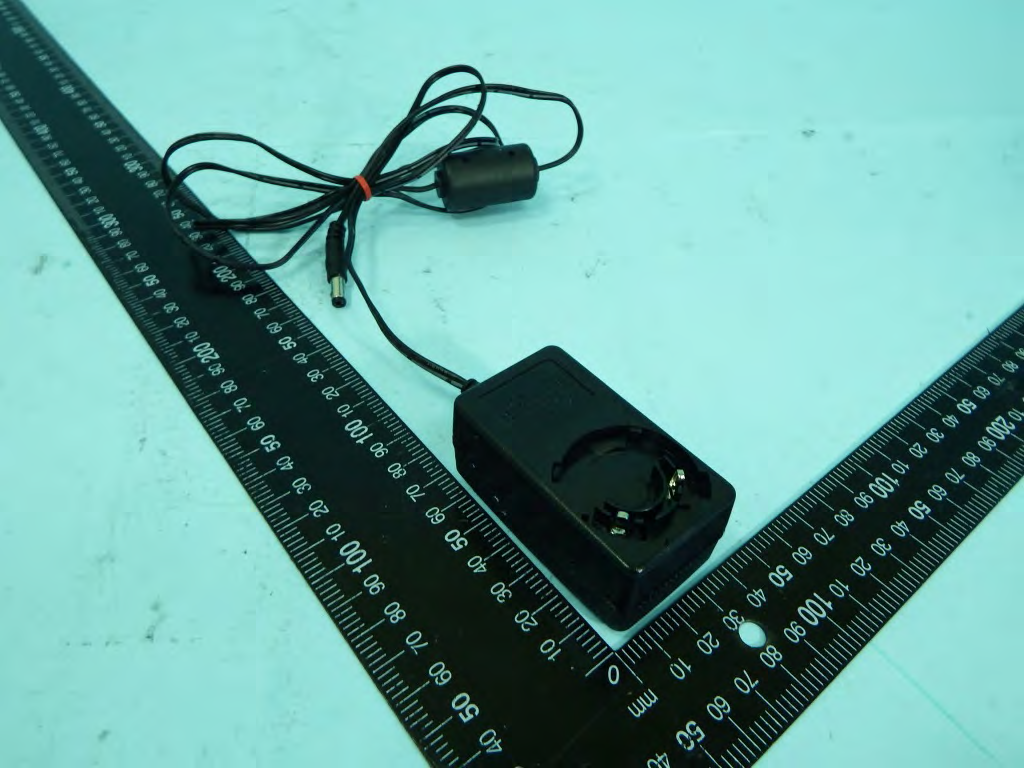

FCC Test Report Report No. : EP472124 SPORTON International Inc. PAGE NUMBER : B1 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP472124 SPORTON International Inc. PAGE NUMBER : B2 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP472124 SPORTON International Inc. PAGE NUMBER : B15 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP472124 SPORTON International Inc. PAGE NUMBER : B16 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973

FAP-321C-A

FCC Test Report Report No. : EP472124 SPORTON International Inc. PAGE NUMBER : B3 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP472124 SPORTON International Inc. PAGE NUMBER : B4 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP472124 SPORTON International Inc. PAGE NUMBER : B5 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP472124 SPORTON International Inc. PAGE NUMBER : B6 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP472124 SPORTON International Inc. PAGE NUMBER : B7 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP472124 SPORTON International Inc. PAGE NUMBER : B8 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP472124 SPORTON International Inc. PAGE NUMBER : B9 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP472124 SPORTON International Inc. PAGE NUMBER : B10 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP472124 SPORTON International Inc. PAGE NUMBER : B11 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP472124 SPORTON International Inc. PAGE NUMBER : B12 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP472124 SPORTON International Inc. PAGE NUMBER : B13 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP472124 SPORTON International Inc. PAGE NUMBER : B14 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 14, 2014 FAX : 886-3-327-0973

RF Exposure Report Report No. :FA472124 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1,842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1,500 F/300 6 1,500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1,500 F/1500 30 1,500-100,000 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. :FA472124 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure RF General Information 5150~5250MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 5150-5250 a 5180-5240 36-48 [4] 3 24.22 5150-5250 n (HT20) 5180-5240 36-48 [4] 3 24.72 5150-5250 n (HT40) 5190-5230 38-46 [2] 3 27.47 5150-5250 ac (VHT20) 5180-5240 36-48 [4] 3 24.65 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 3 27.48 5150-5250 ac (VHT80) 5210 42 [1] 3 18.93 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. RF General Information 5725 MHz – 5850 MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 5725-5850 a 5745-5825 149-165 [5] 3 25.87 5725-5850 n(HT20) 5745-5825 149-165 [5] 3 25.91 5725-5850 n(HT40) 5755-5795 151-159 [2] 3 28.33 5725-5850 ac(VHT20) 5745-5825 149-165 [5] 3 27.77 5725-5850 ac(VHT40) 5755-5795 151-159 [2] 3 28.03 5725-5850 ac(VHT80) 5775 155 [1] 3 17.28 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. RF General Information 2400 MHz – 2483.5 MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 3 26.08 2400-2483.5 g 2412-2462 1-11 [11] 3 24.34 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 3 23.75 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 3 21.44 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. RF Exposure Report Report No. :FA472124 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX RF Output Power (dBm) DG (dBi) EIRP Power PD (S) (mW/cm²) 11N-HT40 3 28.33 4.85 33.18 0.414 11b 3 26.08 3.95 30.03 0.200 Co-location Total 0.614 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR472124AC SPORTON INTERNATIONAL INC. Page No. : 2 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 23 3.5 Transmitter Radiated Bandedge Emissions ......................................................................................... 25 3.6 Transmitter Radiated Unwanted Emissions ......................................................................................... 28 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 57 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR472124AC SPORTON INTERNATIONAL INC. Page No. : 3 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.375119MHz 53.92 (Margin 4.47dB) - QP 45.74 (Margin 2.65dB) - AV FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M:6.06 / 40M:34.44 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]:29.40 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]: -0.21 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2399.50MHz: 32.33dB Restricted Bands [dBuV/m at 3m]: 2483.50MHz 69.11 (Margin 4.89dB) - PK 52.74 (Margin 1.26dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 4874MHz 52.60 (Margin 1.40dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR472124AC SPORTON INTERNATIONAL INC. Page No. : 4 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR472124AC Rev. 01 Initial issue of report Sep. 24, 2014 2500-2690 FCC Test Report Report No. : FR472124AC SPORTON INTERNATIONAL INC. Page No. : 5 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 2400-2483.5 b 2412-2462 1-11 [11] 3 29.03 Yes 2400-2483.5 g 2412-2462 1-11 [11] 3 29.40 Yes 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 3 28.78 Yes 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 3 26.47 Yes Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. Note 4: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) 1.1.2 Antenna Information Antenna Category Integral antenna (antenna permanently attached) Temporary RF connector provided No temporary RF connector provided Transmit chains bypass antenna and soldered temporary RF connector provided for connected measurement. In case of conducted measurements the transmitter shall be connected to the measuring equipment via a suitable attenuator and correct for all losses in the RF path. Antenna General Information No. Ant. Cat. Ant. Type Gain (dBi) 1 Integral PIFA 3.72 …

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR472124 SPORTON INTERNATIONAL INC. Page No. : 1 of 10 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Transmitter Radiated Unwanted Emissions 1.1.1 Transmitter Radiated Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m)Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). The test report shall specify the extrapolation method used to determine compliance of the EUT. Un-restricted Band Emissions Limit RF output power procedure Limit (dB) Peak output power procedure 20 Average output power procedure 30 Note 1: If the peak output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum measured in-band peak PSD level. Note 2: If the average output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the power in any 100 kHz outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum measured in-band average PSD level. 1.1.2 Measuring Instruments Refer a test equipment and calibration data table in this test report. FCC Test Report Report No. : FR472124 SPORTON INTERNATIONAL INC. Page No. : 2 of 10 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Test Procedures Test Method Measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Measurements in the frequency range 10 GHz - 18GHz are typically made at a closer distance 1m, because the instrumentation noise floor is typically close to the radiated emission limit. Measurements in the frequency range above 18 GHz - 25GHz are typically made at a closer distance 0.5m, because the instrumentation noise floor is typically close to the radiated emission limit. The average emission levels shall be measured in [duty cycle ≥ 98 or duty factor]. For the transmitter unwanted emissions shall be measured using following options below: Refer as FCC KDB 558074, clause 10.1 for unwanted emissions into non-restricted bands. Refer as FCC KDB 558074, clause 10.2 for unwanted emissions into restricted bands. Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 1 (spectral trace averaging) Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 2 (slow sweep speed). Refer as ANSI C63.10, clause 4.2.3.2.3 (Reduced VBW). VBW ≥ 1/T, where T is pulse time. Refer as ANSI C63.10, clause 4.2.3.2.4 average value of pulsed emissions. Refer as FCC KDB 558074, clause 10.2.3.2 and 8.1.1 measurement procedure peak limit. Refer as FCC KDB 558074, clause 10.2.3.1 measurement procedure Quasi-Peak limit. For radiated measurement, refer as FCC KDB 558074, clause 10.2.1. Refer as ANSI C63.10, clause 6.4 for radiated emissions below 30 MHz and test distance is 3m. Refer as ANSI C63.10, clause 6.5 for radiated emissions 30 MHz to 1 GHz and test distance is 3m. Refer as ANSI C63.10, clause 6.6 for radiated emissions above 1GHz. For 1 GHz to 40 GHz, test distance is 3m. For conducted and cabinet radiation measurement, refer as FCC KDB 558074, clause 10.2.2. For conducted unwanted emissions into non-restricted bands (relative emission limits). Devices with multiple transmit chains: Refer as FCC KDB 662911, when testing out-of-band and spurious emissions against relative emission limits, tests may be performed on each output individually without summing or adding 10 log(N) if the measurements are made relative to the in-band emissions on the individual outputs. For conducted unwanted emissions into restricted bands (absolute emission limits). Devices with multiple transmit chains using options given below: (1) Measure and sum the spectra across the outputs or (2) Measure and add 10 log(N) dB FCC KDB 558074 FCC Test Report Report No. : FR472124 SPORTON INTERNATIONAL INC. Page No. : 3 of 10 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Test Setup Transmitter Radiated Unwanted Emissions Below 1GHz Magnetic field tests shall be performed in the frequency range of 9 kHz to 3…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR472124AC SPORTON INTERNATIONAL INC. Page No. : A1 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR472124AC SPORTON INTERNATIONAL INC. Page No. : A2 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration Mode 1 FRONT VIEW REAR VIEW FCC Test Report Report No. : FR472124AC SPORTON INTERNATIONAL INC. Page No. : A3 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR472124AC SPORTON INTERNATIONAL INC. Page No. : A4 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR472124AC SPORTON INTERNATIONAL INC. Page No. : A5 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Mode 2 FRONT VIEW REAR VIEW FCC Test Report Report No. : FR472124AC SPORTON INTERNATIONAL INC. Page No. : A6 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz Mode 1 FRONT VIEW REAR VIEW
