TVE-26155055Secured Wireless Access Point

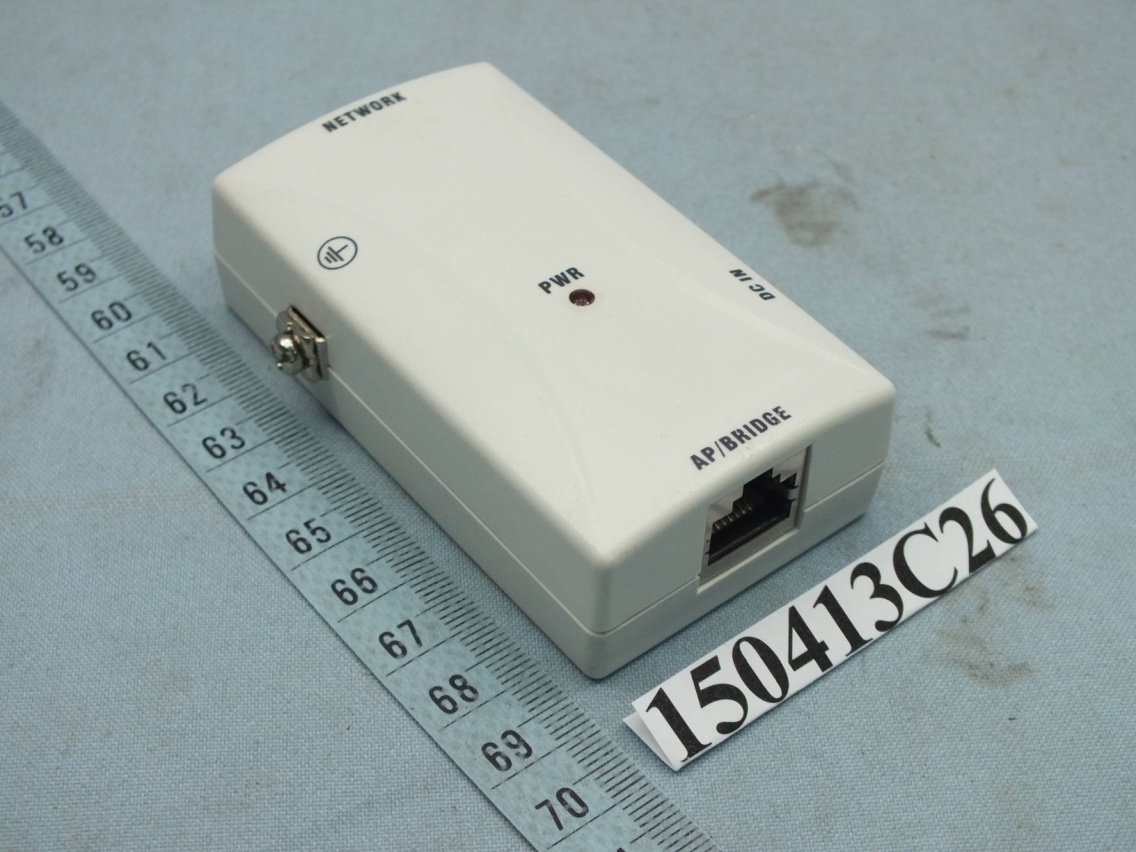

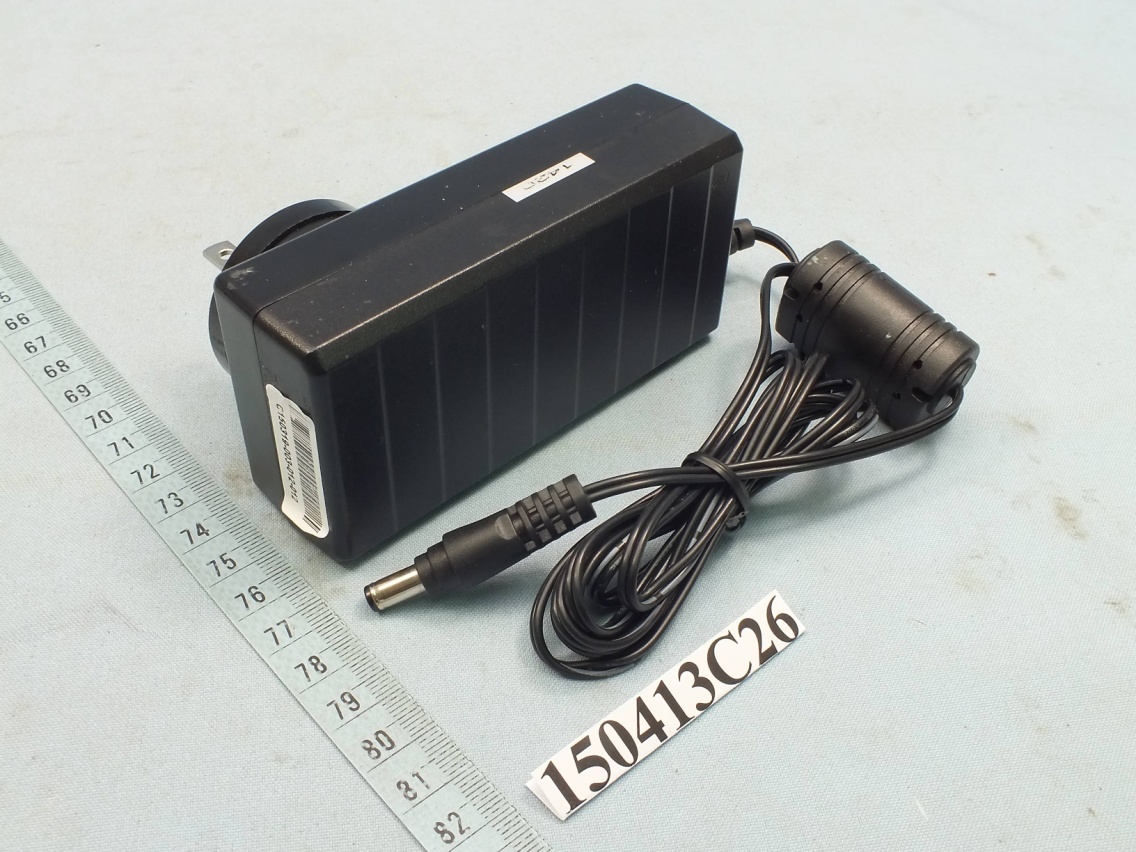

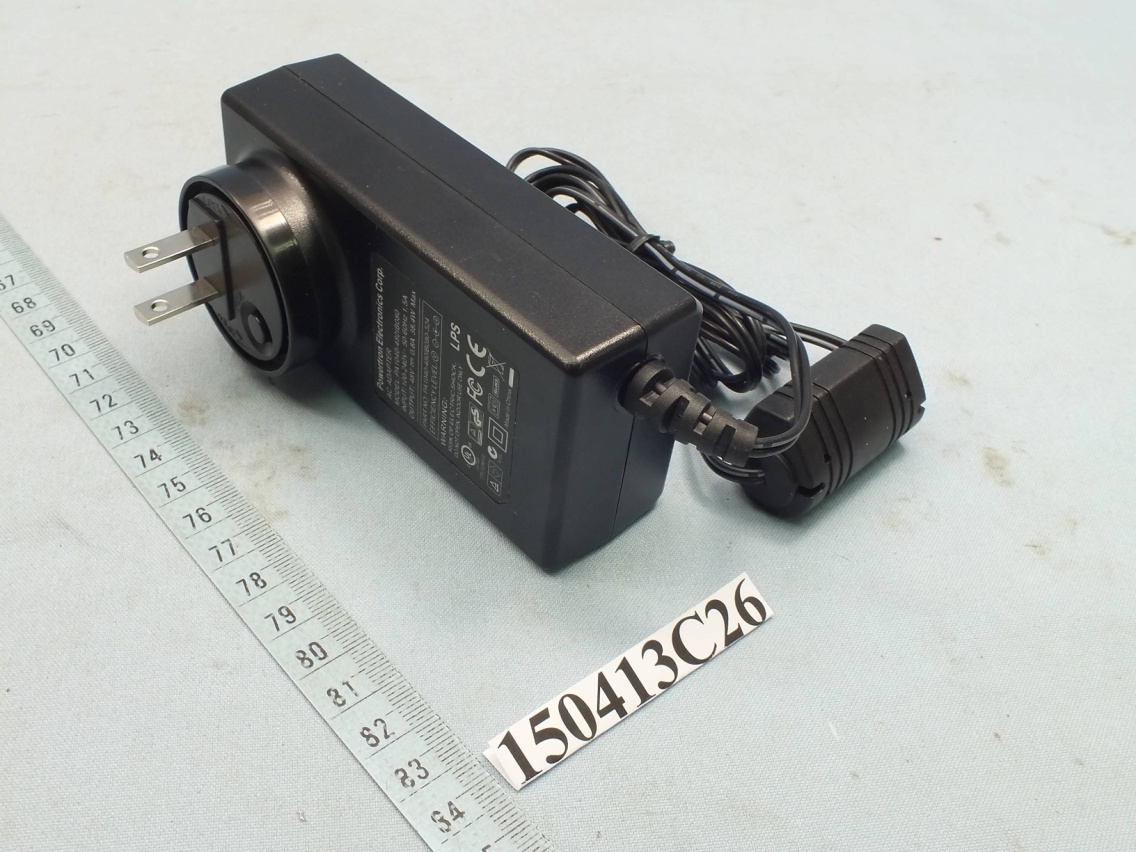

FortiAP S322CR Information Box Includes Information Supplement FortiAP S322CR Wall Mount Bracket Box Includes PoE Injector Power Adapter Pole Mount Strap Pole Mount Bracket Mounting Screws (8) & Bolts (4) Grounding Screw Surge Protector Waterproof Connector 3 Grounding Cables 12 Box Includes 5GHz Antenna (3) 2.4GHz Antenna (3) Installation IMPORTANT NOTE: The device must be professionally installed and must use the supplied antennas. The unit is designed for outdoor use and may be attached to either a pole or wall. A waterproof connector is supplied to ensure a watertight seal for connecting the Ethernet cable to the device. Note: The device can be mounted either outdoors or indoors. The included PoE injector and surge protector must be mounted indoors, as they are not weatherproof. To mount the device on a wall 1. Using the wall-mount base as a template, mark the location of the mounting bolt holes on a flat wall surface. 2. Drill the mounting holes in the marked locations. 3. Fasten the wall-mount base securely to the back of the unit using the provided mounting screws. 34 4. Attach the unit and base assembly to the wall using the provided mounting bolts. 5. Securely tighten the mounting bolts. To mount the FortiAP unit on a pole 1. Fasten the wall-mount base securely to the back of the unit using the provided mounting screws. 2. Attach the pole-mount bracket to the wall-mount base using with the provided screws. The pole-mount bracket can be attached either vertically or horizontally, as required. 56 3. Loop the provided pole strap through the slots on the pole-mount bracket and then around the pole. 4. Tighten the strap with an appropriate screw driver and ensure that the device is firmly in place. Antennas The FortiAP S322CR unit provides dual concurrent radio signals. Use the 2.4GHz antennas to access Radio 1 (802.11 b/g/n at 300Mbps) signals, and the 5GHz antennas to access Radio 2 (802.11 a/n/c at 867Mbps) signals. To use both radio frequencies concurrently, use all six WiFi antennas. To Install the WiFi antennas 1. Insert the antenna base firmly into the appropriate antenna mount. 2. Securely hand tighten the fastening collar. 3. Repeat for the remaining antennas. 5GHz2.4GHz2.4GHz 2.4GHz5GHz5GHz 78 Waterproof Panel Connector Sealing Gland Coupling Ring The unit requires 48V DC power, which is delivered by the PoE injector, through the surge protector, over a straight-through Ethernet cable. To install the weatherproof connector 1. Unscrew the coupling ring from the waterproof connector, remove the sealing gland, and thread the RJ-45 plug through the connector components. Cabling 2. Insert the RJ-45 plug into the PoE port on the unit and install the weatherproof panel connector onto the threaded coupling at the port. 3. Slide the sealing gland along the cable into the panel connector. 4. Thread the coupling ring onto the panel connector and tighten it until the sealing gland is compressed, making a watertight seal on the cable. 910 Connections Adequate grounding must be provided to the FortiAP unit, the PoE injector, and the surge protector; grounding lugs and cables are provided for this purpose. Consult a certified electrician to ensure that all grounding and cabling is installed in compliance with the local electrical code. Use an exterior-grade or direct burial CAT5 Ethernet cable for connecting the outdoor unit to the surge protector. Use the supplied weatherproof connector to ensure a tight seal at the PoE port on the unit. Note: The PoE injector and surge protector units are not weatherproof and must be mounted indoors. They should be mounted as close together as possible. Caution: Do not connect the PoE injector to a PoE enabled Ethernet port. To wire the surge protector 1. Remove the cover of the surge protector using an appropriate screwdriver. 2. Connect the ground wire with the spade lug connector to the grounding post between the two Ethernet connectors. 3. Connect the straight-through Ethernet cable that will connect to the FortiAP unit to the Ethernet port on the right side of the surge protector. 4. Connect the straight-through Ethernet cable that will connect to the PoE injector the Ethernet port on the left side of the surge protector. 5. Ensure that the cables comfortably pass through the provided slots on the front of the surge protector. 6. Replace the cover onto the surge protector using an appropriate screwdriver. 1112 To Connect the FortiAP unit 1. Connect grounding cables to the grounding lugs on both FortiAP unit (bottom middle of unit), using the provided grounding screw, and the PoE injector, then connect the other ends of the cables to appropriate ground connections. 2. Connect the surge protector’s grounding cable to an appropriate ground connection. 3. Connect the region-specific AC plug adapter to the AC power adapter by inserting the round disk into the adapter and rotating clockwise until you hear the disk lock in place. 1. Connect grounding cables to the grounding lugs on both the FortiAP unit (bottom middle of unit), using the provided grounding screw, and the PoE injector, then connect the other ends of the cables to appropriate ground connections. 2. Connect the surge protector’s grounding cable to an appropriate ground connection. 3. Connect the region-specific AC plug adapter to the AC power adapter by inserting the round disk into the adapter and rotating clockwise until you hear the disk lock in place. 4. Insert the DC plug of the power adapter into the DC IN port on the PoE injector, then plug the AC adapter into an appropriate power outlet. The Power LED will light up. 5. Connect one end of a cross-over Ethernet cable to the Network port on the PoE injector. Connect the other end to the FortiGate controller or an Internet connection. Do not connect the PoE injector to a PoE enabled Ethernet port. 6. Using the supplied weatherproof connector, connect the weatherproof, straight-through Ethernet cable on the right side of the surge protect…

Text truncated - open the document above for the full version.

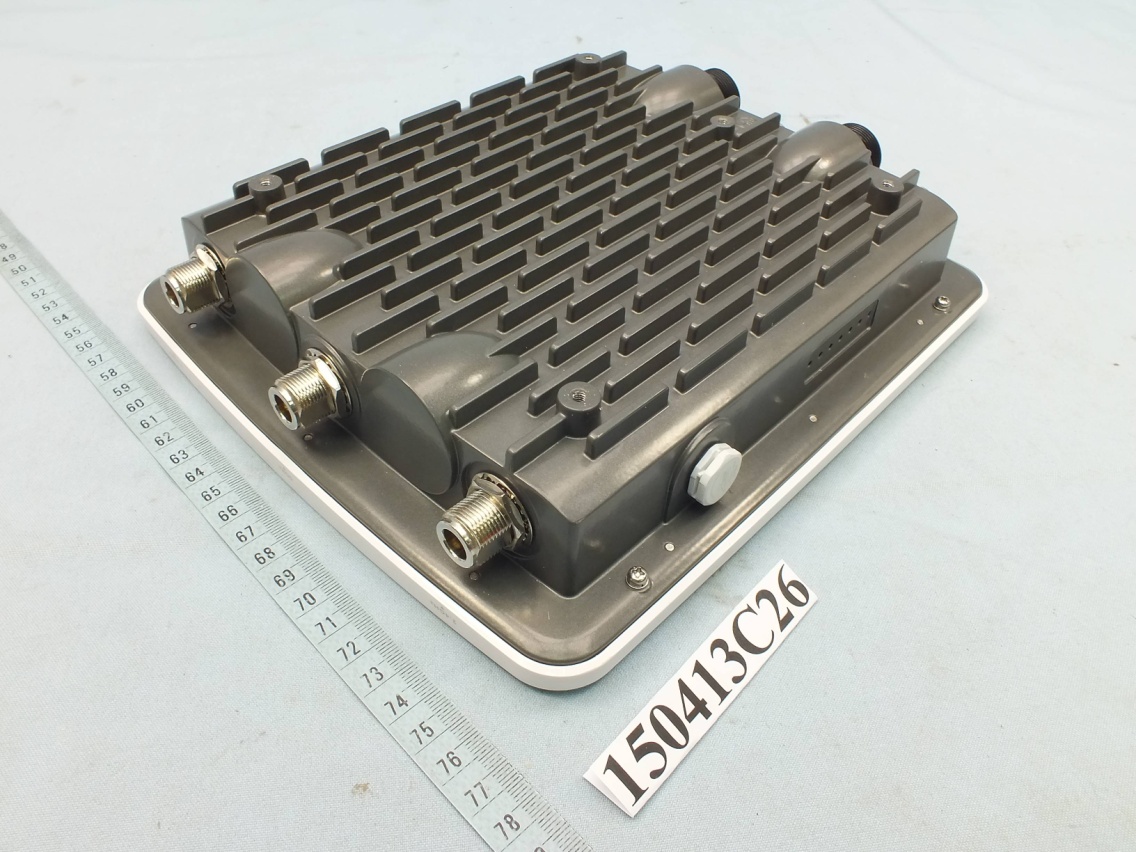

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5

FORTIAP-S322CR

Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20

Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

Report No.: SA150413C26 Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report Report No.: SA150413C26 FCC ID: TVE-26155055 Model: FAP-S322CR Series Model: FortiAP-S322CRxxxxxx, FAP-S322CRxxxxxx, FORTIAP-S322CRxxxxxx (where “x” can be used as “A-Z”, or “0-9”, or “-“, or blank for software changes or marketing purposes only) Received Date: Apr. 13, 2015 Test Date: Jun. 05 ~ Jul. 17, 2015 Issued Date: Jul. 28, 2015 Applicant: Fortinet lnc. Address: 899 Kifer Road Sunnyvale, CA 94086 USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, TAIWAN (R.O.C.) This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: SA150413C26 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits For Maximum Permissible Exposure (MPE) ............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 3 Calculation Result Of Maximum Conducted Power .......................................................................... 6 Report No.: SA150413C26 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA150413C26 Original release. Jul. 28, 2015 Report No.: SA150413C26 Page No. 4 / 6 Report Format Version: 6.1.1 1 Certificate of Conformity Product: Secured Wireless Access Point Brand: Fortinet lnc. Model: FAP-S322CR Series Model: FortiAP-S322CRxxxxxx, FAP-S322CRxxxxxx, FORTIAP-S322CRxxxxxx (where “x” can be used as “A-Z”, or “0-9”, or “-“, or blank for software changes or marketing purposes only) Sample Status: Engineering sample Applicant: Fortinet lnc. Test Date: Jun. 05 ~ Jul. 17, 2015 Standards: FCC Part 2 (Section 2.1091) KDB 447498 D03 IEEE C95.1 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : , Date:Jul. 28, 2015 Polly Chien / Specialist Approved by : , Date:Jul. 28, 2015 Ken Liu / Senior Manager Report No.: SA150413C26 Page No. 5 / 6 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits For Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 34cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA150413C26 Page No. 6 / 6 Report Format Version: 6.1.1 3 Calculation Result Of Maximum Conducted Power Frequency Band (MHz) Max Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412-2462 29.93 9.66 34 0.626 1 5180-5240 23.19 10.8 34 0.173 1 5745-5825 25.87 10.8 34 0.320 1 Note: 2.4GHz: Directional gain =4.89dBi + 10log(3) = 9.66dBi 5GHz: Directional gain =6.03dBi + 10log(3) = 10.8dBi Conclusion: The formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density WLAN 2.4GHz + WLAN 5GHz = 0.626 + 0.320 = 0.946 Therefore all the maximum calculations of above situatio…
