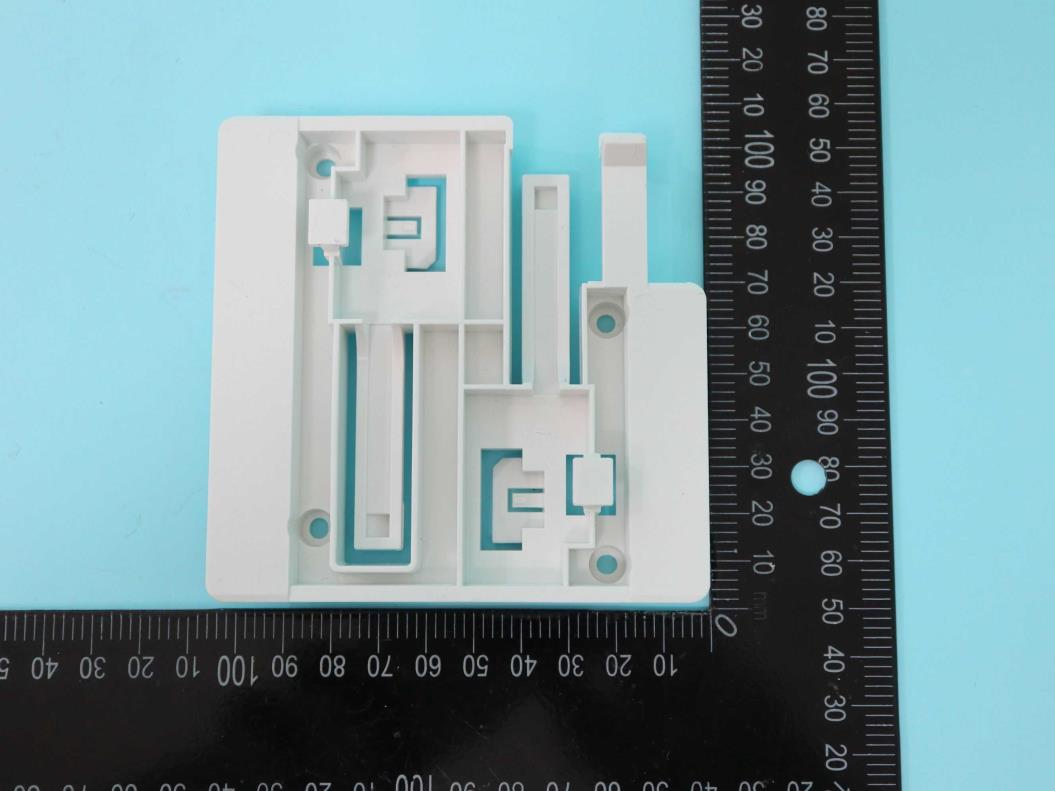

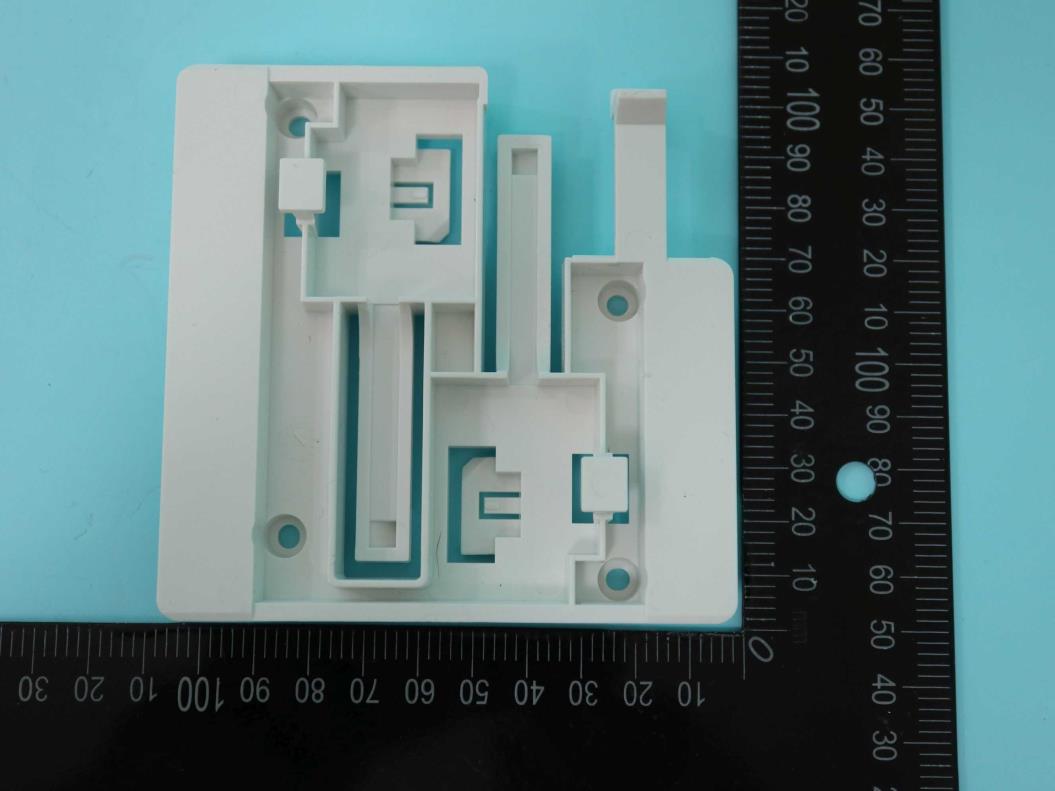

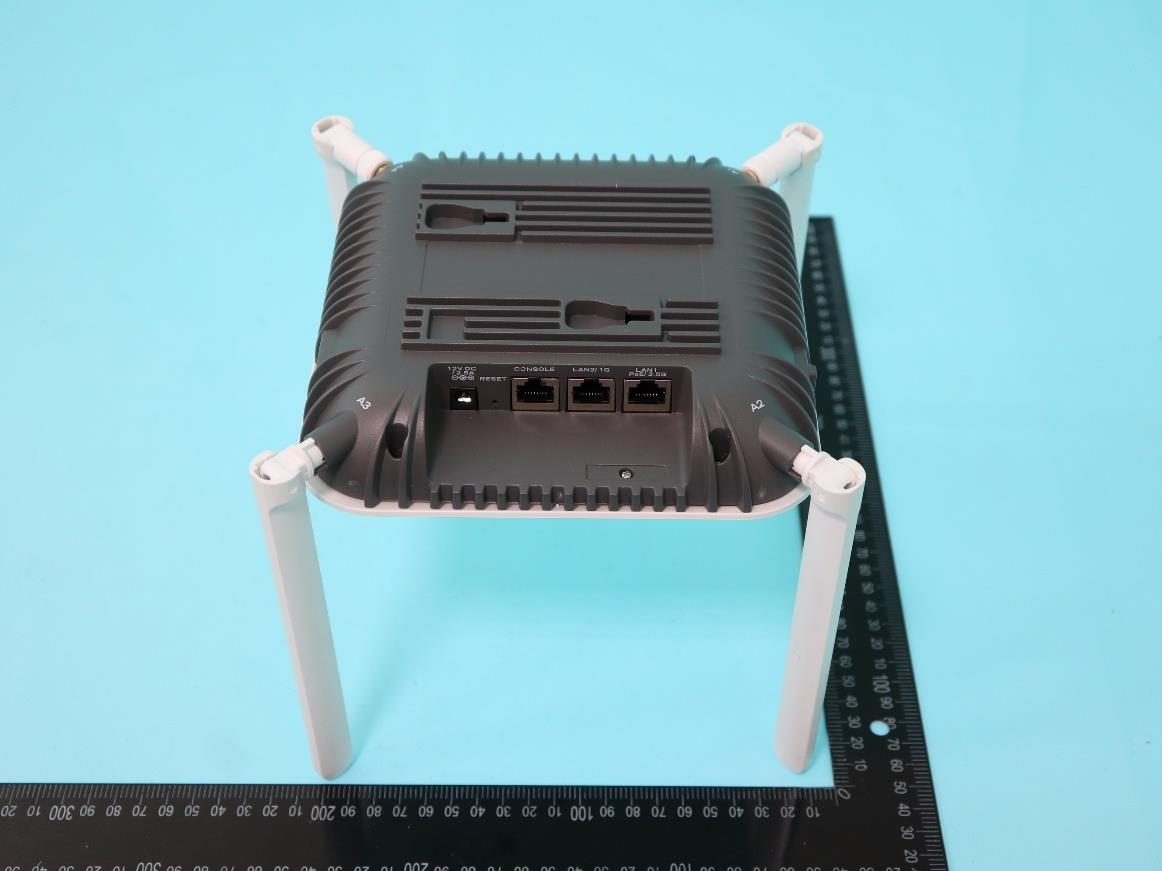

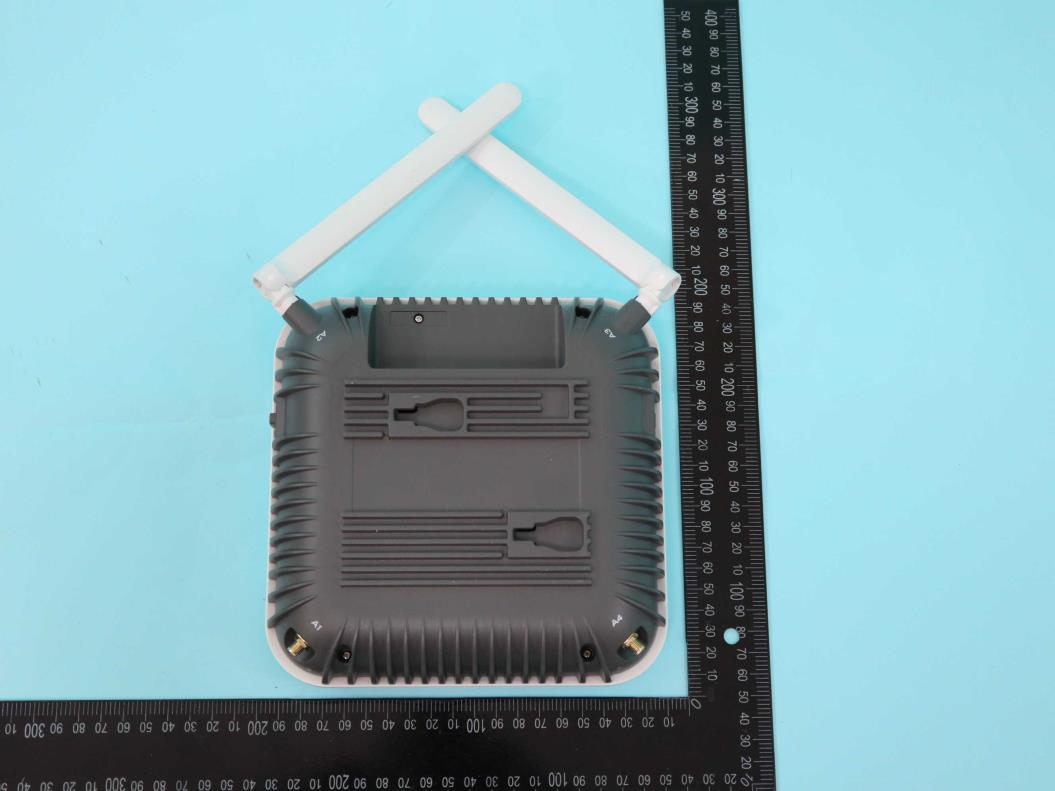

TVE-3518T01236Secured Wireless Access Point

QuickStart Guide FortiAP 231G & 233G Series FAP-231G, FAP-233G QuickStart Guide Before you begin Register your device to access FortiGuard updates, cloud management, firmware upgrades, technical support and warranty coverage. http://support.fortinet.com 32 November 8, 2022 Copyright© 2022 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. Performance and other metrics contained herein were attained in internal lab tests under ideal conditions, and actual performance and other results may vary. Network variables, different network environments and other conditions may affect performance results. Nothing herein represents any binding commitment by Fortinet, and Fortinet disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding written contract, signed by Fortinet’s General Counsel, with a purchaser that expressly warrants that the identified product will perform according to certain expressly-identified performance metrics and, in such event, only the specific performance metrics expressly identified in such binding written contract shall be binding on Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. In no event does Fortinet make any commitment related to future deliverables, features or development, and circumstances may change such that any forward-looking statements herein are not accurate. Fortinet disclaims in full any covenants, representations, and guarantees pursuant hereto, whether express or implied. Fortinet reserves the right to change, modify, transfer, or otherwise revise this publication without notice, and the most current version of the publication shall be applicable. For Product License Agreement / EULA and Warranty Terms, visit https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf This guide covers: FAP-231G, FAP-233G Package Contents 5 FortiAP 231G & 233G FAP-231G*, FAP-233G** FortiAP Device* 9/16” Ceiling Mounting Bracket 8x Mounting Screws with 8x Anchors 15/16” Ceiling Mounting Bracket 4x Antennas** (2x detachable, 2x non-detachable) FortiAP Antenna Device** QuickStart Guide 4 The Essentials For a detailed FortiAP setup and configuration information, refer to the Admin Guide on https://docs.fortinet.com/product/fortiap For contracts, licensing, product registration and account management, contact FortiCare Support at https://www.fortinet.com/support/contact Access our knowledge base, forums, videos and technical experts at https://www.fortinet.com/support/support-services/forticare-support Default Logins https://192.168.1.2 Username: admin Password: leave blank http://fortilancloud.com Username: user-defined Password: user-defined Admin Guide Customer Service Self-service Resources Thank you for choosing Fortinet Setup Options Power the FortiAP device with a 802.3 af/at PoE injector, FortiGate PoE port or the optional (not included) 12V 2.5A power adapter. FortiLAN Cloud Ethernet Cable (not included) FortiAP LAN Port FortiAP LAN Port FortiAP LAN Port FortiGate Ethernet Port FortiGate Ethernet Port Same Network http://fortilancloud.com Note: Use your FortiCloud credentials to log in, then click Inventory, Import AP Key and enter the Cloud Key on the device sticker Note: To self-configure, preauthorize the FortiAP on your FortiGate Otherwise once connected, wait for the FortiAP to appear on the Managed FortiAP page in FortiOS. Note: Connect to the FortiAP using 192.168.1.2 with username admin and set a password. Specify the FortiGate IP using: cfg -a AC_IPADDR=0.0.0.0 cfg -c where 0.0.0.0 is the FortiGate IP. Direct Connection Network Connection 1 1 1 2 3 34 3 6 FortiLAN Cloud Ethernet Cable (not included) Ethernet Cable (not included) 2 2 7 89 Bracket InstallationAntenna Installation (FAP-233G only) The FortiAP mounts on a ceiling using the provided T-rail mounting brackets that come in two standard sizes: 1.43cm (9/16in) and 2.38cm (15/16in). 1. Select the bracket for the T-rail size: 1.43cm (9/16in) or 2.38cm (15/16in) 2. With the ports facing you, slide the bracket left to right 3. Hold the device against the ceiling T-rail and push until it snaps into place 1. Insert the antenna base firmly into the appropriate antenna mount 2. Securely hand tighten the antenna fastening collar 3. Repeat for the remaining antennas fastening collar Note: Antennas A2 and A3 are non-detachable. Antennas A1 and A4 are detachable. 1011 1 1 2 3 4 5 6 23456 LED STATUS Interfaces - FAP 231G / 233G OPTIONAL POWER (12V DC) Optional 12V DC 2.5A adapter RESET system reset CONSOLE (RJ-45) CLI management LAN2 (RJ-45) 1 Gbps Ethernet interface LAN1 / POE (RJ-45) 2.5 Gbps 802.3at PoE Ethernet interface Power Off: Device is off Green: Device is on and connected to a controller Amber: Device is on and not connected to a controller LAN Off: LAN is not connected Green: LAN is connected Blinking Green: LAN data activity WiFi Off: WiFi not broadcasting Green: SSID broadcasting Blinking Green: Wireless data activity 1213 Cautions and Warnings Environmental specifications Ambient operating temperature: 0°C to 50°C Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude) Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité et l’altitude). Safety Caution: This equipment is to be used in a Network Environment 0 per IECTR 62101. This product is connected only to PoE networks without routing to the outside plant. Attention: Ce matériel doit être utilisé dan…

Text truncated - open the document above for the full version.

Date: November 16, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: declaration of composite/rated equipment for FCC ID: TVE-3518T01236 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as Class B personal computers and peripherals has been authorized under the Supplier's Declaration of Conformity (SDoC) procedures. Sincerely, Applicant : Fortinet Inc. Address : 899 Kifer Road, Sunnyvale, California 94086, United States Signature : _________________________________ Name and Job Title. : Andrew Ji, Director Operations E-mail : [email protected] Te l . : 408 235 7700

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: November 16, 2022 Subject: Letter of Declaration on LPI Operation FCC ID: TVE-3518T01236 Product Name: Secured Wireless Access Point To whom it may concern: We the undersigned, hereby attest that this device complies with the following requirements of Part 15E of the FCC’s rules for the 6GHz bands: a.) An IEEE 802.11ax Access Point’s Transmit Power Envelope element has information fields for power limits for connecting client/subordinate devices. The TPE information is contained in this device signals and used by connecting client/subordinate to ensure that it knows the regulatory TX powers it is allowed to transmit at. There is a regulatory info field in this device beacon and probe response frames which details this device type when the client/subordinate associates to this device. b.) The statement acknowledging device restrictions: i. This AP is power from a wired connection, has an integrated antenna, is not battery powered, and does not have a weatherized enclosure. ii. This AP will not be allowed on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet. iii. This AP is prohibited for control of or communications with unmanned aircraft systems, including drones. Sincerely, Applicant : Fortinet Inc. Address : 899 Kifer Road, Sunnyvale, California 94086, United States Signature : _________________________________ Name and Job Title. : Andrew Ji, Director Operations E-mail : [email protected] Te l . : 408 235 7700

Confidentiality Request Letter Date: November 16, 2022 Federal Communications Commission Authorization and Evaluation Division Subject: Request for confidentiality FCC ID: TVE-3518T01236 To whom it may concern: Permanent Confidentiality Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. 1. Block Diagram 2. Schematics 3. Operational Description 4. Software Security For U-NII Devices It is our understanding that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Sincerely, Applicant : Fortinet Inc. Address : 899 Kifer Road, Sunnyvale, California 94086, United States Signature : _________________________________ Name and Job Title. : Andrew Ji, Director Operations E-mail : [email protected] Te l . : 408 235 7700

Date: November 16, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Professional Installation Attestation FCC ID: TVE-3518T01236 Product Name: Secured Wireless Access Point To whom it may concern: We, the undersigned, hereby declares that the device will be distributed through a controlled distribution channels. This device is not intended for sale to the general public. Professional training and support is provided as part of the Authorized Partner programs. Sincerely, Applicant : Fortinet Inc. Address : 899 Kifer Road, Sunnyvale, California 94086, United States Signature : _________________________________ Name and Job Title. : Andrew Ji, Director Operations E-mail : [email protected] Te l . : 408 235 7700

Letter of Authorization Date: November 16, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: TVE-3518T01236 Product Name: Secured Wireless Access Point To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization to the FCC Rules and Regulations. Sporton International Inc. Address : No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Name : Leo Huang Job Title : Director e-mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Fortinet Inc. Address : 899 Kifer Road, Sunnyvale, California 94086, United States Signature : _________________________________ Name and Job Title. : Andrew Ji, Director E-mail : [email protected] Te l . : 408 235 7700

RSE TX above 1GHz_Beamforming Appendix E.5 Sporton International Inc. Page No. : E72 of E76 Report No. : FR262434AE RSE TX above 1GHz_Beamforming Appendix E.5 Sporton International Inc. Page No. : E73 of E76 Report No. : FR262434AE RSE TX above 1GHz_Beamforming Appendix E.5 Sporton International Inc. Page No. : E74 of E76 Report No. : FR262434AE RSE TX above 1GHz_Beamforming Appendix E.5 Sporton International Inc. Page No. : E75 of E76 Report No. : FR262434AE RSE TX above 1GHz_Beamforming Appendix E.5 Sporton International Inc. Page No. : E76 of E76 Report No. : FR262434AE Contention-Based Protocol Result Appendix F Sporton International Inc. Page No. : F1 of F29 Antenna Gain(dBi) UNII5 UNII6 UNII7 UNII8 4.37 4.37 4.37 4.37 Contention Based protocol 802.11ax HE20 UNII Band Channel Bandwidth (MHz) Frequency (MHz) Interference frequency (MHz) AWGN Threshold Level (dBm) EUT Status Number of Detected (out of 10 times) Detection Probability (%) Limit (%) Test Result 5 53 20 6215 Center 6215 -66.37 OFF 10 100 90 Pass 6 101 20 6455 Center 6455 -65.37 OFF 10 100 90 Pass 7 149 20 6695 Center 6695 -62.00 OFF 10 100 90 Pass 8 213 20 7015 Center 7015 -65.37 OFF 10 100 90 Pass Contention Based protocol 802.11ax HE160 UNII Band Channel Bandwidth (MHz) Frequency (MHz) Interference frequency (MHz) AWGN Threshold Level (dBm) EUT Status Number of Detected (out of 10 times) Detection Probability (%) Limit(%) Test Result 5 47 160 6185 Low edge 6110 -62.00 OFF 10 100 90 Pass Center 6185 -62.00 OFF 10 100 90 Pass High edge 6260 -62.37 OFF 10 100 90 Pass 6 111 160 6505 Low edge 6430 -62.00 OFF 10 100 90 Pass Center 6505 -62.00 OFF 10 100 90 Pass High edge 6580 -65.37 OFF 10 100 90 Pass 7 143 160 6665 Low edge 6590 -67.37 OFF 10 100 90 Pass Center 6665 -63.37 OFF 10 100 90 Pass High edge 6740 -62.00 OFF 10 100 90 Pass 8 207 160 6985 Low edge 6910 -69.37 OFF 10 100 90 Pass Center 6985 -62.00 OFF 10 100 90 Pass High edge 7060 -65.37 OFF 10 100 90 Pass Report No. : FR262434AE Contention-Based Protocol Result Appendix F Sporton International Inc. Page No. : F2 of F29 Contention Based Protocol Threshold Level UNII Band Channel Bandwidth (MHz) Frequency (MHz) Intetference frequency (MHz) EUT Status Injected AWGN Power (dBm) Ant Gain (dBi) Detection Power(dBm) Detection Limit (dBm) 5 53 20 6215 Center 6215 OFF -62.00 4.37 -66.37 ≤ -62 Minimal -63.00 4.37 -67.37 ≤ -62 ON -64.00 4.37 -68.37 ≤ -62 6 101 6455 Center 6455 OFF -61.00 4.37 -65.37 ≤ -62 Minimal -62.00 4.37 -66.37 ≤ -62 ON -63.00 4.37 -67.37 ≤ -62 7 149 6695 Center 6695 OFF -57.63 4.37 -62.00 ≤ -62 Minimal -58.00 4.37 -62.37 ≤ -62 ON -59.00 4.37 -63.37 ≤ -62 8 213 7015 Center 7015 OFF -61.00 4.37 -65.37 ≤ -62 Minimal -62.00 4.37 -66.37 ≤ -62 ON -63.00 4.37 -67.37 ≤ -62 Report No. : FR262434AE Contention-Based Protocol Result Appendix F Sporton International Inc. Page No. : F3 of F29 Contention Based Protocol Threshold Level UNII Band Channel Bandwidth (MHz) Frequency (MHz) Intetference frequency (MHz) EUT Status Injected AWGN Power (dBm) Ant Gain (dBi) Detection Power(dBm) Detection Limit (dBm) 5 47 160 6185 Low edge 6110 OFF -57.63 4.37 -62.00 ≤ -62 Minimal -58.00 4.37 -62.37 ≤ -62 ON -59.00 4.37 -63.37 ≤ -62 Center 6185 OFF -57.63 4.37 -62.00 ≤ -62 Minimal -58.00 4.37 -62.37 ≤ -62 ON -59.00 4.37 -63.37 ≤ -62 High edge 6260 OFF -58.00 4.37 -62.37 ≤ -62 Minimal -59.00 4.37 -63.37 ≤ -62 ON -60.00 4.37 -64.37 ≤ -62 6 111 6505 Low edge 6430 OFF -57.63 4.37 -62.00 ≤ -62 Minimal -58.00 4.37 -62.37 ≤ -62 ON -59.00 4.37 -63.37 ≤ -62 Center 6505 OFF -57.63 4.37 -62.00 ≤ -62 Minimal -58.00 4.37 -62.37 ≤ -62 ON -59.00 4.37 -63.37 ≤ -62 High edge 6580 OFF -61.00 4.37 -65.37 ≤ -62 Minimal -62.00 4.37 -66.37 ≤ -62 ON -63.00 4.37 -67.37 ≤ -62 7 143 6665 Low edge 6590 OFF -63.00 4.37 -67.37 ≤ -62 Minimal -64.00 4.37 -68.37 ≤ -62 ON -65.00 4.37 -69.37 ≤ -62 Center 6665 OFF -59.00 4.37 -63.37 ≤ -62 Minimal -60.00 4.37 -64.37 ≤ -62 ON -61.00 4.37 -65.37 ≤ -62 High edge 6740 OFF -57.63 4.37 -62.00 ≤ -62 Minimal -58.00 4.37 -62.37 ≤ -62 ON -59.00 4.37 -63.37 ≤ -62 8 207 6985 Low edge 6910 OFF -65.00 4.37 -69.37 ≤ -62 Minimal -66.00 4.37 -70.37 ≤ -62 ON -67.00 4.37 -71.37 ≤ -62 Center 6985 OFF -57.63 4.37 -62.00 ≤ -62 Minimal -58.00 4.37 -62.37 ≤ -62 ON -59.00 4.37 -63.37 ≤ -62 High edge 7060 OFF -61.00 4.37 -65.37 ≤ -62 Minimal -62.00 4.37 -66.37 ≤ -62 ON -63.00 4.37 -67.37 ≤ -62 Report No. : FR262434AE Contention-Based Protocol Result Appendix F Sporton International Inc. Page No. : F4 of F29 Bandwidth 20MHz: Traffic Loading Plot - 6215MHz Bandwidth 20MHz: Traffic Loading Plot - 6455MHz Report No. : FR262434AE Contention-Based Protocol Result Appendix F Sporton International Inc. Page No. : F5 of F29 Bandwidth 20MHz: Traffic Loading Plot - 6695MHz Report No. : FR262434AE Contention-Based Protocol Result Appendix F Sporton International Inc. Page No. : F6 of F29 Bandwidth 160MHz: Traffic Loading Plot - 6185MHz Bandwidth 160MHz: Traffic Loading Plot - 6505MHz Report No. : FR262434AE Contention-Based Protocol Result Appendix F Sporton International Inc. Page No. : F7 of F29 Bandwidth 160MHz: Traffic Loading Plot - 6665MHz Bandwidth 160MHz: Traffic Loading Plot - 6985MHz Report No. : FR262434AE Contention-Based Protocol Result Appendix F Sporton International Inc. Page No. : F8 of F29 1. Incumbent signal (AWGN) Plot Frequency (MHz): 6215 MHz AWGN Bandwidth: 10MHz Frequency (MHz): 6455 MHz AWGN Bandwidth: 10MHz Report No. : FR262434AE Contention-Based Protocol Result Appendix F Sporton International Inc. Page No. : F9 of F29 Frequency (MHz): 6695 MHz AWGN Bandwidth: 10MHz Frequency (MHz): 7015 MHz AWGN Bandwidth: 10MHz Report No. : FR262434AE Contention-Based Protocol Result Appendix F Sporton International Inc. Page No. : F10 of F29 Frequency (MHz): 6110 MHz AWGN Bandwidth: 10MHz Frequency (MHz): 6185 MHz AWGN Bandwidth: 10MHz Report No. : FR262434AE Contention-Based Protocol Result Appendix F Sporton International Inc. Page No. : F11 of F29 Frequency (MHz): 6260 MHz AWGN Bandwidth:…

Text truncated - open the document above for the full version.

RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E48 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E49 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E50 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E51 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E52 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E53 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E54 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E55 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E56 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E57 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E58 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E59 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E60 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E61 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E62 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E63 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E64 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E65 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E66 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E67 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E68 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E69 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E70 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E71 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E72 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E73 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E74 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E75 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E76 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E77 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E78 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E79 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E80 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E81 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E82 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E83 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E84 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E85 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E86 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E87 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E88 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E89 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E90 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E91 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E92 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E93 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E94 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E95 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International Inc. Page No. : E96 of E132 Report No. : FR262434AE RSE TX above 1GHz_Non-Beamforming Appendix E.4 Sporton International In…

Text truncated - open the document above for the full version.

PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D9 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D10 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D11 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D12 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D13 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D14 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D15 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D16 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D17 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D18 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D19 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D20 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D21 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D22 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D23 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D24 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D25 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D26 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D27 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D28 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D29 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D30 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D31 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D32 of D33 Report No. : FR262434AE PSD_Non-Beamforming Appendix D.1 Sporton International Inc. Page No. : D33 of D33 Report No. : FR262434AE PSD_Beamforming Appendix D.2 Sporton International Inc. Page No. : D1 of D25 Summary Mode EIRP PD (dBm/RBW) 5.925-6.425GHz - 802.11ax HEW20-BF_Nss1,(MCS0)_2TX 4.77 802.11ax HEW40-BF_Nss1,(MCS0)_2TX 4.89 802.11ax HEW80-BF_Nss1,(MCS0)_2TX 4.35 802.11ax HEW160-BF_Nss1,(MCS0)_2TX 4.75 6.425-6.525GHz - 802.11ax HEW20-BF_Nss1,(MCS0)_2TX 4.84 802.11ax HEW40-BF_Nss1,(MCS0)_2TX 4.80 802.11ax HEW80-BF_Nss1,(MCS0)_2TX 4.84 802.11ax HEW160-BF_Nss1,(MCS0)_2TX 4.72 6.525-6.875GHz - 802.11ax HEW20-BF_Nss1,(MCS0)_2TX 4.76 802.11ax HEW40-BF_Nss1,(MCS0)_2TX 4.59 802.11ax HEW80-BF_Nss1,(MCS0)_2TX 4.96 802.11ax HEW160-BF_Nss1,(MCS0)_2TX 4.90 6.875-7.125GHz - 802.11ax HEW20-BF_Nss1,(MCS0)_2TX 4.74 802.11ax HEW40-BF_Nss1,(MCS0)_2TX 4.77 802.11ax HEW80-BF_Nss1,(MCS0)_2TX 4.47 802.11ax HEW160-BF_Nss1,(MCS0)_2TX 4.45 RBW = 500kHz for 5.725-5.85GHz band / 1MHz for other band; Report No. : FR262434AE PSD_Beamforming Appendix D.2 Sporton International Inc. Page No. : D2 of D25 Result Mode Result EIRP PD EIRP PD Limit (dBm/RBW) (dBm/RBW) 802.11ax HEW20-BF_Nss1,(MCS0)_2TX - - - 5955MHz Pass 4.19 5.00 6175MHz Pass 4.07 5.00 6415MHz Pass 4.77 5.00 6435MHz Pass 4.23 5.00 6475MHz Pass 4.84 5.00 6515MHz Pass 4.44 5.00 6535MHz Pass 4.09 5.00 6695MHz Pass 4.28 5.00 6855MHz Pass 4.76 5.00 6875MHz Pass 4.30 5.00 6895MHz Pass 4.74 5.00 6995MHz Pass 4.44 5.00 7095MHz Pass 4.13 5.00 7115MHz Pass 3.62 5.00 802.11ax HEW40-BF_Nss1,(MCS0)_2TX - - - 5965MHz Pass 4.81 5.00 6165MHz Pass 4.89 5.00 6405MHz Pass 4.34 5.00 6445MHz Pass 4.23 5.00 6485MHz Pass 4.80 5.00 6525MHz Pass 4.55 5.00 6565MHz Pass 4.35 5.00 6685MHz Pass 4.59 5.00 6845MHz Pass 4.06 5.00 6885MHz Pass 4.49 5.00 6925MHz Pass 4.68 5.00 7005MHz Pass 4.24 5.00 7085MHz Pass 4.77 5.00 802.11ax HEW80-BF_Nss1,(MCS0)_2TX - - - 5985MHz Pass 3.94 5.00 6145MHz Pass 4.35 5.00 6385MHz Pass 3.96 5.00 6465MHz Pass 4.75 5.00 6545MHz Pass 4.84 5.00 6625MHz Pass 4.96 5.00 6705MHz Pass 4.17 5.00 6785MHz Pass 4.12 5.00 6865MHz Pass 4.95 5.00 6945MHz Pass 4.47 5.00 7025MHz Pass 4.47 5.00 802.11ax HEW160-BF_Nss1,(MCS0)_2TX - - - 6025MHz Pass 4.38 5.00 6185MHz Pass 4.55 5.00 6345MHz Pass 4.75 5.00 6505MHz Pass 4.72 5.00 6665MHz Pass 4.90 5.00 6825MHz Pass 4.26 5.00 6985MHz Pass 4.45 5.00 DG = Directional Gain; RBW = 500kHz for 5.725-5.85GHz band / 1MHz for other band; PD = trace bin-by-bin of each transmits port summing can be performed maximum power density; Port X = Port X Power Density; Report No. : FR262434AE PSD_Beamforming Appendix D.2 Sporton International Inc. Page No. : D3 of D25 Report No. : FR262434AE PSD_Beamforming Appendix D.2 Sporton International Inc. Page No. : D4 of D25 Report No. : FR262434AE PSD_Beamforming Appendix D.2 Sporton International Inc. Page No. : D5 of D25 Report No. : FR262434AE PSD_Beamforming Appendix D.2 Sporton International Inc. Page No. : D6 of D25 Report No. : FR262434AE PSD_Beamforming Appendix D.2 Sporton International Inc. Page No. : D7 of D25 Report No. : FR262434AE PSD_Beamforming Appendix D.2 Sporton International Inc. Page No. : D8 of D25 Report No. : FR262434AE PSD_Beamforming Appendix D.2 Sporton International Inc. Page No. : D9 of D25 Report No. : FR262434AE PSD_Beamforming Appendix D.2 Sporton International Inc. Page No. : D10 of D25 Report No. : FR262434AE PSD_Beamforming Appendix D.2 Sporton International Inc. Page No. : D11 of D25 Report No. : …

Text truncated - open the document above for the full version.

FCC Radio Test Report Report No. : FR262434AE TEL : 886-3-656-9065 Page Number : 1 of 37 FAX : 886-3-656-9085 Issued Date : Nov. 29, 2022 Report Template No.: HE1-D1-1 Ver2.4 Report Version : 01 FCC ID: TVE-3518T01236 FCC Radio Test Report FCC ID : TVE-3518T01236 Equipment : Secured Wireless Access Point Brand Name : FORTINET Model Name : FortiAP 233Gxxxxxx, FORTIAP-233Gxxxxxx, FAP-233Gxxxxxx, (where “x” can be used as “A-Z”, or “0-9”, or “-“,…

Text truncated - open the document above for the full version.
