TVE-391CBE0291Secured Wireless Access Point

FortiAP U231G Quick Start Guide Note: Supported only from FortiWLC 8.6.7 and FortiGate with FOS version 7.2.2 and later. The FortiAP-U231G access points are 802.11ax, Wi-Fi-6E, 2x2 MIMO, tri-radio, tri-band (2.4/5/6GHz) indoor access points. This high performance device complies with the IEEE 802.3at/ 802.11af PoE speci!cations and supports BLE and ZigBee. The FAP-U231G supports 10 internal antennas that include the following. • Four 2.4/5.0GHz dual band Wi-Fi internal antennas • Two 5.0GHz band Wi-Fi internal antennas • Two 6.0GHz band antennas • One BLE/ZigBee - 2.4GHz band internal antennas The FAP-U231G is compatible with FortiWLC enterprise wireless LAN controllers, integrated FortiGate enterprise !rewall LAN controllers, and FortiCloud controllers. This device can be wall mounted or pole mounted. Use the supplied hardware components to complete installing the unit. About FAP-U231G 1 9 FAP-U231G Box Includes FAP-U231G QuickStart Guide 2 Screws (16) Wall/Ceiling Mount & Standard Tile T-rail Bracket (2 Sizes) Installing FAP-U231G Follow this procedure to attach the unit to a wall or ceiling using the supplied mounting bracket. 1. Slide and attach the ceiling mount bracket to the bottom cover of the FortiAP unit. If extra space is required to accommodate drop ceiling tiles, use the taller ceiling mount bracket. 2. Select an appropriate location, hold the device against the ceiling t-rail, and push the FortiAP unit onto the ceiling until it snaps into place. The unit can be removed from the bracket by pressing on the bracket tab and sliding the device out. 3 Slide the Bracket Bracket attached 4 Notes: • One standard ceiling mount bracket is included in sizes: 1.43cm (9/16in) and 2.38cm (15/16in). • Mounting above the ceiling: FAP-U231G is UL2043 plenum rating certi!ed. However, mounting it above the ceiling is restricted to the FortiAP either facing up or facing down; mounting FAP- U231G vertically is not allowed. • To protect your device from unauthorized removal, use the Kensington™ Security Slot to attach a cable lock (not included). LAN1 2.5G PoE & LAN2 1G Ethernet Port (RJ-45) Gigabit Ethernet port with Power over Ethernet (PoE) Powered Device (PD) support Power 12V, 2.5A Console Port (RJ-45) Optional management computer connection Provides access to the Command-Line Interface (CLI) 5 Serial Baud Rate 115200 Reset FAP-U231G Ports 6 FAP-U231G LED Status 7 4 - WiFi (Radio 1 and 2) No light: Radio 1 and 2 are powered O" Green: Both Radio 1 and 2 are up. Blinking Green: Data Tx/Rx on both Radio 1 and 2. 1 - Power Steady Green: Power On Orange: Wireless controller found and the device is not managed. No light: Power O"/Wireless controller not found 2 - LAN1 and LAN 2 No light: Link Down Green: Link up Blinking Green: Data Tx/Rx Adequate grounding must be provided to the FortiAP unit in compliance with the local electrical code. Caution: Do not use any PoE injectors that are not IEEE 802.3at compliant, as they may damage your device. 1. Connect one end of the Ethernet cable into the LAN1 port of the FortiAP unit. 2. Connect the other end of the Ethernet cable into your switch. 3. Connect one end of the console cable to the RJ-45 console port on the FortiAP. Connect the other end to a management computer for CLI access. 4. If you are not using PoE, connect the DC plug of the optional power adapter into the DC power jack on the FortiAP unit, and then insert the other end into an appropriate power outlet. The power LED will light up. 8 Connecting FortiAP 9 10 The FortiAP boots up with the default FortiWLC AP image and tries to discover the FortiWLC, FortiGate, and FortiCloud controllers simultaneously. The FortiAP connects to the controller that is !rst discovered. • If FortiWLC controller is discovered, the unit continues booting up with the default FortiWLC image. • If the FortiGate or the FortiCloud controller is discovered, the unit reboots with the FortiAP image. For the FortiAP to discover the FortiCloud controller, you need to add the unique FortiCloud key labelled on the device to the FortiCloud. See section FortiCloud Deployment. For the FortiAP to complete the FortiGate discovery, you need to authorize the FortiAP on the FortiGate. See section FortiGate Deployment. To bring the FortiAP back to factory default setting, insert a pin into the reset point on the power adapter and hold on for 10 seconds. Release the pin. On the FortiAP image, run the reload default factory command to reset the FortiAP to factory default. Controller Discovery 11 Follow these steps to complete the FortiLAN Cloud discovery. 1. Login into the FortiLAN Cloud GUI. 2. Click Inventory > Import AP Key and enter the unique FortiLAN Cloud key located on your FortiAP device, then click Submit. 3. Deploy the FortiAP to an existing network, or create a new network, then click Submit. FortiLAN Cloud Deployment 4. Follow the prompts to associate the FortiAP device to an SSID. 5. Connect your FortiAP to an Internet connection. This can be a modem or another source of Internet connectivity. Con!gure the discovered FortiAP. 12 13 To complete the FortiGate controller discovery process, you need to authorize the FortiAP on the FortGate. FortiGate Deployment 14 The FortiAP unit is designed to require no con!guration in most networks. Zero con!guration mode works if the unit is on the same layer-2 network and subnet as the FortiWLC, or if the unit is on the same layer-3 network and subnet as the FortiGate or FortiCloud controller. If the FortiAP wireless controller’s IP address cannot be determined using Zero Con!guration mode, or if the network uses static IP addresses, it can be con!gured to use a static IP address. To enable the FortiAP using Zero Con!guration: 1. After connecting the FortiAP unit as described in the previous chapter, the unit goes through its boot procedure and requests an IP address from the DHCP server. 2. If the IP address is retrieved successfully, the FortiAP enters discovery mode to locate a Contro…

Text truncated - open the document above for the full version.

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: March 27, 2023 FCC ID: TVE-391CBE0291 Declaration Letter for Low Power Indoor Access Points (6ID) We, Fortinet Inc., attest that this device under FCC ID: TVE-391CBE0291 complies with device protocol requirements and operational restrictions for Indoor Access Point Devices (6ID). a) The method used by this indoor access point to control the associated client/subordinate power control is as follows: An AP's transmit Power Envelope element has information fields for Power/PSD limit for connecting client/subordinate device. The TPE information is contained in this device signals and used by connecting clients/subordinates to ensure that it knows the regulatory TX powers it is allowed to transmit. There is a regulatory info field in this device beacon and probe response frames which details this device type when the client/subordinate to this device. b) This Low-power Indoor Access Point operates in the 5.925-7.125 GHz band. It is supplied power from a wired connection, has an integrated antenna, is not battery- powered, and does not have a weatherized enclosure. c) We acknowledge this device is subject to and in full compliance with the device restrictions listed below. All users are notified of these restrictions through the user manual. • This device's operation will not be allowed on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet. • This device is prohibited for control of or communications with unmanned aircraft systems, including drones. d) This device employs a Contention-Based Protocol as demonstrated in the test report. Sincerely yours, ____________________ Andrew Ji Sr. Director Operations Fortinet, Inc. Tel: 408-235-7700 ext. 81340 Fax: 408-235-7737 E-mail: [email protected]

Tel: +1-408-235-7700 Fax: +1-408-235-7737 www.fortinet.com 899 Kifer Road Sunnyvale, CA 94086 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: February 24, 2023 Subject: Certifications concerning “covered” equipment pursuant to Part 2.911(d)(5)(i) and (ii) To whom it may concern, [Fortinet Inc.] (“the applicant”) certifies that the equipment [FCC ID: TVE-391CBE0291] for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Fortinet Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely yours, Andrew Ji Sr. Director Operations Fortinet, Inc. Tel: 408-235-7700 ext. 81340 Fax: 408-235-7737 E-mail: [email protected]

Tel: +1-408-235-7700 Fa x : +1-408-235-7737 www.fortinet.com 899 Kifer Road Sunnyvale, CA 94086 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Certification designating a U.S. agent for service of process pursuant to Part 2.911(d)(7) To whom it may concern, [ Fortinet Inc., Grantee Code TVE] (“the applicant”) certifies that, as of the date of the filing of application, [Fortinet, Inc.] (“the agent”) is designated as the U.S. agent for the purpose of accepting service of process on behalf of the applicant. The phy s ic al U. S . addres s and em ail for t he des ignat ed agent are: Physical U.S. address: [899 Kifer Road Sunnyvale, CA 94086] Email: [[email protected]] The applic ant ac c ept s t o m aint ain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-relat ed administrative or judicial proceeding involving the equipment, whichever is later. The agent ac c ept s t he des ignat ion by (t he applic ant ) as t he U. S . agent t o ac c ept s ervic e of proc es s includes, but is not limited to, delivery of any correspondence, notices, orders, decisions, and requirements of administrative, legal, or judicial process related to Commission proceedings. Sincerely yours, Signed by the Applicant Signed by the Agent (if different from the Applicant) Name: Andrew Ji Name: Tit le: S r. Director Operations Tit le: Email: [email protected] Email: Date: February 24, 2023 Date: FCC Registration Number (FRN): 0014392971

Tel: +1-408-235-7700 Fa x : +1-408-235-7737 www.fortinet.com 899 Kifer Road Sunnyvale, CA 94086 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: March 7, 2023 FCC ID: TVE-391CBE0291 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Dia gra m Software Operational Description The above m at erials c ont ain t rade s ec ret s and propriet ary inform at ion not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The A pplic ant unders t ands t hat purs uant t o Rule 0. 457, dis c los ure of t his A pplic at ion and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Andrew Ji Sr. Director Operations Fortinet, Inc. Tel: 408-235-7700 ext. 81340 Fax: 408-235-7737 E-mail: [email protected] Operational Description

Tel: +1-408-235-7700 Fa x : +1-408-235-7737 www.fortinet.com 899 Kifer Road Sunnyvale, CA 94086 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: March 7, 2023 FCC ID: TVE-391CBE0291 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization) in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos Internal Photos Sincerely yours, Andrew Ji Sr. Director Operations Fortinet, Inc. Tel: 408-235-7700 ext. 81340 Fax: 408-235-7737 E-mail: [email protected] User's manual

Tel: +1-408-235-7700 Fax: +1-408-235-7737 www.fortinet.com 899 Kifer Road Sunnyvale, CA 94086 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: March 3, 2023 FCC ID: TVE-391CBE0291 Power of Attorney To whom it may concern, We, the undersigned, Fortinet, Inc., hereby authorize Tilly Pan/Specialist of Bureau Veritas Consumer Products Service (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, and the signing of documents relating to these matters. Any documents submitted by Tilly Pan/Specialist of Bureau Veritas Consumer Products Service (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”) within the scope of this authorization shall have the same effects as if submitted by Fortinet, Inc., provided, in all events, (a) Tilly Pan/Specialist of Bureau Veritas Consumer Products Service (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”) has acted legally, in good faith and properly in furtherance of obtaining the FCC approval of our products, (b) the only documents submitted by Tilly Pan/Specialist of Bureau Veritas Consumer Products Service (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”) on our behalf have been reviewed and approved by an authorized representative of Fortinet, Inc. in advance of Tilly Pan/Specialist of Bureau Veritas Consumer Products Service (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”) submittal, and (c) Tilly Pan/Specialist of Bureau Veritas Consumer Products Service (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”) provides to the Fortinet Legal team a copy of the document submitted at the same time as submittal. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, Andrew Ji Sr. Director Operations Fortinet, Inc. Tel: 408-235-7700 ext. 81340 Fax: 408-235-7737 E-mail: [email protected]

Reference No.: BERD-WTW-P22090179-1 Page 1/5 Brand: FORTINET, Model: FAP-U231G Reference No.: BERD-WTW-P22090179-1 Page 2/5 Reference No.: BERD-WTW-P22090179-1 Page 3/5 Reference No.: BERD-WTW-P22090179-1 Page 4/5 Reference No.: BERD-WTW-P22090179-1 Page 5/5

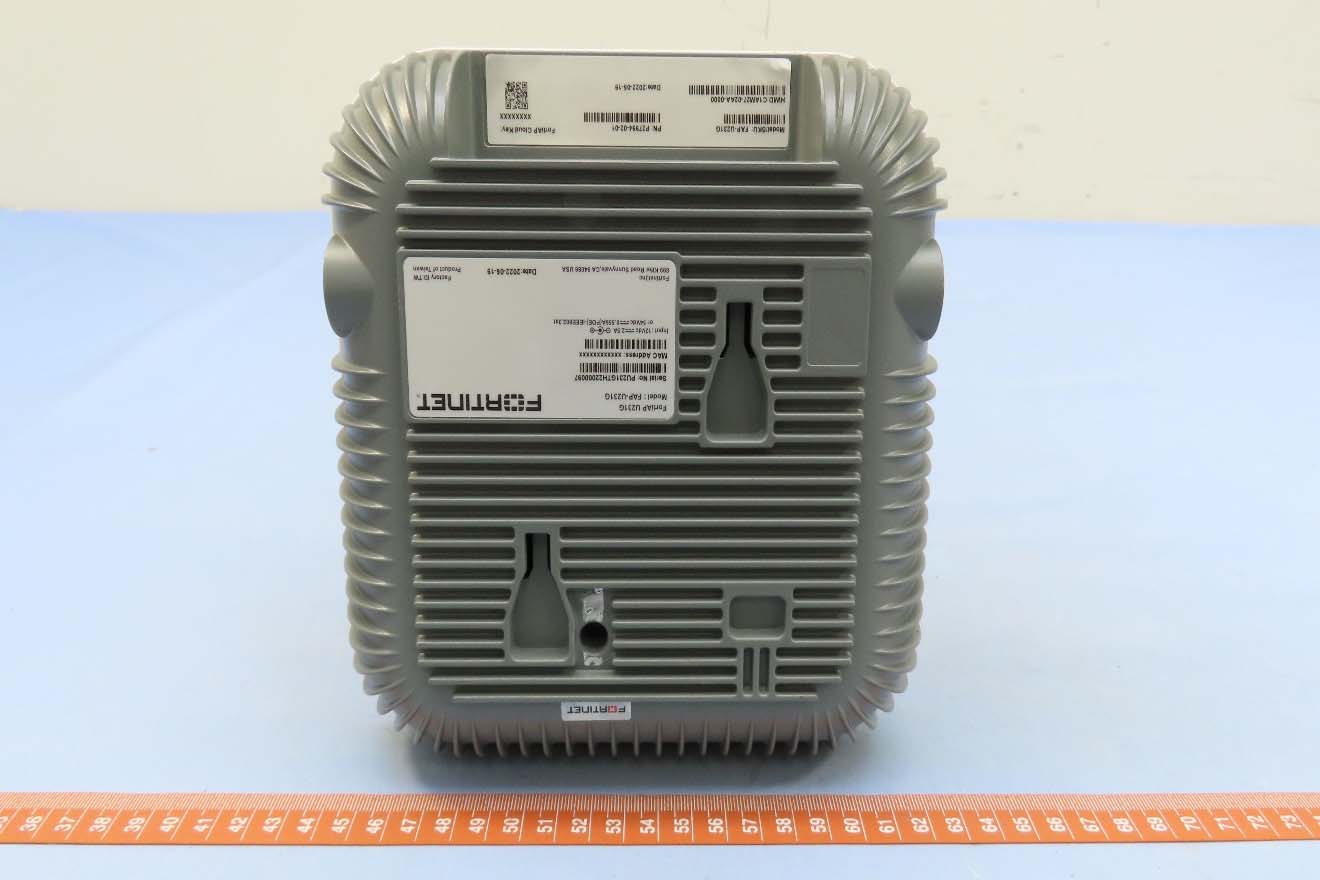

FAP-U231G Label and Label Location FCC ID:TVE-391CBE0291 IC:7280B-391CBE0291 The label will be permanently affixed on the bottom fo the product and readily visible. Label Location

Reference No.: BERD-WTW-P22090179-2 Page 1/14 Brand: FORTINET, Model: FAP-U231G Ant. 9 (BT/Zigbee) Ant. 8 (6G2) Ant. 6 (5G2) Ant. 5 (5G1) Ant. 0 (D1) Ant. 1 (D2) Ant. 2 (D3) Ant. 3 (D4) Ant. 7 (6G1) Reference No.: BERD-WTW-P22090179-2 Page 2/14 Reference No.: BERD-WTW-P22090179-2 Page 3/14 Reference No.: BERD-WTW-P22090179-2 Page 4/14 Reference No.: BERD-WTW-P22090179-2 Page 5/14 Reference No.: BERD-WTW-P22090179-2 Page 6/14 Reference No.: BERD-WTW-P22090179-2 Page 7/14 Reference No.: BERD-WTW-P22090179-2 Page 8/14 Reference No.: BERD-WTW-P22090179-2 Page 9/14 Reference No.: BERD-WTW-P22090179-2 Page 10/14 Reference No.: BERD-WTW-P22090179-2 Page 11/14 Reference No.: BERD-WTW-P22090179-2 Page 12/14 Reference No.: BERD-WTW-P22090179-2 Page 13/14 Reference No.: BERD-WTW-P22090179-2 Page 14/14

Report No.: MFBERD-WTW-P22090179 Page No. 1 / 8 Report Format Version: 6.1.1 RF Exposure Report Report No.: MFBERD-WTW-P22090179 FCC ID: TVE-391CBE0291 Test Model: FAP-U231G Series Model: FortiAP U231Gxxxxxx, FAP-U231Gxxxxxx, FORTIAP-U231Gxxxxxx (Where "x" can be used as "A-Z", or "0-9", or "-", or blank for software changes or marketing purposes only) Received Date: 2022/9/6 Issued Date: 2023/3/21 Applicant: Fortinet, Inc. Address: 899 Kifer Rd. Sunnyvale CA. 94086 United States Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kewi Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number: 788550 / TW0003 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: MFBERD-WTW-P22090179 Page No. 2 / 8 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 3 Calculation Result of Maximum Conducted Power ........................................................................... 6 Report No.: MFBERD-WTW-P22090179 Page No. 3 / 8 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued MFBERD-WTW-P22090179 Original release 2023/3/21 Report No.: MFBERD-WTW-P22090179 Page No. 4 / 8 Report Format Version: 6.1.1 1 Certificate of Conformity Product: Secured Wireless Access Point Brand: FORTINET Test Model: FAP-U231G Series Model: FortiAP U231Gxxxxxx, FAP-U231Gxxxxxx, FORTIAP-U231Gxxxxxx (Where "x" can be used as "A-Z", or "0-9", or "-", or blank for software changes or marketing purposes only) Sample Status: Engineering sample Applicant: Fortinet, Inc. FCC Rule Part: FCC Part 2 (Section 2.1091) Standards: KDB 447498 D01 General RF Exposure Guidance v06 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Prepared by : , Date:2023/3/21 Pettie Chen / Senior Specialist Approved by : , Date:2023/3/21 Jeremy Lin / Project Engineer Report No.: MFBERD-WTW-P22090179 Page No. 5 / 8 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 f = Frequency in MHz; *Plane-wave equivalent power density 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 23cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: MFBERD-WTW-P22090179 Page No. 6 / 8 Report Format Version: 6.1.1 3 Calculation Result of Maximum Conducted Power Frequency Band (MHz) Max AV Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Radio 1 CDD Mode 2412-2462…

Text truncated - open the document above for the full version.

客 客 戶 戶 名 名 稱 稱 C C U U S S T T O O M M E E R R 承 承 認 認 書 書 A A P P P P R R O O V V A A L L S S H H E E E E T T 產 產 品 品 品 品 名 名 / / P P r r o o d d u u c c t t M M o o d d e e l l N N o o . . : : WA-M-LALBLCLE-12-001 客 客 戶 戶 料 料 號 號 / / C C u u s s t t o o m m e e r r N N o o . . ： ： 46-500534-01 案 案 名 名 / / M M o o d d e e l l N N a a m m e e . . ： ： USI FAP-U231G 發 發 行 行 日 日 期 期 / / I I s s s s u u e e D D a a t t e e : : 2023/02/15 承 承 認 認 日 日 期 期 / / A A p p p p r r o o v v e e d d D D a a t t e e : : A A p p p p r r o o v v e e d d b b y y c c u u s s t t o o m m e e r r : : ( ( s s i i g g n n i i n n g g o o r r s s t t a a m m p p i i n n g g h h e e r r e e ) ) ■ 350 苗栗縣竹南鎮公義里11鄰科義街11號 電話：037-585-555 傳真：037-585-511 □ 428 台中市大雅區科雅路27號4樓 電話：04-2560-6555 傳真：04-2560-5151 No. 11, Ke-Yi St., Chunan, Miaoli 350, Taiwan, R.O.C. Tel.：+886-37-585-555 Fax：+886-37-585-511 4F,No.27,Keya Road,Daya Dist.,Taichung City 428, Taiwan,R.O.C. Tel.：+886-4-25606555 Fax：+886-4-25605151 ： : 環鴻 D D o o c c u u m m n n e e t t N N o o . . : : . . E E N N S S 0 0 0 0 0 0 1 1 6 6 2 2 4 4 0 0 0 0 A A p p p p r r o o v v a a l l S S h h e e e e t t R R e e v v . . : : A A 4 4 S S p p e e c c . . R R e e v v . . : : P P 8 8 佳邦科技股份有限公司 INPAQ TECHNOLOGY CO., LTD. I-FM-19-03 D INPAQ TECHNOLOGY CO., LTD 2023/02/15 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：黃建棠 CHECKED BY：鄭榮謀 DESIGNED BY：彭少君 APPROVED BY：謝立庭 TITLE：Embedded Multi-Band Antenna for WA-M-LALBLCLE-12-001 DOCUMENT ENS000162400 SPEC REV. NO. P8 PAGE 1 OF 4 Embedded Multi-Band Antenna for WA-M-LALBLCLE-12-001 1. Explanation of part number： WA M LALBLCLE 12 001 (1) (2) (3) (4) (5) (1) Product type：Wireless Antenna (2) Material：Metal (3) Frequency：2400~2500/5150-5850/5850-7125 MHz (4) Coaxial Cable Type：Black/White/Grey/Blue/Red Cable (5) Suffix：001 ※Antenna type : PIFA 2. Electrical Specification： The specifications were specially defined for FAP-U231G model Antenna, and all characteristics were measured under the model’s handset testing jig. 2-1. Frequency Band： Frequency D1-D4 2400-2500/5150-5850 MHz 5G 5100-5900 MHz 6G 5800-7500 MHz BT 2400-2500 MHz INPAQ TECHNOLOGY CO., LTD 2023/02/15 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：黃建棠 CHECKED BY：鄭榮謀 DESIGNED BY：彭少君 APPROVED BY：謝立庭 TITLE：Embedded Multi-Band Antenna for WA-M-LALBLCLE-12-001 DOCUMENT ENS000162400 SPEC REV. NO. P8 PAGE 2 OF 4 3. Antenna Drawing： 線材代號： 黑色 → BK 白色 → W 紅色 → R 藍色 → B 灰色 → GY 長線 → L 短線 → S 天線代號： 5G → 2 6G → 3 D1 → 4 D2 → 5 D3 → 6 D4 → 7 BT → 8 INPAQ TECHNOLOGY CO., LTD 2023/02/15 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：黃建棠 CHECKED BY：鄭榮謀 DESIGNED BY：彭少君 APPROVED BY：謝立庭 TITLE：Embedded Multi-Band Antenna for WA-M-LALBLCLE-12-001 DOCUMENT ENS000162400 SPEC REV. NO. P8 PAGE 3 OF 4 外觀標準 需完整無破損，不可有變形、髒污、毛邊、 翹曲、裂縫、褶疊等情形。 工程圖上號為重點尺寸標註指示 工程圖上號為量測尺寸標註指示 只需量測重點尺寸 REV.P2 ITEM DESCRIPTION MATERIAL SPECIFICATION QUANTITY UNIT 1 PLATE/AL5052 T1.0mm,L164*W142.8mm 1 PCS 2 METAL 5G/SUS430 PLATING NICKEL T0.3mm,32.1*10.5*6mm 2 PCS 3 METAL 6G/SUS430 PLATING NICKEL T0.3mm,27.1*15.5*7.6mm 2 PCS 4 METAL D1/SUS430 PLATING NICKEL T0.3mm,32.1*11*8.8mm 1 PCS 5 METAL D2/SUS430 PLATING NICKEL T0.3mm,27*18.5*7.5mm 1 PCS 6 METAL D3/SUS430 PLATING NICKEL T0.3mm,40.5*9.8*7.3mm 1 PCS 7 METAL D4/SUS430 PLATING NICKEL T0.3mm,27*18*7.5mm 1 PCS 8 METAL BT/SUS430 PLATING NICKEL T0.3mm,32.7*10.75*9.8mm 1 PCS 9 CABLE 5G1 OD 1.13mm LLS GRAY IPEX MHF I-PEX Equivalent(compatible) 1 PCS 10 CABLE 5G2 OD 1.13mm LLS RED IPEX MHF I-PEX Equivalent(compatible) 1 PCS 11 CABLE 6G1 OD 1.13mm LLS WHITE IPEX MHF I-PEX Equivalent(compatible) 1 PCS 12 CABLE 6G2 OD 1.13mm LLS BLACK IPEX MHF I-PEX Equivalent(compatible) 1 PCS 13 CABLE BT OD 1.13mm LLS BLUE IPEX MHF I-PEX Equivalent(compatible) 1 PCS INPAQ TECHNOLOGY CO., LTD 2023/02/15 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：黃建棠 CHECKED BY：鄭榮謀 DESIGNED BY：彭少君 APPROVED BY：謝立庭 TITLE：Embedded Multi-Band Antenna for WA-M-LALBLCLE-12-001 DOCUMENT ENS000162400 SPEC REV. NO. P8 PAGE 4 OF 4 14 CABLE D1 OD 1.13mm LLS WHITE IPEX MHF I-PEX Equivalent(compatible) 1 PCS 15 CABLE D2 OD 1.13mm LLS GRAY IPEX MHF I-PEX Equivalent(compatible) 1 PCS 16 CABLE D3 OD 1.13mm LLS BLACK IPEX MHF I-PEX Equivalent(compatible) 1 PCS 17 CABLE D4 OD 1.13mm LLS RED IPEX MHF I-PEX Equivalent(compatible) 1 PCS 18 SCREWS SUS304/M2 18 PCS 19 Heat-Shrinkable Tube OD1.5x10mm, White 2 PCS 20 Heat-Shrinkable Tube OD1.5x10mm, Black 2 PCS 1 Antenna Placement & Solution BT D1 D2 D3 D4 5G2 5G1 6G1 6G2 +Y +X +Z WIFI: D1/D2/D3/D4 5G Single: 5G1/5G2 6G Single: 6G1/6G2 BT Isolation slot 2 S11 Results D1 D2 3 S11 Results D3 D4 4 S11 Results 5G1 5G2 5 S11 Results 6G1 6G2 6 S11 Results BT 7 Isolation Results D1-D2 D1-D3 8 Isolation Results D1-D4 D1-5G1 9 Isolation Results D1-5G2 D1-6G1 10 Isolation Results D1-6G2 D1-BT 11 Isolation Results D2-D3 D2-D4 12 Isolation Results D2-5G1 D2-5G2 …

Text truncated - open the document above for the full version.

Report No.: RFBERD-WTW-P22090179-4 Page No. 1 / 154 Report Format Version: 7.1.0 TEST REPORT CERTIFICATE OF CONFORMITY Standard: 47 CFR FCC Part 15, Subpart E (Section 15.407) Report No.: RFBERD-WTW-P22090179-4 FCC ID: TVE-391CBE0291 Product: Secured Wireless Access Point Brand: FORTINET Test Model: FAP-U231G Series Model: FortiAP U231Gxxxxxx, FAP-U231Gxxxxxx, FORTIAP-U231Gxxxxxx (Where "x" can be used as "A-Z", or "0-9", or "-", or blank for software changes or marketing purposes only) Received Date: 2022/9/6 Test Date: 2022/11/16 ~ 2023/3/27 Issued Date: 2023/3/28 Applicant: Fortinet, Inc. Address: 899 Kifer Road, Sunnyvale, CA 94086, USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location (1): No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan Test Location (2): B2F., No. 215, Sec. 3, Beixin Rd., Xindian Dist., New Taipei City 231, Taiwan FCC Registration / Designation Number(1): 788550 / TW0003 FCC Registration / Designation Number(2): 427177 / TW0011 Approved by: , Date:2023/3/28 Jeremy Lin / Project Engineer This test report consists of 154 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by : Pettie Chen / Senior Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes…

Text truncated - open the document above for the full version.
