TW5GD8217B2.4GHz Digital Wireless Baby Monitor

Model No.: 8217KP 18 19 20 08. Antenna 09. RESET 10. Turn on/off 11. Charging mouth 12. Charging indicator light 13. Music play button 14. Talk (long press)/ Monitor (short press) 15. adjust (short press) button 16. Microphone 19. UP/Brightness+ 18. Turn left/Volume- 1. Photo sensitive sensor 5. Power interface 2. Lens 3. Microphone 4. Indicator 6. Temperature sensor 5 6 7 2 1 3 7. SET button 0102 4 10 Thank you for choosing our baby monitor. Please read the instruction carefully in case of product damage due to improper operation. Introduction Parts in the package Camera ManualMonitor Product structure 11 9 11 8 12 13 14 17 16 15 17. Menu button/back 21 20. Turn right/Volume+ 21. down/Brightness- 0304 27 Signal strength between the receiver and the camera No signal connection between the receiver and the camera The Lullaby function is enabled. Displaying current room temperature Show current battery level Temperature alarm has been turned on No camera is added or the camera is disconnected from receiver Audio alarm Temperature alarm reminder Message push icon Feed reminder has been turned on VOX wake up function is enabled Feed alarm reminder Low battery alarm reminder Message push icon Explanation for status indicator LED The red light goes on when charging and off when charging/not charging Using the Monitor Place the Camera Unit in a convenient location (e.g. on a table or a shelf) and point the camera lens toward the area you want to monitor. NOTE: Do not place the Monitor Unit within baby's reach. If there is interference with the picture or sound, try moving the units to different locations, and ensure they are not close to other electrical equipment. Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3feet(0.9m) away). Never use extension cords with AC Adapters.Only use the AC Adapters provided. Mute icon, status bar appears when receiver sound is set to mute 0506 Preparation before using camera 1. Powering the Camera Unit Insert one end of the included charging cable into the USB jack on the back of the camera. Insert the other end into the included power adapter. Then insert the adapter into the socket. When energized, the camera will be automatically turned on. (The camera indicator flashes green. At this point, the camera is turned on successfully). Preparation before using receiver 1.Power on the receiver (The receiver is provided with a lithium battery, if the receiver has enough power, please go directly to the Step 2). Insert one end of the charging cable into the DC charging jack on the side of the receiver. 2. Receiver starting up Press and hold the “ON/OFF” button on the receiver to turn it on. Note: This device has been paired before leaving the factory. If the receiver fails to display on the monitor screen as described above, please re-try the device pairing operation. For detailed steps, please refer to Page 8 “Camera Pairing”. Insert the other end into the included power adapter. Then insert the adapter into the socket. 0708 1. Select Camera, and press OK to enter the function. 3. When the device prompts “To start pairing,please press theSET button on the camera.”, Long press the SET button on the camera for 2 seconds, and at this point, the device enters pairing mode.After pairing succeeds, the screen will jump to a real-time monitoring screen. To start pairing，please press the SET button on the camera. Receiver function settings Functions of the Babysitter is user definable, to best satisfy your demands. Audio and temperature alarms may offer automatic notification to you. This chapter will introduce the user-definable settings item by item. Access receiver menu In states of live view, press MENU button on the monitor can enter into MENU list; In states of non-live view, press MENU button on the monitor can return to previous interface level. Camera settings (camera pairing and deletion) Add camera 2. Select the channel to be paired, and press OK to confirm. Then select “Add Camera” and press OK to confirm. 1 2 0910 Delete camera Vox mode 1. Select Alarm Settings, press OK to enter the settings page. 2. Select “ ” as needed and press OK to confirm. (1) Low sensitivity: infants need to make a lot of sounds before using VOX function, which will be activated. High sensitivity: The baby does not need to make many sounds to activate the VOX function. (2) Sound switch button: Enable VOX function; Select any sound sensitivity button. When VOX level is activated, press “OK”. If the following page is displayed, the Settings are saved successfully. After the monitoring is complete, press” ” to return to the monitoring page. - When VOX is OFF: Select the "OFF" button to turn OFF VOX. The baby's voice will be transmitted as audio to themonitor only, unless the sound switch button is pressed again. For example, when the sound switch is turned on, after selecting the required VOX to wake up the sound sensitivity, the sound icon will appear on the page, and the indicator light will blink when the alarm is raised. When the sound switch is turned off, the sound icon will not appear on the page. 2. Select the channel to be deleted, and press OK to confirm. Then select “Delete Camera” and press OK to confirm. Note: 1. Select Camera, and press OK to enter the function. VOX mode allows you to control the sound activation of your baby unit, and can also saves the battery life of parent unit. If there is no sound around the baby unit within 30 seconds, it will stop audio transmission and turn off the screen of the parent unit. When the baby unit detects any sounds louder than the sensitivity level, it will start transmitting the signal of the parent unit again and turn on the screen of the parent unit. 1 2 OFF ONOFF ↩ Temperature alarm settings When it is too hot or too cold in your baby's room, the temperature alarm will push a notification to your receiver. 1. Select Alarm Settings, press OK to enter the settings page, and select “Temperature Al…

Text truncated - open the document above for the full version.

ShenzhenGospellSmarthomeElectronicCo.,Ltd. Room101,201,311,BuildingNo.28,BlockB,TantouIndustrialPark,Songgang, Baoan,ShenzhenCity,GuangdongProvince,China OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:Jun.29,2022 Subject;RequestforConfidentiality FCCID:TW5GD8217B ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram OperationalDescription PartsList Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:RichieXiao Title:CertifiedEngineer

Shenzhen Gospell Smarthome Electronic Co., Ltd. Room 101, 201, 311, Building No. 28, Block B, Tantou Industrial Park, Songgang, Baoan, Shenzhen City, Guangdong Province, China Agent Authorization Company: Shenzhen Gospell Smarthome Electronic Co., Ltd. Address: Room 101, 201, 311, Building No. 28, Block B, Tantou Industrial Park, Songgang, Baoan, Shenzhen City, Guangdong Province, China Product Name: 2.4GHz Digital Wireless Baby Monitor Model Number(s): GD8217B Product Description: 2.4GHz Digital Wireless Baby Monitor We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun. 29, 2022 Name: Richie Xiao Title: Certified Engineer Company: Shenzhen Gospell Smarthome Electronic Co., Ltd.

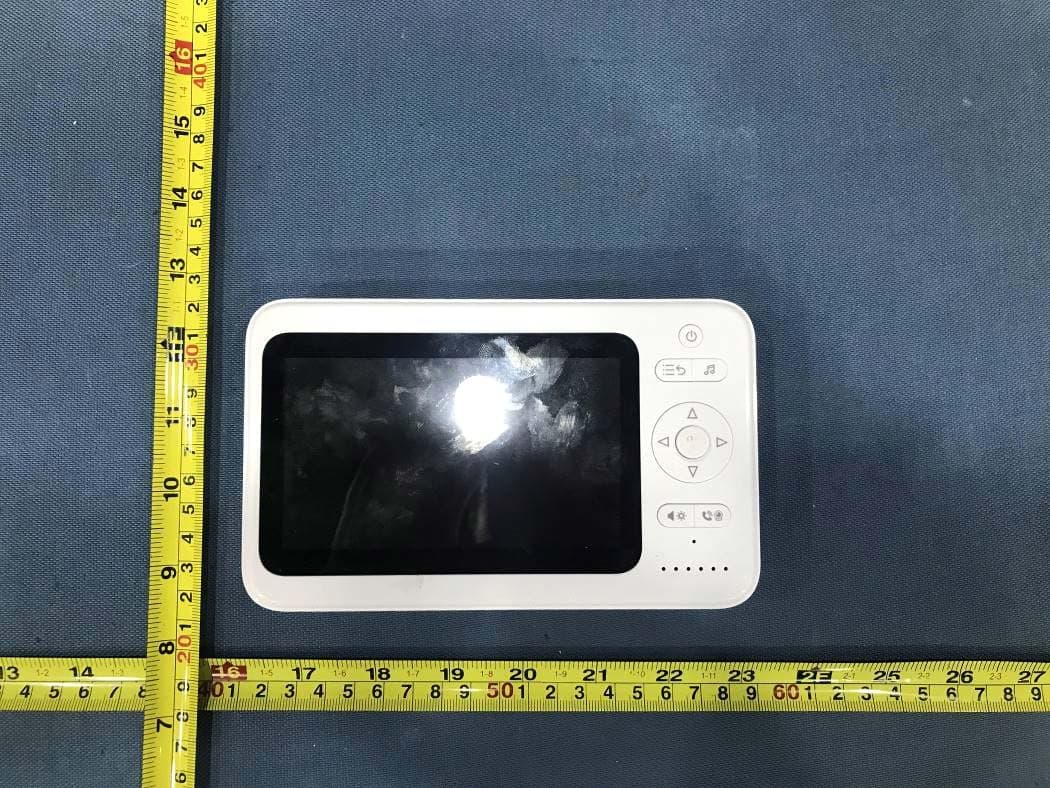

Report No.: AGC00008220502AP02 Page 1 of 4 EXTERNAL PHOTOS All VIEW OF EUT-1 All VIEW OF EUT-2 Report No.: AGC00008220502AP02 Page 2 of 4 TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: AGC00008220502AP02 Page 3 of 4 FRONT VIEW OF EUT BACK VIEW OF EUT Report No.: AGC00008220502AP02 Page 4 of 4 LEFT VIEW OF EUT RIGHT VIEW OF EUT ****************************************End of Report****************************************

FCC ID Label Location 10mm*20mm FCC ID: TW5GD8217B

Report No.: AGC00008220502AP02 Page 1 of 9 INTERNAL PHOTOS OPEN VIEW OF EUT (FIGURE 1) OPEN VIEW OF EUT (FIGURE 2) Report No.: AGC00008220502AP02 Page 2 of 9 OPEN VIEW OF EUT (FIGURE 3) OPEN VIEW OF EUT (FIGURE 4) Report No.: AGC00008220502AP02 Page 3 of 9 OPEN VIEW OF EUT (FIGURE 5) OPEN VIEW OF EUT (FIGURE 6) Report No.: AGC00008220502AP02 Page 4 of 9 OPEN VIEW OF EUT (FIGURE 7) ANTENNA CLOSE-UP PHOTO-1 Antenna Report No.: AGC00008220502AP02 Page 5 of 9 INTERNAL VIEW OF EUT (FIGURE 1) INTERNAL VIEW OF EUT (FIGURE 2) Report No.: AGC00008220502AP02 Page 6 of 9 INTERNAL VIEW OF EUT (FIGURE 3) INTERNAL VIEW OF EUT (FIGURE 4) Report No.: AGC00008220502AP02 Page 7 of 9 INTERNAL VIEW OF EUT (FIGURE 5) INTERNAL VIEW OF EUT (FIGURE 6) Report No.: AGC00008220502AP02 Page 8 of 9 INTERNAL VIEW OF EUT (FIGURE 7) INTERNAL VIEW OF EUT (FIGURE 8) Report No.: AGC00008220502AP02 Page 9 of 9 INTERNAL VIEW OF EUT (FIGURE 9) ****************************************End of Report****************************************

Page 1 of 34 FCC Test Report Report No.: AGC00008220502FE03 FCC ID : TW5GD8217B APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : 2.4GHz Digital Wireless Baby Monitor BRAND NAME : N/A MODEL NAME : GD8217B APPLICANT : Shenzhen Gospell Smarthome Electronic Co., Ltd. DATE OF ISSUE : Jun. 28, 2022 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00008220502FE03 Page 2 of 34 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 28, 2022 Valid Initial Release Report No.: AGC00008220502FE03 Page 3 of 34 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCY .......................................................................................................... 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 4. DESCRIPTION OF TEST MODES ................................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 10 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 10 5.2 EQUIPMENT USED IN TESTED SYSTEM ............................................................................................... 10 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 10 6. TEST FACILITY .............................................................................................................................................. 11 7. RADIATED EMISSION ................................................................................................................................... 12 7.1TEST LIMIT ................................................................................................................................................ 12 7.2. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.3. TEST SETUP............................................................................................................................................ 15 7.4. TEST RESULT .......................................................................................................................................... 16 8. BAND EDGE EMISSION ................................................................................................................................ 22 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 22 8.2 TEST SETUP............................................................................................................................................. 22 8.3 RADIATED TEST RESULT ........................................................................................................................ 22 9. 20DB BANDWIDTH ........................................................................................................................................ 27 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 27 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 27 9.3. MEASUREMENT RESULTS .................................................................................................................... 28 10. FCC LINE CONDUCTED EMISSION TEST ................................................................................................ 30 10.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................................ 30 10.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST .............................................................. 30 Report No.: AGC00008220502FE03 Page 4 of 34 10.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ........................................... 31 10.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST .......................................................... 31 10.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST .................................................................... 32 APPENDIX A: PHOTOGRAPHS OF TEST SETUP .......................................................................................... 34 APPENDIX B: PHOTOGRAPHS OF THE EUT ................................................................................................. 34 Report No.: AGC00008220502FE03 Page 5 of 34 1. VERIFICATION OF CONFORMITY Applicant Shenzhen Gospell Smarthome Electronic Co., Ltd. Address Room 101, 201, 311, Building No. 28, Block B, Tantou Industrial Park, Songgang, Baoan, Shenzhen City, Guangdong Province, China Manufacturer Shenzhen Gospell Smarthome Electronic Co., Ltd. Address Room 101, 201, 311, Building No. 28, Block B, Tantou Industrial Park, Songgang, Baoan, Shenzhen City, Guangdong Province, China Factory Shenzhen Gospell Smarthome Electronic Co., Ltd. Address Room 101, 201, 311, Building No. 28, Block B, Tantou Industrial Park, Songgang, Baoan, Shenzhen City, Guangdong Province, China Product Designation 2.4GHz Digital Wireless Baby Monitor Brand Name N/A Test Model GD8217B D…

Text truncated - open the document above for the full version.

Report No.: AGC00008220502AP01 Page 1 of 2 TEST SETUP PHOTOS RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz Report No.: AGC00008220502AP01 Page 2 of 2 AC POWER LINE CONDUCTED TEST SETUP RF CONDUCTED TEST SETUP ****************************************End of Report*************************************
