TWF-TS-BT-SER-01BLUETOOTH STEREO HEADSET

Trendy & Street-smart Headset Instruction Manual ChargingUse the included USB cable to connect the headset with a USB port on your computer or with a USB wall adapter. Charging will start automatically when the headset connected and the red indicator light will turn on. Once charging is complete, the light will turn off.Note: Make sure you charge the unit for at least 8 hours before first use.Power On/OffPress and hold the multifunction button for about 4 seconds to turn on,and two seconds to turn off. Please note that the headset needs to be paired with another Bluetooth source before it can transmit voice or music.Pairing*Note: Your audio device must support Bluetooth A2DP compatibility to connect with the headset connected to your audio device. Please consult the user manual for the device with which you are attempting to pair for operating instructions.“Pairing” means creating a trusted relationship between two or more Bluetooth devices. The devices must be paired before they can communicate with each other. Pairing identification is stored for later use, and the devices will automatically recognize each other the next time they are connected. Locations of features successful. TS-BT-HEADSET device ID should be stored in the device list of the phone so that no pairing code will be required for the next use. After pairing with your Bluetooth enabled device, start your device’s media player and the music will begin playing on your headphones. Volume Adjustment At any time during a phone call, or while playing music, the volume can be changed with the Vol+ or Vol- keys. There will be a tone from the headphones to indicate that the level has reached maximum or minimum volume.Answering/Ending phone callsIf you are connected to and playing music from a mobile phone, a brief tone will be heard to notify you that there is an incoming call. Press the MFB once to answer the call and press it once again to end the call. While the call is in progress, the music will pause and once the call has ended, the music play will be automatically resumed.Changing Tracks Simply press the “track forward” or “track backwards” button on the side of the headset to change tracks on your music player.Note: This function will only work properly when connected directly to a Bluetooth A2DP compatible music player. For example, this function is inoperable when connected to a Bluetooth transmitter adapter that transmits music from the headphone jack.Low-Power promptThe red LED will flash and a beep sound will be heard from the unit when the battery level is low. Please recharge the unit. LED Light Volume Control Rev. forward/backward Multifunction Button (MFB):Play / Stop / Power ON/OFF / Answering/Ending phone calls Mic 3.5mm jack USB port Passive HeadphonesThis product can be used as normal headphones by connecting the provided audio cable without activating the Bluetooth function. Connect the cable to the 3.5 jack & the other end to the audio player. After successfully pairing for the first time, you simply need to follow the directions for POWER ON/OFF above for your device to be recognized by your mobile phone.* Make sure the headset is “off ” before starting the Pairing procedure. How to pair with mobile phones, iPhone™, iPod touch®1. Place the headset within 30 cm of the device with which you are pairing.2. Press MFB for about 6 seconds or until the red and blue LEDs flash alternately. The headset will now be in “pairing” mode.3. Initiate the Bluetooth search function in your mobile phone. Please refer to the user’s manual for your mobile phone for more information.4. Select TS-BT-HEADSET in the device list on the phone and follow the instructions to proceed.5. Follow the instruction to enter the pairing code “0000”. The red LED indicator will stop flashing if pairing is Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user mustfollow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. To headset To Audio Player R&TTE FCC ID: TWF-TS-BT-SER-01 To headset To PC/USB wall adaptor 015-130014

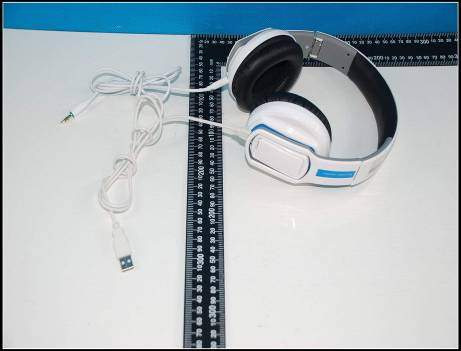

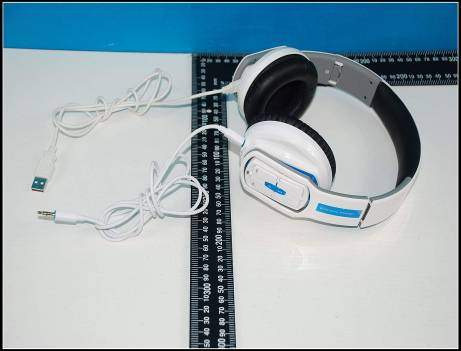

External Photos

FCC ID: TWF-TS-BT-SER-01 FCC Warnings: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

SGS-CSTC Standards Technical Services Co., Ltd. Application No..: GZEM1301000048RF Page: 1 of 1 FCC ID: TWF-TS-BT-SER-01 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. RF Exposure Compliance Requirement The product belongs to standalone portable device base the FCC rule part 2.1091&2.1093. The transmission frequencies of the device are between 100 MHz and 6 GHz. The worst case test separation distance is 5mm. The Max Conducted Output Power and SAR Test Exclusion Threshold (mW) are listed below: Transmit frequency (GHz) Max Conducted Output Power (mW) SAR Test Exclusion Threshold (mW) 2.402 -5.28 9.7 2.441 -4.30 9.6 2.480 -3.96 9.5 The SAR Test Exclusion Threshold is calculated from: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR
f(GHz) is the RF channel transmit frequency in GHz
Power and distance are rounded to the nearest mW and mm before calculation17
The result is rounded to one decimal place for comparison According to SAR Exclusion Threshold in KDB 447498 (D01) General RF Exposure Guidance v05, the SAR report is not required.

SGS-CSTC Standards Technical Services Co., Ltd. 198 Kezhu Road, Scient ech Park, Gu angzh ou Econ omic & Technolo gical Developm ent District, Guan gzhou , China 5106 63 Telephon e: +86 (0) 20 82155555 Fax: +86 (0) 2 0 82 0750 59 Email: ee.guangzhou@sg s.co m Report No.: GZEM130100004801 Page: 1 of 67 FCC ID: TWF-TS-BT-SER-01 Authorized Signature: Strong Yao Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page TEST REPORT Application No.: GZEM1301000048RF Applicant: Cobalt Industrial Company Limited FCC ID: TWF-TS-BT-SER-01 Product Name: BLUETOOTH STEREO HEADSET Product Description: Bluetooth headset with 2.4 GHz as carrier. Model No.: TS SERIES-BT SERIES Standards: 47 CFR PART 15 Subpart C: 2012 section 15.247 Date of Receipt: 2013-01-08 Date of Test: 2013-01-09 to 2013-01-18 Date of Issue: 2013-01-31 Test Result : Pass* * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Please refer to section 3 of this report for further detail. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM130100004801 Page: 2 of 67 FCC ID: TWF-TS-BT-SER-01 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2 Version Revision Record Version Chapter Date Modifier Remark 00 2013-01-31 Original Authorized for issue by: Tested By 2013-01-09 to 2013-01-18 (Ryan Yang) /Signature Date Prepared By 2013-01-28 (Ryan Yang) /Signature Date Checked By 2013-01-31 (Strong Yao) /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM130100004801 Page: 3 of 67 FCC ID: TWF-TS-BT-SER-01 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 3 Test Summary Test Test Requirement Test method Result Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS Occupied Bandwidth FCC PART 15 C section 15.247 (a)(1) ANSI C63.10: Clause 6…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated Spurious Emission Test Setup Below 1GHz: Above 1GHz: Conducted Emission Test Setup
