TXL34101Solar Driveway Monitor

Safety Technology International, Inc.
Solar Driveway Monitor - FCC ID TXL34101 - Safety Technology International, Inc.
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
May 09, 2010
Application Purpose
Original Equipment
Date of Application
May 09, 2010
Equipment Note
Solar Driveway Monitor
Frequency Range
433.92000000 - 433.92000000
Company
Safety Technology International, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

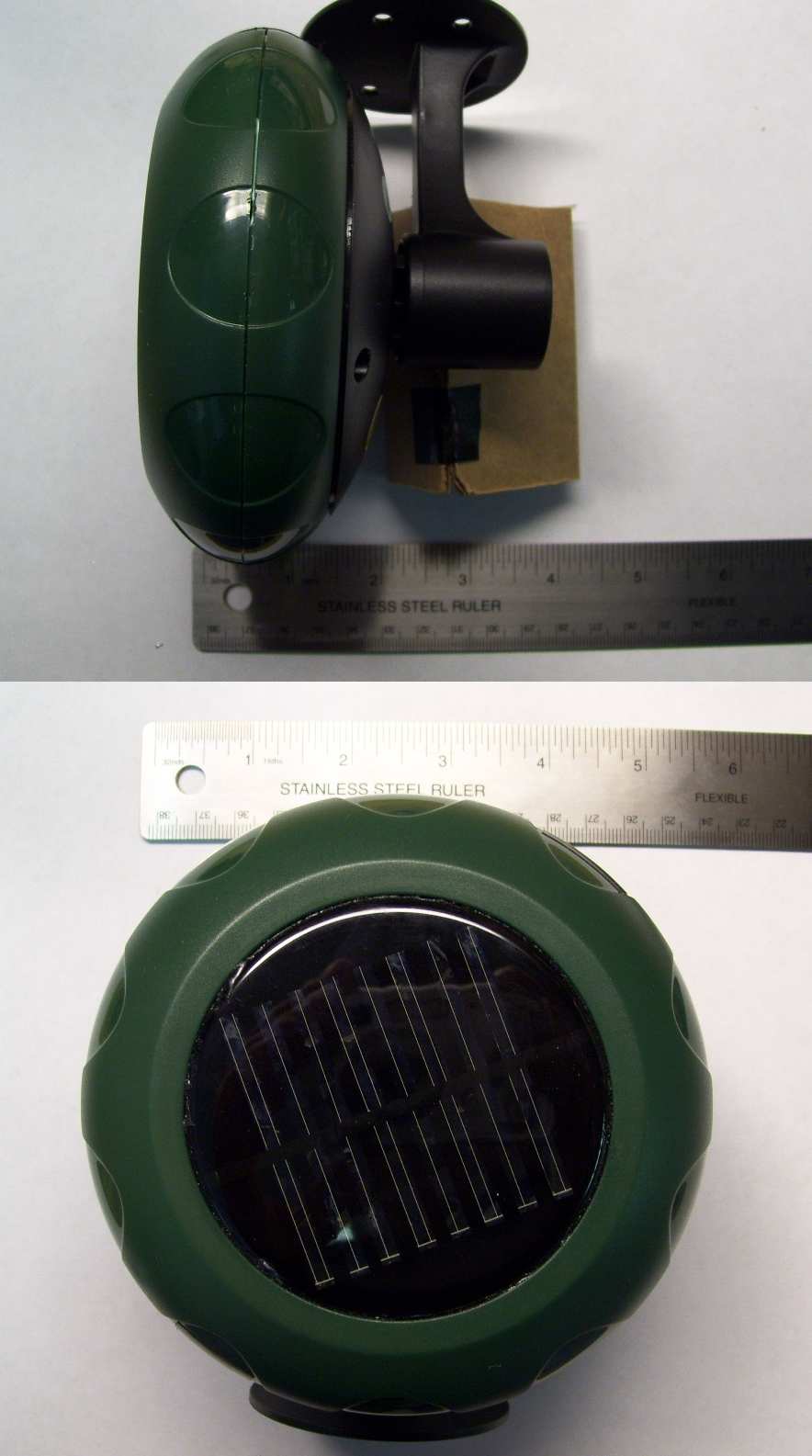

External Photos

↗

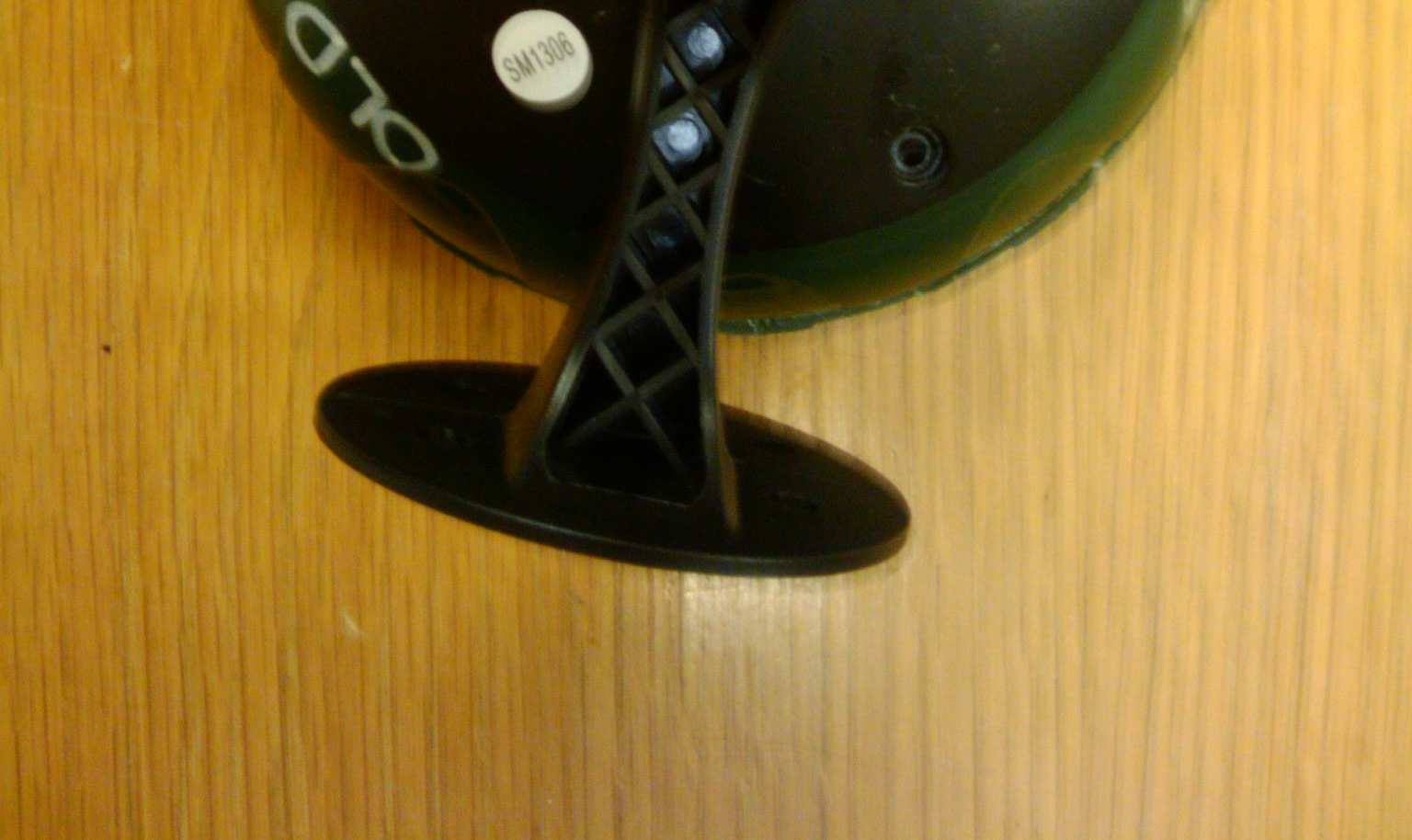

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

— 1 — — 2 —— 3 — Safety Technology International, Inc. 2306 Airport Rd • Waterford, MI 48327 Phone: 248-673-9898 • Fax: 248-673-1246 [email protected] • www.sti-usa.com Safety Technology International (Europe) Ltd. Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999 Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only) [email protected] • www.sti-europe.com Inst. Sht. WirelessDriveway APRIL2010 Installation and Operation Manual STI Wireless Driveway Monitor TM Thank you for purchasing this fine product. We want you to know your satisfaction is very important to us. We suggest you take the time to read this manual carefully to get the most from your new product. HOW THE PRODUCT WORKS Because of its patented magnetometer SENSOR system, the Driveway Monitor will only be triggered by cars or trucks - not people, animals and so forth. When a vehicle passes the Motion Alert ® SENSOR next to the driveway, the RECEIVER unit inside the office or home sounds a chime and flashes the alert light. The alert light will continue to flash until reset and the RECEIVER will continue to chime each time a vehicle passes. The earth has a uniform magnetic field around it. A vehicle creates a slight disturbance in the earth’s field. The SENSOR detects this disturbance and transmits a signal to the RECEIVER. BEFORE YOU START Refer to this drawing to become familiar with all the parts. STI-30104 LAMP CONTROLLER (OPTIONAL) AC ADAPTER GREEN LED 75 mA OUTPUT RECEIVER ANTENNA SPEAKER STI-34104 INDOOR RECEIVER BUTTON RED LED TRANSMITTER CAP BATTERY / CIRCUIT BOARD HOLDER TRANSMITTER BASE MOUNTING TUBE CAP WALL MOUNT 2 “C” BATTERIES TRANSMITTER CIRCUIT BOARD MOUNTING TUBE MOUNTING STAKE TRANSMITTER CAP TRANSMITTER MOUNTING TUBE CAP MOUNTING TUBE MOUNTING STAKE WALL MOUNT TRANSMITTER CAP SCREWS RECHARGEABLE NiMH BATTERIES H L SENSITIVITY JUMPERS (SOLAR TYPE) SENSITIVITY JUMPERS (BATTERY TYPE) H L FINGER NOTCHES REMOVE PLASTIC TAB FROM BATTERIES DRIVEWAY 3’OR LESS 25' OR MORE PLACE SENSOR 3' OR LESS FROM EDGE OF DRIVEWAY AND 25' OR MORE FROM STREET. 12’ MAX DRIVEWAY PLACE SENSOR 3' OR LESS FROM EDGE OF DRIVEWAY AND 25+ FEET OR MORE FROM STREET. 25' OR MORE 3' OR LESS 12' MAX + + - B DETAIL B SCALE 2:1 B C H L - + + - B - BATTERY POWERED SENSOR SOLAR POWERED SENSOR STI-34150 Battery Power Kit STI-34100 Solar Power Kit STI-30104 LAMP CONTROLLER (OPTIONAL) AC ADAPTER GREEN LED 75 mA OUTPUT RECEIVER ANTENNA SPEAKER STI-34104 INDOOR RECEIVER BUTTON RED LED TRANSMITTER CAP BATTERY / CIRCUIT BOARD HOLDER TRANSMITTER BASE MOUNTING TUBE CAP WALL MOUNT 2 “C” BATTERIES TRANSMITTER CIRCUIT BOARD MOUNTING TUBE MOUNTING STAKE TRANSMITTER CAP TRANSMITTER MOUNTING TUBE CAP MOUNTING TUBE MOUNTING STAKE WALL MOUNT TRANSMITTER CAP SCREWS RECHARGEABLE NiMH BATTERIES H L SENSITIVITY JUMPERS (SOLAR TYPE) SENSITIVITY JUMPERS (BATTERY TYPE) H L FINGER NOTCHES REMOVE PLASTIC TAB FROM BATTERIES DRIVEWAY 3’OR LESS 25' OR MORE PLACE SENSOR 3' OR LESS FROM EDGE OF DRIVEWAY AND 25' OR MORE FROM STREET. 12’ MAX DRIVEWAY PLACE SENSOR 3' OR LESS FROM EDGE OF DRIVEWAY AND 25+ FEET OR MORE FROM STREET. 25' OR MORE 3' OR LESS 12' MAX + + - B DETAIL B SCALE 2:1 B C H L - + + - B - STI-30104 LAMP CONTROLLER (OPTIONAL) AC ADAPTER GREEN LED 75 mA OUTPUT RECEIVER ANTENNA SPEAKER STI-34104 INDOOR RECEIVER BUTTON RED LED TRANSMITTER CAP BATTERY / CIRCUIT BOARD HOLDER TRANSMITTER BASE MOUNTING TUBE CAP WALL MOUNT 2 “C” BATTERIES TRANSMITTER CIRCUIT BOARD MOUNTING TUBE MOUNTING STAKE TRANSMITTER CAP TRANSMITTER MOUNTING TUBE CAP MOUNTING TUBE MOUNTING STAKE WALL MOUNT TRANSMITTER CAP SCREWS RECHARGEABLE NiMH BATTERIES H L SENSITIVITY JUMPERS (SOLAR TYPE) SENSITIVITY JUMPERS (BATTERY TYPE) H L FINGER NOTCHES REMOVE PLASTIC TAB FROM BATTERIES DRIVEWAY 3’OR LESS 25' OR MORE PLACE SENSOR 3' OR LESS FROM EDGE OF DRIVEWAY AND 25' OR MORE FROM STREET. 12’ MAX DRIVEWAY PLACE SENSOR 3' OR LESS FROM EDGE OF DRIVEWAY AND 25+ FEET OR MORE FROM STREET. 25' OR MORE 3' OR LESS 12' MAX + + - B DETAIL B SCALE 2:1 B C H L - + + - B - INDOOR RECEIVER STI-34104 (Receives up to 4 different STI sensors) Install batteries into the TRANSMITTER 1. Remove the TRANSMITTER cap by turning it counterclockwise. 2. WITHOUT PULLING ON THE BRASS ANTENNA OR ANY WIRES, grasp the outside of the battery/circuit board holder by the finger notches, twist gently and pull out. Insert two “C” alkaline batteries (not included). 3. Replace the battery/circuit board holder and TRANSMITTER cap. 4. Place the TRANSMITTER on a table or counter approximately 5-10 ft. away from you. TRANSMITTER may make a faint clicking noise - this is normal. STI-30104 LAMP CONTROLLER (OPTIONAL) AC ADAPTER GREEN LED 75 mA OUTPUT RECEIVER ANTENNA SPEAKER STI-34104 INDOOR RECEIVER BUTTON RED LED TRANSMITTER CAP BATTERY / CIRCUIT BOARD HOLDER TRANSMITTER BASE MOUNTING TUBE CAP WALL MOUNT 2 “C” BATTERIES TRANSMITTER CIRCUIT BOARD MOUNTING TUBE MOUNTING STAKE TRANSMITTER CAP TRANSMITTER MOUNTING TUBE CAP MOUNTING TUBE MOUNTING STAKE WALL MOUNT TRANSMITTER CAP SCREWS RECHARGEABLE NiMH BATTERIES H L SENSITIVITY JUMPERS (SOLAR TYPE) SENSITIVITY JUMPERS (BATTERY TYPE) H L FINGER NOTCHES REMOVE PLASTIC TAB FROM BATTERIES DRIVEWAY 3’OR LESS 25' OR MORE PLACE SENSOR 3' OR LESS FROM EDGE OF DRIVEWAY AND 25' OR MORE FROM STREET. 12’ MAX DRIVEWAY PLACE SENSOR 3' OR LESS FROM EDGE OF DRIVEWAY AND 25+ FEET OR MORE FROM STREET. 25' OR MORE 3' OR LESS 12' MAX + + - B DETAIL B SCALE 2:1 B C H L - + + - B - STI-30104 LAMP CONTROLLER (OPTIONAL) AC ADAPTER GREEN LED 75 mA OUTPUT RECEIVER ANTENNA SPEAKER STI-34104 INDOOR RECEIVER BUTTON RED LED TRANSMITTER CAP BATTERY / CIRCUIT BOARD HOLDER TRANSMITTER BASE MOUNTING TUBE CAP WALL MOUNT 2 “C” BATTERIES TRANSMITTER CIRCUIT BOARD MOUNTING TUBE MOUNTING STAKE TRANSMITTER CAP TRANSMITTER MOUNTING TUBE CAP MOUNTING TUBE MOUNTING STAKE WALL MOUNT TRANSMITTER CAP SCREWS RECHARGEABLE NiMH BATTERIES H L SENSITIVITY JUMPERS (SOLAR TYPE…

Text truncated - open the document above for the full version.

Test Report

Safety Technology International, Inc. FCC ID: TXL34101 Certification Test Report 2010-04-28 Contents 1. Introduction ................................................................................................................................................................. 3 2. Statement of Compliance ............................................................................................................................................ 3 2.1. FCC Part 2 §2.907 ................................................................................................................................................ 3 2.2. FCC Part 2 §2.911 ................................................................................................................................................ 3 2.3. FCC Part 2 §2.913 ................................................................................................................................................ 3 2.4. FCC Part 2 §2.915 ................................................................................................................................................ 3 2.5. FCC Part 2 §2.925 ................................................................................................................................................ 4 2.6. FCC Part 2 §2.943, 2.945 .................................................................................................................................... 4 2.7. FCC Part 2 §2.947 ................................................................................................................................................ 4 2.8. FCC Part 2 §2.948 ................................................................................................................................................ 4 2.9. FCC Part 2 §2.1033 .............................................................................................................................................. 5 3. Discussion of Laboratory Measurements and Rules Compliance ............................................................................... 6 3.1. FCC Part 15 §15.231(a)(1) .................................................................................................................................. 6 3.2. FCC Part 15 §15.231(a)(2) .................................................................................................................................. 6 3.3. FCC Part 15 §15.231(a)(3) .................................................................................................................................. 6 3.4. FCC Part 15 §15.231(a)(4) .................................................................................................................................. 6 3.5. FCC Part 15 §15.231(a)(5) .................................................................................................................................. 6 3.6. FCC Part 15 §15.231(b) ....................................................................................................................................... 6 3.6.1. Raw Field Strength Limits ............................................................................................................................ 6 3.6.2. Duty Cycle Correction Factor and Resulting Limits ..................................................................................... 7 3.6.3. Measured Radiated Field Strength Data ....................................................................................................... 7 3.7. FCC Part 15 §15.231(c) ....................................................................................................................................... 7 1.Introduction The 34101 is a small sensor for use in a wireless alert system. It is solar-powered with re- chargeable battery backup. It measures 5x5x4 inches and weighs approximately 8 ounces. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.231. 2.Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1.FCC Part 2 §2.907 This is an application for certification of original equipment 2.2.FCC Part 2 §2.911 a)This application has been filed electronically using form 731. b) All required information has been supplied in this application and its attachments. c)This applicant has signed the application electronically. d) The technical test data has been signed by the agency performing the testing. e)Signature supplied in appropriate block on form 731. f)Processing fee has been paid by credit card. g) Signatures have been supplied electronically. 2.3.FCC Part 2 §2.913 a)This application has been filed electronically. b) Appropriate fees have been filed electronically. c)Equipment samples shall be supplied as requested. 2.4.FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5.FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: TXL34101”. See exhibit “Label.pdf” for photographs showing the label and location on the device. External and internal photos are provided in exhibits “External Photo.pdf” and “Internal Photo.pdf”. 2.6.FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.7.FCC Part 2 §2.947 a)Measurement procedure follows ANSI C63.4 version 2003. b) A description of utilized test equipment is contained in the report. 2.8.FCC Part 2 §2.948 Radiated measurements were taken at the following FCC-approved facility: Rhein Tech Laboratories, Inc. 360 Herndon Pkwy, Suite 1400 Herndon, VA 20170 Contact: Rick McMurray Phone: 703-689-0368 See exhibit “Test Setup Photo.pdf” for a photo of the test site. 2.9.FCC Part 2 §2.1033 a)Form 731 has been filed electronically. b) The technical report, along with its exhibits, contains the information as follows: (1) ful…

Text truncated - open the document above for the full version.

Test Report

360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 1 of 2 Engineering and Testing for EMC and Safety Compliance Accredited under A2LA Testing Certificate # 2653.01 Radiated Test Data for Model: Solar Driveway Sensor for Resolution Engineering RTL Project Number 2010022 Test Engineer: Jon Wilson 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 2 of 2 Radiated Test Data - OATS 1 Test Date: March 3, 2010 Work Order: 2010022 Customer Reference: na Model: Solar Driveway Sensor Name: Jon Wilson Limit/Distance: FCC B/3m Temperature: 35°F Humidity: 51% Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Turntable Azimuth (deg) Antenna Height (m) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 434.024 Pk V 90 1.5 65.4 32.9 98.3 100.8 -2.5 Pass 867.986 Pk V 90 1.0 67.9 0.8 68.7 80.8 -12.1 Pass 1302.016 Pk H 90 1.0 62.7 8.4 71.1 80.8 -9.7 Pass 1735.979 Pk V 90 1.0 61.7 13.1 74.8 80.8 -6.0 Pass 2169.835 Pk H 90 1.0 59.1 6.0 65.1 80.8 -15.7 Pass 2603.785 Pk H 90 1.0 61.3 6.9 68.2 80.8 -12.6 Pass 3037.760 Pk V 90 1.0 55.7 5.2 60.9 80.8 -19.9 Pass 3471.735 Pk H 90 1.0 59.9 5.3 65.2 80.8 -15.6 Pass 3905.710 Pk H 90 1.0 61.9 6.9 68.8 80.8 -12.0 Pass 4339.035 Pk H 90 1.0 58.7 10.4 69.1 80.8 -11.7 Pass Radiated Emissions Test Equipment Part Manufacturer Model Serial Number RTL Bar Code Calibration Due Date Amplifier (20 MHz-2 GHz) Rhein Tech Laboratories, Inc. PR-1040 900905 900905 4/10/2010 Bilog Periodic Antenna (25 MHz-2 GHz) Schaffner Chase CBL6112 2099 900791 12/12/2010 EMI Receiver RF Section (9 KHz-6.5 GHz) Hewlett Packard 85462A 3325A00159 900913 6/8/2010 RF Filter Section (100 KHz-6.5 GHz) Hewlett Packard 85460A 3330A00107 900914 6/8/2010 Spectrum Analyzer Hewlett Packard 8596EM 3826A00144 901215 11/23/2010 Amplifier (1 GHz – 26.4 GHz) Hewlett Packard 8449B OPT H02 3008A00505 900932 2/22/2011 Horn Antenna, 2.0-4.0 GHz EMCO 3161-02 9804-1044 900772 6/13/2010 Horn Antenna, 4.0-8.2 GHz EMCO 3161-03 9508-1020 900321 6/13/2010 Emissions Testing Software Rhein Tech Laboratories, Inc. Automated Emission Tester Rev. 14.0.2 N/A N/A

Contact Information

Applicant

John F. Taylor(Executive Vice President)
[email protected]248-673-9898Fax: 248-673-1246

Test Firm

Rhein Tech Laboratories, Inc.Rick McMurray
[email protected]703-689-0368Fax: 703-689-2056

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231433.92 MHz - 433.92 MHz-
Confidentiality
Long Term
