Rhein Tech Laboratories, Inc. Client: STI, Inc. 360 Herndon Parkway Model: 34601 Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 ID’s: TXL34601/6335A-34601 http://www.rheintech.com Report #: 2012025 Appendix J: Manual Please see the following pages. Installation and Operation Manual STI Wireless Doorbell Button Model: STI-34601 For use with STI Wireless Alert Series Receivers FEATURES AND SPECIFICATIONS: • 500’ range • Commercial and residential applications • Streamlined design • ABS UV-stabilized material • Low battery indicator on STI Alert Receiver • Coin Cell Battery CR2032 Safety Technology International, Inc. “We Protect the Things that Protect You.” Thank you for purchasing the STI Wireless Doorbell Button. Your satisfaction is very important to us. Please read this manual carefully to get the most from your new product. INSTALLATION INSTRUCTIONS: 1.To remove cover, insert screwdriver, or other small device, at bottom of cover and depress gently. Rotate until tab disengages (Fig. 1). 2.Insert the battery by placing it underthe top claws and then pushing battery into the bottom cradle (Fig. 2 and 3). 3.Attach backplate onto mounting surface with two included #6 – 32” screws (Fig. 4). 4.Snap cover back together (Fig. 4). 5.The Wireless Doorbell Button can now be enrolled into your 433 MHz Wireless Receiver. (Refer to receiver instructions for enrollment and programming.) Fig. 4 Fig. 1 Fig. 3 1.02 in. (26mm) .735 in. (19mm) 3.55 in. (90mm) COVER PLACE TAB INSIDE COVER INTO SLOT ON BACKPLATE AND ROTATE CLOSED BACKPLATE WHEN USING ANCHORS, DRILL 3/16 in. DIA HOLES WHEN USING SCREWS ONLY, DRILL 3/32 in. DIA HOLES 19018 ANCHOR (2) PROVIDED 1-5/8 in.1-5/8 in. Fig. 2 IMPORTANT NOTICE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Safety Technology International, Inc. could void the user’s authority to operate the equipment. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’Appareil ne doit pas produire de brouillage, et 2. L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Model: 34601 FCC ID: TXL34601 IC: 6335A-34601 WARRANTY INFORMATION: Safety Technology International, Inc. warrants to the original consumer/purchaser that this product shall be free of defects in material and workmanship under normal use and circumstances for a period of one (1) year from the original date of purchase. TECHNICAL SUPPORT: Contact STI at 800-888-4784 Printed in USA 2306 Airport Road • Waterford • Michigan • 48327-1209 Phone: 248-673-9898 • Toll Free: 800-888-4784 • Fax: 248-673-1246 Email: [email protected] • Web: www.sti-usa.com Safety Technology International (Europe) Ltd. Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999 Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only) E-mail: [email protected] • Web: www.sti-europe.com Install 34601, FEB2012 Safety Technology International, Inc.

Rhein Tech Laboratories, Inc. Client: STI, Inc. 360 Herndon Parkway Model: 34601 Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 ID’s: TXL34601/6335A-34601 http://www.rheintech.com Report #: 2012025 Appendix A: FCC/TCB Agency Authorization Letter Please refer to the following page. iafety lechnology Intemational, Inc. 2306 Akport noid, W.terford, H {832t U.Sl. Fhoa€: ?tl8-673-9E98. SAI:118-673-1246. WGb: www.rtFu6..(ofl!. E-ffr{: lnfu@rtl-usr,ce{B Authoritv to Act as Aqent Date Mar 12, 2012 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, YA 22101 To Whom lt May Concern: Rhein Tech Laboratories, Inc. is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: Feb 28,2013 (Typically 8- 12 months) By: Title: On behalt of: Safetv Technoloqv International. lnc. Telephone: (Company Name) 248€73-9898 John Taylor (Print name) Executive Vice President

Rhein Tech Laboratories, Inc. Client: STI, Inc. 360 Herndon Parkway Model: 34601 Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 ID’s: TXL34601/6335A-34601 http://www.rheintech.com Report #: 2012025 Appendix B: FCC Confidentiality Request Letter Please refer to the following page. Safety Technology International, lRc. 1306 Airpod no4 ffitcrtord, H tttZT USr. Phone 2S-673-989E . f;AX: 2{S-6t3"12{6. mh wws$c..wt. E-f[rd: ffi{p$F{6|.€o6l Date Mar. 12, 2012 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 Mclean, VA 22101 To Whom lt May Concern: The following information is to be held confidential pursuant to FCC 47 CFR S0.457(d) and 50.459, because the information provided contains trade secrets and is proprietary. lf made public, the information might be used to the disadvantage of the applicant in the market place. . Schematics o Technical Product Descriotion . Block Diagram Sincerely, Exec utiv e vice P reside nt

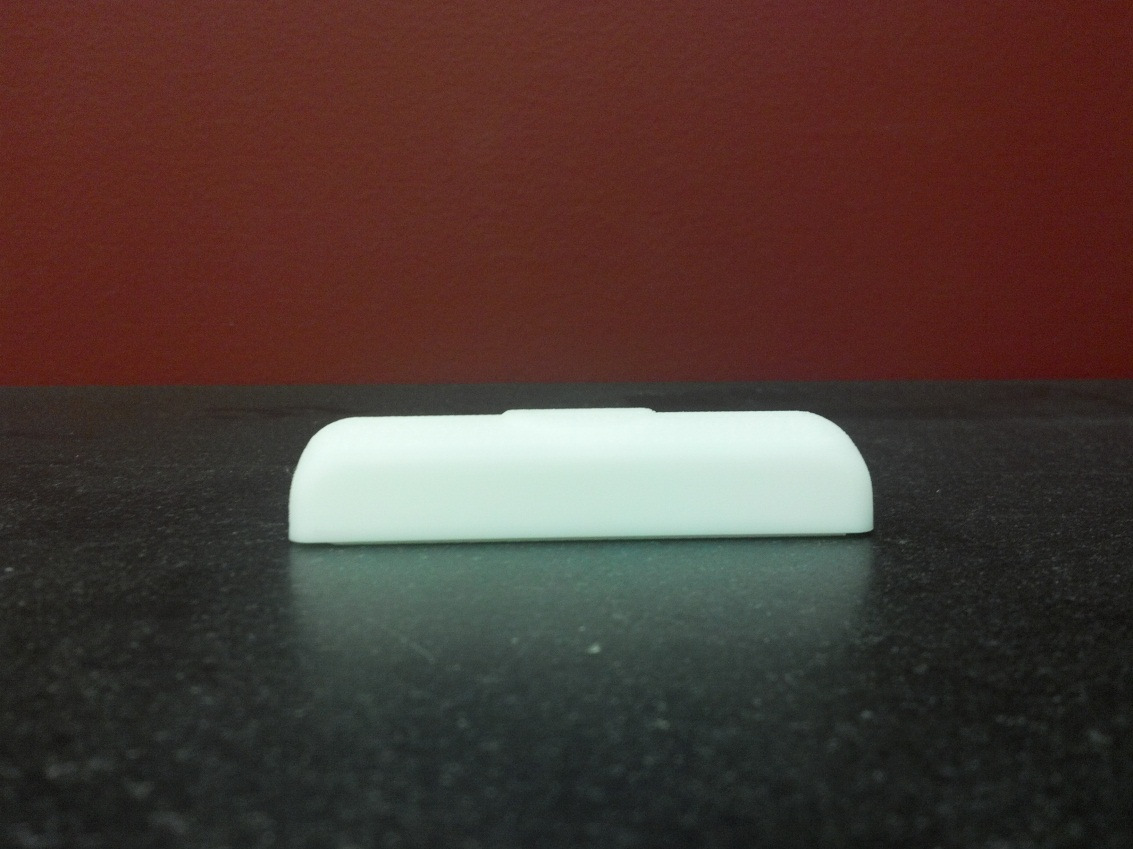

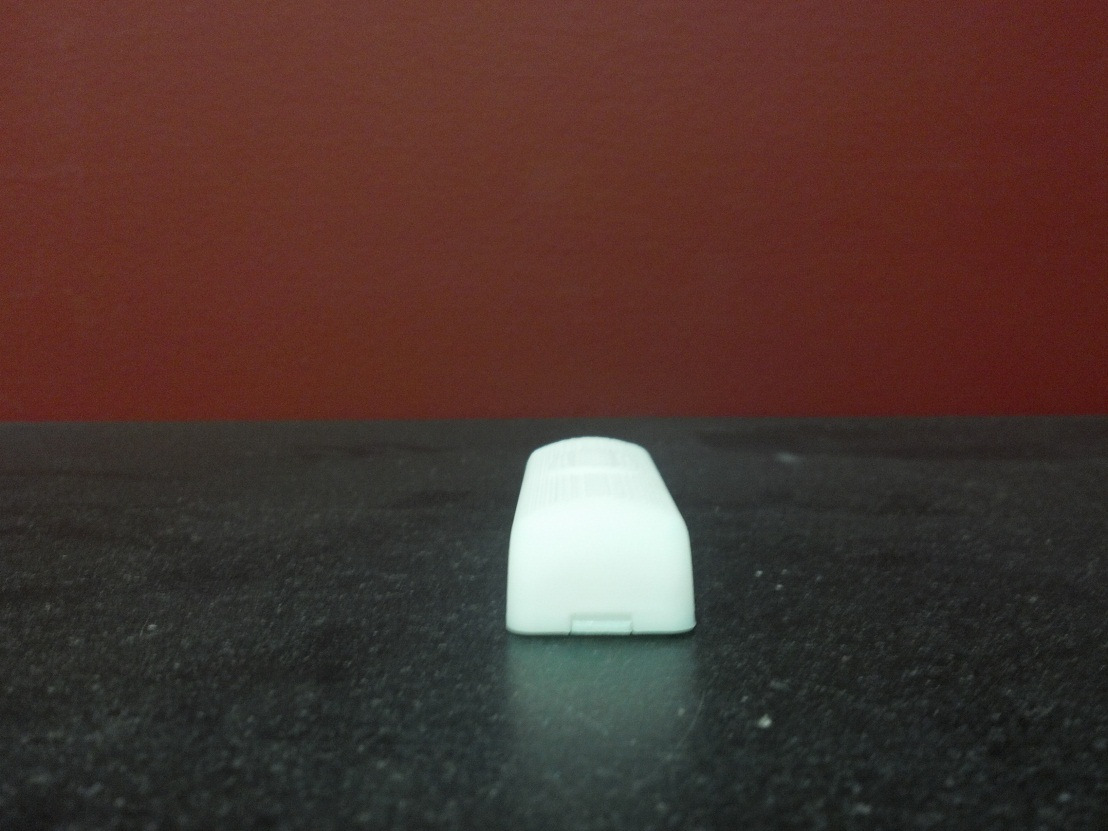

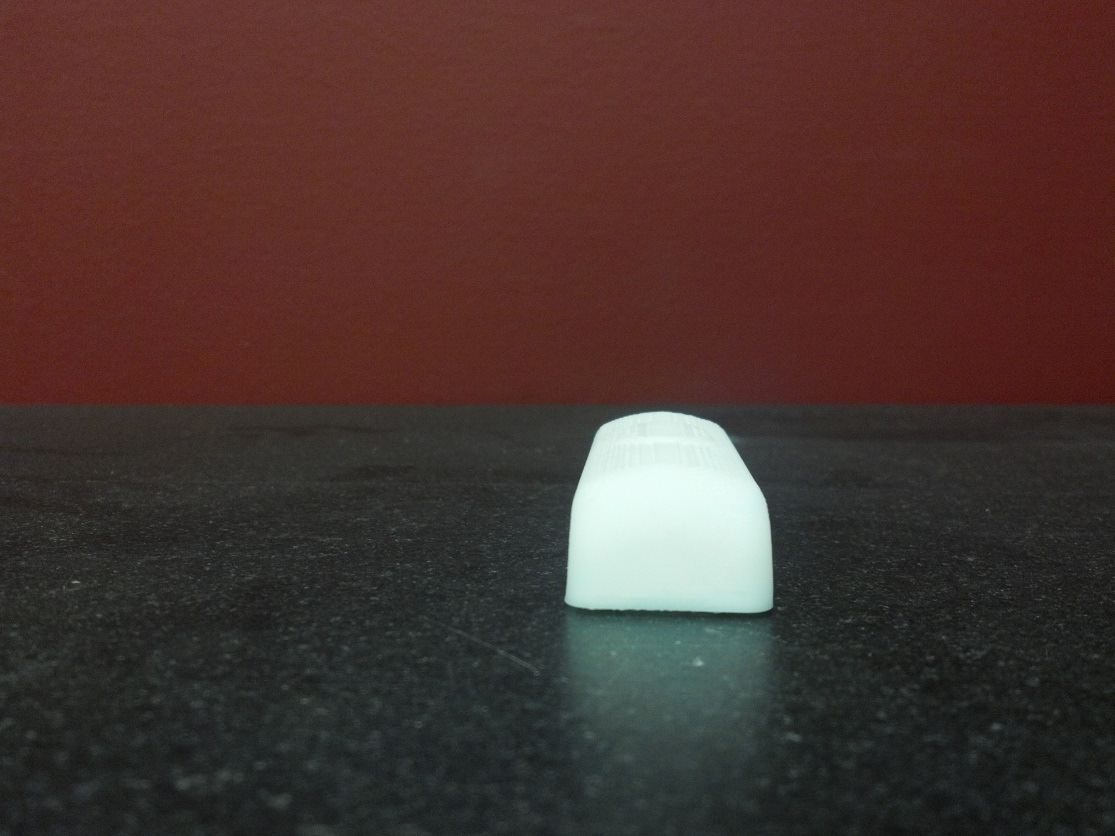

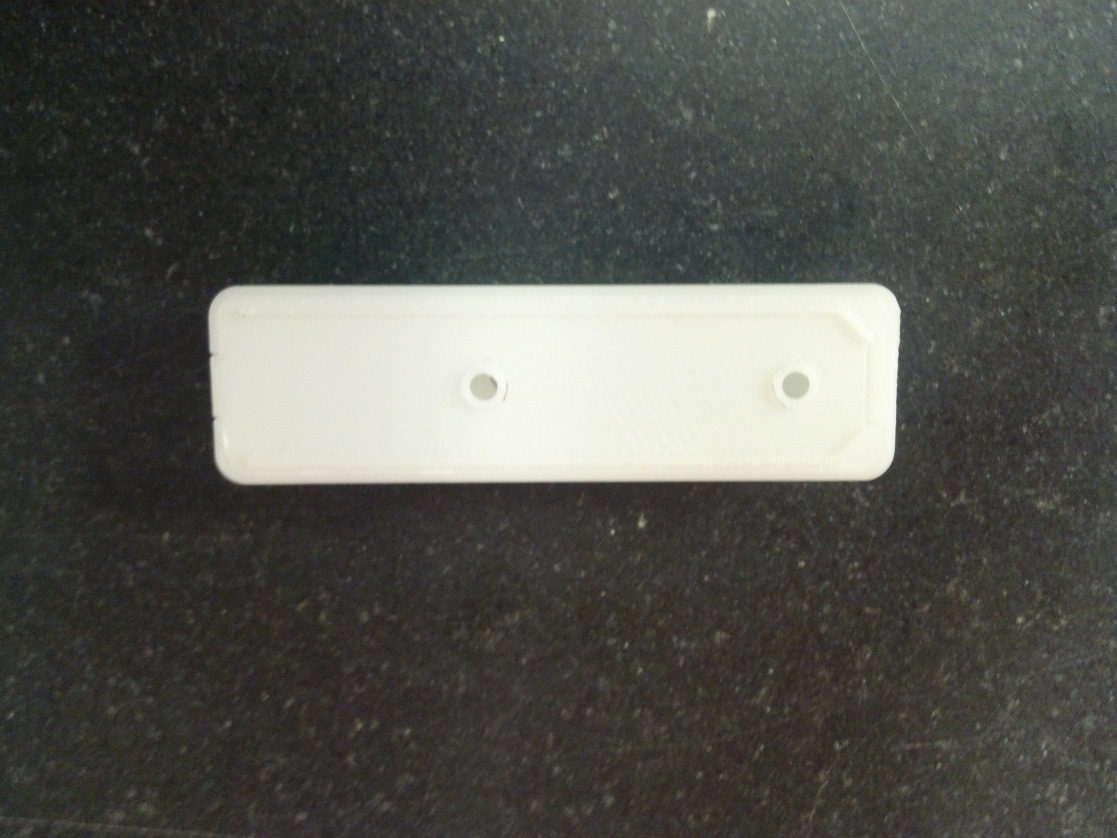

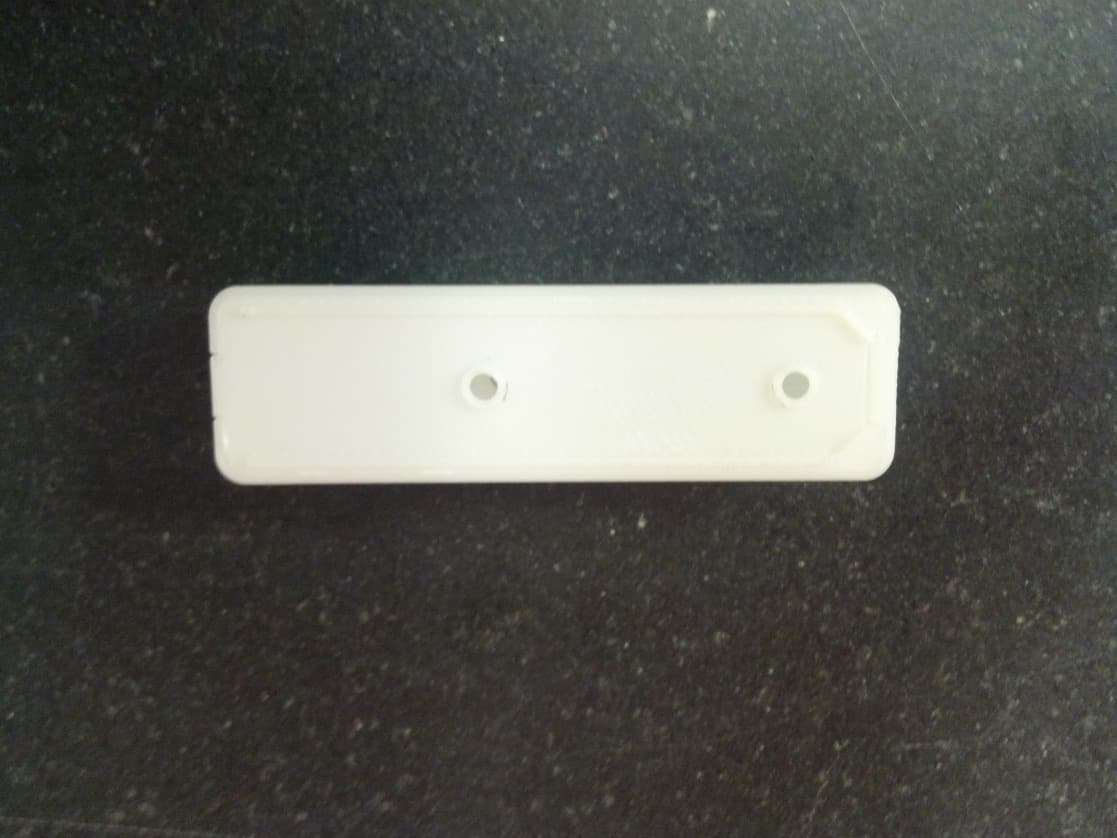

Rhein Tech Laboratories, Inc. Client: STI, Inc. 360 Herndon Parkway Model: 34601 Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 ID’s: TXL34601/6335A-34601 http://www.rheintech.com Report #: 2012025 Appendix L: External Photographs Please see the following pages. MODEL: 34601 FCC ID: TXL34601 IC: 6335A-34601 External Pictures March 8, 2012Safety Technology International, Inc.Page | 1 March 8, 2012Safety Technology International, Inc.Page | 2 March 8, 2012Safety Technology International, Inc.Page | 3 March 8, 2012Safety Technology International, Inc.Page | 4 March 8, 2012Safety Technology International, Inc.Page | 5 March 8, 2012Safety Technology International, Inc.Page | 6

Rhein Tech Laboratories, Inc. Client: STI, Inc. 360 Herndon Parkway Model: 34601 Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 ID’s: TXL34601/6335A-34601 http://www.rheintech.com Report #: 2012025 Appendix F: ID Label and Label Location Please refer to the following page. DETAIL A SCALE 2 : 1 A 1 1 2 2 3 3 4 4 AA BB CC DD SHEET 1 OF 1 DRAWN CHECKED QA MFG APPROVED bhodges 2/23/2012 DWG NO STI-34601 Assembly TITLE 34601 Molded Label Text SIZE C SCALE Safety Technology International, Inc. 2306 Airport Road, Waterford, MI 48327 REV 1.020 [25.91] .735 [18.67] 3.550 [90.17]

Rhein Tech Laboratories, Inc. Client: STI, Inc. 360 Herndon Parkway Model: 34601 Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 ID’s: TXL34601/6335A-34601 http://www.rheintech.com Report #: 2012025 Appendix M: Internal Photographs Please see the following page. MODEL: 34601 FCC ID: TXL34601 IC: 6335A-34601 Internal Pictures Safety Technology International, Inc.3-8-12

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com FCC Part 15.231 & IC RSS-210 Certification Application Report Test Lab: Rhein Tech Laboratories, Inc. Tel: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web: www.rheintech.com Herndon, VA 20170 Email: [email protected] Applicant: Safety Technology International, Inc. 2306 Airport Road Waterford, MI 48327 Contact: John Taylor FCC ID/ IC TXL34601 6335A-34601 Test Report Date February 27, 2012 Platform N/A RTL Work Order Number 2012025 Model 34601 RTL Quote Number QRTL12-005A FCC Classification DSC – Part 15 Security/Remote Control Transmitter FCC Rule Part(s) Part 15.231: Periodic operation in the band 40.66 – 40.70 MHz and above 70 MHz (10-01-11) IC Standard RSS-210 Issue 8: Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment Procedure or Other Guidance ANSI C63.4-2003 Standard for Methods of Measurement of Radio-Noise Emissions Digital Interface Information N/A Frequency Range (MHz) Output Power (W) Frequency Tolerance Emission Designator 433.92 N/A N/A 98K7P1D I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. Modifications made to the equipment during testing in order to achieve compliance with these standards are listed in the report. Furthermore, there was no deviation from, additions to, or exclusions from the applicable parts of FCC Part 2, FCC Part 15, IC RSS- 210, and ANSI C63.4. Signature: Date: February 27, 2012 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. and Safety Technology International, Inc. The test results reported relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: STI, Inc. 360 Herndon Parkway Model: 34601 Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 ID’s: TXL34601/6335A-34601 http://www.rheintech.com Report #: 2012025 Table of Contents 1 General Information .............................................................................................................................. 4 1.1 Scope ............................................................................................................................................ 4 1.2 Modifications ................................................................................................................................. 4 1.3 Test Facility ................................................................................................................................... 4 1.4 Related Submittal(s)/Grant(s) ....................................................................................................... 4 2 Test Information .................................................................................................................................... 5 2.1 Test Justification............................................................................................................................ 5 2.2 Exercising the EUT ....................................................................................................................... 5 2.3 Test Result Summary .................................................................................................................... 5 2.4 Test System Details ...................................................................................................................... 5 2.5 Configuration of Tested System .................................................................................................... 6 3 Duty Cycle Calculation - FCC 15.35(c) ................................................................................................. 7 4 Transmitter Deactivation – FCC 15.231(a)(1) ....................................................................................... 9 5 Modulated Bandwidth – FCC 15.231(c), RSS-210 A1.1.3 ................................................................. 11 5.1 Modulated Bandwidth Test Procedure ........................................................................................ 11 5.2 FCC 15.231(c) Limits .................................................................................................................. 11 5.3 Modulated Bandwidth Test Data ................................................................................................. 12 6 Radiated Emissions – FCC 15.209, 15.231(b) ................................................................................... 15 6.1 Radiated Fundamental Emissions Test Procedure ..................................................................... 15 6.1.1 Radiated Fundamental Emissions Limits Test Data ............................................................... 15 6.2 Radiated Harmonics/Spurious Emissions – FCC 15.231(b) ....................................................... 15 6.2.1 Radiated Emissions Harmonics/Spurious Test Procedure ..................................................... 15 7 Conducted Emissions ......................................................................................................................... 18 7.1 Site and Test Description ............................................................................................................ 18 7.2 Test Limits ................................................................................................................................... 18 7.3 Conducted Emissions Test Results ............................................................................................ 18 8 Conclusion ......…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: STI, Inc. 360 Herndon Parkway Model: 34601 Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 ID’s: TXL34601/6335A-34601 http://www.rheintech.com Report #: 2012025 Appendix K: Test Photographs Photograph 1: Radiated Emissions X-Axis Rhein Tech Laboratories, Inc. Client: STI, Inc. 360 Herndon Parkway Model: 34601 Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 ID’s: TXL34601/6335A-34601 http://www.rheintech.com Report #: 2012025 Photograph 2: Radiated Emissions Y-Axis Rhein Tech Laboratories, Inc. Client: STI, Inc. 360 Herndon Parkway Model: 34601 Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 ID’s: TXL34601/6335A-34601 http://www.rheintech.com Report #: 2012025 Photograph 3: Radiated Emissions Z-Axis
