TXL34751Outdoor Motion Detector, 433.92MHz

- 1 - Wireless Outdoor PIR Motion Detector Model STI-34751 Safety Technology International, Inc. “We Protect The Things That Protect You.” Features: · ADFIR™ Dual Frequency IR Detection. - Wind-blown object and air current rejection - White light and lighting rejection - Split View™ look-down element · 44 foot range and 90 degree field of view (45 degrees to each side). · Mountable on flat-wall or 45 degree corner. · Cover tamper. · Strong, reliable RF signal. · 6-8 year battery life of CR123A battery. · Low battery indication. Program sensor before installation - 2 - Programming Instructions: 1. Remove cover fixing screw from bottom of case – pull apart. 2. Put receiver in program mode (refer to receiver instructions for programming). 3. Remove Mylar tab from battery. Unit should immediately program into receiver, if not press the tamper switch. 4. Motion sensitivity: · Normal sensitivity: jumper on BOTH PINS · High sensitivity: remove jumper Mounting Instructions: 1. Remove sub-base fixing screw located at the top. 2. Separate sub-base from back by gripping black gasket. 3. Mount case back at 7.5ft (ideal height) with provided screws and optional anchors. 4. Reattach sub-base and cover. Unit immediately goes into 3 minute walk test. To reset walk test, remove cover and reattach. Walk Test LED: 1. LED lights for 3 minutes when motion sensed (only during walk test). 2. Wireless transmissions are sent for each detection; so walk test can be used for receiver test as well. 3. Motion stops (locks out) sensing for 20 seconds after LED flashes. 4. When complete, replace cover fixing screw. Operation: 1. Motion stops (locks out) transmitting wireless sensor alarms for 3 minutes after sending an alarm transmission. This is to conserve battery life. 2. Walk Test LED does not activate in normal operating mode, only works during walk test. 3. Tamper: when cover is opened. 4. Supervisory: every hour. - 3 - Specifications: · Mounting Hardware: #6 screw · Mounting Height: 7.5ft (ideal height) · Replacement battery: CR123A 1500mAH · Temperature range: -20°F to 120°F · White Light Immunity: 25,000 lux · Housing dimensions: 6.7” X 3.0” X 2.4” Specifications subject to change without notice. BATTERY + MOTION SENSOR WALK TEST LED TAMPER AND WALK TEST SWITCH SENSITIVITY JUMPER 0 44 ft 44 ft 44 ft Top View 7.5 ft. 18 ft MIDDLE RANGE 27 ft36 ft44 ft LONG RANGE Anti-sway processing range Side View MYLAR TAB SUB-BASE FIXING SCREW COVER FIXING SCREW COVER SUB-BASE CASE BACK - 4 - Warranty Information: Safety Technology International, Inc. 2306 Airport Rd • Waterford, MI 48327 Phone: 248-673-9898 • Fax: 248-673-1246 [email protected] • www.sti-usa.com Safety Technology International (Europe) Ltd. Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999 Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only) E-mail: [email protected] • Web: www.sti-europe.com Inst. 34751 JAN2013 Printed in USA Safety Technology International, Inc. warrants to the original consumer/purchaser what this product shall be free of defects in material and workmanship under normal use and circumstances for a period of one (1) year from the original date of purchase. Important Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference that may be received, including interference that may cause undesired operation. Changes or modifications not expressly approved by STI could void the user’s authority to operate this equipment. This product meets the applicable industry Canada Technical specifications. Le Présent matériel est conforme aux spécifications techniques applicables d’Industrie Canada. Model: 34751 FCC ID: TXL34751 IC: 6335A-34751 Technical Support: Contact STI at 800-888-4784 ext. 202 STI-34099 Single Channel Slave Receiver STI-34104 4-Channel Receiver STI-V34104 4-Channel Voice Receiver STI-34108 8-Channel Receiver STI-34188 8-Zone Relay Board STI-34101 Solar Powered Driveway Monitor Sensor STI-34151 Battery Powered Driveway Monitor Sensor STI-34201 Wireless Mailbox Alert Sensor STI-34301 Wireless Garage Sentry Sensor STI-34401 Wireless Universal Alert Sensor STI-34501 Wireless Pool Alert Sensor STI-34601 Wireless Doorbell Button STI-34701 Indoor Wireless PIR STI-34751 Outdoor Wireless PIR STI-6200WIR Wireless Fire Extinguisher Theft Stopper STI-6200WIR4 Wireless Fire Extinguisher Theft Stopper w/Receiver STI-6400WIR Wireless Exit Stopper Door Alarm STI-6400WIR4 Wireless Exit Stopper Door Alarm with Receiver STI-6517A Stopper Station Shield with Sound STI-6517B Stopper Station Shield with Sound and Transmitter STI-30104 Lamp Controller STI-30105 Extended Antenna STI-34105 Voltamax 12VDC (500mA) Power Supply STI-34106 Keyfob STI-34109 Repeater Additional Wireless Alert Series Products:

Authority to Act as Agent March 28, 2013 American Certification Body, Inc. 6731 Whittier Ave. Suite C110 McLean, WA 22101 To Whom It May Concern: Ben Kyllo at Resolution Engineering, Inc. is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: March 28, 2014 By: John Taylor (Signature)(Print Name) Title: Executive Vice President On behalf of: Safety Technology International, Inc. Telephone: 248-673-9898

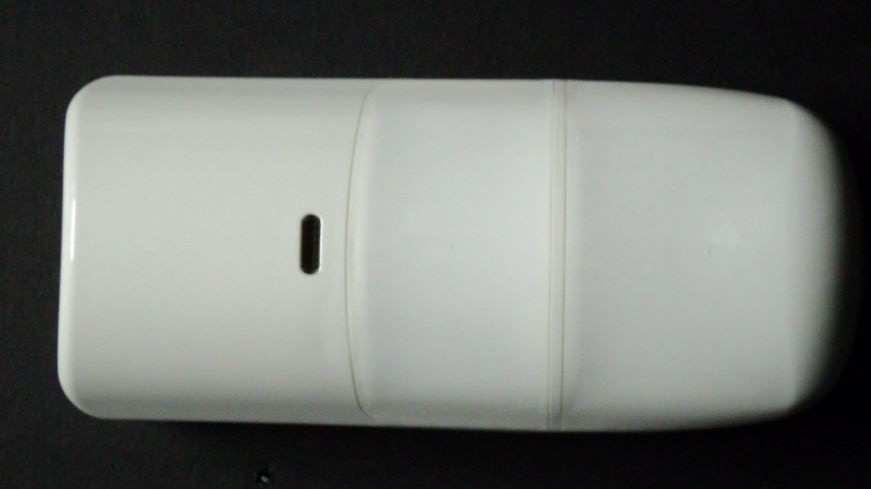

Exhibit A STI-34751 External Photos

Exhibit B STI-34751 ID Label Photo

Exhibit C STI-34751 Internal Photos

Engineering Solutions & Electromagnetic Compatibility Services FCC 15.231 Test Data for Model: RE353 433.92 MHz Outdoor PIR (RTL barcode: 20558) for Resolution Engineering Report #: 2012102 Test Engineer: Jon Wilson This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Resolution Engineering. Test results relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway Model: RE353 Suite 1400 FCC ID: N/A Herndon, VA 20170 Standards: FCC Part 2, 15 http://www.rheintech.com Report #: 2012102 2 of 8 Description of testing presented in this test report The data and limits presented in this report are for peak emissions limiting per 15.231(b)(2) which references 15.35(b), and peak limiting for restricted bands per 15.209(e) which again references 15.35(b)(2), as procured by Resolution Engineering. No average data is presented in this report. Data is also presented for spurious, non-harmonic radiated emissions per 15.209. Radiated Emissions Test Data – FCC Limits / 3m Distance Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 216.968 Qp V 40.1 -21.7 18.4 46.0 -27.6 Pass 325.445 Qp V 39.1 -14.6 24.5 46.0 -21.5 Pass 420.355 Qp V 33.0 4.9 37.9 46.0 -8.1 Pass 433.950* Peak H 65.2 30.5 95.7 100.8 -5.1 Pass 454.744 Qp V 33.1 2.1 35.2 46.0 -10.8 Pass 542.563 Qp V 35.9 -5.1 30.8 46.0 -15.2 Pass 651.274 Qp H 35.1 -6.9 28.2 46.0 -17.8 Pass 867.833 Peak V 46.7 -3.2 43.5 80.8 -37.3 Pass 1301.773 Peak H 49.8 3.4 53.2 74.0 -20.8 Pass 1735.693 Peak V 41.6 7.8 49.4 80.8 -31.4 Pass 2169.605 Peak H 60.7 -14.3 46.4 80.8 -34.4 Pass 2603.525 Peak V 70.4 -14.7 55.7 80.8 -25.1 Pass 3037.445 Peak H 67.0 -14.2 52.8 80.8 -28.0 Pass 3471.365 Peak V 76.2 -13.3 62.9 80.8 -17.9 Pass 3905.285 Peak H 52.0 -13.5 38.5 74.0 -35.5 Pass 4339.205 Peak V 58.0 -7.6 50.4 74.0 -23.6 Pass * fundamental Test Procedure Radiated fundamental and spurious emissions were tested at three meters. The EUT was tested in the three orthogonal planes with the receive antenna in both polarities. The emissions were maximized per ANSI C63.4:2003 8.3.1.2; that is, the measurement antenna height was varied between 1 and 4 m, and the EUT was rotated through 360° on a rotating turntable until the maximum emissions were found. Both horizontal and vertical measurement antenna polarizations were used. A resolution bandwidth of 100 kHz was used for frequencies less than 1000 MHz, and a resolution bandwidth of 1 MHz was used for frequencies greater than or equal to 1000 MHz. The video bandwidth was set to a value at least three times greater than the resolution bandwidth. EUT Disposition The EUT was adapted to continuously transmit for testing purposes. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway Model: RE353 Suite 1400 FCC ID: N/A Herndon, VA 20170 Standards: FCC Part 2, 15 http://www.rheintech.com Report #: 2012102 3 of 8 Radiated Emissions Test Equipment – 2012 testing Part Manufacturer Model Serial Number RTL Bar Code Calibration Due Date Amplifier (20 MHz-2 GHz) Rhein Tech Laboratories, Inc. PR-1040 900905 900905 4/10/12 Spectrum Analyzer (100 Hz-22 GHz) Hewlett Packard HP-8566B 3138A07771 900930 9/13/12 Bilog Periodic Antenna (25 MHz-2 GHz) Schaffner Chase CBL6112 2099 900791 12/12/12 EMI Receiver RF Section (9 KHz-6.5 GHz) Hewlett Packard 85462A 3325A00159 900913 6/8/12 RF Filter Section (100 KHz-6.5 GHz) Hewlett Packard 85460A 3330A00107 900914 6/8/12 Amplifier (1 GHz–26.0 GHz) Rhein Tech Laboratories, Inc. PR-1042 N/A 901364 7/14/12 Horn Antenna (2.0-4.0 GHz) EMCO 3161-02 9804-1044 900772 6/13/12 Horn Antenna (4.0-8.0 GHz) EMCO 3161-03 9508-1020 900321 6/13/12 Emissions Testing Software Rhein Tech Laboratories, Inc. Automated Emission Tester Rev. 14.0.2 N/A N/A Test Personnel: Jon Wilson March 26 2012 Test Engineer Signature Date of Test Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway Model: RE353 Suite 1400 FCC ID: N/A Herndon, VA 20170 Standards: FCC Part 2, 15 http://www.rheintech.com Report #: 2012102 4 of 8 Radiated Emissions Test Equipment – 2013 testing Part Manufacturer Model Serial Number RTL Bar Code Calibration Due Date Amplifier (20 MHz-2 GHz) Rhein Tech Laboratories, Inc. PR-1040 900905 900905 8/20/2013 Bilog Periodic Antenna (25 MHz-2 GHz) Schaffner Chase CBL6112 2099 900791 2/2/2014 EMI Receiver RF Section (9 kHz-6.5 GHz) Hewlett Packard 85462A 3325A00159 900913 9/20/2013 RF Filter Section (100 kHz-6.5 GHz) Hewlett Packard 85460A 3330A00107 900914 9/20/2013 Spectrum Analyzer Rohde & Schwarz FSU 1166.1660.50 901581 6/4/2013 Amplifier (1 GHz–26.0 GHz) Rhein Tech Laboratories, Inc. PR-1042 N/A 901364 9/28/2013 Horn Antenna (2.0-4.0 GHz) EMCO 3161-02 9804-1044 900772 4/20/2015 Horn Antenna (4.0-8.2 GHz) EMCO 3161-03 9508-1020 900321 4/20/2015 Emissions Testing Software Rhein Tech Laboratories, Inc. Automated Emission Tester Rev. 14.0.2 N/A N/A Test Personnel: Jon Wilson April 4, 2013 Test Engineer Signature Date of Test FCC/IC Cross Reference FCC 15.231(b)(2) RSS-210 Issue 8 A1.1 FCC 15.35(b) RSS-Gen Issue 3 7.2.3 FCC 15.205 RSS-Gen Issue 3 7.2.2 FCC 15.209 RSS-Gen Issue 3 7.2.5 Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway Model: RE353 Suite 1400 FCC ID: N/A Herndon, VA 20170 Standards: FCC Part 2, 15 http://www.rheintech.com Report #: 2012102 5 of 8 Test Configuration Photographs X-Axis Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway Model: RE353 Suite 1400 FCC ID: N/A Herndon, VA 20170 Standards: FCC Part 2, 15 http://www.rheintech.com Report #: 2012102 6 of 8 Y-Axis Rhein Tech …

Text truncated - open the document above for the full version.

Safety Technology International, Inc. Wireless Outdoor PIR Motion Detector FCC ID: TXL34751 Certification Test Report March 28, 2013 TXL34751 Safety Technology International, Inc.3/28/13Page 1 of 8 Test Report 2306 Airport Road Waterford, MI 48327 Contents 1. Introduction.................................................................................................................................................................3 2. Statement of Compliance............................................................................................................................................3 2.1. FCC Part 2 §2.907................................................................................................................................................3 2.2. FCC Part 2 §2.911................................................................................................................................................3 2.3. FCC Part 2 §2.913................................................................................................................................................3 2.4. FCC Part 2 §2.915................................................................................................................................................3 2.5. FCC Part 2 §2.925................................................................................................................................................3 2.6. FCC Part 2 §2.943, 2.945....................................................................................................................................3 2.7. FCC Part 2 §2.947................................................................................................................................................3 2.8. FCC Part 2 §2.948................................................................................................................................................4 2.9. FCC Part 2 §2.1033..............................................................................................................................................4 3. Discussion of Laboratory Measurements and Rules Compliance...............................................................................5 3.1. FCC Part 15 §15.231(a)(1)..................................................................................................................................5 3.2. FCC Part 15 §15.231(a)(3)..................................................................................................................................5 3.3. FCC Part 15 §15.231(a)(4)..................................................................................................................................6 3.4. FCC Part 15 §15.231(a)(5)..................................................................................................................................6 3.5. FCC Part 15 §15.231(b).......................................................................................................................................6 3.5.1. Raw Field Strength Limits............................................................................................................................6 3.5.2. Duty Cycle Correction Factor and Resulting Limits.....................................................................................6 3.5.3. Measured Radiated Field Strength Data.......................................................................................................7 3.6. FCC Part 15 §15.231(c).......................................................................................................................................7 TXL34751 Safety Technology International, Inc.3/28/13Page 2 of 8 Test Report 2306 Airport Road Waterford, MI 48327 1.Introduction This device is a wireless motion detector transmitter for use in a wireless security system. The unit is powered by a 3V lithium battery. The transmitter is centered at 433.92MHz and is controlled by a crystal. The device measures 6.75 x 3 x 2.5” and weighs approximately 8.2 ounces. This transmitter is activated via a motion detector or tamper switch. Eight transmission packets are sent by the device only upon valid activation. Upon completion of these packets, the device goes into sleep mode and will not transmit again until another activation. If no activation is received for one hour, three supervisory packets are sent. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.231. 2.Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1.FCC Part 2 §2.907 This is an application for certification of original equipment 2.2.FCC Part 2 §2.911 a)This application has been filed electronically using form 731. b) All required information has been supplied in this application and its attachments. c)This application has been electronically signed by an officer of Resolution Products, Inc. d) The technical test data has been signed by the agency performing the testing. e)Signature supplied in appropriate block on form 731. f)Processing fee has been paid. g) Signatures have been supplied electronically. 2.3.FCC Part 2 §2.913 a)This application has been filed electronically. b) Appropriate fees have been filed electronically. c)Equipment samples shall be supplied as requested. 2.4.FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5.FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: TXL34751”. See Exhibit B for a photograph showing the label and location on the device. 2.6.FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.7.FCC Part 2 §2.947 a)Measurement procedure follows ANSI C63.4: 2009. b) A description of utilized test equipment is contained in the report. 2.8.FCC Part 2 §2.948 …

Text truncated - open the document above for the full version.

STI-34751 Test Setup Photos
