TYM-BLUEVOICELBlutooth Handset

Blue Voice L Home 4 Blue Voice L Home Blue Voice L Home is a cordless handset. It can com- municate with any Bluetooth access point, supporting the CTP profile, by using the Bluetooth interface and the Bluetooth Cordless Telephony Profile. (A direct con- nection between two Blue Voice L Home handsets wit- hout involving a Bluetooth access point is possible in Intercom mode ( → S. 26).) • All basic telephone features can be used with Blue Voice L Home. • It is possible to make a telephone call outdoors at a remove of up to 100 metres from the access point. Inside a building, it is possible to make a telephone call from the adjoining two or three rooms, depending on the layout of the building. Familiarize yourself with the Blue Voice ( → S. 5) Commissioning ( → S. 9) Basic rules of operation ( → S. 14) Telephoning ( → S. 23) Making calls with ease ( → S. 28) Settings ( → S. 37) Consult the manual as required ( → S. 46) 5 Familiarize yourself with the Blue Voice L Home Important notes Familiarize yourself with the Blue Voice L Home Important notes Where you may use Blue Voice The Blue Voice is suitable for use in the office, outdoors or in a dusty environment. It complies with the IP 54 protection class and is splashproof and dustproof. Do not leave the telephone in direct sunlight. Doing so could cause damage to the telephone, thus making it inoperable. Operating the battery Your Blue Voice comes fitted with a Li-ion battery. • Charge the battery completely the first time you use it. • Insert the Blue Voice into the charger repeatedly during the first week of use. The new battery attains its full capacity after it has been charged, used and charged again a few times. Avaya is not liable for damage which occurs due to inappropriate handling of the bat- tery. Repairs The device may only be opened or repaired by qualified technicians. Do not open the telephone yourself. Doing so could cause damage to the telephone, thus making it inoperable. Efficient use of the handset Your Blue Voice comes fitted with an antenna. The antenna projects into the casing projection on the upper rear side of the device. Do not cover up the antenna unnecessarily. Particularly when making a call. This reduces the signal range, the connection quality and the talk time, as your device must then operate at a higher transmission power. It is recommended to switch your Blue Voice off if you intend to have it away from the charger for a long period of time. When switched off, Blue Voice remains on standby for up to 20 days before the battery is finally flat. Maintenance Please clean your telephone with a soft, lint-free cloth. If required the cloth can be moistened with a mild household or plastic cleanser or disinfectant. Do not clean with scrubbing cleansers or solvents. Important notes 6 Familiarize yourself with the Blue Voice L Home Always dispose of old equipment correctly - keep our environment tidy Old electrical and electronic equipment marked with this symbol can contain substances hazardous to human beings and the environment. Never dispose of these items together with unsorted municipal waste (household waste). In order to protect the environment, public collec- tion points have been set up to ensure the correct disposal of old elec- trical and electronic equipment marked with this symbol. To reduce the risk of these substances being released into the envi- ronment and to reduce the burden on natural resources, it is also pos- sible to participate in Avaya-Tenovis’ used equipment return system. This system ensures the correct recycling of old equipment as well as the re-utilisation of individual components. 7 Familiarize yourself with the Blue Voice L Home Overview of the Blue Voice L Home Overview of the Blue Voice L Home 1Socket for headset 2Display 3Right softkey 4Selector 5Lift the receiver / redial key 6Digit keys 7Hash key / switchover between lower case and upper case letters key 8Microphone 90 / empty space key 10Star / special character mode key 11Button 1 12Hang up receiver / back key 13Left softkey 14Speaker loudspeaker 15Antenna All keys at a glance 8 Familiarize yourself with the Blue Voice L Home All keys at a glance Many keys have two functions. According to the status of Blue Voice, the appropriate function is active. i Note It normally does not matter if a key is pressed quickly or held down for a longer period. Longer pressing is only necessary for the use of some special functions. Left softkeyFunction depends on status Second function (press and hold down key): Switch off Right softkeyFunction depends on status Second function (press and hold down key): Switch on Lift the receiverDials the call number entered Second function: Redial Hang upEnds call Second function: Cancel / back to last menu displayed ... Digit keys with lettersFor dialling call numbers and entering text Second function (press and hold down key): Direct entry into phone book Button 1Digit / special characters Second function (press and hold down key): Direct entry into phone book Star buttonFor special function Second function: Calls up the menu for the entry of special characters Hash keyFor special function Second function: Switching between upper case and lower case letters SelectorPressing the key strongly:Opens a sel- ected menu item or confirms an input. Press the rocker switch up or down: Moves the highlight in the display accor- dingly. If a scroll bar is shown, the display scrolls up or down. 9 Commissioning Commissioning Commissioning Commissioning Only a few more steps are necessary before you can make calls with your Blue Voice: 1. Connect the charger. ( → S. 10) 2. Charge the battery. (→ S. 11) 3. Connect the Blue Voice to your access point (bonding). ( → S. 12) Positioning of the charger 10 Commissioning Positioning of the charger Place the charger on a solid, even surface, for example, on a table. Choose a loca- tion that is protected from direct sunlight and dampness. • Plug the small plug of the connectin…

Text truncated - open the document above for the full version.

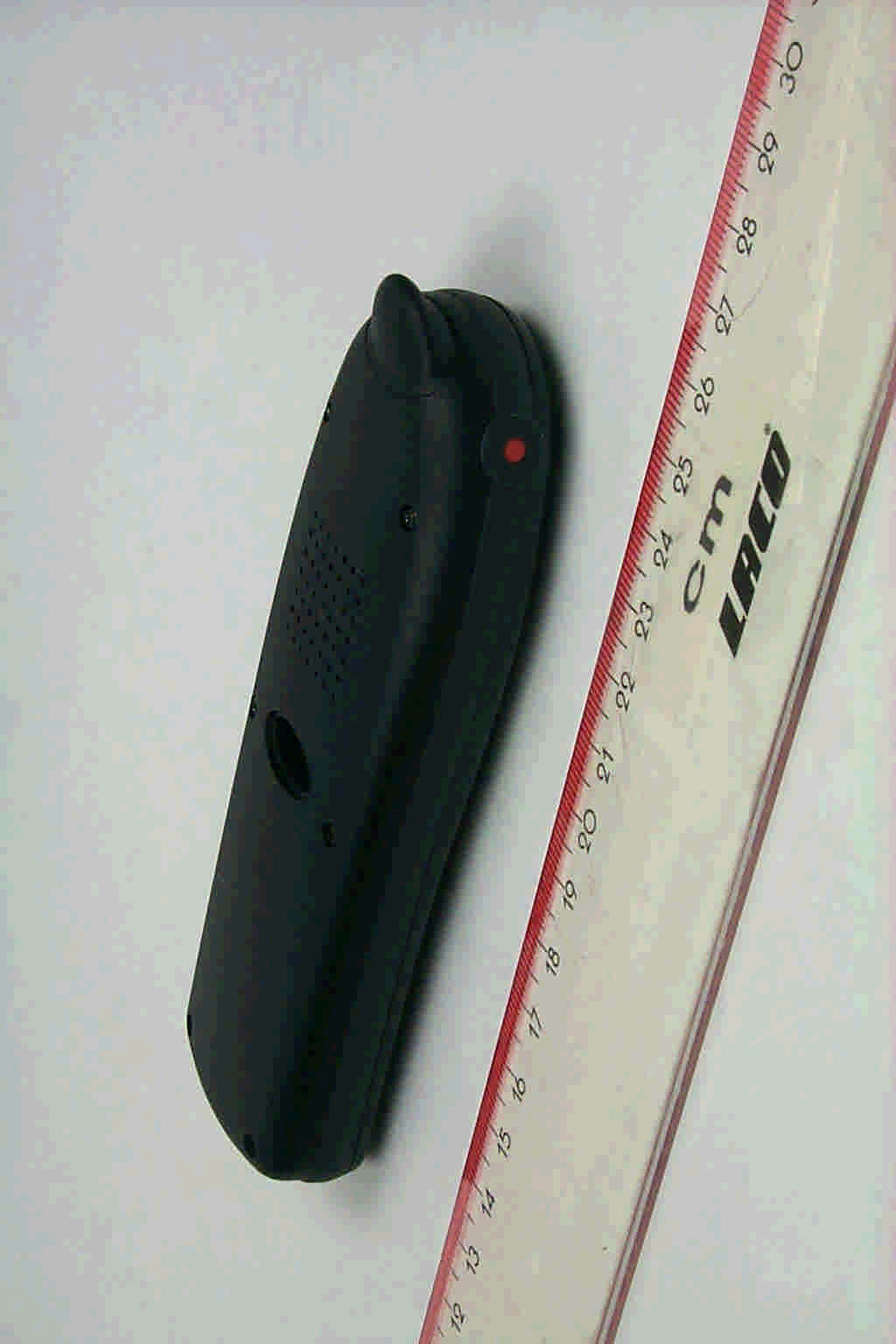

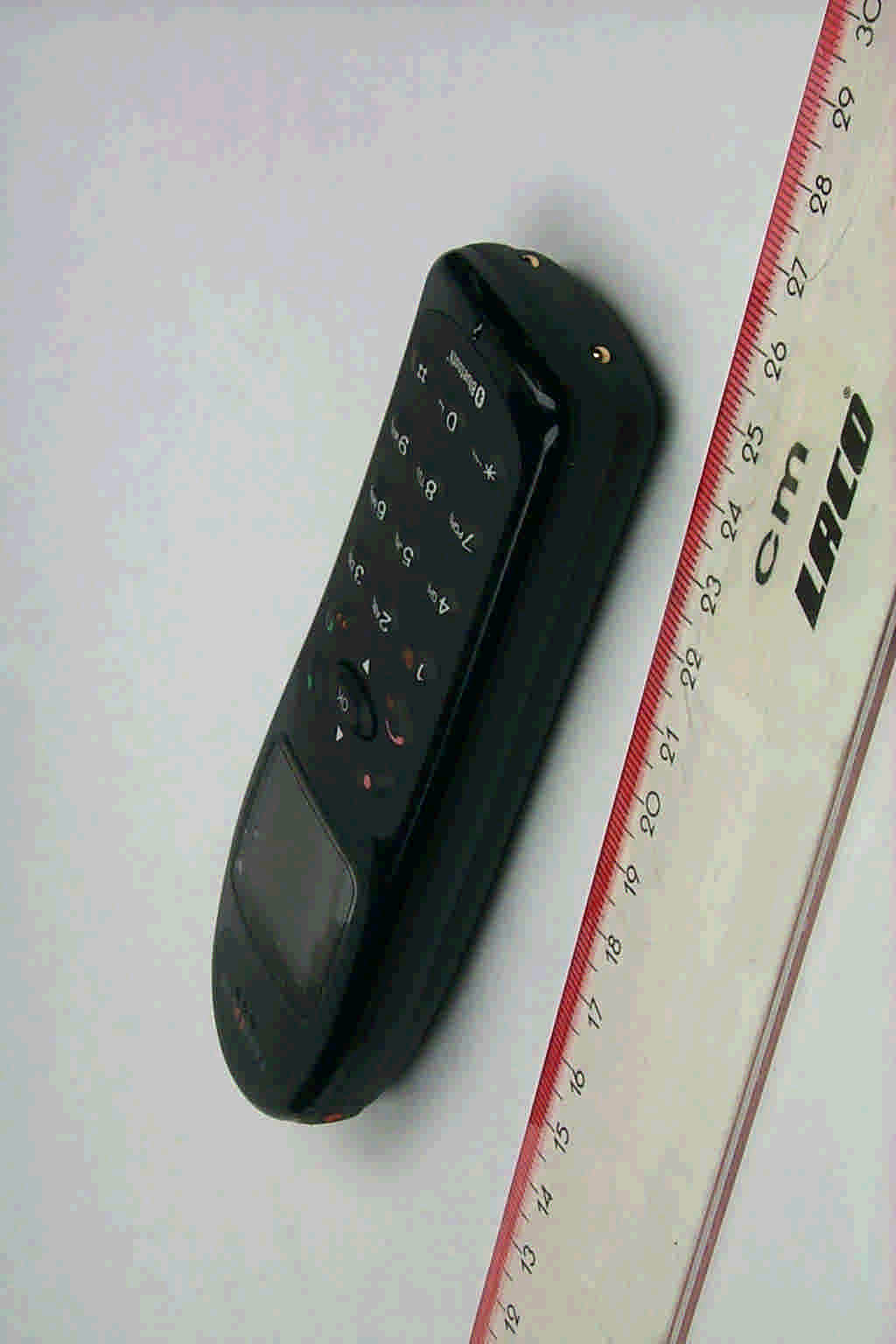

Annex C of test report R52105 Edition 1 EUT: EXPLORER Bluetooth Handset Manufacturer: Avaya-Tenovis GmbH & Co. KG Examiner: Thomas KÜHNDate of issue: 02 February 2006page 1 of 6 52105_12.jpgEXPLORER Bluetooth handset, 3D view 1 Annex C of test report R52105 Edition 1 EUT: EXPLORER Bluetooth Handset Manufacturer: Avaya-Tenovis GmbH & Co. KG Examiner: Thomas KÜHNDate of issue: 02 February 2006page 2 of 6 52105_11.jpgEXPLORER Bluetooth handset, 3D view 2 Annex C of test report R52105 Edition 1 EUT: EXPLORER Bluetooth Handset Manufacturer: Avaya-Tenovis GmbH & Co. KG Examiner: Thomas KÜHNDate of issue: 02 February 2006page 3 of 6 52105_10.jpgEXPLORER Bluetooth handsetCharger, 3D view 1 Annex C of test report R52105 Edition 1 EUT: EXPLORER Bluetooth Handset Manufacturer: Avaya-Tenovis GmbH & Co. KG Examiner: Thomas KÜHNDate of issue: 02 February 2006page 4 of 6 52105_9.jpgEXPLORER Bluetooth handset Charger, 3D view 2 Annex C of test report R52105 Edition 1 EUT: EXPLORER Bluetooth Handset Manufacturer: Avaya-Tenovis GmbH & Co. KG Examiner: Thomas KÜHNDate of issue: 02 February 2006page 5 of 6 52105_8.jpgEXPLORER Bluetooth handset AC / DC adapter, 3D view 1 Annex C of test report R52105 Edition 1 EUT: EXPLORER Bluetooth Handset Manufacturer: Avaya-Tenovis GmbH & Co. KG Examiner: Thomas KÜHNDate of issue: 02 February 2006page 6 of 6 52105_7.jpgEXPLORER Bluetooth handset AC / DC adapter, 3D view 2

T Y M - B L U E V O I C E L P r o d u c t id X X X 7 7 7 7 7 7 7 7 7 7

circuits for headset function diode Thrane & Thrane EXPLORER TM Bluetooth handset AVAYA Blue Voice L Bluetooth handset

Blue Voice L Bluetooth CTP Handset Data Sheet General Features Cordless Telephone based on Bluetooth Technology Compliant to Bluetooth Version 1.1 Bluetooth Class 1 Radio for extended range Intuitive MMI based on a WAP Browser Supports 6 languages Supports “R”-button for control of additional features in the access point Profiles Cordless Telephony Profile (CTP) Generic Access Profile (GAP) Power Supply Battery pack: 3.7V Li-Ion battery with a capacity of 900 mAh. Mounted and mechanically fixed to the battery compartment within the handset’s cover. Handset has bottom charger contacts for charger cradle. Characteristics: Technology: Li-Ion Maximum charging time: 4 hours Continuous talk time: 11 hours Standby: 40 hours Switched off mode: approx. 240 hours Minimum lifetime cycles: 500 Minimum battery lifetime: 4 years Overcharging prevention RF Output power +16,5 dBm +/- 1dBm Receiver sensitivity -77 - -82 dBm This power and sensitivity are Bluetooth certified! Range of use outdoor 100 meters with free sight. Keypad Separate on hook key Separate off hook key Keys 0-9, * and # 2 softkeys Navigation Rocker: The navigation rocker can be pushed up and down to navigate and can be pressed to make a selection or confirmation. Display 11520 pixels (120*96) Display illumination colour: blue Mechanical dimensions: 27*24mm Contrast: fixed Environmental -5°C - +45°C Operation Temperature Range -25°C - +55°C storage/transportation conditions -25°C - +60°C storage/transportation conditions (low humidity, slow change of temperature) IP54 Water and Dust Resistance Up to 93% Humidity Mechanical Dimensions approx. 137x46x21(mm) Weight (with battery pack) approx. <100g Rubber outline Plug socket for external headset Vibrator alarm

DAT-P-152/98-01 SAR_Report_Phoenix_6620_576_Cal Data_BlueVoiceL dasy_report_fcc_1900_cal_data_2.0.doc/08.01.2005/CH Appendix for the Report Dosimetric Assessment of the Portable Device Avaya-Tenovis Blue Voice L (FCC ID: TYM-EXPLORER-BTHS) According to the FCC Requirements Calibration Data February 15, 2006 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Phoenix Testlab Königswinkel 10 D-32825 Blomberg This report shall not be reproduced except in full without the written approval of the testing laboratory.

DAT-P-152/98-01 SAR Report, Phoenix_6620_576_FCC_2450_SAR Plots_BlueVoiceL Page 1 of 7 Appendix for the Report Dosimetric Assessment of the Avaya-Tenovis BlueVoiceL (FCC ID: TYM-EXPLORER-BTHS) According to the FCC Requirements SAR Distribution Plots February 15, 2006 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Phoenix Testlab Kˆnigswinkel 10 D-32825 Blomberg The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH SAR Report, Phoenix_6620_576_FCC_2450_SAR Plots_BlueVoiceL Page 2 of 7 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, BLUETOOTH 2450, HEAD....................................................................... 3 2 SAR Z-AXIS SCANS (VALIDATION)........................................................................................................... 7 3 SAR Z-AXIS SCANS (MEASUREMENTS).................................................................................................. 7 SAR Report, Phoenix_6620_576_FCC_2450_SAR Plots_BlueVoiceL Page 3 of 7 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH 1 SAR Distribution Plots, Bluetooth 2450, Head Test Laboratory: Imst GmbH; File Name: BVL_yplm_1.da4 DUT: Tenovis ; Type: Blue Voice L; Program Name: Cheek Left Communication System: Bluetooth; Frequency: 2441 MHz;Duty Cycle: 1:1.2 Medium parameters used (interpolated): f = 2441 MHz; σ = 1.86 mho/m; ε r = 38.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.63, 7.63, 7.63); Calibrated: 23.09.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 17.03.2005 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Cheek Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.294 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.9 V/m; Power Drift = -0.053 dB Peak SAR (extrapolated) = 0.580 W/kg SAR(1 g) = 0.300 mW/g; SAR(10 g) = 0.157 mW/g Maximum value of SAR (measured) = 0.330 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.9 V/m; Power Drift = -0.053 dB Peak SAR (extrapolated) = 0.465 W/kg SAR(1 g) = 0.261 mW/g; SAR(10 g) = 0.141 mW/g Maximum value of SAR (measured) = 0.282 mW/g Fig. 1: SAR distribution for Bluetooth 2441 MHz, channel 039, cheek position, left side of head (February 13, 2006; Ambient Temperature: 22.3∞ C; Liquid Temperature: 21.5∞ C). SAR Report, Phoenix_6620_576_FCC_2450_SAR Plots_BlueVoiceL Page 4 of 7 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: Imst GmbH; File Name: BVL_yplm_2.da4 DUT: Tenovis ; Type: Blue Voice L; Program Name: Tilted Left Communication System: Bluetooth; Frequency: 2441 MHz;Duty Cycle: 1:1.2 Medium parameters used (interpolated): f = 2441 MHz; σ = 1.86 mho/m; ε r = 38.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.63, 7.63, 7.63); Calibrated: 23.09.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 17.03.2005 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Tilted Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.301 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.8 V/m; Power Drift = -0.069 dB Peak SAR (extrapolated) = 0.642 W/kg SAR(1 g) = 0.322 mW/g; SAR(10 g) = 0.161 mW/g Maximum value of SAR (measured) = 0.354 mW/g Fig. 2: SAR distribution for Bluetooth 2441, channel 039, tilted position, left side of head (February 13, 2006; Ambient Temperature: 22.2∞ C; Liquid Temperature: 21.4∞ C). SAR Report, Phoenix_6620_576_FCC_2450_SAR Plots_BlueVoiceL Page 5 of 7 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: Imst GmbH; File Name: BVL_yprm_1.da4 DUT: Tenovis ; Type: Blue Voice L; Program Name: Cheek Right Communication System: Bluetooth; Frequency: 2441 MHz;Duty Cycle: 1:1.2 Medium parameters used (interpolated): f = 2441 MHz; σ = 1.86 mho/m; ε r = 38.4; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.63, 7.63, 7.63); Calibrated: 23.09.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 17.03.2005 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Cheek Right/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.348 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.8 V/m; Power Drift = -0.023 dB Peak SAR (extrapolated) = 0.599 W/kg SAR(1 g) = 0.314 mW/g; SAR(10 g) = 0.160 mW/g Maximum value of SAR (measured) = 0.347 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.8 V/m; Power Drift = -0.023 dB Peak SAR (extrapolated) = 0.425 W/kg SAR(1 g) = 0.240 mW/g; SAR(10 g) = 0.131 mW/g Maximum value of SAR (measured) = 0.264 mW/g Fig. 3: SAR distribution for Bluetooth 2441, channel 039, cheek position, right side of head (February 13, 2006; Ambient Temperature: 22.4∞ C; Liquid: Temperature : 21.5∞ C). SAR Report, Phoenix_6620_576_FCC_2450_SAR Plots_BlueVoiceL Page 6 of 7 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: Imst GmbH; File Name: BVL_yprm_2.da4 DUT: Tenovis ; Type: Blue Voice L; Program Name: Tilted Right Communication System: Bluetooth; Frequency: 2441 MHz;Duty Cycle: 1:1.2 Medium parameters used (interpolated…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR Report, Phoenix_6620_576_FCC_2450_BlueVoiceL_2 Page 1 of 28 Report Dosimetric Assessment of the Portable Device Avaya-Tenovis Blue Voice L (FCC ID: TYM-EXPLORER-BTHS) According to the FCC Requirements February 14, 2006 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Phoenix Testlab Königswinkel 10 D-32825 Blomberg The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_4.5.doc/10.01.2006/AR SAR Report, Phoenix_6620_576_FCC_2450_BlueVoiceL_2 Page 2 of 28 dasy_report_fcc_1900_4.5.doc/10.01.2006/AR Executive Summary The Blue Voice L is a mobile phone (Portable Device) from Avaya-Tenovis operating in the 2450 MHz frequency range. The device has an helix antenna and the system concepts used is the Bluetooth standard. The objective of the measurements done by IMST was the dosimetric assessment of one device in the Bluetooth standard. The handset was set to use one specific channel and duty cycle during the measurement. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Avaya-Tenovis Blue Voice L mobile phone (FCC ID: TYM-EXPLORER-BTHS) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. Since there is no headset available for the Avaya-Tenovis Blue Voice L, measurements in body worn configuration are not conducted. prepared by: ........................................... reviewed by: ..................................... Alexander Rahn André van den Bosch test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 378 Fax +49- 2842-981 399 email: [email protected] SAR Report, Phoenix_6620_576_FCC_2450_BlueVoiceL_2 Page 3 of 28 dasy_report_fcc_1900_4.5.doc/10.01.2006/AR Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 5 2.3 SAR LIMIT.................................................................................................................................................. 5 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR....................................................................................... 6 4 BODY-WORN CONFIGURATIONS.............................................................................................................. 9 4.1 POC (PTT) POSITION...............................................................................................................................9 4.2 PHANTOM REQUIREMENTS...................................................................................................................... 10 4.3 TEST TO BE PERFORMED......................................................................................................................... 10 5 THE MEASUREMENT SYSTEM................................................................................................................. 10 5.1 PHANTOM................................................................................................................................................. 12 5.2 PROBE...................................................................................................................................................... 12 5.3 MEASUREMENT PROCEDURE.................................................................................................................. 13 5.4 UNCERTAINTY ASSESSMENT................................................................................................................... 14 6 SAR RESULTS............................................................................................................................................... 15 7 EVALUATION................................................................................................................................................. 16 8 APPENDIX....................................................................................................................................................... 17 8.1 ADMINISTRATIVE DATA............................................................................................................................ 17 8.2 DEVICE UNDER TEST AND TEST CONDITIONS......................................................................................... 17 8.3 TISSUE RECIPES...................................................................................................................................... 17 8.4 MATERIAL PARAMETERS......................................................................................................................... 18 8.5 SIMPLIFIED PERFORMANCE CHECKING................................................................................................... 18 8.6 ENVIRONMENT..................................................................................................…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR Report, Phoenix_6620_603_FCC_2450_Caldata_BlueVoiceL Home_2 dasy_report_fcc_850_1900_cal_data_2.0.doc/08.01.2005/CH Appendix for the Report Dosimetric Assessment of the Avaya Tenovie Bluevoice L Home (FCC ID: TYM-BLUEVOICEL) According to the FCC Requirements Calibration Data July 10, 2006 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Phoenix Testlab GmbH Königswinkel 10 D-32825 Blomberg This report shall not be reproduced except in full without the written approval of the testing laboratory.

DAT-P-152/98-01 SAR Report, Phoenix_6620_603_FCC_2450_BT_SAR Plots_BlueVoiceL Home_2 Page 1 of 8 Appendix for the Report Dosimetric Assessment of the Avaya Tenovis BlueVoice L Home (FCC ID: TYM-BLUEVOICEL) According to the FCC Requirements SAR Distribution Plots July 10, 2006 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Phoenix Testlab GmbH Kˆnigswinkel 10 D-32825 Blomberg The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo SAR Report, Phoenix_6620_603_FCC_2450_BT_SAR Plots_BlueVoiceL Home_2 Page 2 of 8 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Table of Contents 1 SAR DISTRIBUTION PLOTS, BODY MEASUREMENTS........................................................................ 3 2 SAR Z-AXIS SCANS (VALIDATION)........................................................................................................... 7 3 SAR Z-AXIS SCANS (MEASUREMENTS).................................................................................................. 8 SAR Report, Phoenix_6620_603_FCC_2450_BT_SAR Plots_BlueVoiceL Home_2 Page 3 of 8 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo 1 SAR Distribution Plots, Body Measurements Test Laboratory: IMST GmbH, DASY Blue (I); File Name: Tenb2hl_1.da4 DUT: Tenovis ; Type: Blue Voice L; Serial: 00 07 3b 00 0 C0 EWM01 04 NR16 Program Name: Body Worn Communication System: Bluetooth; Frequency: 2402 MHz;Duty Cycle: 1:1.2 Medium parameters used (interpolated): f = 2402 MHz; σ = 2.03 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.58, 7.58, 7.58); Calibrated: 23.09.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.03.2006 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Body Worn/Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.46 mW/g Body Worn/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.96 V/m; Power Drift = 0.192 dB Peak SAR (extrapolated) = 3.58 W/kg SAR(1 g) = 1.46 mW/g; SAR(10 g) = 0.601 mW/g Maximum value of SAR (measured) = 1.68 mW/g Fig. 1: SAR distribution for Bluetooth, channel 0, body worn configuration, display towards the ground, without accessory and 0 mm distance (July 06, 2006; Ambient Temperature: 22.1∞ C; Liquid Temperature: 21.5∞ C). SAR Report, Phoenix_6620_603_FCC_2450_BT_SAR Plots_BlueVoiceL Home_2 Page 4 of 8 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: IMST GmbH, DASY Blue (I); File Name: Tenb2hl_2_HS.da4 DUT: Tenovis ; Type: Blue Voice L; Serial: 00 07 3b 00 0 C0 EWM01 04 NR16 Program Name: Body Worn Communication System: Bluetooth; Frequency: 2402 MHz;Duty Cycle: 1:1.2 Medium parameters used (interpolated): f = 2402 MHz; σ = 2.03 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.58, 7.58, 7.58); Calibrated: 23.09.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.03.2006 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Body Worn/Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.43 mW/g Body Worn/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.99 V/m; Power Drift = -0.084 dB Peak SAR (extrapolated) = 3.57 W/kg SAR(1 g) = 1.49 mW/g; SAR(10 g) = 0.611 mW/g Maximum value of SAR (measured) = 1.77 mW/g Fig. 2: SAR distribution for Bluetooth, channel 0, body worn configuration, display towards the ground, with headset and 0 mm distance (July 06, 2006; Ambient Temperature: 22.1∞ C; Liquid Temperature: 21.5∞ C). SAR Report, Phoenix_6620_603_FCC_2450_BT_SAR Plots_BlueVoiceL Home_2 Page 5 of 8 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: IMST GmbH, DASY Blue (I); File Name: Tenb2hl_3_HS_Clip.da4 DUT: Tenovis ; Type: Blue Voice L; Serial: 00 07 3b 00 0 C0 EWM01 04 NR16 Program Name: Body Worn Communication System: Bluetooth; Frequency: 2402 MHz;Duty Cycle: 1:1.2 Medium parameters used (interpolated): f = 2402 MHz; σ = 2.03 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.58, 7.58, 7.58); Calibrated: 23.09.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.03.2006 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Body Worn/Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.05 mW/g Body Worn/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.30 V/m; Power Drift = 0.003 dB Peak SAR (extrapolated) = 2.23 W/kg SAR(1 g) = 1.05 mW/g; SAR(10 g) = 0.463 mW/g Maximum value of SAR (measured) = 1.21 mW/g Fig. 3: SAR distribution for Bluetooth, channel 0, body worn configuration, display towards the ground, with headset and clip, with 3 mm distance (July 06, 2006; Ambient Temperature: 22.0∞ C; Liquid Temperature: 21.5∞ C). SAR Report, Phoenix_6620_603_FCC_2450_BT_SAR Plots_BlueVoiceL Home_2 Page 6 of 8 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: IMST GmbH, DASY Blue (I); File Name: Tenb2hm_4_HS_Tasche.da4 DUT: Tenovis ; Type: Blue Voice L; Serial: 00 07 3b 00 0 C0 EWM01 04 NR16 Program Name: Body Worn Communication System: Bluetooth; Frequency: 2480 MHz;Duty Cycle: 1:1.2 Medium parameters used (interpolated): f = 2480 MHz; σ = 2.03 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR Report, Phoenix_6620_603_FCC_2450_BlueVoice L Home_2 Page 1 of 31 Report Dosimetric Assessment of the Portable Device Avaya Tenovis BlueVoice L Home (FCC ID: TYM-BLUEVOICEL) According to the FCC Requirements July 10, 2006 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Phoenix Testlab GmbH Kˆnigswinkel 10 D-32825 Blomberg The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. Dasy_Report_FCC_2450_BT_Body_1.0.doc/10.07.2006/ABo SAR Report, Phoenix_6620_603_FCC_2450_BlueVoice L Home_2 Page 2 of 31 Dasy_Report_FCC_2450_BT_Body_1.0.doc/10.07.2006/ABo Executive Summary The BlueVoice L Home is a cordless phone (Portable Device) from Avaya Tenovis operating in the 2450 MHz frequency range. The device has an helix antenna and the system concept used is the Bluetooth standard. The objective of the measurements done by IMST was the dosimetric assessment of one device in the Bluetooth standard. The handset was set to use one specific channel and duty cycle during the measurement. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Avaya Tenovis BlueVoice L Home cordless phone (FCC ID: TYM- BLUEVOICEL) is in compliance…

Text truncated - open the document above for the full version.
