1 ST2265 / ST2326 315MHz Wireless Remote Electrical Control Installation and operation manual Introduction Thank you for purchasing this SynerTech product. This surveillance set is an easy-to-use and DIY installed Wireless Door Chime. To obtain the best performance from this product, please read through this manual carefully. It will guide you to operate a full set of 315MHz 315MHz Wireless Remote Electrical Control Feature: z 315MHz ISM Band z With 30 meter Operation range in open field z 1 Unit of 12VDC 23A battery for hand held remote control z Extended a 30 cm length of US plug with earth Power Cord z ST2265 for double US socket outlets with earth z ST2326 for single US socket outlet with earth z Total rating 13A for outlet(s) z Comply with UL and FCC 2 Operation Guide Hand Held Remote Control For battery replacement and installation on wall, back cover has to be removed. For the battery replacement, check the polarity of 12V 23A battery and insert into correct connection plate. There is key chain hole for user, if applicable. There are two button for control and LED for indication. CONCAVE shape button for OFF function. CONVEX shape button for ON function. When either button pressed, LED is flash as indication of wireless transmission. Receiver Unit Plug the extended power cord plug into desired wall socket. Then it is ready to receive the control signal form Hand Held Remote Control. Press “ON” button on Hand Held Remote Control, there is electricity in socket outlet. Press “OFF” button on Hand Held Remote Control, the electricity in socket outlet is OFF. For temporary mounting on wall, there is a hanger hole on the back of unit. The MAX. operation range is about 30 meter (line of sight) Operation Precautions : DO NOT drop or shake the unit or subject the unit to shock. DO NOT clean the unit with benzene, thinners, or any solvents. Wipe off dust and marks with a soft cloth which is slightly moistened in mild soapy water. Installation Precautions : Before installing this product, please bear in mind of the following: DO NOT position the units where they will be subjected to extreme moisture, temperature, rust or dust. DO NOT install the Receiver Unit to where it will be exposed to direct sunlight, rain or extreme moisture. A closed-in porch or sheltered area is an ideal location. DO NOT install near to other electronic equipment. DO NOT overload the socket outlet. DO NOT install near the source of acid oxides, ammonia, or any harmful gas. Keep away from children access. Warning : -To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions. -Under the environment with radio frequency interference, the sample may malfunction and require user to reset the sample. 3 Technical Data : Hand Held Remote Control Battery : 12VDC 23A Standby current : 1 mA Receiver Unit Voltage: AC110V~ Standby current : 1 mA For use in ambient temperature from -10ºC to 35ºC FCC warning statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance. could void the user's authority to operate the equipment.

External Photos

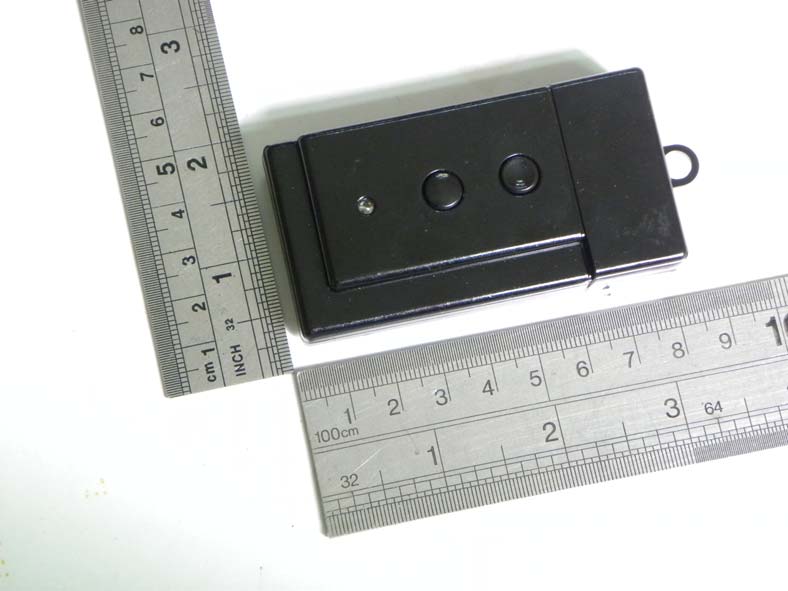

General Appearance of the EUT

ID Label/Location Info

FCC ID: TYN-ST-2326 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

ID Label/Location Info

FCC ID Lable Location On EUT

Schematics

C BACD 6 5 4 3 2 1 DBA REV NO. MODE DESIGN BY CHECK BY PAGE DATE 2009/2/13 ZGXU 2 ST1801-433 R1 180K L1 22nH C43P C3 20P R2 47K R4 47R R3 NC BATT 12V C6 1.2P Q1 BFS520 C2 104 R5 33R C5 1000P L2 3.5T LED1 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 U1 D1 IN4148 D2 IN4148 SW SW R6 220R C1 104P D3 IN4148 D4 IN4148

Test Report

DONGGUAN EMTEK CO., LTD. REPORT NO.: ED10040017-1 FCC ID: TYN-ST-2326 DATE: 05/07/2010 Page 1 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Remote Control MODEL No.: ST-2326, ST-2265 FCC ID: TYN-ST-2326 REPORT NO: ED10040017-1 ISSUE DATE: May 10, 2010 Prepared for SynerTech International Limited 1 st Floor, Dah Way Industrial Building, 86 Hung To Road, Kwun Tong, Hong Kong Prepared by DONGGUAN EMTEK Co., Ltd. No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 DONGGUAN EMTEK CO., LTD. REPORT NO.: ED10040017-1 FCC ID: TYN-ST-2326 DATE: 05/07/2010 Page 2 VERIFICATION OF COMPLIANCE Applicant: SynerTech International Limited 1 st Floor, Dah Way Industrial Building, 86 Hung To Road, Kwun Tong, Hong Kong Manufacturer Visol Technology(Shenzhen) Limited 4/F., Block B, Dakan Hi-Tech Park, Dakan Village, Xili Town, Nanshan Area, Shenzhen, PRC Product Description: Remote Control Model Number: ST-2326, ST-2265 (Note: These modes are the same, except the appearance. So we prepare the ST-2326 for test. Serial Number: N/A File Number: ED10040017-1 Date of Test: April 20, 2010 to May 10, 2010 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC 15 Paragraph 15.205, Paragraph 15.209, Paragraph 15.231,Paragraph 15.31, Paragraph 15.33, Paragraph 15.35. The test results of this report relate only to the tested sample identified in this report. Approved By Nicol Lee/ Q.A. Manager DONGGUAN EMTEK Co., Ltd. DONGGUAN EMTEK CO., LTD. REPORT NO.: ED10040017-1 FCC ID: TYN-ST-2326 DATE: 05/07/2010 Page 3 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................. 4 1.1 PRODUCT DESCRIPTION........................................................................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 4 1.3 TEST METHODOLOGY.............................................................................................................................. 4 1.4 SPECIAL ACCESSORIES............................................................................................................................ 4 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................. 4 1.6 TEST FACILITY........................................................................................................................................ 5 2. SYSTEM TEST CONFIGURATION .................................................................................... 6 2.1 EUT CONFIGURATION............................................................................................................................. 6 2.2 EUT EXERCISE........................................................................................................................................ 6 2.3 TEST PROCEDURE.................................................................................................................................... 6 2.4 LIMITATION............................................................................................................................................. 7 2.5 CONFIGURATION OF TESTED SYSTEM..................................................................................................... 8 3. SUMMARY OF TEST RESULTS ......................................................................................... 9 4. DESCRIPTION OF TEST MODES ...................................................................................... 9 5. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT).......... 10 5.1 MEASUREMENT PROCEDURE:................................................................................................................ 10 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 10 5.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 10 5.4 MEASUREMENT RESULT:....................................................................................................................... 10 5.5 CONDUCTED MEASUREMENT PHOTOS: .................................................................................................. 10 6. RADIATED EMISSION TEST ............................................................................................ 11 6.1 MEASUREMENT PROCEDURE................................................................................................................. 11 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 12 6.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 13 6.4 MEASUREMENT RESULT........................................................................................................................ 14 7. DEACTIVATION TESTING ............................................................................................... 16 7.1 REQUIREMENT....................................................................................................................................... 16 7.2 TEST SET-UP ......................................................................................................................................... 16 7.3 MEASUREM…

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated Emission Setup Photos
