TYN-ST-2545Double outlets remote control for indoor and outdoor lighting

1 ST2545 315MHz Wireless Remote Electrical Control Double Outlets remote control for indoor and outdoor lighting Installation and operation manual Introduction Thank you for purchasing this SynerTech product. This surveillance set is an easy-to-use and DIY installed Wireless Door Chime. To obtain the best performance from this product, please read through this manual carefully. It will guide you to operate a full set of 315MHz Wireless Remote Electrical Control Feature: z With 30 meter Operation range in open field z 1 Unit of 12VDC 23A battery for hand held remote control z Extended a 30 cm length of US plug with earth Power Cord z With double US socket outlets with earth z Separate control for each outlet z Comply with ETL and FCC Operation Guide Hand Held Remote Control … For battery replacement and installation on wall, back cover has to be removed. … For the battery replacement, check the polarity of 12V 23A battery and insert into correct connection plate. … There are Seven button for control and LED for indication. … CONCAVE shape button for OFF function. … CONVEX shape button for ON function. … First Roll Control for Outlet A ON/OFF … Second Roll Control for Outlet B ON/OFF … Third Roll Control for Both Outlet A and B OFF all together … When either button pressed, LED is flash as indication of wireless transmission. Receiver Unit … Plug the extended power cord plug into desired wall socket. … Then it is ready to receive the control signal form Hand Held Remote Control. … Press “ON” button on Hand Held Remote Control, there is electricity in socket outlet. … Press “OFF” button on Hand Held Remote Control, the electricity in socket outlet is OFF. … For temporary mounting on wall, there is a hanger hole on the back of unit. 2 … The MAX. operation range is about 30 meter (line of sight) Operation Precautions : … Circuit for a substantially resistive load with a power factor not less than 0.95. … Disconnect from supply before removing … DO NOT drop or shake the unit or subject the unit to shock. … DO NOT clean the unit with benzene, thinners, or any solvents. Wipe off dust and marks with a soft cloth which is slightly moistened in mild soapy water. Installation Precautions : Before installing this product, please bear in mind of the following: … DO NOT position the units where they will be subjected to extreme moisture, temperature, rust or dust. … DO NOT install the Receiver Unit to where it will be exposed to direct sunlight, rain or extreme moisture. A closed-in porch or sheltered area is an ideal location. … DO NOT attempt to install Receiver Unit to where it will be flood / Snow. … DO NOT install near to other electronic equipment. … DO NOT overload the socket outlet. … DO NOT install near the source of acid oxides, ammonia, or any harmful gas. … Keep away from children access. Warning : -To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions. -Under the environment with radio frequency interference, the sample may malfunction and require user to reset the sample. Technical Data : Method of attachment for non-detachable cords: non-detachable cords Degree of Protection: IP20 Control Pollution Degree: Degree II Rated Impulse Voltage: Uimp 2.5kV ETL Control code: 4001081 FCC ID: TYN-ST-2545 Hand Held Remote Control Battery : 12VDC 23A Standby current : 1 mA Receiver Unit Voltage: AC120V~ 60Hz Standby current : 1 mA Rating Output: Double US socket outlets with Max.10A (total) DO NOT install the Receiver Unit to where it will be exposed to direct sunlight, rain or extreme moisture. A closed-in porch or sheltered area is an ideal location. DO NOT attempt to install Receiver Unit to where it will be flood / Snow. For use in ambient temperature from -10ºC to 35ºC

ST2545 remote unit 315MHZ LC Oscillator MCU include crystal CS52110G0 12V 23A power ON OFF Keypad

MET Laboratories TCB - Samples TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 Agent Authorization Letter Synertech International Limited Jun,5.2011 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Iceman Hu at EST Technology Co., LTD to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date.

MET Laboratories TCB - Samples TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 Short Term Confidentiality Request Letter Synertech International Limited Jun,5.2011 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For EUT Name:Double outlets remote control for indoor and outdoor lighting Model Number:ST-2545 FCC ID:TYN-ST-2545 To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, Synertech International Limited. requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which Synertech International Limited considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Synertech International Limited feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need.

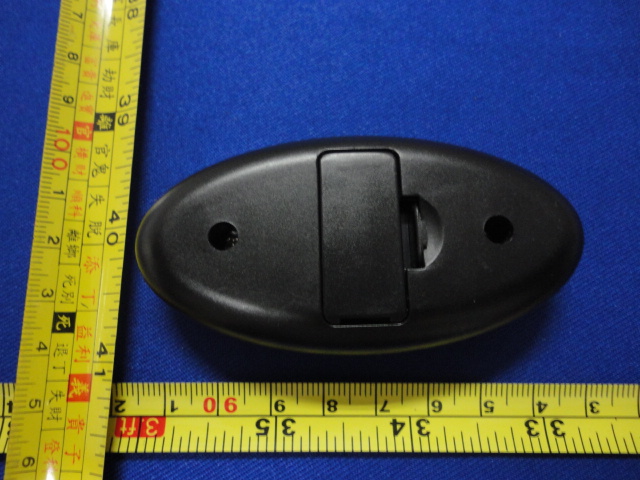

FCC ID: TYN-ST-2545 EST Technology Co.,Ltd Report No. ESTE-R1105001 Page 19 of 21 6. PHOTOGRAPHS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT FCC ID: TYN-ST-2545 EST Technology Co.,Ltd Report No. ESTE-R1105001 Page 20 of 21 Figure 3 General Appearance of the EUT

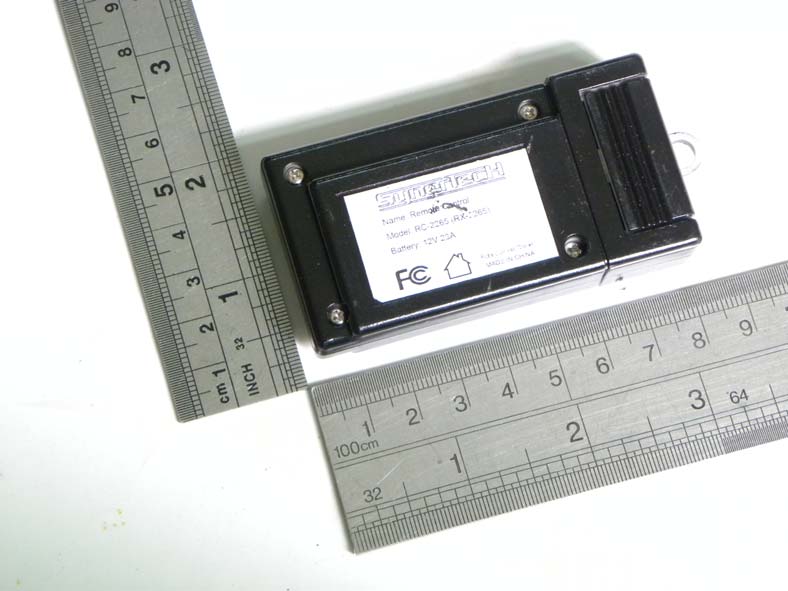

Label Location

FCC ID:TYN-ST-2545

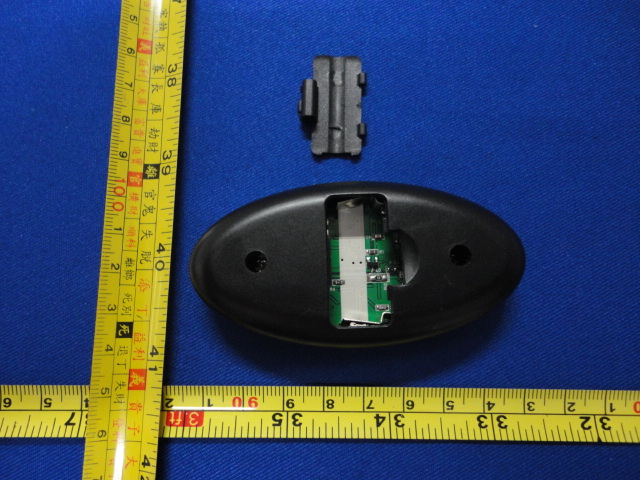

FCC ID: TYN-ST-2545 EST Technology Co.,Ltd Report No. ESTE-R1105001 Page 21 of 25 7. PHOTOGRAPHS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT FCC ID: TYN-ST-2545 EST Technology Co.,Ltd Report No. ESTE-R1105001 Page 22 of 25 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the PCB FCC ID: TYN-ST-2545 EST Technology Co.,Ltd Report No. ESTE-R1105001 Page 23 of 25 Figure 5 General Appearance of the PCB FCC ID: TYN-ST-2545 EST Technology Co.,Ltd Report No. ESTE-R1105001 Page 24 of 25 Figure 6 General Appearance of the PCB FCC ID: TYN-ST-2545 EST Technology Co.,Ltd Report No. ESTE-R1105001 Page 25 of 25 Figure 7 General Appearance of the PCB

Technology rating： Remote power :12V 23A Receiver supply : AC120V 60HZ Single channel :315MHZ,ASK. Operation description ： Remote first group key for ON and OFF，control for A outlet ON / OFF。 Remote second group key for ON and OFF, control for B outlet ON / OFF. Third group key for ON and OFF, control for A and B outlet ON / OFF all together。 Single key for OFF, when press it, A and B outlet OFF all together. The device，s high frequency is LC crystal，ASK modulation and 315MHZ transmitter. ON OFF OFF 1 ONOFF 2 ONOFF 3 Single ON and OFF Main OFF

Electrical assembly： approval： mechanical assembly： approval： NO.： Date：2011/05/28 approval Version ：A/0 Qty PCS Customer： 2CJ254503A1B4 1 2PB1BST232900PCB55MM*33MM DS thick:1.2MM FR41 2 2MT03ST254500 antenna Φ0.5*Φ8.0mm*Φ9.0*8.5T Ni 1 RF Mold 3 3TG05X500G000metal plateΦ5mm push button metal plate1 4 3DP0IN4148000Schottky diode IN4148 1/2W LL346 D1 D2 D3 D4 D5 D6 5 3MP2SC3356000PNP Transister2SC3356 2 Q1 Q3 6 3RC103J110030Resistor 0603 10K 1/10W ±5﹪5 R7 R8 R9 R6 R2 7 3RC223J018050Resistor 0805 22K 1/8W ±5﹪1 R5 8 3RC150J110030Resistor 0603 15Ω 1/10W ±5﹪1 R10 9 3RC275J110030Resistor 0603 2.7M 1/10W ±5﹪1 R4 10 3RC473J110030Resistor 0603 47K 1/10W ±5﹪1 R11 11 3RC000J018050Resistor 0805 000Ω 1/8W ±5﹪1 D10 12 3RC512J110030Resistor 0603 5.1K 1/10W ±5﹪1 R1 13 3RC621J110030Resistor 0603 620Ω 1/10W ±5﹪1 R3 3RC000J116020Resistor 0402 000Ω 1/16W ±5﹪16 waiting for the notice of R&D 14 3CP1R2J50003K capacitor 0603 1.2PF/50V ±0.25PF (TDK)1 C40 15 3CP100J50003K capacitor 0603 10PF/50V ±0.5PF (TDK)1 C14 16 3CP102J50003K capacitor 0603 1000PF/50V ±5﹪(TDK)2 C1 C9 17 3CP104K50003K capacitor 0603 0.1UF/50V ±10﹪(TDK)1 C4 18 3CP003J50003K capacitor 0603 3PF/50V ±0.25PF (TDK)2 C13 C41 19 3CP330J50003Kcapacitor0603 33PF/50V ±5% (TDK)1 C11 20 3CL333J000C30 capacitor 0603 33NH ±5﹪ 1 L1 21 3CP040J50003K capacitor 0603 4PF/50V ±0.25PF (TDK)1 C5 22 3CP005J50003K capacitor 0603 5PF/50V ±0.25PF (TDK)1 C2 23 3CL473J000C30inductor0603 47NH ±5﹪ 1 L2 24 3CL100J000C30inductor0603 10NH ±5﹪ 1 L3 25 3CL001J000C30inductor0603 1NH ±5﹪ 1 L4 26 3IC0GS52110G0ICCS52110G0 JBAU1L 1 IC1 27 3CS3150000100DIP Crystal315MHZ F11 1 X1 28 3MPKTC8550230PNP TransisterKTC8550S SOT-231 Q2 29 3DLR03002SC11high efficiency diodeLED Φ3mm 1 LED1 30 2PT0617340000 PET sheet 22X7.8X0.1mmPET 94.VO 1 31 3BS120LR23A00 bettery12V LR23A NOVACELL 1 2CA254502A1B4contrllor unit (parts) 1 2PT0423290000 controllor cover ABS-PA757 1 2 2PT0523290000 controllor base ABS-PA7571 3 2PT0623290000 controllor battery cover ABS-PA7571 4 2PT0723290000 controllor button ABS-PA757(7PCS/1SET)1 52MT01ST173500Battery Contact "+" stainless steel 304 1 62MT02ST173500Battery Contact "-" stainless steel 3041 74SC2606221AE1screwPB Φ2.6×6mm philips head 2 fixed the controllor cover2PCS 2PA254501A1B2 Product packing unit (parts)1 1 2PT1390000000 Green insertcolor green PP 2(indoor) 2 4SC3525222DE1 screwPA Φ3.5x25mm philips head 2(indoor) According to the MO Product other parts unit 1 According to the production ~~~~~~END~~~~~~ Project NO：ST-2545 Sending unit (Parts) Product NO: 1PST25450A1B4 一.Project P/N ： 1PST25450A1B4 二.Product P/N：2AS254501A1B4 SynerTech Item name：315MHz wireless remote control switch with two outlets Reference BILL OF MATERIALS Item P/N nameDescription Model NO： Bom.xls 第1頁,共1頁 ST-1771

C BACD 6 5 4 3 2 1 DBA 8T REV NO. MODE DESIGN BY CHECK BY PAGE DATE 2011/05/22 ST2545 1/1 00 R4 2.7M L1 33nH C4 4P C3 39P R2 22K R3 620R BATT 12V Q1 R25 C2 104 R5 33R C5 1000P C73PF C8 3PF L2 10NH L3 1NH C11 2P C14 3P LED1 D1 IN4148 D2 IN4148 SWSW R6 47K Q2 R25 1 2 X1 315MHz R7 47K L5 47nH C17 1000P C18 102PF C1910P C9 5P 123456789 181716151413121110 U2 CS5211 SWSWSWSWSW D3 IN4148 D4 IN4148 D5 IN4148 D6 IN4148 R8 10K R9 10K R10 10K R11 10K Q3 BCX53-16 R1 10K +12V +12V

FCC ID: TYN-ST-2545 EST Technology Co.,Ltd Report No. ESTE-R1105001 Page 1 of 25 APPLICATION FOR CERTIFICATION On Behalf of SynerTech International Limited Model Number: ST-2545 FCC ID: TYN-ST-2545 Prepared for : SynerTech International Limited Address : Rm1509, 15/F., Westley Square, 48 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong Prepared By : EST Technology Co., Ltd. Address : Santun(guantai Road), Houjie Town, DongGuan City,GuangDong, China Tel: +86-769-83081888 Fax: +86-769-83081878 Report Number : ESTE-R1105001 Date of Test : May.4~Jun.27, 2011 Date of Report : Jun. 27, 2011 FCC ID: TYN-ST-2545 EST Technology Co.,Ltd Report No. ESTE-R1105001 Page 2 of 25 TABLE OF CONTENTS Test Report Declaration Page 1. GENERAL PRODUCT INFORMATION ...................................................................................4 1.1. Product Function ................................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................................ 4 1.3. Difference between Model Numbers .................................................................................................... 4 1.4. Independent Operation Modes .............................................................................................................. 4 2. TEST SITES....................................................................................................................................5 2.1. Description of Standards and Results.................................................................................................... 5 2.2. List of Test and Measurement Instruments ........................................................................................... 6 3. TEST SET-UP AND OPERATION MODES ..............................................................................7 3.1. Principle of Configuration Selection..................................................................................................... 7 3.2. Block Diagram of Test Set-up............................................................................................................... 7 3.3. Test Operation Mode and Test Software............................................................................................... 7 3.4. Special Accessories and Auxiliary Equipment .....................................................................................7 3.5. Countermeasures to Achieve EMC Compliance ................................................................................... 7 4. EMISSION TEST RESULTS........................................................................................................8 4.1. Conducted Emissions ............................................................................................................................ 8 4.2. Radiated emissions ................................................................................................................................ 9 4.3. 20dB Occupied Bandwidth ................................................................................................................. 14 4.4. Deactivation time ................................................................................................................................ 16 5. DUTY CYCLE CORRECTION FACTOR................................................................................18 6. PHOTOGRAPHS OF TEST SET-UP ........................................................................................20 7. PHOTOGRAPHS OF THE EUT ................................................................................................21 FCC ID: TYN-ST-2545 EST Technology Co.,Ltd Report No. ESTE-R1105001 Page 3 of 25 EST Technology Co., Ltd. Applicant: Address: SynerTech International Limited Rm1509, 15/F., Westley Square, 48 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong Manufacturer: Address: SynerTech International Limited Rm1509, 15/F., Westley Square, 48 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong E.U.T: Double outlets remote control for indoor and outdoor lighting Model Number: ST-2545 Trade Name: ----- Operating Frequency: 315MHz Date of Receipt: Apr.26, 2011 Date of Test: May.4 ~Jun.27, 2011 Test Specification: FCC Part 15 Subpart C: July. 10, 2008 ANSI C63.4:2009 Test Result: The equipment under test was found to be compliance with the requirements of the standards applied. Issue Date: Jun. 27,2011 Tested by: Reviewed by: Approved by: Ada / Assistant Tony / Engineer Iceman Hu / Manager Other Aspects: None. Abbreviations: OK/P=passed fail/F=failed n.a/N=not applicable E.U.T=equipment under tested This test report is based on a single evaluation of one sample of above mentioned products ,It is not permitted to be duplicated in extracts without written approval of EST Technology Co., Ltd. FCC ID: TYN-ST-2545 EST Technology Co.,Ltd Report No. ESTE-R1105001 Page 4 of 25 1. GENERAL PRODUCT INFORMATION 1.1. Product Function The EUT is used to transmit control command only. The operation frequency is 315MHz. Press the button on remote transmitter. Please refer to the user’s manual for the details. 1.2. Description of Device (EUT) E.U.T. : Double outlets remote control for indoor and outdoor lighting Model No. : ST-2545 Operating Frequency : 315MHz Number of Channels : 1 Channels Type of Modulation : FSK Antenna and Gain Integrated PCB loop antenna, 0 dBi Gain. System Input Voltage : Nominal Voltage: DC 12V(Battery) Temperature Range(Operating) : -0 ~+ 35°C 1.3. Difference between Model Numbers None 1.4. Independent Operation Modes The basic operation modes are: TX mode FCC ID: TYN-ST-2545 EST Technology Co.,Ltd Report No. ESTE-R1105001 Page 5 of 25 2. TEST SITES 2.1. Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below. No. Item Specification Results 1 Conducte…
