Appendix E. Block Diagram Report no.ETLE060201.036, Page 1 of 1 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0

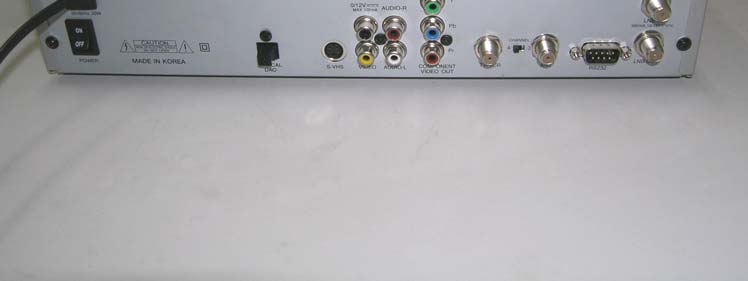

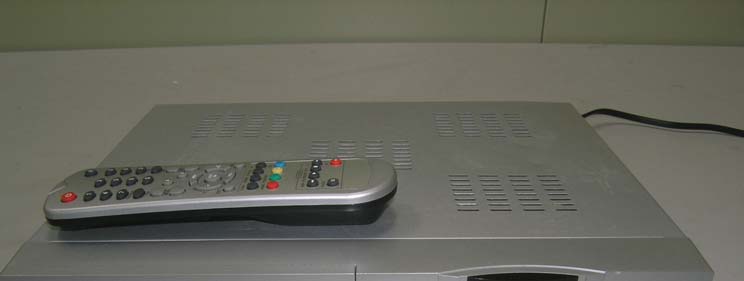

Appendix C. External Photographs Report no. ETLE060201.036, Page 1 of 1 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Front side View of The EUT Rear side View of The EUT

Appendix A. FCC ID Label and Location Report no. ETLE060201.036, Page 1 of 2 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. XTC MOTORSPORTS INC. Digital Satellite Receiver FCC ID : TYV-XTC5080PVR Model No. : XTC 5080PVR POWER : AC 90 – 250 V, 50/60 Hz, Max. 35 W Serial No : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Made in Canada Appendix A. FCC ID Label and Location Report no. ETLE060201.036, Page 2 of 2 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE060201.036, Page 1 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Inside View of The EUT Appendix D. Internal Photographs Report no. ETLE060201.036, Page 2 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Component side view of Main board Appendix D. Internal Photographs Report no. ETLE060201.036, Page 3 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Solder side view of Main board Appendix D. Internal Photographs Report no. ETLE060201.036, Page 4 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Inside View of The LNB TUNER Appendix D. Internal Photographs Report no. ETLE060201.036, Page 5 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Component side view of Power board Appendix D. Internal Photographs Report no. ETLE060201.036, Page 6 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Solder side view of Power board Appendix D. Internal Photographs Report no. ETLE060201.036, Page 7 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Component side view of Front Board Solder side view of Front Board Appendix D. Internal Photographs Report no. ETLE060201.036, Page 8 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Inside View of The EUT of RF Modulator Appendix D. Internal Photographs Report no. ETLE060201.036, Page 9 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 View of Bottom cover View of Top cover Appendix D. Internal Photographs Report no. ETLE060201.036, Page 10 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 View of Front Cover View of HDD

Confidential (as of MAR 2, 2006) A. General features • Fully MPEG2, DVB compliant • 44 Hours recording with built in 80GB HDD (Hard Disk Drive) in 4Mbps stream • Within the same TP it is possible to record one channel and view another channel• At the time of watching the live mode, pre-recording motion by time-shift default supported • Automatic restoration ability for all files that were in process of recording at the time of an electricity failure• Recording current program while playing back earlier program simultaneously • Recording reservation function on Timer and EPG • Recording and playback with time delay (Time-Shift function) • 3 steps (x4, x8, x16) Fastforward and Rewind function • Pause and step playback function • HDD management function (Play, Move, Lock, Rename, Delete, Format) • Various playback function (Jump, Repeat, Shuffle, Slow playback) • Digital Audio with AC-3 support by SPDIF • PIG (Picture In Graphic) support • Provide friendly and easy-to-use menu system • Various channel editing function (favorite, moving, locking, renaming, deleting and sorting) • Stores up to 5000 channels • Easy and speedy software upgrade through RS-232 port • Plug-and-play data transfer system (DSR to DSR) • Timer function, automatically turns On/Off by setting function (daily, weekly, monthly and one time) • Automatic reserved channel moving system Engineering Specifications for XTC 5080PVR XTC MOTORSPORTS INC. XTC 5080 PVR Engineering Specifications • Provide Electronic Program Guide (EPG) • More than 800 pages OSD Teletext (DVB ETS 300 706) and Subtitle function support • Support for various video output : CVBS, S-VHS, YUV • 256 colors On-Screen-Display • PAL/NTSC automatically conversion • Last channel automatically saving B. Engineering Specifications 1. Front-End 1-1. LNB & Tuner Input Input frequency : 950 to 2150 Mhz Digital signal input level : -65 to -25 dBm LNB supply : 13.5±0.5V / 18.5±0.7V, max.500mA Band switch control : 22KHz (Microprocessor control) Connector : 2 x F-Type, 3/8-32UNEF-2A (1 Input / 1 Loop through) 1-2. Demodulator Demodulation type : QPSK demodulation and FEC decoding in accordance with DVB prETS 300 421 Symbol rate (Rs) : 2 < Rs < 45 Mbaud SCPC and MCPC capable 2. Demultiplexing In accordance with ISO 13818-1. Simultaneous access will occur for the following : - 1 video stream of data rate up to 15 Mbits/s - 1 audio stereo/mono stream of data rate up to 448 kbits/s 32 PIDs Supported 3. Video Processing Decompression : MPEG-2 Main Profile @ Main Level With Letter Box filter Video buffer : 64 Mbits of SDRAM is provided Data rate : up to 15Mbits/s (Max. burst rate : 228 Mbits/s) Video output : PAL-25 frame @720 x 576 NTSC-30 frame @720 x 480 Video format : 4:3, 16:9 4. Audio Processing Decompression : MPEG-1 layer I and II, Musicam Outputs : Stereo Channel Dual MonoJoint Stereo ChannelMonoSpdif with AC-3 5. Baseband Inputs / Outputs 5-1. Baseband Video Video format : CVBS Output impedance : 75 Ω unbalanced Bandwidth : 5MHz Connector type : 1 x RCA 5-2. Baseband Audio Outputs Connector type : 2 x RCA (Left and Right) Output impedance : 600 Ω unbalanced Level : 0.6V rms±2dB into 10k Ω 5-3. Digital Audio Output Connector type : 1 x Optic Output type : Spdif encoded signals with ac-3 Sampling frequency rate : 32 , 44.1 or 48khz 5-4. S-VHS Output Video format : Y,C Output impedance : 75 Ω unbalanced Bandwidth : 5MHz Connector type : 1 x 4pin DIN 5-5. Component Outputs (YUV) Connector type : 3 x RCA (Y Pb Pr) Output impedance : 75 Ω unbalanced 6. Supply voltage to LNB Voltage supply path : DC supplied from DSR on LNB coax cable LNB type supported : LNB with integrated polarizer switch LNB supply voltage : (software selectable) . Vertical polarization : 13.5±0.5V DC . Horizontal polarization : 18.5±0.7V DC FSS/BSS Switching : A 22kHz±4kHz microprocessor controlled switching signal is provided Short circuit limit : 500mA 7. External Switched 12V Software switchable : 12V or 0V Current limit : 100mA Connector type : 1 x RCA 8. Data Service Port Connector : 9-pin D-sub male Data protocol : RS232C interface The DVB-DSR is seen as the DataCommunication Equipment (DCE)and the PC (or other terminal) is seenas the Data Terminal Equipment (DTE). Data rate : Maximum of 625K bits/s Pin Name Source 2 RXD PC 3 TXD Transmit data DSR 5 GND Signal ground 9. Microprocessor Microprocessor : SGS-Thomson Sti5518 Clock frequency : 81MHz SDRAM Memory : 8Mbyte Flash memory : 2Mbyte 10. RF Modulator RF Output Signal : NTSC M Receive data Function Video Carrier Frequency : 61.25 ± 90 ㎑ US 3 CH 67.25 ± 90 ㎑ US 4 CH 11. Built-in HDD Formatted Gbyte : 80Gbytes Interface : Ultra ATA/66 Spindle speed : 5,400 RPM 12. Remote Control unit Number of keys : 41 Keys Operating distance : up to 10m Batterys : 2 x 1.5V (AAA type) 13. Power Supply Type : Switching mode Main input voltage : 90 - 250V AC @ 50Hz/60Hz±5% Nominal power consumption : 27W Standby power consumption : 7W Typical supply currents - +3.3V : 0.9A - +5.0V : 0.4A - +7.0V : 0.27A - +12V : 0.03A - +22V : 0.4A - +30V : 0.03A - +12V HDD : 0.45A - +5V HDD : 0.5A 14. Physical Characteristics 14-1. Front Panel Keys : 8 Keys Indicators : Power on/off Remote control input : Infra-red receiver Display : 4Digit (7Segment) 14-2. Rear Panel Connectors : 1 LNB Input / 1 Loop through output (2F-type : IEC169-24) 1 x 0/12 Volt (RCA)2 x Audio L/R (RCA)1 x CVBS (RCA)3 x YUV (RCA)1 x RS-232 (9-pin D-sub male)1 x RF Modulator (2F-type : IEC169-24)1 x S-VHS (4-pin Mini-Din)1 x Digital Audio Output (optic) Switch : 1 x AC Power Switch NOTE) The above specification is subject to be changed without notice in advance.

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. www.etl.re.kr E-RAE Testing Laboratory Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This Digital Satellite Receiver, Model XTC 5080PVR has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the ETL/EMC Test Laboratory and has been shown to complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B: TV interface device. I attest to the accuracy of data. All measurement here in was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system, which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Hyung Seok, Lee / Chief Engineer ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 PRODUCT : Digital Satellite Receiver MODEL/TYPE NO : XTC 5080PVR FCC ID : TYV-XTC5080PVR APPLICANT : XTC MOTORSPORTS INC. ADDRESS : 205 CHAMPAGNE DRIVE UNIT 3, TORONTO, ON, M3L 2C6, CANADA Attn.:RHONDA TINA THUNA / DIRECTOR MANUFACTURER : 1. DPC CO., LTD. 2. Hyundai Digital Technology (Shenzhen)Co., Ltd. ADDRESS : 1. #23, 17BK, BANWOL IND.COMP. 491-1, MOKNAE-DONG, DANWON-GU, ANSAN-SHI, KYUNGKI-DO, KOREA. 2. HDTCN. lnd.Park, Potouxia Village.Kukeng. Guanian Town, Bao’an District, Shenzhen City, China, PRC. FCC CLASSIFICATION : HID : TV interface device FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : XTC TEST REPORT No. : ETLE060201.036 DATES OF TEST : February 24 - March 02, 2006 REPORT ISSUE DATE : March 08, 2006 TEST LABORATORY : ETL Inc. (FCC Registration Number: 95422) Report no. ETLE060201.036, Page 2 of 22 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 FCC TEST REPORT Table of Contents ATTACHMENT A: COVER LETTER(S) FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emission Test 5.3 Radiated Emission Test 5.4 Antenna Power Conduction Meaurement 5.5 Output Signal Level Measurement 5.6 Output Terminal Conducted Spurious Emission Measurement 5.7 Transfer Switch Measurement 6. Sample Calculation 7. List of test Equipment used for Measurements Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Operating Manual Report no. ETLE060201.036, Page 3 of 22 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 FCC TEST REPORT FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : Digital Satellite Receiver z Model Number : XTC 5080PVR z FCC Identifier : TYV-XTC5080PVR z S/N : N/A z Freq. Range : 61.25 MHz – 71.75 MHz z FCC Rule Part(s) : Part 15 Subpart B z Test Procedure : ANSI C63.4-2003 z FCC Classification : TV Interface Device z RF Channels : Ch. 3 / Ch. 4 z Dates of Tests : February 23 - March 03, 2006 z Place of Tests : ETL Inc. 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : 82-31- 885-0072 Fax : 82-31- 885-0074 z Test Report No. : ETLE060201.036 Applicant Name : XTC MOTORSPORTS INC. Address : 205 CHAMPAGNE DRIVE UNIT 3, TORONTO, ON, M3L 2C6, CANADA Attention : RHONDA TINA THUNA / DIRECTOR Report no. ETLE060201.036, Page 4 of 22 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 FCC TEST REPORT 1. INTRODUCTION The measurement test for radiated and conducted emission test were conducted at the shielded anechoic chamber room and open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 m site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the XTC MOTORSPORTS INC. / Digital Satellite Receiver / Model : XTC 5080PVR Report no. ETLE060201.036, Page 5 of 22 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 FCC TEST REPORT 2.…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE060201.036, Page 1 of 4 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Radiated Emission Test Setup Appendix B. Test Setup Photographs Report no. ETLE060201.036, Page 2 of 4 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Conducted Emission Test Setup Appendix B. Test Setup Photographs Report no. ETLE060201.036, Page 3 of 4 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Antenna Power Conduction Measurement Test Setup Output Signal Level Measurement Test Setup Appendix B. Test Setup Photographs Report no. ETLE060201.036, Page 4 of 4 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Output Terminal Conducted Spurious Emission Measurement Test Setup Antenna Transfer Switch Measurement
