TZ2SAFEMARK51D3160317MHz WIRELESS DEVICE

SAFEMARK SYSTEMS LP SAFE FCC ID: TZ2SAFEMARK51D Shenzhen Most Electronic Co., Ltd. Report No. MT-E0511456 USER’S MANUAL TO PROGRAM SAFE 1. “*”+ “*” + 1113 + “*+ 6 2. Enter four digits of serial number + “#” 3. Enter first master code + “#” 4. Enter second master code + “#” 5. Enter four digits room number + “#” 6. Enter the connecting transmitter number + “#” To set the next safe Repeat step “5” and “6” IMPORRANT: THE FACTORY DEFAULT SETTING OF THESE CODES MUST BE CHANGED FOR EACH HOTEL AT THE TIME OF INIITIAL INSTALLATION TO ENSURE MAXIMUM SECURITY. TO CLOSE SAFE Press in user’s code (4 digits) Press “#” button to lock safe The door will automatically close NOTE: AFTER DOORCLOSED, THE USER’S CODE WILL BE SHOWN AGAIN TO REMIND USER. TO OPEN SAFE Press in user’s 4digits code Door will automatically open. TO SET CLOCK Open safe by either master code or EHO one times Press”*” button twice Enter 807027 + “#” Enter Year (2 digits) + Month (2digits) + Date (Two digits) Press “#” button to change to second window Enter Hour (2digits) + Minutes (2digits) + Second (2digits) Press “#” button to confirm all the setting TO SET FIRST MASTER CODE Open safe by either master code or EHO one times Press”*” button twice Enter 720708 + “#” Enter the first old master code (factory default setting is 999999) Enter new 6 digits as first master code Press “#” button to confirm all the setting SAFEMARK SYSTEMS LP SAFE FCC ID: TZ2SAFEMARK51D Shenzhen Most Electronic Co., Ltd. Report No. MT-E0511456 TO SET SECOND MASTER CODE Open safe by either master code or EHO one times Press”*” button twice Enter 630689 + “#” Enter the second old master code (factory default setting is 888888) Enter new 6 digits as first master code Press “#” button to confirm all the setting FCC NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

SAFEMARK SYSTEMS LP SAFE FCC ID: TZ2SAFEMARK51D Photos Figure 1 General Appearance Figure 2 General Appearance Label Location

SAFEMARK SYSTEMS LP SAFE FCC ID: TZ2SAFEMARK51D Shenzhen Most Electronic Co., Ltd. Report No. MT-E0511456 Label Drawing FCC ID: TZ2SAFEMARK51D Model Number: RF5.1D This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SAFEMARK SYSTEMS LP SAFE FCC ID: TZ2SAFEMARK51D Photos Figure 1 General Appearance Figure 2 General Appearance Label Location

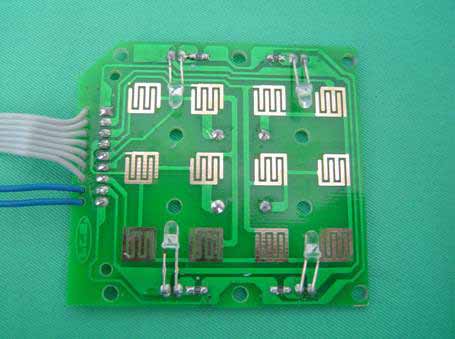

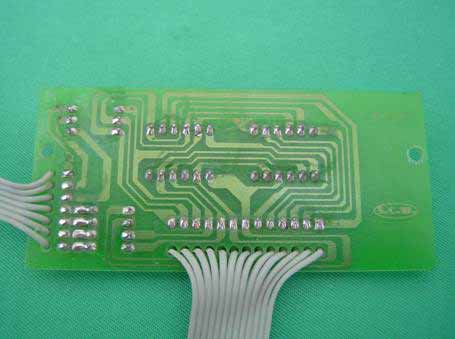

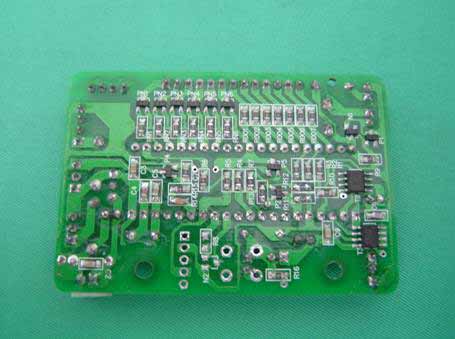

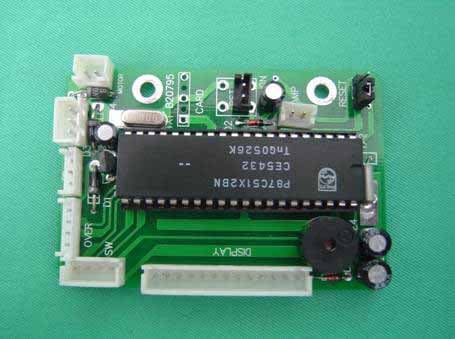

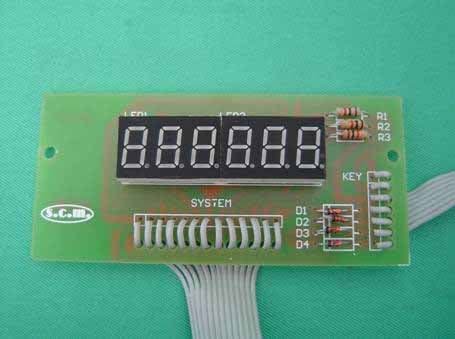

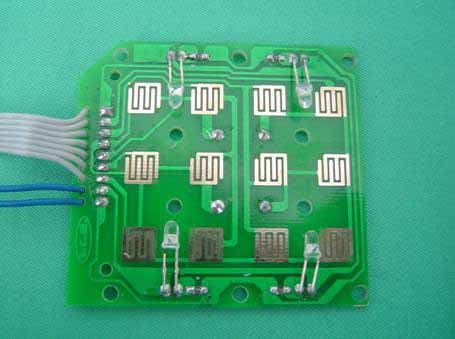

SAFEMARK SYSTEMS LP SAFE FCC ID: TZ2SAFEMARK51D Photos Figure 3 Main Board, Component Side Figure 4 Main Board, Component Side SAFEMARK SYSTEMS LP SAFE FCC ID: TZ2SAFEMARK51D Figure 5 Main Board, Component Side Figure 6 Main Board, Component Side Figure 7 SAFEMARK SYSTEMS LP SAFE FCC ID: TZ2SAFEMARK51D Main Board, Component Side Figure 8 Main Board, Component Side

SAFEMARK SYSTEMS LP SAFE FCC ID: TZ2SAFEMARK51D Shenzhen Most Electronic Co., Ltd. Report No. MT-E0511456 Description of safe operation The brief circuit description is listed as follows: -“RF315M’’ is a AM/ASK transmitter. It operating in 315MHZ ISM band . -T1 , T2, T3 and associated circuit act as Decoder. -P3 and associated circuit act as motor driver. -PN1,PN2,PN3,PN4,PN5,PN6 and associated circuit act as LED display. Antenna Used: A permanent wire antenna has been user.

FCC ID: TZ2SAFEMARK51D Shenzhen Most Electronic Co., Ltd. Report No. MT-E0511456 Page 1 of 17 SAFEMARK SYSTEMS LP SAFE Model Number: RF5.1D Prepared for : SYNAPSIS INDUSTRIAL CO., LTD. 2101 PARK CENTER DRIVE, SUITE 125 ORLANDO, FL 32835 Prepared By : Shenzhen Most Electronic Co., Ltd. 21A-B 4 th Building, Time City, Chuangye Road, Nanshan, Shenzhen Guangdong, China Tel: (0755)-86170306 Report Number MT-E0511456 Date of Test Jan. 17 ~ Feb. 08, 2006 Date of Report Feb. 08, 2006 FCC ID: TZ2SAFEMARK51D Shenzhen Most Electronic Co., Ltd. Report No. MT-E0511456 Page 2 of 17 TABLE OF CONTENTS Description Page Test Report Declaration 1. GENERAL INFORMATION ....................................................................................................... 4 1.1. Description of Device (EUT) ................................................................................................................ 4 1.2. Test Facility ........................................................................................................................................... 5 1.3. Test Uncertainty .................................................................................................................................... 5 2. POWER LINE CONDUCTED EMISSION TEST ..................................................................... 6 3. RADIATED EMISSION TEST .................................................................................................... 7 3.1. Test Equipment...................................................................................................................................... 7 3.2. Block Diagram of Test Setup ................................................................................................................ 7 3.3. Radiated Emission Limit ....................................................................................................................... 8 3.4. EUT Configuration on Test ................................................................................................................... 8 3.5. Operating Condition of EUT ................................................................................................................. 9 3.6. Test Procedure ....................................................................................................................................... 9 3.7. Radiated Emission Test Result ............................................................................................................ 10 4. BANDWIDTH TEST ................................................................................................................... 13 4.1. Test Equipment.................................................................................................................................... 13 4.2. Test Standard ....................................................................................................................................... 13 4.3. Bandwidth Limit: ................................................................................................................................ 13 APPENDIX I (2 pages) FCC ID: TZ2SAFEMARK51D Shenzhen Most Electronic Co., Ltd. Report No. MT-E0511456 Page 3 of 17 TEST REPORT DECLARATION Applicant SAFEMARK SYSTEMS LP Manufacturer SAFEGUARD SECURITY INDUSTRIAL CO LTD. EUT Description SAFE (A) MODEL NO. : RF5.1D (B) SERIAL NO. : E2006010036 (C) POWER SUPPLY : DC 6.0V Test Procedure Used: FCC Rules and Regulations Part 15 Subpart C Apr, 2004. The device described above is tested by Audix Technology (Shenzhen) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart C limits for radiated and conducted emissions. The test results are contained in this test report and Audix Technology (Shenzhen) Co., Ltd. is assumed full responsibility for the accuracy and completeness of tests. Also, this report shows that EUT is technically compliant with FCC requirements. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of SHENZHEN MOST ELECTRONIC CO., LTD. This report must not be used by the applicant to claim product endorsement by NVLAP or any agency of the U.S. Government. Date of Test : Jan. 17 ~ Feb. 08, 2006 Prepared by : Mike Wang / Assistant Reviewer : Amy Zhu / Assistant Manager Approved & Authorized Signer : Mark Wen / Manager FCC ID: TZ2SAFEMARK51D Shenzhen Most Electronic Co., Ltd. Report No. MT-E0511456 Page 4 of 17 1. GENERAL INFORMATION 1.1. Description of Device (EUT) Description : SAFE Model No. : RF5.1D Applicant : SYNAPSIS INDUSTRIAL CO., LTD. 2101 PARK CENTER DRIVE, SUITE 125 ORLANDO, FL 32835 Manufacturer : SAFEGUARD SECURITY INDUSTRIAL CO LTD. 7/F, KIN ON COMM. BLDG. 49-51 JERVOIS ST. SHEUNG WANHONG KONG Date of Test : Jan. 17 ~ Feb. 08, 2006 FCC ID: TZ2SAFEMARK51D Shenzhen Most Electronic Co., Ltd. Report No. MT-E0511456 Page 5 of 17 1.2. Test Facility Site Description 3m Anechoic Chamber : Certificated by FCC, USA Registration Number: 90454 Aug. 15, 2003 3m & 10m Anechoic Chamber : Certificated by FCC, USA Registration Number: 794232 Mar. 15, 2004 EMC Lab. : Certificated by DATech, German Registration Number: DAT-P-091/99-01 Feb. 02, 2004 Certificated by NVLAP, USA NVLAP Code: 200372-0 Mar. 31, 2004 Certificated by Nemko, Norway Aut. No.: ELA135 April. 22, 2004 Certificated by Industry Canada Registration Number: IC 5183 Jul. 28, 2004 Name of Firm : Audix Technology (Shenzhen) Co., Ltd. Site Location : No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China 1.3. Test Uncertainty No. Item Uncertainty Remark 1. Uncertainty for Conducted Emission Test 1.22dB 2. Uncertainty for Radiated Emission Test 3.14dB 3m Chamber 3. Uncertainty for Radiated Emission Test 3.18dB 10m Chamber 4. Uncertainty for Power Clamp Test 1.38dB FCC ID: TZ2SAFEMARK51D Shenzhen Most Electronic…

Text truncated - open the document above for the full version.

FCC ID: TZ2SAFEMARK51D Shenzhen Most Electronic Co., Ltd. Report No. MT-E0511456 5Radiated Emission Test 5.1. Photos of Radiated Emission Test (In Anechoic Chamber)
