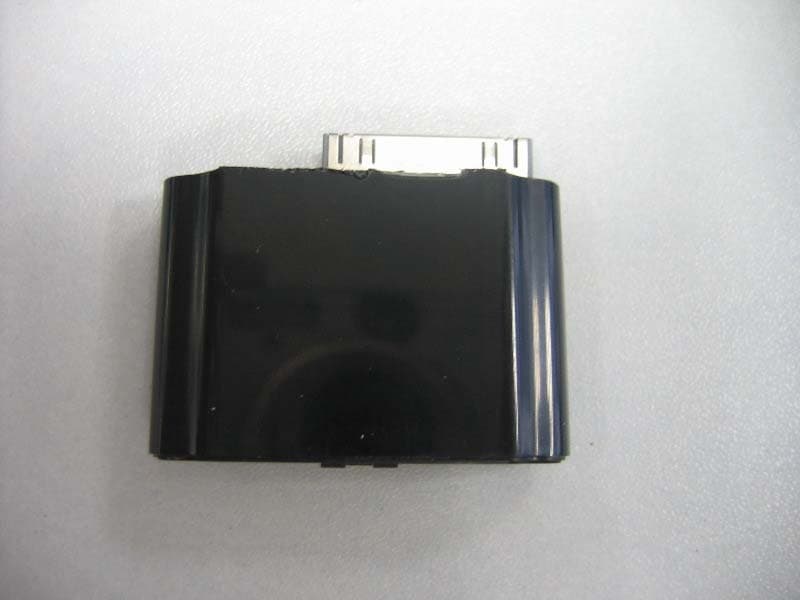

TZ9I705Personal FM Transmitter

FM Transmitter Instruction Manual i705 Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.i-Luv.com FM Transmitter V10M10_IM_EN_01312007 www.i-Luv.com -1 - USER SAFETY GUIDE YOU CAN HELP TO PROTECT THE ENVIRONMENT! Please remember to respect the local regulations: Hand in the non-working electrical equipment to an appropriate waste disposal center. Important Safety Warnings 1. FCC regulations state that any change or modification to the equipment, not expressly approved by maker or its authorized parties, could void user’s authority to operate this equipment. 2. To prevent fire or electric shock, do not expose the unit to rain or moisture. 3. Never attempt to open the cabinet. Always refer servicing to a qualified technician. Important Safety Instructions 1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated. 2. RETAIN INSTRUCTIONS - The safety and operating instructions should be retained in a secure place for future reference. 3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be upheld. 4. FOLLOW INSTRUCTIONS - All operating and use instructions should be followed. 5. WATER AND MOISTURE - The appliance should not be used near water. For example: near a bathtub, kitchen sink, laundry tub, and/or swimming pool. FM Transmitter V10M10_IM_EN_01312007 www.i-Luv.com -2 - USER SAFETY GUIDE Important Safety Instructions – Continued 6. HEAT - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. 7. POWER SOURCES - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. 8. CLEANING - The appliance should only be cleaned with a dry cloth. 9. OBJECT AND LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the device’s openings. 10. CARTS AND STANDS - The appliance should be used only with a cart or stand that is recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn causing possible injury to the user and/or damage to the unit. 11. DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service professional when: a. Objects have fallen into, or liquid has been spilled into the appliance’s apertures. b. The appliance has been exposed to rain. c. The appliance has been dropped and suffered damage. d. The appliance does not appear to operate normally, or exhibits a change in performance. FM Transmitter V10M10_IM_EN_01312007 www.i-Luv.com -3 - USER SAFETY GUIDE Important Safety Instructions – Continued 12. SERVICING - The user should not attempt to service the appliance beyond what is described in the user's operating instructions. All other servicing should be referred to qualified service professional. 13. LEAD AND MERCURY - This product may contain lead and/or mercury. Disposal of these materials may be regulated by your local authorities due to environmental considerations. For more detailed disposal or recycling information, please contact your local authorities or the EIA (Electronic Industries Alliance) – http://www.eiae.org Additional Safety Instructions • When not in use, keep your device in a safe place where it will not be bent or crushed. • Do not listen to music with high volume while driving. Warning horn sounds may not be heard which could result in a traffic accident. NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Refer to 47 CFR Sec. 15.21. About Electromagnetic Interference (EMI) This device is designed and manufactured not to exceed the exposure limit for radio frequency energy, which is set by the Federal Communications Commission of the U.S government. FM Transmitter V10M10_IM_EN_01312007 www.i-Luv.com -4 - USER SAFETY GUIDE About Electromagnetic Interference (EMI) – Continued The term “EMI” is short for the electromagnetic interference caused by the electromagnetic field generated by electronic devices. In fact, most electrical appliances and devices emit electric and magnetic fields, and most of modern electronic devices are susceptible to electromagnetic interference (EMI) if they are inadequately shielded or designed. • If you use any personal medical device, such as a pacemaker, please consult the manufacturer of the device to determine if it is adequately shielded from electromagnetic interference. Your physician may assist you in obtaining this information. • Please turn off this device if you are instructed to do so, especially on an airplane and in a hospital. • Please keep away from the medical instruments in a hospital or medical unit while using this device. FCC Notice to U.S. Users This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Refer to 47 CFR Sec. 15.19. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. FM Transmitter V10M10_IM_EN_01312007 www.i-Luv.com -5 - USER SAFETY GUIDE FCC Notice to U.S. Users – Continued This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, which can be determined by turning the equipment off and on, the user is enco…

Text truncated - open the document above for the full version.

FCC: TZ9I705 Statement in user manual.

Report No.: GLEMR070100210RFT Page: 1 of 19 FCC ID: TZ9I705 Authorized Signature: Jerry Chen Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663Telephone: Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : GLEMR070100210RF Applicant: SEATUNE ELECTRONICS CO.,LTD FCC ID: TZ9I705 Fundamental Carrier Frequency : 88.1MHz to 107.9MHz Equipment Under Test (EUT): Name: FM Transmitter Model: i705 Band Name: Not supply by client Standards: FCC PART 15.239: 2006 Please refer to section 2 for further details. Date of Receipt: 29 January 2007 Date of Test: 29 January 2007 to 14 February 2007 Date of Issue: 01 March 2007 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: GLEMR070100210RFT Page: 2 of 19 FCC ID: TZ9I705 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2006Section 15.239 PASS Occupied Bandwidth FCC PART 15 :2006Section 15.239 PASS * * The EUT passed the Occupied Bandwidth test after modification carried out by the applicant. SGS-CSTC Standards Technical Services Ltd. Report No.: GLEMR070100210RFT Page: 3 of 19 FCC ID: TZ9I705 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION...................................................................................................................................4 4.1 CLIENT INFORMATION....................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T................................................................................................................... 4 4.3 DESCRIPTION OF THE TRANSMITTER AND SUPPORT UNITS............................................................................. 4 4.4 STANDARDS APPLICABLE FOR TESTING........................................................................................................... 4 4.5 TEST LOCATION................................................................................................................................................ 4 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER.................................................................................. 4 4.7 TEST FACILITY................................................................................................................................................... 5 5 TEST RESULTS......................................................................................................................................................6 5.1 E.U.T. OPERATION........................................................................................................................................... 6 5.2 TEST INSTRUMENTS.......................................................................................................................................... 6 5.3 TEST PROCEDURE & MEASUREMENT DATA..................................................................................................... 8 5.3.1 Radiated Emissions...................................................................................................................................8 5.3.2 Occupied Bandwidth..........................................................................................................................13-19 SGS-CSTC Standards Technical Services Ltd. Report No.: GLEMR070100210RFT Page: 4 of 19 FCC ID: TZ9I705 4 General Information 4.1 Client Information Applicant Name:SEATUNE ELECTRONICS CO.,LTD Applicant Address: No.27,ShuiKou Avenue,ShuiKou Town,HuiZhou City,GuangDong,China. 4.2 General Description of E.U.T. Product Name: FM Transmitter Model: i705 Power Supply: 3.3Vdc Supplied by iPod. Power Cord: Not Applied. 4.3 Description of the Transmitter and Support Units The EUT was tested with a audio source ipod. The transmitter have 199 channels between the 88.1MHz & 107.9MHz with 100KHz channel spacing can be in exchange for choice manually by software setup. The antenna is a permanently antenna (a black wire with an extended wire lay on PCB) coupling to the intentional radiator and do not connect as part of the car wiring. About the installation and operation of this device, please refer to the user manual for more detail. …
