U23MD6430HDECT 6.0 MULTI-HANDSET CORDLESS PHONE SYSTEM

Handset Layout Base Layout Changing a Stored VIP Melody Record Use the Storing VIP Melody procedure to change the number of a selected record and replace the old phone number with new phone number. When REPLACE VIP# ? shows in the display, you must press MENU button on the handset to confirm replacement. Reviewing And Deleting Stored VIP Melody Record From the Handset Setup Menu: 1. Press the MENU button to enter to VIP MELODY menu. 2. Use the CID/VOL (  or ) button to scroll to the desired VIP Melody Record. 3. If you want to delete the information, press the MUTE/DEL button on the handset while the entry displays. The display show DELETE VIP# ?. 4. Press MUTE/DEL again to confirm. You will hear a confirmation tone and VIP# DELETED shows in the display. Key Tone From the Handset Setup Menu: 1. Press the CID/VOL (  or ) button to scroll to the KEY TONE sub-menu. 2. Press MENU button to enter the menu. SET KEY TONE 1ON 2 OFF shows in the display. 3. Use the touch tone pad on the handset to select 1 or 2, or use the CID/ VOL (  or ) button to scroll to your selection. 1ON is the default setting. 4. Press MENU button to confirm and the key tone setting shows in the display. Area Code From the Handset Setup Menu: 1. Press the CID/VOL (  or ) button to scroll to the AREA CODE sub- menu. 2. Press MENU button to enter the menu. SET AREA CODE - - - shows in the display. 3. Use the touch-tone pad to enter your 3-digit area code. 4. Press MENU button to confirm. You will hear a confirmation tone and the new area code shows in the display. NOTE: To restore the default setting to - - -, press and release MUTE/DEL when SET AREA CODE shows in the display. MD6430 DECT 6.0 MULTI-HANDSET CORDLESS PHONE SYSTEM USER ’’ ’’ ’S GUIDE If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004- 000-00345-4 when ordering copies. Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Licensing Licensed under US Patent 6,427,009. Hearing Aid Compatibility (HAC) This telephone system meets FCC standards for Hearing Aid Compatibility. US Number is located on the cabinet bottom REN number is located on the cabinet bottom FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a mininum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.” Introduction CAUTION: When using telephone equipment, there are basic safety instructions that should always be followed. Refer to the IMPORTANT SAFETY INSTRUCTIONS provided with this product and save them for future reference. Features: •DECT 6.0 Digital-Interference Free Communication •Multi-Handset Phone System •Bright backlit keypad •EZ Read Caller ID Amber Backlit Display •Full Duplex handset Speakerphone •Call-Waiting Caller ID Compatible •Preset Voice Mail number for speed dialling •Last number redial •50 Name and Number Phone Book •10-Ring Tones & 10-Polyphonic Ring Tones •Supports up to four handsets •3-Way Conference/Call Transfer •Room Monitoring •Do Not Disturb ringer option •Voice Mail/Charge/in use indicator on base Installation INSTALLATION NOTE: Some cordless telephone operate at frequencies that may cause or receive interference with TVs, microware Ovens, and VCRs. To minimize or pervert such interference, the base of the cordless telephone should not be placed near or on top of a TV, microware ovens, or VCR. If such interference continues, more the cordless telephone farther away from these appliances. Certain Other communications devices may also use the 1.9GHz frequency for communication, and, if not properly set, these devices may interfere with each other and/or your new telephone. If you are concerned with interference, please refer to the owner’s manual for these devices on how to properly set channels to avoid interference. Typical devices that may use the 1.9GHz frequency for communication include wireless audio/video senders, wireless computer networks, multi-handset cordless telephone system, and some long-range cordless telephone system. 3. Plug the battery pack cord into the jack inside the compartment. NOTE: It is important to maintain the polarity (black and red wires) to the jack inside the compartment. To ensure proper battery installation, the connector is keyed and can be inserted only one way. 4. Insert the battery pack. 5. Close the battery compartment by pushing the door up until it snaps into place. 6. Place the handset in the base cradle. Connecting the AC (Electrical) Power 1. On the base, plug one end of the power adaptor cord into the power jack on the back of the base and the other end into an electrical outlet. CAUTION: Use only the MARKET DIRECT power adaptor that came with this unit. Using other power supplies may damage the unit. 2. Plug the handset charge cradle into an electrical outlet. NOTE: When the handset is placed in the cradle, the charge indicator on the base and the charge indicator on the handset charge cradle turns on to indicate the handset battery is charging. Connecting the Telephone Line On the base, plug the one end of the telephone line cord into the jack on the back of the base and the other end into a modular wall phone jack. Programming Functions The system uses a menu structure to give you access to all of the built-in features. You may program the following items in main menu: Room Monitor, Handset Setu…

Text truncated - open the document above for the full version.

September 11, 2007 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: U23MD6430H Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Circuit Description Part List Tune Up Procedure Antenna Information Exhibit-H-Block Diagram.pdf Exhibit-I-Schematics.pdf Exhibit-L-Circuit Description.pdf Exhibit-M-Part List.pdf Exhibit-N-Tune Up Procedure.pdf Exhibit-O-Antenna Information.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Gary R. Cullaz President Market Direct MARKET DIRECT “The Direct Connection” Market Direct One Turks Head Place Suite 850 Providence, RI 02903 401.654.6393 (phone) 510.740.3655 (fax)

FCC Part 15D - APPLICATION FORM & SELF-DECLARATION Applicant Name： Market-Direct Ltd Address： One Turks Head Place, Suite 850, Providence, RI 02903 Contact person： Gary Cullaz Phone No.： 401-654-6393 Fax No.：401-654-6399 Manufacturer Name： Huiyang CCT Telecommunications Products Co. Ltd. Address： CCT Technology Park, San He Economic Developmental Zone, Huiyang District, Huizhou City, Guangdong Province, PRC PP FP Model name： MD6430 MD6430 FCC ID： U23MD6430H U23MD6430 Remarks Does a system built with the EUT that implement the provisions of 47CFR 15.323(c)(5) enabling the use of the upper threshold for deferral? Ye s No According to 47CFR15.323(c)(5).4, does your model not use bandwidth in further cooperation with other devices at any range? Ye s No Does a system built using the EUT that operate under the provisions of 47CFR 15.323(c)(6) incorporating provisions for waiting for a channel to go clear? Ye s No According to 47CFR15.323(c)(8), does EUT use the same antennas for transmission and reception as for monitoring? Ye s No Does a system built with the EUT that operate under the provisions of 47CFR 15.323(c)(10) to test for deferral only in conjunction with a companion device? Ye s No Does a system built using the EUT that operate under the provisions of 47CFR 15.323(c)(11) enabling the access criteria check on the receive channel while in the presence of collocated interferers? Ye s No According to 47CFR15.323(c)(12), does EUT not work in a mode with denies fair access to spectrum for other devices. Ye s No Signed by: Gary Cullaz Signature: Date: Sep. 04, 2007

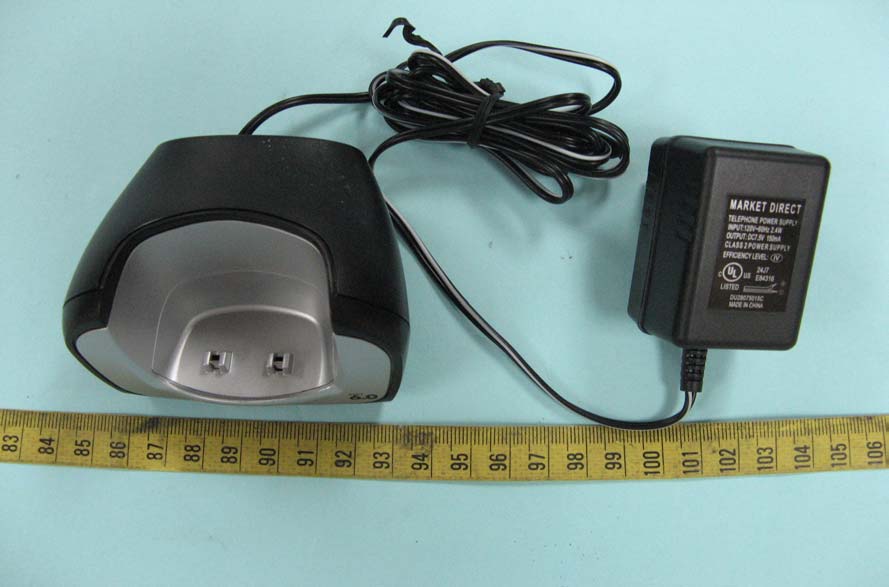

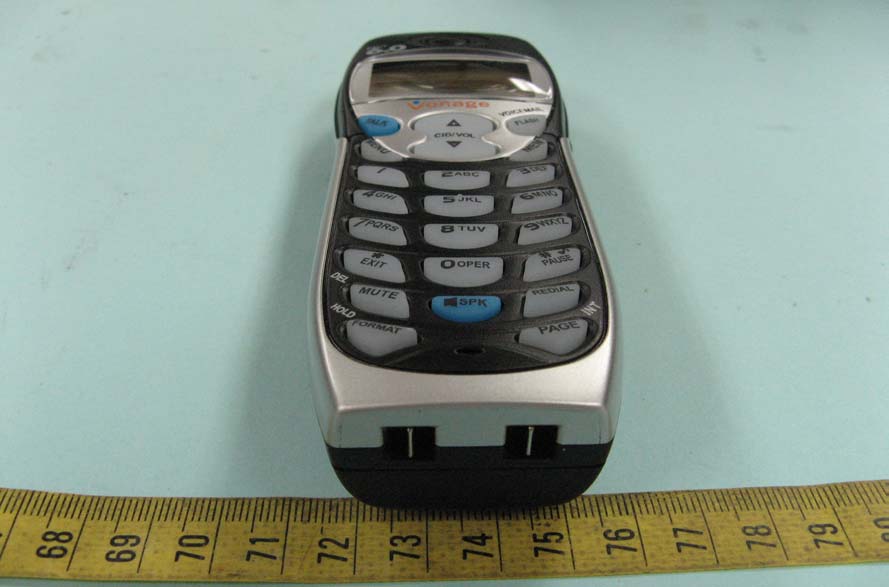

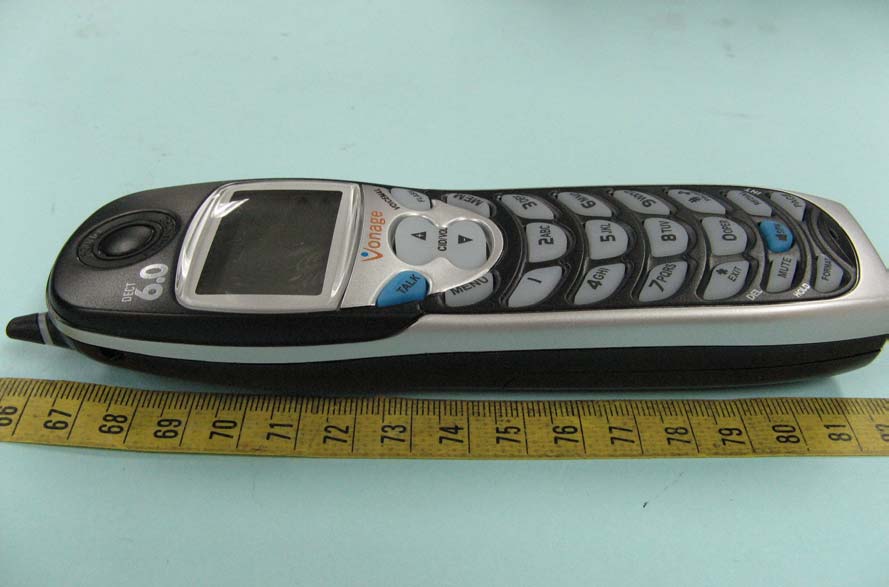

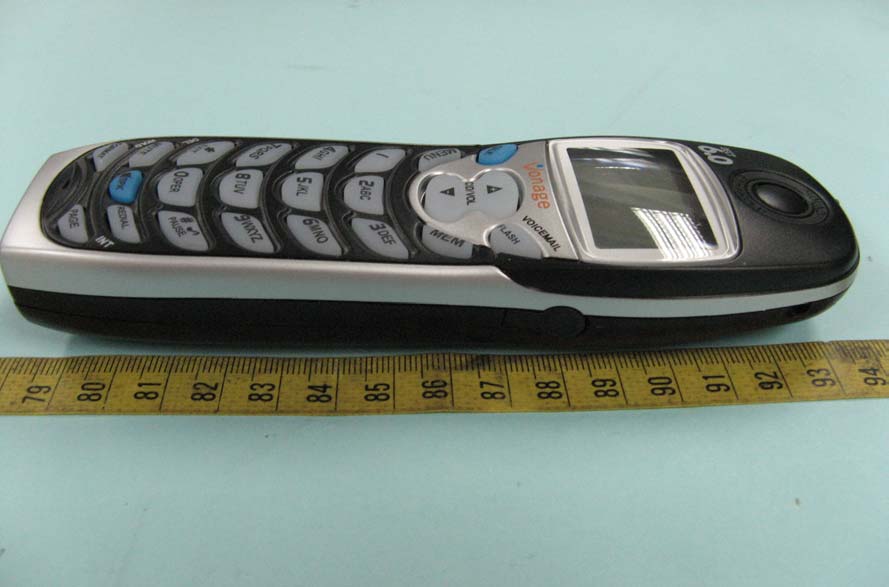

ETC Report No. : 07-08-RBF-167-02 Sheet 1 of 9 Sheet FCC ID. : U23MD6430H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model MD6430 1. Top View of EUT 2. Bottom View of EUT ETC Report No. : 07-08-RBF-167-02 Sheet 2 of 9 Sheet FCC ID. : U23MD6430H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Side View of EUT ETC Report No. : 07-08-RBF-167-02 Sheet 3 of 9 Sheet FCC ID. : U23MD6430H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Side View of EUT ETC Report No. : 07-08-RBF-167-02 Sheet 7 of 9 Sheet FCC ID. : U23MD6430H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Charger 1. 2. ETC Report No. : 07-08-RBF-167-02 Sheet 8 of 9 Sheet FCC ID. : U23MD6430H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. ETC Report No. : 07-08-RBF-167-02 Sheet 9 of 9 Sheet FCC ID. : U23MD6430H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Adapter 1. 2.

MODEL NO.: MD6400 MARKET DIRECT MODEL NO.: MD6401 MADE IN CHINA FCC ID: U23MD6430H FVD640-USA2BK00 VERSION: C DATE: 11/SEP-07 MODEL NO.: MD6402 MARKET DIRECT US: REN: FCC ID: U23MD6430 5GGW400BMD6430 0.0B

ETC Report No. : 07-08-RBF-167-02 Sheet 4 of 9 Sheet FCC ID. : U23MD6430H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Internal View of EUT 6. Internal View of EUT ETC Report No. : 07-08-RBF-167-02 Sheet 5 of 9 Sheet FCC ID. : U23MD6430H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Component View of PCB 8. Solder View of PCB ETC Report No. : 07-08-RBF-167-02 Sheet 6 of 9 Sheet FCC ID. : U23MD6430H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 8. Solder View of PCB

Report No.: 07-09-MAS-015-03 Page 1 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 1 Report No.: 07-09-MAS-015-03 Client: Market-Direct Ltd Product: DECT6.0 Multi-handset cordless phone system Model: MD6430 Manufacturer/supplier: Huiyang CCT Telecommunications Products Co. Ltd. Date test item received: 2007/09/04 Date test campaign completed: 2007/09/07 Date of issue: 2007/09/21 Test Result: ■ Compliance □ Not Compliance Statement of Compliance: The SAR values measured for the test sample are below the maximum recommended level of 1.6 W/kg averaged over any 1g tissue according to FCC OET Bulletin 65 Supplement C (Edition 01-01) and Industry Canada RSS-102 (Issue 2, 2005). The test result onl y corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 71 pages Test Engineer Eric Lin Checked by Joe Hsieh Approved by Winpo Tsai The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. SAR Evaluation Report for FCC OET Bulletin 65 Supplement C and Industry Standard RSS-102 Issue 2 Report No.: 07-09-MAS-015-03 Page 2 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 2 Applicant Information Client : Market-Direct Ltd Address : One Turks Head Place.Suite 850.Providence.RI02903 Contact : Gary Cullaz Manufacturer : Huiyang CCT Telecommunications Products Co. Ltd. Address : CCT Technology Park, San He Economic Developmental Zone, Huiyang District, Huizhou City, Guangdong Province, PRC EUT : DECT6.0 Multi-handset cordless phone system Trade Name : Market Direct Model No. : MD6430 Standard Applied : FCC OET 65 Supplement C (Edition 01-01, June 2001) Industry Standard RSS-102 Issue 2 (November 2005) IEEE Standard 1528-2003 Test Location : Electronics Testing Center, Taiwan (www.etc.org.tw) No.8, Lane 29, Wenming RD.,LeShan Tsuen, GuiShan Shiang,Taoyuan County 33383, Taiwan, R.O.C. The US DECT handset of MD6430 is in compliance with the FCC Report and Order 93-326 and Health Canada Safety Code 6, and the tests were performed according to the FCC OET65c and RSS-102 Issue 2 for uncontrolled exposure. Report No.: 07-09-MAS-015-03 Page 3 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 3 Table of Contents EXECUTIVE SUMMARY........................................................................................................................ 5 1 GENERAL INFORMATION............................................................................................................. 6 1.1 Description of Equipment Under Test ..................................................................................... 6 1.2 Photograph of EUT .................................................................................................................. 6 1.3 Environment Conditions .......................................................................................................... 7 1.4 FCC Requirements for SAR Compliance Testing ................................................................... 7 1.4.1 RF Exposure Limits ..........................................................................................................................7 1.5 The SAR Measurement Procudure for Mobile ........................................................................ 8 1.5.1 General Requirements.......................................................................................................................8 1.5.2 Phantom Requirements .....................................................................................................................8 1.5.3 Test Positions ....................................................................................................................................8 1.5.4 Test Procedures ...............................................................................................................................10 1.5.5 Test Procedures for Handset with Ear-Microphone and Belt-Clip .................................................11 2 DESCRIPTION OF THE TEST EQUIPMENT.................................................................................. 12 2.1 Test Equipment List ............................................................................................................... 12 2.2 DASY4 Measurement System Diagram ................................................................................ 13 2.3 DASY4 Measurement Server................................................................................................. 14 2.4 DAE (Data Acquisition Electronics)...................................................................................... 15 2.5 Phantom.................................................................................................................................. 16 2.6 Device Holder ........................................................................................................................ 16 2.7 Specifications of Probes ......................................................................................................... 17 2.8 SAR Measurement Procedures in DASY4 ............................................................................ 17 2.9 Simulating Liquids ................................................................................................................. 18 2.10 System Performance Check ................................................................................................... 18 2.10.1 Purpose .......................................................................................................................................18 2.10.2 System Performance Check Procedure........…

Text truncated - open the document above for the full version.

Report No.: 07-09-MAS-015-03 Page 54 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 54 ANNEX C: DIPOLE CERTIFICATE Report No.: 07-09-MAS-015-03 Page 55 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 55 Report No.: 07-09-MAS-015-03 Page 56 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 56 Report No.: 07-09-MAS-015-03 Page 57 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 57 Report No.: 07-09-MAS-015-03 Page 58 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 58 Report No.: 07-09-MAS-015-03 Page 59 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 59 Report No.: 07-09-MAS-015-03 Page 60 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 60 Report No.: 07-09-MAS-015-03 Page 61 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 61 Report No.: 07-09-MAS-015-03 Page 62 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 62 Report No.: 07-09-MAS-015-03 Page 63 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 63 ANNEX D: PROBE CERTIFICATE Report No.: 07-09-MAS-015-03 Page 64 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 64 Report No.: 07-09-MAS-015-03 Page 65 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 65 Report No.: 07-09-MAS-015-03 Page 66 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 66 Report No.: 07-09-MAS-015-03 Page 67 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 67 Report No.: 07-09-MAS-015-03 Page 68 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 68 Report No.: 07-09-MAS-015-03 Page 69 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 69 Report No.: 07-09-MAS-015-03 Page 70 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 70 Report No.: 07-09-MAS-015-03 Page 71 of 71 FCC ID: U23MD6430H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 71

FCC ID: U23MD6430H ETC Report No.: 07-09-MAS-015-01 Sheet 1 of 41 Sheets Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC Part 15, subpart D (15.323c) Report No.: 07-09-MAS-015-01 Client: Market-Direct Ltd Product: DECT6.0 Multi-handset cordless phone system (PP) Model: MD6430 FCC ID: U23MD6430H Manufacturer/supplier: Huiyang CCT Telecommunications Products Co. Ltd. Date test item received: 2007/09/04 Date test campaign completed: 2007/09/21 Date of issue: 2007/09/26 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 41 pages Test Engineer Checked By Approved By James Cheng Joe Hsieh Winpo Tsai FCC ID: U23MD6430H ETC Report No.: 07-09-MAS-015-01 Sheet 2 of 41 Sheets Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 Table of Contents Page 1 GENARAL INFORMATION.........................................................................................................3 1.1 Testing Laboratory.....................................................................................................................3 1.2 Client Information.......................................................................................................................3 1.3 Manufacturer..............................................................................................................................3 2 TEST INFORMATION..................................................................................................................4 2.1 Description of Tested Device(s)..............................................................................................4 2.2 Test Environment.......................................................................................................................5 3 TEST REPORT SUMMARY........................................................................................................6 3.1 Test Summary............................................................................................................................6 3.2 Other Comments.......................................................................................................................7 4 TEST SETUP.................................................................................................................................8 4.1 Monitoring Tests........................................................................................................................8 5 TEST EQUIPMENT LIST.............................................................................................................9 6 TEST RESULT............................................................................................................................10 6.1 Monitoring time.........................................................................................................................10 6.2 Monitoring threshold................................................................................................................11 6.3 Maximum transmit period.......................................................................................................12 6.4 System Acknowledgement.....................................................................................................14 6.6 Random waiting.......................................................................................................................28 6.7 Monitoring bandwidth and reaction time..............................................................................29 6.9 Monitoring threshold relaxation.............................................................................................37 6.10 Duplex system LBT...............................................................................................................38 6.11 Co-located device LBT.........................................................................................................39 6.12 Fair Access.............................................................................................................................40 A PPENDIX1 MANUFACTURER DECLARATION...................................................................................41 FCC ID: U23MD6430H ETC Report No.: 07-09-MAS-015-01 Sheet 3 of 41 Sheets Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 1 GENARAL INFORMATION 1.1 Testing Laboratory Name: Electronic Testing Center, Taiwan Address: No. 8, Lane 29, Wenming Rd., Leshan Tsuen, Guishan Shiang, Taoyuan Country, 33383, Taiwan, R.O.C. Telephone: 886-3-3280026 Fax: 886-3-3276188 NVLAP lab registration #: 200133-0 IC OATS registration #: IC 2949-1 E-Mail: [email protected] 1.2 Client Information Name: Market-Direct Ltd Address: One Turks Head Place.Suite 850.Providence.RI02903 1.3 Manufacturer Name: Huiyang CCT Telecommunications Products Co. Ltd. Address: CCT Technology Park, San He Economic Developmental Zone, Huiyang District, Huizhou City, Guangdong Province, PRC FCC ID: U23MD6430H ETC Report No.: 07-09-MAS-015-01 Sheet 4 of 41 Sheets Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 2 TEST INFORMATION 2.1 Description of Tested Device(s) The tested equipment is a DECT handset, which complies with ETSI EN 300175. The frequencies have been reprogrammed to comply with the FCC requirements to an Isochronous UPCS device after FCC Part 15D. The EUT is an initiating device as described in ANSI C63.17 and is designed to operate together with a DECT base station, which is then the responding device. Freq…
