U27TPMS-8000Tire Pressure Monitoring System

Welcome to TPMS-8000 Series Tire Pressure Monitoring System (TPMS). This Fast installation Guide is intended to give you a fast overview of the key steps required to install your TPMS-8000 Serial TPMS . For more detailed information, please refer to the 8000 Serial TPMS Installation Guide. Installation steps: Step 1: Check components Step 2: Check identification number Each sensor should be assigned a unique identification number (ID), which was marked on the top of sensor. Step 3: Enable and Test sensors before installing To enable a sensor, it is only needed to pull out the jumper attached on sensor. After successfully enabled, sensor will start to measure environment air pressure and temperature and send them to receiver. Step 4: Set up the receiver Plug the attached power cord into Receiver and insert the other terminal to the cigarette electrical socket of vehicle. You can adjust parameters of receiver according to your requirement.
Only the first two and last four digitals of ID will show on panel of receiver, for example, if ID is 34125678, only345678 will be shown. Step 5: Installing one sensor into wheel Please get help from professional tire shops if necessary. 1. Remove the wheel from vehicle, Deflate, and separate rim and tire. 2. Fix sensor on rim. 3. Assemble rim and tire, inflate to typical pressures. 4. Balance wheel and install to vehicle. 5. Use receiver to search ID of this wheel again, and assign this ID to the position respect to this tire installation. Make sure that the sensor inside tire was keeping work well. Steps 6: Continue to install all other sensors with the same procedure. Install all tires to the right positions of vehicle. Using receiver to search and assign all IDs to correct position respect to tire installation. Steps 7: Setup pressure and temperature thresholds according to tire type.  Do not mix up each tire’s ID, or the detected tire parameter may not be correct!  It is easy to identify each tier’s ID by changing its pressure (slightly deflate) and monitor the receiver for checking this pressure variation and tire position.  Check all recorded tire IDs by press Key 1. Each single press on Key 1 can call one tire parameters out, including temperature, pressure, and identification code. Continually press on Key 1 can read tire parameters one by one.  Typical torque of new valve nut is 3~5 N-m(30~50 kgf-cm).  In order to guarantee sealing, be sure that the rubber rings are properly positioned between rim and valve. Ser i es f ast i nst all at i on gui de Key1 Key2 Key3 Key4 Valve nut Receiver Setting Panel Modes In order to integrate friendly operation interface and powerful parameter adjusting function, AT8000 contains four major operation modes, and it is easy to switch between them by press Key 4 over 0.5 second: Working mode ↓ ↓↓ ↓ Setup Temperature limits ↓ ↓↓ ↓ Setup Pressure limits ↓ ↓↓ ↓ Tire ID search and assign Working mode Key functions: Display Setup Temperature limits Setup Pressure limits Tire ID search and assign Step 1: Switch into ID search mode by: 1. Press Key 4 into Tire ID search and assign mode. 2. Press Key 1 confirm to search. Step 2: Waiting for ID search Step 3: Assign searched ID to exact position Key 1 Key 2 Key 4 Numeric row 1 Numeric row 2 Numeric row 3 Status displayer Temperature unit Pressure unit Alarm Receive Status Key 3 Alarm Tire 1 Tire 4 RF Symbol Tire 2 Tire 3 °F/°C Select tire Tire ID Temperature Pressure Graphic display Select tuning item + - Setting tire High/Low limit indication Temperature limit PSI/KPA Setting tire High/Low limit indication Pressure limit - + Select tuning item 2 2 2 1 1 1 Selected ID One ID had been searched First received ID was selected Select ID from ID buffer. The third of six ID. Selected Tire for assigning Press to assign ID ID assigned Tire Select Tire to assign ID 910805 2 FCC Notice: Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

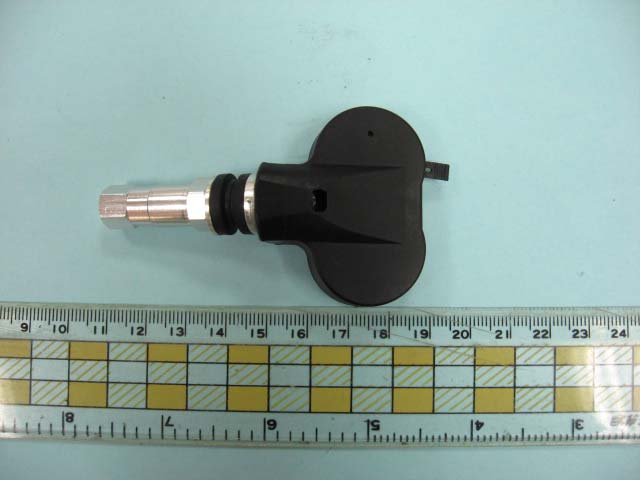

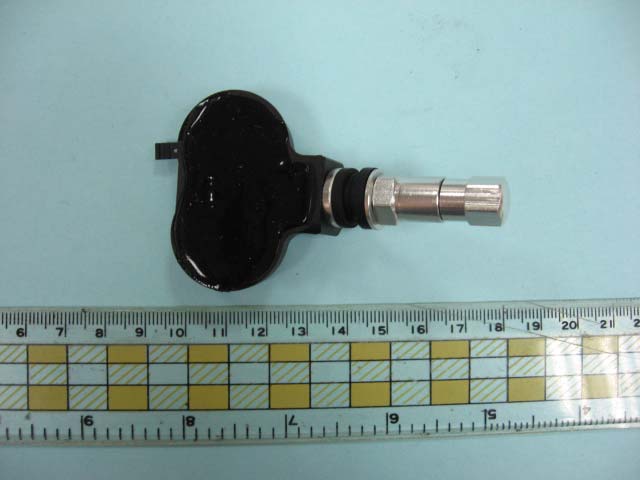

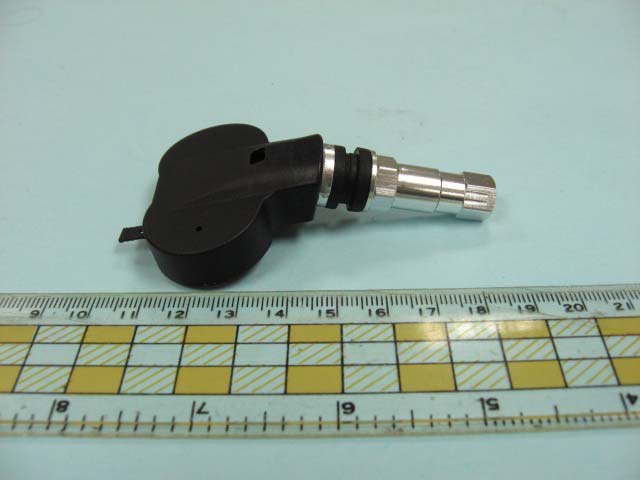

ETC Report No.:07-02-RBF-052-01 FCC ID.: U27TPMS-8000 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Rear View of EUT Bottom View of EUT ETC Report No.:07-02-RBF-052-01 FCC ID.: U27TPMS-8000 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Front View of EUT ETC Report No.:07-02-RBF-052-01 FCC ID.: U27TPMS-8000 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Rear View of EUT

TPMS-8000 Model : TPMS-8000 FCC ID : U27TPMS-8000 25mm 10mm

ETC Report No.:07-02-RBF-052-01 FCC ID.: U27TPMS-8000 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT ETC Report No.:07-02-RBF-052-01 FCC ID.: U27TPMS-8000 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Main PCB Solder View of Main PCB

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Tire Pressure Monitoring System FCC ID : U27TPMS-8000 MODEL : TPMS-8000 Working Frequency : 433.920 MHz for APPLICANT : WIESON Technologies Co., LTD. ADDRESS : 7F, No. 276, Sec. 1, Ta Tung Road, His chin City, Taipei Hsien, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO.34, LIN 5, DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 07-02-RBF-052-01 ETC Report No.:07-02-RBF-052-01 FCC ID.: U27TPMS-8000 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : WIESON Technologies Co., Ltd. 7F, No. 276, Sec. 1, Ta Tung Road, His chin City, Taipei Hsien, Taiwan Manufacturer : DongGuan Huaguo Electronic Co.Ltd. HuaguoGang,Houjie Town,Dong Guan City,Guang Dong. China Description of EUT : a) Type of EUT : Tire Pressure Monitoring System b) Trade Name : WIESON c) Model No. : TPMS-8000 d) FCC ID : U27TPMS-8000 e) Working Frequency : 433.920 MHz f) Power Supply : DC 3 V Battery Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2006) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Feb. 27, 2007 Test Engineer : ( Vincent Chang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:07-02-RBF-052-01 FCC ID.: U27TPMS-8000 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION.......................................................................................................................................... 1 1.2 CHARACTERISTICS OF DEVICE: ...............................................................................................................................1 1.3 TEST METHODOLOGY............................................................................................................................................. 1 1.4 TEST FACILITY........................................................................................................................................................ 1 2. DEFINITION AND LIMITS ................................................................................................................................ 2 2.1 DEFINITION............................................................................................................................................................. 2 2.2 RESTRICTED BANDS OF OPERATION....................................................................................................................... 2 2.3 LIMITATION............................................................................................................................................................ 2 2.4 LABELING REQUIREMENT....................................................................................................................................... 4 2.5 USER INFORMATION............................................................................................................................................... 4 3 SYSTEM TEST CONFIGURATION ................................................................................................................... 5 3.1 JUSTIFICATION........................................................................................................................................................ 5 3.2 DEVICES FOR TESTED SYSTEM................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT ...................................................................................................... 6 4.1 APPLICABLE STANDARD......................................................................................................................................... 6 4.2 MEASUREMENT PROCEDURE................................................................................................................................... 6 4.3 TEST DATA............................................................................................................................................................. 8 4.4 FIELD STRENGTH CALCULATION.......................................................................................................................... 10 4.5 ACTIVATE TIME.................................................................................................................................................... 10 4.6 CALCULATION OF DUTY FACTOR.......................................................................................................................... 10 4.7 RADIATED TEST EQUIPMENT................................................................................................................................12 4.8 MEASURING INSTRUMENT SETUP......................................................................................................................... 12 4.9 RADIATED MEASUREMENT PHOTOS...................................................................................................................... 13 5. BANDWIDTH OF EMISSION........................................................................................................................... 14 5.1 APPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH..................................................................................... 14 5.2 BANDWIDTH TEST EQUIPM…

Text truncated - open the document above for the full version.

ETC Report No.:07-02-RBF-052-01 FCC ID.: U27TPMS-8000 Rev. No 1.0 Radiated Measurement Photos
