U2M-IAP2301AV2Ceiling Mount Access Point

IAP2301Av2 QSG Introduction This Quick Start Guide is designed to guide you through the installation of Access Point, model IAP2301Av2 , including hardware mounting and configuration. Ceiling Mount Access Point Model: IAP2301Av2 Wi-Fi 7 technology for high-performance Wi-Fi in high-density, multi-device environments. Supercharged speeds up to 2,832 Mbps (5 GHz), and up to 688 Mbps (2.4 GHz). 2.5GbE Ethernet realizes greater throughput and supports 802.3at and 30W PoE injector input for flexible installation over 100 meters (328 feet). Content Quick Links Package Contents System Requirements The Senao Cloud is primarily accessible with a web browser or mobile app. Before signing up for the Senao Cloud Service or logging on to the Senao Cloud Platform to manage your network, ensure that downloaded the right app and use the supported browser. Mobile App: Senao Cloud To-Go (iOS/ Android supported) ⬇ Download the Cloud To-Go mobile app here Web Browser: Google Chrome (57.0.2987.110 and later) Microsoft Edge (80.0.361.103 and later) Mozilla Firefox (52.0 and later) Network Requirements Before you get started, please make sure your network environment is DHCP-enabled. Senao Access Points (IAP series) are default assigned an IP address dynamically by the DHCP server. If you encounter issues with IP address assignment, you may want to change your IP assignment from "DHCP mode" to "Static IP". Please check the "User Manual: Login to Local Access Page" for more details. Hardware Overview Ports Reset Button: Reset to default: Press and hold the reset button for over 10 seconds, and the LED(PWR) will start Fast Flashing (0.2 sec). Then, the device will be reset to factory default settings. LEDs Hardware Mounting The access point can be mounted on the Ceiling and Wall. Please perform the steps for the appropriate installation: Ceiling Mount A) Slide the ceiling mount base into the slot of the Access Point. B) Hold the Access Point with one hand to reach the other hand over the T-Rail sides of the bracket. Then Gook the stationary end of the ceiling mount bracket onto the T-Rail. Wall Mount C) Continued from A, determine where the Access Point to be placed and mark location on the surface for the two mounting holes. Use the appropriate drill bit to drill two 8.1mm diafram and 26mm depth holes in the markings and hammer the bolts into the openings. D) Screw the anchors unto the holes untril they are flush with the wall; screw the included screws into the anchors. E) Place the Accee Point against wall with the mounting screw heads. Configure with Senao Cloud Step1: Register Device and Assign to Network You can register the device either by the Cloud To-Go mobile app or the Senao Cloud platform. Cloud To-Go Mobile App Open and log in to the Senao Cloud To-Go mobile app. Scan the QR code on the back of the device via the app. If the camera successfully scans a QR code, the app will display the device Information. You can tap "Register" to complete the Registration. Device registration 1. Registered devices will be shown on the Inventory&License page. Slide left the device and click "Add to Network". Add the device to your personalized Network. Network: Management domain shared same configurations within Senao Cloud. Assign device to a managed Network Senao Cloud Platform Log in to the Senao Cloud Platform: https://cloud.Senao.ai/. Go to the home > Inventory&License page and click "Register Device". Enter the Serial Number of the device(s) for device registration. Please refer to "User Manual- Registering Devices to Organization". Register device(s) with device's Serial Number 4. Select the registered device and click "Assign to Network" to add the device to your personalized Network. Network: Management domain shared same configurations within Senao Cloud. Assign selected device(s) to a managed Network Step2: Power On Device The Senao Cloud AP devices can be powered by any of the following: Senao Cloud PoE Switch or 802.3af/ 802.3at PoE+ compliant Switch Senao PoE adaptor (EPA5006GP/EPA5006GAT) Power Adapter (DC 12V/2A power input) Connecting to a PoE Switch Connect the Ethernet cable from the Senao Cloud AP directly to the PoE port of the PoE switch. Do not use both power sources at the same time. AP is powered by a PoE Switch Powered with a PoE Adapter (A) Connect one end of the Ethernet cable into the LAN (PoE) port of Senao Cloud AP and the other end to the PoE port on the PoE Adapter. (B) Connect the power cord with the PoE Adapter and plug the other end into an electrical outlet. (C) Connect the second Ethernet cable into the LAN port of the PoE Adapter and the other end to the Ethernet port on the computer. Please ensure to use cat5/cat5e UTP/STP RJ45 Ethernet cables. Powered with a Power Adapter Connect the Power Cord to the adapter, and then plug the Power Cord into the power outlet. AP is powered with a power adapter Step3: Connect to the Senao Cloud Once the device is powered on and ready to connect to the Internet, the LED indicator will stay Solid On, which means the device is now connected to the Senao Cloud Platform. It will automatically download the default configuration settings from Senao Cloud for automated provisioning. Step4: Manage with the Senao Cloud Log in to the Senao Cloud platform to configure detailed settings. For more information, please refer to User Manual. When the Access Point is connected to the Senao Cloud Platform for the first time, it will automatically check the latest firmware version available. If the firmware upgrade is required, it might take 8 10 minutes to complete. The LED indicator will be Flashing (0.5 sec) untill the process is finished. Senao Cloud Dashboard Troubleshooting If the Senao Cloud Platform cannot manage your AP, there might be a problem with connecting to Senao Cloud. To troubleshoot the connection issue, you may log in to the Device Local Access page: Use your client device (e.g., a laptop, mobile device, or tablet) to find the SSID: "EnMGMT…

Text truncated - open the document above for the full version.

Date: May 8, 2026 We, Senao Networks, Inc.. declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID: U2M-IAP2301AV2 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ----------------------------------------------- Ling Wang / Compliance Manager Senao Networks, Inc. Tel: '+886-3-3289289 ext.6418 Fax: 886-3-3979663 E-mail: [email protected]

Date: 2026-05-08 FCC ID: U2M-IAP2301AV2 To the attention of Federal Communications Commission Authorization and Evaluation Division Attestation Statements Attestation Statements Part 2.911(d)(5)(i) Filing Senao Networks, Inc. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Attestation Statements Part 2.911(d)(5)(ii) Filing Senao Networks, Inc. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Attestation Statements Foreign-Made Consumer Routers Filing Senao Networks, Inc. certifies that, the equipment seeking authorization does not meet the definition of a “router” as established in NIST IR 8425A and adopted by the National Security Determination for the inclusion of 'routers produced in a foreign country' on the FCC's Covered List. Sincerely yours, ----------------------------------------------- Ling Wang / Compliance Manager Senao Networks, Inc. Tel: '+886-3-3289289 ext.6418 Fax: 886-3-3979663 E-mail: [email protected]

U.S. Agent for Service of Process Attestation To the attention of Federal Communications Commission Authorization and Evaluation Division U.S. Agent Company Name: EnGenius Technologies FRN: 0021371836 Contact Name: Eddie Lee Street Address: 1580 Scenic Avenue, Costa Mesa, City/Province/Zip: California, United States, 92626 Telephone No: 714-432-8668 Email: [email protected] This letter is to confirm that we have accepted the responsibility to act as the designated U.S. Agent for service of process as required by §2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2026-05-27 Signed by (printed name): Eddie Lee Applicant Company Name: Senao Networks, Inc. FRN : 0016080038 Grantee Code or FCC ID: U2M Contact Name: Ling Wang Street Address: 3F., No.529, Zhongzheng Rd., Xindian Dist., City/Province/Zip: New Taipei City, 231 Telephone No: +886-3-3289289 ext.6418 Email: [email protected] This letter is to confirm that the Applicant has designated the U.S Agent noted above for the purpose of accepting service of process on their behalf as required by §2.911(d)(7). The Applicant further acknowledges acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signature: Date: 2026-05-27 Signed by (printed name): Ling Wang

Date: 2026-05-08 FCC ID: U2M-IAP2301AV2 To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------------------- Ling Wang / Compliance Manager Senao Networks, Inc. Tel: '+886-3-3289289 ext.6418 Fax: 886-3-3979663 E-mail: [email protected]

Date: 2026-05-11 FCC ID: U2M-IAP2301AV2 A U T H O R I Z A T I O N L E T T E R To Whom It May Concern: Senao Networks, Inc. hereby authorizes Emerald Chen / Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Emerald Chen / Specialist of BV CPS Taoyuan on Senao Networks, Inc.’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------------------- Ling Wang / Compliance Manager Senao Networks, Inc. Tel: '+886-3-3289289 ext.6418 Fax: 886-3-3979663 E-mail: [email protected]

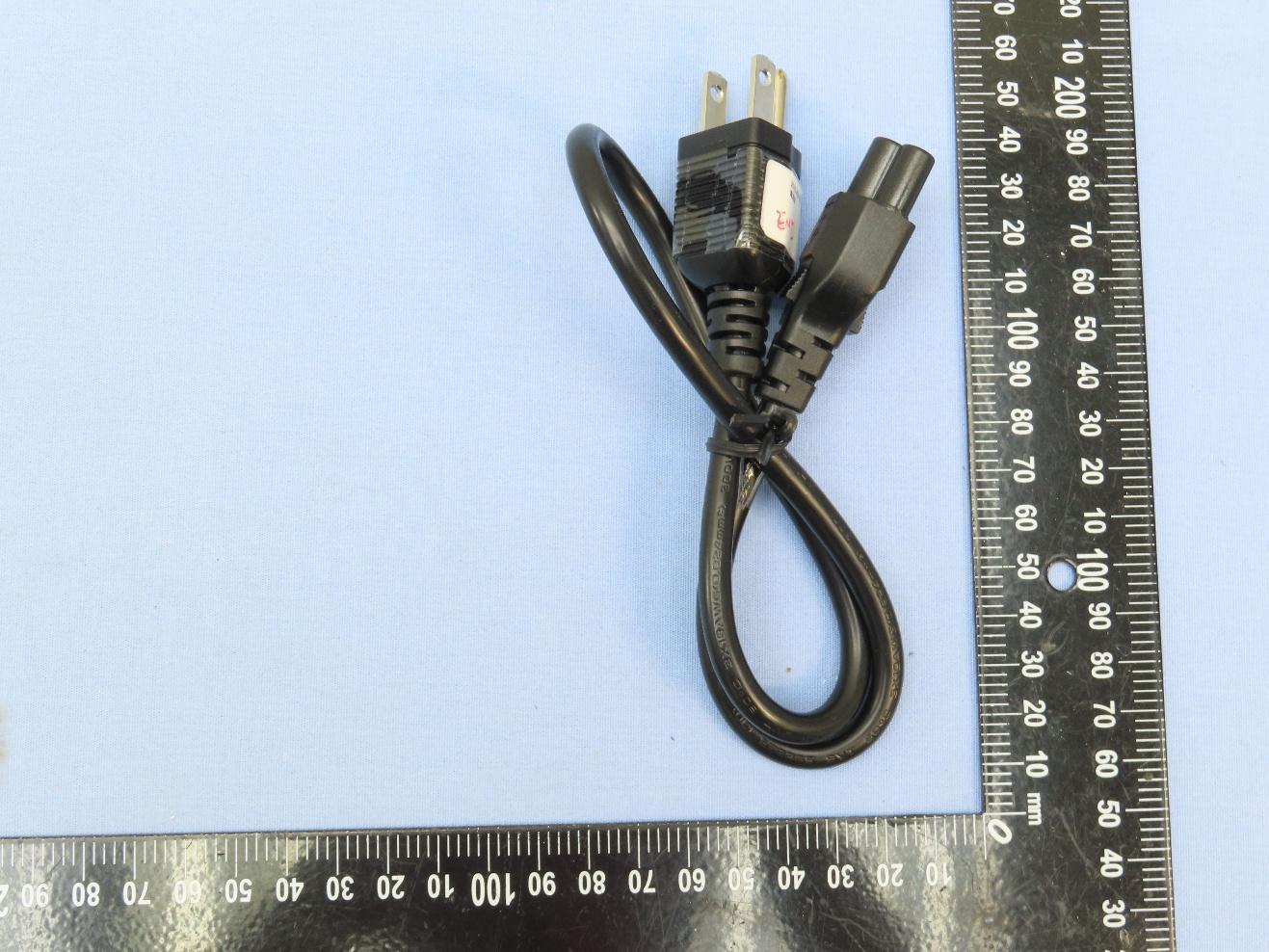

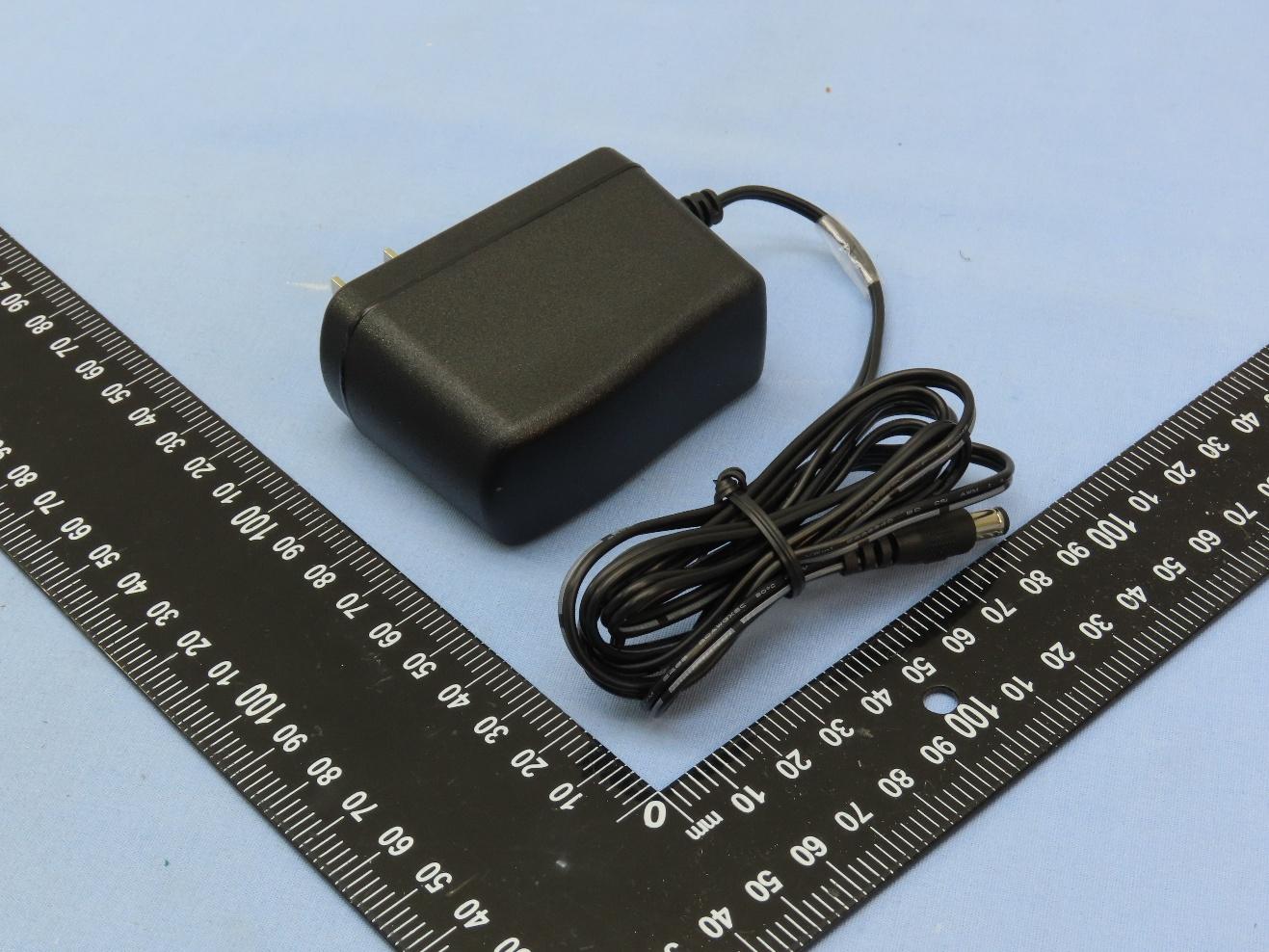

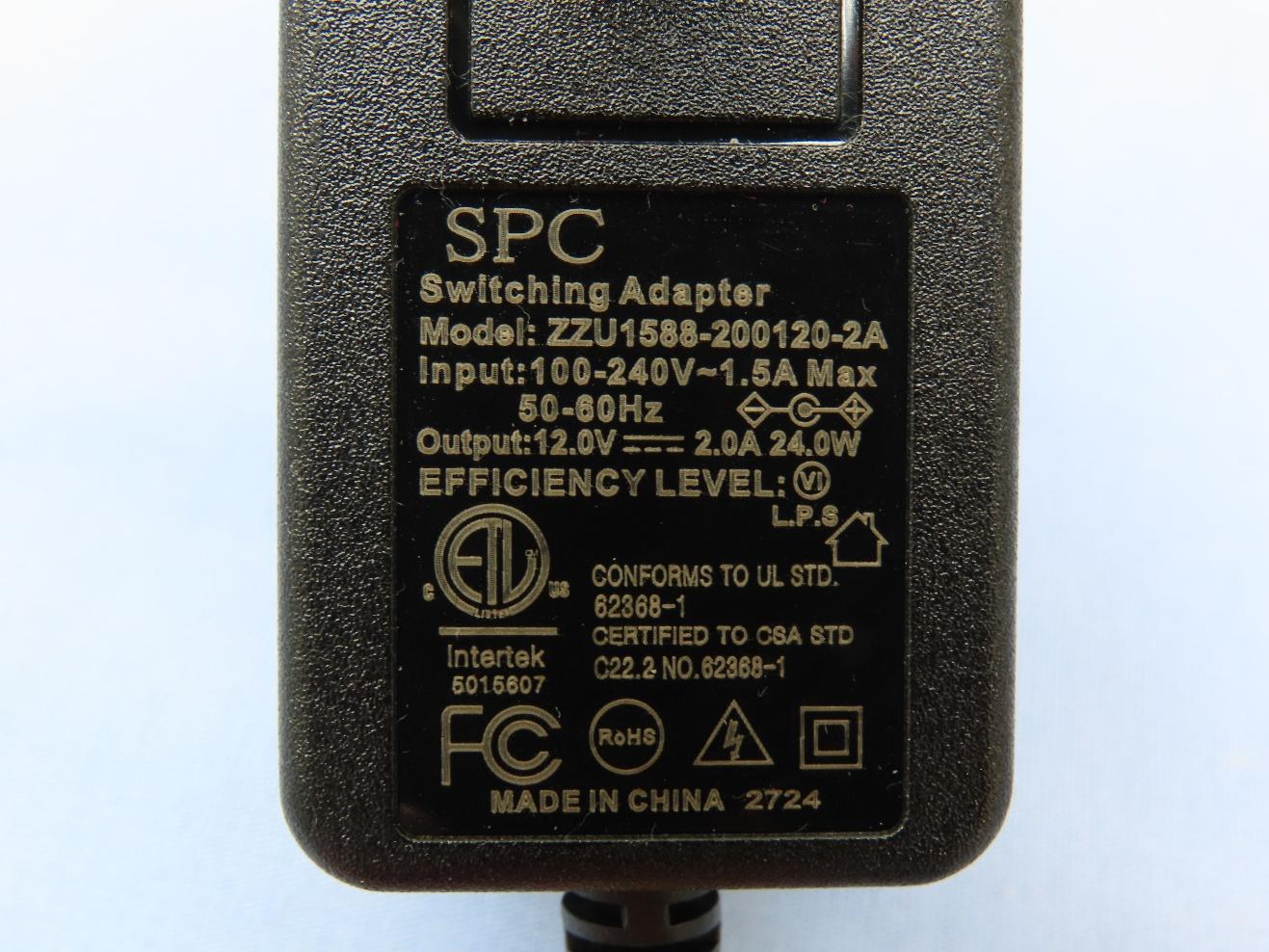

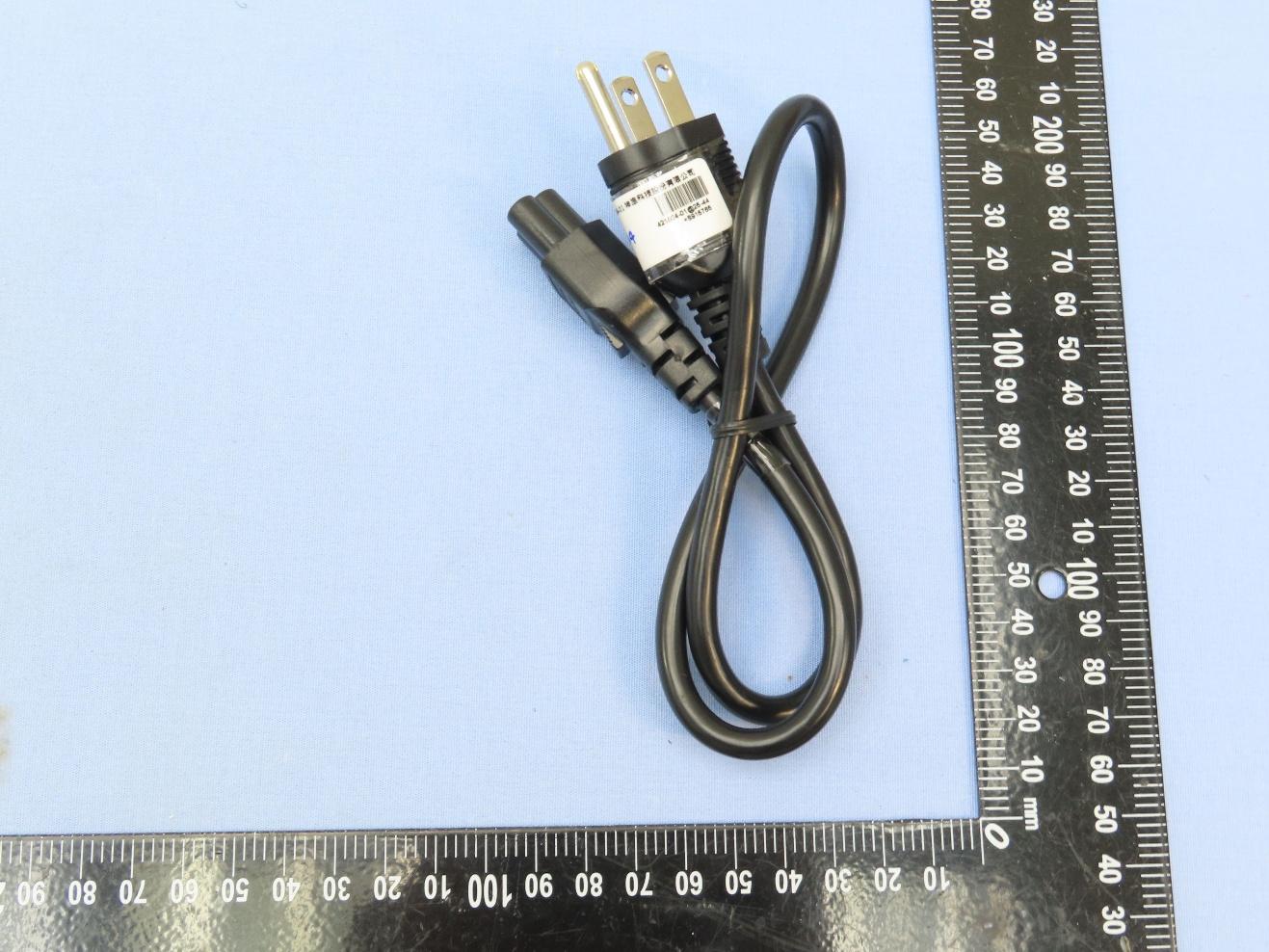

Reference No.: BDYS-WTW-P26020410_EXT Page No. 1/8 CONSTRUCTION PHOTOS OF EUT Reference No.: BDYS-WTW-P26020410_EXT Page No. 2/8 Reference No.: BDYS-WTW-P26020410_EXT Page No. 3/8 Reference No.: BDYS-WTW-P26020410_EXT Page No. 4/8 Reference No.: BDYS-WTW-P26020410_EXT Page No. 5/8 Reference No.: BDYS-WTW-P26020410_EXT Page No. 6/8 Reference No.: BDYS-WTW-P26020410_EXT Page No. 7/8 Reference No.: BDYS-WTW-P26020410_EXT Page No. 8/8

Sample location FCC ID:U2M-IAP2301AV2

Reference No.: BDYS-WTW-P26020410_INT Page No. 1/8 CONSTRUCTION PHOTOS OF EUT Reference No.: BDYS-WTW-P26020410_INT Page No. 2/8 Reference No.: BDYS-WTW-P26020410_INT Page No. 3/8 Reference No.: BDYS-WTW-P26020410_INT Page No. 4/8 Reference No.: BDYS-WTW-P26020410_INT Page No. 5/8 Reference No.: BDYS-WTW-P26020410_INT Page No. 6/8 Reference No.: BDYS-WTW-P26020410_INT Page No. 7/8 Reference No.: BDYS-WTW-P26020410_INT Page No. 8/8

Report No.: MFBDYS-WTW-P26020410 Page No. 1 / 9 Report Format Version: 7.1.0 Reference No.: BDYS-WTW-P26020410 RF EXPOSURE REPORT CERTIFICATE OF CONFORMITY FCC Rule Part: FCC Part 2 (Section 2.1091) Report No.: MFBDYS-WTW-P26020410 FCC ID: U2M-IAP2301AV2 Product: Ceiling Mount Access Point Brand: Senao Model No.: IAP2301Av2 Series Model: ECW510v2 (refer to item 3.1 for more details) Received Date: 2026/2/23 Test Date: 2026/4/10 Issued Date: 2026/5/22 Applicant: Senao Networks, Inc. Address: 3F., No.529, Zhongzheng Rd., Xindian Dist., New Taipei City, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location(1): No. 70, Wenming Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Test Location(2): No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number: Test Location:281270 / TW0032 for Test Location(1) 788550 / TW0003 for Test Location(2) Approved by: , Date: 2026/5/22 Jeremy Lin / Project Engineer This test report consists of 9 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by : Gina Liu / Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: MFBDYS-WTW-P26020410 Page No. 2 / 9 Report Format Version: 7.1.0 Reference No.: BDYS-WTW-P26020410 Table of Contents Release Control Record ....................................................................................................................................................... 3 1Certificate .................................................................................................................................................................... 4 2Applicable RF Exposure Limit .................................................................................................................................. 5 3Test Results ................................................................................................................................................................ 7 4Conclusion .................................................................................................................................................................. 8 5Information of the Testing Laboratories .................................................................................................................. 9 Report No.: MFBDYS-WTW-P26020410 Page No. 3 / 9 Report Format Version: 7.1.0 Reference No.: BDYS-WTW-P26020410 Release Control Record Issue No. Description Date Issued MFBDYS-WTW-P26020410 Original release. 2026/5/22 Report No.: MFBDYS-WTW-P26020410 Page No. 4 / 9 Report Format Version: 7.1.0 Reference No.: BDYS-WTW-P26020410 1 Certificate Product: Ceiling Mount Access Point Brand: Senao Test Model: IAP2301Av2 Series Model: ECW510v2 (refer to item 3.1 for more details) Sample Status: Engineering sample Applicant: Senao Networks, Inc. Test Date: 2026/4/10 FCC Rule Part: FCC Part 2 (Section 2.1091) Standard: KDB 447498 D04 Interim General RF Exposure Guidance v01 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Report No.: MFBDYS-WTW-P26020410 Page No. 5 / 9 Report Format Version: 7.1.0 Reference No.: BDYS-WTW-P26020410 2 Applicable RF Exposure Limit § 1.1310 Radiofrequency radiation exposure limits. (a) Specific absorption rate (SAR) shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b) of this part within the frequency range of 100 kHz to 6 GHz (inclusive). (b) The SAR limits for occupational/controlled exposure are 0.4 W/kg, as averaged over the whole body, and a peak spatial-average SAR of 8 W/kg, averaged over any 1 gram of tissue (defi…

Text truncated - open the document above for the full version.

IAP2301Av2 Antenna Datasheet CustomerGeneric ProjectIAP2301Av2 Project Description 2.4G antenna*2 5G antenna*2 Date2026/04/24 Prepared byDaniel ReportVersionV01 No. 500&520, Fusing 3rd Rd., Hwa-Ya Technology Park Kuei-Shan Dist, Taoyuan City 33383, Taiwan 2 │ Introduction This report provides Wi-Fi antenna passive measurement results which include: ▪General Information ▪Antenna Measurement System Information ▪Test Procedure ▪DUT Information ▪Set-up Photo ▪Placement and Specification ▪S11 & Isolation ▪Radiation Pattern ▪Combine Pattern ▪Efficiency and Gain 3 │ General Information •Antenna Vendor :Enrank •Test Date : 2026/04/24 •Test Engineer : Daniel.Lu •Measurement System : BWANT •Software Name : BWANT 3D Passive •Software Version : 2025061601 4 │ Antenna Measurement System Information DescriptionModel No.Serial #Calibration DateCalibration Until ChamberNANA2025/06/042026/06/03 Network AnalyzerE5063AMY541013002025/10/092026/10/08 •Measurement System: BWANT Chamber •Measurement setup: ▪Pattern & Gain measurement 1. BWANT chamber 2. BWANT program (BWANT 3D Passive) 3. System overview ▪Test item 1. Antenna passive test 600MHz~8.5GHz •Calibration Information 5 │ Test Procedure 1.Place the device to be tested on the fixture and align it with the center of the chamber. 2.Connect the antenna cable to the RF connector of the chamber. 3.Use the SW to configure parameters (antenna name, frequency points , measurement angles, antenna dimension), and then run the test SW (BWANT 3D Passive). 4.By phi from 0°to 360°and theta from 0°to 180°with a step size of 2 degrees, get the 3D data, including efficiency, peak gain, 2D and 3D radiation patterns. 5.This is far field test for antenna verification. 6.This is passive measurement, which means the device is off and not in any operating mode. 6 │ Test Measurement System Far Field Information R:Far-field starting distance λ:operating wavelength (λ=c/f) D: Antenna Size Frequency (MHz)Near FieldFar FieldEUTto Measurement antenna distance 2500MHzR < 10cmR ≥ 36cmR = 600cm 5895MHzR < 16cmR ≥ 88cmR = 600cm 600cm 7 │ DUT Information -DUT Operations Mode Support bandTX/RXOperation mode 2.4G2TX-2RX11b/11g/11n/11ax/11be 5G UNII-1 2TX-2RX11a/11n/11ac/11ax/11be 5G UNII-2a 2TX-2RX11a/11n/11ac/11ax/11be 5G UNII-2c 2TX-2RX11a/11n/11ac/11ax/11be 5G UNII-3 2TX-2RX11a/11n/11ac/11ax/11be 5G UNII-4 2TX-2RX11a/11n/11ac/11ax/11be 8 │ DUT Information -DUT Operations Mode BandModulation ModeCDD modeBeamforming mode 2.4GHz 802.11bNss1Not Support 802.11gNss1Not Support 802.11n (HT20)Nss1 / Nss2Nss1 / Nss2 802.11n (HT40)Nss1 / Nss2Nss1 / Nss2 802.11n (VHT20)Nss1 / Nss2Nss1 / Nss2 802.11n (VHT40)Nss1 / Nss2Nss1 / Nss2 802.11ax (HE20)Nss1 / Nss2Nss1 / Nss2 802.11ax (HE40)Nss1 / Nss2Nss1 / Nss2 802.11be (EHT20) Nss1 / Nss2Nss1 / Nss2 802.11be (EHT40) Nss1 / Nss2Nss1 / Nss2 5GHz 802.11aNss1Not Support 802.11n (HT20)Nss1 / Nss2Nss1 / Nss2 802.11n (HT40)Nss1 / Nss2Nss1 / Nss2 802.11ac (VHT20)Nss1 / Nss2Nss1 / Nss2 802.11ac (VHT40)Nss1 / Nss2Nss1 / Nss2 802.11ac (VHT80)Nss1 / Nss2Nss1 / Nss2 802.11ac (VHT160)Nss1 / Nss2Nss1 / Nss2 802.11ax (HE20) Nss1 / Nss2Nss1 / Nss2 802.11ax (HE40) Nss1 / Nss2Nss1 / Nss2 802.11ax (HE80)Nss1 / Nss2Nss1 / Nss2 802.11ax (HE160)Nss1 / Nss2Nss1 / Nss2 802.11be (EHT20)Nss1 / Nss2Nss1 / Nss2 802.11be (EHT40)Nss1 / Nss2Nss1 / Nss2 802.11be (EHT80)Nss1 / Nss2Nss1 / Nss2 802.11be (EHT160)Nss1 / Nss2Nss1 / Nss2 802.11be (EHT240)Nss1 / Nss2Nss1 / Nss2 9 │ Antenna Test Setup Y X Z •The DUT is set up on the test fixture and the antenna is connected to the test cable to measure the antenna performance. Testing cable Testing fixture DUT 10 │ LED Side I/O Side Placement and Specification Ant4 - 5G Ant2 - 2.4G Ant1 - 2.4G Ant3 - 5G Radio_1 Ant.1~2 Wi-Fi Frequency 2400~2500MHz Return Loss 10dB Antenna Type Pifa Material Metal Feeding Cable Radio_2 Ant.3~4 Wi-Fi Frequency 5150~5895MHz Return Loss 10dB Antenna Type Pifa Material Metal Feeding Cable Ant.1 Brand Name : Enrack P/N 7102A1417000 Ant.2 Brand Name : Enrack P/N 7102A1418000 Ant.3 Brand Name : Enrack P/N 7102A1419000 Ant.4 Brand Name : Enrack P/N 7102A1420000 11 │ Antenna S11 •The gray text indicates that the antenna does not support the corresponding frequency band and can be disregarded. Antenna S11 Freq. (MHz) Ant1 2G Ant2 2G Ant3 5G Ant4 5G 2400-25.30 -26.35 -1.79 -1.37 2450-19.58 -16.48 -1.86 -1.64 2500-13.79 -12.09 -1.98 -1.85 5150-2.72 -2.91 -15.34 -11.07 5550-2.62 -2.25 -20.24 -11.74 5895-4.46 -3.21 -16.53 -22.47 12 │ Antenna Isolation (S21) •The gray text indicates that the antenna does not support the corresponding frequency band and can be disregarded. S21 (Isolation) Freq. (MHz) Ant1-Ant2Ant3-Ant4 2400 -35.21 -41.13 2450 -32.71 -42.71 2500 -34.67 -40.59 5150 -43.52 -43.94 5550 -47.87 -34.50 5895 -53.96 -43.67 13 │ 2D Radiation Pattern –Radio 1 Y Z X Top Side LED Side I/O Side Ant1 Ant2 Represent the all X-Y plane using down tiles 30-degree angle. Ant.2 2.4G Ant.1 2.4G 14 │ 2D Radiation Pattern –Radio 2 Ant3 Ant4 Ant.4 5G Ant.3 5G Y Z X Top Side LED Side I/O Side Represent the all X-Y plane using down tiles 30-degree angle. 15 │ Combine Pattern –Radio 1 XY-PlaneXZ-PlaneYZ-Plane Y Z X Top Side LED Side I/O Side Ant.2 2.4G Ant.1 2.4G Represent the all X-Y plane using down tiles 30-degree angle. 16 │ Combine Pattern –Radio 2 XY-PlaneXZ-PlaneYZ-Plane Ant.4 5G Ant.3 5G Y Z X Top Side LED Side I/O Side Represent the all X-Y plane using down tiles 30-degree angle. 17 │ Antenna Efficiency and Gain Freq. (MHz) ANT1_2GANT2_2GANT3_5GANT4_5G Efficiency (%)Peak Gain (dBi)Efficiency (%)Peak Gain (dBi)Efficiency (%)Peak Gain (dBi)Efficiency (%)Peak Gain (dBi) 2400 683.1713.9 2450 743.2733.5 2500 703.9733.8 5150 622.8673.8 5550 662.9734.7 5895 583.6724.1

Report No.: RFBDYS-WTW-P26020410-4 Page No. 1 / 26 Report Format Version: 7.2.4 Reference No.: BDYS-WTW-P26020410 TEST REPORT CERTIFICATE OF CONFORMITY Standard: 47 CFR FCC Part 15, Subpart C (Section 15.247) 47 CFR FCC Part 15, Subpart E (Section 15.407) Report No.: RFBDYS-WTW-P26020410-4 FCC ID: U2M-IAP2301AV2 Product: Ceiling Mount Access Point Brand: Senao Model No.: IAP2301Av2 Series Model: ECW510v2 (refer to item 3.1 for more details) Received Date: 2026/2/23 Test Date: 2026/4/2 ~ 2026/4/20 Issued Date: 2026/5/22 Applicant: Senao Networks, Inc. Address: 3F., No.529, Zhongzheng Rd., Xindian Dist., New Taipei City, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location(1): No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan Test Location(2): No. 70, Wenming Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) FCC Registration / Designation Number: Test Location:788550 / TW0003 for Test Location(1) 281270 / TW0032 for Test Location(2) Approved by: , Date: 2026/5/22 Jeremy Lin / Project Engineer This test report consists of 26 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by : Gina Liu / Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: RFBDYS-WTW-P26020410-4 Page No. 2 / 26 Report Format Version: 7.2.4 Reference No.: BDYS-WTW-P26020410 Table of Contents Release Control Record ....................................................................................................................................................... 3 1 Certificate .................................................................................................................................................................... 4 2 Summary of Test Results .......................................................................................................................................... 5 2.1 Measurement Uncertainty ........................................................................................................................................ 5 2.2 Supplementary Information ...................................................................................................................................... 5 3 General Information ................................................................................................................................................... 6 3.1 General Description of EUT ..................................................................................................................................... 6 3.2 Antenna Description of EUT ..................................................................................................................................... 6 3.3 Test Mode Applicability and Tested Channel Detail .................................................................................................. 7 3.4 Test Program Used and Operation Descriptions ...................................................................................................... 8 3.5 Connection Diagram of EUT and Peripheral Devices .............................................................................................. 8 3.6 Configuration of Peripheral Devices and Cable Connections .................................................................................. 9 4 Test Instruments ...................................................................................................................................................... 10 4.1 Unwanted Emissions below 1 GHz ........................................................................................................................ 10 4.2 Unwanted Emissions above 1 GHz ........................................................................................................................ 11 5 Limits of Test Items .................................................................................................................................................. 12 5.1 Unwanted E…

Text truncated - open the document above for the full version.

Report No.: RFBDYS-WTW-P26020410 Page No. 1 / 75 Report Format Version: 7.2.0 Reference No.: BDYS-WTW-P26020410 TEST REPORT CERTIFICATE OF CONFORMITY Standard: 47 CFR FCC Part 15, Subpart C (Section 15.247) Report No.…
