U2P-3010105668rfid module

ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV4.doc CONFIDENTIAL Page 1 of 16 Design Specification Radio Frequency Identification Board Department: R&D Richmond Document#: 301010xxxx Authors: Kevin Deane-Freeman Yanchun Zhang Darren Rafferty Current Revision: 4 Revision Description Author Date 1 Initial Need/Want documentation Kevin Deane-Freeman Yan chun Zhang, Darren Rafferty 27/02/07 10/05/07 2 Added RF Output plots, revised features table Kevin Deane-Freeman 19/06/07 3 Simply some logic implementation Yan chun Zhang, Darren Rafferty 09/07/07 4 Add Compliance Statements Colin Soutar 12/14/2007 Océ Display Graphics Systems Richmond Office 13231 Delf Place, #501 Richmond, BC V6V 2C3 Canada Phone: 604-232-2310 or 604-232-2328 ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV4.doc CONFIDENTIAL Page 2 of 16 1.0 Compliance Statements ..........................................................................................................4 Compliance Standards ................................................................................................................ 4 2.0 Communication Protocol .........................................................................................................5 2.1 Addressing............................................................................................................................. 5 RFID Board PCI Shadow Memory Address Map ........................................................................ 5 2.2 Hardware Capabilities.......................................................................................................... 6 Planned Features ........................................................................................................................ 6 RF Output Characteristics ........................................................................................................... 7 3.0 Hardware Control..................................................................................................................... 7 CODE1 Label IC Memory Definition ............................................................................................ 8 4.0 Register Definition ................................................................................................................... 9 Registers Initialization for Communication .................................................................................. 9 Access the Reader Internal Registers ....................................................................................... 10 I.CODE1 Commands .................................................................................................................11 2.1.6 Access Label IC memory.................................................................................................. 11 5.0 Appendix................................................................................................................................15 ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV4.doc CONFIDENTIAL Page 3 of 16 Figure 1.1 RFID PCI Address Map .................................................................................................. 5 Figure 1.2 Features Table ................................................................................................................ 6 Figure 1.3 TX1 Output, No Load ...................................................................................................... 7 Figure 1.4 TX2 Output, No Load ...................................................................................................... 7 Figure 2.1 I.CODE1 Label ICs EEPROM Memory........................................................................... 8 Figure 2.2 Reader Registers Initialization ......................................................................................10 ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV4.doc CONFIDENTIAL Page 4 of 16 1.0 Compliance Statements FCC Statement: Any change or modification not expressly approved by the manufacturer could void the users authority to operate this equipment. FCC Notice: Any change or modification not expressly approved by the manufacturer could void the users authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Compliance Standards The product is intended for a worldwide market. ODGS tests to FCC and EU standards for CE marking. Operational companies will test to local standards. Compliance with the following standards should meet the requirements of all markets: Immunity: Criterion A EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-6 Emissions: Class B EN 55022 CFR 47 FCC Part 15 Industry Canada RSS 210 EN300300-1 EN300330-2 ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV4.doc CONFIDENTIAL Page 5 of 16 2.0 Communication Protocol 2.1 Addressing RFID Board PCI Shadow Memory Address Map HEAD (15~11) BID 8~6 MODULE SEL (BIT5~2) REGISTER SEL (BIT1~0) WR RD PCI OFFSET ID 00 BID WRITE X 680 01 RESERVED 682 10 RESET / WATCHDOG X 684 10101/ 10110 101 0000 PCI INTERFACE 11 LINK ACK CNTRL X X 686 00 BLOCK ADDR REG X 688 01 IRQ MASK X 68A 10 WR DATA(L) X 68C 101 0001 RFID WRITE MEMORY ACCESS 11 WR DATA(H) X 68E 00 CONTROL REG X 690 01 READ ADDR REG X 692 10 WRITE ADDR REG X 694 101 0010 RFID REGISTER CONTROL 11 WRITE DATA REG X 696 00 REGISTER DATA X 698 01 INTERNAL EEPROM RFU* 69A 10 MEM DATA (L) X 69C 101 0011 RFID DATA READ 11 MEM DATA (H) X 69E 00 READ MEM ADDR X 6A0 01 BLOCK NUMBER X 6A2 10 READ DATA REQ X 6A4 101 0100 RFID READ MEMORY ACCESS 11 SPI BUSY FLAG (RFU) X 6A6 00 MEM DATA READY X X 6A8 01 BMEM UPDATED X X 6AA 10 ANTENNA SELECT X 6AC 101 0101 RFID READ STATUS 11 MEM WRITE D…

Text truncated - open the document above for the full version.

FCC ID: IC: Océ Display Graphics Systems 13231 Delf Place Building #501 Richmond, British Columbia. Canada V6V 2C3 December 11, 2007 Request for Modular Approval Attestation for the Océ Display Graphics Systems # 3010105668 RFID module. Per the FCC Public Notice DA-00-1407 for Part 15 Unlicensed Modular Transmitter approval the following information is provided: 1) “The modular transmitter must have it’s own shield.” There are four shields present on the PCB, each covering a section of ODGS RFID. Only the RF Antenna from the RF section of the module is exposed outside the shielding. 2) “The modular transmitter must have buffered modulation/data inputs”. Input signal buffered by the Xilinx XC2C64A CoolRunner-II CPLD. The controlling device cannot cause an over-modulated condition. 3) “The modular transmitter must have it’s own power supply regulation.” ODGS RFID has it’s own power supply regulation via linear regulators U12 and U13. 4) “The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c).” The device consists of a Xilinx XC2C64A CoolRunner-II CPLD, a CLRC63201TD Phillips Contactless Reader, 15V and 5V linear regulators , SPI Interface, and one RF section. RF section is composed of an RFID driver, antennae multiplexer, and 13.56 MHz clock oscillator, with impedance-matching networks and RFID interrogator 4-turn coil antenna. The CPLD multiplexes each RF section as commanded by the host system on the SPI. Grounding is provided by on-board ground planes and an internal ground layers. 5) “The modular transmitter must be tested in a stand-alone configuration, i.e., must not be inside another device during testing.” The ODGS RFID 3010105668 was tested as a standalone device, not inside any other equipment 6) “The modular transmitter must be labeled with it’s own FCC ID number...” The MC13192U provides it’s own FCC ID label on the “describe location” Detailed installation instructions are provided in the user manual for the module. 7) “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions...” The ODGS RFID OIN #3010105668 user manual explains the requirements for operating the ODGS RFID OIN #3010105668 module in compliance with the FCC rules and registration. 8) “The modular transmitter must comply with any applicable RF exposure requirements.” The ODGS RFID OIN #3010105668 user manual explains in the RF exposure hazard associated with use of the module and preventive measures. Sincerely Colin Soutar Compliance Engineer Océ Display Graphics Systems 13231 Delf Place Building #501 Richmond, British Columbia. Canada V6V 2C3 (604)232 2345 Direct Dial (604)273 2775 Fax

NATIONAL TECHNICAL SYSTEMS, INC. www.ntscorp.com 5151 47 th Street NE • Calgary, Alberta T2E 3R2 (403)295-5134 • • (403) 295-4190 fax December 14, 2007 Certifying agency RE: Certification Application FCC ID: U2P-3010105668 Please be advised pursuant to 47CFR 0.457, 0.459 that Oce Display Graphics would like to request permanent confidentiality on the following exhibits (file names in parenthesis) • Schematic diagrams – (3010105668 - Schematic.pdf) • Operational description (CG654Operational description_.doc) • BOM - (costed bom.xls) • Block diagram – (3010105668 - block diagram.pdf) This application contains technical information that Oce Display Graphics deems to be trade secrets and proprietary. Thank you for your attention to this matter. Sincerely, Glen Moore EMC Manager NTS On Behalf of Oce Display Graphics

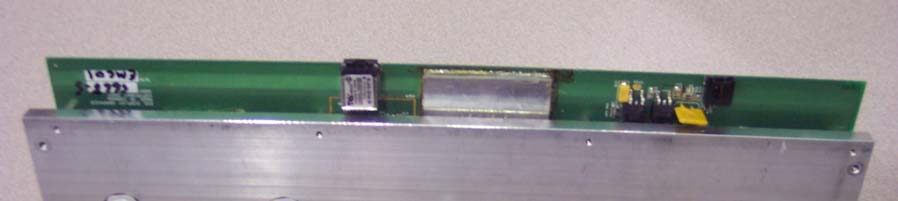

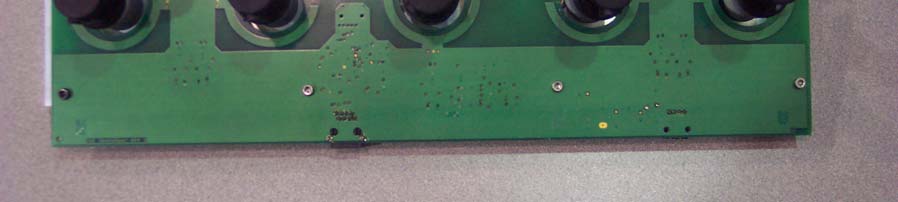

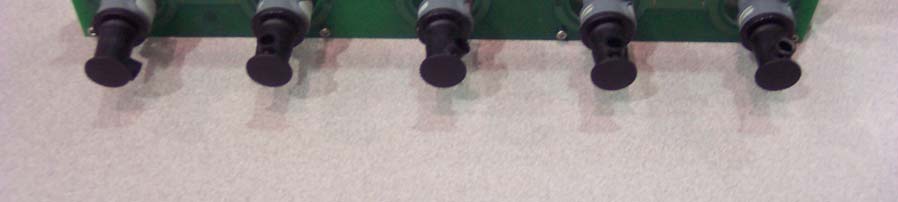

CG-654 FCC ID: U2P-3010105668 IC ID # 6947A-3010105668 OCE Display Graphics Inc Model: 3010105668 Date: December 14, 2007 Revision #:0 External Photographs Bottom View CG-654 FCC ID: U2P-3010105668 IC ID # 6947A-3010105668 OCE Display Graphics Inc Model: 3010105668 Date: December 14, 2007 Revision #:0 Side View Top View with mounting plate

CG-654 FCC ID: U2P-3010105668 IC ID # 6947A-3010105668 OCE Display Graphics Inc Model: 3010105668 Internal Photographs Top Photo - Bottom of PCB Middle Photo - Top of PCB shields removed Bottom Photo- Top of PCB with Shields over RFID tranceiver chips Date: December 14, 2007 Revision #:0

Confidentiality Statement: This report and the information contained herein represent the results of testing articles/products identified and selected by the client. The tests were performed to specifications and/or procedures approved by the client. National Technical Systems (“NTS”) makes no representations expressed or implied that such testing fully demonstrates efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article or similar products for a particular purpose. This document shall not be reproduced except in full without written approval from National Technical Systems (“NTS”) and the customer. Product Integrity Laboratory 5151-47 th Street, NE Calgary, Alberta T3J 3R2 Tel: (403) 568-6605 Fax : (403) 568-6970 Certification Test Report CFR 47 FCC Part 15, Subpart C Section 15.225 Industry Canada RSS 210, Issue 7 Applicant: OCE Display Graphics Inc FCC ID # U2P-3010105668 IC ID # 6947A-3010105668 Project Code CG-654 (Report CG-654-EM-1-2) Supercedes CG-654-EM-1-1 Revision: 1 December 13, 2007 Prepared for: OCE Display Graphics Inc Author: Spencer Watson Approved by: Nick Kobrosly Director of Operations CG-654-EM-1-2 FCC ID: U2P-3010105668 IC ID # 6947A-3010105668 Emissions Test Report OCE Display Graphics Inc Model: 3010105668 The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 2 of 31 December 13, 2007 Report Summary Test Facility NTS Canada Product Integrity Laboratory 5151-47 th Street, N.E. Calgary Alberta T3J 3R2 Accreditation Numbers FCC 101386 IC 46405-3978 - File # IC3978-2 Standards Council of Canada Accredited Laboratory No. 440 Performed For Oce Display Graphics Systems 13231 Delf Place Building #501 Richmond, British Columbia V6V 2C3 Phone #: (604)232 2345 Direct Dial Fax #: (604)273 2775 Fax Customer Representative Name: Colin Souter Phone #: (604) 232-2345 Email Address: [email protected] Responsible Manager Name: Phone #: Email Address: CG-654-EM-1-2 FCC ID: U2P-3010105668 IC ID # 6947A-3010105668 Emissions Test Report OCE Display Graphics Inc Model: 3010105668 The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 3 of 31 December 13, 2007 Test Summary Deviations* from: Appendix Test/Requirement Description Base Standard Test Basis NTS Procedure Pass / Fail Applicable Rule Parts A Radiated E-Field Emissions 30 MHz – 1 GHz No No No PASS FCC 15.209, RSS 210 Issue 7 Section 2.7 B Radiated H-Field Emissions 9 kHz – 30 MHz No No No PASS FCC 15.209, 15.225, RSS 210 Issue 7 Section 2.7 and Appendix 2.6 C Frequency Stability No No No PASS FCC 15.225, RSS 210 Issue 7 Appendix 2.6 D Occupied BW No No No 3.407 kHz RSS Gen Issue 2 Section 4.6.1 The compliance test cases and respective test standards, as defined by the customer, may not be inclusive of all testing required by the Base Standards or fulfill the applicable regulatory requirements in their entirety. They do not reflect the opinions or recommendations of NTS Test Result: The product presented for testing complied with test requirements as shown above. CG-654-EM-1-2 FCC ID: U2P-3010105668 IC ID # 6947A-3010105668 Emissions Test Report OCE Display Graphics Inc Model: 3010105668 The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 4 of 31 December 13, 2007 Test Log & Signatures: APPENDIX Test Case Start End Tester A Radiated E-Field Emissions 30 MHz – 1 GHz Sept 20, 2007 Sept 21, 2007 Spencer Watson EMC Technologist B Radiated H-Field Emissions 9 kHz – 30 MHz Sept 21, 2007 Sept 21, 2007 Spencer Watson EMC Technologist C Frequency Stability Dec 11, 2007 Dec 11, 2007 James MacKay EMC Technologist D Occupied BW Dec 11, 2007 Dec 11, 2007 Spencer Watson EMC Technologist Prepared By: ______________________ Spencer Watson EMC Technologist Reviewed By: ______________________ Glen Moore EMC Manager Checked By: ______________________ Robyn Zuelkhe Quality Manager CG-654-EM-1-2 FCC ID: U2P-3010105668 IC ID # 6947A-3010105668 Emissions Test Report OCE Display Graphics Inc Model: 3010105668 The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 5 of 31 December 13, 2007 Table of Contents REPORT SUMMARY ........................................................................................................................................................2 TEST SUMMARY...........................................................................................…

Text truncated - open the document above for the full version.

CG-654-EM-1-2 FCC ID: U2P-3010105668 IC ID # 6947A-3010105668 OCE Display Graphics Inc Model: 3010105668 Date: December 14, 2007 Revison # 0 Figure 1 Frequency Stability Test Photograph Figure 2 Radiated Emissions Test Photographs CG-654-EM-1-2 FCC ID: U2P-3010105668 IC ID # 6947A-3010105668 OCE Display Graphics Inc Model: 3010105668 Date: December 14, 2007 Revison # 0
