U2P025RFID MODULE

Company Confidential SmartCoupler Communication Protocol Specification Version: 3.30.00 Save date February 8, 2007 Colder Products Company 1001 Westgate Drive Saint Paul, Minnesota 55114 USA Phone: 651-645-0091 Fax: 651-645-5404 www.colder.com Company Confidential FCC Notice: Any change or modification not expressly approved by the manufacturer could void the users authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Colder Products Company v. 3.30.00 SmartCoupler Communications Protocol Service Manual SCCPSM.doc Company Confidential Page 3 of 36 1. Table of Contents 1. Table of Contents ............................................................................................................................. 3 2. List of Tables .................................................................................................................................... 4 3. Introduction ...................................................................................................................................... 5 4. Scope ............................................................................................................................................... 5 5. System Functionality ........................................................................................................................ 5 6. Tag Format....................................................................................................................................... 6 6.1. Philips I-Code Tag Format......................................................................................................... 6 6.2. ISO 15693 Tag Format.............................................................................................................. 7 7. Communicating with the SmartCoupler ........................................................................................... 8 7.1. ASCII Character Set .................................................................................................................. 8 7.2. ASCII Command Format ........................................................................................................... 9 7.3. ASCII Command and Reply Sequence ................................................................................... 10 7.4. ASCII Command and Response Set ....................................................................................... 10 7.5. ASCII Parameter Set ............................................................................................................... 11 7.6. ASCII Parameters, Commands and Responses ..................................................................... 11 7.6.1. A: Address .................................................................................................................. 11 7.6.2. B?: Return Baud ......................................................................................................... 11 7.6.3. BR: Baud .................................................................................................................... 12 7.6.4. D: Data........................................................................................................................ 12 7.6.5. ER: Error Response ................................................................................................... 13 7.6.6. L: Length..................................................................................................................... 13 7.6.7. M?: Read Back Modes ............................................................................................... 14 7.6.8. MA: Multidrop Address ............................................................................................... 14 7.6.9. MD: Mode ................................................................................................................... 15 7.6.10. PU: Power Up ............................................................................................................. 15 7.6.11. R?: Returns Continuous Read Period ........................................................................ 16 7.6.12. RD: Read Data from Tag............................................................................................ 16 7.6.13. RE: Read EEPROM ................................................................................................... 17 7.6.14. RP: Send Acknowledge.............................................................................................. 17 7.6.15. RS: Reset SmartCoupler ............................................................................................ 17 7.6.16. RT: Continuous Read Rate ........................................................................................ 18 7.6.17. SN: Get Tag Serial Number........................................................................................ 18 7.6.18. SR: Return Software Revision.................................................................................... 19 7.6.19. ST: Get SmartCoupler Serial Number........................................................................ 19 7.6.20. TI: Tag Info ................................................................................................................. 20 7.6.21. W?: Tag Write Protection ........................................................................................... 20 7.6.22. WE: Write EEPROM ................................................................................................... 20 7.6.23. WK: Write Key ............................................................................................................ 21 7.6.24. WP: Set Tag Write Protection ...............................................…

Text truncated - open the document above for the full version.

CPC BOM ASSY#8602910 1/29/07 Item Qty P/N Title Reference(t) Detail Mfr Mfr P/N 1 6 8990001 Cap SMT TC3216-18 Tant 10uF 10v C1,C2,C3,C4,C45,C60 10uF 10v tant TC3216-18 Pkg Kemet T491A106K010AT 2 24 8930104 Cap SMT Cerm 0603 0.1uF C34,C35,C29,C61,C30,C36,C5,C42,C31,C6,C44,C7,C32,C43,C53,C4,C33,C51,C54,C10,C52,C8,C11,C12 0.1uF 25v X7R Panasonic ECJ-1VB1E104K 3 10 8930470 Cap SMT Cerm 0603 47pF C13,C15,C17,C19,C25,C26,C27,C28,C62,C64 47pF 5% NPO 50v 0603 Panasonic ECJ-1VC1H470J 4 5 8930103 Cap SMT Cerm 0603 0.01uF C21,C22,C23,C24,C63 0.01uF 25v X7R Panasonic ECJ-1VB1E103K 6 5 8930820 Cap SMT Cerm 0603 82pF C37,C38,C39,C40,C65 82 pF 5% NPO 50v 0603 Panasonic ECJ-1VC1H820J 7 1 8930102 Cap SMT Cerm 0603 0.001uF C41 0.001uF 25v X7R Panasonic ECJ-1VB1H102K 8 1 8930473 Cap SMT Cerm 0603 0.047uF C46 0.047uF 25v X7R Panasonic ECJ-1VB1E473K 9 3 8930334 Cap SMT Cerm 0603 0.33uF C47,C48,C49 0.33uF 10v X7R Panasonic ECJ-1VB1A334K 10 1 8990002 Cap SMT Tant 6032-2412 10uF 25v C50 10uF 25v Tant 6032-2412 pkg Kemet T491C106K025AT 12 5 8430002 Ind SMT Ferrite 1210 3.3uH (High Current) L1,L2,L3,L4,L22 3.3uH 1210 Pkg Panasonic ELJ-FA3R3JF 13 5 8430003 Ind SMT Ferrite 1210 5.6uH (high current) L5,L6,L7,L8,L23 5.6uH 1210 SMT Pkg Panasonic ELJ-FA5R6JF 14 10 8430001 Ind SMT Ferrite 1210 2.7uH (high current) L9,L10,L11,L12,L13,L14,L15,L16,L24,L25 2.7uH 1210 SMT Pkg Panasonic ELJ-FA2R7JF 15 1 8830102 Res SMT 5% 0603 1k 1/10W R5 1k Panasonic ERJ-3GEY102V 16 6 8830104 Res SMT 5% 0603 100k R6,R7,R8,R9,R10,R22 100k Panasonic ERJ-3GEYJ104V 17 5 8850270 Res SMT 5% 0805 27ohm R11,R12,R13,R14,R20 27 Ohms Panasonic ERJ-6GEYJ270V 19 5 8530001 Transevier RFID 13.56 TI U1,U2,U3,U5,U9 IC RFID 13.56MHz 20 SSOP TI RI-R6C-001A-03 20 1 8535002 Driver/Receiver SSOP16 RS-232 U4 RS-232 Driver/Receiver SSOP16 Texas Inst MAX3221CDBR 21 1 8535001 PIC16F876A SMT 28SSOP U6 PIC16F873/876A 8kFlash SMT MICROCHIP PIC16F876-I/SS 22 1 8530002 Regulator Linear 5V U7 Lin Reg 5.0V SOT-223 25v-in .5a-out Texas Inst UA78M05QDCYRQ1 24 5 8536001 Oscilator 3.2mmx5.0 mm 5.0V 13.56MHz X1,X2,X3,X4,X7 Oscilator, 13.56MHz, 5.0V, tri-state output Mercury United Electronics Inc. 5H53-CT-13.560 26 10 8430018 Ferrite 470 ohm @ 300 MHz L21,L30,L31,L32,L28,L34,L29,L35,L37,L38 Murata BLM18BB471SN1D 27 1 8430019 Ferrite 1500 ohm @ 300 MHz L36 Steward HZ0805D152R-10 28 5 8430016 Ind SMT 0603 0.56uH L27,L33,L39,L40,L41 0.56uH Multilayer Ferrite 35mA 10% Taiyo Yuden LK1608R56K-T 30 4 8390003 RF Shield, 1.5X1.5X.25 SH1,SH2,SH3,SH4 ROHS, 1.5x1.5x.25 Fotofab Order by size 31 1 8002900 8002910 Backing Board Blank board for covering conductors Sunstone Circuits 000 000 029-003BLANK 32 1 8310052 .100" keyed header JP1 Through-hole, white, 5 pos Molex 22-23-2051 34 1 8002910 PCB, 5 Port RDR, Production FCC Compliant, ROHS Sunstone Circuits 000 000 029-010 35 5 8830222 Res SMT 5% 0603 2.2k ohm R1,R2,R3,R4,R21 2.2k ROHM MCR03EZPJ222 36 5 8830101 Res SMT 5% 0603 100 ohm R15,R16,R24,R26,R27 100 ohm Panasonic ERJ-3GEY-100 37 1 8930121 Cap SMT Cerm 0603 120pF C14,C16,C18,C20,C68 120pF 5% NP0 50v 0603 Panasonic ECJ-1VC1H121J

NATIONAL TECHNICAL SYSTEMS, INC. www.ntscorp.com 5151 47 th Street NE • Calgary, Alberta T2E 3R2 (403)295-5134 • • (403) 295-4190 fax March 22, 2007 RE: Certification Application FCC ID: U2P-025 IC #: 6947A-025 To whom it may concern: Please be advised pursuant to 47CFR 0.459 that the following information is to be held permanently confidential on behalf of OCE Display Graphics Inc • Schematics • Detailed Block Diagram • Operational Description This application contains the above technical information that OCE Display Graphics Inc deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the marketplace. Thank you for your attention to this matter. Sincerely, Glen Moore EMC Manager NTS On Behalf of OCE Display Graphics Inc

FCC ID: U2P-025 IC: 6947A-025 Océ Display Graphics Systems 13231 Delf Place Building #501 Richmond, British Columbia. Canada V6V 2C3 February 7, 2007 Request for Modular Approval Attestation for the OCE model 25 RFID module. Per the FCC Public Notice DA-00-1407 for Part 15 Unlicensed Modular Transmitter approval the following information is provided: 1) “The modular transmitter must have it’s own shield.” There are four shields present on the PCB, each covering a section of the 5 port reader.. Only the RF Antenna from the RF section of the module is exposed outside the shielding. 2) “The modular transmitter must have buffered modulation/data inputs”. Input signal buffered by the PIC microcontroller. The controlling device cannot cause an over-modulated condition. 3) “The modular transmitter must have it’s own power supply regulation.” 5 Port Reader has it’s own power supply regulation via U7. 4) “The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c).” The device consists of a PIC microcontroller, 5V linear regulator, RS 232 driver and 5 discrete RF sections. Each RF section is composed of an RFID driver trip and 13.56 MHz clock oscillator, with impedance-matching networks and RFID interrogator 4-turn coil antenna. The PIC enables/disables each RF section as commanded by the host system on the RS 232 bus. Grounding is provided by on-board ground planes and an internal ground layer. 5) “The modular transmitter must be tested in a stand-alone configuration, i.e., must not be inside another device during testing.” The Colder Products Part Number 2454900 was tested as a standalone device, not inside any other equipment 6) “The modular transmitter must be labeled with it’s own FCC ID number...” The MC13192U provides it’s own FCC ID label on the “describe location” Detailed installation instructions are provided in the user manual for the module. 7) “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions...” The Colder Products Part Number 2454900 user manual explains the requirements for operating the Colder Products Part Number 2454900 module in compliance with the FCC rules and registration. 8) “The modular transmitter must comply with any applicable RF exposure requirements.” The Colder Products Part Number 2454900 user manual explains in the RF exposure hazard associated with use of the module and preventive measures. Sincerely Colin Soutar Compliance Engineer Océ Display Graphics Systems 13231 Delf Place Building #501 Richmond, British Columbia. Canada V6V 2C3 (604)232 2345 Direct Dial (604)273 2775 Fax

NOTES: 3010105893 Dimensions:Material:Overlaminate:Color: THE MATERIAL CONTAINED HEREIN IS PROPRIETARY TO CYMBOLIC SCIENCES INTERNATIONAL AND SHALL NOT BE REPRODUCED, DISCLOSED OR USED FOR ANY OTHER PURPOSE WITHOUT THE WRITTEN APPROVAL OF CYMBOLIC SCIENCES INTERNATIONAL REV AB C DESCRIPTION E.O. No. DATE DES. BY REV D E F DESCRIPTION E.O. No. DATE DES. BY DWG NO. REV SHEET REF DWG TITLE: C.A.D. 1:1 PLOT SCALE DRAWN R.E.A. APPROV CYMBOLIC SCIENCES INTERNATIONAL RW RW Feb 05/07Feb 05/07 FIRST RELEASE Feb 05/07 RW A 1OF1 RW Feb 05/07 10935 All materials used must be in accordance with EU Directive 2002/95/ECon restrictions on the use of Hazardous Substances in Electrical andElectronic Equipment (RoHS Directive) 70 mm 38 mm LABEL SPECIFICATION LABEL-FCC 70X 38 Millimeters.8579 “Lustre” GlossBlack on Clear220-114 Clear Vinyl FCC ID: U2P025 IC: 6947A-025 This device complies with Part 15 of FCC Rules. Operation is subjectto the following two conditions: 3010105893 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Manufactured By: Model Number: Colder Products Company2454900

ASSEMBLY INSTRUCTIONS Colin Soutar 3010105949ai-A.doc 1 of 3 Part #: 3010105949 ASSY- PCB RFID FCC/RTTE Revision Details Rev Description REA Date EC# A Initial Release CS 02/07 10935 B C D E F G Part #: 3010105949 ASSY- Revision: A Colin Soutar 3010105949ai-A.doc 2 of 3 Table of Contents Introduction .............................................................................................................................................2 Required Materials..................................................................................................................................2 Jigs and Fixtures ................................................................................................................................................. 2 Tool List ................................................................................................................................................................ 2 Supplies ................................................................................................................................................................ 2 Assembly Steps ......................................................................................................................................2 Introduction This Assembly Instruction to detail the application of the FCC/IC label to the OIN 3010105499 RFID PCB and identify the new assembly as OIN 3010105949. Required Materials Jigs and Fixtures None Tool List None Supplies Use the Panduit PanTher LS8 labeller. Assembly Steps 1. Apply Label OIN 3010105893 to OIN 3010105499 RFID PCB as shown below: 2. Print and Apply Label to identify the new Assembly as OIN 3010105949 (RoHS Declaration – DEC_VEN PANDUIT CORPORATION). Use the Panduit PanTher LS8 labeller. Part #: 3010105949 ASSY- Revision: A Colin Soutar 3010105949ai-A.doc 3 of 3 3010105893 Note: Location of the Input Connector on o pposite side of PCB Label OIN 3010105949

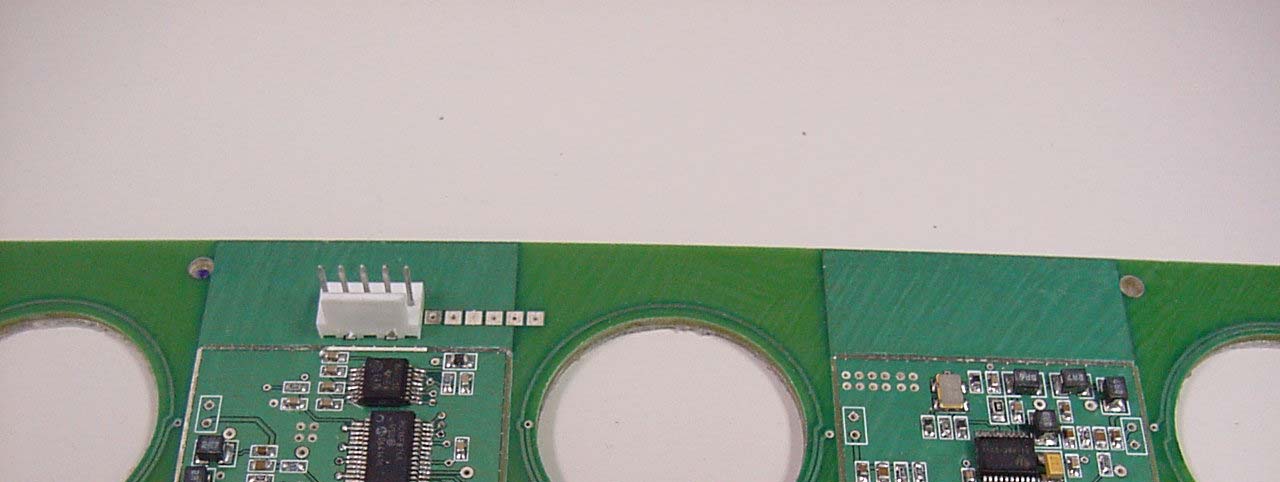

OCE Display Graphics CG-366 FCC ID: U2P025 IC Number:6947A-025 Date: March 19, 2007 Revision #:0 Internal Photographs Top of PCB with shields over transceivers Bottom of PCB OCE Display Graphics CG-366 FCC ID: U2P025 IC Number:6947A-025 Date: March 19, 2007 Revision #:0 Top of PCB with Shields removed OCE Display Graphics CG-366 FCC ID: U2P025 IC Number:6947A-025 Date: March 19, 2007 Revision #:0 Closeup of PCB top with Shields removed

NATIONAL TECHNICAL SYSTEMS, INC. www.ntscorp.com 5151 47 th Street NE • Calgary, Alberta T2E 3R2 (403)295-5134 • • (403) 295-4190 fax March 22, 2007 RE: Certification Application FCC ID: U2P-025 IC #: 6947A-025 To whom it may concern: Please be advised pursuant to 47CFR 0.459 that the following information is to be held permanently confidential on behalf of OCE Display Graphics Inc • Schematics • Detailed Block Diagram • Operational Description This application contains the above technical information that OCE Display Graphics Inc deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the marketplace. Thank you for your attention to this matter. Sincerely, Glen Moore EMC Manager NTS On Behalf of OCE Display Graphics Inc

OCE Display Graphics Inc NTS Project Number:CG-366 FCC ID: U2P025 IC Number: 6947A-025 Date: March 5, 2007 Revison # 0 Test Photographs Figure 1 Radiated Emissions Test Photograph Figure 2 Radiated Emissions Test Photographs (H field) OCE Display Graphics Inc NTS Project Number:CG-366 FCC ID: U2P025 IC Number: 6947A-025 Date: March 5, 2007 Revison # 0 Figure 3 Radiated Emissions Test Photographs (H field) Figure 4 Frequency Stability Test setup
