U2XBKB6031iPad Mini 2/3-BT Keyboard

Details of the product: This keyboard product is powered by a lithium battery(3.0V~4.2V).Lithium batteries provide 3.3 volts through LDO to the BCM20730. Built-in power management chip is responsible for the Li-battery(Supplied 5V power via micro USB). The red LED will light when device is charging.The red LED will go out if Li-battery is full. Use the switch to turn on/off the device. When you press the pair button at the same time the pairing blue LED will blink. Use the keyboard to input when the device connected to a smart device. The button command used the Bluetooth HID keyboard keycode sent to the smart devic. The Caps Lock LED will light if the Caps Lock key is pressed, the Caps Lock LED will go out if another. The pairing blue LED to indicate working status and the power blue LED indicate battery status. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

%%OXHSLRQHHU7HFKQRORJ\&R/WG Unit A&B, 15/F Neith Tower, 128 Gloucester Road, Wanchai, HongKong --------------------------------------------------------------------------------------------------------------------- Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: U2XBKB6031 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit TypeFile Name SchematicsU2XBKB6031_FCCID_Schematics Block DiagramU2XBKB6031_FCCID_BlockDiagram Operational DescriptionU2XBKB6031_FCCID_OperationalDescription The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Bluepioneer Technology Co., Ltd ------------------------- (Zhou Bin) (Manager)

%%OXHSLRQHHU7HFKQRORJ\&R/WG Unit A&B, 15/F Neith Tower, 128 Gloucester Road, Wanchai, HongKong -------------------------------------------------------------------------------- (FCC IDΚU2XBKB6031) POWER OF ATTORNEY DATE: 2015-06-24 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen SEM.Test Technology Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen SEM.Test Technology Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Bluepioneer Technology Co., Ltd, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Bluepioneer Technology Co., Ltd ------------------------- (Zhou Bin) (Manager)

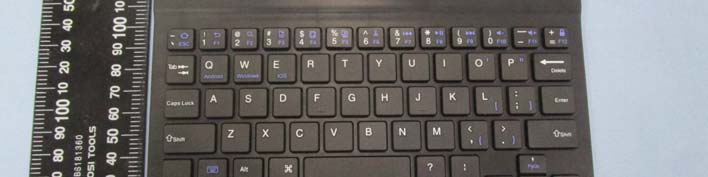

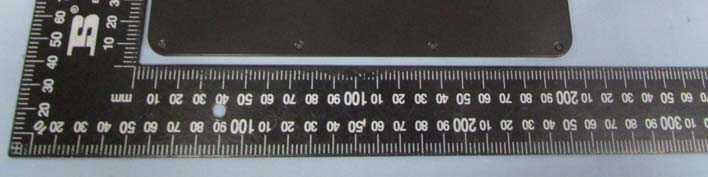

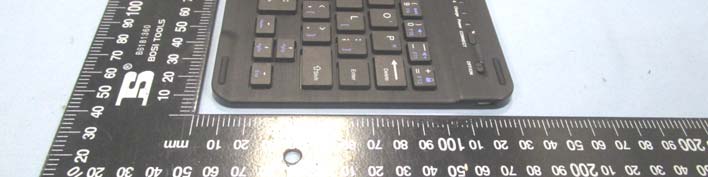

Bluepioneer Technology Co., Ltd Model: BKB-6031 REPORT NO.: STRD1506039I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Bluepioneer Technology Co., Ltd Model: BKB-6031 REPORT NO.: STRD1506039I FCC PART 15.247 EUT View 3

Bluepioneer Technology Co., Ltd Model: BKB-6031 REPORT NO.: STRD1506039I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: U2XBKB6031 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Bluepioneer Technology Co., Ltd Model: BKB-6031 REPORT NO.: STRD1506039I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Bluepioneer Technology Co., Ltd Model: BKB-6031 REPORT NO.: STRD1506039I FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 Bluepioneer Technology Co., Ltd Model: BKB-6031 REPORT NO.: STRD1506039I FCC PART 15.247 Solder Board-Component View 4

RF Exposure Requirements Product Description: iPad Mini 2/3-BT Keyboard Model No.: BKB-6031 FCC ID: U2XBKB6031 According to the KDB 447498 D01 V05r02, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Bluetooth Tx frequency range: 2402~2480MHz Device category: Portable device (Distance: 5mm) Maximum Conducted Output Power: 0.736dBm Maximum Conducted Output Power: 1.1847mW Limit: 10mW Source-based time-averaged Conducted output power is 1.1847mW < 10mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

Bluepioneer Technology Co., Ltd Model: BKB-6031 REPORT NO.: STR1506039I PAGE 1 OF 54 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Bluepioneer Technology Co., Ltd Unit A&B , 15/F Neith Tower, 128 Gloucester Road, Wanchai, HongKong FCC ID: U2XBKB6031 FCC Rule(s): FCC Part 15.247 Product Description: iPad Mini 2/3-BT Keyboard Tested Model: BKB-6031 Report No.: STRD1506039I Tested Date: 2015-06-12 to 2015-06-25 Issued Date: 2015-06-25 Tested By: Mark Chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. Bluepioneer Technology Co., Ltd Model: BKB-6031 REPORT NO.: STR1506039I PAGE 2 OF 54 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 7 3. RF EXPOSURE ......................................................................................................................................................... 8 3.1 STANDARD APPLICABLE ......................................................................................................................................... 8 3.2 TEST RESULT.......................................................................................................................................................... 8 4. ANTENNA REQUIREMENT .................................................................................................................................. 9 4.1 STANDARD APPLICABLE ......................................................................................................................................... 9 4.2 EVALUATION INFORMATION .................................................................................................................................. 9 5. FREQUENCY HOPPING SYSTEM REQUIREMENTS ................................................................................... 10 5.1 STANDARD APPLICABLE ....................................................................................................................................... 10 5.2 FREQUENCY HOPPING SYSTEM............................................................................................................................. 10 5.3 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .................................................................................... 11 6. QUANTITY OF HOPPING CHANNELS AND CHANNEL SEPARATION ................................................... 12 6.1 STANDARD APPLICABLE ....................................................................................................................................... 12 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 12 6.3 TEST PROCEDURE ................................................................................................................................................. 12 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 12 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 13 7. DWELL TIME OF HOPPING CHANNEL .......................................................................................................... 17 7.1 STANDARD APPLICABLE ....................................................................................................................................... 17 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 17 7.3 TEST PROCEDURE ................................................................................................................................................. 17 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 17 7.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 18 8. 20DB BANDWIDTH ............................................................................................................................................... 28 8.1 STANDARD APPLICABLE ....................................................................................................................................... 28 8.2 TEST EQUIPMENT LIST AND DETAILS ........…

Text truncated - open the document above for the full version.

Bluepioneer Technology Co., Ltd Model: BKB-6031 REPORT NO.: STRD1506039I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup Bluepioneer Technology Co., Ltd Model: BKB-6031 REPORT NO.: STRD1506039I FCC PART 15.247 Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) Bluepioneer Technology Co., Ltd Model: BKB-6031 REPORT NO.: STRD1506039I FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz)
