U3V6221020Transceiver Module

User’s Manual OWWCO Transceiver Module PN. 6221020 V1.1X FCC ID # U3V6221020 Ohio Willow Wood Co 15441 Scioto Darby Rd Mt. Sterling, Ohio 43143 (740) 869-3377 April 30, 2007 1 FCC Compliance Information 1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment contains module , FCC ID U3V6221020, which qualifies as an UNLICENSED MODULAR TRANSMITTER per FCC Public Notice DA 00-1407. It has been tested and found to comply with Part 15.249 of the FCC Rules. This module has been designed for use by the Ohio Willow Wood Co. This module shall only be designed into products by The Ohio Willow Wood Co. Warning: Changes or modifications not expressly approved by The Ohio Willow Wood Company could void the user’s authority to operate the equipment. This module may only be attached to host devices which are battery powered. Required labeling. Any device incorporating this module must include an external, visible, permanent marking or label which states: “Contains FCC ID U3V6221020.” Failure to comply with this requirement will void the user’s authority to operate any device that incorporates this module. Specifications: FCC ID U3V6221020 Input voltage 4.5 -12V DC Battery powered only Input current 37 mA Operating temperature range -20ºC to +50ºC Frequency range 2400 -2483 MHz. Antenna Permanently soldered to Module Transmit power <2mW Communication type Frequency Hopping Spread Spectrum. Data rate 500 kbps. Size 1.398” x 0.897” 1 All information on this page shall be included in the manual of any device that incorporates FCC ID U3V6221020 2 Introduction The Ohio Willow Wood Co (OWWCO) Transceiver Module PN. 6221020 V1.1X is a low power RF transceiver module that operates in the FCC approved 2400 - 2483MHz ISM band. The module has a peak output power of <2mw and, due to its very low power, has no separation requirements for safe usage. Integration into final products. The 6221020 has been certified as a module under FCC rules and requires no further certification so long as the following labeling constraints are met 1) Any device incorporating this module must include and external, visible, permanent marking or label which states: “Contains FCC ID U3V6221020.” 2) The manual of any device incorporating this module must contain the following: “Contains FCC ID U3V6221020 This device complies with Part 15 of the FCC Rules. Operation is subject to the following tow conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.” 3) The 6221020 is powered by an external supply voltage of 4.5 - 12V DC (battery powered only) with a current capacity of at least 35 ma. 4) The manual from the device incorporating the module must include page one of this manual. Board design, wiring, and interface. This module is designed by OWWCO and intended to be incorporated into products only by OWWCO personnel. Please refer to OWWCO document 6221021001_V1.12.sch, available from the engineering department at OWWCO, for specific circuit information. Power to the module is supplied through Vmri. Multiple DIO and Analog input lines are available for system integration as shown in the schematics. All mother boards designed for use with the module should incorporate a ground plane that extends across the full area under the module up to the level of the antenna. The area under the antenna must not contain traces or planes. PCB footprint The size of the module PCB is shown below. Further information about the layout and spacing on the PCB is available from the OWWCO engineering department and is contained in OWWCO document 6221021001_V1.12.brd. 3

" To: OHIOWILLOWWOOD FederalCommunicationsCommission 7435OaklandMillsRoad . Golumbia,MD21046-1609- Curtis-StrausLLCTCB 527GreatRd ,Littleton,MA02702 2/27/2007' \ Re:ConfidentialityRequest Gentlemen: I Thisletteristocomplywith47CFR0.457(d)(2)pertainingtoqmfidentialmaterial,The OhioWillowWoodCompanyrequeststl)atthefollowingdocumentsregardingthis submissionforFCCIDU3V6221029bekeptconfidential: 1.Schematics- I 2.BlockDiagralY,1 3.Circuit/TechnicalDescription Thematerialabovecontainstechnicaldata,whichwouldcustomarilybeguardedfrom competitors. SincereIY"1kJ)-j~ MichaelL.Haynes' TheOhioWillowWoodCompany 15441SciotoDarbyRd. ,IMt.Sterling,Ohio43143 (800)553-3445x202 / _ 15441SciotoDarbyRd.,Po.Box130,Mt.Sterling,Ohio43143 phone:740.869.3377or800.848.4930(wattsUSA)fix:740.869.4374

OHIOWILLOWWOOD Agent'sAuthorizationLetter 2-26-2007 / IJMitchellE.NeffJdoherebyauthorizeJuntilfurthernoticeJCurtis-StrausLLCJof527 Great RoadJLittletonJMA01460JtoactonourbehalfindealingsbeforetheFederal CommunicationsCommissionwithrespecttoallmattersrelatingtoequipment authorizationsunder47CFR.Thisauthorjzation inciudesJbutisnotlimitedto,the signingofForm731. I certifythatnoparty(asdefinedin47CFR1.2002)tothis'applicationJincludin'g myselfJ issubjecttoa denialoffederalbenefits,thatincludeFCCbenefitsJpursuanttosection 5301oftheAnti-DrugAbuseActof 1988J2.1U,S,C'J853A. CertifiedBy: eresentthecompanyin frontoftheFCC> JitleDirector,AdministrativeServices Date26February2007 r 15441SciotoDarbyRd.,Po.Box130,Mt.Sterling,Ohio43143 phone:140.869.3311or800.848.4930(wattsUSA)fax:140.869.4314 , I

ToWhomIt MayConcern: 9/28/2007 ThislettercertifiesthattheOhioWillowWoodModulePN.6221020Vl.lX(FCCID #U3V6221020)will onlybeutilizedbyTheOhioWillowWoodCompanyanditsdirectassociates.Further,thismodulewill onlybeusedindeviceswhereit ismountedonhostboardswhicharebatterypowered. MichaelHaynes Teamleader AdvancedDevelopmentProjectsteam TheOhioWillowWoodCompany. 1 1 I

ToWhomIt MayConcern: 4/30/2007 ThisletteristocertifythatthemodulesubmittedforapprovalasFCCIDU3V6221020meetsthe requirementsfora UNLICENSEDMODULARTRANSMITTERasspecifiedinFCCPublicNoticeDA 00-1407.Specifically, 1)Perclause1,thisdeviceincludesinintegralshieldoverthetransceiverandmicroprocessoras canbeenseeninthephotographsofthemodule. 2)Perclause2,alldatainputtothemoduleoccursthrougheitherDIOchannelsorADchannels onthemicroprocessoreffectivelyisolatingthemfromthetransceiverstageofthecircuit. 3)Perclause3,themodulehasanonboardvoltageregulatortheprovidespowerforthe microprocessorandthetransceiver. 4)Perclause4,theantennaispermanentlysolderedtothemodule. 5)Perclause6,V 1.10 wasupgradedtoV 1.12toincludea permanentsilkscreenoftheFCCID number.Becausethislabelwillnotbevisibleinnormalusage,page1 oftheoperator's manualincludesinstructionsforproperlabelingofanydevicethatwillincorporatethis module.Further,themanualalsodetailsthatthemoduleisonlyintendedtobeincorporated intoOhioWillowWoodCoproductsbyOhioWillowWoodCo.OhioWillowWoodCo therebymaintainscontroloverusageofthemoduleandcanassureproperlabelingoftheend productsusingthismodule. Sincerely, !Ilrb MichaelHaynes Teamleader AdvancedDevelopmentProjectsteam TheOhioWillowWoodCompany.

9/27/2007 Bureau Veritas Curtis-Straus LLC 527 Great Road Littleton, Massachusetts 01460 US Tel: 978.486.8880 Fax: 978.486.8828 www.curtis-straus.com Worldwide Regulatory Approvals Experts To Whom It May Concern: This letter, in conjunction with the letter supplied by The Ohio Willow Wood Company, is to certify that the module submitted for approval as FCC ID U3V6221020 meets the requirements for an UNLICENCED MODULAR TRANSMITTER as specified in FCC public Notice DA 00- 1407. Specifically, 1) Per clause 5, the module was tested in a configuration that is required according to the user manual of the device which states "All mother boards designed for use with the module should incorporate a ground plane that extends across the full area under the module up to the level of the antenna." Other than this requirement the device would be considered as tested in a stand alone configuration. According to the applicant the device will always be powered by a device deriving power from a battery, therefore AC line conducted testing is not required. 2) Per clause 7, the module complys with Section 15.249 of the FCC rules, see technical report for data proving compliance. 3) Per clause 8, the module complys with Section 15.249 of the FCC rules, there are no applicable RF exposure requirments for devices tested to this section. Sincerely, David Harris EMC Supervisor Curtis-Straus LLC Bureau Veritas Electrical and Electronic Product Services

ToWhomIt MayConcern: 4/30/2007 1)ThisletteristocertifythatthemodulesubmittedforapprovalasFCCIDU3V6221020is electricallyidenticaltotheVl.lOboardsubmittedforelectricaltesting.RevisionfromVl.lO toV 1.11wastochangethesideoftheboardforthesilkscreenusedtoindicatedplacementof thecordwoodpinsastheareandwereactuallyplaced.RevisionfromVl.lltoVl.12wasto adda silkscreenoftheFCCIDnumbersoastocomplywithPart15oftheFCCRules. Sincerely, ~4~- MichaelHaynes Teamleader AdvancedDevelopmentProjectsteam TheOhioWillowWoodCompany.

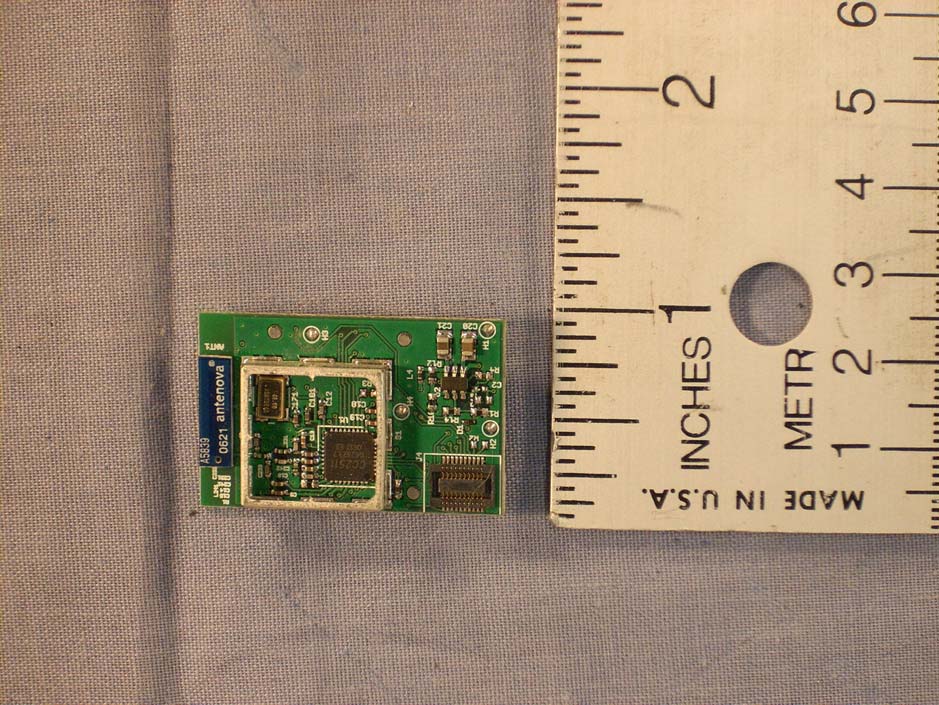

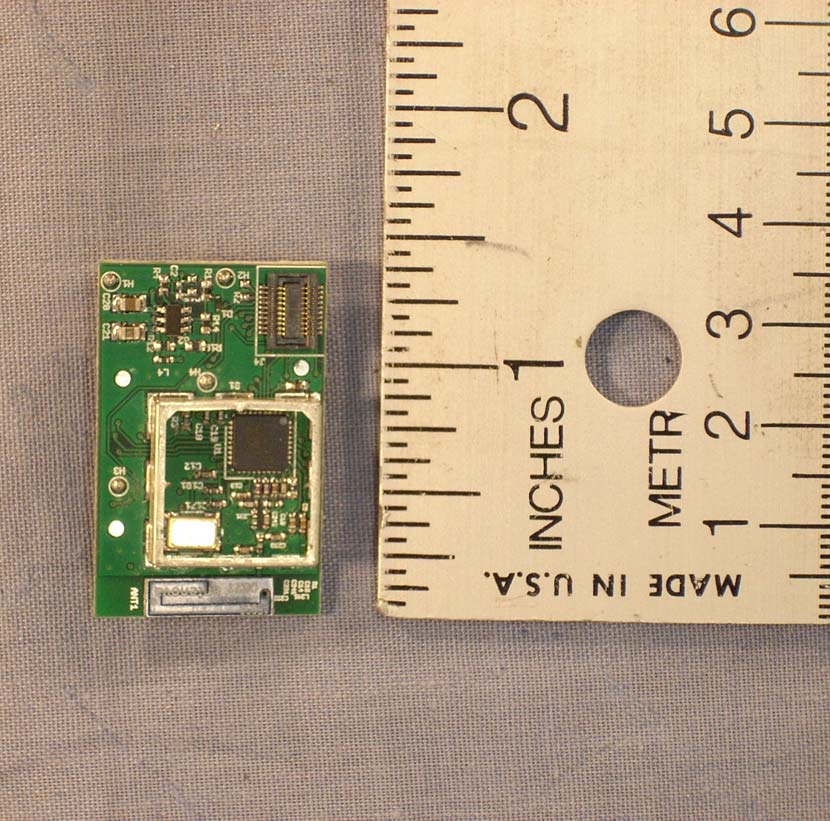

REPORT: EH0043-2 FCC ID: U3V6221020 EXHIBIT: Internal Photos _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 5 REPORT: EH0043-2 FCC ID: U3V6221020 EXHIBIT: Internal Photos _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 5 REPORT: EH0043-2 FCC ID: U3V6221020 EXHIBIT: Internal Photos _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 3 of 5 REPORT: EH0043-2 FCC ID: U3V6221020 EXHIBIT: Internal Photos _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 4 of 5 REPORT: EH0043-2 FCC ID: U3V6221020 EXHIBIT: Internal Photos _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 5 of 5

9/13/2007 01:00:48p f=3.84 mirrored Z:\Projects\6221_Vacuum\Design\020_PCA Radio Module\V1.12\6221021001_V1.12.brd ASSY# 6221020000_Rev1.12 Copyright 2006 Ohio Willow Wood FAB# 6221021001_REV 1.12 FCC ID U3V6221020 C203 C214 R5 R6 R7 R8 R11 R9 X1 H1 H2 H3 H4 C1 P1 P2 P3

REPORT: EH0043-2 FCC ID: U3V6221020 EXHIBIT: Internal Photos _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 5 REPORT: EH0043-2 FCC ID: U3V6221020 EXHIBIT: Internal Photos _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 5 REPORT: EH0043-2 FCC ID: U3V6221020 EXHIBIT: Internal Photos _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 3 of 5 REPORT: EH0043-2 FCC ID: U3V6221020 EXHIBIT: Internal Photos _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 4 of 5 REPORT: EH0043-2 FCC ID: U3V6221020 EXHIBIT: Internal Photos _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 5 of 5

Curtis-Straus LLC is accredited to ISO/IEC 17025 by A2LA for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. See our scope of accreditation at the end of this test report. Any opinions or interpretations expressed in this report are outside the scope of our A2LA accreditation as A2LA only accredits testing. _____________________________________________________ Curtis-Straus • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 page 1 of 18 Test Report Report No EH0043-2 Client Ohio Willow Wood 15441 Scioto Darby Rd. Mt. Sterling, OH 43143 Phone 800-553-3445 FRN 0016158792 47 CFR 15.249 Model OWWCO Transceiver Module PN.6221020 V1.1X FCC ID U3V6221020 Equipment Type Low Power Communications Device Transceiver Equipment Code DXT Results As detailed within this report Prepared by _____________________ David Harris– Test Engineer Authorized by __________________________ Michael Buchholz – EMC Manager Issue Date 9/28/07 Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this report. REPORT: EH0043-2 FCC ID: U3V6221020 _____________________________________________________________ _____________________________________________________________ Curtis-Straus • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 page 2 of 18 Table of Contents Summary......................................................................................................................... 3 Test Methodology............................................................................................................ 3 Statement of Conformity.................................................................................................. 4 EUT Configuration........................................................................................................... 5 Fundamental Measurement............................................................................................ 6 Radiated Spurious Emissions......................................................................................... 7 REPORT: EH0043-2 FCC ID: U3V6221020 _____________________________________________________________ _____________________________________________________________ Curtis-Straus • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 page 3 of 18 Summary This test report supports an application for certification of a frequency hopping transmitter operating pursuant to 47 CFR 15.249 with modular approval. The product is the Ohio Willow Wood Radio Module. It is a transmitter that operates in the range 2.40- 2.48GHz. The EUT was tested at its highest (-6dBm) and lowest (-12dBm) output power. The EUT operates under 15.249 because of its low power output. The EUT’s FCC label information is printed permanently on the board. Test Methodology Radiated emissions testing is performed according to the procedures specified in ANSI C63.4 (2003). Emissions were maximized by rotating the device around three orthogonal axes as well as varying the test antenna’s height and polarity. The standard voltage for the EUT is 3.7VDC. Fresh batteries were used throughout testing. The environmental conditions are shown below. Date Temperature Humidity 01/12/07 23.6°C 17% 01/13/07 21.1°C 22% 09/14/07 23.4°C 40% Frequency range investigated: 30MHz – 25GHz Measurement distance: 30MHz – 5GHz 3m 5GHz - 25GHz 1m REPORT: EH0043-2 FCC ID: U3V6221020 _____________________________________________________________ _____________________________________________________________ Curtis-Straus • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 page 4 of 18 Statement of Conformity The Radio Module has been found to conform to the following parts of 47 CFR as detailed below: Part 15 Comments 15.15(b) There are no controls accessible to the user that vary the output power. 15.19 The label is shown in the label exhibit. 15.21 Information to the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 15.203 The antenna for this device is hardwired to the PCB. 15.205 15.209 The fundamental is not in a Restricted band and the spurious and harmonic emissions in the Restricted bands comply with the general emission limits of 15.209. 15.207 EUT is battery powered. No line conducted emissions were taken. 15.249 EUT meets the technical requirements as described in 15.249 REPORT: EH0043-2 FCC ID: U3V6221020 _____________________________________________________________ _____________________________________________________________ Curtis-Straus • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 page 5 of 18 EUT Configuration EUT Configuration Work Order: H0043 Company: Ohio Willow Wood Co Company Address: 15441 Scioto Darby Rd. Mt. Sterling, OH 43143 Contact: Mike Haynes Person Present: Mike Haynes MNSN EUT: 6221020 V1.1XTest Samples 1-4 EUT Description: OWWCO Radio Module EUT Max Fre quency: 2.40-2.48GHz Support Equipment: MNSN None EUT Cables: QtyShielded?LengthFerrites Battery Cable1none6"None Unpopulated EUT Ports: QtyReason None Software / Operating Mode Description: 2.4GHz Direct Sequence Hopping Low Power Radio Transceiver. REPORT: EH0043-2 FCC ID: U3V6221020 _____________________________________________________________ _____________________________________________________________ Curtis-Straus • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 page 6 of 18 Fundamental Measurement LIMIT Average: 50mV/m = 94.0dBμV/m @ 3m [15.249] Peak: 94.0dBμV/m + 20dB = 114.0dBμV/m @ 3m [15.35(b)] MEASUREMENTS Fundamental Radiated Emissions Table Curtis-Straus LLC Date: 12-Jan-07 Company: Ohio Willo Wood Co Work Order: H0043 Engineer:Josh LeBlancEUT Desc:OWWCO Radio Module Frequency Range: Fundamental Measurement Distance: 3 m Notes: Test Sample 1 AntennaPr…
