U45-NEOT015WIFI CAMERA

NE-OT015 Instructions for use 1. Power on 2. App Download Free Android and IOS Apps Search for NineEagles in Google Play or App Store, download and install. 3. Connect the Camera to mobile phone For iPhone: iPhone Settings — WLAN — Select NineEagles— Enter the Password 1234567890 — Launch the NineEagles App on the iPhone desktop — Modify the Camera name and new password — Set the camera to default camera. For Android phone: Launch the NineEagles App on the desktop — Search the camera — Select NineEagles — Enter the Password 1234567890 — Modify the Camera name and new password — Set the camera to default camera. Blue LED Working Indicator Power cable Power cable TF Card Slot If forgotten the password, press the reset button for a free seconds to Restore factory settings. The initial password is 1234567890 4. Live Preview (First person View) When the mobile phone is connected to the Camera, press play to preview the Real-time video. 5. Take a photo Click the wireless button to capture a photo. The photos will be specially stored in the Camera TF Card and wait a transferred into the mobile phone. 6. Share the moments Press the share icon in the App to share the photo to Social Network. 7. Camera Settings You can change the image quality, mute the mic, adjust the volume, and change other settings in FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subj ect to the following two conditions: (1) This device may not cause harmful interference, and If forgotten the password, press the reset button for a free seconds to Restore factory settings. The initial password is 1234567890 (First person View) When the mobile phone is connected to the Camera, press play to time video. Click the wireless button to capture a photo. The photos will be specially stored in the Camera TF Card and wait a few s mobile phone. the moments Press the share icon in the App to share the photo to Social Network. You can change the image quality, mute the mic, adjust the volume, other settings in NineEagles Apps. FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subj two conditions: (1) This device may not cause harmful interference, and If forgotten the password, press the reset button for a free seconds to When the mobile phone is connected to the Camera, press play to Click the wireless button to capture a photo. The photos will be few seconds to be Press the share icon in the App to share the photo to Social Network. You can change the image quality, mute the mic, adjust the volume, This device complies with Part 15 of the FCC Rules. Operation is subj (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interfer ence that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the e quipment. NOTE: This equipment has been tested and found to comply with the li mits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Th ese limits are designed to provide reasonable protection against harmful int erference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cau se harmful interference to radio communications. However, there is no guar antee that interference will not occur in a particular installation. If this equip ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encou raged to try to correct the interference by one or more of the following me asures: Reorient or relocate the receivingν antenna.Increase the separation betw een the equipment andν receiver.Connect the equipment into an outlet on a circuit different fromν that to which the receiver is connected.Consult the d ealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Revised wording (obsolete)1.02.0Sept–25-2007 Updated company template (obsolete)2.03.0Jan-31-2012 Updated letter information (obsolete)3.04.0May-23-2014 Added FCC ID field (current)4.05.0Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2Rev 5.0 (Shanghai Nine Eagles Electronic Technology Co., Ltd.) (2014-09-16) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____Shanghai Nine Eagles Electronic Technology Co., Ltd._____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description: WIFI CAMERA Model name: NE-OT015, NE-OT020, NE-OT021, NE-OT022, NE-OT023, NE-OT024, NE-OT025, NE-OT026, NE-OT027, NE-OT028, NE-OT029, NE-OT030 FCC ID: U45-NEOT015 Sincerely, Client’s signature Guochuan Huang / CEO Company Name: Shanghai Nine Eagles Electronic Technology Co., Ltd. Address: Room 1104, Huaxiang Building, No. 80 Moling Road, Shanghai, 200070, China Tel: +86-21-52919366 Email: [email protected]

SCS-F19: Confidentiality Request LetterPage 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Adding CFR 2.459 (obsolete)1.02.0August – 11 - 2008 Updated company template & Added text box (current) 2.03.0Jan-31-2012 SCS-F19: Confidentiality Request LetterPage 2 of 2 Rev 3.0 (Shanghai Nine Eagles Electronic Technology Co., Ltd.) (2014-09-16) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject:Permanent Confidentiality Requestfor FCC ID:U45-NEOT015 We hereby request confidential treatment of information accompanying this application as outlined below: -Block Diagram -Schematics -Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Guochuan Huang / CEO Company Name: Shanghai Nine Eagles Electronic Technology Co., Ltd. Address: Room 1104, Huaxiang Building, No. 80 Moling Road, Shanghai, 200070, China Tel: +86-21-52919366 Email: [email protected]

Shanghai Nine Eagles Electronic Technology Co., Ltd. Declaration on Model Differences We, Shanghai Nine Eagles Electronic Technology Co., Ltd. Room 1104, Huaxiang Building, No. 80 Moling Road, Shanghai, 200070, China Declare that the following product(s): Product Name:WIFI CAMERA Model Number:NE-OT015, NE-OT020, NE-OT021, NE-OT022, NE-OT023, NE-OT024, NE- OT025, NE-OT026, NE-OT027, NE-OT028, NE-OT029, NE-OT030 FCC ID:U45-NEOT015 Utilize the identical circuit design, PCB layout, shielding and interface with (NE-OT015),only the appearance and model number are difference. Therefore this application can be regarded as identical in performance to the submitted test sample. The manufacturer would take all the responsibilities for the above product(s). For and on behalf of Shanghai, China Authorized personLocation Name:Guochuan Huang Position:CEO Date of issue:2014-09-16 *I hereby declare that I am entitled to sign on behalf of the applicant and that the information supplied is correct and complete.

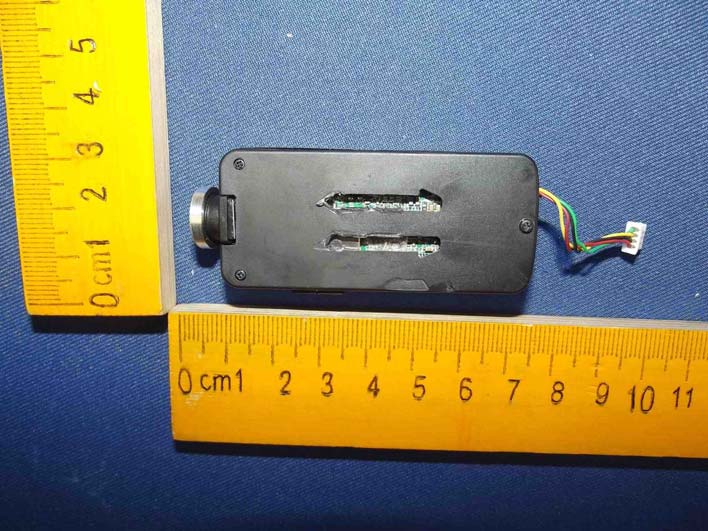

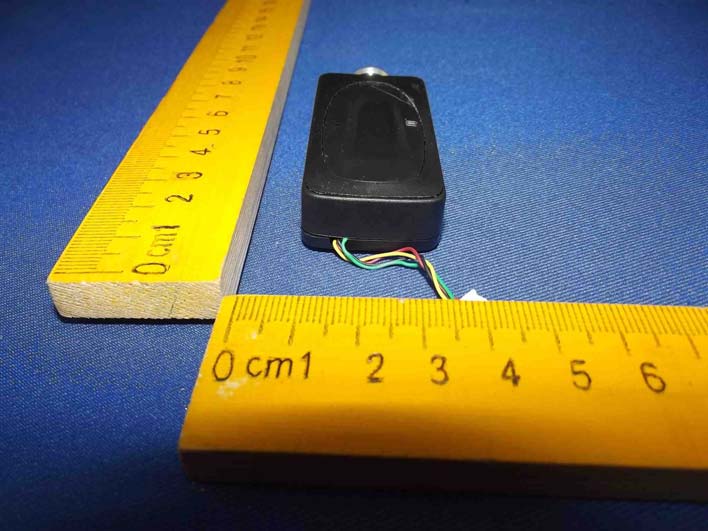

Figure 1 The EUT-Top View Figure 2 The EUT-Bottom View Figure 3 The EUT-Left View Figure 4 The EUT-Right View Figure 5 The EUT-Front View Figure 6 The EUT-Back View

Model Name: WIFI CAMERA Model No.: NE-OT015 FCC ID: U45-NEOT015

Label Location On EUT

Figure 7 The EUT-Inside View Figure 8 PCB of The EUT-Front View(With Shielding) Figure 9 PCB of The EUT-Front View(Without Shielding) Figure 10 PCB of The EUT-Back View Figure 11 PCB of The EUT-Front View Figure 12 PCB of The EUT-Back View

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID：U45-NEOT015 EUT Specification EUTSPORT DVR Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classificationOccupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversitySingle antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power15.67dBm (0.037W) Antenna gain (Max)2dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500----F/3006 1500-100000----56 (B) Limits for General Population/Uncontrol Exposures 300-1500----F/15006 1500-100000----130 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Operating Mode Channel Frequency (MHz) Output Peak power (mW) Antenna Gain (dBi) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) IEEE 802.11b 241227.8028.765e-031 243731.3329.878e-031 246236.9021.163e-021 IEEE 802.11g 241211.7523.705e-031 243716.2625.127e-031 246217.3425.467e-031 IEEE 802.11n (HT20) 241212.3923.907e-031 243713.9624.402e-031 246216.7525.281e-031 EEE 802.11n (HT40) 242210.4923.308e-031 243711.9923.780e-031 245213.9024.383e-031

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: U45-NEOT015 Page 1 of 94 Report No.: R011408212E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for Shanghai Nine Eagles Electronic Technology Co., Ltd. WIFI CAMERA Model No.: NE-OT015, NE-OT020, NE-OT021, NE-OT022, NE-OT023, NE-OT024, NE-OT025, NE-OT026, NE-OT027, NE-OT028, NE-OT029, NE-OT030 Report Number: R011408212E Date of Test:Au g.26~Sept. 16, 2014 Date of Report:Sept. 17, 2014 Prepared for: Shanghai Nine Eagles Electronic Technology Co., Ltd. Address: Room 1104, Huaxiang Building, No. 80 Moling Road, Shanghai, 200070, China Prepared By: Shenzhen AnbotekCompliance Laboratory Limite d Address: 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: U45-NEOT015 Page 2 of 94 Report No.: R011408212E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENT Description Page Test Report 1. GENERAL INFORMATION......................................................................................................4 1.1. Description of Device (EUT)................................................................................................................4 1.2. Auxiliary Equipment Used during Test................................................................................................ 5 1.3. Description of Test Facility.................................................................................................................. 5 1.4. Measurement Uncertainty.....................................................................................................................5 2. TEST METHODOLOGY............................................................................................................6 2.1. Summary of Test Results......................................................................................................................6 2.2. Description of Test Modes....................................................................................................................6 2.3. List of channels:....................................................................................................................................7 3. FCC PART 15.247 REQUIREMENTS FOR DSSS & OFDM MODULATION................... 8 3.1 Test Setup...............................................................................................................................................8 3.2 6dB Bandwidth...................................................................................................................................... 8 3.3. Maximum Output Power Test.............................................................................................................24 3.4. Band Edges Measurement...................................................................................................................32 3.5. Peak Power Spectral Density..............................................................................................................69 3.6. Radiated Emissions.............................................................................................................................77 4. PHOTOGRAPH......................................................................................................................... 88 4.1. Photo of Radiation Emission Test.......................................................................................................88 APPENDIX I (EXTERNAL PHOTOS)........................................................................................89 APPENDIXII(INTERNAL PHOTOS)...................................................................................... 92 Appendix I (3 Pages) Appendix II (3 Pages) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: U45-NEOT015 Page 3 of 94 Report No.: R011408212E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant: Shanghai Nine Eagles Electronic Technology Co., Ltd. Manufacturer: Shanghai Nine Eagles Electronic Technology Co., Ltd. EUT: WIFI CAMERA Model No.: NE-OT015, NE-OT020, NE-OT021, NE-OT022, NE-OT023, NE-OT024, NE-OT025, NE-OT026, NE-OT027, NE-OT028, NE-OT029, NE-OT030 Serial No.: N.A. Trade Mark: N.A. Rating: DC 3.7V, 1200mA Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.247 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emissionlevels emanating from the device and the severe levels of the device can endure and itsperformance criterion. The measurement results are contained in this test report andShenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Shenzhen Anbotek Compliance Laboratory Limited. Date of Test :Aug. 26 ~Sept. 16, 2014 Prepare dby: (Tested Engineer / Rock Zeng) Reviewer: (Project Manager / Amy Ding) Approve d& AuthorizedSigner: (Manager / Tom Chen) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: U45-NEOT015 Page 4 of 94 Report No.: R011408212E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT:WIFI CAMERA Model Number:NE-OT015, NE-OT020, NE-OT021, NE-OT022, NE-OT023, NE-OT024, NE-OT025, NE-OT026, NE-OT027, NE-OT028, NE-OT029, NE-OT030 (Note: All samples are the same except the model number and appearance, so we prepare “NE-OT015” fo rEMC …

Text truncated - open the document above for the full version.

1. Photo of Radiation Emission Test
