U45-NEOT017WIFI Camera

NE-OT017WIFICAMERAUsersManual 1.WIFIcamera’sspecificationsandparameters： Memory:Acceptsupto32GMicroSDcard CameraSize:91.5mmLx39.4mmWx38.5mmH CodecVideo:MotionFHD1080P,JPG,fileextension.mp4 CodecAudio:Mono StillImageCapture:1920x1080,fileextension.jpg WIFIControlDistance:[email protected](NoInterferenceandNoobstacles) [email protected](NoInterferenceandNoobstacles) 2.InstallWifiCamera： ForRTFversion,theWificameraisalreadyinstalled.PleasefollowthebelowinstructionstoreplaceorrepairWificamera. 1)ConnecttheWificameracabletocameraslotinquadcopter. 2)UsethedoublesidetapetosticktheWificameratothebottomofquadcopter. 3)PlugMicroSDcardintocardslotofthecameraaccordingtotheSDcardmarkoncamera. 4)Changethelen’sangleifnecessary. 3.indicatorlightsstatusinstruction： CameraindicatorlightStatus bluelightsolidonSuccessfulconnectionwithmobiledevices.Cameraworkingunder2.4G. orangelightsolidonSuccessfulconnectionwithmobiledevices.Cameraworkingunder5G. 4.DownloadandInstallAPP： 1)DownloadandinstallAPP: Attention:PleasecheckthelatestAPPversiononwww.nineeagle.comoryoumayupdatetheAPPinsideAboutpage. Optionalwaystodownload ●Useyourmobiledevices(Androidoperatingsystem)tovisit:http://www.nineeagle.com/product/product_download.aspx?id=49 ●VisitAppleStoreorGooglePlaybysearching“nineeagle”todownload. ●Scantwo-dimensioncode. AfterdownloadAPP,pleaseinstallit. 2)FindAPPmanual: Pleasefindthemanualin“manual”sectionofUserCenterorvisitwww.nineeagle.com 3)TeachingVideo Pleasefindthe“video”sectionofUserCenterorvisitwww.nineeagle.com NE-OT017WIFICAMERAUsersManual 5.ConnectWificameratomobiledevices Attention:ItissuggestedtohaveyourmobiledevicessetasNo-disturbingmodebeforeflightastheapplicationofAPPwillbe severelyaffectedbycominginphonecalls. 1)FollowtheinstructionmanualtopoweronthetransmitterandconnectLi-pobatterytoquadcopter. 2)Preparemobiledevices (1)Duringflight,theAPPperformancewillbegreatlyaffectedifphonecallcomesorotherinterruptioncomeacross,soitis suggestedtohaveyourmobilesetasNo-disturbingmode. (2)Enterthesettingmenu-wirelessandnetwork-WLAN,checktheWIFIsignalconnectionstatus.Andittakesabout30-60 secondsfromWIFIsignalsearchingtoconnection. (3)ChooseWIFIsignalofthequadcopter(FPV_X231),enterwiththepassword(1234567890).Alltheindicatorlightswillbesolid onaftersuccessfulconnection. (4)EnterthemaininterfaceofAPP. (5)Addthecamerabyclickingicon(01).Thenmobiledevicewillshowthepreviewinthescreen.Afterabout2seconds,APP entersinto"connectioninterface". 01Addcamera:connectthemobiledevicewiththequadcopter. 02Camera:operationinterface 03Photoalbum:download,deleteandsharephotos&videos. 04Userscenter:downloadmanualorteachingvideos 05etting:camera,flightparameterandAPPsetting. 6.VideoShooting Therearetwowaysforvideoshooting. ●Bytransmitter-Pressbutton“VIDEO/PICTUREON”onetimeonthetoprightcorneroftransmitterbackside,andWIFIcamera willstartcamerashooting.Pressbutton“VIDEOOFF”onetimeonthetopleftcorneroftransmitterbacksidetostopshootingand savevideo. ●ByAPP-Click11Videoshootingtostart(theicon11Videoshootingonthescreenwillflash),andclick11Videoshootingagain NE-OT017WIFICAMERAUsersManual tostopvideoshooting. Attention:Beforeremovingtheli-pobattery,pleasemakesuretostopthevideoshootingtosavevideo.Otherwise,thevideocan notbesaved. 7.PhotoShooting Therearetwowaysforphotoshooting. ●Bytransmitter-Underabovevideoshootingmode,pressthebutton“VIDEO/PICTUREON”onetimeonthetoprightcornerof transmitterbackside,WIFIcamerawilltakeonepicture. ●ByAPP-Click12Phototakingtotakeonephoto.Keeppressingtheicon12Phototaking,camerawilltakephotoscontinuously Note:TimeintervalforcontinuousphotoshootingcanbeadjustedinAPPSetting. 8.Readingdata Pleasereaddataasfollowingstepsaftervideo/photoshooting: 1)DisconnectquadcopterLI-PObattery. 2)TakeoutSDcard. 3)InsertSDcardintotheUSBcardreader. 4)ConnectUSBcardreadertoUSBinterfaceofthecomputer. 5)Findvideo/photoin“portablestorage”inyourcomputer. 11Videoshooting12Phototaking NE-OT017WIFICAMERAUsersManual FCCSTATEMENT 1.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference. (2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. 2.Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthorityto operatetheequipment. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15ofthe FCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation. Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnot occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbe determinedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: Reorientorrelocatethereceivingantenna. Increasetheseparationbetweentheequipmentandreceiver. Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. Consultthedealeroranexperiencedradio/TVtechnicianforhelp. FCCRadiationExposureStatement ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.Thisequipmentshouldbe installedandoperatedwithminimumdistance20cmbetweentheradiator&yourbody

ShanghaiNineEagles ElectronicTechnologyCo., Ltd. FCCAuthorizationLetter Number:CF304 Version:V03 Date:01-08-2011 We, (theapprovalholder) CompanynameShanghaiNineEaglesElectronicTechnologyCo.,Ltd. AddressRoom1104,HuaxiangBuilding,No.80MolingRoad, CityShanghai,200070 CountryChina declarethatthefollowingrepresentative(agent): Name(person)TomChen CompanynameShenzhenAnbotekComplianceLaboratoryLimited Addresss1/F.,Building1,SECIndustrialPark,No.0409QianhaiRoad,NanshanDistrict, CityShenzhen CountryChina isherebyauthorizedtoapplythefollowingequipmentforcertificationonourbehalf: ProductDescriptionWIFICAMERA TypeorModel(s)NE-OT017,NE-OT019,NE-OT020,NE-OT021,NE-OT022,NE-OT023,NE-OT024,NE-OT025,NE- OT026,NE-OT027,NE-OT028,NE-OT029,NE-OT030,NE-OT15M TradenameorBrand(s)N.A. WealsoauthorizeTeleconformity(Mr.M.Koop,ManagerCertification,Address:Rietven31,7534NHEnschede,the Netherlands)toapplyandsignthisapplicationforcertification,registrationorfilingonourbehalf(asrepresentativeagentor certifier). Attestation: CityandCountry:Date:Name: (thismustbeaperson) Function:Signature: (orofficialcompanystamp) Shanghai,China2015-06-12GuochuanHuangCEO

ShanghaiNineEagles ElectronicTechnologyCo., Ltd. FCCConfidentialityRequest Number:CF303 Version:V05 Date:21-05-2012 (Permanentoralsocalledlongtermconfidentialityisthenormalmethodtokeepcertaindocuementsconfidential,andmayapplyto schematics,blockdiagrams,operationaldescriptionandbillofmaterials.) To:FederalCommunicationsCommission EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 Pursuantto47CFRSection0.459(a)&(b),we, (theapplicant/grantee) CompanynameShanghaiNineEaglesElectronicTechnologyCo.,Ltd. AddressRoom1104,HuaxiangBuilding,No.80MolingRoad, CityShanghai,200070 CountryChina requestforthiscertificationfilingunder: GranteeCodeProductNumber FCCID:U45-NEOT017 tomaintainpermanentconfidentialityforthefollowingdocumentssubmittedwithinthisapplication: (pleasecrosswhatisapplicable,oraddotherdocuments,providethefilenameanddescription) ExhibitFileNameDescription √ OperationalDescriptionOperationalDescriptionexplainingthefunctioningoftheblockdiagram √ BlockDiagramsBlockDiagramsshowingthesystematicbuildingblocksoftheEUT √ SchematicsDiagramsSchematicsshowingcomponents,theirvaluesandinterconnection BillofMaterialsListofcomponentsusedonthePCB’softheEUT Abovematerialscrossedcontainsecrets,proprietaryandtechnicalinformation,whichwouldcustomarilybeguardedfrom competitorsunder47CFR,section0.457(d)(2).Disclosureorpublicationoranyportionofthiscompanyconfidentialmaterial tootherpartiescouldcausesubstantialcompetitiveharmandprovideunjustifiedbenefitsforcompetitors.Weunderstandthat pursuantto47CFRsection0.457(d)(1)(ii)disclosureoftheapplicantandallaccompanyingdocumentationwillnotbemade beforethedateofthegrant.Thedocumentsindicatedasconfidentialabove,arenotpubliclyavailableelsewhere. Attestation: CityandCountry:Date:Name: (thismustbeaperson) Function:Signature: (orofficialcompanystamp) Shanghai,China2015-06-12GuochuanHuangCEO

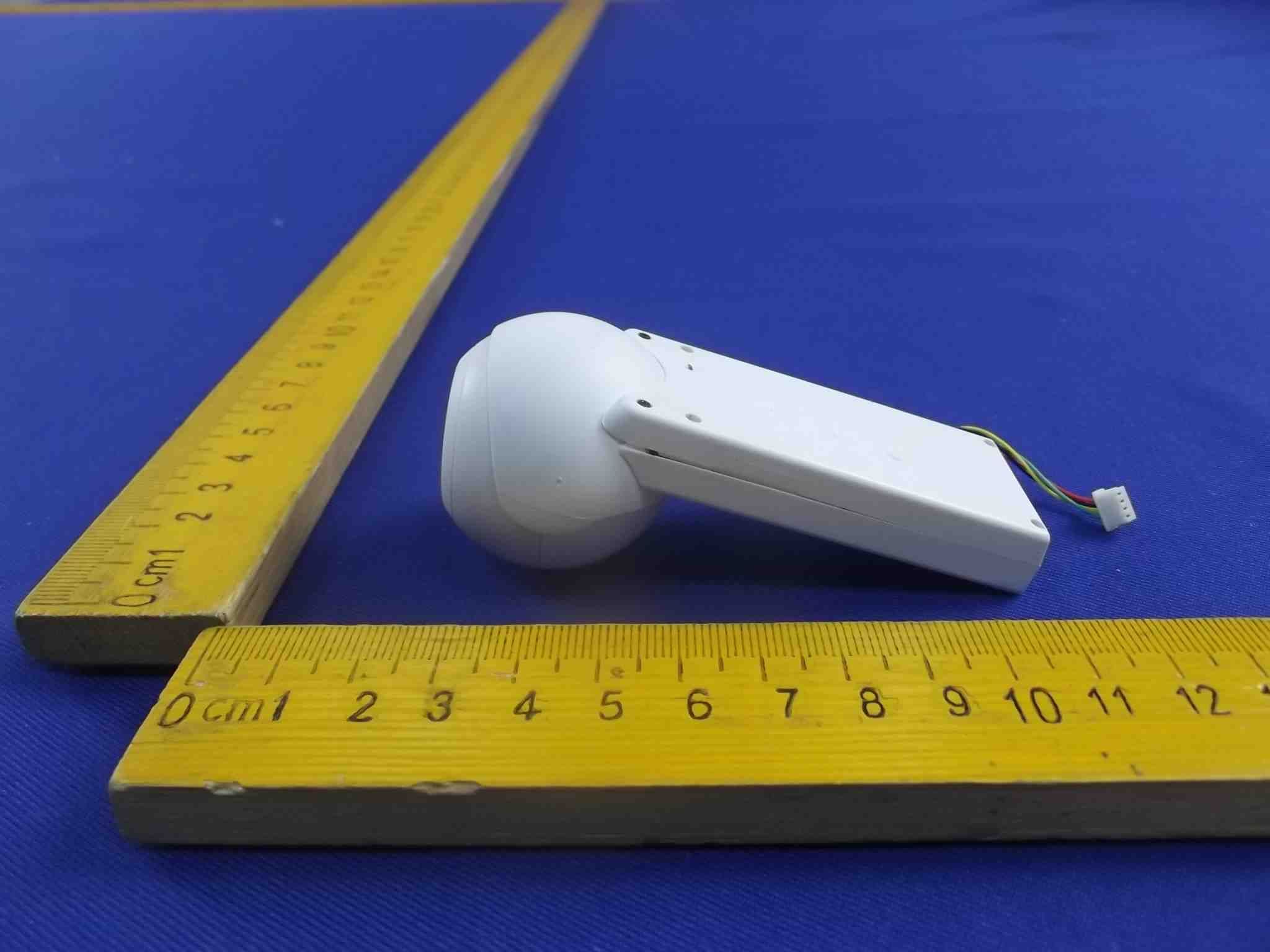

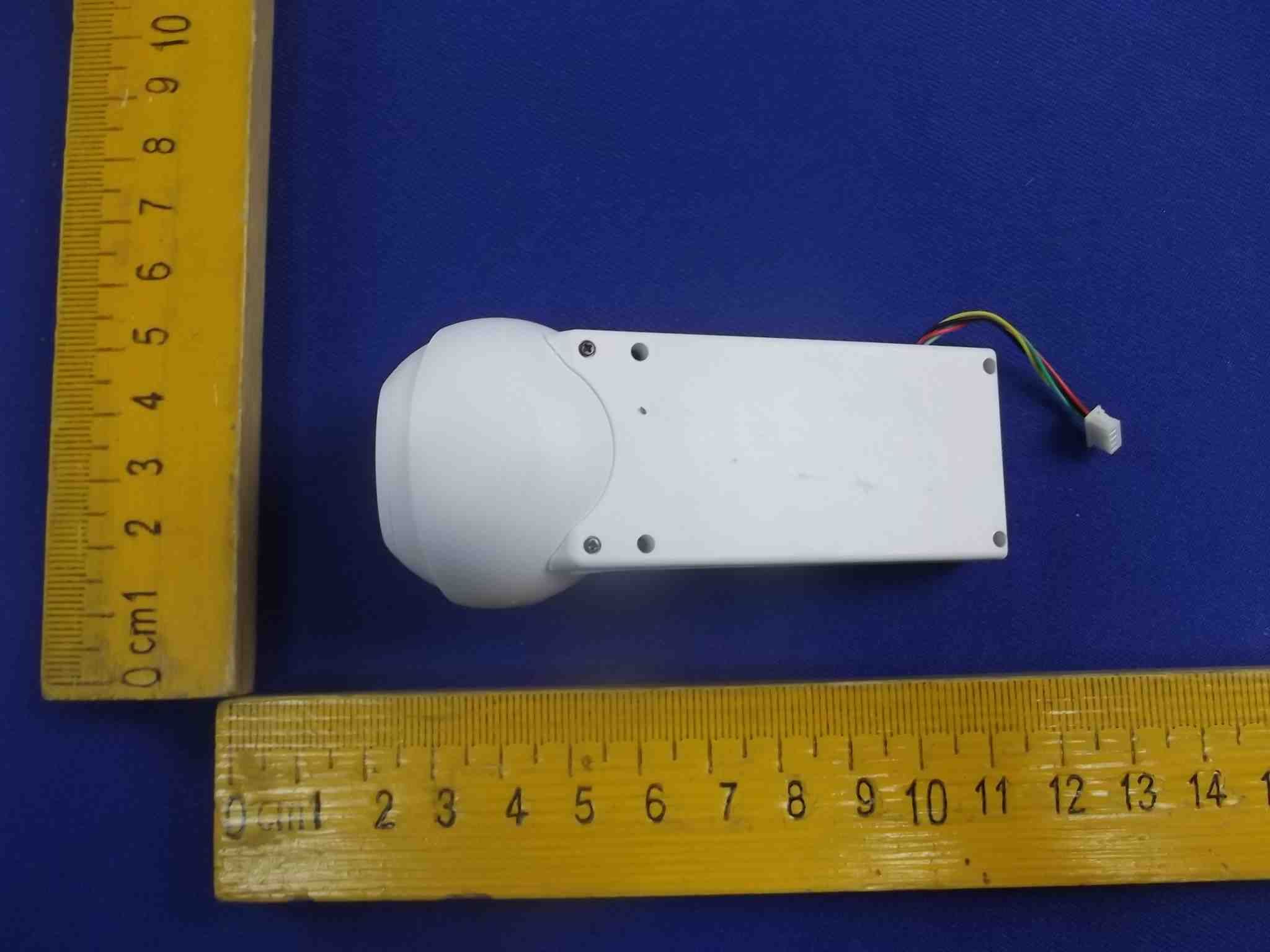

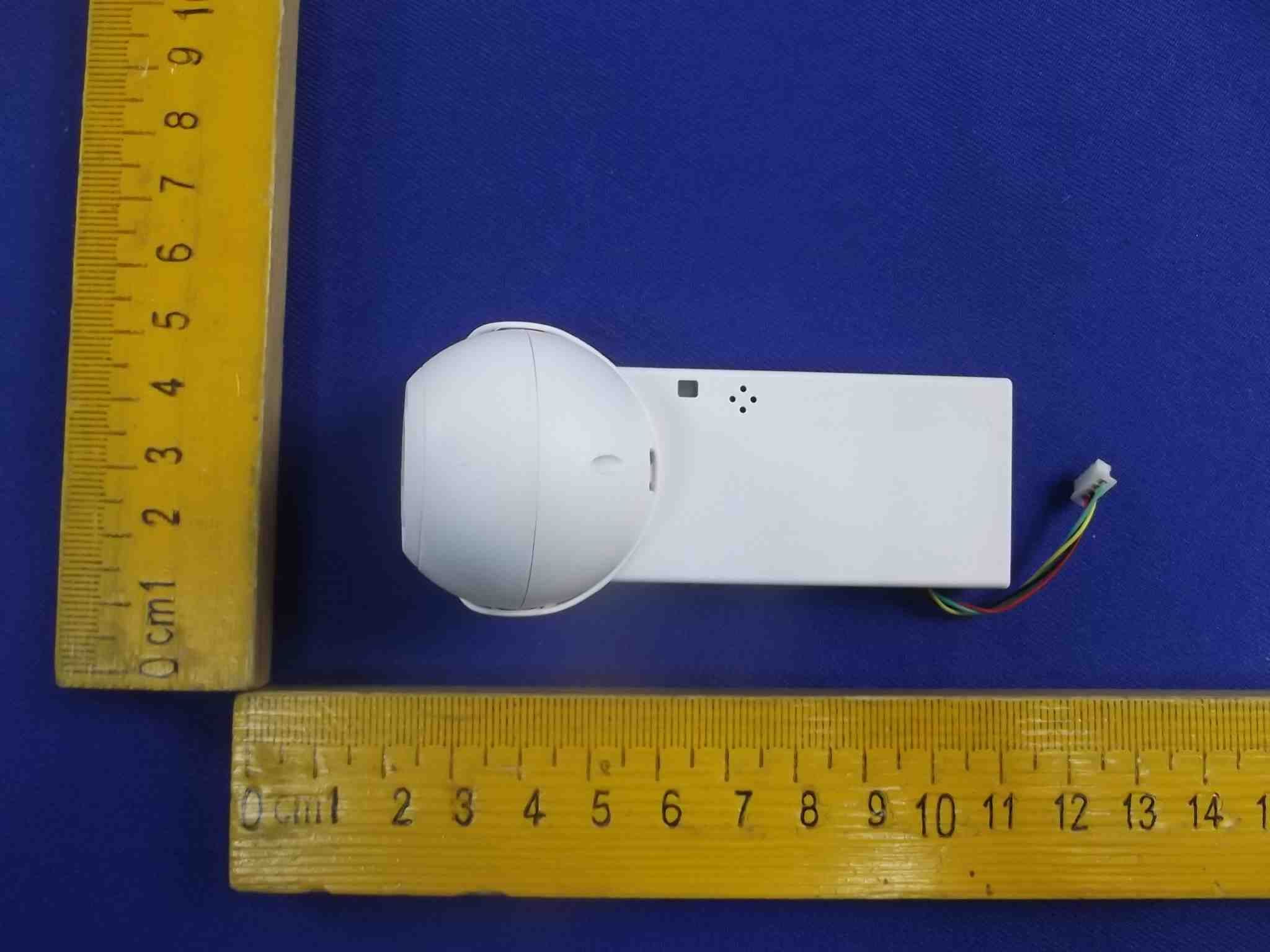

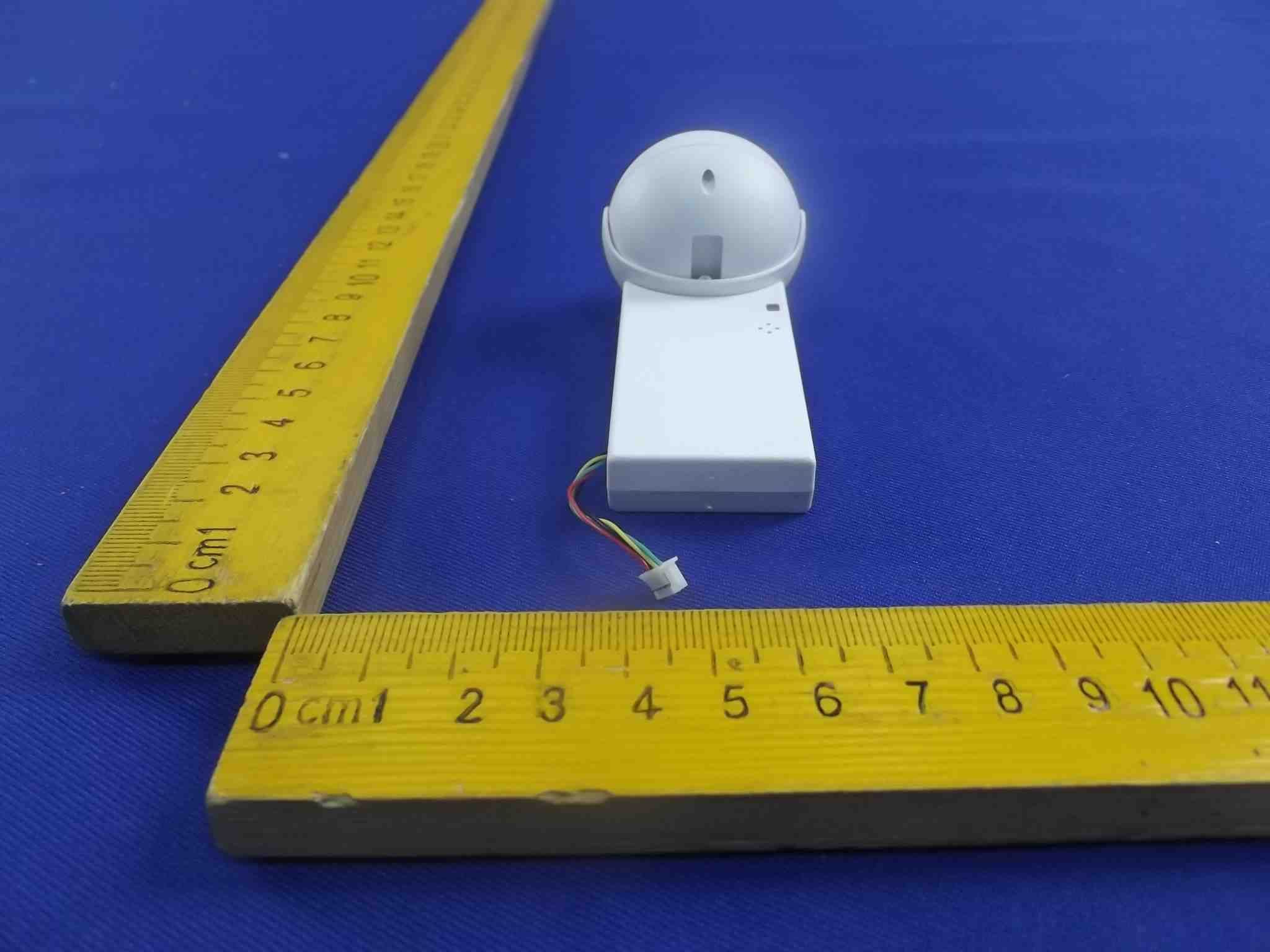

Figure1 TheEUT-TopView Figure2 TheEUT-BottomView Figure3 TheEUT-RightView Figure4 TheEUT-LeftView Figure5 TheEUT-FrontView Figure6 TheEUT-BackView

LabelLocationOnEUT

Product Name: WIFI CAMERA Model No.: NE-OT017 FCC ID: U45-NEOT017 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Figure7 TheEUT-InsideView Figure8 TheEUT-InsideView Figure9 PCBoftheEUT-FrontView Figure10 PCBoftheEUT-BackView Antenna Figure11 PCBoftheEUT-FrontView Figure12 PCBoftheEUT-BackView

RFEXPOSUREEVALUATION AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeusedto evaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF)Radiation asspecifiedin§1.1307(b) FCCID ： U45-NEOT017 EUTSpecification EUTSPORTDVR Frequencyband(Operating)WLAN:2.412GHz~2.462GHz WLAN:5.18GHz~5.32GHz/5.50GHz~5.70GHz WLAN:5.745GHz~5825GHz Others DevicecategoryPortable(<20cmseparation) Mobile(>20cmseparation) Others___ ExposureclassificationOccupational/Controlledexposure(S=5mW/cm2) GeneralPopulation/Uncontrolledexposure(S=1mW/cm2) AntennadiversitySingleantenna Multipleantennas Txdiversity Rxdiversity Tx/Rxdiversity Max.outputpower14.95dBm(0.031W) Antennagain(Max)2dBi EvaluationappliedMPEEvaluation SAREvaluation LimitsforMaximumPermissibleExposure(MPE) Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) Power Density(mW/cm 2 ) Average Time (A)LimitsforOccupational/ControlExposures 300-1500----F/3006 1500-100000----56 (B)LimitsforGeneralPopulation/UncontrolExposures 300-1500----F/15006 1500-100000----130 Friistransmissionformula:Pd=(Pout*G)\(4*pi*R2) Where Pd=PowerdensityinmW/cm 2 Pout=outputpowertoantennainMw G=gainofantennainlinearscale Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorincm PdthelimitofMPE,1mW/cm2.Ifweknowthemaximumgainoftheantennaand totalpowerinputtotheantenna,throughthecalculation,wewillknowthedistance wheretheMPElimitisreached. MeasurementResult OperatingModeChannel Frequency (MHz) OutputPeak power(mW) Antenna Gain(dBi) Powerdensityat 20cm(mW/cm 2 ) Powerdensity Limits (mW/cm 2 ) IEEE802.11b 24128.6320.002721 24377.5320.002371 24626.0420.001901 IEEE802.11g 241221.2320.006691 243721.4320.006761 246222.7020.007161 IEEE802.11n (HT20) 241228.1820.008891 2437 29.99 2 0.00946 1 246227.1020.008541 IEEE802.11n (HT40) 242231.2620.009861 243727.6120.008711 245227.7320.008741 IEEE802.11a 51804.1220.001301 52003.1120.000981 52402.6120.000821 Note:The2.4and5GHzbandscouldn’ttransmitatthesametime.
