U4F0022915MHz radio module

Author: Radio Group Date: February 11 th , 2014 Subject: Integration Guide – Mizar Radio Module 915 MHz Page 1 of 8 Integration Guide Mizar Radio Module 915 MHz Author: Radio Group Date: February 11 th , 2014 Subject: Integration Guide – Mizar Radio Module 915 MHz Page 2 of 8 Table of contents Document history ...................................................................................................... 3 Introduction ............................................................................................................... 4 Pinout ........................................................................................................................ 4 Block diagram ............................................................................................................ 4 Operational description ............................................................................................. 5 Working modes .............................................................................................................................................. 5 Functional states ........................................................................................................................................... 5 Idle State .................................................................................................................................................... 5 Receive State ............................................................................................................................................. 5 Transmission State..................................................................................................................................... 5 Interface description (pinout reference) .................................................................... 6 Electrical characteristics ............................................................................................. 7 RF characteristics ....................................................................................................... 7 Low speed mode ............................................................................................................................................ 7 High speed mode ........................................................................................................................................... 8 Author: Radio Group Date: February 11 th , 2014 Subject: Integration Guide – Mizar Radio Module 915 MHz Page 3 of 8 Document history Date Author Notes April 19th, 2012 Davide Carli Initial draft May 2nd, 2012 Davide Carli Added details on test command(s) 0x86 May 31th, 2012 Davide Carli In-depth documentation of test commands July 18th, 2012 Davide Carli Added data on current consumption in DEEP SLEEP status April 15th, 2013 Davide Carli Updated the description of some test commands December 20 th , 2013 Davide Carli Document splitted in 433 MHz and 915 MHz versions RF Characteristics updated according to FW 2.01A and 2.01B Removed outdated information January 15 th , 2014 Davide Carli RF Characteristics updated according to FW 2.02B February 11 th , 2014 Pier Giorgio Peruzzi Added Operational description and Interface description Author: Radio Group Date: February 11 th , 2014 Subject: Integration Guide – Mizar Radio Module 915 MHz Page 4 of 8 Introduction Mizar radiofrequency (RF) module operates in the 902-928 MHz ISM frequency band. Pinout Block diagram Author: Radio Group Date: February 11 th , 2014 Subject: Integration Guide – Mizar Radio Module 915 MHz Page 5 of 8 Operational description The equipment is a radio module to be integrated inside cordless devices. It is based upon an FSK ( Frequency Shift Keying Modulation ) Half-Duplex transceiver working in the ISM band from 902 to 928 MHz. The radio module has a UART interface to exchange data and commands. Working modes Radio module can operate in the follow working modes : Low Speed, Low Power, fixed channel (among 25 channels) o FSK, Bitrate 36864 bps, RZ Manchester encoded, Frequency deviation +/- 75KHz Low Speed, Frequency Hopping Mode over 25 channels o FSK, Bitrate 36864 bps, RZ Manchester encoded, Frequency deviation +/- 75KHz High Speed, Digital Transmission Mode, fixed channel (among 12 channels) o FSK, Bitrate 500,000 bps, NRZ, Frequency deviation +/- 220KHz High Speed, Digital Transmission + frequency agility Mode over 12 channels o FSK, Bitrate 500,000 bps, NRZ, Frequency deviation +/- 220KHz Default mode after power-up is Low Speed Low Power mode. Radio module can receive commands to allow to change its working mode. Functional states Radio module can be set in one of the following states during operation: Idle State Radio module stays in low power receiving mode with a limited capability to receive data. RF transmission is not allowed while radio is set in Idle state. Receive State It is the normal default state. In this state the radio receives the RF packets, decodes the packets and sends them to the Host device. In this mode the transceiver checks continuously the RF signal and demodulates it. The demodulated and filtered signal is sent to the microcontroller inside the radio module which decodes it and sends decoded data to the Host by means of the UART interface. Only valid demodulated data packets are sent to the Host. Transmission State This state is enabled from the host when it needs to transmit data. The transmission state is enabled sending a data packet to the radio module over the UART interface. The microcontroller in the radio module checks for the integrity of the data packet and enables the transceiver to modulate and transmit to the RF interface, preceded by a short preamble burst. Radio module exits automatically from this state when the complete packet has been transmitted, and returns to the receive state. Author: Radio Group Date: February 11 th , 2014 Subject: Integration Guide – Mizar Radio Module 915 MHz Page 6 of 8 Radio module operates in CSMA-CA (c…

Text truncated - open the document above for the full version.

TECHNICAL MANUAL INDEX Description : 902-928MHz Helical Antenna - Vespucci Code: DESCRIPTION : GEL: ECO: 663316020 902-928 MHZ HELICAL ANTENNA GEL-7756 12378 Drawing type Document Code ECO Schematic 17331603 12378 Assembly 37331603 12378 Assembly Instructions - - DOC. CODE MOD. Nr. MOD. DESCRIPTION UPDATED ON BY DRAFTSMAN B Lindsey DATE 1/2014 TITLE : PCBA GEL-7756 902-928MHz Antenna Helical SUB-TITLE DESIGNER B Lindsey DATE 1/2014 CHECKER S Chin DATE 1/2014 DOCUMENT CODE : 47331603 Rev. X1 APPROVED S Chin DATE 1/2014 http://www.adc.datalogic.com/ The information contained herein is the property of DATALOGIC S.p.A. REVISION 3 Reproduction of this matter in whole or in part is forbidden without the express written consent of DATALOGIC S.p.A. 1 1 17331603 UNLESS OTHERWISE SPECIFIED 1. ALL RESISTORS ARE 1/16W, 5%. ALL 1% ARE 1/16W. VALUES ARE IN OHMS. 2. ALL CAPACITORS ARE 50V, 10%. VALUES ARE IN MICROFARADS. 3 LOAD THESE COMPONENTS ONLY WHEN LISTED ON BILL OF MATERIALS. THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY AND CONFIDENTIAL DATA OF AS AUTHORIZED IN WRITING BY DATALOGIC ADC INC. DATALOGIC ADC INC. AND IS NOT TO BE DISCLOSED IN WHOLE OR IN PART, EXCEPT NOTES: DATEECO BRIEF DESCRIPTION OF CHANGEREVCHKDENGR .XXX .XX .X + + + + + SURF. FIN: ANGLES: mm: OF SHEET D DRAWING NUMBER SIZESCALE DO NOT SCALE DRAWING APPLIED FINISH ALL DIMENSIONS INCLUDE MFG. ENG. CHK. DFTS TOLERENCE, UNLESS OTHERWISE SPECIFIED: MODEL NAMEDATE 12345678 8765431 A B C DD C B A 2 EUGENE, OREGON 97402-9120 959 TERRY STREET DATALOGIC ADC INC. Copyright C Datalogic ADC, Inc., 2014 REVISION 0 R2 Load Option=00 GND C1 0.5p GND GND L1 12n J1 1 2 3 NA1 SOLDER_0M RFIN RFOUT SCHEMATIC 902-928MHz HELICAL ANTENNA 09/2012 09/2012 GND FROM CABLE SHIELD B GOTA S CHIN S CHIN09/2012 RELEASE FOR PROTO BUILDX112378 1/14 SC VESPUCCI X1 ELECTROSTATIC DISCHARGE SENSITIVE CAUTION FIDUCIAL 1 2 REVISIONS VIEWED FROM TOP SIDE THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY AND CONFIDENTIAL ASSEMBLY DRAWING PROJECT: DATALOGIC ADC INC. GOTA 10-2012 ANSI Y14.5M-1982. SCALE APPROVED DESCRIPTION ECO DATE ENGR REV X1X1 RELEASE FOR PROTO BUILD SC 12378 01/14 D C B -PROPRIETARY- A IN PART, EXCEPT AS AUTHORIZED IN WRITING BY DATALOGIC ADC INC. DATA OF DATALOGIC ADC INC, AND IS NOT TO BE DISCLOSED IN WHOLE OR Copyright c Datalogic ADC, Inc., 2014 FINISH: EUGENE, OR 97402-9120959 TERRY STREET DATE TITLE: APPROVALS DRAWN EUGENE, OR 97402 VESPUCCI REV DWG NO. CAGE .5A UNLESS OTHERWISE SPECIFIED, ALL DIMENSIONS ARE IN INCHES.INTERPET DIMENSIONS PER SIZE .5A DESIGNERENGINEER CHIN ANTENNA HELICAL GOTA 10-2012 10-2012 37331603 X1 CALC WT 2 1 DO NOT SCALE DRAWING NONE SHEET 1 OF 1 3 3 4 1. ASSEMBLE PER IPC-A-610. 1 NOTES: UNLESS OTHERWISE SPECIFIED D FIDUCIAL C B FIDUCIAL LOCATIONS A LAYER 1 Y=7.62 X=0.00 LAYER 4 Y=0.00 X=20.32 4 R2 C1 J1 L1

ANT-916-CW-QW DATA SHEET Product DimensionsDescription Features Electrical Specifications Ordering Information * Requires proximity ground plane Electrical specifications and plots measured on 4.00” x 4.00” reference ground plane 3.15” (80.0) 0.24” (6.0) 0.51” (13.0) 2.05” (52.0) 0.18” (4.5) 0.31” (7.8) 0.25” (6.4) End View 0.57” (14.5) Rev 07-22-08 Typical VSWR Antenna Factor159 Ort Lane Merlin, OR 97532 www.antennafactor.com 541-956-0931 (phone) 541-471-6251 (fax) VSWR Graph CW Series 1/4-wave antennas deliver outstanding performance in a rugged and cosmetically attractive package. These antennas feature an FCC Part 15 compliant RP-SMA connector. This simplifies packaging and shipment, allowing for easy field replacement while complying with FCC requirements. A wide variety of matching connectors allows for numerous mounting options. The 916MHz version is also available with a standard SMA connector. •Low cost •Excellent performance •Omni-directional pattern •Wide bandwidth •Very low VSWR •Fully weatherized •Flexible main shaft •Rugged & damage-resistant •SMA or Part 15 compliant RP-SMA connector •Use with plastic* or metal enclosures •Center Freq.916MHz •Bandwidth100MHz •Wavelength1/4-wave •VSWR<1.9 typ. at center •Impedance50 ohms •ConnectorRP-SMA or SMA •ANT-916-CW-QW CENTER 916.000MHz SPAN 200.000MHz S11 SWR 1.660

Unit11， 12/F, BLK B Veristrong ind. Ctr, 34-36 Au Pui Wan Street, Fo Tan Shatin, N.T. HK Email: [email protected] No.: CUSTOMER’S NAME : 客户名称 CUSTOMER’S MODEL NO . : 客户型号 CUSTOMER’S PART NO. : 客户料号 PRODUCT NAME : 产品名称 OUR MODEL NO. : 本公司型號 NO. 1 2 3 4 Please fax back this brefile page with authorized signature and company chop as customer’s approval on samples,Thanks! (如果此产品得到您的确认,请传回本页给我们.) Customer Si gnCustomer Company Chop 客户公章 客户签名 Capability Test Report (性能测试报告) 1 Total pages(包含本页) 共 5 页 Product Drawing (产品图) 1 Specification of Product (规格书内容) 1 Items(项目)Pages(页码) Certificate Of Conformance ROHS(环保证明书) 1 规 格 书 This Specification is Composed of Under Listed (Samples be attached) 本规格书由以下内容组成(样品另附)： Rubber Antenna G-RA0K14155047-BON BON Bondale Electronics Ltd. 博 钜 电 子 有 限 公 司 Website: www.bondale.com www.asiansources.com/bondale.co COVER OF SPECIFICATION Unit11， 12/F, BLK B Veristrong ind. Ctr, 34-36 Au Pui Wan Street, Fo Tan Shatin, N.T. HK Tel: 852 2345 0215 Fax: 852 27978191 Email: [email protected] TO: DATE: File NO.: 0 Customer Part No. : Bondale Part No. : Description : Rubber Antenna G-RA0K14155047-BON is fully comply with the EU directive 2002/95/EC and Packaging directive 94/62/EC and that its content of hazardous substances is below the values as listed: ROHS critical values: *Cadmium(Cd)under 100 ppm Generallyunder 1,000 ppm Products that contain Copper alloy components under 40,000 ppm Product that contain Steel alloy components under 3,500 ppm Product that contain aluminum alloy components under 4,000 ppm *Mercury (Hg)under 1,000 ppm *Hexavalent Chormium (Cr6+)under 1,000 ppm *PBBsunder 1,000 ppm *PBDEsunder 1,000 ppm Packaging directive 94/62/EC critical values: *Packaging (Pb + Cd +Hg +Cr6+ ) under 100 ppm Expemted below: If the above mentioned item is reprocessed by customer, we wouldn’t promise and assure the content of hazardous substances of the product item. On behalf of Bondale Electronics Ltd. ROHS green chop and GPMS spokesman sign(Rohs綠色印章 + GPMS負責人簽名): Yours sincerely, ---GREEN PRODUCT MANAGEMENT SYSTEM (GPMS)--- ---綠色產品管理系統--- Be Exempted*Lead (Pb) CERTIFICATE OF CONFORMANCE ROHS G-RA0K14155047-BON We, Bondale Electronics ltd. assured that the above mentioned item: Bondale Electronics Ltd. 博 钜 电 子 有 限 公 司 Website: www.bondale.com www.asiansources.com/bondale.co BON 2012-11-27 长 度 以 实 测 为 准 注 : 1 . 天 線 連 接 器 為 : ( R P ) S M A - K . 2 . 外 形 顏 色 為 : 黑 色 . 3 . 天 線 工 作 頻 率 為 : 9 1 6 ± 1 5 M H z . P R O J E C T I O N ( 視 角 ) 未 注 尺 寸 偏 差 線 性 尺 寸 L 未 注 明 公 差 版 次 d m . w Customer : BON Specification No.: 0 Model No.: G-RA0K14155047-BON 1, Application The antenna specified in this specification is applicable for the radio-communication 2, Dimensions As per Drawing No. G-RA0K14155047-BONattached. 3, Materials As specified in drawing No. G-RA0K14155047-BON 4, Electrical Characteristics i) Resonate Frequency : 916±15 MHz ii) Impedance : 50 ohm Nominal iii) Radiation Pattern : Omni Directional iv) Polarization : Vertical v) Standing Wave Ratio (S.W.R): 2.0 or less vi) Insulation resistance : 500 M ohm at DC 500V 5, Mechanical characteristics: The strength of fixing between sleeve and stud shall withstand the following stresses Vertical Direction: 2.0 kgs Rotating Direction: 2.0 kgcm 6, Others: Prepared By:Checked By:Approval: RUBBER ANTENNA SPECIFICATION Any modification of this specification has to be agreed by us

Modular Approval Request Letter 02/07/2014 Dear Application Examiner, Datalogic ADC S.r.l / FCC ID: U4F0022 would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes, The EUT provides the RF shielding. See EUT photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The EUT has its buffered modulation. Please see the Schematic Diagram. 3. The modular transmitter must have its own power supply regulation. The EUT has its own power supply regulation, please see the Schematic Diagram. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The EUT meets the FCC antenna requirements; unique antenna connector and photo of antenna are shown in the test report. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes, The EUT was tested with a test board, Please see section photographs of test configuration in the test report. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: U4F0022” or “Contains FCC ID: U4F0022.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Please see exhibition label sample for the FCC ID of this module. And also in the exhibition Users manual, there are instructions give to the OEM on how to label the end product. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are give in the User Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The EUT is comply with RF exposure requirement. Best regards, _______________________________ Ruggero Cacioppo/ Manager Datalogic ADC S.r.l.

RF_160, Issue 03 Declaration of Authorization We Name:Datalogic ADC S.r.l. Address:Via San Vitalino 13–40012 Lippo di Calderara di Reno (BO) Country:Italy Declare that: Name:International Stantards Laboratory Address:No. 120, Lane 180, San Ho Tsuen,HsinHoRd.,Lung-Tan Hsiang,Tao Yuan County,Taiwan City:Lung-Tan Hsiang,Tao Yuan County Country:Taiwan is authorized to apply for Certification of the following product(s): Product description:915MHz radio module. Type designation:Datalogic ADC. Trademark:MIZAR RADIO MODULE 915MHz. on our behalf. Date:02/07/2014 City:Lippo di Calderara di Reno Name:Ruggero Cacioppo Function:Manager Signature: Notes: (1): Required for FCC, ICapplication (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

- FCC ID: U4F0022 IC:3862D-006 International Standards Laboratory APPENDIX 2 PHOTOGRPHS OF EUT - FCC ID: U4F0022 IC:3862D-006 International Standards Laboratory EUT – 1 EUT – 2 - FCC ID: U4F0022 IC:3862D-006 International Standards Laboratory EUT – 3 - FCC ID: U4F0022 IC:3862D-006 International Standards Laboratory EUT – 4 (Rubber Antenna, P/N: ANT-916-CW-QW) EUT – 5 (Rubber Antenna, P/N: ANT-916-CW-QW) - FCC ID: U4F0022 IC:3862D-006 International Standards Laboratory EUT – 6 (Rubber Antenna, P/N: G-RA0K14155047-BON) EUT – 7 (Rubber Antenna, P/N: G-RA0K14155047-BON) - FCC ID: U4F0022 IC:3862D-006 International Standards Laboratory EUT – 8 (Printing Antenna) EUT –9 (Printing Antenna) ~ End of Report ~

ID & IC LABEL FORMAT AND LOCATION Applicant: Datalogic ADC S.r.l. FCC ID: U4F0022 IC: 3862D-006

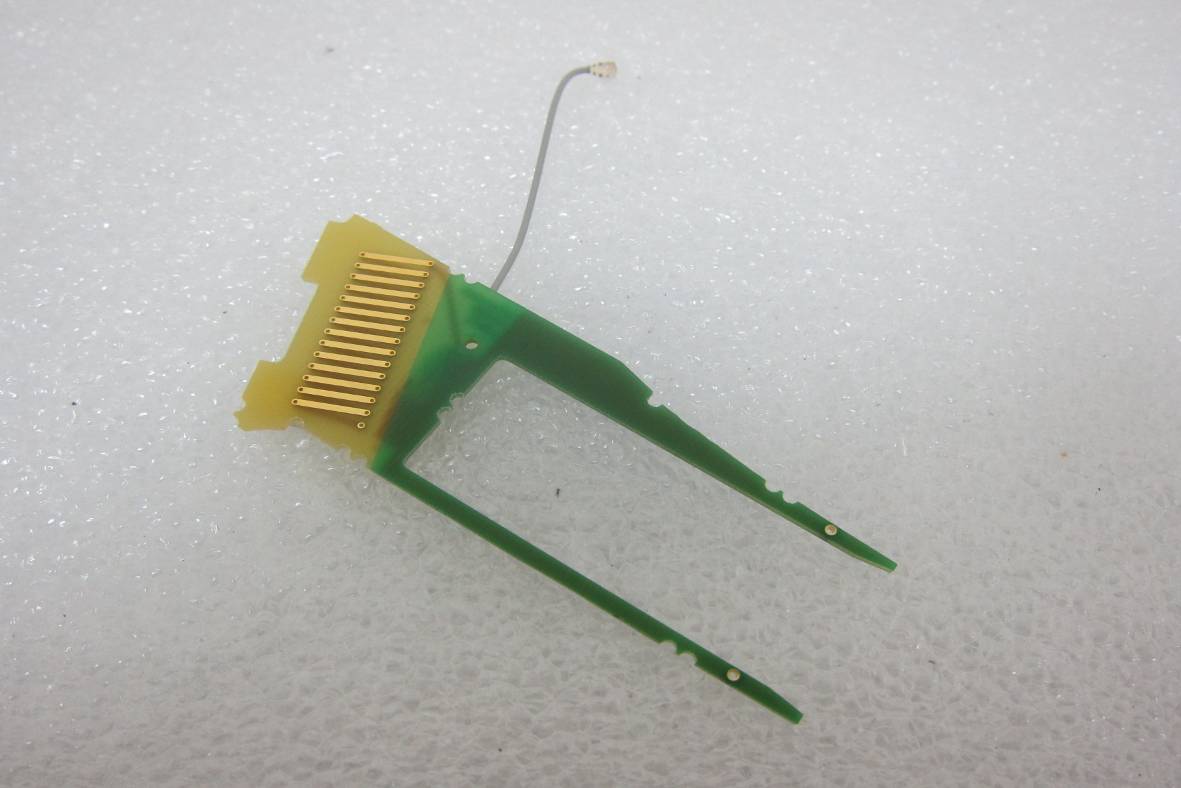

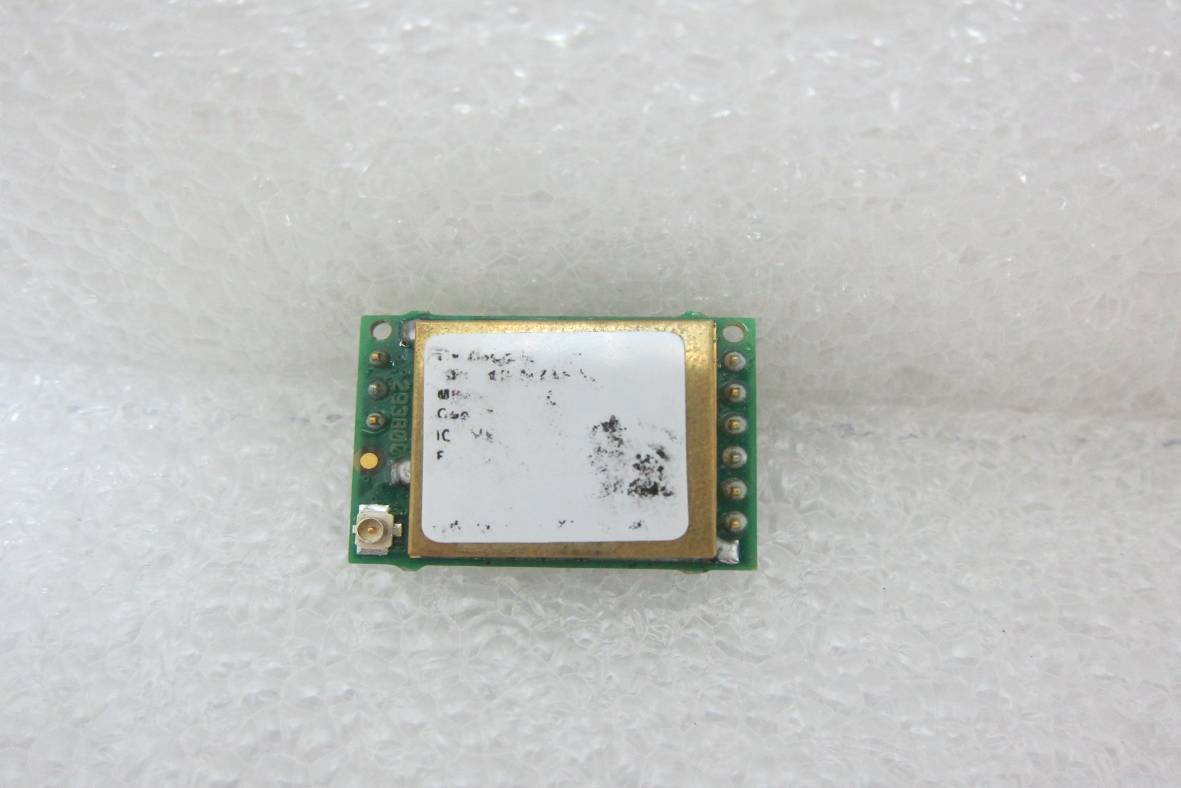

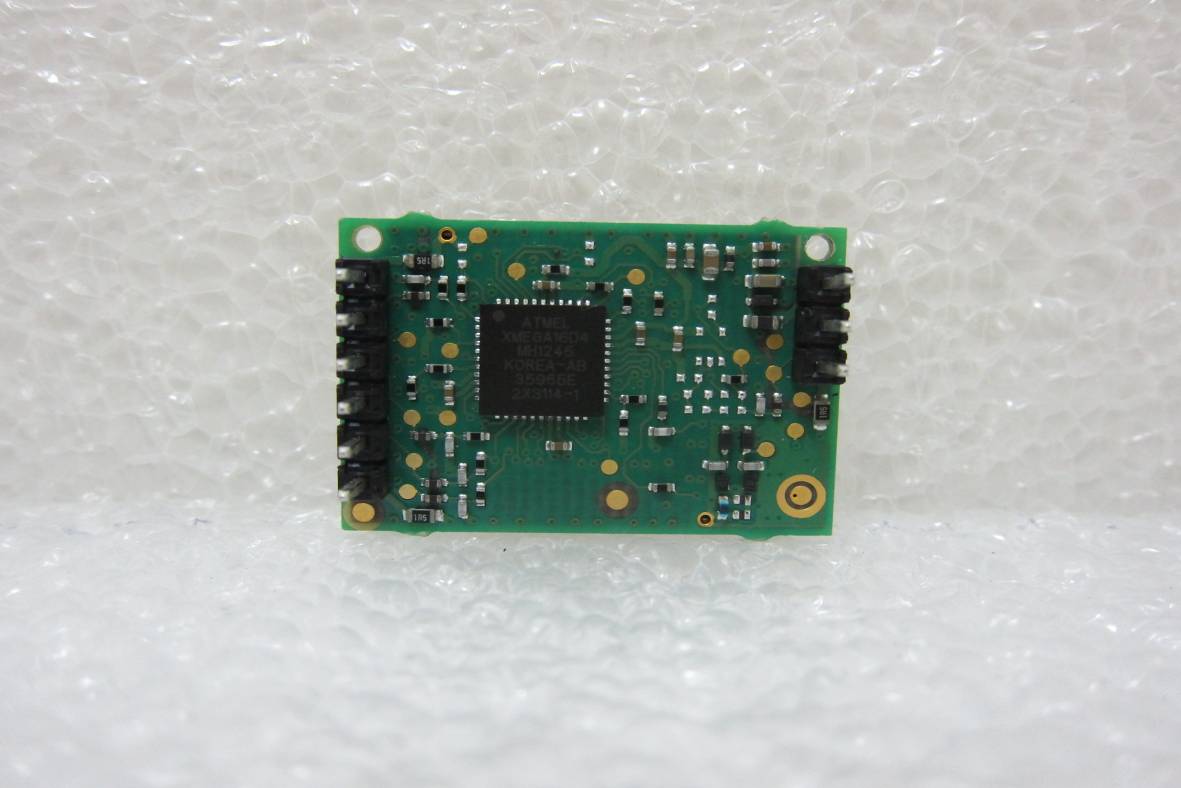

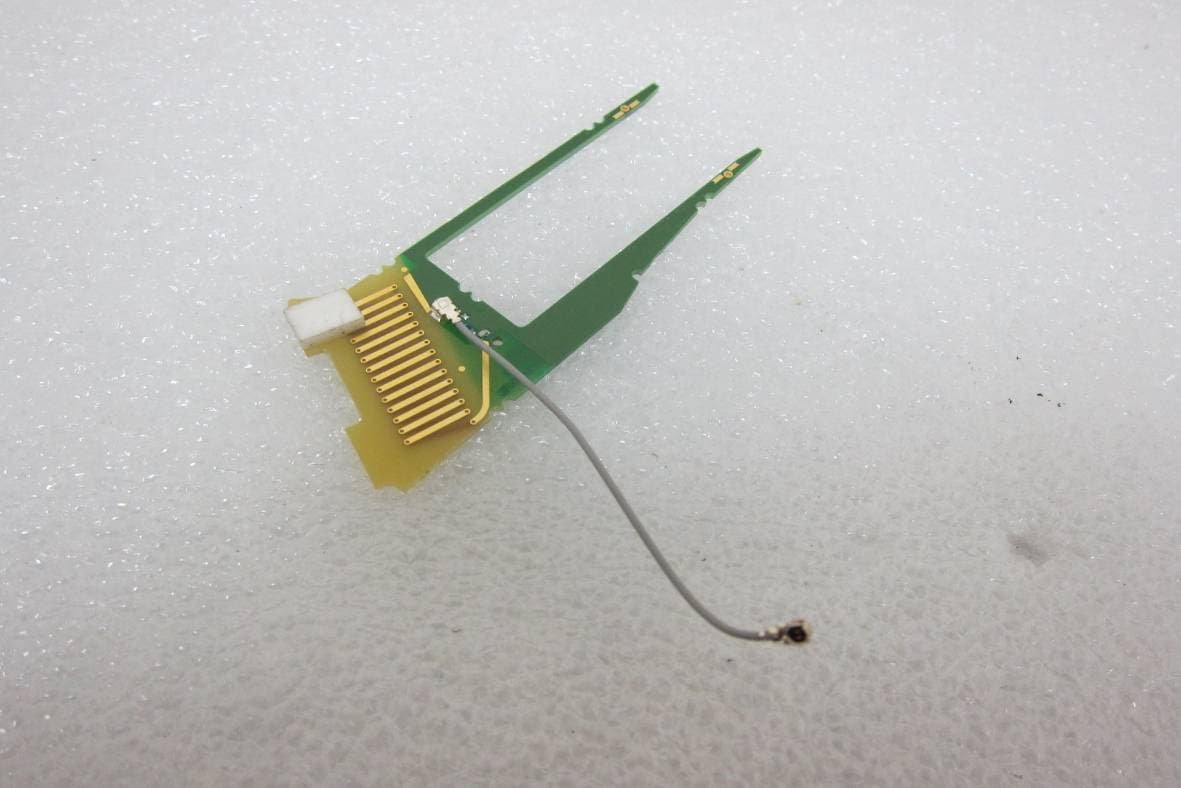

- FCC ID: U4F0022 IC:3862D-006 International Standards Laboratory APPENDIX 2 PHOTOGRPHS OF EUT - FCC ID: U4F0022 IC:3862D-006 International Standards Laboratory EUT – 1 EUT – 2 - FCC ID: U4F0022 IC:3862D-006 International Standards Laboratory EUT – 3 - FCC ID: U4F0022 IC:3862D-006 International Standards Laboratory EUT – 4 (Rubber Antenna, P/N: ANT-916-CW-QW) EUT – 5 (Rubber Antenna, P/N: ANT-916-CW-QW) - FCC ID: U4F0022 IC:3862D-006 International Standards Laboratory EUT – 6 (Rubber Antenna, P/N: G-RA0K14155047-BON) EUT – 7 (Rubber Antenna, P/N: G-RA0K14155047-BON) - FCC ID: U4F0022 IC:3862D-006 International Standards Laboratory EUT – 8 (Printing Antenna) EUT –9 (Printing Antenna) ~ End of Report ~

-1 of 3- FCC ID: U4F0022 IC: 3862D-006 International Standards Laboratory Report Number: ISL-13LR276MPE Maximum Permissible Exposure (MPE) Standard Applicable According to 1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to 1.1310 and 2.1091 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density -2 of 3- FCC ID: U4F0022 IC: 3862D-006 International Standards Laboratory Report Number: ISL-13LR276MPE Maximum Permissible Exposure (MPE) Evaluation – High Speed Mode Conducted Power result: Cable loss = 0 Output Power Limit (dBm) Frequency (MHz) Detector PK (dBm) AV (dBm) 903.64900 14.51 14.48 30 910.0 14.64 14.60 926.93600 14.64 14.60 MPE Prediction (High Speed) with the max antenna gain 3 dBi Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4R 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 14.64 (dBm) Maximum peak output power at antenna input terminal: 29.10717118 (mW) Duty cycle: 100 (%) Maximum Pav : 29.10717118 (mW) An tenn a gain (typical): 3 (dBi) Maximum antenna gain: 1.995262315 ( numer ic) Pr ed ic t io n di sta n ce : 20 (cm) Prediction frequency: 910 (MHz) MPE limit f or uncon tr olled exposu re at prediction 1 (mW/cm2) Pow er d ensi ty at pr ed icat io n freq uen cy at 20 ( cm) 0. 01 15 59 8 (mW/cm^2) Evaluation Result The predicted power density level at 20 cm is 0.012 mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 at 910MHz. -3 of 3- FCC ID: U4F0022 IC: 3862D-006 International Standards Laboratory Report Number: ISL-13LR276MPE Maximum Permissible Exposure (MPE) Evaluation– Low Speed High Power Mode Conducted Power result: Frequency (MHz) Reading Power (dBm) Cable Loss Output Power (dBm) Output Power (W) Limit (W) 902.80 16.60 0.00 16.60 0.04571 1 915.14 15.90 0.00 15.90 0.03890 1 927.48 16.20 0.00 16.20 0.04169 1 offset: 0.5dB MPE Prediction with the max antenna gain 3 dBi Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4R 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak o utp ut po wer at antenna in pu t terminal: 1 6.6 (dBm) Maximum peak o utp ut po wer at antenna in pu t terminal: 4 5.7 08 8189 6 (mW) Du ty cy cl e: 1 00 (%) Maximum Pav : 45.70881896 (mW) A ntenn a gain (typ ical) : 3 (dBi) Maximum antenna gain: 1.995262315 (numeric) Prediction distance: 20 (cm) Prediction frequency: 910 (MHz) MPE limit for uncontrolled exposure at prediction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.0181531 (mW/cm^2) Evaluation Result The predicted power density level at 20 cm is 0.018 mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 at 902.80MHz.

Page: 1 of 68 TEST REPORT of FCC Part 15 Subpart C AND CANADA RSS-210 Full Modular Approval New Application; Class I PC; Class II PC Product : 915MHz radio module Brand: Datalogic ADC Model: MIZAR RADIO MODULE 915MHz Model Difference: N/A FCC ID: IC: U4F0022 3862D-006 FCC Rule Part: IC Rule Part: §15.247, Cat: DTS RSS-210 issue 8:2010, Annex 8 Applicant: Datalogic ADC S.r.l. Address: Via San Vitalino 13 – 40012 Lippo di Calderara di Reno (BO) - Italy Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-13LR276FCW Issue Date : 2014/02/06 Test results given in this report apply only to the specific sample(s) tested and are traceable to nation- al or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product en- dorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 57- FCC ID: U4F0022 IC: 3862D-006 International Standards Laboratory Report Number: ISL-13LR276FCW VERIFICATION OF COMPLIANCE Applicant: Datalogic ADC S.r.l. Product Description: 915MHz radio module Brand Name: Datalogic ADC Model No.: MIZAR RADIO MODULE 915MHz Model Difference: N/A FCC ID: U4F0022 IC: 3862D-006 Date of test: 2013/12/19 ~ 2014/01/29 Date of EUT Received: 2013/12/18 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2014/02/06 Dion Chang / Engineer Prepared By: Date: 2014/02/06 Gigi Yeh / Specialist Approved By: Date: 2014/02/06 Vincent Su / Technical Manager -3 of 57- FCC ID: U4F0022 IC: 3862D-006 International Standards Laboratory Report Number: ISL-13LR276FCW Version Version No. Date Description 00 2014/02/06 Initial creation of document -4 of 57- FCC ID: U4F0022 IC: 3862D-006 International Standards Laboratory Report Number: ISL-13LR276FCW Table of Contents 1 GENERAL INFORMATION .................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 8 1.2 Test Methodology .......................................................................................................................... 8 1.3 Test Facility .................................................................................................................................... 8 1.4 Special Accessories ........................................................................................................................ 8 1.5 Equipment Modifications ............................................................................................................... 8 2 SYSTEM TEST CONFIGURATION ....................................................................................... 9 2.1 EUT Configuration ........................................................................................................................ 9 2.2 EUT Exercise ................................................................................................................................. 9 2.3 Test Procedure ................................................................................................................................ 9 2.4 Configuration of Tested System ................................................................................................... 10 3 SUMMARY OF TEST RESULTS .......................................................................................... 11 4 DESCRIPTION OF TEST MODES ....................................................................................... 11 5 CONDUCTED EMISSION TEST........................................................................................... 12 5.1 Standard Applicable: .................................................................................................................... 12 5.2 Measurement Equipment Used: ................................................................................................... 12 5.3 EUT Setup: ................................................................................................................................... 12 5.4 Measurement Procedure: ............................................................................................................. 13 5.5 Measurement Result: ................................................................................................................... 13 6 PEAK OUTPUT POWER MEASUREMENT ....................................................................... 18 6.1 Standard Applicable: .................................................................................................................... 18 6.2 Measurement Equipment Used: ................................................................................................... 19 6.3 Test Set-up: .................................................................................................................................. 19 6.4 Measurement Procedure: ............................................................................................................. 19 6.5 Measurement Result: ......…
