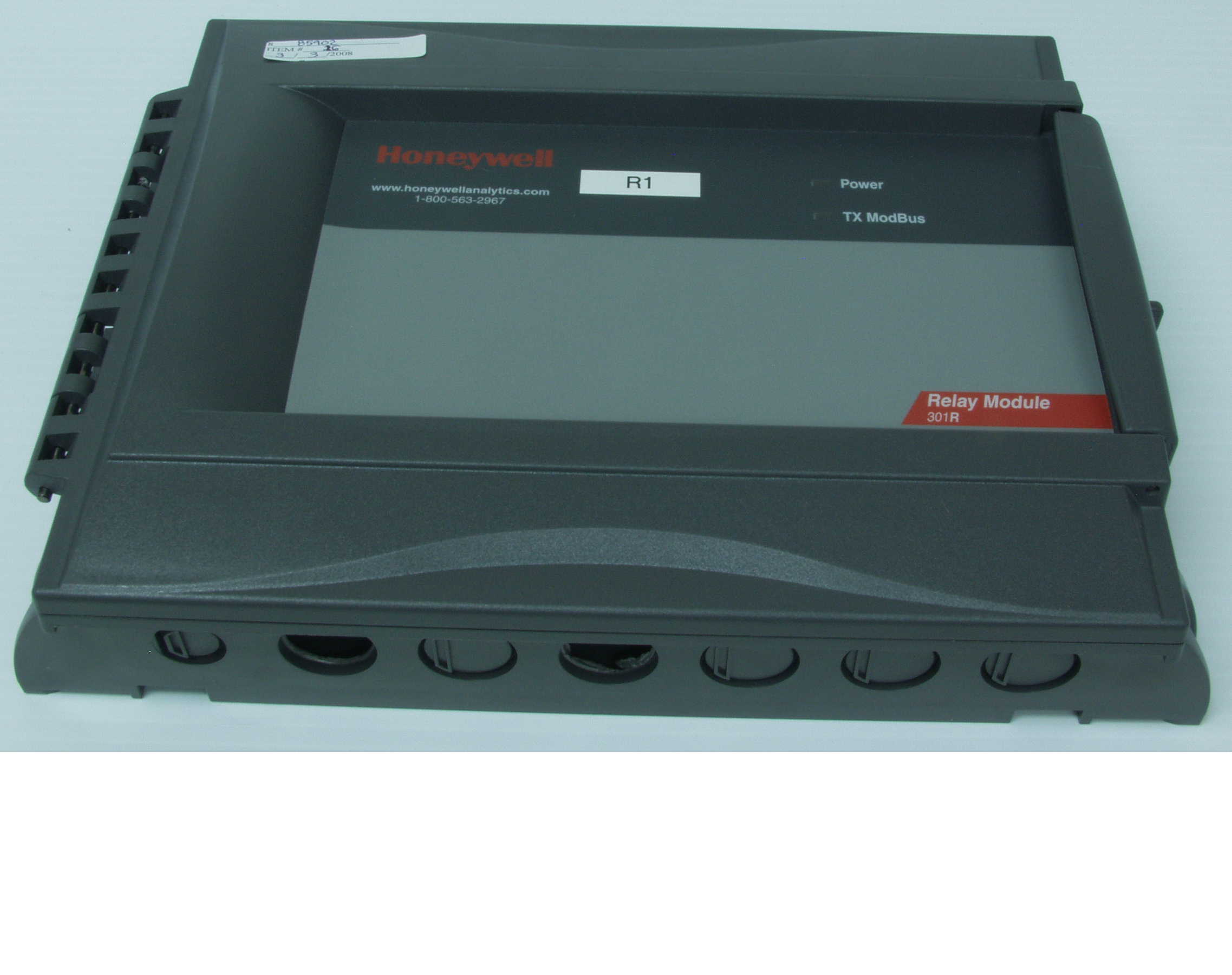

U5C301R8W1Wireless 8 Relay

Module de relais Relay Module Manuel de l’utilisateur 301RW User Manual ERP 511397 05/07 Relay Module 301R User Manual ERP 511397 5/07 511397301R User Manualiii 5/07Honeywell Notices and Trademarks Copyright by Honeywell International Inc. Release 511397 May 2007 While this information is presented in good faith and believed to be accurate, Honeywell disclaims the implied warranties of merchantability for a particular purpose and makes no express warranties except as may be stated in its written agreement with and for its customers. In no event is Honeywell liable to anyone for any indirect, special or consequential damages. The information and specifications in this document are subject to change without notice. Honeywell Analytics 4005 Matte Blvd, Unit G Brossard, Quebec, J4Y 2P4 511397301R User Manualv 5/07Honeywell Contacts World Wide Web The following Honeywell Websites may be of interest to our customers: Telephone Contact us by telephone at the numbers listed below: Sales Informations Contact us at [email protected] Honeywell OrganizationWWW Address (URL) Honeywell Analyticshttp://www.honeywellanalytics.com Corporatehttp://www.honeywell.com Internationalhttp://content.honeywell.com/global/ OrganizationPhone Number United States and Canada Honeywell Analytics 1-800-563-2967 1-450-619-2450 Fax: 1-888-967-9938 Asia Pacific Honeywell Asia Pacific Inc. Hong Kong (852) 23 31 9133 Europe Honeywell Pace Brussels, Belgium [32-2]728-2711 Latin America Honeywell International Inc. Sunrise, Florida, U.S.A. (954) 845-2600 511397301R User Manualvii 5/07Honeywell Symbol Definitions The following table lists the symbols used in this document to denote certain conditions: SymbolDefinition ATTENTION: Identifies information that requires special consideration TIP: Identifies advice or hints for the user, often in terms of performing a task REFERENCE _ INTERNAL: Identifies an additional source of information within the bookset. CAUTION Indicates a situation which, if not avoided, may result in equipment or work (data) on the system being damaged or lost, or may result in the inability to properly operate the process. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices. CAUTION: Symbol on the equipment refers the user to the product manual for additional information. The symbol appears next to required information in the manual. WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in serious injury or death. WARNING symbol on the equipment refers the user to the product manual for additional information. The symbol appears next to required information in the manual. 511397301R User Manualix 5/07Honeywell CONTENTS INTRODUCTION ............................................................11 Description ............................................................................................ 11 Installation Guidelines ........................................................................... 11 WIRING DETAILS ..........................................................12 301R Wiring ....................................................................................... 12 301RW Wiring ................................................................................... 13 System Configuration ........................................................................ 14 DIP Switches ......................................................................................... 14 LED Definitions ...................................................................................... 15 Care and Maintenance ...................................................................... 15 Replacement parts ................................................................................ 15 SPECIFICATIONS ..........................................................16 Technical Specifications .................................................................... 16 LIMITED WARRANTY ....................................................17 Limited Warranty ................................................................................... 17 Re-Stocking Policy ................................................................................ 17 Exclusions ............................................................................................. 18 Warranty Limitation and Exclusion ........................................................ 18 Disclaimer of Unstated Warranties ........................................................ 19 Limitation of Liability .............................................................................. 19 511397301R User Manual11 5/07Honeywell Introduction Introduction Description The 301R and 301RW act as an output for the 201C or the 301C. The 301R and the 301RW provides a standard 8 relays (DPDT 5A, 30 Vdc or 250 Vac resistive load) for the indirect activation of accessories. Since the relay module is an output for the controller, it can be located anywhere within the gas detection network. The 301R is fully compatible with both the 201C and the 301C (the 301RW is compatible with only the 301CW) and offer LED indicators for each relay (visible only when housing is open). Installation Guidelines The following guidelines ensure that the equipment will work properly. Failure to strictly respect these guidelines will free Honeywell from any responsibility or liability in case of improper functioning: •Make sure to locate the unit and sensing assembly(ies), if applicable, in an area easily accessible to a technician. •Avoid any location where the unit could be subject to vibrations. •Avoid any location close to noisy equipment. •Avoid any location where temperature changes occur rapidly. •Verify all the requirements and existing regulations which may affect the choice of location. 12 301R User Manual 511397 Honeywell 5/07 Wiring Details 301R Wiring Wiri…

Text truncated - open the document above for the full version.

2008-03-14 Equipment Authorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: U5C301R8W1 Product Name: 301R8 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: 1. BOM 2. SCHEMATICS 3. Operational description 4. Block diagrams These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 14 Day of March 20 08 By: Jimmy Lessard Signature Printed Title: Director of product development On behalf of : Honeywell Analytics Telephone: 450-619-2450

2/28/2008 RÈv. 2 1:1 File name : 301RW-F_APPROBATION_LABEL.PDF Page 1 301RW-F APPROBATION LABEL ERP# : 511801 7 Avril 2008 RÈvision: 01 UL61010A-1 25,4mm 80 mm Serial#: Conforms to ANSI/UL 61010-1 Caution ñ For use by authorised personnel ONLY Certified to CAN/CSA C22.2 No. 61010-1 Attention - A líusage du personnel autorisÈ SEULEMENT Model#: 301R8 116662 MAC : Honeywell Analytics 17-27Vac, 10VA, 50/60 Hz24-38Vdc, 280mA@24Vdc This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condition s: (1)this device may not cause harmful interference. And (2)this device must accept any interference receive d, including interference that may cause undesired operation. FCC ID : U5C301R8W1 IC : 573P-301R8W1 xxxx xxxx xxxx xxxx

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 22.15 (dBm) Maximum peak output power at antenna input terminal: 164.0589773 (mW) Antenna gain(typical): 0 (dBi) Maximum antenna gain: 1 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2445 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.63 (mW/cm^2) Power density at prediction frequency: 0.032638 (mW/cm^2) 0.326385 (W/m^2) Maximum allowable antenna gain: 16.9845746 (dBi) Margin of Compliance: 16.9845746 dB 2 4 R PG S π =

www.nemko.com Test Report: 85902-1TRFWL Applicant: Honeywell Analytics 4005-G, Matte Blvd Brossard Quebec J4Y 2P4 Canada Apparatus: 301R8W, 301R8WF FCC ID: U5C301R8W1 In Accordance With: FCC Part 15 Subpart C, 15.247 FHSS System and Digitally Modulated Radiators 902-928MHz, 2400 - 2483.5 MHz, 5725-5850MHz Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Xu Jin, Wireless Specialist Date: March 25, 2008 Total Number of Pages: 24 FCC Part 15 Subpart C, 15.247 : October 2006 Nemko Canada Inc. REPORT SUMMARY Report Number: 85902-1TRFWL FCC ID: U5C301R8W1 Specification: FCC Part 15 Subpart C, 15.247 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. Radiated tests were conducted in accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: 301R8W, 301R8WF Specification: FCC Part 15 Subpart C, 15.247 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Heng Lin EMC / Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Page 2 of 24 Nemko Canada Inc. REPORT SUMMARY Report Number: 85902-1TRFWL FCC ID: U5C301R8W1 Specification: FCC Part 15 Subpart C, 15.247 TABLE OF CONTENTS Report Summary.........................................................................................................................................2 Section 1 : Equipment Under Test.............................................................................................................4 1.1 Product Identification.................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Technical Specifications of the EUT..........................................................................................................4 Section 2 : Test Conditions.........................................................................................................................5 2.1 Specifications.............................................................................................................................................5 2.2 Deviations From Laboratory Test Procedures ............................................................................................5 2.3 Test Environment.......................................................................................................................................5 2.4 Test Equipment...........................................................................................................................................5 Section 3 : Observations.............................................................................................................................6 3.1 Modifications Performed During Assessment ............................................................................................6 3.2 Record Of Technical Judgements...............................................................................................................6 3.3 EUT Parameters Affecting Compliance.....................................................................................................6 3.4 Test Deleted................................................................................................................................................6 3.5 Additional Observations.............................................................................................................................6 Section 4 : Results Summary.....................................................................................................................7 4.1 FCC Part 15 Subpart C : Test Results........................................................................................................8 Appendix A : Test Results..........................................................................................................................9 Clause 15.209(a) Radiated Emissions within Restricted Bands..........................................................................12 Clause 15.247(a)(2) Systems using digital modulation techniques.....................................................................15 Clause 15.247(b)(3) Maximum peak output power of systems using digital modulation in the 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz bands............................................................................................17 Clause 15.247(d) Radiated Emissions Not in Restricted Bands..........................................................................17 Clause 15.247(e) Power Spectral Density for Digitally Modulated Devices.......................................................22 Appendix B : Setup Photographs............................................................................................................23 Appendix C : Block Diagram of Test Setups................................................................…
