U5C301W-1Wireless Gas Sensor

DRAFT Wireless Gas Monitoring Device 301W Installation and User Manual ERP 511398 4/07 DRAFT DRAFT 511398 301W User Manual iii 4/07Honeywell Notices and Trademarks Copyright by Honeywell International Inc. Release 511398 April 2007 While this information is presented in good faith and believed to be accurate, Honeywell disclaims the implied warranties of merchantability for a particular purpose and makes no express warranties except as may be stated in its written agreement with and for its customers. In no event is Honeywell liable to anyone for any indirect, special or consequential damages. The information and specifications in this document are subject to change without notice. Honeywell Analytics 4005 Matte Blvd, Unit G Brossard, Quebec, J4Y 2P4 DRAFT DRAFT 511398 301W User Manual v 4/07Honeywell Contacts World Wide Web The following Honeywell Websites may be of interest to our customers: Telephone Contact us by telephone at the numbers listed below: Sales Informations Contact us at [email protected] Honeywell OrganizationWWW Address (URL) Corporatehttp:/www.honeywellanalytics.com Life Scienceshttp:/www.honeywell.com Internationalhttp:/content.honeywell.com/global/ OrganizationPhone Number United States and Canada Honeywell Analytics International Inc. 1-800-563-2967 1-450-619-2450 Fax: 1-450-619-2448 Asia Pacific Honeywell Asia Pacific Inc. Hong Kong (852) 23 31 9133 Europe Honeywell Pace Brussels, Belgium [32-2]728-2711 Latin America Honeywell International Inc. Sunrise, Florida, U.S.A. (954) 845-2600 DRAFT DRAFT 511398 301W User Manual vii 4/07Honeywell Symbol Definitions The following table lists the symbols used in this document to denote certain conditions: SymbolDefinition ATTENTION: Identifies information that requires special consideration TIP: Identifies advice or hints for the user, often in terms of performing a task REFERENCE _ INTERNAL: Identifies an additional source of information within the bookset. CAUTION Indicates a situation which, if not avoided, may result in equipment or work (data) on the system being damaged or lost, or may result in the inability to properly operate the process. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices. CAUTION: Symbol on the equipment refers the user to the product manual for additional information. The symbol appears next to required information in the manual. WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in serious injury or death. WARNING symbol on the equipment refers the user to the product manual for additional information. The symbol appears next to required information in the manual. DRAFT DRAFT 511398 301W User Manual ix 4/07Honeywell Contents INTRODUCTION ............................................................11 Receiving and Unpacking ...................................................................... 11 INSTALLATION INSTRUCTIONS ..................................12 Basic Guidelines ................................................................................ 12 Network Requirements ...................................................................... 13 Determining the Number of Transmitters .............................................. 13 Where to install the Transmitters ....................................................... 15 Installing the Transmitters ..................................................................... 16 Recommended Installation Heights ........................................ 17 System Startup .................................................................................. 18 Programming interface .......................................................................... 19 USING THE TRANSMITTER ..........................................21 Programming Functions .................................................................... 22 How to Program the Transmitter ....................................................... 23 Powering Up the Transmitter .................................................. 23 Function 1 - Display Network Quality ..................................... 23 Function 2 - Activate or Deactivate Service Mode ................. 24 Function 3 - Search for a Network .......................................... 24 Function 4 - Scan All Channels .............................................. 24 Function 5 - Reset Network Parameters to Zero .................... 25 Function 7 - Adjust Sensor Zero ............................................. 26 Function 8 - Adjust Span ........................................................ 26 Function 9 - Save Parameters and Close Device .................. 27 Cancelling all commands ....................................................... 27 DRAFT x 301W User Manual 511398 Honeywell 4/07 CARTRIDGE REPLACEMENT AND CALIBRATION ... 28 Changing the Sensor Cartridge .........................................................28 Remote Calibration ............................................................................29 Periodic Inspections and Calibration .................................................31 TROUBLESHOOTING ................................................... 33 SPECIFICATIONS .......................................................... 37 Gases Detected .................................................................................37 FCC Specifications ............................................................................38 LIMITED WARRANTY ................................................... 39 Limited Warranty ....................................................................................39 Re-Stocking Policy .................................................................................39 Exclusions ..............................................................................................40 Warranty Limitation and Exclusion...................…

Text truncated - open the document above for the full version.

February 5 2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Honeywell Analytics FCC ID: U5C301W-1 FCC Part 15 Certification Gentlemen, In accordance with 0.459 of CFR 47, Honeywell Analytics hereby requests confidentiality of all attachments Block Diagrams, Circuit Description, Circuit Diagrams, Parts List, Operational Description for the subject application. These documents contain detailed system and equipment description and related information about the product which Honeywell Analytics considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Honeywell Analytics considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Patrice Chartrand Honeywell Analytics Conformity Manager

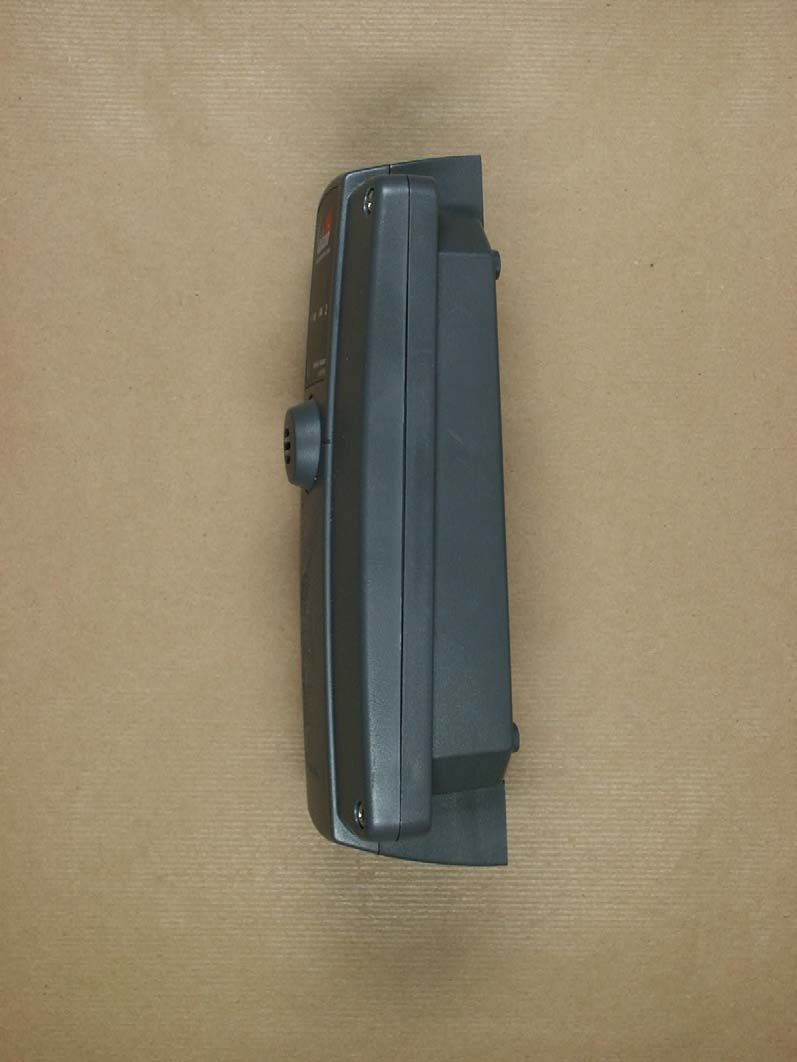

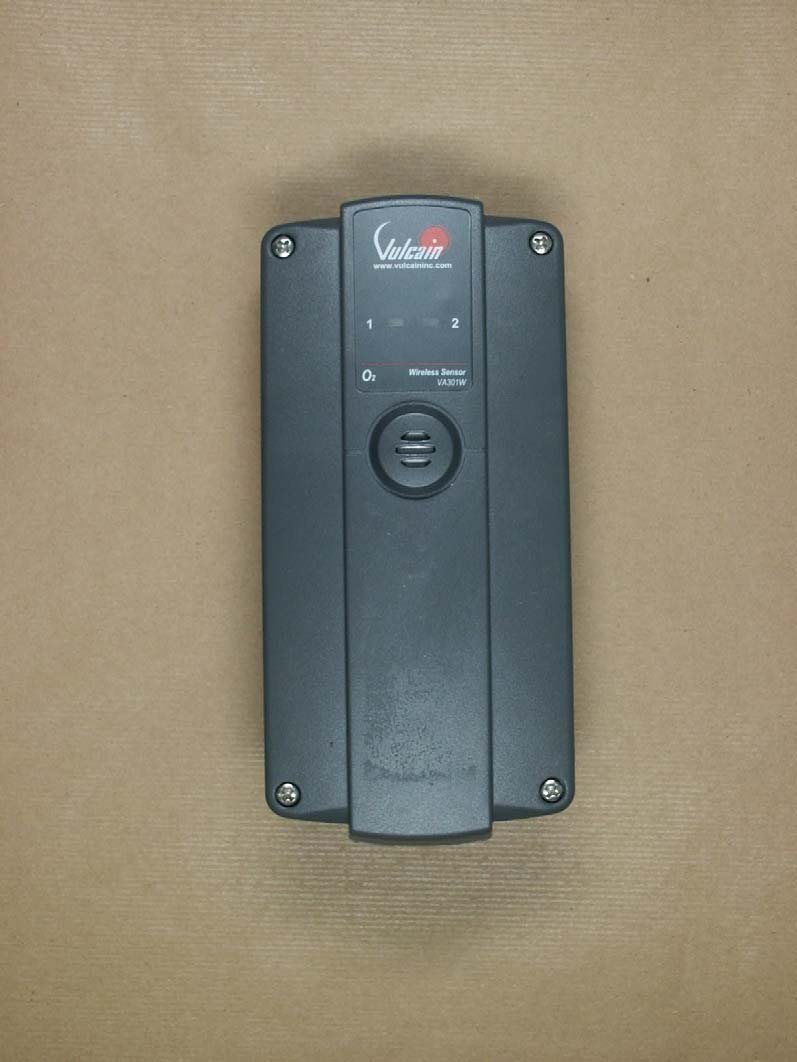

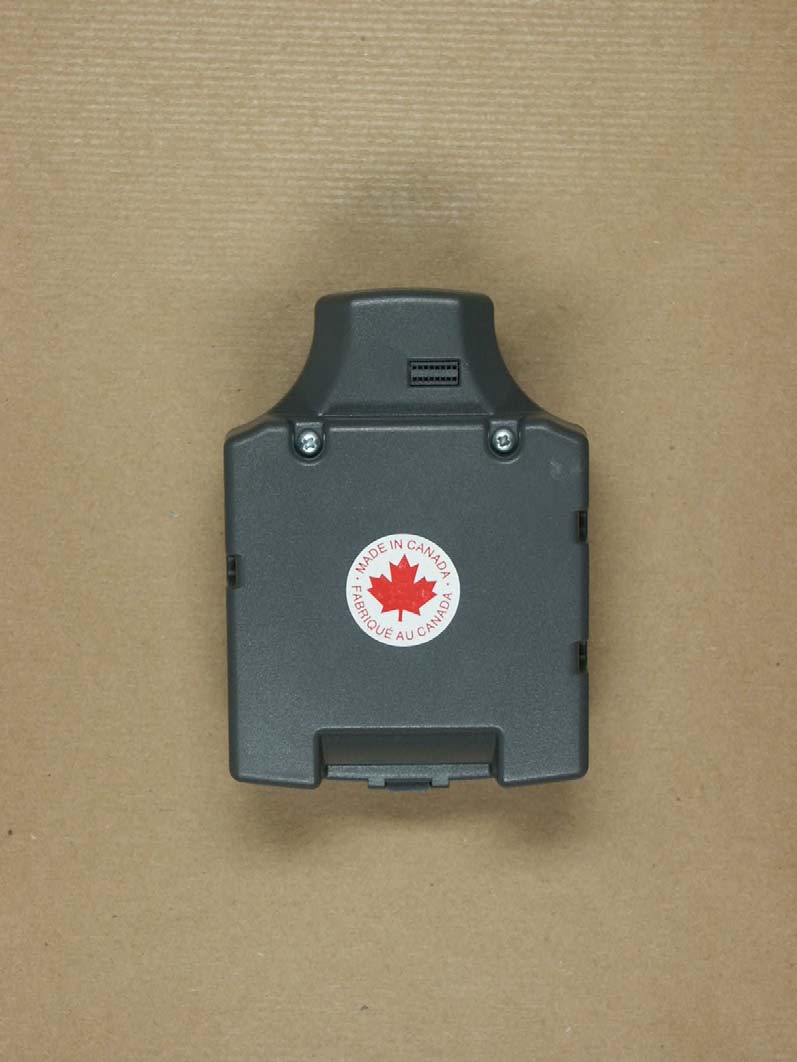

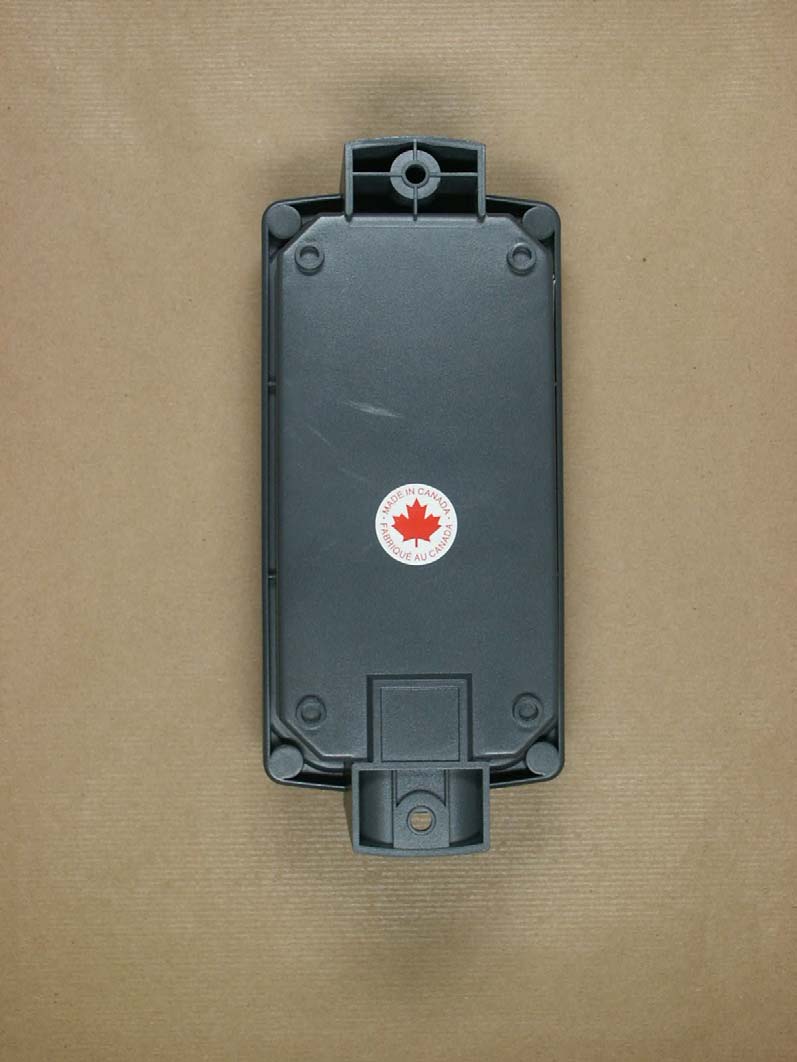

ETS Product Service AG Registration number: G0M20702-1168-C-1 Page 1 of 13 Appendix A. Pictures ETS Product Service AG Registration number: G0M20702-1168-C-1 Page 2 of 13 ETS Product Service AG Registration number: G0M20702-1168-C-1 Page 3 of 13 ETS Product Service AG Registration number: G0M20702-1168-C-1 Page 7 of 13 ETS Product Service AG Registration number: G0M20702-1168-C-1 Page 8 of 13

3/16/2007 RÈv. 2 1:1 File name : 301W_APPROBATION_LABEL.PDF Page 1 301W APPROBATION LABEL 38.1 mm ERP# : 510455 13 Mars 2007 RÈvision: 02 --- Serial#:Model#: 301W MAC : 19mm xxxx xxxx xxxx xxxx Honeywell Analytics FCC ID : U5C301W-1 IC : 573P-301W1

ETS Product Service AG Registration number: G0M20702-1168-C-1 Page 4 of 13 ETS Product Service AG Registration number: G0M20702-1168-C-1 Page 5 of 13 ETS Product Service AG Registration number: G0M20702-1168-C-1 Page 6 of 13 ETS Product Service AG Registration number: G0M20702-1168-C-1 Page 9 of 13 ETS Product Service AG Registration number: G0M20702-1168-C-1 Page 10 of 13

ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES PARTS 15.247 IC RADIO STANDARDS RSS-210 Issue 6 FCC ID: U5C301W-1 IC: 573P-301W1 Model Name: Wireless Gas Sensor Test report no.:G0M20702-1168-C-1 Certificate #1983.01 ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG Registriernummer: G0M20702-1168-C-1 Page 1 of 31 TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Test Procedure 3 Test Results 3.1 Peak Output Power 3.2 De Facto Equivalent Isotropic Radiated Power 3.3 RF Exposure Compliance Requirements 3.4 Transmitter Radiated Emissions in Restricted Bands 3.5 Spurious Emissions 3.6 Minimum 6 dB Bandwidth 3.7 Peak Power Spectral Density 3.8 Conducted Emission at (AC) Power Line 4 Receiver parameters 4.1 Radiated emission APPENDIX ETS Product Service AG Registriernummer: G0M20702-1168-C-1 Page 2 of 31 1 General information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. Tester: 13.02.2007 W. Treffke Date ETS-Lab. Name Signature Technical responsibility for area of testing: 13.02.2007 N. Kaspar Date ETS Name Signature ETS Product Service AG Registriernummer: G0M20702-1168-C-1 Page 3 of 31 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR- REGISTRATION NUMBER: DAT-P-201/96 ACCREDITED COMPETENT BODY BNETZA-REGISTRATION NUMBER: BNetzA-zS-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 A2LA Accredited Certification No.1983.01 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) Accredited by Bluetooth Qualification Review Board I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 1.3 Details of approval holder Name : Honeywell analytics Street : 4005, Matte Boulevard, Unit G Town : Brossard, Québec, J4Y 2P4 Country : Canada Telephone : +1 450 619 2450 Fax : +1 450 619 2525 Contact : Mr. Patrice Chartrand E-Mail : +1 450 619 2450 ETS Product Service AG Registriernummer: G0M20702-1168-C-1 Page 4 of 31 1.4 Application details Date of receipt of application : 05.02.2007 Date of receipt of test item : 05.02.2007 Date of test : 05.02.2007 – 09.02.2007 1.5 Test item Description of test item : Wireless Gas Sensor Type identification : 301W Brand Name: Honeywell Hardware version : 301WR revision F Software version : 1.0, build 200702051411 Serial number : without Photos : See annex A. Technical data Frequency band : 2.4 GHz – 2.4835 GHz Frequency (ch A) : 2405 MHz Frequency (ch B) : 2445 MHz Frequency (ch C) : 2480 MHz Number of Channels : 16 Operating Modes : duplex Type of modulation : DSSS Power supply : 3.6 V DC Antenna : internal PCB printed antenna Antenna gain : 0 dBi Host device : none Classification : Fixed Device Mobile Device (Human Body distance > 20cm Portable Device (Human Body distance < 20cm ETS Product Service AG Registriernummer: G0M20702-1168-C-1 Page 5 of 31 Transmitter Unom Power (ch 0) : Conducted: 16.41 dBm Power (ch 7) : Conducted: 16.94 dBm Power (ch 15) : Conducted: 16.72 dBm Manufacturer: (if applicable) Name : Honeywell analytics Street : 4005, Matte Boulevard, Unit G Town : Brossard, Québec, J4Y 2P4 Country : Canada Additional information: The scheme for frequency generation, spectrum spreading, receiver parameters, synchronization procedure, and other parameters are determined by the mentioned standard above. The sample for low Rate Wireless Personal Area Networks (LR-WPAN) technology according IEEE 802.15.4. The provided test sample was renamed after the test from Wireless Sensor VA301W to Wireless Gas Sensor 301W Brand Name: Honeywell. ETS Product Service AG Registriernummer: G0M20702-1168-C-1 Page 6 of 31 1.6 Test standards Technical standard : FCC Parts: 15.247 IC Standards: RSS 210 Issue 6 Annex 8.2 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 3.6 V DC Extrem conditions parameters: : test voltage - extreme min.: -- V DC max: -- V DC Extreme test voltages were declared by manufacturer. ETS Product Service AG Registriernummer: G0M20702-1168-C-1 Page 7 of 31 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP R & S ETS 0003 Diode Power Sensor NRV-Z2 R & S ETS 0004 Spektrum- and Network-Analyzer FSMS 26 R & S ETS 0005 RF amplifier matrix RSU-ETS-CTR6 ETS ETS 0006 HP-Filter H1G04G01 Microwave ETS 0007 …
