U5IHL-1521HL-1521 UHF Transmitter

TecNet International inc. 11535 West 83rd Terr. Lenexa, KS 66214 Toll Free: 800-456-2071 Phone: 913-859-9515 Fax: 913-859-9550 www.tecnetusa.com Printed in the Philippines PART NO.950-00172-BB LANDMOBILERADIO HL-1000 SERIES 1. Product Features 2. Main Products 3. Optional Accessories 6. Operation 4. Controls and Indicators Basic Operation (1) On/Off Power & Volume Knob (2) Channel (3) Receive (4) Transmit (5) Monitor (6) Function Channel Scan Low/High Function of Squelch Setting Beep Sound Key Lock DTMF 2TONE ANI VOX Mode Setting VOX Levels 7. HL-1000 Function Summary 8. Battery Use & Recharge 9. Using the Desktop Charger 10. Troubleshooting f or Abnormal Operation 11. Caution/Warning 12.CTCSS/CDCSS TONE Frequency Table 3 4 13. Warranty 5 6 10 10 10 10 10 11 11 11 12 13 13 14 15 15 19 20 21 23 24 25 27 14 5. LCD Display Panel 9 12 LANDMOBILERADIO HL-1000 SERIES LANDMOBILERADIO HL-1000 SERIES Product Feature Main Products 4 3 22.. MMaaiinn PPrroodduuccttss Thank you for purchasing the Headline Radio Communication product. Below is a listing of the package contents. In the event that one of these items is not located within the package, please contact the selling dealer for a replacement. UNIT ANTENNA BATTERY PACK BELT CLIP HAND STRAP CHARGER ADAPTERMANUAL 11.. PPrroodduucctt FFeeaattuurreess 1. Miniaturization & Lightweight Headline radios are light and compact in order to maximize portability. 2. Various User Functions Users may easily choose the functions of SCAN, VOX, Tone, Reception adjustment, etc. to personalize the radio to meet their needs. 3. Battery Capacity The Li-ion and Ni-MH Batteries provide greater capacity and increase the life of the battery. 4. Security The radio's PIN function prevents unauthorized usage. 5. Calling The Personal / Group calling feature allows for effective communication. LANDMOBILERADIO HL-1000 SERIES LANDMOBILERADIO HL-1000 SERIES Optional Accessies Controls and Indicators 6 5 44.. CCoonnttrroollss aanndd IInnddiiccaattoorrss 1)On/Off & Volume knob 2)External Ear/Microphone Jack 3)Battery pack 9)LED Indicator 10)Speaker 11)MIC 12)LCD 13)Down/Up Button 14)Button Function 4)Antenna 5)PTT (Push-To-Talk) button 6)Battery latch 7)Belt clip 8)Monitor button 33.. OOppttiioonnaall AAcccceessssoorriieess The functionality of your Headline radio may be increased through the use of the following accessories. For details and pricing, please contact your selling dealer. EAR MICROPHONE A LARGE BATTERY PACK EXTERNAL MIC LEATHER CASE DATA CABLECLONE JACK LANDMOBILERADIO HL-1000 SERIES LANDMOBILERADIO HL-1000 SERIES 8 7 9. LED Indicator (Tri-color Lamp) 10. Speaker Calls / Tone signals are heard through here. Speaker level is adjusted through the volume control knob. 11. MIC When transmitting a call, speak clearly towards this part of the radio. 12. LCD (Liquid Crystal Display) The LCD indicates the state of operation and function selections. 13. Down / Up Buttons Used to select channels and functions. 14. Function Button Use this button to select various additional functions. Green Red Yellow On Receiving a call Selcall Transmission Call Transmission 1. On/Off & Volume Knob Rotate this knob clockwise to power on the radio and adjust the volume. 2. External Ear / Microphone Jack Through this accessory jack, an Earphone or Speaker Microphone may be connected to the radio. Additionally, to program the radio, the HL-10PK Programming Cable is connected to this accessory jack 3. Battery Pack Li-ion or Ni-MH Battery - provides greater capacity and increased battery life. 4. Antenna Required for communication at the optimum distance. 5. PTT (Push-To-Talk) Button Press and hold this button to transmit a call or tone signal. Release the button to receive a call. 6. Battery Latch When the battery is installed to the radio, the latch automatically locks in place. To remove the battery, simultaneously press both latches downward. 7. Belt clip Allows for a secure grip on the user's belt. 8. Monitor Button Press this button to remove noise or tone squelch when receiving a weak signal. Controls and Indicators Controls and Indicators On On LANDMOBILERADIO HL-1000 SERIES LANDMOBILERADIO HL-1000 SERIES Operation 10 9 66.. OOppeerraattiioonn 1. Basic Operation LCD Display Panel Rotate the On/Off & Volume Knob. Select the channels using the Up/Down button. The signal will be received after selecting a channel. Battery 55.. LLCCDD DDiissppllaayy PPaanneell Replace Locking the Key with Key Lock 3) Receive To receive a signal, a channel must first be selected. When a communication is received, a beep is heard, the display is activated and the 5 levels of the sensitivity will be indicated. 1) On/Off Power & Volume Knob Rotate the On/Off Power & Volume knob clockwise to turn power the radio and activate the display. A beep will sound to confirm that the radio is on and the display will show your home channel. Volume may be adjusted by turning the Volume knob clockwise. 2) Channel Channels are selected by pressing either of the Up/Down buttons. Press and hold either of the Up/Down buttons for over 2 seconds for rapid channel advance. Beep is On Key Lock Selecting 2 Tone or Receiving 5 Tone 5 Levels of receiving Sensitivity / two Levels of transmitting Transmitting Scanning Channels Setting Sub-Tone on the Current Channel VOX is On Selecting high power LANDMOBILERADIO HL-1000 SERIES LANDMOBILERADIO HL-1000 SERIES Operation Operation 12 11 2) Low/High Functions of Squelch This is a sensitivity adjustment function that allows for communication at a desired level. Press the "Function" button twice to select Squelch system. The icon " " will begin flash- ing. Select Low/High by pressing the Up/Down buttons. The selected function will be stored auto- matically. If no buttons are pressed within 5 sec- onds after selecting functions, the monitor will revert to the main display. Press the PTT button to finish and exit the function mode. 4) Transmit Select a channel using the Up/Down buttons. Press and …

Text truncated - open the document above for the full version.

Headline Systems, Inc. FCC Authorization September 3, 2007 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Headline Systems, Inc., the undersigned, Hereby authorizes Bay Area Compliance Laboratory Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, S.I. Choi/ R&D Manager Misung Bldg., Guro-Dong 612-6, Guro-Gu Seoul, Korea 152-865 82-2-2163-6853

Headline Systems, Inc. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: U5IHL-1521 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, S.I. Choi Broadin Media Co., Ltd. Misung Bldg., Guro-Dong 612-6, Guro-Gu Seoul, Korea 152-865

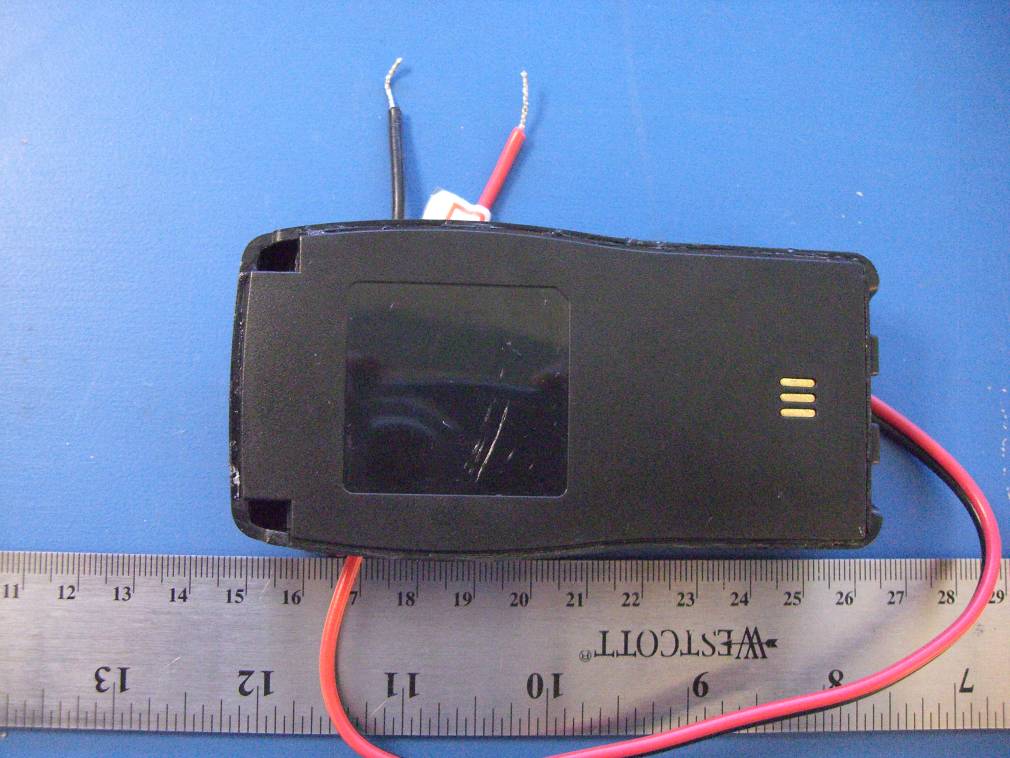

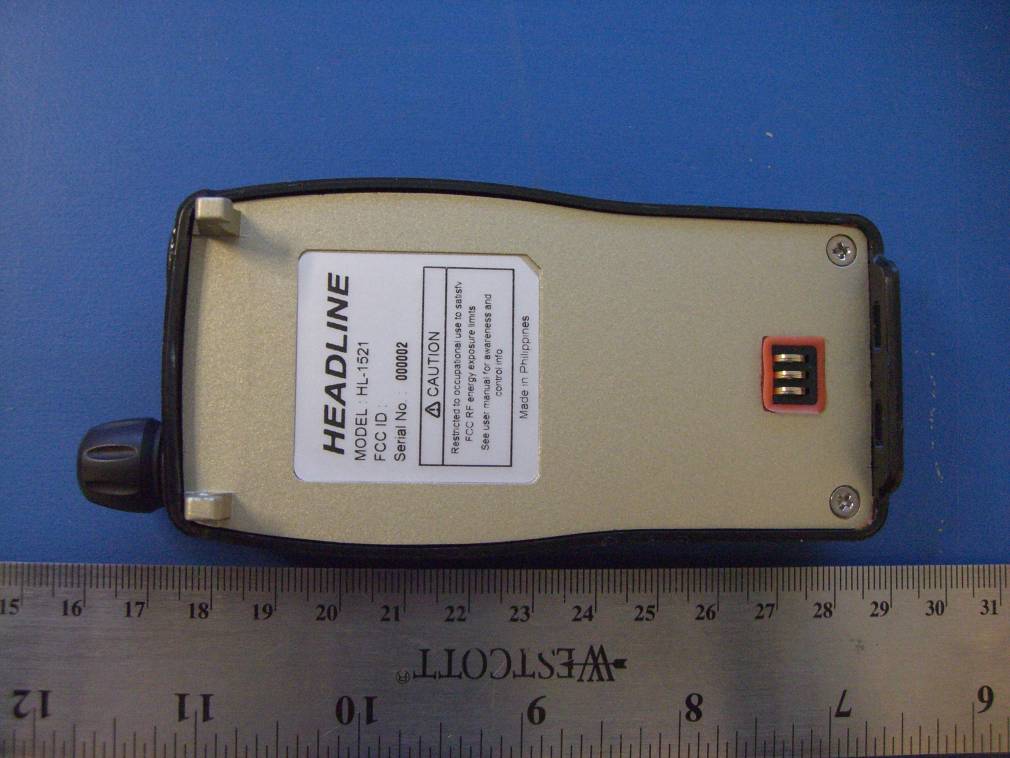

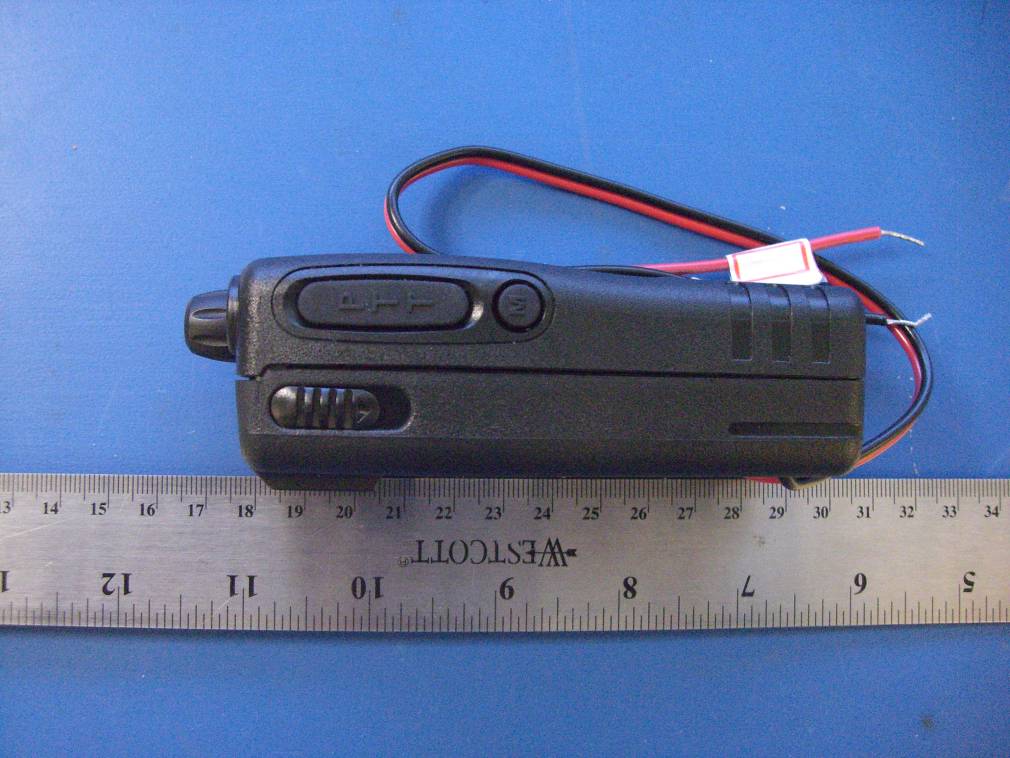

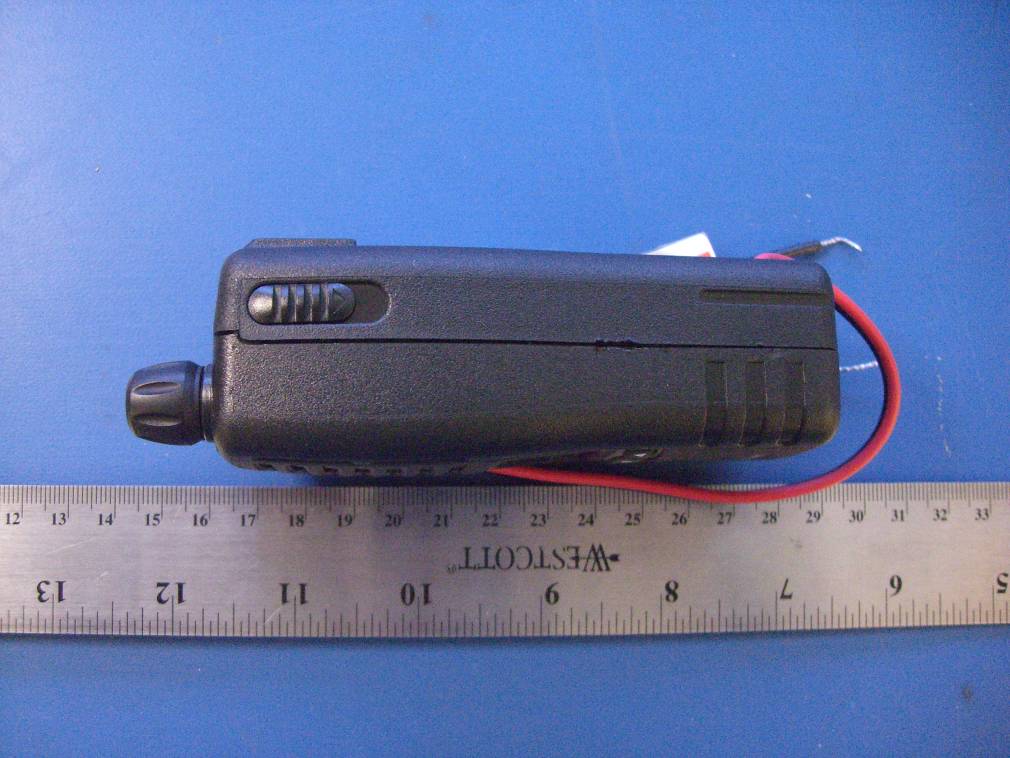

Headline Systems, INC FCC ID: U5IHL-1521 Report No.: R0708102 Page 35 of 41 FCC PART 22, 74, 90 Report EXHIBIT C - EUT PHOTOGRAPHS EUT with Antenna - Front View EUT- Front View Headline Systems, INC FCC ID: U5IHL-1521 Report No.: R0708102 Page 36 of 41 FCC PART 22, 74, 90 Report EUT- Back View EUT - Left Side View Headline Systems, INC FCC ID: U5IHL-1521 Report No.: R0708102 Page 37 of 41 FCC PART 22, 74, 90 Report EUT - Right Side View EUT-Port View Headline Systems, INC FCC ID: U5IHL-1521 Report No.: R0708102 Page 38 of 41 FCC PART 22, 74, 90 Report EUT – Battery View EUT Cover off View 1

Headline Systems, INC FCC ID: U5IHL-1521 Report No.: R0708102 Page 33 of 41 FCC PART 22, 74, 90 Report EXHIBIT A - FCC ID LABELING AND LOCATION Proposed FCC ID Label and warning statement Specifications : Text is black or white in color, left justified, in a font size large enough to be legible without the aid of magnification. Labels shall be “permanently affixed” or silk screened upon the antenna location on the EUT. Proposed Label Location on EUT FCC Warning Statement As per FCC 1.1307 (b) A FCC Warning Statement must be permanently affixed to the antenna portion of the product and provided in the product manual that: (1) provides adequate notice regarding potential radiofrequency safety hazards, e.g., information regarding the safe minimum separation distance required between users and transceiver antennas; (2) References the applicable FCC-adopted limits for radiofrequency exposure specified in § 1.1310. FCC ID: U5IHL-1521 Warning: This device is a high powered transceiver that operates at frequencies that could be potentially harmful to human tissue. *Please see exposure limits listed in FCC §1.1310 Manufacturer: Headline Systems INC.

Headline Systems, INC FCC ID: U5IHL-1521 Report No.: R0708102 Page 39 of 41 FCC PART 22, 74, 90 Report EUT Cover off View 2 Speaker View Headline Systems, INC FCC ID: U5IHL-1521 Report No.: R0708102 Page 40 of 41 FCC PART 22, 74, 90 Report EUT PCB Front View EUT PCB Back View with Shield on Headline Systems, INC FCC ID: U5IHL-1521 Report No.: R0708102 Page 41 of 41 FCC PART 22, 74, 90 Report EUT PCB Back View with Shield off Antenna View ***** END OF REPORT *****

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government / FCC PARTS 22, 74 AND 90 MEASUREMENT AND TEST REPORT For Headline Systems, INC Misung Bldg., Guro-Dong 612-6, Guro-Gu, Seoul, Korea, 152-865 FCC ID: U5IHL-1521 Model: HL-1521 Report Type: Original Report Product type: UHF Data Radio Transciever Test Engineer: James Ma Report Number: R0708102 Report Date: 2007-08-27 Reviewed By: Daniel Deng: RF Engineering Lead Prepared By: (J8) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Ave Sunnyvale, CA 94085, U.S.A. Tel: (408) 732-9162 Fax: (408) 732 9164 www.baclcorp.com Headline Systems, INC FCC ID: U5IHL-1521 Report No.: R0708102 Page 2 of 41 FCC PART 22, 74, 90 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 MECHANICAL DESCRIPTION.........................................................................................................................................4 EUT PHOTO.................................................................................................................................................................4 OBJECTIVE...................................................................................................................................................................5 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................5 TEST METHODOLOGY..................................................................................................................................................5 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 POWER SUPPLY AND LINE FILTERS..............................................................................................................................6 LOCAL SUPPORT EQUIPMENT.......................................................................................................................................6 INTERFACE PORTS AND CABLING.................................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §2.1046, and §90.205 - CONDUCTED OUTPUT POWER .......................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 ENVIRONMENTAL CONDITIONS....................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST RESULT.............................................................................................................................................................10 §2.1047, and §90.207 - MODULATION CHARACTERISTIC ...............................................................................13 APPLICABLE STANDARD............................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 ENVIRONMENTAL CONDITIONS..................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST RESULT.............................................................................................................................................................13 §2.1049, §22.359, §74.1236, and § 90.209/210– OCCUPIED BANDWIDTH & EMISSION LIMITATION ......16 APPLICABLE STANDARD............................................................................................................................................16 TEST PROCEDURE......................................................................................................................................................17 ENVIRONMENTAL CONDITIONS.........................................................................................…

Text truncated - open the document above for the full version.

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government (REV.1) SAR EVALUATION REPORT For Headline Systems, IND Misung Bldg., Guro-Dong 612-6, Guro-Gu Seoul, Korea 152-865 FCC ID: H5IHL-1521 IC: 5356A-HL1521 This Report Concerns: Original Report Equipment Type: UHF Transceiver Test Engineer: Eric Hong Report Number: R0708102-SAR Report Date: 2007-09-25 Reviewed By: Daniel Deng Prepared By: Bay Area Compliance Laboratories Corporation (BACL) 1274 Anvilwood Ave. Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 2 of 62 DECLARATION OF COMPLIANCE SAR EVALUATION Rule Part(s): IEEE C95.1, CFR 47 §2.1093 Test Procedure(s): FCC OET Bulletin 65 Supplement C IEEE 1528-2003 Device Category: Exposure Category: Portable Device Occupational /Controlled Exposure Device Type: UHF Transceiver Modulation Type: FM TX Frequency Range: 430-470 MHz Max. Conducted Power Tested: 35.86 dBm Antenna Type(s): External Antenna Body-Worn Accessories: Headset and Belt Clip Face-Head Accessories: None Max. SAR Level(s) Measured: 2.27 W/Kg (Face-held) with 50% Duty Cycle 2.14 W/Kg (Body-worn) with 50% Duty Cycle This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C. The results and statements contained in this report pertain only to the device(s) evaluated. Tested By: Eric Hong Testing Engineer Bay Area Compliance Laboratories Corp. EUT Photo Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 3 of 62 TABLE OF CONTENTS REFERENCE, STANDARDS AND GUILDELINES ................................................................................................4 SAR LIMITS.................................................................................................................................................................5 EUT DESCRIPTION ....................................................................................................................................................6 FACILITIES AND ACCREDITATION .....................................................................................................................7 DESCRIPTION OF TEST SYSTEM ..........................................................................................................................8 MEASUREMENT SYSTEM DIAGRAM...........................................................................................................................10 SYSTEM COMPONENTS...............................................................................................................................................12 EQUIPMENT LIST AND CALIBRATION .............................................................................................................20 EQUIPMENTS LIST & CALIBRATION INFO...................................................................................................................20 SAR MEASUREMENT SYSTEM VERIFICATION ..............................................................................................21 SYSTEM ACCURACY VERIFICATION...........................................................................................................................21 EUT TEST STRATEGY AND METHODOLOGY .................................................................................................22 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................22 CHEEK/TOUCH POSITION...........................................................................................................................................23 EAR/TILT POSITION....................................................................................................................................................23 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS..............................................................................24 SAR EVALUATION PROCEDURE.................................................................................................................................25 DASY4 SAR EVALUATION PROCEDURE...................................................................................................................26 SAR MEASUREMENT RESULTS ...........................................................................................................................28 SAR TEST DATA........................................................................................................................................................28 APPENDIX A – MEASUREMENT UNCERTAINTY ............................................................................................29 APPENDIX B – PROBE CALIBRATION CERTIFICATES .................................................................................31 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES ...............................................................................40 APPENDIX D – DAE3 CALIBRATION CERTIFICATES ....................................................................................46 APPENDIX E - TEST SYSTEM VERIFICATIONS SCANS .................................................................................51 MEASUREMENT RESULT............................................................................................................................................51 APPENDIX F - EUT SCANS.................................................…

Text truncated - open the document above for the full version.

Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 41 of 62 Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 42 of 62 Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 43 of 62 Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 44 of 62 Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 45 of 62 Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 46 of 62 APPENDIX D – DAE3 CALIBRATION CERTIFICATES Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 47 of 62 Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 48 of 62 Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 49 of 62 Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 50 of 62 Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 51 of 62 APPENDIX E - TEST SYSTEM VERIFICATIONS SCANS Measurement Result System Validation Dipole: D450V2 SN: 1010 Environmental Conditions Ambient Temperature: 21 C Relative Humidity: 71 ATM Pressure: 1028bar * Testing was performed by Eric Hong on 2007-09 -22. Frequency [MHz] Parameters Liquid Temp [ºC] Target Value Measured Value Deviation [%] Limits [%] εr 22 43.5 43.2 -0.69 ±5 σ 22 0.87 0.86 -1.15 ±5 450 1g SAR 22 4.9 4.94 0.82 ±10 ε r = relative permittivity, σ = conductivity and ρ=1000kg/m 3 Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 52 of 62 System Performance Test for Head Liquid Dipole 450 MHz; Type: D450V2; Serial Number: 1010 Communication System: CW; Frequency: 450 MHz; Duty Cycle: 1:1 Medium parameters used: f = 450 MHz; σ = 0.86 mho/m; ε r = 43.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(7.31, 7.31, 7.31); Calibrated: 8/28/2007 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 11/22/2006 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Post processing SW: SEMCAD, V1.8 Build 161 d=15mm, Pin=1W/Area Scan (61x201x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 5.24 mW/g d=15mm, Pin=1W/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 81.6 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 7.11 W/kg SAR(1 g) = 4.94 mW/g; SAR(10 g) = 3.37mW/g Maximum value of SAR (measured) = 5.21 mW/g 0 dB = 5.21 mW/g Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 53 of 62 APPENDIX F - EUT SCANS EUT Face 2.5cm separation to flat phantom (High Channel) Headline Systems; Type: HL-1521; Serial Number: B1301 Communication System: CW; Frequency: 469.975 MHz; Duty Cycle: 1:1 Medium parameters used: f = 450 MHz; σ = 0.86 mho/m; ε r = 43.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(7.31, 7.31, 7.31); Calibrated: 8/28/2007 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 11/22/2006 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Post processing SW: SEMCAD, V1.8 Build 161 Face position 2.5cm separation to flat phantom/Area Scan (51x101x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 4.51 mW/g Face position 2.5cm separation to flat phantom/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m Reference Value = 69.8 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 6.01 W/kg SAR (1 g) = 4.46 mW/g; SAR (10 g) = 3.32 mW/g Maximum value of SAR (measured) = 4.49 mW/g 0 dB = 4.49 mW/g Plot # 1 Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 54 of 62 EUT Face 2.5cm separation to flat phantom (Middle Channel) Headline Systems; Type: HL-1521; Serial Number: B1301 Communication System: CW; Frequency: 450.023 MHz; Duty Cycle: 1:1 Medium parameters used: f = 450 MHz; σ = 0.86 mho/m; ε r = 43.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(7.31, 7.31, 7.31); Calibrated: 8/28/2007 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 11/22/2006 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Face position 2.5cm separation to flat phantom/Area Scan (51x101x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 4.76 mW/g Face position 2.5cm separation to flat phantom/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 71.1 V/m; Power Drift = 0.003 dB Peak SAR (extrapolated) = 6.07 W/kg SAR(1 g) = 4.53 mW/g; SAR(10 g) = 3.46 mW/g Maximum value of SAR (measured) = 4.72 mW/g 0 dB = 4.72 mW/g Plot#2 Headline Systems, INC Model: HL-1521 Report No.: R0708102-SAR SAR Evaluation Report Page 55 of 62 EUT Face 2.5cm separation to flat phantom (Low Channel) Headline Systems; Type: HL-1521; Serial Number: B1301 Communication System: CW; Frequency: 430.025 MHz; Duty Cycle: 1:1 Medium parameters used: f = 450 MHz; σ = 0.86 mho/m; ε r = 43.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(7.31, 7.31, 7.31); Calibrated: 8/28/2007 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 11/22/2006 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Post processing SW: SEMCAD, V1.8 Build 161 Back touching flat phantom with belt clip and headset/Area Scan (51x101x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 4.77 mW/g Face posi…

Text truncated - open the document above for the full version.

Headline Systems, INC FCC ID: U5IHL-1521 Report No.: R0708102 Page 34 of 41 FCC PART 22, 74, 90 Report EXHIBIT B - TEST SETUP PHOTOGRAPHS Radiated Emission – Front View Radiated Emission – Rear View
