U6CCAMOS-BH200MBLUETOOTH ADAPTER

Version 1.0 Printed in Korea www.motosonicusa.com 2830 N. Ontario Street, Burbank, CA 91504 tel. 818 526 7771 fax. 818 526 7766 Thank you for purchasing the Motosonic Bluetooth adaptor. The manufacturer does not take any responsibility on the sales of products nor entrust the responsibility to a 3rd party. Product warranty shall not apply to any failure or mal- function which results from improper maintenance, operation, or unauthorized modification of products. Furthermore, the warranty does not apply to parts replaced without the manufacturer's consent. Motosonic provides a one year limited warranty. Costs to repair may be charged to the consumer while the product is still under warranty if the product is returned due to the following reasons : 1. Improper maintenance 2. Modification or replacement of parts in a user's disposition. 3. Using improper power source 4. Natural disaster including flood, fire and earthquake 5. Replacement of expendable parts. Warranty only covers the original manufactured parts. Costs for repairs after the warranty period is over will be charged to the consumer. Please contact the distributor or after sales service center. BLUETOOTH STEREO & MONO DONGLE CONTENTS Safeguard Instructions Safeguard Instructions PRELIMINARY REMARKS Preparation Composition Name and function of each part Button operating time and state Operation Audio device Mobile phone Wireless communication device Mobile phone in concurrence with music play Appendix Battery charging and standard use time Specification and features .........................................................................................4 ..........................................................................................................8 ........................................................................9 .......................................................................10 .........................................................................................................12 .......................................................................................................13 ........................................................................14 ................................................15 ..........................................................17 ..................................................................................18 Please read the “Safeguard Instructions” carefully before using this product. Following these instructions prevents users from possible damage that may relate to the misuse of this product. It is very important to follow these instructions. We state “Caution” and “Warning” to clarify any potential for damage associated with misuse of the product. May cause bodily harm or even death if users ignore warnings in the safe- guard instructions. DO NOT PRECAUTION MUST FOLLOW DIRECTIONS ABOUT SIGN WARNING BLUETOOTH STEREO / MONO DONGLE SAFEGUARD INSTRUCTIONS SAFEGUARD INSTRUCTIONS Check the service voltage(DC IN 5V) before connecting the power. - It may cause fire, electric shock and or other damage. WARNING 45 May cause bodily harm or even death if users ignore cautions in the safe- guard instructions. CAUTION Use in regular temperature and humidity. - It may cause explosion and fire. Do not put the battery in fire, heat, or short circuit. - It may cause explosion and fire. Do not disassemble, repair or modify if you are not an authorized service person. - It may cause harm and damage. Please inquire to distributor. Do not use water, a thinner or a solvent to clean the product. - It may cause damage and fire. Do not operate with wet hands or get the product wet. - It may cause damage and electric shock. Do not put metallic materials such as pins and needles in the hole and between the cracks of the product. - In case of fire, stop using immediately. It may cause fire, electric shock and damage. Do not use if you see or smell smoke coming from the product. - This may be a fire hazard. Please contact your distributor. Do not replace built-in battery at user's discretion. - It may cause an explosion. Please replace the product or use the same battery type. Unplug the cord before handling the product. - It may cause electric shock. Keep the product unplugged when not in use. - It may cause fire and electric shock from overheating. Use a dry cloth when you clean an exterior of the product. - Wetting the product may cause electric shock. Do not disconnect the product while still in use. - Disconnect the product safely after powering off. Unplug the product and remove cords before use. - It may cause damage to cords, fire, and (or) electric shock. Do not throw the product. - It may cause defect and damage. Do not pull from the cord line when you unplug it. - It may cause cord defect. Do not put the product in an unstable place where the product may be exposed to shock and (or) impact. - The product may fall and get damaged. Do not place the product in extremely high temperatures and in the direct ray of sunlight for an extended period of time. - It may cause extensive damage to the product. PREPARATION 67 BLUETOOTH STEREO / MONO DONGLE SAFEGUARD INSTRUCTIONS CAUTION 1 2 89 BLUETOOTH STEREO / MONO DONGLEBLUETOOTH STEREO & MONO DONGLE MO ST LED POWER, PAIRING(P) KEY STEREO/MONO SWITCH CHARGER PORT(USB) RESET EARPHONE PORT BH-200M Bluetooth Dongle Audio CableMobile Cable RX/TX Cable PTT Button USB Charger Instruction Manual BH-200M 블루투스 스테레오&모노 동글 BLUETOOTH STEREO&MONO DONGLE COMPOSITIONNAME and FUNCTION of EACH PART * BF adaptor(BM-200M) is only for Motosonic product, BHS-700D Headset. Connection to non-compatible devices may cause mal-function. 3 1011 BLUETOOTH STEREO / MONO DONGLE BUTTON OPERATING TIME and STATE MODEOPERATION LED STATUS Power ON Power OFF Pairing Connected Stand-BY Press [(P)KEY] for 3 sec. Press [(P)KEY] for 3 sec. Press [(P)KEY] for 7 sec on power off status. - - Flashing for 2 sec. Flashing 3 times for 1 sec. and Flashing-out. Flashing every 100m…

Text truncated - open the document above for the full version.

#424-9, Chongchon-2dong, Pupyong-ku, Inchon-si, Korea November 22, 2007 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA In re: CAMOS CO., LTD. FCC ID: U6CCAMOS-BH200M Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, CAMOS CO., LTD. hereby requests confidentiality of the Block diagram(Block Diagram_U6CCAMOS-BH200M.pdf), Schematics(Schematic_U6CCAMOS-BH200M.pdf), Parts list(Part List_ U6CCAMOS-BH200M.pdf) and Operational description(Operational Description_ U6CCAMOS- BH200M.pdf). These documents contain detailed system and equipment description and related information about the product which CAMOS CO., LTD. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, CAMOS CO., LTD. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, seung-Jun, Lee Junior Engineer

#424-9, Chongchon-2dong, Pupyong-ku, Inchon-si, Korea November 22, 2007 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA In re: CAMOS CO., LTD. FCC ID: U6CCAMOS-BH200M Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, CAMOS CO., LTD. requests short-term confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos(Test Photo_U6CCAMOS-BH200M.pdf) External photos(Ext Photo_U6CCAMOS-BH200M.pdf) Internal photos(Int Photo_ U6CCAMOS-BH200M.pdf)) User’s manual(User Manual_U6CCAMOS-BH200M.pdf)) These documents contain detailed system and equipment descriptions and related information about the product, which CAMOS CO., LTD. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, CAMOS CO., LTD. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, seung-Jun, Lee Junior Engineer

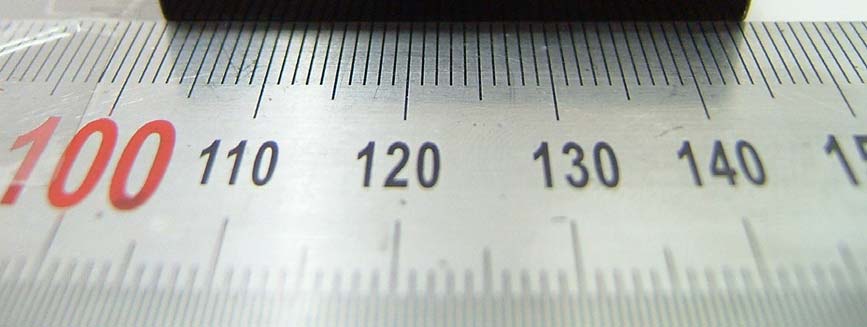

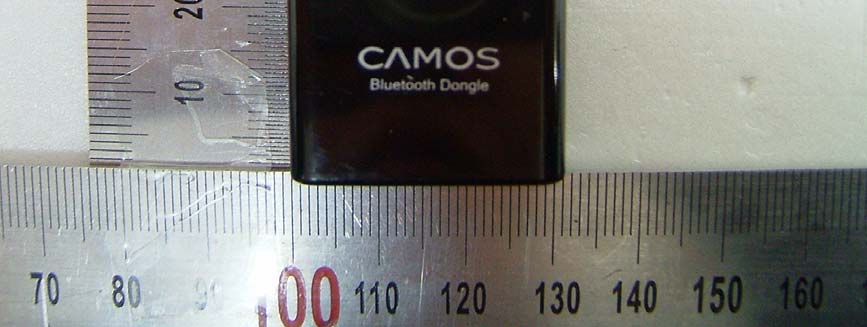

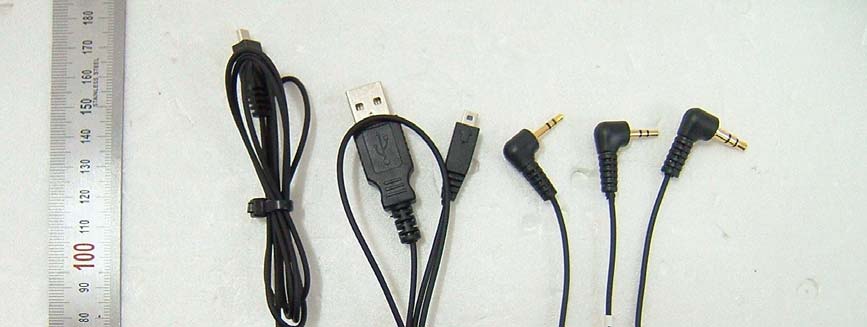

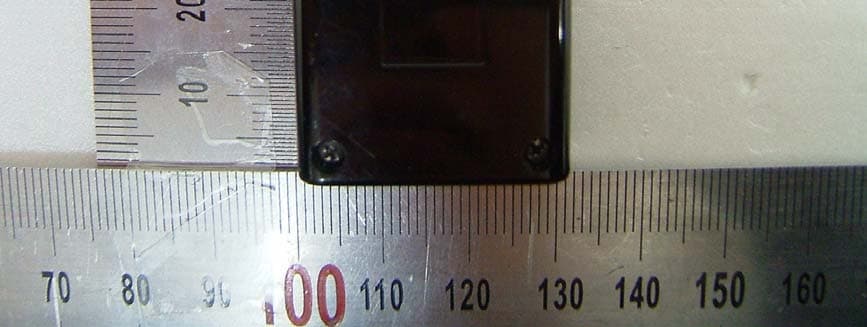

FCCID: U6CCAMOS-BH200M Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 1 FCCID: U6CCAMOS-BH200M Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 2 FCCID: U6CCAMOS-BH200M Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 3 FCCID: U6CCAMOS-BH200M Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 4

FCC ID: U6CCAMOS-BH200M FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase

FCC ID: U6CCAMOS-BH200M Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 1 FCC ID: U6CCAMOS-BH200M Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 2 FCC ID: U6CCAMOS-BH200M Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 3 FCC ID: U6CCAMOS-BH200M Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 4 FCC ID: U6CCAMOS-BH200M Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 5

APPROVAL SHEET Type : Multilayer Chip Antenna Part No. : ALA931C5 Check Consent Approval Written Checked Approved Amotech 200. . AMOTECH Co., Ltd. AMOTECH 2 / 12 Multilayer Chip Antenna Content 1. Revision History ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 3 2. Specifications ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 4 2.1 Electrical Specifications 2.2 Mechanical Specifications 2.3 Index method of Part No. & Lot No. 3. Test Method ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 6 3.1 VSWR 3.2 Radiation Gain 4. Reliability Test ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 7 5. Soldering Recommend ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 8 5.1 Reflow profile for Pb-free 5.2 PCB land pattern 6. Structure and Material ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 9 6.1 Material 6.2 Equivalent symbol 7. Cautions ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 10 8. Packing Method ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 10 8.1 Carrier-tape 8.2 Reel 8.3 Packing box 9. Manufacture & Place ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 12 AMOTECH 3 / 12 Multilayer Chip Antenna 1. Revision Record Date Title Content Remark 2006.12.18 New drawing up AMOTECH 4 / 12 Multilayer Chip Antenna 2. Specifications 2.1 Electrical specifications No Item Spec. Remark 1 Frequency Range 2400~2500 ISM Band 2 VSWR Max. 3.0:1 @3285±45 MHz On manual jig 3 Radiation Gain Max. 0 dBi @azimuth co-pol. Measured after matching on testboard 4 Radiation Pattern Omni-directional 5 Impedance Nominal 50 Ω [VSWR : measured on manual jig] [Radiation Gain : Measured on Ref. Board] AMOTECH 5 / 12 Multilayer Chip Antenna 2.2 Mechanical specifications No Item Spec. Unit W 9.0 ±0.3 D 3.0 ±0.2 1 Dimensions H 1.2 ±0.2 mm 2 Unit Weight 97± 9 mg 3 Operation Temp. -30 ~ +70 °C 4 Storage Temp. -40 ~ +85 °C [Chip Antenna dimension] 2.3 Index method of Part No. & Lot No. ALA 931 C5 Part No. (1) (2) (3) (1) : Amotech Antenna (2) : Chip size (3) : Version & frequency MA 09 A5 0506 01 Lot No. (1) (2) (3) (4) (5) (1) : Mass product Antenna (2) : Chip size (3) : Version & frequency (4) : Y/M (5) : Serial No. of product AMOTECH 6 / 12 Multilayer Chip Antenna 3. Test Method 3.1 VSWR Equipment : Network Analyzer 8753ES [Test procedure] ⓐ Setup as shown picture. ⓑ Calibrate Network Analyzer in frequency range of f 0 ± 400 MHz, verify that the value of return loss(S 11 ) is under -55dB with termination(50ohm) ⓒ After connect a mobile set or manual jig for single chip antenna to Network Analyzer, measure the max. value of VSWR in frequency range of spec. 3.2 Radiation gain Equipment : Anechoic chamber , Network Analyzer 8753ES iMac [Test procedure] ⓐ Calibrate network analyzer and anechoic chamber using reference horn antenna. ⓑ Set-up operation software (frequency, angle step, etc.) ⓒ After connecting AUT on holder, measure radiation gain. AMOTECH 7 / 12 Multilayer Chip Antenna 4. Reliability Test No ITEM TEST CONDITION TEST REQUIREMENTS 1 Adhesive Strength of Termination 1. Applied force on SMD chip till detached point from PCB. F SMD PAD PCB 1. No mechanical damage by forces applied on the right. 2. Strength (F) > 7 kgf 2 Tensile Strength 1. Wire : 0.6~0.8 tined Cu wire F Clamp Wire 1. No mechanical damage by forces applied on the right. 2. Strength (F) > 3 kgf 3 Thermal Shock (Temperature Cycle) 1. 1 cycle / step 1 : -40 ± 3°C, 30 min step 2 : +125 ± 3°C, 30 min 2. Number of cycle : 30 3. Measure after left for 48 hrs min. at room temperature 1. No visual damage 2. Within electric spec (VSWR) 4 High Temperature Resistance 1. Temperature : +125 ± 5°C 2. Time : 1000 ± 24 hrs 3. Measure f C after left for 24 hrs min. at room temperature 1. No visual damage 2. Within electric spec (VSWR) 5 Low Temperature Resistance 1. Temperature : -40 ± 5°C 2. Time : 1000 ± 24 hrs 3. Measure f C after left for 48 hrs min. at room temperature 1. No visual damage 2. Within electric spec (VSWR) 6 Humidity (Steady Condition) 1. Humidity : 85 % RH 1. Temperature : +85 ± 3°C 2. Time : 1000 ± 24 hrs 3. Measure f C after left for 48 hrs min. at room temperature 1. No visual damage 2. Within electric spec (VSWR) AMOTECH 8 / 12 Multilayer Chip Antenna 5. Soldering Recommend 5.1 Reflow profile for Pb-free This product is designed for reflow soldering only. Do not use flow (wave) soldering. ① Use non-activated flux (Cl content 0.2% max.) ② Follow the recommended soldering conditions to avoid damage. ③ Reflow-cycle is max. 3 times. 5.2 PCB land pattern 10.2 1.3 3.2 7.6 (unit : mm) AMOTECH 9 / 12 Multilayer Chip Antenna 6. Structure and Material 6.1 Material No Part Function Material 1 External Electrode Soldering, Feeding Ag/Ni/Sn 2 Direction Index Feeding Index Ceramic 3 Ceramic Body - Ceramic 4 Text Part No. Index Ceramic 5 External Electrode Soldering Ag/Ni/Sn 6.2 Equivalent symbol AMOTECH 10 / 12 Multilayer Chip Antenna 7. Cautions ① Storage environment must be at ambient temperature of 15~35°C and ambient humidity of 45~75 % RH. (MSL Level 2) ② Chip antenna can experience degradation of termination solder ability when subjected to high temperature of humidity, or if exposed to sulfur or chlorine gases. ③ Avoid mechanical shock (ex. falling) to the chip antenna to prevent mechanical cracking inside of the ceramic dielectric due to its own weight. 8. Packing Method 8.1 Carrier-tape 8.2 Reel item DIA WIDTH CORE DIA HOLE dimension(mm) 180.0 ± 0.3 17.0 ± 0.3 60.0 ± 1 13.0 ± 0.5 DIA WIDTH CORE DIA HOLE AMOTECH 11 / 12 Multilayer Chip Antenna 8.3 Packing box 8.3.1 Small box Size : 185 (W) x 185 (D) x 68 (H) (mm) Q’TY : 3 reel (1,000 ea/reel × 3 reel = 3,000 ea) 8.3.2 Middle box Size : 365 (W) x 200 (D) x 200 (H) (mm) Q’TY : 5 small box(3,000 ea/small box × 5 small box＝ 15,000 ea) 8.3.3 Large box Size : 390 (W) x 390 (D) x 280 (H) (mm) Q’TY : 14 small box(3,000 ea/ small box ×14 small box ＝42,000 ea) AMOTECH 12 / 12 Multilayer Chip Antenna 9. Manufacture and Place 9.1 Manufacture Amotech Co., Ltd 9.2 Place 5B 1L, Namdong Indu…

Text truncated - open the document above for the full version.

DEMC#DR50110711Q Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 1 of 39 DIGITAL EMC CO., LTD. 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATION OF COMPLIANCE CAMOS CO., LTD. #424-9, Chongchon-2dong, Pupyong-ku, Inchon-si, Korea Dates of Tests: November 19 ~ 22, 2007 Test Report S/N: DR50110711Q Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification : Frequency Hopping Spread Spectrum (FHSS) Device name : Bluetooth Adaptor Stereo & Mono Manufacturer : CAMOS CO., LTD. FCC ID : U6CCAMOS-BH200M Model name : BH-200M Test Device Serial number : Identical prototype FCC Rule Part(s) : FCC Part 15.247 Subpart C ANSI C-63.4-2003 Frequency Range : 2402 ~ 2480 MHz Max. Output power : -4.44dBm Conducted Data of issue : November 23, 2007 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. U6CCAMOS-BH200M CAMOS CO., LTD. DEMC#DR50110711Q Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 2 of 39 TABLE OF CONTENTS 1. GENERAL INFORMATION -------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TRANSMITTER REQUIREMENTS --------------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 PEAK OUTPUT POWER ----------------------------------------------------------------------- 3.2.6 CONDUCTED SPURIOUS EMISSIONS ---------------------------------------------------- 3.2.7 RADIATED EMISSIONS --------------------------------------------------------------------------- 3.2.8 AC LINE CONDUCTED EMISSIONS ------------------------------------------------------- APPENDIX TEST EQUIPMENT FOR TESTS -------------------------------------------------------- 3 4 5 5 6 6 8 11 14 18 21 28 34 37 DEMC#DR50110711Q Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 3 of 39 1. General information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competent of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer November 23, 2007 Dong -Chul CHA Data Name Signature Report Reviewed By: manager November 23, 2007 Harvay Sung Data Name Signature Ordering party: Company name : CAMOS CO., LTD. Address : #424-9, Chongchon-2dong, Pupyong-ku City/town : Inchon-si Country : Korea Date of order : November 8, 2007 DEMC#DR50110711Q Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 4 of 39 2. Information about test item U6CCAMOS-BH200M 2.1 Equipment information Equipment model no. BH-200M Equipment serial no. Identical prototype Type of equipment Bluetooth Adaptor Stereo & Mono Frequency band 2402 ~ 2480 MHz Type of Modulation GFSK Channel Access Protocol Frequency Hopping Channel Spacing 1.0 MHz Type of antenna Chip Antenna 2.2 Tested frequency Frequency TX RX Low frequency 2402MHz 2402MHz Middle frequency 2441MHz 2441MHz High frequency 2480MHz 2480MHz 2.3 Tested environment Temperature : 15 ~ 35 ( o C) Relative humidity content : 20 ~ 75 % Air pressure : 86 ~ 103 kPa Details of power supply : 3.7 V DC 2.4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer - - - - - - - - 2.5 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing -> None DEMC#DR50110711Q Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 5 of 39 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit (Using in 2400 ~ 2483.5MHz) Test Condition Status (note 1) I. Test Items 15.247(a) Carrier Frequency Separation >= 20dB BW or >= Two- Thirds of the 20dB BW Conducted C Number of Hopping Frequencies >= 15 hops C 20 dB Bandwidth None C Dwell Time 0.4 seconds within a 30 second period per any frequency C 15.247(b) Transmitter Output Power =< 1Watt , if CHs >= 75 Others =<0.125W C 15.247(c) Band-edge /Conducted The radiated emission to any 100 kHz of outband shall be at least 20dB below the highest inband spectral density. C Conducted Spurious Emissions C 15.205 15.209 Radiated Emissions FCC 15.209 Limits Radiated C 15.207 AC Conducted Emissions EN 55022 AC Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 DEMC#DR50110711Q Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 6 of 39 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. After the trace being stable, the reading value between the peaks of the adjacent channels using the marker-delta function was recorded as the measurement results. The spectrum analyzer is set to: Span = 3 MHz (wide enough to capture the peaks of two adjacent channels) …

Text truncated - open the document above for the full version.

FCC ID: U6CCAMOS-BH200M Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 1 FCC ID: U6CCAMOS-BH200M Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 2
