U6CCAMOS-BHS600MOTORCYCLE BLUETOOTH SYSTEM

INSTRUCTION MANUAL Printed in Korea Ver. 1.0 BHS-600 / BHS-500 INSTRUCTION MANUAL MOTORCYCLE BLUETOOTH SYSTEM Thank you for purchasing our product. This manual is for BHS-600 / BHS-500. Please read this instruction manual thoroughly for proper usages and application before connecting and operating the equipment. CAMOS owns all intellectual property rights including copyrights instruction manual, hardware and related software of BHS-600 / BHS-500 which will be protected by the Copyright Act. Without CAMOS's written permission, they cannot be copied, re-printed or translated into other languages. Design and specifications are subject to change with notice. Manufacture would not take any responsibilities on the sales of products nor entrust the responsibilities to the 3rd party. Product warranty shall not apply to any failure or malfunction which results from improper maintenance, operation, unauthorized modification of product. CAMOS warrants the quality of product for a one year. Though the product is still under warranty period, repairing of products results from any of the following events; Warranty only covers the manufactured goods. Repairs after warranty period is finished, repairs will be charged to the users. Please contact the distributor and service center for A/S. 1) Improper maintenance 2) Modification or replace of parts in the user's disposition 3) Using improper power source 4) Natural disaster including flood, fire, and earthquake 5) Replacement of expendable parts Preliminary Remarks Warranty 3 CONTENTS Composition Headset charge Product function check Name and function of each part KEY operating time and beep operating state Headset mounting and dismounting Headset custody ......................................................................6 ..................................................................6 ........................................................7 ............................................8 ...........................9 .......................................9 .................................................................9 PREPARATION Headset power ON/OFF Volume UP/DOWN Headset registration and connection method Function directions _To answer the phone _To call _To listen to music _To talk _To talk between music playing _To speak over the telephone between music playing _To speak over the telephone between conversation ......................................................10 .............................................................10 ..........................10 ......................................................12 .........................................................................12 ...........................................................13 .........................................................................13 ..........................................14 ..............14 ..............15 OPERATION Battery charging and standard use time Specification and feature FAQ .................................16 ....................................................16 ................................................................................16 APPENDIX Safety rules .......................................................................4 SAFETY RULES Please read the “Safety Rules” carefully before using this product. Following of the safety rules prevents users from any damage related with the misuse of this product. It is very important that users follow these safety rules. We state “Caution” and “Warning” to clarify any potential for damage associated with misuse of the product. May cause bodily harm or even death if users ignore warnings in the safety rules. Warning About signs “Precautions” “Do Not” “Follow Directions Carefully” SAFETY RULES May cause bodily harm or even death if users ignore cautions in the safety rules. Caution Place the product where it doesn’t prevent the driver from driving. - The driver’s view of sight should not be blocked. Do not use unapproved power voltage. - This may cause fire or electric shock. Do not use in bathtub. Do not pull the plug with wet hands. - This may cause electric shock. Do not get product wet and operate with wet hands. - This may cause electric shock. Do not use damaged electric cord. - This may cause fire and(or) electric shock. Be careful when thunder and lightening occurs. - There is a danger of electric shock. Do not attempt to open, disassemble or repair the product by any person except an authorized service dealer. - This may cause electric shock and(or) malfunction. You should request an authorized service dealer for any inspection and repair of the product. Do not put pins or needles into the product or electric cord of product. - If this happens, stop the product operation immediately. Continuous use may cause fire, electric shock and(or) malfunction. Do not get product wet and operate with wet hands. - This may cause electric shock. SAFETY RULES Stop using the product immediately when you drop it or damage the outside shell. - Continuous use may cause fire, electric shock and(or) malfunction. Warning Caution Do not put the product in place where sudden temperature increase occurs such as the vehicle’s dashboard. If you find any strange occurrences or malfunction in the product or any foreign substance gets into the product, please contact the authorized retailer where you purchased the product. Do not use the product in the following locations. In direct rays of the sun and near heating products High in humidity and with bad ventilation Dusty or oily locations Low temperatures Unstable environment - This may cause malfunction. Keep the product strongly in the helmet. - It may cause to separate from the helmet. Clean the product often. - Dust in the area may cause fire. Do not place elctric cord near a heating product. - The cord surface may melt and cause fire and(or) electric shock. Unplug the product and remove cords when moving. - It may damage cords and cause fire a…

Text truncated - open the document above for the full version.

#424-9, Chongchon-2dong, Pupyong-ku, Inchon-si, Korea March 14, 2007 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA In re: CAMOS CO., LTD. FCC ID: U6CCAMOS-BHS600 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, CAMOS CO., LTD. hereby requests confidentiality of the Block diagram(Block Diagram_U6CCAMOS-BHS600.pdf), Schematics(Schematic_U6CCAMOS-BHS600.pdf), Parts list(Part List_ U6CCAMOS-BHS600.pdf) and Operational description(Operational Description_ U6CCAMOS- BHS600.pdf). These documents contain detailed system and equipment description and related information about the product which CAMOS CO., LTD. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, CAMOS CO., LTD. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Sung-Gon, Kim Manager

#424-9, Chongchon-2dong, Pupyong-ku, Inchon-si, Korea March 14, 2007 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA In re: CAMOS CO., LTD. FCC ID: U6CCAMOS-BHS600 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, CAMOS CO., LTD. requests short-term confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos(Test Photo_U6CCAMOS-BHS600.pdf) External photos(Ext Photo_U6CCAMOS-BHS600.pdf) Internal photos(Int Photo_ U6CCAMOS-BHS600.pdf)) User’s manual(User Manual_U6CCAMOS-BHS600.pdf)) These documents contain detailed system and equipment descriptions and related information about the product, which CAMOS CO., LTD.considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, CAMOS CO., LTD. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Sung-Gon, Kim Manager

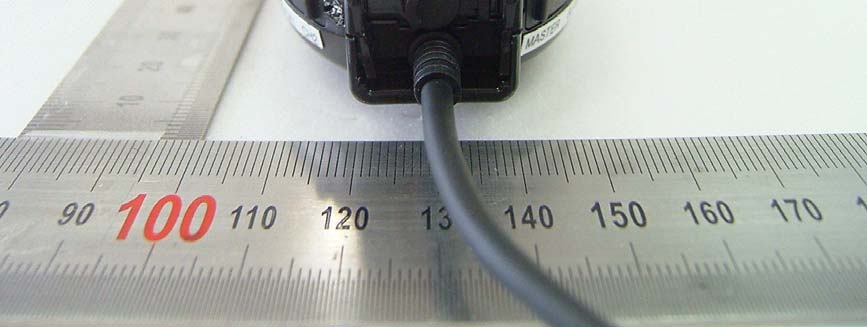

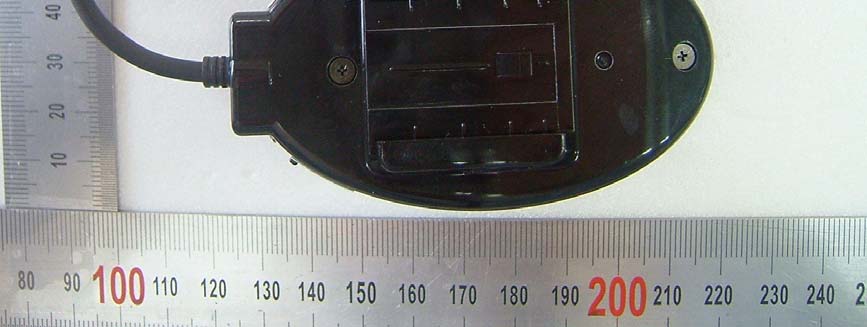

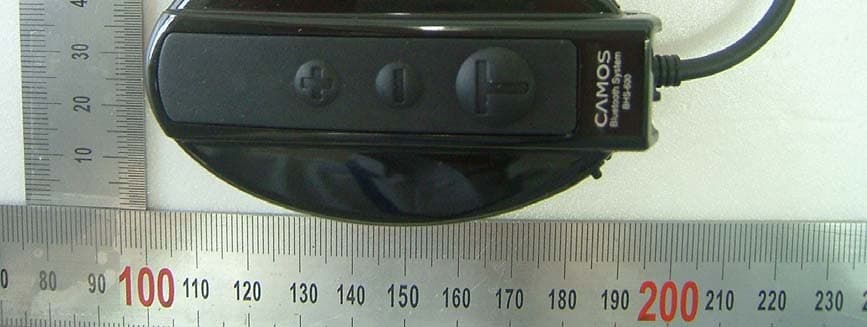

FCCID: U6CCAMOS-BHS600 Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 1 FCCID: U6CCAMOS-BHS600 Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 2 FCCID: U6CCAMOS-BHS600 Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 3 FCCID: U6CCAMOS-BHS600 Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 4

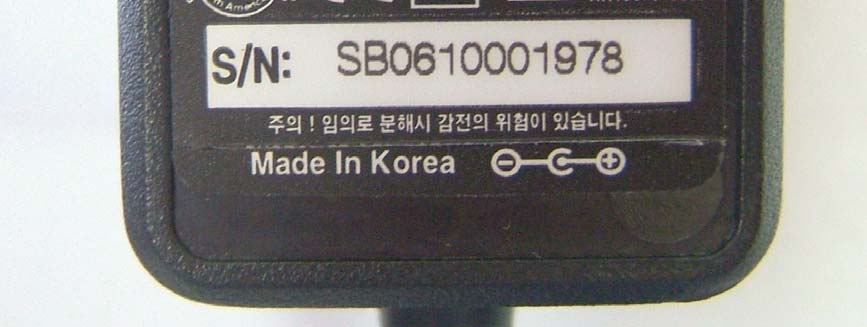

FCC ID: U6CCAMOS-BHS600 FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase

FCC ID: U6CCAMOS-BHS600 Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 1 FCC ID: U6CCAMOS-BHS600 Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 2 FCC ID: U6CCAMOS-BHS600 Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 3 FCC ID: U6CCAMOS-BHS600 Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 4 FCC ID: U6CCAMOS-BHS600 Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 5 FCC ID: U6CCAMOS-BHS600 Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 6

製 品 規 格 承 認 願 Qualification of Products Approval To : (주)피에스티 製 品 名 Bluetooth Antenna Product 型 名 ALA 931C5 Type 申 請 日 2007. 03. 16 Date SEJONG TRONICS CO.,LTD Rm. 1216 Korea-Business 1338-21 Seocho-dong, Seocho-gu, SEOUL, KOREA TEL : 82)2-586-6012 FAX : 82)2-586-6082 APPROVAL SHEET Type : Multilayer Chip Antenna Part No. : ALA931C5 Check Consent Approval Written Checked Approved Amotech 200. . AMOTECH Co., Ltd. AMOTECH 2 / 12 Multilayer Chip Antenna Content 1. Revision History ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 3 2. Specifications ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 4 2.1 Electrical Specifications 2.2 Mechanical Specifications 2.3 Index method of Part No. & Lot No. 3. Test Method ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 6 3.1 VSWR 3.2 Radiation Gain 4. Reliability Test ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 7 5. Soldering Recommend ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 8 5.1 Reflow profile for Pb-free 5.2 PCB land pattern 6. Structure and Material ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 9 6.1 Material 6.2 Equivalent symbol 7. Cautions ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 10 8. Packing Method ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 10 8.1 Carrier-tape 8.2 Reel 8.3 Packing box 9. Manufacture & Place ●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●● 12 AMOTECH 3 / 12 Multilayer Chip Antenna 1. Revision Record Date Title Content Remark 2006.12.18 New drawing up AMOTECH 4 / 12 Multilayer Chip Antenna 2. Specifications 2.1 Electrical specifications No Item Spec. Remark 1 Frequency Range 2400~2500 ISM Band 2 VSWR Max. 3.0:1 @3285±45 MHz On manual jig 3 Radiation Gain Max. 0 dBi @azimuth co-pol. Measured after matching on testboard 4 Radiation Pattern Omni-directional 5 Impedance Nominal 50 Ω [VSWR : measured on manual jig] [Radiation Gain : Measured on Ref. Board] AMOTECH 5 / 12 Multilayer Chip Antenna 2.2 Mechanical specifications No Item Spec. Unit W 9.0 ±0.3 D 3.0 ±0.2 1 Dimensions H 1.2 ±0.2 mm 2 Unit Weight 97± 9 mg 3 Operation Temp. -30 ~ +70 °C 4 Storage Temp. -40 ~ +85 °C [Chip Antenna dimension] 2.3 Index method of Part No. & Lot No. ALA 931 C5 Part No. (1) (2) (3) (1) : Amotech Antenna (2) : Chip size (3) : Version & frequency MA 09 A5 0506 01 Lot No. (1) (2) (3) (4) (5) (1) : Mass product Antenna (2) : Chip size (3) : Version & frequency (4) : Y/M (5) : Serial No. of product AMOTECH 6 / 12 Multilayer Chip Antenna 3. Test Method 3.1 VSWR Equipment : Network Analyzer 8753ES [Test procedure] ⓐ Setup as shown picture. ⓑ Calibrate Network Analyzer in frequency range of f 0 ± 400 MHz, verify that the value of return loss(S 11 ) is under -55dB with termination(50ohm) ⓒ After connect a mobile set or manual jig for single chip antenna to Network Analyzer, measure the max. value of VSWR in frequency range of spec. 3.2 Radiation gain Equipment : Anechoic chamber , Network Analyzer 8753ES iMac [Test procedure] ⓐ Calibrate network analyzer and anechoic chamber using reference horn antenna. ⓑ Set-up operation software (frequency, angle step, etc.) ⓒ After connecting AUT on holder, measure radiation gain. AMOTECH 7 / 12 Multilayer Chip Antenna 4. Reliability Test No ITEM TEST CONDITION TEST REQUIREMENTS 1 Adhesive Strength of Termination 1. Applied force on SMD chip till detached point from PCB. F SMD PAD PCB 1. No mechanical damage by forces applied on the right. 2. Strength (F) > 7 kgf 2 Tensile Strength 1. Wire : 0.6~0.8 tined Cu wire F Clamp Wire 1. No mechanical damage by forces applied on the right. 2. Strength (F) > 3 kgf 3 Thermal Shock (Temperature Cycle) 1. 1 cycle / step 1 : -40 ± 3°C, 30 min step 2 : +125 ± 3°C, 30 min 2. Number of cycle : 30 3. Measure after left for 48 hrs min. at room temperature 1. No visual damage 2. Within electric spec (VSWR) 4 High Temperature Resistance 1. Temperature : +125 ± 5°C 2. Time : 1000 ± 24 hrs 3. Measure f C after left for 24 hrs min. at room temperature 1. No visual damage 2. Within electric spec (VSWR) 5 Low Temperature Resistance 1. Temperature : -40 ± 5°C 2. Time : 1000 ± 24 hrs 3. Measure f C after left for 48 hrs min. at room temperature 1. No visual damage 2. Within electric spec (VSWR) 6 Humidity (Steady Condition) 1. Humidity : 85 % RH 1. Temperature : +85 ± 3°C 2. Time : 1000 ± 24 hrs 3. Measure f C after left for 48 hrs min. at room temperature 1. No visual damage 2. Within electric spec (VSWR) AMOTECH 8 / 12 Multilayer Chip Antenna 5. Soldering Recommend 5.1 Reflow profile for Pb-free This product is designed for reflow soldering only. Do not use flow (wave) soldering. ① Use non-activated flux (Cl content 0.2% max.) ② Follow the recommended soldering conditions to avoid damage. ③ Reflow-cycle is max. 3 times. 5.2 PCB land pattern 10.2 1.3 3.2 7.6 (unit : mm) AMOTECH 9 / 12 Multilayer Chip Antenna 6. Structure and Material 6.1 Material No Part Function Material 1 External Electrode Soldering, Feeding Ag/Ni/Sn 2 Direction Index Feeding Index Ceramic 3 Ceramic Body - Ceramic 4 Text Part No. Index Ceramic 5 External Electrode Soldering Ag/Ni/Sn 6.2 Equivalent symbol AMOTECH 10 / 12 Multilayer Chip Antenna 7. Cautions ① Storage environment must be at ambient temperature of 15~35°C and ambient humidity of 45~75 % RH. (MSL Level 2) ② Chip antenna can experience degradation of termination solder ability when subjected to high temperature of humidity, or if exposed to sulfur or chlorine gases. ③ Avoid mechanical shock (ex. falling) to the chip antenna to prevent mechanical cracking inside of the ceramic dielectric due to its own weight. 8. Packing Method 8.1 Carrier-tape 8.2 Reel item DIA WIDTH CORE DIA HOLE dimension(mm) 180.0 ± 0.3 17.0 ± 0.3 60.0 ± 1 13.0 ± 0.5 DIA WIDTH CORE DIA HOLE AMOTECH 11 / 12 Multilayer Chip Antenna 8.3 Packing box 8.3.1 Small box Size : 185 (W) x 185 (D) x 68 (H) (mm) Q’TY : 3 reel (1,000 ea/reel × 3 reel = 3,000 ea) 8.3.2 Middle box Size : 365 (W) x 200 (D) x 200 (H) (mm) Q’TY : 5 small box(3,000 ea/small box × 5 s…

Text truncated - open the document above for the full version.

DEMC#DR50110704E Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 1 of 70 DIGITAL EMC CO., LTD. 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATION OF COMPLIANCE CAMOS CO., LTD. #424-9, Chongchon-2dong, Pupyong-ku, Inchon-si, Korea Dates of Tests: March 29 ~ April 6, 2007 Test Report S/N: DR50110704E Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification : Frequency Hopping Spread Spectrum (FHSS) Device name : Motorcycle Bluetooth System Manufacturer : CAMOS CO., LTD. FCC ID : U6CCAMOS-BHS600 Model name : BHS-600 Test Device Serial number : Identical prototype FCC Rule Part(s) : FCC Part 15.247 Subpart C ANSI C-63.4-2003 Frequency Range : 2402 ~ 2480 MHz Max. Output power : M1 Port : 2.73dBm Conducted M2 Port : 0.47dBm Conducted Data of issue : April 10, 2007 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. U6CCAMOS-BHS600 CAMOS CO., LTD. DEMC#DR50110704E Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 2 of 70 TABLE OF CONTENTS 1. GENERAL INFORMATION -------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TRANSMITTER REQUIREMENTS --------------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 PEAK OUTPUT POWER ----------------------------------------------------------------------- 3.2.6 CONDUCTED SPURIOUS EMISSIONS ---------------------------------------------------- 3.2.7 RADIATED EMISSIONS --------------------------------------------------------------------------- 3.2.8 AC LINE CONDUCTED EMISSIONS ------------------------------------------------------- APPENDIX TEST EQUIPMENT FOR TESTS -------------------------------------------------------- 3 4 5 5 6 6 8 13 18 22 27 40 59 68 DEMC#DR50110704E Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 3 of 70 1. General information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competent of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer April 10,2007 Won-Jung LEE Data Name Signature Report Reviewed By: manager April 10,2007 Harvay Sung Data Name Signature Ordering party: Company name : CAMOS CO., LTD. Address : #424-9, Chongchon-2dong, Pupyong-ku City/town : Inchon-si Country : Korea Zip code : 403-858 Date of order : March 14, 2007 DEMC#DR50110704E Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 4 of 70 2. Information about test item U6CCAMOS-BHS600 2.1 Equipment information Equipment model no. BHS-600 Equipment serial no. Identical prototype Type of equipment Bluetooth Headset Frequency band 2402 ~ 2480 MHz Type of Modulation GFSK Channel Access Protocol Frequency Hopping Channel Spacing 1.0 MHz Type of antenna Chip Antenna Note1. This Device has two same Bluetooth Modules which can be simultaneous operation. (M1 and M2) 2.2 Tested frequency Frequency TX RX Low frequency 2402MHz 2402MHz Middle frequency 2441MHz 2441MHz High frequency 2480MHz 2480MHz 2.3 Tested environment Temperature : 15 ~ 35 ( o C) Relative humidity content : 20 ~ 75 % Air pressure : 86 ~ 103 kPa Details of power supply : 5.0 VDC 2.4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Adaptor SP0507A SB0610001978 Seung Bo ElecomCo., Ltd 2.5 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing -> None DEMC#DR50110704E Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 5 of 70 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) I. Test Items Carrier Frequency Separation > 25 kHz C Number of Hopping Frequencies > 75 hops C 20 dB Bandwidth < 1 MHz C 15.247(a) Dwell Time 0.4 seconds within a 30 second period per any frequency C 15.247(b) Transmitter Output Power < 1Watt C Band-edge /Conducted C 15.247(c) Conducted Spurious Emissions The radiated emission to any 100 kHz of outband shall be at least 20dB below the highest inband spectral density. Conducted C 15.205 15.209 Radiated Emissions FCC 15.209 Limits Radiated C 15.207 AC Conducted Emissions EN 55022 AC Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 DEMC#DR50110704E Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 6 of 70 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. After the trace being stable, the reading value between the peaks of the adjacent channels using the marker-delta function was recorded as the measurement results. The spectrum analyzer is set to: Span =…
