U6IH3CEWTO235A22WWIRELESS LAN ACCESS POINT

H3C WA2110-AG Wireless LAN Access Point Quick Start Hangzhou Huawei-3Com Technology Co., Ltd. http://www.huawei-3com.com Manual Version: T2-08226P-20070314-C-1.00 Copyright © 2007, Hangzhou Huawei-3Com Technology Co., Ltd. and its licensors All Rights Reserved No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Hangzhou Huawei-3Com Technology Co., Ltd. Trademarks H3C, Aolynk, , H 3 Care, , TOP G, , IRF, NetPilot, Neocean, NeoVTL, SecPro, SecPoint, SecEngine, SecPath, Comware, Secware, Storware, NQA, VVG, V 2 G, V n G, PSPT, XGbus, N-Bus, TiGem, InnoVision and HUASAN are trademarks of Hangzhou Huawei-3Com Technology Co., Ltd. All other trademarks that may be mentioned in this manual are the property of their respective owners. Notice The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied. To obtain the latest information, please access: http://www.huawei-3com.com Technical Support [email protected] http://www.huawei-3com.com About This Manual Related Documentation In addition to this manual, each WA2110-AG Wireless LAN Access Point documentation set includes the following: Manual Content H3C Wireless Control Manager Operation Manual The manual is a guide for the user to perform the operations correctly. It is organized into the parts of interface, VLAN, system management, wireless configuration, IPv4, IPv6, port configuration, multicast protocol, 802.1X, AAA, SSH, ACL, QoS, as well as acronyms used in the manual. H3C Wireless Control Manager Command Manual The manual gives the user a detailed description of the operating commands. It is organized into the parts of interface, VLAN, system management, wireless configuration, IPv4, IPv6, port configuration, multicast protocol, 802.1X, AAA, SSH, ACL, QoS, as well as a command index. Organization H3C WA2110-AG Wireless LAN Access Point Quick Start is organized as follows: Chapter Contents 1 Product Overview It briefly introduces the applications and the features of the H3C WA2110-AG Wireless LAN Access Point. 2 Installation It briefly introduces the appearance, installation, and troubleshooting of H3C WA2110-AG Wireless LAN Access Point. Conventions The manual uses the following conventions: I. Command conventions Convention Description Boldface The keywords of a command line are in Boldface. italic Command arguments are in italic. [ ] Items (keywords or arguments) in square brackets [ ] are optional. { x | y | ... } Alternative items are grouped in braces and separated by vertical bars. One is selected. [ x | y | ... ] Optional alternative items are grouped in square brackets and separated by vertical bars. One or none is selected. Convention Description { x | y | ... } * Alternative items are grouped in braces and separated by vertical bars. A minimum of one or a maximum of all can be selected. [ x | y | ... ] * Optional alternative items are grouped in square brackets and separated by vertical bars. Many or none can be selected. &<1-n> The argument(s) before the ampersand (&) sign can be entered 1 to n times. # A line starting with the # sign is comments. GUI conventions II. Convention Description < > Button names are inside angle brackets. For example, click <OK>. [ ] Window names, menu items, data table and field names are inside square brackets. For example, pop up the [New User] window. / Multi-level menus are separated by forward slashes. For example, [File/Create/Folder]. Symbols III. Convention Description Warning Means reader be extremely careful. Improper operation may cause bodily injury. Convention Description Caution Means reader be careful. Improper operation may cause data loss or damage to equipment. Note Means a complementary description. Environmental Protection This product has been designed to comply with the requirements on environmental protection. For the proper storage, use and disposal of this product, national laws and regulations must be observed. Quick Start H3C WA2110-AG Wireless LAN Access Point Table of Contents i Table of Contents Chapter 1 Product Overview........................................................1-1 1.1 Introduction to H3C WA2110-AG.......................................1-1 1.2 Technical Specifications....................................................1-1 Chapter 2 Installation....................................................................2-1 2.1 Product Appearance..........................................................2-1 2.2 Safety Precautions.............................................................2-3 2.3 Installation Procedure........................................................2-4 2.3.1 Preparing Installation Tools.....................................2-4 2.3.2 Checking the Device Before Installation.................2-5 2.3.3 Attaching the Antennas...........................................2-5 2.3.4 Mounting the Access Point......................................2-5 2.4 Connecting the Access Point to a Wireless Control Manager2-9 2.5 Troubleshooting...............................................................2-10 Quick Start H3C WA2110-AG Wireless LAN Access Point Chapter 1 Product Overview 1-1 Chapter 1 Product Overview 1.1 Introduction to H3C WA2110-AG Developed by Huawei-3Com Technology Co., Ltd. (Huawei-3Com) independently, the H3C WA2110-AG is a managed wireless LAN access point device. The H3C WA2110-AG is designed for use with a Huawei-3Com wireless control manager, and requires hardware installation only. All configuration for the access point takes place on the Huawei-3Com wireless control manager. Such wireless control managers include: z H3C WX5002 wireless control manager z Switch with the H3C LS8M1WCM128A0 card 1.2 Technical Specifications T…

Text truncated - open the document above for the full version.

Hangzhou H3C Technologies Co., Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: U6IH3CEWT0235A22W To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram (File Name: U6IH3CEWTO235A22W_15.247_BlockDiagram.pdf and U6IH3CEWTO235A22W_15.407_BlockDiagram.pdf) Block Diagram (File Name: U6IH3CEWTO235A22W_15.247_SchematicDiagram.pdf and U6IH3CEWTO235A22W_15.407_SchematicDiagram.pdf) Theory of Operation (File Name: U6IH3CEWTO235A22W_15.247_TheoryofOperation.pdf and U6IH3CEWTO235A22W_15.407_TheoryofOperation.pdf) Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Best Regards Sun Li Regulatory Compliance Manager Hangzhou H3C Technologies Co., Ltd. 2007/3/27 PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

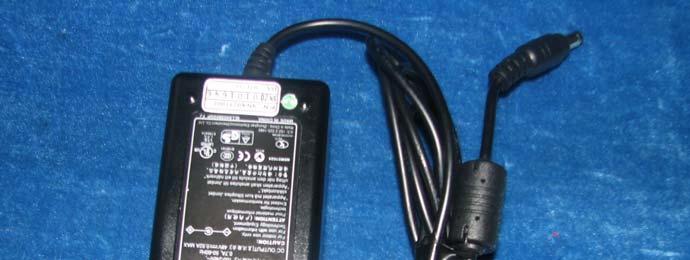

Report No: KS071115A01 Page 1 / 5 EXTERNAL PHOTOGRAPHS OF THE EUT Report No: KS071115A01 Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Report No: KS071115A01 Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Report No: KS071115A01 Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Power adapter Report No: KS071115A01 Page 5 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services.

LABEL LOCATION

Reference No: KS071115A01 INTERNAL PHOTOGRAPHS OF THE EUT Reference No: KS071115A01 Reference No: KS071115A01 Reference No: KS071115A01 Reference No: KS071115A01

APPROVAL SHEET CUSTOMER ： ITEM ： KWBE-2454RD-F DESCRIPTION ： EXTERNAL MONOPOLE ANTENNA CUSTOMER P/NO ： DATE ： 2007. 1. 23 CUSTOMER’ S APPROVED REV NO ; CUIT. MECH. SAFETY EMI CHKD APPD KOSAN I & T Co., Ltd. A P P R O V E D EN’ GR CHKD APPD Approval Date Approval No. DESC KOSAN I & T Co., Ltd. KRD01-00A10-01A www.kosan.co.kr 2 Document No. KAT-0310-EX068P Rev. No. IR Model Name KWBE-2454RD-F Date 2007. 1. 23 Application System W-LAN Customer Notice KOSAN I & T Co., Ltd. R&D Center : 102-103, Bucheon-technopark, 364, Samjung-Dong, Ojung-Gu, Bucheon-city, Kyounggi-Do, Korea Tel : +82-32-621-1666, Fax : +82-32-621-1670 Investigation Verification Approval Im Soo, Shin Approval No. KOSAN Approval Date KOSAN I & T Co., Ltd. KRD01-00A10-01A www.kosan.co.kr 3 - CONTENTS - 1. Revision History (4/36) 2. Parts List (5/36) 3. Electrical & Mechanical Specifications (6/36) 4. Mechanical Drawing (7/36) 5. Measurement Setup (8/36) 5.1 Test Equipments 5.2 Test Equipments Setting 5.3 Calibration 6. Test Procedures (9/36) 6.1 S11 & VSWR 6.2 Gain & Pattern 7. Measurement Data (11/36) 7.1 VSWR 7.2 Gain & Pattern 8. Packing (15/36) 8.1 Tray 8.2 Out Box 9. Control Plan (17/36) 9.1 완제품 Control Plan 10. RoHS (19/36) KOSAN I & T Co., Ltd. KRD01-00A10-01A www.kosan.co.kr 4 Document No. KAT-0310-EX068P Rev. No. IR Model Name KWBE-2454RD-F 1.Revision Hisotry Rev .NO Rev. Date Des . Page History Drafter Remarks IR KOSAN I & T Co., Ltd. KRD01-00A10-01A www.kosan.co.kr 5 Document No. KAT-0310-EX068P Rev. No. IR Model Name KWBE-2454RD-F 2. Part List Document No. KAT-0310-EX068P Rev. No. IR Model Name KWBE-2454RD-F 3. Electrical and Mechanical Specifications Electrical Specifications Frequency Range 2400 ~ 2483.5 MHz 5150 ~ 5875 MHz V.S.W.R 2.5 : 1 (max) 2.5 : 1 (max) Gain (max) 3.5 dBi (max) 3.5 dBi (max) Nominal Impedance 50 ohm Radiation Pattern Omni – Directional Polarization Linear Power Handling 3 watts (max) Matching Circuit N/A Mechanical Specifications Dimensions 65mm x 11Ø Weight 5 g Radiator FR-4 Operating Temp -20 ~ 90 °C Operating Humidity 0 ~ 95 % Option N/A KOSAN I & T Co., Ltd. KRD01-00A10-01A www.kosan.co.kr 7 Document No. KAT-0310-EX068P Rev. No. IR Model Name KWBE-2454RD-F 4. Mechanical Drawing KOSAN I & T Co., Ltd. KRD01-00A10-01A www.kosan.co.kr 8 Document No. KAT-0310-EX068P Rev. No. IR Model Name KWBE-2454RD-F 5. Measurement Setup 5.1. Test Equipments Network Analyzer HP8753ES Calibration Kit HP85033E Adaptor SMA Type Female ↔ SMA male 5.2 Test Equipments Setting Split display On Sweep setup Number of points : 201 Test port power 0 dBm Measure Channel 1 : S11 5.3 Calibration Calibration Cal. Kit : 3.5mmD/E Calibration menu → S11 1-Port Open → Short → Load Done KOSAN I & T Co., Ltd. KRD01-00A10-01A www.kosan.co.kr 9 Document No. KAT-0310-EX068P Rev. No. IR Model Name KWBE-2454RD-F 6. Test Procedures 6.1 VSWR. Step 1. Connect ANT port with cable included adaptor to port1 of network analyzer. Step 2. Point out markers on network analyzer display at 1575.42MHz , 1750MHz, 1780MHz, 1840MHz and 1870 MHz Step 3. Inspect VSWR < 1.9 Step 4. Measurement KOSAN I & T Co., Ltd. KRD01-00A10-01A www.kosan.co.kr 10 Document No. KAT-0310-EX068P Rev. No. IR Model Name KWBE-2454RD-F 6.2 Radiation pattern and Gain Step 1. Calibrate chamber system for gain measurement using stargate 32 sensor. At the same time set up software program for chamber system control. Step 2. Change over from a stargate 32 sensor to measuring antenna on target positioner. Step 3. Start a software program for chamber system control & measuring Step 4. Measurement of H-Plane Document No. KAT-0310-EX068P Rev. No. IR Model Name KWBE-2454RD-F 7. Measurement Data ITEM Spec. Test Result Frequency Range 2400 ~ 2483.5 MHz 5150 ~ 5875 MHz OK V.S.W.R <2.5 <2.5 OK Gain (max) <3.5 dBi <3.5 dBi OK Polarization Linear OK KOSAN I & T Co., Ltd. KRD01-00A10-01A www.kosan.co.kr 12 Document No. KAT-0310-EX068P Rev. No. IR Model Name KWBE-2454RD-F 7.1 S11 & VSWR S11 VSWR Document No. KAT-0310-EX068P Rev. No. IR Model Name KWBE-2454RD-F 7.2 Radiation pattern and Gain - 2GHz Band - Azimuth Pattern_H-Plane(Theta 90 deg.) - Elevation Pattern Document No. KAT-0310-EX068P Rev. No. IR Model Name KWBE-2454RD-F - 5GHz Band - Azimuth Pattern_H-Plane(Theta 90 deg.) - Elevation Pattern

FCC ID : U6IH3CEWTO235A22W Report No.: KS071115A01-RP Measurement of MPE 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 FCC ID : U6IH3CEWTO235A22W Report No.: KS071115A01-RP EUT Specification EUT Wireless access point Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b: 22.40 dBm (173.78mW) IEEE 802.11g: 21.09 dBm (128.53mW) Antenna gain (Max) 3.5dBi (Numeric gain: 2.24) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 22.40dBm (173.78mW) at 2412MHz (with2.24numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. FCC ID : U6IH3CEWTO235A22W Report No.: KS071115A01-RP TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 173.78mW Numeric Antenna gain = 2.24 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.077mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation FCC ID : U6IH3CEWTO235A22W Report No.: KS071115A01-RP indicates that the power density would be larger.)

Reference No.: KS071115A01-RP Report No.: KS071115A01-RP FCC ID : U6IH3CEWTO235A22W Page 1 / 63 FCC TEST REPORT for Wireless LAN Access Point MODEL: H3C WA2110-AG Test Report Number: KS071115A01-RP Issued for Hangzhou H3C Technologies Co., Ltd 310 Liuhe Road, Zhijiang Science Park, Hangzhou 310053, P.R.China Issued by: Compliance Certification Services Inc. Kun shan Laboratory No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, P.R.O.C TEL: 86-512-57355888 FAX: 86-512-57370818 Issued Date: November 16,2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. Reference No.: KS071115A01-RP Report No.: KS071115A01-RP FCC ID : U6IH3CEWTO235A22W Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 November 16,2007 Initial Issue ALL Miro chueh Reference No.: KS071115A01-RP Report No.: KS071115A01-RP FCC ID : U6IH3CEWTO235A22W Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION ................................................................................................. 4 2 TEST RESULT SUMMARY ........................................................................................... 5 3 EUT DESCRIPTION....................................................................................................... 6 4 TEST METHODOLOGY................................................................................................. 7 4.1. DESCRIPTION OF TEST MODES ...................................................................................... 7 5 SETUP OF EQUIPMENT UNDER TEST ....................................................................... 8 5.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 6 FACILITIES AND ACCREDITATIONS .......................................................................... 9 6.1. FACILITIES .......................................................................................................................... 9 6.2. ACCREDITATIONS ............................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY....................................................................................... 9 7 LIMITS AND RESULTS ............................................................................................... 10 7.1. POWER LINE CONDUCTED EMISSIONS MEASUREMENT........................................... 10 7.2. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 15 7.3. 6dB BANDWIDTH MEASUREMENT ................................................................................. 33 7.4. PEAK OUTPUT POWER ................................................................................................... 38 7.5. BAND EDGES MEASUREMENT:...................................................................................... 43 7.6. PEAK POWER SPECTRAL DENSITY MEASUREMENT.................................................. 55 APPENDIX I RADIO FREQUENCY EXPOSURE............................................................ 60 APPENDIX II PHOTOGRAPHS OF THE TEST CONFIGURATION ............................... 62 Reference No.: KS071115A01-RP Report No.: KS071115A01-RP FCC ID : U6IH3CEWTO235A22W Page 5 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 TEST RESULT SUMMARY APPLICABLE STANDARDS Standard Test Type ResultRemark 15.247(a)(2) 6dB Bandwidth Measurement Pass Meet the requirement of limit. 15.247(b)(3) 15.247(b)(4) Peak Power Measurement Pass Meet the requirement of limit. 15.247(d) Band Edges Measurement Pass Meet the requirement of limit. 15.247(e) Peak Power Spectral Density Pass Meet the requirement of limit. 15.247(d) 15.209(a) Spurious Emissions z Conducted Measurement z Radiated Emissions Pass Meet the requirement of limit. 15.207(a) Power line Conducted Emissions Pass Meet the requirement of limit. Note: 1. The test result judgment is decided by the limit of test standard 2. The information of measurement uncertainty is available upon the customer’s request. Reference No.: KS071115A01-RP Report No.: KS071115A01-RP FCC ID : U6IH3CEWTO235A22W Page 6 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 3 EUT DESCRIPTION Product Wireless LAN Access Point Trade Name H3C Model Number H3C WA2110-AG Model Discrepancy All the above models are identical except the model designation for different market. Power Adapter Power Rating Powered from an AC/DC power adapter Model Number:FSP025-1AD207A Input: AC 100-240V, 50-60Hz,0.7A Output: DC 48V, 0.52A DC Power Cable Type Unshielded, 1.5m (Non-Detachable) at Power Adapter with a core Frequency Range 2412 ~ 2462 MHz Transmit Power IEEE 802.11b:22.40dBm IEEE 802.11g:21.09dBm Modulation Technique IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: DSSS (CCK, DQPSK, DBPSK) + OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Transmit Data Rate IEEE 802.11b: 11, 5.5, 2, 1 Mbps IEEE 802.11g: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps Number of Channels IEEE 802.11b , IEEE 802.11g :11 Channels Antenna Specification PIFA antenna with 3.5dBi gain (Max) No…

Text truncated - open the document above for the full version.

Report No: KS071115A01 Page 1 / 2 TEST SETUP PHOTOGRAPHS OF EUT AC POWER LINE CONDUCTED EMISSION TEST Report No: KS071115A01 Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. RADIATED EMISSION TEST Front of view Back of view
