U6IRTV1WAPDWireless Card

1 H3C MSR 20-1X Series Routers Quick Start (V1.00) 1 Product Overview H3C MSR 20-1X series routers, developed by Hangzhou H3C Technologies Co., Ltd., are multifunctional access routers which are oriented to small and medium business (SMB), enterprise branches, and home offices, and are designed to serve high-quality orderwire and commercial networks. MSR 20-1X series routers include the following models. Table 1 MSR 20-1X series routers Model Description H3C MSR 20-10 Four 10/100 Mbps L2 Ethernet ports (LAN) One 10/100 Mbps Ethernet port (WAN) One USB port One console/AUX port H3C MSR 20-11 Four 10/100 Mbps L2 Ethernet ports (LAN) One 10/100 Mbps Ethernet port (WAN) One USB port One Console/AUX port One SA port H3C MSR 20-12 Four 10/100 Mbps L2 Ethernet ports (LAN) One 10/100 Mbps Ethernet port (WAN) One USB port One Console/AUX port One E1/T1 port 2 Model Description H3C MSR 20-13 Four 10/100 Mbps L2 Ethernet ports (LAN) One 10/100 Mbps Ethernet port (WAN) One USB port One console/AUX port One G.SHDSL port One ISDN BRI S/T port H3C MSR 20-15 Four 10/100 Mbps L2 Ethernet ports (LAN) One 10/100 Mbps Ethernet port (WAN) One USB port One console/AUX port One ADSL port One ISDN BRI S/T port or one AM port 2 Connection Figure 1 MSR 20-1X series routers connection diagram 3 3 Related Documentation Table 2 lists the manuals related to MSR 20-1X series routers. You can get them from the delivered CDs or the website at http//:www.h3c.com. Table 2 Related manuals Manual Description H3C MSR 20_30_50 Series Routers User Manual Guides users to operate all low-end and mid-range series routers, explains in detail the operation commands involved, and presents an index to all these operation commands. User Manual consists of Access Volume, IP Service Volume, IP Routing Volume, IP Multicast Volume, MPLS Volume, VPN Volume, QoS Volume, Security Volume, System Volume, IPX Volume, and Voice Volume. H3C MSR 20-1X Series Routers Installation Manual Details the hardware specifications, installation, configuration, maintenance, and troubleshooting of H3C MSR 20-1X Series Routers. H3C MSR 20_30_50 Series Routers Interface Card and Interface Module Manual Introduces the functions, interface properties, panels, LEDs, and connection of interface cables of all involved interface cards and interface modules. Low-End and Mid-Range Series Routers Cable Manual Describes the cables for low-end and mid-range series routers and the cable pinouts. This product has been designed to comply with the requirements on environmental protection. For the proper storage, use and disposal of this product, national laws and regulations must be observed. 4 Technical Support Hangzhou H3C Technologies Co., Ltd. provides customers with comprehensive technical support and service. If you purchase an MSR 20 products from the sales agent of Hangzhou H3C Technologies Co., Ltd., contact our sales agent or technical personnel. Address: 310 Liuhe Road, Zhijiang Science Park, 4 OEM Installation Guide: This device is intended only form OEM integrators under the following conditions: 1) The antenna must be installed such that 20cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. 15.21 Regulatory information: Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. 15.199a)(3) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. 15.105 FCC Reuqirements: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that 5 interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Han…

Text truncated - open the document above for the full version.

1 Quick Start (V1.00) 1 Product Overview Quidway AR19 series routers, developed by Hangzhou H3C Technologies Co., Ltd., are multifunctional access routers which are oriented to small and medium business (SMB), enterprise branches, and home offices, and are designed to serve high-quality orderwire and commercial networks. MSR 20-1X series routers include the following models. Model Description Quidway AR 19-10 Four 10/100 Mbps L2 Ethernet ports (LAN) One 10/100 Mbps Ethernet port (WAN) One USB port One console/AUX port Quidway AR 19-11 Four 10/100 Mbps L2 Ethernet ports (LAN) One 10/100 Mbps Ethernet port (WAN) One USB port One Console/AUX port One SA port Quidway AR 19-12 Four 10/100 Mbps L2 Ethernet ports (LAN) One 10/100 Mbps Ethernet port (WAN) One USB port One Console/AUX port One E1/T1 port 2 Model Description Quidway AR 19-13 Four 10/100 Mbps L2 Ethernet ports (LAN) One 10/100 Mbps Ethernet port (WAN) One USB port One console/AUX port One G.SHDSL port One ISDN BRI S/T port Quidway AR 19-15 Four 10/100 Mbps L2 Ethernet ports (LAN) One 10/100 Mbps Ethernet port (WAN) One USB port One console/AUX port One ADSL port One ISDN BRI S/T port or one AM port 2 Connection Figure 1 Quidway AR 19-1x series routers connection diagram 3 3 Related Documentation Table 1 lists the manuals related to Quidway AR 19-1x series routers. You can get them from the delivered CDs or the website at http//:www.h3c.com. Table 1 Related manuals Manual Description Quidway AR 19-1x Series Routers Installation Manual Details the hardware specifications, installation, configuration, maintenance, and troubleshooting of H3C MSR 20-1X Series Routers. This product has been designed to comply with the requirements on environmental protection. For the proper storage, use and disposal of this product, national laws and regulations must be observed. 4 Technical Support Hangzhou H3C Technologies Co., Ltd. provides customers with comprehensive technical support and service. If you purchase an Quidway AR 19-1x products from the sales agent of Hangzhou H3C Technologies Co., Ltd., contact our sales agent or technical personnel. Address: 310 Liuhe Road, Zhijiang Science Park, Hangzhou, Zhejiang Province, P. R. China Postal Code: 310053 Website: http://www.h3c.com E-mail: [email protected] BOM: 3101A09P OEM Installation Guide: This device is intended only form OEM integrators under the following conditions: 1) The antenna must be installed such that 20cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. 4 15.21 Regulatory information: Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. 15.199a)(3) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. 15.105 FCC Reuqirements: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help.

Hangzhou H3C Technologies Co., Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: U6IRTV1WAPD To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Best Regards Regulatory Compliance Manager Hangzhou H3C Technologies Co., Ltd. 01-Nov-2007

FCC ID: U6IRTV1WAPD Date: Jan 21,2008 Modular Approval Request Letter Dear Sir, We would like to declare that our product: mini-PCI transmitter module, Model: RTV1WAPD, FCC ID: U6IRTV1WAPD would like to have your authorization as a modular device which was indicated in FCC Public DA 00-1407, and to have your authorization as a modular approval. The statement is listed below: 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. The modular transmitter has its own RF shielding 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AGERE RUBY2 RF 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 2.8/ 2.85V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is PSC0152. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. The modular transmitter complies with the antenna requirements of section 15.203 and 15.204(C) 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCI to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. The modular transmitter can not be tested in a stand-alone configuration Host unit modes: H3C MSR 20-10;Quidway AR19-10; H3C MSR 20-12; H3CMSR20-13;Quidway AR 19-13; FCC ID: U6IRTV1WAPD Date: Jan 21,2008 H3C MSR 20-15;Quidway AR 19-15; 6. “The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device must also display the FCC ID referring to the enclosed module. Please see exhibition Label Sample for the FCC ID of this module. And also please refer to the exhibition Users Manual, there are instructions given to the OEM on how to label the end product. The modular transmitter is labeled with its own FCC ID number, and it is visible. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. Fulfill 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Fulfill Please contact me if you have any further questions. Best Regards, -------------------------------- Signature

Hangzhou H3C Technologies Co., Ltd. Date: 01-Nov-2007 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Miro Chueh/EMC Manager of Compliance Certification Services(Kunshan) Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Miro Chueh of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sun Li/Regulatory Compliance Manager Hangzhou H3C Technologies Co., Ltd. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

1 Lucy Tsai From:elise.tang [[email protected]] Sent:Friday, January 25, 2008 11:01 PM To:Lucy Tsai Cc:'CCS Miro Chueh/ '; [email protected] Subject:: Hangzhou H3C Technologies Co., Ltd, FCC ID: U6IRTV1WAPD , Assessment NO.: AN08T7510, Notice#2 Attachments:Modular Approval Request Letter.pdf; Atenna spec.pdf; user manual-quidway.pdf; KS070530A01- RP.pdf; label.pdf Dear Lucy, Please see my answer below. Thank you . Have a nice weekend! -----Original Message----- From: elise.tang [mailto:[email protected]] Sent: Tuesday, January 22, 2008 12:05 AM To: Lucy Tsai Cc: 'CCS Miro Chueh/ '; [email protected] Subject: : Hangzhou H3C Technologies Co., Ltd, FCC ID: U6IRTV1WAPD , Assessment NO.: AN08T7510, Notice#1 Dear Lucy, Q#1:Please check attached Modular Approval Request Letter.pdf. [Lucy] Since this is applied for limited module approval to test with specific hosts, then please clearly specify them to the modular request letter. <Elise>please check attached file Modular Approval Request Letter.pdf. Q#2: H3C:Antenna type: TLB-2400-2HW Antenna connector type: RE-SMA (female) [Lucy] ok. But please confirm the max. antenna gain is 1.44dBi(listed page 3 of antenna report) or 1.92dBi (shown in page 11 of antenna report and page 6 of RF test report. <Elise>Both page 4 and page 11 indicate that the value of the gain and VSWR,Which are wrong on page 3 in the report.should be swaped.so the antenna gain is 1.92dBi. Q#3: Please check attached Label.pdf [Lucy] It only the format for host, please provide another one for module used. <Elise>please check attached file label.pdf. Q#4: Please check attached revised User manual. [Lucy] The warning statement are acceptable. But how about the second issue for providing the user manual for Quidway models. The manual you provided is only for H3C model used, to make sure the related RF exposure requirements have been complied, the user manual of Quidway is also required. <Elise>please check attached file user manual-quidway.pdf. 2 Q#5: Please check attached KS070530A01-RP.PDF [Lucy] Page 7 of test report indicates three channels of 2402, 2441 and 2480MHz were set for test which doesn't agree the application. Please revise. <Elise>Please check attached revised KS070530A01-RP.pdf. Q#6: Please check attached Label.pdf [Lucy] Except the label format, you need to draw a block as the EUT to show where the label will be affixed. <Elise>please check attached file label.pdf. Thank you! Have a nice day! Best Regards, Elise Tang / Compliance Certification Services (Kunshan) Inc. Tel: 0512-57355888 ext. 256 Fax: 0512-57370818 E-mail: [email protected] ---------- : Lucy Tsai [mailto:[email protected]] : 2008117 3:51 : elise.tang; CCS Miro Chueh/ : FW: Hangzhou H3C Technologies Co., Ltd, FCC ID: U6IRTV1WAPD , Assessment NO.: AN08T7510, Notice#1 Hi Elise and Miro Please address following issues and let me know if you have any question. Q#1: Please clarify this is the system approval or modular approval. If it¡¦s the limited modular approval, please provide modular approval request letter. Q#2: Antenna report doesn¡¦t include antenna type and connector type. Please provide. Q#3: Page 3 of system block diagram is not complete which maybe caused during the file converting. Please have a check and provide again. Q#4: According to the label information, the system is categorized as a Class A digital device that FCC DoC logo is not applied. Please remove. Besides, FCC ID indicated in page 1-2 of label format is U6IRTV1WAPD, but page 3 indicated the FCC ID is U6IRTV1WAF. Please clarify which FCC ID is correct. Q#5: User manual shall include 15.21, 15.19 and 15.105 statements. Please revise. Besides, the user manual provided is for H3C router, how about Quidway models? Please provide Quidway¡¦s user manual or provide the OEM installation guide and make sure the related RF exposure requirements have been complied. Q#6: RF module schematics indicates 5GHz is supported. Please clarify whether 5GHz is applicable and confirm how it will be disabled if it¡¦s not applied. Q#7: Again, if this is the limited modular approval, to prevent confusion, please revise the EUT description and model no in cover page, 4 and 6 of the report. For these routers, you can list them as the host inside the report. At the same time, please remove the model difference as specified in page 6. 3 Q#8: since you have requested for short term confidentiality for user manual, EUT internal/external photos and test setup photos. Then please modify the label format, removing the EUT and replaced by the drawing. Also, please be noted that according to FCC current policy, they only accept short-term confidentiality application with 45days. And before the due day, you have to submit another short-term confidentiality reuqest to extend to another 45days and maximum they accept 3 times¡¦ extending and totally will be 180days. So please must submit another extending letter to us before the due day of the first period of short-term confidentiality. Best Regards, Lucy The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

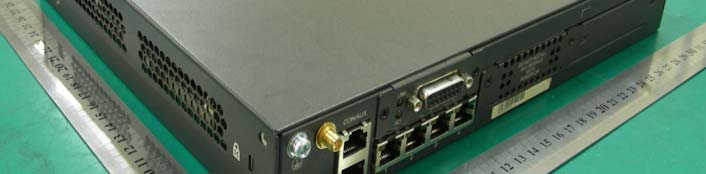

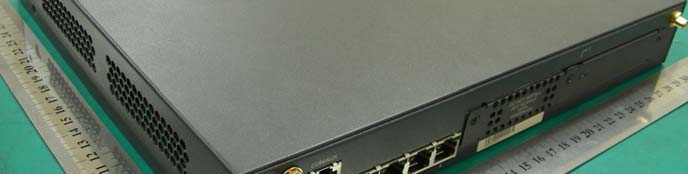

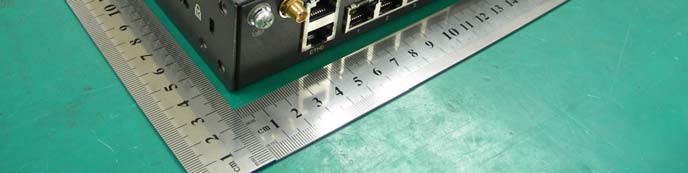

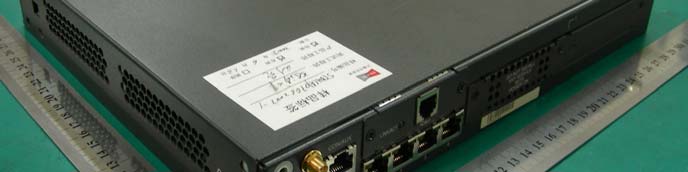

Report No: KS070530A01 Page 1 / 3 EXTERNAL PHOTOGRAPHS OF THE EUT Report No: KS070530A01 Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. H3C MSR 20-10;Quidway AR 19-10 Rear view (1) H3C MSR 20-12 Rear view (3) Report No: KS070530A01 Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. H3C MSR 20-13;Quidway AR 19-13 Rear view (4) H3C MSR 20-15;Quidway AR 19-15 Rear view (5)

Document Title Security Level 2007-04-27 Confidential Information of H3C. No Spreading without Permission Page1, Total2 Document Title Security Level 2007-04-27 Confidential Information of H3C. No Spreading without Permission Page2, Total2

Reference No: KS070530A01 Report No: KS070530A01 INTERNAL PHOTOGRAPHS OF THE EUT H3C MSR 20-10;Quidway AR 19-10 Internal view (1) H3C MSR 20-12 Internal view (1) Reference No: KS070530A01 Report No: KS070530A01 H3C MSR 20-12 Internal view (2) H3C MSR 20-13;Quidway AR 19-13 Internal view (1) Reference No: KS070530A01 Report No: KS070530A01 H3C MSR 20-13;Quidway AR 19-13 Internal view (2) H3C MSR 20-15;Quidway AR 19-15 Internal view (1) Reference No: KS070530A01 Report No: KS070530A01 H3C MSR 20-15;Quidway AR 19-15 Internal view (2) Reference No: KS070530A01 Report No: KS070530A01 Reference No: KS070530A01 Report No: KS070530A01 Reference No: KS070530A01 Report No: KS070530A01

Antenna Measurement Report Product Name: Indoor Omni Terminal antenna Antenna Model ： SL15040A Project Item: Normal Temperature Electrical Test Test Place： ShengLu Microwave Test Center Te s t e d B y： WuMeizhi YeZhongHui Te s t D a t e： June.20, 2007 ShengLu Microwave Test Center Antenna Measurement Report of ShengLu Communicaon Co.,Ltd Serial Number： - 1 - SHENGLU Confidential Measurement Report Sample Name Indoor Omni Terminal antenna Antenna Model SL15040A Factory Name ShengLu Communicaon Co.,Ltd Sample Number 01 Test Place ShengLu Microwave Test Center Te s t D a t e June.20, 2007 Te s t Surrounding Temperature： （40～60）°C Relative Humidity： 54%～72% Atmospheric Pressure.：101.3kPa Test Item Normal Temperature Electrical Specification: Frequency Range,VSWR,Pattern,Gain,HPBW, Electrical Downtilt,Front to Back Ratio,Up Side Lobe Supperession and Polarization Type Test Standard GB9410-88 Technical Criterion of Mobile Communication Antenna YD/T1059-2004 Technical Qualification of Mobile Communication System Station Antenna Antenna Specification of ShengLu Communicaon Co.,Ltd Main Apparatus for Antenna Measurement E5062A Vector Network Analyzer; HD-22HA15.5N Standard Horn Antenna E8257D Analog Signals Emitter Test Survey Basing on the test standard,we test the performance of the 2±1dBi dual polarization directional UMTS antenna---SL15040A under normal temperature,the result is conform to the standard. Please turn to page 2 to check the report. Conclusion All Test Items can fulfill the Specification. Note Checked By： Date： Audited By： Date： Approved By: Date： Antenna Measurement Report of ShengLu Communicaon Co.,Ltd Serial Number： - 2 - SHENGLU Confidential Normal Temperature Electrical Specification Test Results Antenna Model： SL15040A Sample Serial Number： Specification： Sequence Number Test Item Units Specification Test results Judgement 1 Frequency Range MHz 2400-2500 MHz 2400-2500MHz Pass 2400 MHz 1.22 dBi 2 Gain dBi 2±1 2500 MHz 1.44 dBi Pass 2400 MHz 1.92 3 VSWR / ≤2 2500MHz 1.67 Pass 4 Polarization Type / Vertical Vertical Pass Conclusion：Every Item of Normal Temperature Electrical Specification Test is OK. Antenna Measurement Report of ShengLu Communicaon Co.,Ltd Serial Number： - 3 - SHENGLU Confidential VSWR Test Data Chart Antenna Model：SL15040A Sample Serial Number： VSWR Antenna Measurement Report of ShengLu Communicaon Co.,Ltd Serial Number： - 4 - SHENGLU Confidential Frequency：2400MHz Antenna Measurement Report of ShengLu Communicaon Co.,Ltd Serial Number： - 5 - SHENGLU Confidential E－Plan Pattern Frequency：2450MHz Antenna Measurement Report of ShengLu Communicaon Co.,Ltd Serial Number： - 6 - SHENGLU Confidential E－Plan Pattern Frequency：2500MHz Antenna Measurement Report of ShengLu Communicaon Co.,Ltd Serial Number： - 7 - SHENGLU Confidential E－Plan Pattern Frequency：2400MHz Antenna Measurement Report of ShengLu Communicaon Co.,Ltd Serial Number： - 8 - SHENGLU Confidential H－Plan Pattern Frequency：2450 MHz Antenna Measurement Report of ShengLu Communicaon Co.,Ltd Serial Number： - 9 - SHENGLU Confidential H－Plan Pattern Frequency：2500MHz Antenna Measurement Report of ShengLu Communicaon Co.,Ltd Serial Number： - 10 - SHENGLU Confidential H－Plan Pattern Increase the benefit test data watch Antenna model number:SL15040A Testing methods: Comparison Compute the formula: G x (dB)=G s (dB)+10lg(P xr )-10lg(P sr ) G x — Gain of AUT （dB） G s — Gain of STD Antenna（dB） P xr — Received Power of AUT P sr — Received Power of AUT Frequency Range (MHz) Gain of STD Antenna (dBi) Received Power of AUT (dBm) Received Power of STD Antenna (dBm) Gain of AUT (dBi) 2400 16.82 -42.960 -28.060 1.92 2450 16.95 -44.030 -28.540 1.33 2500 17.08 -44.050 -28.640 1.67 Antenna Measurement Report of ShengLu Communicaon Co.,Ltd Serial Number： - 11 - SHENGLU Confidential Main Apparatus for Antenna Measurement Sequence Number Apparatus Name Antenna Model Serial Number of Leaving Factory Efficient Date 1 Vector Network Analyzer; E5062A MY43030476 2007 2 Analog Signals Emitter E8257D MY45140247 2007 3 Automatic System of Far Field Measurement / / Until the Efficient Date 4 Standard Horn Antenna / / /

Reference No.: KS070530A01-RP Report No.: KS070530A01-RP FCC ID : U6IRTV1WAPD Page 1 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC TEST REPORT for Wireless card MODEL:RTV1WAPD Test Report Number: KS070530A01-RP Issued for Hangzhou H3C Technologies Co., Ltd 310 Liuhe Road, Zhijiang Sci…
