U6M-EZ3610EASYTRAC

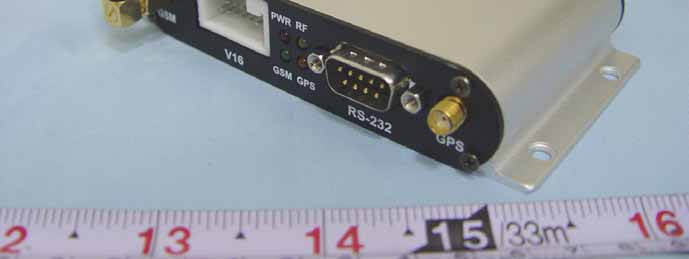

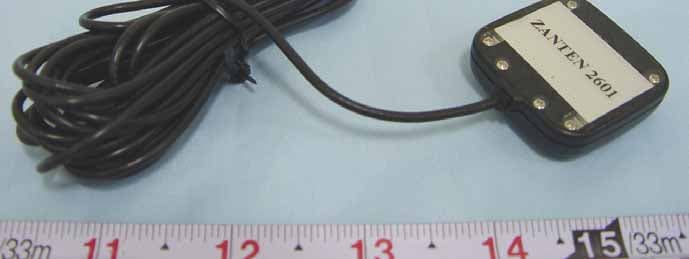

© 2007 ORION Technology LTD. All right reserved. 1/19 Easytrac Getting Started Ve r s i o n：3.02.28 Date：2007/3/1 © 2007 ORION Technology LTD. All right reserved. 2/19 Contents 1. Introduction ............................................................................................................ 3 I. Package contents: ............................................................................................ 3 II. Front panel: .................................................................................................. 3 III. Rear panel:.................................................................................................... 4 IV. V-16 Cable pin assignment: ......................................................................... 5 2. Configuration.......................................................................................................... 6 I. Hardware and Software preparations .............................................................. 6 II. Configuration step by step ........................................................................... 7 III. Running on normal mode........................................................................... 11 IV. Test protocol commands via RS-232 connection....................................... 16 V. Get the system logs via RS-232 connection for advanced debugging .......... 17 © 2007 ORION Technology LTD. All right reserved. 3/19 1. Introduction I. Package contents: 1. Easytrac x 1 (with 700mAh Ni-MH backup battery) 2. GSM quad-band antenna (850/900/1800/1900) x 1 3. GPS active antenna x 1 4. V-16 cable x 1 (with 16-pin connector and 10A fuse) 5. AC adapter x 1 6. Vehicle power adapter x 1 II. Front panel: 1. GPS antenna jack (Right side of the panel) 2. GSM antenna jack (Left side of the panel) 3. RS-232 connector (For configuration and debugging) 4. V-16 Connector 5. LED indicators PWR OFF: Power OFF DIM: Backup battery power low ON: Power ON GSM OFF: GSM module OFF or Error, No SIM Card, Searching networks) Flash: GSM registered (0.5sec ON 0.5sec OFF) Flash: GPRS connecting (0.25sec ON 0.25sec OFF) ON: Socket session online (connect to tcpserver running on the Gateway Server which is the Primary Server of a tracker) RF ON: System Error OFF: System Error Flash: System running( 1sec ON 1sec OFF) (Also reserved for Remote controller learning) GPS OFF: GPS module OFF or Error Flash: Searching GPS signal ON: GPS fixed © 2007 ORION Technology LTD. All right reserved. 4/19 III. Rear panel: 1. RESET (Left tact switch button): System reboot 2. LEARNING (Right tact switch button): Remote controller learning © 2007 ORION Technology LTD. All right reserved. 5/19 IV. V-16 Cable pin assignment: V-16 Connector Pin Assignment 1-PWR 3-DI1 5-DI3 7-DI5 9-AI1 11-DO1 13-DO3 15-MICP 2-GND 4-DI2 6-DI4 8-DI6 10-AI2 12-DO214-DO4 16-MICN V-16 Cable Pin Assignment PIN Color Name Description Range 1 Red□ PWR Power supply input DC, 12V~24V +- 5% Imax <= 2A 2 Black□ GND Ground 0V 3 Brown□ Digital Input 1 Reserved for Ignition Input (ACC Input) High : 12V~24V Low : 0V 4 Blue□ Digital Input 2 General purpose digital input (Positive trigger) High : 12V~24V Low : 0V 5 Orange□ Digital Input 3 General purpose digital input (Positive trigger) High : 12V~24V Low : 0V 6 Purple□ Digital Input 4 General purpose digital input (Positive trigger) High : 12V~24V Low : 0V 7 Yellow□ Digital Input 5 General purpose digital input (Positive trigger) High : 12V~24V Low : 0V 8 Green□ Digital Input 6 General purpose digital input (Positive trigger) High : 12V~24V Low : 0V 9 Yellow-White □-□ Analog Input 1 General purpose analog input Up to 24V DC/8bit resolution 10 Green-White □-□ Analog Input 2 General purpose analog input Up to 24V DC/8bit resolution 11 Orange-White □-□ Digital Output 1 General purpose digital output 500 mA max @ 12V~24V 12 Purple-White □-□ Digital Output 2 General purpose digital output 500 mA max @ 12V~24V 13 Brown-White □-□ Digital Output 3 General purpose digital output 500 mA max @ 12V~24V 14 Blue-White □-□ Digital Output 4 General purpose digital output 500 mA max @ 12V~24V 15 Red-White □-□ MIC-P Microphone + 16 Black-White □-□ MIC-N Microphone - R=50 kΩ differential VImax = 20 mVpp © 2007 ORION Technology LTD. All right reserved. 6/19 2. Configuration I. Hardware and Software preparations 1. Remove the front panel of Easytrac and insert a SIM card with GPRS service enabled. Lock the SIM card. (Caution: DO NOT remove the backup battery from the Easytrac at anytime. Circuit short may occurred if the backup battery is removed) 2. Re-cover the front panel. 3. Connect GPS antenna to Easytrac. 4. Connect GSM antenna to Easytrac. 5. Use a RS-232 cable (DB-9) to connect Easytrac to a PC COM port. 6. Open Hyper Terminal (or other terminal program) at Windows Start Menu All Programs\Accessories\Communications\Hyper Terminal. 7. Add a new connection, input name ‘Easytrac’. Click “OK” and select the COM Port for the Easytrac connection. 8. Set the Baud rate as 38,400bps and Flow control as none. Press “OK”. 9. Connect the V-16 cable to Easytrac. © 2007 ORION Technology LTD. All right reserved. 7/19 10. Connect the V-16 cable power plug to the AC adapter and press the ‘ESC’ key of the PC within 3 second after AC adapter POWER ON and until the text messages show on the Hyper Terminal screen. In doing so, Easytrac boots on Configuration Mode. 11. Normally, the PWRLED is ON and the RFLED flashing constantly which means the Easytrac is POWER ON and running. It shows as the following on the Hyper Terminal. EasyTrac Version : 0A04 - Build Date : Feb 27 2007 - Build Time : 07:40:20 - Serial Number : 1000000001 - IMEI : 352021002992709 Type "H" for the Debug Mode Commands Menu. $> 12. If you don’t see the above messages on the Hyper Terminal, please check the settings of Hyper Terminal and reconnect the power adapter or press the RESET button on the Easytrac rear panel. Otherwise, please send an email to [email protected] for technical support.…
