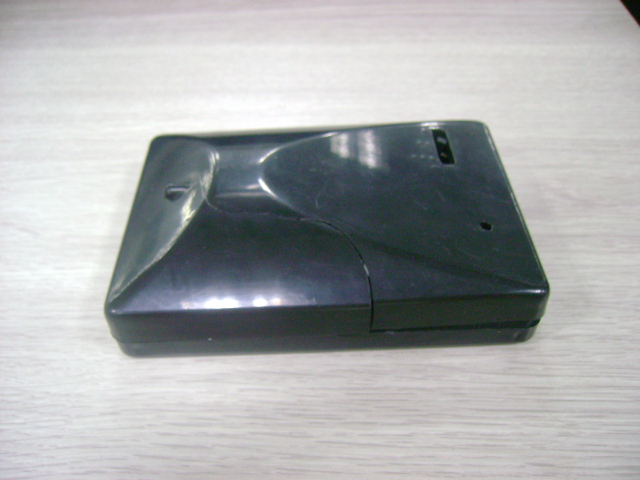

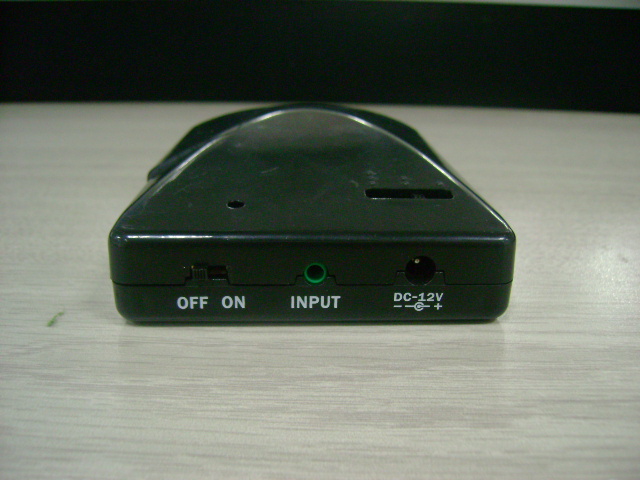

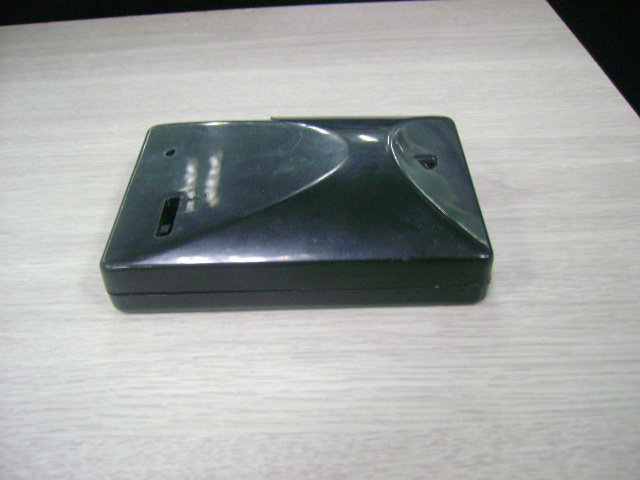

U7YBMSVCBoomchair Wireless Transmitter

 OWNER’S MANUAL  Congratulations! You are now the proud owner of a Wireless BOOMCHAIR™. Prepare to experience your entertainment on a whole new level. BOOMCHAIR™ allows you to HEAR the sound and FEEL the excitement. You’ll experience every crash, bang, and boom while enjoying your favorite game, music, or movie. BOOMCHAIR™ is also a great game seat built to endure the rigors of today’s gaming environment. Take a moment to review your owner’s manual before connecting your BOOMCHAIR™. Assembly and operation of the BOOMCHAIR™ is simple. If you need further assistance visit us at www.BoomChair.com or www.LumiSource.com BOOMCHAIR™, a LumiSource ® product. LumiSource, Inc. 2950 Old Higgins Road, Elk Grove Village, IL 60007 PATENTS PENDING READ BEFORE USE • DO NOT wash or soak with water. If BOOMCHAIR™ gets wet, disconnect power immediately and do not use until completely dry. • Turn power off and unplug BOOMCHAIR™ when not in use. • Children under 5 years old should not use this product without parental supervision. • For INDOOR use only/ DO NOT expose to direct sunlight, moisture, or extreme temperatures. • DO NOT use on slippery or uneven flooring. • Excessive exposure to audio equipment at high volume may lead to hearing loss. • DO NOT OPEN Caution: To reduce the risk of electric shock and fire, do not open the BOOMCHAIR™. There are no user serviceable parts inside. Refer to your warranty for service information. FCC part 15.21: Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC part 15.105: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio TV technician for help. #!54)/. FCC WARNING This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: U7YBMSVC Exposure to radio frequency energy: This device and its antenna must not be co- located or operated in conjunction with any other antenna or transmitter. To comply with FCC RF exposure requirements, only use supplied antenna.  SET-UP GUIDE The BOOMCHAIR™ comes with the following: PARTS LIST: 1) BOOMCHAIR™ 2) AC/DC POWER SUPPLY (UL Listed) 3a) RCA TO MINI AUDIO CORD (headphone jack to audio left & right channel connectors) 3b) RCA CORD (audio left & right channel connectors) 3c) RCA AUDIO COUPLER 4) RECEPTACLE 5) HOOK & LOOP FASTENER 6) ADJUSTABLE RECLINE STOPPERS 7) ADJUSTABLE HEADREST 8) WIRELESS TRANSMITTER (requires 4 AA batteries, not included) 9) WIRELESS AUDIO CORD (headphone jack to 3b 3a 2 5 6 3c 1 7 4 8 DASHBOARD CONTROL PANEL POWER INPUT OUTPUT RR LL 0 3 2 1 BASS/TREBLE + VOLUME + (A) BASS/TREBLE CONTROL (B) POWER SWITCH / VOLUME CONTROL (C) LED POWER INDICATOR (D) WIRELESS ON/OFF & CHANNEL SWITCH (E) HEADPHONE JACK (F) RCA AUDIO OUTPUTS (G) RCA AUDIO INPUTS 9 Power rating: 12 V AC @ 1830/mA Dimensions: 27 in. L x 18 in. W x 36 in. H Weight: 33 lbs. 3 in.(7.6 cm) coaxial mid-high speakers @ 3W 4 Ohms SYSTEM SPECS: headphone jack cord ) 68.5 cm. L x 46 cm. W x 91 cm. H  POWER INPUT OUTPUT RR LL 0 3 2 1 BASS/TREBLE + VOLUME + CONNECTING TO GAME CONSOLES Step 1: Plug yellow composite video cable from game console into video input of TV. (Fig. 1) Step 2: Plug Red/White RCA cord from game console into RCA INPUT (G) of BoomChair™. (Fig. 2) Step 1: Connect Audio Coupler (3c) to Red/White RCA cord from game console. Step 2: Connect one end of RCA cord (3b) into other end of Audio Coupler (3c). Step 3: Connect other end of RCA cord (3b) into RCA INPUT (G) of BoomChair™. IN Note: Most game consoles are supplied with a custom connector with yellow video out and RCA red/white audio out. 3c3b GAME CONSOLETVBOOMCHAIR™ Fig. 1 Fig. 2 Cable supplied with game console Fig. 3 Note: It may be necessary to extend your BoomChair™ further away from your TV or console. Here’s how. (Fig.3) AUDIO COUPLER (c) ASSEMBLY INSTRUCTIONS 3c3a Step 1: Connect Audio Coupler (3c) to Red/White RCA cord from game console. Step 2: Connect red/white end of RCA cord (3a) into other end of Audio Coupler (3c). (Fig. 4) Step 3: Connect mini audio end of RCA cord (3a) into Wireless Transmitter (8). (Fig. 5) Step 3: Set transmitter and channel switch (D) to matching frequency. DIRECT CONNECTION WIRELESS CONNECTION Fig. 4 Fig. 5 8 Step 1: Lift seatback to the upright position. Step 2: Secure the seat back using attached hook & loop fasteners. Step 3: Insert receptacle (4) into adapter cord (2). Step 4: Plug adapter (2) into outlet. Step 5: Turn Boomchair™ on by turning Power knob (B) clockwise. Step 6: Insert 4 AA batteries (not included) into wireless transmitter. Turn power switch on. 4 STEP  STEP  2 Step 1: Unscrew the lid of the battery housing located at the under side of the Boomchair™ . Step 2: Insert 8 “D” cell batteries (not included). Step 3: S…

Text truncated - open the document above for the full version.

FCC ID: U7YBMSVC Report No.: 070717FIA01 1 FCC TEST REPORT REPORT NO.: 070717FIA01 MODEL NO.: BMSVC, BMA44, BMMIG, BMAMP, BMXTC, BMFRG, BMVIP, BMVPR, BMARC, BMJET, BMUFO, BMWIFX, BM1-10 RECEIVED: Jul. 31, 2007 TESTED: Aug. 20 ~ Sept. 5, 2007 ISSUED: Sept. 5, 2007 APPLICANT: Lumisource, Inc. ADDRESS: 2950 OLD HIGGINS ROAD, ELK GROVE VILLAGE 60007, U.S.A ISSUED BY: ADT (Shanghai) Corporation ADDRESS: 2F, Building C, No.1618, Yishan Rd., 201103, Shanghai, China This test report consists of 27 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by A2LA or any government agencies. The test results in the report only apply to the tested sample. ADT (Shanghai) Corporation. V1.0 FCC ID: U7YBMSVC Report No.: 070717FIA01 2 Table of Contents 1 CERTIFICATION .......................................................................................... 3 2 SUMMARY OF TEST RESULTS .................................................................. 4 2.1 MEASUREMENT UNCERTAINTY............................................................... 4 3 GENERAL INFORMATION........................................................................... 5 3.1 GENERAL DESCRIPTION OF EUT ............................................................ 5 3.2 DESCRIPTION OF TEST MODES .............................................................. 6 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................. 8 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................ 9 4 EMISSION TEST........................................................................................ 11 4.1 CONDUCTED EMISSION MEASUREMENT............................................. 11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................... 11 4.1.2 TEST INSTRUMENTS............................................................................... 11 4.1.3 TEST PROCEDURE.................................................................................. 11 4.1.4 TEST SETUP............................................................................................. 12 4.1.5 EUT OPERATING CONDITIONS .............................................................. 12 4.1.6 TEST RESULTS ........................................................................................ 13 4.2 RADIATED EMISSION MEASUREMENT.................................................. 15 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................... 15 4.2.2 TEST INSTRUMENTS............................................................................... 16 4.2.3 TEST PROCEDURE.................................................................................. 17 4.2.4 DEVIATION FROM TEST STANDARD...................................................... 17 4.2.5 TEST SETUP............................................................................................. 18 4.2.6 EUT OPERATING CONDITIONS .............................................................. 18 4.2.7 TEST RESULTS ........................................................................................ 19 4.3 BAND EDGES MEASUREMENT .............................................................. 24 4.3.1 LIMITS OF BAND EDGES MEASUREMENT ............................................ 24 4.3.2 TEST INSTRUMENTS............................................................................... 24 4.3.3 TEST PROCEDURE.................................................................................. 24 4.3.4 DEVIATION FROM TEST STANDARD...................................................... 24 4.3.5 EUT OPERATING CONDITION................................................................. 24 4.3.6 TEST RESULTS ........................................................................................ 25 5 APPENDIX A - INFORMATION ON THE TESTING LABORATORY .......... 26 6 APPENDIX B – UNCERTAINTY IN EMC MEASUREMENT ...................... 27 FCC ID: U7YBMSVC Report No.: 070717FIA01 3 1 CERTIFICATION PRODUCT: BOOMCHAIR WIRELESS TRANSMITTER MODEL NO.: BMSVC, BMA44, BMMIG, BMAMP, BMXTC, BMFRG, BMVIP, BMVPR, BMARC, BMJET, BMUFO, BMWIFX, BM1-10 APPLICANT: Lumisource, Inc. TESTED: Aug. 20 ~ Sept. 5, 2007 TEST ITEM: ENGINEERING SAMPLE STANDARDS: 47 CFR Part 15, Subpart C (Section 15.249), ANSI C63.4-2003 The above equipment has been tested by ADT (Shanghai) Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. TECHNICAL ACCEPTANCE : , DATE: Sept. 5, 2007 (Vivian Hsu) Engineering Supervisor APPROVED BY : , DATE: Sept. 5, 2007 (Wallace Pan) Director of Operations FCC ID: U7YBMSVC Report No.: 070717FIA01 4 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C Standard Paragraph Test Type ResultRemark 15.207 Conducted Emission Test (Mode A1) PASS Minimum passing margin is –1.88dB at 0.310 MHz Radiated Emission Test (Mode A2, Below 1GHz) PASS Minimum passing margin is –7.14dB at 456.800 MHz 15.249 Radiated Emission Test (Mode A2, Above 1GHz) PASS Minimum passing margin is –0.94 at 1829.18MHz(AV) 15.249 Band Edge Measurement PASS Meet the requirement of limit 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. MEASUREMENT FREQUENCY UNCERTAINTY Conducted emissions 9kHz ~ 30MHz 3.04 dB 30MHz ~ 200MHz (Horizontal) 4.42 dB 30MHz …

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emission For test mode A2
