U8G-P1AX23Peplink Pepwave Wireless Product

BSeries UserManual Peplink Products: B One Pro Pepwave Firmware 8.3.0 April 2023 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. Copyright © 2021 Peplink Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Peplink International Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners. TableofContents Introduction and Scope6 Glossary8 1 Product Features9 1.1 Supported Network Features9 1.2 Other Supported Features12 2 B One Pro Overview13 2.1 Panel Appearance13 3 Advanced Feature Summary14 3.1 Drop-in Mode and LAN Bypass: Transparent Deployment14 3.2 QoS: Clearer VoIP14 3.3 Per-User Bandwidth Control15 3.4 High Availability via VRRP15 3.5 USB Modem and Android Tethering16 3.6 Built-In Remote User VPN Support16 3.7 SIM-card USSD support17 3.8 KVM Virtualization17 3.9 DPI Engine18 3.10 NetFlow18 3.11 Wi-Fi Air Monitoring18 3.12 SP Default Configuration18 3.13 Peplink Relay19 3.14 DNS over HTTPS (DoH)19 3.15 Peplink InTouch19 3.16 Synergy Mode19 3.17 Virtual WAN on VLAN20 4 Installation21 4.1 Preparation21 4.2 Constructing the Network21 4.3 Configuring the Network Environment22 5 Connecting to the Web Admin Interface23 6 SpeedFusion Connect Protect25 6.1 Activate SpeedFusion Connect Protect25 6.2 Enable SpeedFusion Connect Protect26 6.3 Route by Cloud Application31 https://www.peplink.com2Copyright @ 2021 Peplink 6.4 Route by Wi-Fi SSID32 6.5 Route by LAN Client33 7 Configuring the LAN Interface(s)35 7.1 Basic Settings35 7.2 Port Settings44 7.3 Captive Portal45 8 Configuring the WAN Interface(s)49 8.1 Ethernet WAN52 8.2 Cellular WAN60 8.3 Wi-Fi WAN66 8.4 WAN Connection Settings (Common)70 8.5 WAN Health Check71 8.6 Bandwidth Allowance Monitoring74 8.7 Additional Public IP address75 8.8 Dynamic DNS Settings75 9 SpeedFusion VPN77 9.1 SpeedFusion VPN78 10 IPsec VPN88 10.1 IPsec VPN Settings88 10.2 GRE Tunnel92 11 OpenVPN94 12 Outbound Policy95 12.1 Adding Rules for Outbound Policy95 13 Port Forwarding105 13.1 UPnP / NAT-PMP Settings107 14 NAT Mappings108 15 Media Fast110 15.1 Setting Up MediaFast Content Caching110 15.2 Viewing MediaFast Statistics112 15.3 Prefetch Schedule113 16 Edge Computing115 16.1 Configuring the ContentHub115 16.2 Configure a website for ContentHub115 16.3 Configure an application for ContentHub117 17 Docker120 18 KVM121 19 QoS122 https://www.peplink.com3Copyright @ 2021 Peplink 19.1 User Groups122 19.2 Bandwidth Control123 19.3 Application Queue123 19.4 Application124 20 Firewall126 20.1 Access Rules127 20.2 Content Blocking135 21 Routing Protocols137 21.1 OSPF & RIPv2137 21.2 BGP139 22 Remote User Access144 23 Miscellaneous Settings147 23.1 High Availability147 23.2 RADIUS Server151 23.3 Certificate Manager153 23.4 Service Forwarding154 23.5 Service Passthrough157 23.6 UART158 23.7 GPS Forwarding160 23.8 Ignition Sensing161 Ignition Sensing installation161 GPIO Menu163 23.9 NTP Server164 23.10 Grouped Networks165 23.11 Remote SIM Management166 23.12 SIM Toolkit168 23.13 UDP Relay170 24 AP171 24.1 AP Controller171 24.2 Wireless SSID171 24.3 Wireless Mesh177 24.4 Settings178 25 AP Controller Status185 25.1 Info185 25.2 Access Point187 25.3 Wireless SSID190 25.4 Wireless Client191 https://www.peplink.com4Copyright @ 2021 Peplink 25.5 Mesh / WDS192 25.6 Nearby Device193 25.7 Event Log193 26 Toolbox194 27 System195 27.1 Admin Security195 27.2 Firmware200 27.3 Time202 27.4 Schedule203 27.5 Email Notification204 27.6 Event Log207 27.7 SNMP208 27.8 SMS Control210 27.9 InControl211 27.10 Configuration212 27.11 Feature Add-ons213 27.12 Reboot213 28 Tools214 28.1 Ping214 28.2 Traceroute Test215 28.3 Wake-on-LAN215 28.4 WAN Analysis216 28.5 CLI (Command Line Interface Support)219 29 Status220 29.1 Device220 29.2 GPS Data222 29.3 Active Sessions223 29.4 Client List225 29.5 UPnP / NAT-PMP226 29.6 OSPF & RIPv2227 29.7 BGP227 29.8 SpeedFusion VPN227 29.9 Event Log232 30 WAN Quality234 31 Usage Reports235 31.1 Real-Time235 31.2 Hourly236 https://www.peplink.com5Copyright @ 2021 Peplink 31.3 Daily237 31.4 Monthly238 Appendix A: Restoration of Factory Defaults240 Appendix B: Overview of ports used by Peplink SD-WAN routers and other Peplink services241 IntroductionandScope Pepwave routers provide link aggregation and load balancing across multiple WAN connections, allowing a combination of technologies like 3G HSDPA, EVDO, 4G LTE, Wi-Fi, external WiMAX dongle, and satellite to be utilized to connect to the Internet. The MAX wireless SD-WAN router series has a wide range of products suitable for many different deployments and markets. Entry level SD-WAN models such as the MAX BR1 are suitable for SMEs or branch offices. High-capacity SD-WAN routers such as the MAX HD2 are suitable for larger organizations and head offices. This manual covers setting up Pepwave routers and provides an introduction to their features and usage. Tips Want to know more about Pepwave routers? Visit our YouTube Channel for a video introduction! https://www.peplink.com6Copyright @ 2021 Peplink https://youtu.be/13M-JHRAICA https://www.peplink.com7Copyright @ 2021 Peplink Glossary The following terms, acronyms, and abbreviations are frequently used in this manual: TermDefinition 3G3rd generation standards for wireless communications (e.g., HSDPA) 4G4th generation standards for wireless communications (e.g., LTE) DHCPDynamic Host Configuration Protocol DNSDomain Name System EVDOEvolution-Data Optimized FQDNFully Qualified Domain Name HSDPAHigh-Speed Downlink Packet Access HTTPHyper-Text Transfer Protocol ICMPInternet Control Message Protocol IPInternet Protocol LANLocal Area Network MAC AddressMedia Access Control Address MTUMaximum Transmission Unit MSSMaximum Segment Size NATNetwork Address Translation PPPoEPoint to Point Protocol over Ethernet QoSQuality of Service SNMPSimple Network Management Protocol TCPTransmission Control Protocol UDPUser Datagram Protocol VPNVirtual Private Network VRRPVirtual Router…

Text truncated - open the document above for the full version.

expected detection time is two seconds. When Extreme is selected, a health check packet is sent every 0.1 second, and the expected detection time is less than one second. A - Advanced feature, please click the button on the top right-hand corner to activate. Important Note Peplink proprietary SpeedFusion TM uses TCP port 32015 and UDP port 4500 for establishing VPN connections. If you have a firewall in front of your Pepwave devices, you will need to add firewall rules for these ports and protocols to allow inbound and outbound traffic to pass through the firewall. Tip Want to know more about VPN sub-second session failover? Visit our YouTube Channel for a video tutorial! http://youtu.be/TLQgdpPSY88 https://www.peplink.com85Copyright @ 2021 Peplink 9.2ThePepwaveRouterBehindaNATRouter Pepwave routers support establishing SpeedFusion TM over WAN connections which are behind a NAT (network address translation) router. To enable a WAN connection behind a NAT router to accept VPN connections, you can configure the NAT router in front of the WAN connection to inbound port-forward TCP port 32015 to the Pepwave router. If one or more WAN connections on Unit A can accept VPN connections (by means of port forwarding or not), while none of the WAN connections on the peer Unit B can do so, you should enter all of Unit A’s public IP addresses or hostnames into Unit B’sRemote IP Addresses / Host Namesfield. Leave the field in Unit A blank. With this setting, a SpeedFusion TM connection can be set up and all WAN connections on both sides will be utilized. See the following diagram for an example of this setup in use: One of the WANs connected to Router A is non-NAT’d (212.1.1.1). The rest of the WANs connected to Router A and all WANs connected to Router B are NAT’d. In this case, thePeer IP Addresses / Host Namesfield for Router B should be filled with all of Router A’s hostnames or public IP addresses (i.e.,212.1.1.1,212.2.2.2, and212.3.3.3), and the field in Router A can be left blank. The two NAT routers on WAN1 and WAN3 connected to Router A should inbound port-forward TCP port 32015 to Router A so that all WANs will be utilized in establishing the VPN. https://www.peplink.com86Copyright @ 2021 Peplink 9.3 SpeedFusionVPNStatus SpeedFusion VPN status is shown in the Dashboard. The connection status of each connection profile is shown as below. After clicking theStatusbutton at the top right corner of the SpeedFusion TM table, you will be forwarded toStatus > SpeedFusion VPN, where you can view subnet and WAN connection information for each VPN peer. IP Subnets Must Be Unique Among VPN Peers The entire interconnected SpeedFusion TM network is a single non-NAT IP network. Avoid duplicating subnets in your sites to prevent connectivity problems when accessing those subnets. https://www.peplink.com87Copyright @ 2021 Peplink 10 IPsecVPN IPsec VPN functionality securely connects one or more branch offices to your company's main headquarters or to other branches. Data, voice, and video communications between these locations are kept safe and confidential across the public Internet. IPsec VPN on Pepwave routers is specially designed for multi-WAN environments. For instance, if a user sets up multiple IPsec profiles for a multi-WAN environment and WAN1 is connected and healthy, IPsec traffic will go through this link. However, should unforeseen problems (e.g., unplugged cables or ISP problems) cause WAN1 to go down, our IPsec implementation will make use of WAN2 and WAN3 for failover. 10.1 IPsecVPNSettings Many Pepwave products can make multiple IPsec VPN connections with Peplink, Pepwave, Cisco, and Juniper routers. Note that all LAN subnets and the subnets behind them must be unique. Otherwise, VPN members will not be able to access each other. All data can be routed over the VPN with a selection of encryption standards, such as 3DES, AES-128, and AES-256. To configure IPsec VPN on Pepwave devices that support it, navigate toAdvanced>IPsec VPN. Click theNew Profilebutton to create new IPsec VPN profiles that make VPN connections to remote Pepwave, Cisco, or Juniper routers via available WAN connections. To edit any of the profiles, click on its associated connection name in the leftmost column. https://www.peplink.com88Copyright @ 2021 Peplink IPsec VPN Profile Settings Name This field is for specifying a local name to represent this connection profile. Active When this box is checked, this IPsec VPN connection profile will be enabled. Otherwise, it will be disabled. IKE Version Two versions of the IKE standards are available: ●IKEv1 ●IKEv2 https://www.peplink.com89Copyright @ 2021 Peplink Connect Upon Disconnection of Check this box and select a WAN to connect to this VPN automatically when the specified WAN is disconnected. Remote Gateway IP Address / Host Name Enter the remote peer’s public IP address. ForAggressive Mode, this is optional. IPsec Type Policy-based - (default) All the matched traffic as defined in Local Networks and Remote Networks will be routed to this IPsec connection, this cannot be overridden by other routing methods. Route-based - Outbound Policy rule is required to route traffic to this tunnel and comes with more flexibility to control how to route traffic compared to Policy-based. If you want to modify the traffic selector instead of using the default (0.0.0.0/0). Note: This option is available for certain following models only: ●MAX: BR1 ENT, Transit, 700 HW3 or above, HD2 HW5 or above, HD4 Local Networks Enter the local LAN subnets here. If you have defined static routes, they will be shown here. Using NAT, you can map a specific local network / IP address to another, and the packets received by remote gateway will appear to be coming from the mapped network / IP address. This allow you to establish IPsec connection to a remote site that has one or more subnets overlapped with local site. Two types of NAT policies can be defined: One-to-One NAT policy: if the defined subnet in …

Text truncated - open the document above for the full version.

ThisActive Sessionssection displays the active inbound/outbound sessions of each WAN connection on the Pepwave router. A filter is available to sort active session information. Enter a keyword in the field or check one of the WAN connection boxes for filtering. https://www.peplink.com224Copyright @ 2021 Peplink 29.4 ClientList The client list table is located atStatus > Client List. It lists DHCP and online client IP addresses,names (retrieved from the DHCP reservation table or defined by users), current download and upload rate, and MAC address. Clients can be imported into the DHCP reservation table by clicking thebutton on the right. You can update the record after import by going toNetwork > LAN. If the PPTP server (seeSection 19.2),SpeedFusion TM (seeSection 12.1), or AP controller (see Section 20) is enabled, you may see the corresponding connection name listed in theName field. In the client list table, there is a “Ban Client” feature which is used to disconnect the Wi-Fi and Remote User Access clients by clicking thebutton on the right. There is a blocklist on the same page after you banned the Wi-Fi or Remote User Access clients. https://www.peplink.com225Copyright @ 2021 Peplink You may also unblock the Wi-Fi or Remote User Access clients when the client devices need to reconnect the network by clickingthe button on the right. 29.5 UPnP/NAT-PMP The table that shows the forwarded ports under UPnP and NAT-PMP protocols is located at Status > UPnP/NAT-PMP. This section appears only if you have enabled UPnP / NAT-PMP as mentioned inSection 16.1.1. Clickto delete a single UPnP / NAT-PMP record in its corresponding row. To delete all records, clickDelete Allon the right-hand side below the table. Important Note UPnP / NAT-PMP records will be deleted immediately after clicking the buttonorDelete All,without the need to clickSaveorConfirm. https://www.peplink.com226Copyright @ 2021 Peplink 29.6 OSPF&RIPv2 The table shows status of OSPF and RIPv2. 29.7 BGP The table shows status of BGP 29.8 SpeedFusionVPN Current SpeedFusion VPN status information is located atStatus > SpeedFusion VPN. Details about SpeedFusion VPN connection peers appears as below: https://www.peplink.com227Copyright @ 2021 Peplink Click on the corresponding peer name to explore the WAN connection(s) status and subnet information of each VPN peer. Click thebutton for a SpeedFusion chart displaying real-time throughput, latency, and drop-rate information for each WAN connection. https://www.peplink.com228Copyright @ 2021 Peplink When pressing thebutton, the following menu will appear: Theconnection informationshows the details of the selected SpeedFusion VPN profile, consisting of the Profile name,Router ID,Router Name andSerial Numberof the remote router Advanced features for the SpeedFusion VPN profile will also be shown when theMore Informationcheckbox is selected. TheWAN statisticsshow information about the local and remote WAN connections (when show Remote connections) is selected. The available details areWAN Name, IP addressandportused for the Speedfusion connection.Rx and Tx rates, Loss rate and Latency. Connections can be temporarily disabled by sliding the switch button next to a WAN connection to the left. The wan-to-wan connection disabled by the switch is temporary and will be re-enabled after 15 https://www.peplink.com229Copyright @ 2021 Peplink minutes without any action. This can be used when testing the SpeedFusion VPN’s speed between two locations to see if there is interference or network congestion between certain WAN connections. The SpeedFusion VPN test configuration allows us to configure and perform thorough tests. This is usually done after the initial installation of the routers and in case there are problems with aggregation. Press the Start button to perform throughput test according to the configured options. If TCP is selected, 4 parallel streams will be generated to get the optimal results by default. This can be customized by selecting a different value of streams. Using more streams will typically get better results if the latency of the tunnel is high. https://www.peplink.com230Copyright @ 2021 Peplink Peplink also published a whitepaper about Speedfusion which can be downloaded from the following url: http://download.peplink.com/resources/whitepaper-speedfusion-and-best-practices-2019.pdf https://www.peplink.com231Copyright @ 2021 Peplink 29.9 EventLog Event log information is located atStatus > Event Log. 29.9.1Device Event Log The log section displays a list of events that has taken place on the Pepwave router. Click the to refresh log entries automatically. Click thebutton to clear the log. https://www.peplink.com232Copyright @ 2021 Peplink 29.9.2Firewall Event log This section displays a list of events that have taken place within a firewall. Click the button and the log will be refreshed. 29.9.3SpeedFusion VPN Event log This section displays a list of events that have taken place within a SpeedFusion VPN connection. Click thebutton and the log will be refreshed. https://www.peplink.com233Copyright @ 2021 Peplink 30 WANQuality TheStatus > WAN Qualityallow to show detailed information about each connected WAN connection. For cellular connections it shows signal strength, quality, throughput and latency for the past hour. https://www.peplink.com234Copyright @ 2021 Peplink 31 UsageReports This section shows bandwidth usage statistics and is located atStatus > Usage Reports Bandwidth usage at the LAN while the device is switched off (e.g., LAN bypass) is neither recorded nor shown. 31.1 Real-Time TheData transferred since installationtable indicates how much network traffic has been processed by the device since the first bootup. TheData transferred since last reboottable indicates how much network traffic has been processed by the device since the last bootup. https://www.peplink.com235Copyright @ 2021 Peplink 31.2 Hourly This page shows the hourly bandwidth usage for all WAN connecti…

Text truncated - open the document above for the full version.

PISMO LABS TECHNOLOGY LIMITED A8, 5/F, HK Spinners Industrial Building, Phase 6, 481 Castle Peak Road, Cheung Sha Wan, Hong Kong Covered Equipment Certification Attestation Letter 3/7/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: U8G-P1AX23 PISMO LABS TECHNOLOGY LIMITED (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. PISMO LABS TECHNOLOGY LIMITED (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Antony Chong Title: Director of Hardware Engineering Company Name: PISMO LABS TECHNOLOGY LIMITED Date: 3/7/2024

Certification designating a U.S. Agent for service of process: As required by section 2.911(d)(7), the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. In either scenario, the designation of the U.S. agent for service of process should be provided as an attachment to the equipment authorization application. The applicant must provide a written certification, which must: i. Be signed by both the applicant and designated agent for service of process, if the agent is different from the applicant. ii. Acknowledge the applicant’s consent and the designated agent’s obligation to accept service of process. iii. Provide a physical U.S. address and email for the designated agent. iv. Acknowledge the applicant’s acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Unofficial information provided by FCC personnel on February 14, 2023, via the monthly call with the TCB Council: The Agent for Process of Service: • cannot be a TCB or affiliated with a TCB (e.g. could not be a person who works for a TCB or a company that owns or is owned by the TCB) • cannot be a [FCC recognised] Lab or affiliated with a test lab (e.g. could not be a person who works for a Lab or a company that owns or is owned by the Lab) • Agent can be Individual Entity or a Company Entity • Agent Entity must be located in US, US address/phone • Entity acting as Agent must have FRN (best practice, put FRN on Agent Letter) • Agent letter does not have to be FCC ID specific, can be general Agent for Grantee For devices being marketed or for which marketing has ceased for less than 1 year, if the Agent for Process of Service changes, then for every TC Number the TCB must request the FCC to put application into Audit Mode and Agent Letter needs to be updated (superseded). NOTE: The U.S. Agent for Service of Process should not be confused with the authorized agent used for signing the 731 form, other cover letters within the application, and/or the agent who may interface with the TCB. PISMO LABS TECHNOLOGY LIMITED A8, 5/F, HK Spinners Industrial Building, Phase 6, 481 Castle Peak Road, Cheung Sha Wan, Hong Kong U.S. Agent Designation for Service of Process ATTENTION: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA REGARDING: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Approve-IT, Inc. Contact Name: Nathan Grinager Street Address: 8011 34 th Ave South, Suite 342 City/Province/Zip: Bloomington, MN 55425 Telephone No: 651-247-1678 Email: [email protected] FRN #: 0027533835 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: March 13, 2024 Signed by (Printed Name/Title): Nathan Grinager / Co-President *This letter is valid indefinitely for all applications submitted within the period of 3/13/2024 - 3/12/2025 The Applicant confirms its explicit consent and acknowledges that they must maintain an agent for no less th an one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: PISMO LABS TECHNOLOGY LIMITED Grantee Code: U8G Grantee FRN: 0016347064 Contact Name: Antony Chong Street Address: A8 , 5/F, HK Spinners Industrial Building, Phase 6, 481 Castle Peak Road, City/Province/Zip: Cheung Sha Wan, Hong Kong Telephone No: +852-2990-7600 Email: [email protected] Applicant Signature: Date: 3 / 13 / 2024 Signed by (Printed Name/Title): Antony Chong / Director of Hardware Engineering

PISMO LABS TECHNOLOGY LIMITED A8, 5/F, HK Spinners Industrial Building, Phase 6, 481 Castle Peak Road, Cheung Sha Wan, Hong Kong Subject: Request for confidentiality FCC ID: U8G-P1AX23 Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby request non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Operational Description (SW Security) Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: 07/03/2024 Name and signature of applicant: Antony Chong

PISMO LABS TECHNOLOGY LIMITED A8, 5/F, HK Spinners Industrial Building, Phase 6, 481 Castle Peak Road, Cheung Sha Wan, Hong Kong ____________________ Model Name Declaration Date: 3/7/2024 To whom it may concern We, PISMO LABS TECHNOLOGY LIMITED, declare that our product “Peplink Pepwave Wireless Product, model: B One 5G, B-ONE-5GN-T-PRM, B One Plus, B-ONE-PLUS-LTE- US-T-PRM, B One, B-ONE-T-PRM are identical in HW design. The differences are shown in the following table: Model WWAN Certified Module Feature B One 5G Quectel RM520N-GL WWAN + Wi-Fi + Bluetooth B-ONE-5GN-T-PRM B One Plus Quectel EC25-AFXD WWAN + Wi-Fi + Bluetooth B-ONE-PLUS-LTE-US-T-PRM B One N/A Wi-Fi + Bluetooth B-ONE-T-PRM B-ONE-5GN-T-PRM, B-ONE-T-PRM & B-ONE-PLUS-LTE-US-T-PRM are the codes used to order our products for marketing purposes. Authorized Signature on behalf of PISMO LABS TECHNOLOGY LIMITED. Name: Antony Chong Position: Director of Hardware Engineering

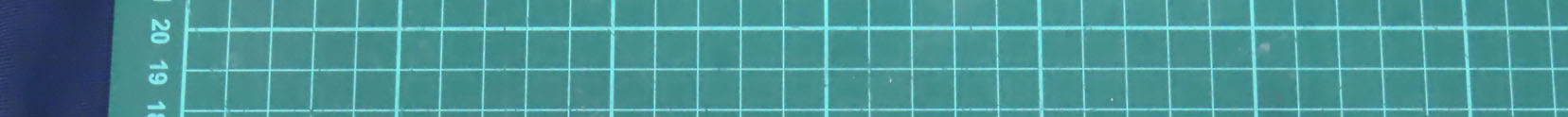

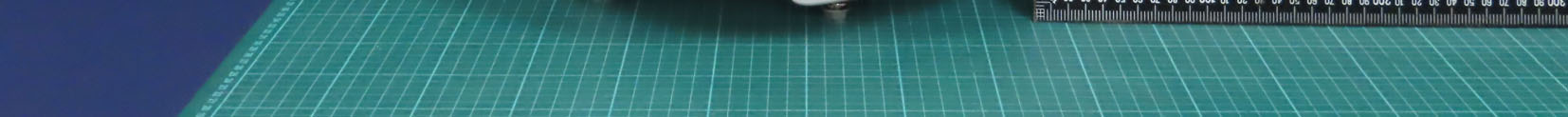

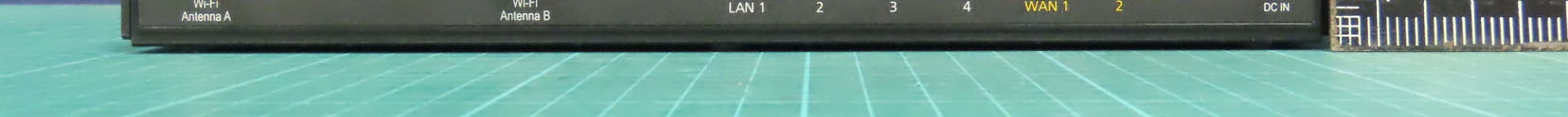

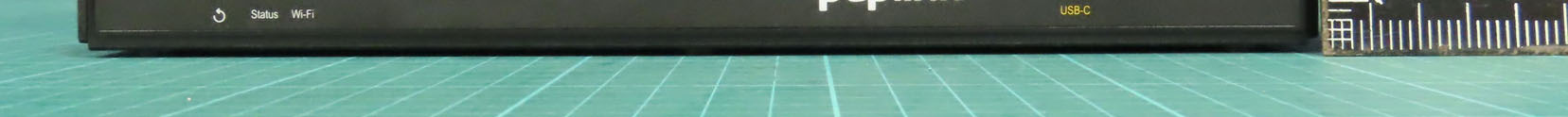

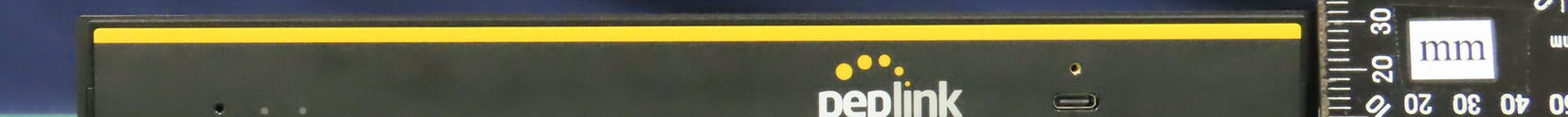

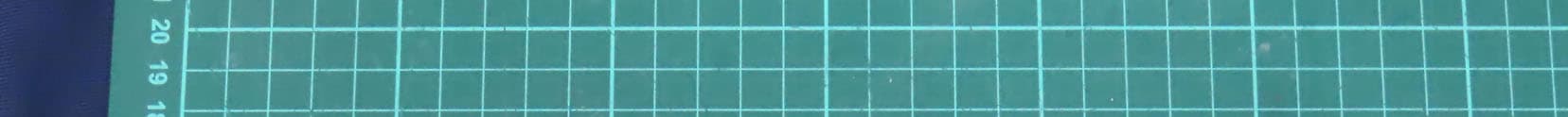

Report No.: 2360237R-Product Photos Page: 1 of 19 (1) EUT Photo (Model No.: B One 5G) (2) EUT Photo (Model No.: B One 5G) Report No.: 2360237R-Product Photos Page: 2 of 19 (3) EUT Photo (Model No.: B One 5G) (4) EUT Photo (Model No.: B One 5G) Report No.: 2360237R-Product Photos Page: 3 of 19 (5) EUT Photo (Model No.: B One 5G) (6) EUT Photo (Model No.: B One 5G) Report No.: 2360237R-Product Photos Page: 4 of 19 (7) EUT Photo (Model No.: B One 5G) (WWAN Antenna: INPAQ / DAM-D3-B3-N0-000-58-13) (8) EUT Photo (Model No.: B One 5G) (WWAN Antenna: INPAQ / DAM-D3-B3-N0-000-58-13) Report No.: 2360237R-Product Photos Page: 5 of 19 (9) EUT Photo (Model No.: B One 5G) (WLAN Antenna: INPAQ / RFDPA191300SBLB813) (10) EUT Photo (Model No.: B One 5G) (WLAN Antenna: INPAQ / RFDPA191300SBLB813) Report No.: 2360237R-Product Photos Page: 6 of 19 (11) EUT Photo (Model No.: B One) (12) EUT Photo (Model No.: B One) Report No.: 2360237R-Product Photos Page: 7 of 19 (13) EUT Photo (Model No.: B One) (14) EUT Photo (Model No.: B One) Report No.: 2360237R-Product Photos Page: 8 of 19 (15) EUT Photo (Model No.: B One) (16) EUT Photo (Model No.: B One) Report No.: 2360237R-Product Photos Page: 9 of 19 (17) EUT Photo (Model No.: B One) (WLAN Antenna: INPAQ / RFDPA191300SBLB813) (18) EUT Photo (Model No.: B One) (WLAN Antenna: INPAQ / RFDPA191300SBLB813) Report No.: 2360237R-Product Photos Page: 10 of 19 (19) EUT Photo (Model No.: B One Plus) (20) EUT Photo (Model No.: B One Plus)

Report No.: 2360237R-Product Photos Page: 11 of 19 (21) EUT Photo (Model No.: B One Plus) (22) EUT Photo (Model No.: B One Plus) Report No.: 2360237R-Product Photos Page: 12 of 19 (23) EUT Photo (Model No.: B One Plus) (24) EUT Photo (Model No.: B One Plus) Report No.: 2360237R-Product Photos Page: 13 of 19 (25) EUT Photo (Model No.: B One Plus) (WWAN Antenna: INPAQ / DAM-D3-B3-N0-000-58-13) (26) EUT Photo (Model No.: B One Plus) (WWAN Antenna: INPAQ / DAM-D3-B3-N0-000-58-13) Report No.: 2360237R-Product Photos Page: 14 of 19 (27) EUT Photo (Model No.: B One Plus) (WLAN Antenna: INPAQ / RFDPA191300SBLB813) (28) EUT Photo (Model No.: B One Plus) (WLAN Antenna: INPAQ / RFDPA191300SBLB813) Report No.: 2360237R-Product Photos Page: 15 of 19 (29) EUT Photo (30) EUT Photo Report No.: 2360237R-Product Photos Page: 16 of 19 (31) EUT Photo (32) EUT Photo ( Adapter #1: Zhuzhou Dachuan Electronic Technology Co., Ltd. / DCT36W120300ZZ-D2) Report No.: 2360237R-Product Photos Page: 17 of 19 (33) EUT Photo ( Adapter #1: Zhuzhou Dachuan Electronic Technology Co., Ltd. / DCT36W120300ZZ-D2) (34) EUT Photo ( Adapter #1: Zhuzhou Dachuan Electronic Technology Co., Ltd. / DCT36W120300ZZ-D2) Report No.: 2360237R-Product Photos Page: 18 of 19 (35) EUT Photo ( Adapter #2: FLYPOWER / PS36LA120K3000UD) (36) EUT Photo ( Adapter #2: FLYPOWER / PS36LA120K3000UD) Report No.: 2360237R-Product Photos Page: 19 of 19 (37) EUT Photo ( Adapter #2: FLYPOWER / PS36LA120K3000UD)

Rev3 02-140010-00 02-140010-00 8) Serial No. Serial No. (Barcode) “Serial” Retrieve from database RED = ONLINE PRINTING CONTENTPRE-PRINTING Label ContentLabel Content “Barcode” *Checking: without hyphen LAN MAC“LAN MAC” *Checking: ends at “0” AP Password“WPA Shared Key” Made in Taiwan M? Country of Origin Input information CM Code HW?Hardware Version R1.0mm IMEIIMEI Model: B One 5G Made in Taiwan M8 HW1 Product Code: B-ONE-5GN-T-PRM Serial No.: 192C-DBFC-6BB5 IMEI: 359074062239951 Input: 10-30V DC, 36W max (Power Port) 5V DC, 2A (USB Port) Output: LAN MAC:10-56-CA-6C-CF-C0 AP Password:CA6CCFC0 Default AccessUsername: admin https://192.168.50.1Password: admin B-ONE-5GN-T-PRM FCC ID: U8G-P1AX23 Contains FCC ID: XMR2022RM520NGL Model: B One 5G Made in Taiwan M8 HW1 Product Code: B-ONE-5GN-T-PRM Serial No.: 192C-DBFC-6BB5 IMEI: 359074062239951 Input: 10-30V DC, 36W max (Power Port) 5V DC, 2A (USB Port) Output: LAN MAC:10-56-CA-6C-CF-C0 AP Password:CA6CCFC0 Default AccessUsername: admin https://192.168.50.1Password: admin FCC ID: U8G-P1AX23 Contains FCC ID: XMR2022RM520NGL Model: B One 5G Product Code: B-ONE-5GN-T-PRM Input: 10-30V DC, 36W max (Power Port) 5V DC, 2A (USB Port) Output: Default AccessUsername: admin https://192.168.50.1Password: admin FCC ID: U8G-P1AX23 Contains FCC ID: XMR2022RM520NGL

Rev1 R1.0mm RED = ONLINE PRINTING CONTENTPRE-PRINTING Serial No. Serial No. (Bar…
