U9P-RH-SERadar Detector on X, K, Ka and Ku Band

e. FRONT LASER RECEIVER/ TOP LASER RECEIVER Laser lens to detect laser signals f. RADAR RECEIVER Receives the radar signals emitted by traffic radars g. SPEAKER Alarms with tone h. MOUNTING SLOTS Mount the bracket i. POWER CORD INPUT JACK Connect the DC Power cord here j. AUXILIARY AUDIO JACK Connect the earphone or speakers here k. LED DISPLAY P: Power on indicator r r K: K band signal indicator K: Ku band signal indicator Ka: Ka band signal indicator : Low battery indicator/ Battery charging indicator r For the best performance, select the proper location for the unit where it has a direct view of the road. The antenna and lens shouldnot be obstructed by metal or metallic surfaces and should bepointed at the horizon for accurate long range detection. tor in a level position. Do not mount the detector behind metal surfaces, windshieldantennas, wiper blades, ornaments or mirrored glass.Do not mount the detector where the driver or passengermay be injured in case of an abrupt stop. 1) FASTENER TAPE MOUNTING ON DASHBOARD a. Use a damp cloth to thoroughly clean both the bottom of the detector and the dashboard. b. Peel of the tape's paper backing and apply the tape to the bottom of the detector. c. Remove the paper backing from the other side of the tape and press the detector onto the dashboard. 2) WINDSHIELD MOUNTINGThe supplied windshield bracket lets you quickly mount thedetector to your vehicle’s windshield.a. Install the suction cups onto the bracket by fitting them into their holes. b. Attach the bracket to windshield.c. Attach the detector to the bracket.d. Bend bracket for correct detection angle (if necessary). Do not use the detector to bend bracket. e. Plug the DC12V power cord into the detector and plug the powercord into the cigarettelighter socket. 3) POWER CONNECTIONa. b. The RadarHAWK™ SE is also designed to operate on most DC12V negative ground vehicle elec trical systems. The power cord provided with the detector has a cigarette light socket plug atone end and a small connector at the other. Insert the small connector into the jack on the side of the detector.Insert the other end into the cigarette lighter socket of your vehicle. If the detector does not operate when you turn it on,remove the adapter from the cigarette lighter socket and carefully check the socket for debris. Also, check the fuse inthe adapter and your vehicle’s fuse box. 4) REPLACING FUSEIf the detector stops operating, the fuse in the plug might be blown. If it has blown, unscrew the top of the plug to remove the fuse and replace it with a new one. 2) Controls and Functions INSTALLING THE UNIT 1 2 3 4 INTRODUCTION 5 6 7 8 Installing the Unit Features and Standard Accessory Features and Standard Accessory Installing the Unit Features and Standard Accessory FEATURES AND STANDARD ACCESSORIES WARRANTY a. Power/Volume Control Wheel Turns the detector on/off and controls the volume level. b. DIM Button Dim mode reduces the illumination of the display. You can adjust the brightness of the display. c. MUTE Button Silences the audio alarm d. CITY Button Press the City button to reduce false alarms while driving in the city. While driving on the hig hways or rural, press the City button again to turn off City mode for long range detection. AA NiMH batteryAA NiMH battery RADAR LASER DETECTOR Owner’s Manual TM 1) Accessories included with your RadarHAWK™ SE• Mounting Bracket• Suction Cups• 12V DC Power Cord & Fuse• Fastener Tape• Operation Manual• Two AA NiMH Rechargable Batteries• Earphone •• •••• Choose a location that does not block the driver’s vision. •••••••• We warrant your RadarHAWK™ SE against all defects in materials and workmanship for a period of one(1) year from the date of the original purchase. Thank you for purchasing the wireless RadarHAWK™ SE Radar and Laser Detector. The new RadarHAWK™ SE model incorporates advanced antenna technology and eSEremely low power consump-tion circuitry to ensure top-class performance. It is a completely integrated radar and laser detector, which responds X, K, Ku and Ka band radar guns and all known laser speed guns in use today.The RadarHAWK™ SE is specially designed to be a simple-to-use device in any vehicle or motorcycle keeping you fully protected at all times. This manual contains instructions and information explain-ing how the RadarHAWK™ SE operates.Please read the manual in detail to get the most out of the outstand-ing performance and features of the RadarHAWK™ SE. The RadarHAWK™ SE is specially designed to operate on two AA NiMH rechargeable batteries. To ensure maximum performance, we advise that you do not use other battery typrs. 9 10 11 12 13 14 15 16 17 1 9 OPERATION 1) POWER AND VOLUME CONTROLTo turn on the detector, connec t power/insert batter y and rotate the wheel controller(located on the side of the detector) until youhear it click. To turn off t he detector, rotate the wheel controller in the opposite direction until it clicks again. You can also use thecontroller to adjust the volume level by turning it up or down within the range that it does not click. 2) SELF-TEST & FEATURE MEMORY When powered up, the detector performs self-test. AY or CITY R TONE TION 3) BRIGHTNESS CONTROL Press DIM button to toggle between 3 different brightness levels.The brightness options are: Bright, Dim and Dimmer.When a signal is detec ted, aler ts are always displayed in Bright, regardless of the brightness level you have selec ted. The display returns to your setting following the alert. The factory default mode is Bright. 13) CHARGING THE BATTERIESWhen the power is supplied from 12-volt DC power cord, the two AA NiMH rechargeable batteries will be charged and the battery indicator LED will turn ON to show that the batteries are charging.Within 2.5 hours, the batteries will be fully charged and batteryindicator LED will automatically turn off. 14) AUTO POWER-OFF AT BATTERY MODE15) BATTERY LIFE 1) If the detector does not turn on a. Check the power cord or battery.…

Text truncated - open the document above for the full version.

Date : May 02, 2007 EMCC DR. RASEK CERTIFICATION INSTITUTE – Boelwiese 5 91320 Ebermannstadt Germany Subject : Confidentiality request regarding application for certification of FCC ID: U9P-RH-SE Pursuant to section 0.457 and 0.459 of the commission’s rules, we hereby request confidential treatment of information accompany this application as outlined bellow; Block Diagram Schematic Diagram(s) The above material contained trade secrets and proprietary information not customarily released to public. The public disclosure of these materials may be harmful to the applicant The applicant understands that pursuant to section 0.457 of the Rules, Disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely Signature Name : Chon Sik, Kim Title : Chief Engineer of EMC Team Company : ETL Inc. 584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Tel : +82-2-858-0786 Fax: +82-2-858-0788

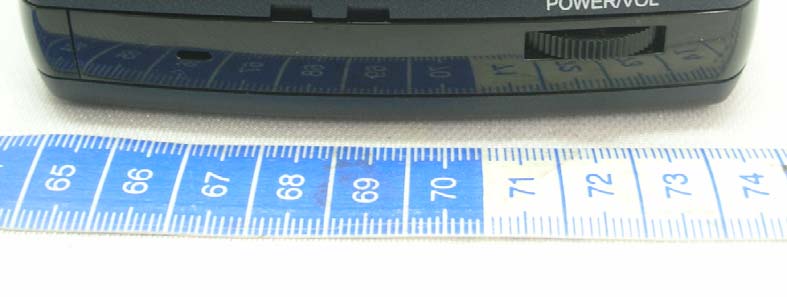

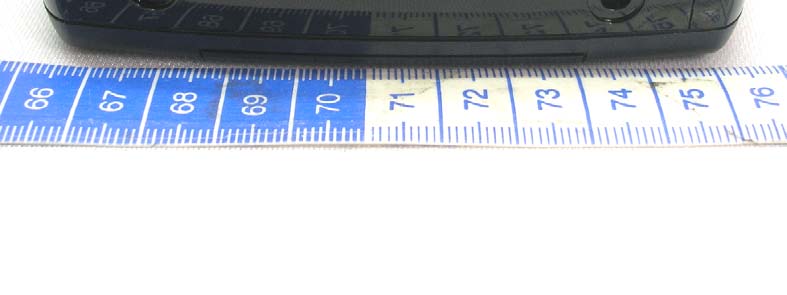

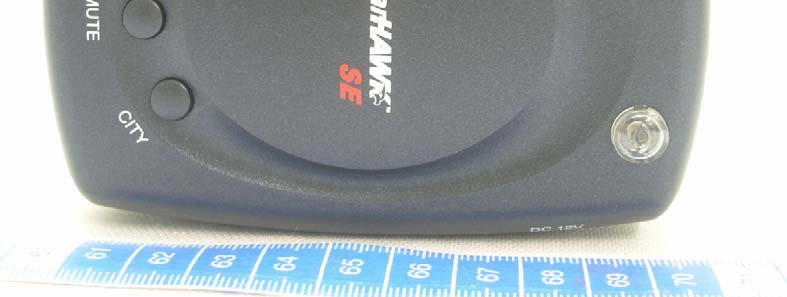

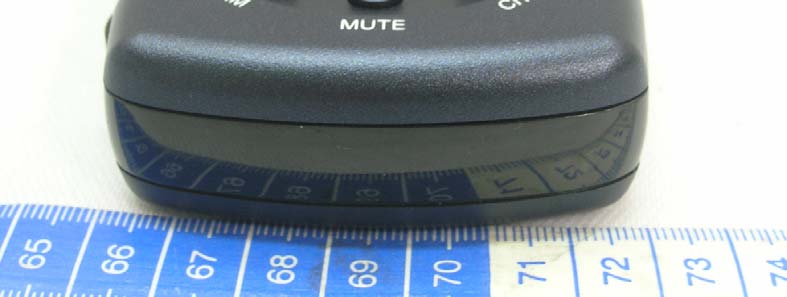

Appendix C. External Photographs Report no. ETLE070426.266, Page C1 of C3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE070426.266, Page C2 of C3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Left side view of EUT Right side view of EUT Appendix C. External Photographs Report no. ETLE070426.266, Page C3 of C3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top view of EUT Bottom view of EUT

Appendix A. FCC ID Label and Location Report no. ETLE070426.266, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE070426.266, Page D1 of D3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of Inside Appendix D. Internal Photographs Report no. ETLE070426.266, Page D2 of D3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of main board Appendix D. Internal Photographs Report no. ETLE070426.266, Page D3 of D3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Bottom side view of main board

RadarHAWK SE Operating Description The RadarHAWK SE radar detector is a dual conversion scanning super-heterodyne receiver with separate alarms for each of the radar bands, dim function, mute, filter and POP select. It detects front and rear laser and radar. It has a digital display of all functions. The RadarHAWK SE detect POP radar signal. It is completely VG-2 undetectable. The RadarHAWK SE is built with high reliability surface mount construction and VCO technology for improved performance over a wide operating temperature. The RadarHAWK SE detects all radar and laser bands used by law enforcement: 10,475 – to – 10,575 MHz, 24,050 – to – 24,250 MHz, and 33,400 – to – 36,000 MHz, as well as 904 nanometer infrared signals. The R adarHAWK is compact, designed exclusively for automotive use and is powered by the 12- Volt electrical system in a car or truck. Also The R adarHAWK operate by the two AA Rechargeable NiMH battery RadarHAWK SE SPECIFICATIONS Radar Receiver type : Dual conversion super-heterodyne Antenna type : Linear polarized, self-contained Detector type : Scanning frequency discriminator Frequency operation : X-band; 10.525 GHz ±50 MHz K-band; 24.150 GHz ±100 MHz Ka-band (super-wide); 34.700 GHz ±1,300 MHz Ku-band; 13,450GHz +100 MHz; -100 MHz Laser Receiver type : Pulsed laser signal receiver Detector type : Digital signal processor pulse width discriminator Optical sensor : Dual convex condenser lens and high speed photo diode detector, 905 ± 50 nanometers (nm) General Operating Temperature Range : -20° C to +80° C Storage Temperature Range : -30° C to +100° C Power requirements : 12V DC, 350mA, negative ground or AA x 2 Rechargeable NiMH Battery Dimensions : 1.0 ̋H x 2.85 ̋W x 4.2 ̋L Weight : 5.0 ounces

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL Inc. www.etl.re.kr ETL Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This RADAR DETECTOR, Model RadarHAWK SE has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the ETL Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B: I attest to the accuracy of data. All measurement herein was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Chon Sik, Kim / Chief Engineer ETL Inc. #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 PRODUCT : RADAR DETECTOR MODEL/TYPE NO : RadarHAWK SE FCC ID : U9P-RH-SE APPLICANT : Q3 Innovations, LLC 2349 Jamestown Ave., Suite #4 Independence, IA 50644 United States Attn.: Dr Chad L Ronnebaum / President MANUFACTURER : ATTOWAVE 1005, 10F Leader’s Tower 60-15, Gasan-dong, Geumchun-gu, Seoul, 153-801, Korea FCC CLASSIFICATION : Unintentional Radiators Radar Detector – CRD FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TEST REPORT No. : ETLE070426.266 DATES OF TEST : April 27, 2007 REPORT ISSUE DATE : May 02, 2007 TEST LABORATORY : ETL Inc. ( FCC Registration Number : 95422) Report no. ETLE070426.266, Page 2 of 13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Radiated Emissions Measurement 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual Report no. ETLE070426.266, Page 3 of 13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : RADAR DETECTOR z Model Number : RadarHAWK SE z FCC ID : U9P-RH-SE z S/N : N/A z FCC Rule Part(s) : FCC Part 15 Subpart B z Test Procedure : ANSI C63.4-2003 z FCC Classification : Unintentional Radiators Radar Detector (CRD) z Dates of Tests : April 27, 2007 z Place of Tests : ETL Inc. Testing Lab. (FCC Registration Number : 95422) Radiated Emission test; #584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Conducted Emission test; ETL Inc. Testing Lab. (FCC Registration Number : 95422) 371-51, Gasan-donzg, Geumcheon-gu, Seoul, 153-803, Korea z Test Report No. : ETLE070426.266 Applicant Name : Q3 Innovations, LLC Address : 2349 Jamestown Ave., Suite #4 Independence, IA 50644 United States Attention:Dr Chad L Ronnebaum / President Report no. ETLE070426.266, Page 4 of 13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 1. INTRODUCTION The measurement test for radiated and conducted emission test were conducted at the open area test site of ETL Inc. facility located at #584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the Q3 Innovations, LLC, Model: RadarHAWK SE. Report no. ETLE070426.266, Page 5 of 13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Q3 Innovations, LLC, Model: RadarHAWK SE. 2.2 General Specification Report no. ETLE070426.266, Page 6 of 13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 3. DESCRIPTION OF TESTS 3.1 Radiated Emission Measurement Radiated emission measurements were made in accordance with section 11, "Measurement of Information Technology Equipment" of ANSI C63.4-…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE070426.266, Page B1 of B1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Radiated Emission Test Setup
