U9P-RH-SMRadar Detector X, Ku, K and Ka Band

3 2 1. Important Cautions for Use this Unit in Safety2. Controls, Indicators and Connections3. Accessories4. Installation5. Feature6. How to Use7. Understanding Radar Detector8. Troubleshooting9. Specification Read this book and understand how to use the RadarHAWK™SM. Keep this book and refer in each case.Follow the cautions in this book for safety use of this unit, or itmay lead accidents. Locate this unit on the passenger side windshield. - If locate on the driver side windshield, it obscures the driver from view. Don't get the unit wet. Electrocution Hazard. Death orSerious Injury can result. Don't operate this unit during driving.Don't open the housing case of this unit. Stop the use of this unit if it has a fever, strange odor,emitting smoke. Use under the temperature of –10 ~ +60 degree Centigrade. - Don't leave the unit in car under high/low temperature. Result the failure. Before leaving your vehicle, always remember to concealthe unit in order to reduce the possibility of break-in and theft. Don’t put impact shock on the unit.Under high temperature, this unit can have a fever. - Don’t touch until the unit gets enough cold. Get burned. Obey the traffic laws.Don't use RadarHAWK™ SM if the unit is illegal in your area. <Windshield mounting>When you set the unit on the windshield, triangle two-sidedtape becomes unnecessary. Keep it in case you change theinstallation location.1. Make sure the suction cups and your windshield are clean.2. Attach provided rubber foot onto bracket. 3. Push the bracket to stick the rubber cups. 4. Attach the bracket to the bracket socket on the bottomside of the detector unit. 5. Fix the detector unit onto the windshield. Set the radar rear side in the direction of travel.Adjust the angle of the unitto keep in the horizontalposition. If necessary,adjust thebracketscrew tochange theangle. After theangle becomes on thelevel, tighten the screwfirmly. 6. Plug the power cord into the detector unit.7. Plug the cigarette light adaptor in the power cord into your vehicle's cigarette lighter socket. <Dashboard Mounting>When you set the unit on the dashboard, suction cups andrubber foot become unnecessary.Keep them in case you change the installation location.1. Place the detector unit on the dashboard to find a location where the unit has a clear, level view of the road. 2. Remove the paper backing from one (1) side of the triangletwo-sided tape and attach thesticky side of two-sided tapeon the bracket. 3. Attach the bracket to the bracket socket on the bottomside of the detector unit. 4. Remove the paper backing from another side of thetriangle two-side tapeand attach to the locationyousettheunitonthedashboard. Pay attentionto set the radar rear sidein the direction of travel.If necessary, adjust thebracket screw to changethe angle. After the anglebecomes on the level,tighten the screw firmly. 5. Plug the power cord into the detector unit.6. Plug the cigarette light adaptor on the power cord into your vehicle's cigarette lighter socket. RadarHAWK™ SMRadarHAWK™ SM Note and precautions for solar cell and built-in battery; Plug the provided cigarette cable to charge the built-inbattery for the initial use of about 10 days driving.5 hours charging by provided cigarette cable fullycharges the built-in battery.Solar battery is aimed to support the built-in battery, andonly the solar cell can not charge the built-in batteryafter RadarHAWK™ SM gives battery alert.Plug the provided cigarette cable to charge the built-inbattery if RadarHAWK™ SM gives battery alert.Solar battery can charge built-in battery even underpower OFF.Stand-by time of detector with full-charged battery isapproximately 19 hours, but running time depends onthe detection/warning condition.High/low temperature can effect on the charging time.Solar battery cannot charge adequate electricity underrainy/cloudy weather, during nighttime, in a basementpark, under sunshade, and etc. where give inadequatesunlight.Solar battery shall be exposed to sunlight in its wholearea, or cannot charge adequate electricity. USER MANUAL Introduction Important Cautions for Use this Unit in Safety 1 Installation 4 Controls, Indicators and Connections 2 Accessories 3 Table of Contents APS ButtonBAND ButtonCITY ButtonWarning Light : 2pcs (left and right)P/X Alert LEDK Alert LEDKu Alert LEDKa Alert LEDLaser Alert LEDSolar CellVolume Controller12V DC Power JackPower Switch Triangle two-sided tape 12V DC power cable Bracket, 2 (two) suction cups and rubber foot User manual Dashboard 4 1 2 3 4 5 6 7 8 ALL-BAND (X, K, Ka) ULTRA HIGH-PERFORMANCE SOLAR-POWERED RADAR/LASER DETECTOR Important: The RadarHAWK™ SM is not designed to help you disobey the law, and its manufacturer doesn’t take responsibilities of any speeding violations cased with using the RadarHAWK™ SM . A defensive driver always obeys the posted speed limit and driving methods. Congratulations on your purchase of one of the world’s most sophisticated solar radar/laser detectors. The RadarHAWK™ SM is a completely integrated radar/laser detector which responds not only to all the radar guns in use today, but also to the other latest development in speed monitoring devices - the laser gun. RadarHAWK™ SM USER MANUAL ALL-BAND (X, K, Ka) ULTRA HIGH-PERFORMANCE SOLAR-POWERED RADAR/LASER DETECTOR Auto mute and Auto DIM controlThe unit alert with reduced audio alarms and with reduced LEDbrightness for continuously detected signals. When an alert isconstantly reported for radar/laser signal, the unit willautomatically reduce the audio sound level and the LEDbrightness AUTOMUTE - Detected 3 level signal (strong signal strength) : Audio sound level will reduce after 10sec. - Detected 1~2 level signal (low~middle signal strength) : Audio sound level will reduce after 30sec. AUTODIM - Detected 3 level signal(strong signal strength) : LED brightness will reduce after 5sec. - Detected 1~2 level signal(low~middle signal strength): LED brightness will reduce after 10sec. Sensitivity contr…

Text truncated - open the document above for the full version.

Date : June 28, 2007 EMCC DR. RASEK CERTIFICATION INSTITUTE – Boelwiese 5 91320 Ebermannstadt Germany Subject : Confidentiality request regarding application for certification of FCC ID: U9P-RH-SM Pursuant to section 0.457 and 0.459 of the commission’s rules, we hereby request confidential treatment of information accompany this application as outlined bellow; Block Diagram Schematic Diagram(s) The above material contained trade secrets and proprietary information not customarily released to public. The public disclosure of these materials may be harmful to the applicant The applicant understands that pursuant to section 0.457 of the Rules, Disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely Signature Name : Chon Sik, Kim Title : Chief Engineer of EMC Team Company : ETL Inc. 584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Tel : +82-2-858-0786 Fax: +82-2-858-0788

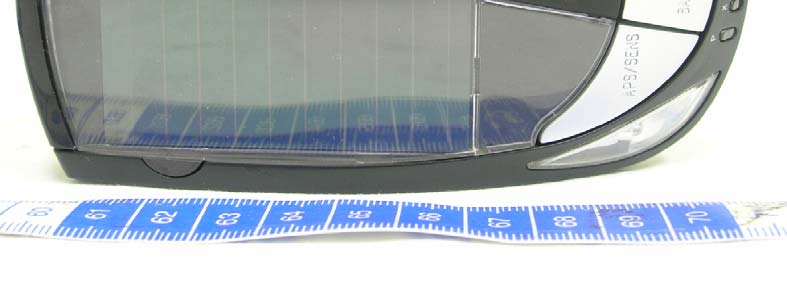

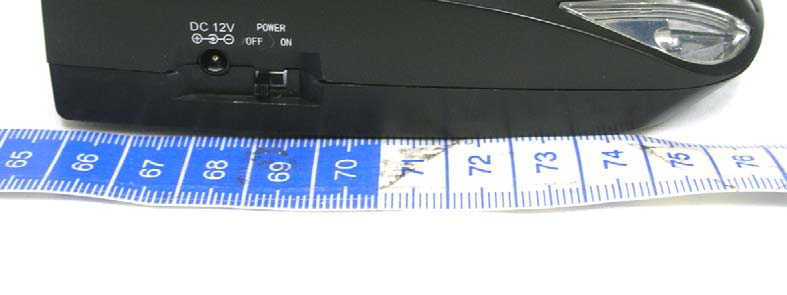

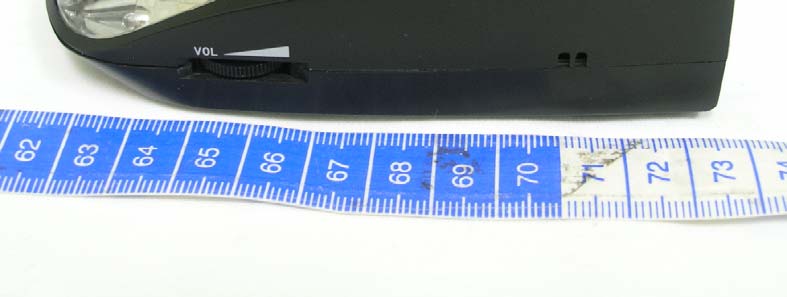

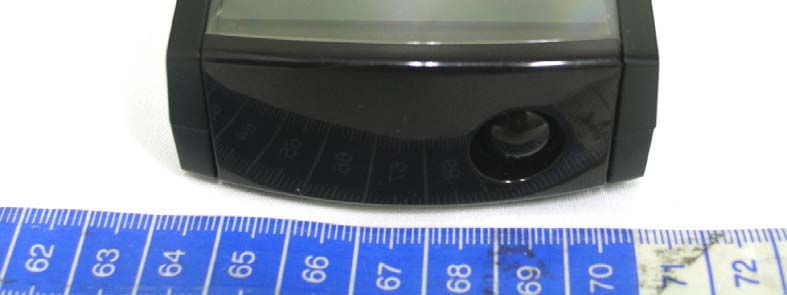

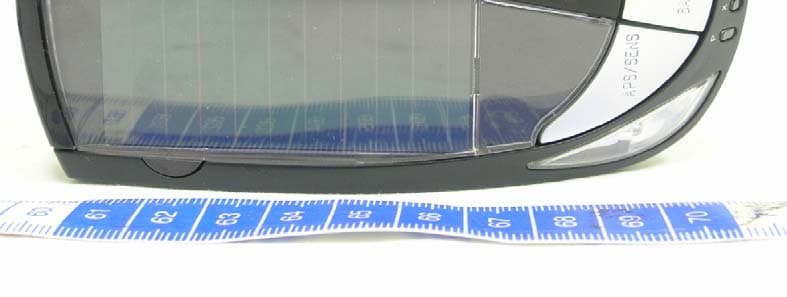

Appendix C. External Photographs Report no. ETLE070621.411, Page C1 of C3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE070621.411, Page C2 of C3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Left side view of EUT Right side view of EUT Appendix C. External Photographs Report no. ETLE070621.411, Page C3 of C3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top view of EUT Bottom view of EUT

Appendix A. FCC ID Label and Location Report no. ETLE070621.411, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE070621.411, Page D1 of D4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of Inside Appendix D. Internal Photographs Report no. ETLE070621.411, Page D2 of D4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of Inside Appendix D. Internal Photographs Report no. ETLE070621.411, Page D3 of D4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of main board Appendix D. Internal Photographs Report no. ETLE070621.411, Page D4 of D4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Bottom side view of main board

RadarHAWK-SE Operating Description The RadarHAWK-SE radar detector is a dual conversion scanning super-heterodyne receiver with separate alarms for each of the radar bands, dim function, mute, fil lter and band select. It detects front and rear laser and radar. It has a LED display of all functions. The RadarHAWK-SM is completely VG-2 undetectable. The RadarHAWK-SM is built with high reliability surface mount construction and VCO technology for improved performance over a wide operating temperature. The RadarHAWK-SM detects all radar and laser bands used by law enforcement: 10,475 – to – 10,575 MHz, 24,050 – to – 24,250 MHz, and 33,400 – to – 36,000 MHz, as well as 904 nanometer infrared signals. The RadarHAWK-SM is compact, designed exclusively for automotive use and is powered by the 12-Volt electrical system in a car or truck. Also The RadarHAWK-SM operate by the three 2/3AAA Rechargeable NiMH battery and SOLAR cell. RadarHAWK-SM SPECIFICATIONS Radar Receiver type : Dual conversion super-heterodyne Antenna type : Linear polarized, self-contained Detector type : Scanning frequency discriminator Frequency operation : X-band; 10.525 GHz ±50 MHz K-band; 24.150 GHz ±100 MHz Ka-band (super-wide); 34.700 GHz ±1,300 MHz Laser Receiver type : Pulsed laser signal receiver Detector type : Digital signal processor pulse width discriminator Optical sensor : Dual convex condenser lens and high speed photo diode detector, 905 ± 50 nanometers (nm) General Operating Temperature Range : -20° C to +80° C Storage Temperature Range : -30° C to +100° C Power requirements : 12V to 16V DC, 150mA, negative ground or 2/3AAA Rechargeable NiMH Battery [email protected] or SOLAR cell. Dimensions : 1.26 ̋H x 2.83 ̋W x 4.8 ̋L Weight : 5.0 ounces

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL Inc. www.etl.re.kr ETL Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This RADAR DETECTOR, Model RadarHAWK SM has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the ETL Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B: I attest to the accuracy of data. All measurement herein was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Chon Sik, Kim / Chief Engineer ETL Inc. #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 PRODUCT : RADAR DETECTOR MODEL/TYPE NO : RadarHAWK SM FCC ID : U9P-RH-SM APPLICANT : Q3 Innovations, LLC 2349 Jamestown Ave., Suite #4 Independence, IA 50644 United States Attn.: Brian C. Eddy / CEO MANUFACTURER : ATTOWAVE 1005, 10F Leader’s Tower 60-15, Gasan-dong, Geumchun-gu, Seoul, 153-801, Korea FCC CLASSIFICATION : Unintentional Radiators Radar Detector – CRD FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TEST REPORT No. : ETLE070621.411 DATES OF TEST : June 23, 2007 REPORT ISSUE DATE : June 28, 2007 TEST LABORATORY : ETL Inc. ( FCC Registration Number : 95422) Report no. ETLE070621.411, Page 2 of 13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Radiated Emissions Measurement 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual Report no. ETLE070621.411, Page 3 of 13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : RADAR DETECTOR z Model Number : RadarHAWK SM z FCC ID : U9P-RH-SM z S/N : N/A z FCC Rule Part(s) : FCC Part 15 Subpart B z Test Procedure : ANSI C63.4-2003 z FCC Classification : Unintentional Radiators Radar Detector (CRD) z Dates of Tests : June 23, 2007 z Place of Tests : ETL Inc. Testing Lab. (FCC Registration Number : 95422) Radiated Emission test; #584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Conducted Emission test; ETL Inc. Testing Lab. (FCC Registration Number : 95422) 371-51, Gasan-donzg, Geumcheon-gu, Seoul, 153-803, Korea z Test Report No. : ETLE070621.411 Applicant Name : Q3 Innovations, LLC Address : 2349 Jamestown Ave., Suite #4 Independence, IA 50644 United States Attention:Brian C. Eddy/CEO Report no. ETLE070621.411, Page 4 of 13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 1. INTRODUCTION The measurement test for radiated and conducted emission test were conducted at the open area test site of ETL Inc. facility located at #584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the Q3 Innovations, LLC, Model: RadarHAWK SM. Report no. ETLE070621.411, Page 5 of 13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Q3 Innovations, LLC, Model: RadarHAWK SM. 2.2 General Specification Report no. ETLE070621.411, Page 6 of 13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 3. DESCRIPTION OF TESTS 3.1 Radiated Emission Measurement Radiated emission measurements were made in accordance with section 11, "Measurement of Information Technology Equipment" of ANSI C63.4-2003. The measurements were…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE070621.411, Page B1 of B1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Radiated Emission Test Setup
