UA2OT3XXXBHONwireless card reader

Installation Instructions /OmniAssure Touch Mullion OmniAssure Touch Mullion P30743-10-0G0-01 2019-12-06 ENInstallation Instructions......................................2 This documentation can be downloaded from our websites in English, German, French, Spanish, Italian, Portuguese, Czech, Polish, Russian, Turkish and Mandarin. GLOBAL: DACH: www.security.honeywell.com www.security.honeywell.de Model nameSmartproXMobileColorItem. no. XXXBlackOT3300BHONG OmniAssure Touch Mullion XXBlackOT3200BHONG XXXBlackOT3312BHONG OmniAssure Touch Mullion 12 key XXBlackOT3212BHONG XXXWhiteOT3300WHONG OmniAssure Touch Mullion XXWhiteOT3200WHONG XXXWhiteOT3312WHONG OmniAssure Touch Mullion 12 key XXWhiteOT3212WHONG I IIIII 2Installation Instructions / OmniAssure Touch Mullion Subject to change without notice. 1Scope of delivery 1Installation instructions 1Reader front 1Mounting backplate 3Wall anchors (5 x 25 mm or #8 x 1”) 3Screws (panhead, 3 x 30 mm or #4 x 1¼”) 2Enclosure screws (metric, M2 x 5 mm panhead) 2Enclosure screw caps 2General The OmniAssure Touch Mullion Reader was tested at the panels: – NetAXS 123 V6 (Wiegand) – ProWatch 6k (Wiegand) – Pro32 (Wiegand) – Mercury EP1502 (OSDP) Mobile credentials: – proX (EM4102) – MIFARE classic – MIFARE DESFire EV1/EV2 – OmniAssure OES – QKey – HID – ISO-SNR Quadrakey – Bluetooth Low Energy Physical interfaces: – Wiegand – RS-485 (OSDP 2.1.7.) The Reader Utility Application is used to configure: – credential bit formats and length 3Installation All dimensions in drawings are in inch and (mm). NOTE All wiring shall be in accordance with applicable codes and regulations. Observe applicable building codes and safety regulations in determining the reader position. UL 294: Installation must be done in accordance with National Electrical Code, ANSI/NFPA 70. General terms – The mounting backplate can be used as a drilling template where necessary. – When positioning the reader base, ensure that the backplate tamper mechanic can be securely screwed in; otherwise the tamper detection is reduced to opening monitoring. – Secure the reader base without exerting excessive force. – Use the mounting material included in the accessories. If you need more materials, ensure that these have the same diameter. –The power supply of the reader must be switched off while the reader is connected. Risk of damage! 3.1Important notes on mounting – Pay attention to the minimum distances (see "III", page 1). Mounting readers in close proximity of each other will reduce perfor- mance, the minimum recommended mounting distance side-by-side or back-to-back is 5” (125 mm). – Mounting the reader on a metal surface may reduce performance, a plastic separator of at least ¼” (6 mm) is recommended. 3.1.1Mounting height In order to operate the keypad and read the indications optimally, install the reader at a height of 130 to 140 cm (51 to 55”) above the floor. 3.1.2Necessary cable reserve In order for the reader to be able to be dismounted when necessary, there must be a sufficient cable reserve in the direct vicinity of the reader. Depending on the type of mounting, the cable reserve can be placed in a nearby junction box. 3.2Mounting for flush mounted wiring see "I", page 1 Screw the reader base directly onto the wall. Screw the backtamper - with reference to drawing in page 1: [1] onto the wall, so that if the reader is torn off the wall, the actuator pin - with refer- ence to drawing in page 1: [2] remains secured to the wall, thus releasing the cover contact and signalling a tamper situation. 3.3Fasten the reader see "II", page 1 [3] Hang the reader from above in the reader base. [4] Snap shut below. [5] Close with the supplied enclosure screw. After completing the mounting and functional testing seal the housing. To do this, press the supplied enclosure screw cap into screw hole. Destroying the seal for removing. 3.4Test the reader / Commissioning Apply power (the green LED indicates power) and present a valid creden- tial. The light ring should flash and the sounder should produce a short tone indicating a successful read. If the Host system is connected the light ring and sounder should follow the functionality of the Host system. 3.5Cable specification – The reader is supplied with 6 ft. (2 m) of shielded, 8-conductor AWG 26 (0,14 mm²) cable which may be extended with the length and size of cable listed below. min. conductor size for panel power suppy max. cable length 9.5 V 1) 12 V18 V Interface feetmetersAWGmm²AWGmm²AWGmm² 20061200,55220,33240,22 30091180,82200,5220,33 Wiegand / RS-485 (cable power) 500152161,35180,81200,54 RS-485 (local power) 40001220 AWG 25 / 0,16 mm² 1)to ensure that the reader power supply is at least 7 V DC Installation Instructions / OmniAssure Touch Mullion3 3.6Wire assignments The connection must be carried out in de-energized state! Risk of damage! To ensure reliable functioning, ensure that a possible extension of the 4 m connecting cable does not exceed 152 m (condition: no external voltage supply unit is required). For extension purposes up to 152 m an additional JY(ST)Y (6x2x0.6 mm) cable can be used. The reader can be used remotely for extension purposes at a distance of max. 1220 m. We recommend using a Cat 5 connecting cable (condition: an external voltage supply unit for the reader is required). In general, by use of RS-485 interface: When the reader is the last user on the RS-485 bus, a 120 Ω end-of-line resistor (from TRX+ to TRX-) must be installed in front of the reader. For further information, refer to the description of the corresponding controller. InterfaceWire color WiegandRS-485 redPOWER (+U_b)POWER (+U_b) blackGND (0 V)GND (0 V) whiteD1TRX+ greenD0TRX- blueHold linedo not connect yellowBuzzerdo not connect orangeLED greendo not connect purpleTamperdo not connect Caution Floating communication lines may cause spurious emissions, invalidating certification. Ensure all communication lines are properly biased and ter- minated. Input Hold li…

Text truncated - open the document above for the full version.

Page 1 of 2 External Photo Module Product name : Global Reader Mullion FCC ID : UA2OT3XXXBHON IC ID : 6587A-OTXXXBH Test report No. 190202012 Test report No. 190202012 Page 1 of 2 Table of Contents 1 External Photos ........................................................................................................................................ 2 1.1 Front/3D View ....................................................................................................................................... 2 1.2 Back view (normally mounted against wall) ......................................................................................... 2 Test report No. 190202012 Page 2 of 2 1 External Photos 1.1 Front/3D View 1.2 Back view (normally mounted against wall)

Honeywell Security Deutschland FS-RD-00014-E / OCT-16-2013 release B page 1 of 5 (X) Manufacturing Requirements () pre Manufacturing Requirements Sub-assembly-description: OmniAssure Touch Mullion OT3200BHONG, OT3212BHONG, OT3300BHONG, OT3312BHONG Sub-assembly-number: SA_GRSMCMG0B, SA_GRSMCMG12B, SA_GRSPMCMG0B, SA_GRSPMCMG12B PCB-numbers: Created: T. Finke R&D-HW *) Checked: OP *) Released: Project leader *) Comments: The change are marked. *) Approvals will be done with Agile workflow. No hand signature required on this document. Honeywell Security Deutschland FS-RD-00014-E / OCT-16-2013 release B page 2 of 5 In general the standard manufacturing methods and processes which comply with “Quality Manual” have to be applied. The following document only covers special operations and workflows which were not defined in process descriptions and operating instructions or diverge from it. Production workflow Visual incoming inspection for all OmniAssure Touch parts. The following parts should be delivered by INID: - 2D label - type label - wall plate - reader + module Incoming inspection of reader, BLE module and 2D label position: 2D label position Type label (example) Honeywell Security Deutschland FS-RD-00014-E / OCT-16-2013 release B page 3 of 5 Please assemble the rubber sleeve: The switch and buzzer gaps/openings must be covered with PC-FLEX-MASK or similar mask. Wait until PC-FLEX-MASK is cured (12hours). Fill up the enclosure with potting until the height of the rubber sleeves. Follow the following steps:  Fill the cavity between main PCB and keyboard through the fill hole next to the wire, use a tight-fitting nozzle and a very low flow rate (suggested: 0.25 ml/s). Approx. 22 ml is required.  Watch out for potting coming up through the edge openings prematurely, pause a second or two if necessary.  Fill the rest of the reader to the required fill height from the middle of the reader using a suitable flow rate, avoid bubbles forming (e.g. on corners of components).  On top cover all electronic parts with a thin layer of potting. Afterwards the potting must cure. During that time, do not move the device. Keep the device in a stable horizontal position. Cure time of the potting is at least 24 hours. (hardening at higher temperature is forbidden) Remove PC-FLEX-MASK from switch and buzzer. Remove tape for buzzer protection. Test in according with the test requirements. Remove the clamp terminal block (if available). The product label, type label and connection label should be stick on the potting in compliance with the picture. Mask to fix the sleeve Mask to close Mask to fix the buzzer tape Honeywell Security Deutschland FS-RD-00014-E / OCT-16-2013 release B page 4 of 5 Put in 4 screw covers (INID) in the accessory bag (if they are provided by INID) otherwise the BOM is valid. Put in the manual, the wall plate and accessory bag under the inlay in the packaging box. Afterwards the inlay and reader on top as shown in the picture (example for square). Remove the protection (manufacture) foil on top. Close the box with the packaging label in place (uncertainty in ±1cm). See document 800-16060 “Labeling Gift-Boxes Albstadt” for label placement on the outer packaging. Product label L/2±1cm L = box length Honeywell Security Deutschland FS-RD-00014-E / OCT-16-2013 release B page 5 of 5 Pull over the slip case.

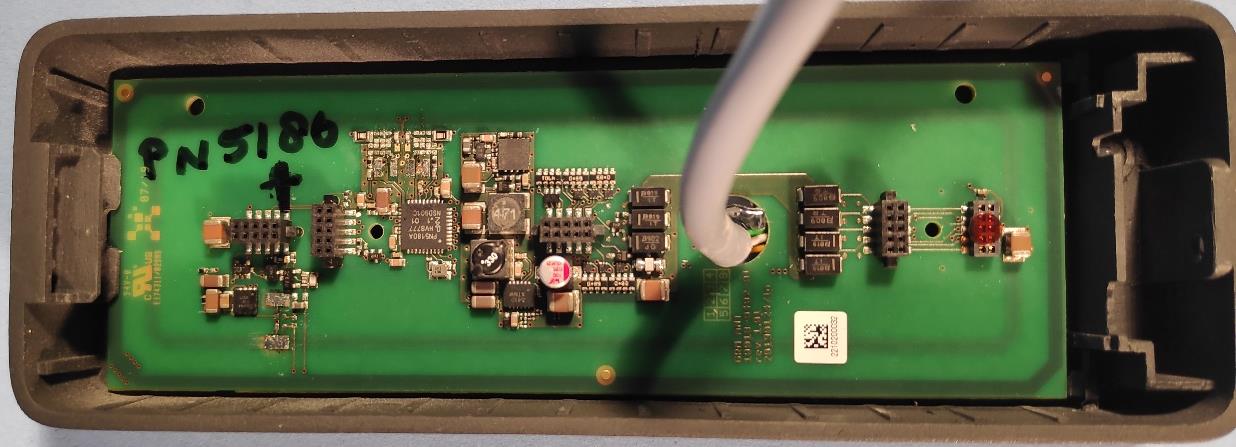

Page 1 of 3 Internal Photo Module Product name : Global Reader Mullion FCC ID : UA2OT3XXXBHON IC ID : 6587A-OTXXXBH Test report No. 190202012 Test report No. 190202012 Page 1 of 3 Table of Contents 1 Internal Photos ........................................................................................................................................ 2 1.1 Front PCB 1 view ................................................................................................................................... 2 1.2 Back PCB 1 view .................................................................................................................................... 2 1.3 Front PCB 2 view ................................................................................................................................... 3 1.4 Back PCB 2 view .................................................................................................................................... 3 1.5 RF section BLE ....................................................................................................................................... 3 Test report No. 190202012 Page 2 of 3 1 Internal Photos 1.1 Front PCB 1 view 1.2 Back PCB 1 view Test report No. 190202012 Page 3 of 3 1.3 Front PCB 2 view 1.4 Back PCB 2 view 1.5 RF section BLE
