UA3-ATR20107-1CG-CFR03

This radio module will only be installed by the applicant into host devices they market. This installation guide is representative of one such implementation and contains all of the necessary regulatory statements and warnings. CommerceGuard AB Gustavslundsvägen 151A Box 14117, 167 14 Bromma, Sweden Handheld Reader Installation Guide Table of Contents 1 Introduction .........................................................................................................................................................2 2 Handheld Reader Assembly and Installation......................................................................................3 2.1 Prepare Personal Digital Assistant .................................................................................................3 2.2 Compact Flash Reader Installation................................................................................................3 2.3 Enfora GPRS Modem Installation ....................................................................................................4 2.4 Security Client Software Installation Instructions ..................................................................6 3 Known ReconX Issues .....................................................................................................................................7 4 Regulatory Information..................................................................................................................................7 CommerceGuard AB Gustavslundsvägen 151A Box 14117, 167 14 Bromma, Sweden 1 Introduction The Handheld Reader (HHR) is a mobile device used to interact with Container Security Devices (CSD). It is comprised of a rugged Personal Digital Assistant (PDA), a Compact Flash Reader (CFR), a GPRS Modem, and CommerceGuard Security Client Software. The HHR is used to arm and disarm CSDs when starting and ending container shipments respectively. The HHR can also be used to inspect the status of CSDs anywhere along the shipping route. The brand name of the PDA used for the CommerceGuard Handheld Reader is ReconX. The ReconX has two Compact Flash slots where the Compact Flash Reader and the Enfora GPRS Modem are installed. The Compact Flash Reader provides the HHR communication over 2.4 GHz ISM radio with Container Security Devices (CSD) used in the security system. The GPRS module allows wireless communication with the UHR over the GSM-network. This guide describes how to prepare the HHR for use in the CommerceGuard Securirty system. CommerceGuard AB Gustavslundsvägen 151A Box 14117, 167 14 Bromma, Sweden 2 Handheld Reader Assembly and Installation Four steps are necessary to prepare the Handheld Reader for operation: (1) Prepare the Personal Digital Assistant, ReconX (2) Install the Compact Flash Reader (3) Install the Enfora GPRS Modem, and (4) Install CommerceGuard Security Client Software to the ReconX. The following subsections describe these steps. 2.1 Prepare Personal Digital Assistant 1. Install modified CF cap on ReconX 2. Set the ReconX date and time 3. Start>Settings>System>Clock & Alarms 4. Make sure that Home is checked, tap to GMT +1 Paris, Madrid; fill in local Time and Date 2.2 Compact Flash Reader Installation Install the CFR into the back Compact Flash slot. Figure 1. Compact Flash Reader CommerceGuard AB Gustavslundsvägen 151A Box 14117, 167 14 Bromma, Sweden Figure 2. Installing the Compact Flash Reader to the ReconX 2.3 Enfora GPRS Modem Installation 1. Install the Enfora GPRS modem into the front Compact Flash slot. The Enfora modem comes labeled as either “Enfora” or as “Weitel”. Both labels are valid for the Enfora modem – See Fugure 3 below. Figure 3. Enfora GPRS Modem CommerceGuard AB Gustavslundsvägen 151A Box 14117, 167 14 Bromma, Sweden Figure 4. Installing the Enfora GPRS Modem to the ReconX 2. Configure the Enfora GPRS modem The following directions apply when using a SIM card from Telenor in Sweden . please consult with your GSM network operator If you are using a different GSM network operator. a. Start>Settings>Connections>Connections b. Tap on “Add a new modem connection”. Enter a unique name for the connection in the dialog box for “Enter a name for the connection” c. Make sure that the selected modem is “Enfora-GSM0110” and then tap “Next” d. Enter “*99#” for the connection number and then tap “Next” e. Leave the username and password blank and then tap on the “Advanced” button f. Set the following: i) Baud rate: 115200 ii) Extra dial-string modem commands: +cgdcont=1,”IP”,”internet.telenor.se” iii) Uncheck “Wait for dial tone...” iv) Uncheck “Cancel if not connected...” 3. Tap on the “OK” button 4. Tap on the “Finish” button 5. Restart the ReconX by pressing the start button in 5 sec CommerceGuard AB Gustavslundsvägen 151A Box 14117, 167 14 Bromma, Sweden 6. Activate the connection: a. Start>Settings>Connections>Connections b. Select “Manage existing connections c. Tap and hold in the list where your new connection appears. A pop-up menu will appear. Select “Connect”. d. The first time you connect you will be asked to enter username and password. Leave both blank and check “Save Password”. 7. Verify your connection: Launch Internet Explorer and verify that the Enfora GPRS modem connects to the Internet 2.4 Security Client Software Installation Instructions 1. ActiveSync 4.1 needs to be installed on the client PC 2. Setup a partnership with the ReconX 3. Connect the ReconX via the USB cable 4. Click “Cancel” on the Synchronization Setup Wizard 5. The ActiveSync “Connected” globe will turn green Install a. Install “Security Client Setup.exe” from the desktop computer i) SVN IS12 Release: https://172.17.50.57/repository/dev/Global Shipping Industry/CommerceGuard/Product Documentation/Releases/tags/ATS 10100 CommerceGuard System/ATS 10100 R3R (IS10 Final)/ATU 30 001 R1M (ClientNet)/ATP 45100_4 (3.0.10) ii) Unzip 1_19003_ATP_45100_4 CSD Evaluation Tool 3.0.10.zip iii) From the desktop run Security…

Text truncated - open the document above for the full version.

CommerceGuard AB Gustavslundsvägen 151A Box 14117, 167 14 Bromma, Sweden November 28, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, We, the undersigned, hereby authorize Northwest EMC, Inc., to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Northwest EMC, Inc. within the scope of this authorization shall have the same affect as our own. This authorization shall expire 12 months from original date. Sincerely, Mr Christian Bornstein Manager, Regulatory Approvals CommerceGuard AB Tel: +46 73 335 2345 Fax: +46 (8) 26 21 72 E Mail: [email protected]

Northwest EMC TCB Compliance Opinion Rev. 9/15/03 SUPR0062 Information about the Applicant Company Name CommerceGuard AB Grantee Christian Bornstein Address Gustavsludsvagen 151A City, State, Zip S-167 51 Bromma, Sweden Job Number SUPR0062 Model CG-CFR03 FCC ID UA3-ATR20107-1 Agent Northwest EMC Approval Type Original Equipment Class DTS Digital Transmission System Rule Part 15.247DSSS Industry Canada Information Model CG-CFR03 Industry Canada ID 6611A- ATR20107 Rule Part RSS210 Overview The CommerceGuard AB, model CG CFR-FR03 is a compact flash reader. This application is for full modular approval. This radio module functions at a fixed frequency with 1 data rate and one fixed antenna in the 2400-2383 MHz band as a DSSS transmitter. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature 12/12/2006 Dave Tolman, TCB Committee

NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 December 11, 2006 Dear Application Examiner: On behalf of CommerceGuard AB, Northwest EMC, Inc. is submitting this application for the certification of CommerceGuard ’s CG-CFR03 transmitter, FCC ID: UA3- ATR20107-1. It is a DTS device that operates in the 2400 MHz band at a single channel. It is seeking full modular approval. The radio utilizes a single ½ wavelength dipole antenna with a U.FL connector. This configuration satisfies the requirements of 47 CFR 15.203. The technical reports and exhibits demonstrate compliance with FCC rules 47 CFR 15.247 as a DTS device. Your efforts in reviewing this application are greatly appreciated. Best regards, Northwest EMC, Inc.

CommerceGuard AB Gustavslundsvägen 151A Box 14117, 167 14 Bromma, Sweden November 28, 2006 Attention: Application Examiner Re: Request for confidentiality Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Applicant: CommerceGuard AB FCC ID: UA3-ATR20107-1 To whom it may concern, Permanent Confidentiality Request is hereby submitted by CommerceGuard AB to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: GE CommerceGuard AB has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, ---------------------------------------------- Christian Bornstein Manager, Regulatory Approvals CommerceGuard AB Mr Christian Bornstein Manager, Regulatory Approvals Tel: +46 73 335 2345 Fax: +46 (8) 26 21 72 E Mail: [email protected]

NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 December 11, 2006 Dear Application Examiner: CommerceGuard ’s CG-CFR03 transmitter, FCC ID: UA3-ATR20107-1 is seeking modular approval. The radio meets the requirements for modular approval as detailed in FCC Public Notice DA00-1407. Compliance to each of the requirements is described below: 1. “The modular transmitter must have its own RF shielding.” The radio portion of the module is contained in its own RF shielding. The shielding is installed at the factory. Please see the Internal Photos exhibit. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs to insure compliance with Part 15 requirements under conditions of excessive data rates or over-modulation. Please see the Schematics exhibit. 3. “The modular transmitter must have its own power supply regulation.” The EUT has its own power supply regulation to insure compliance with Part 15 requirements regardless of the quality or level of external DC supplying the module from the host unit. Please see Schematics exhibit. Also, the technical report exhibit contains AC power line conducted emissions data taken with the EUT powered from a linear power supply that contains no EMC suppression components. 4. “The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements. Please see Antenna information exhibit and internal photos exhibit. 5. “The modular transmitter must be tested in a stand-alone configuration.” The EUT was tested in a stand-alone configuration. The module was greater than 10 cm from the host device. Please see test setup photos exhibit and technical report exhibit. 6. “The modular transmitter must be labeled with its own FCC ID number.” The EUT is labeled with its own FCC ID number. Please see FCC ID label & location exhibit. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the User Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. Please see RF Exposure Exhibit. Please contact me if you have additional questions. Your attention to this matter is greatly appreciated. Best regards, Northwest EMC, Inc.

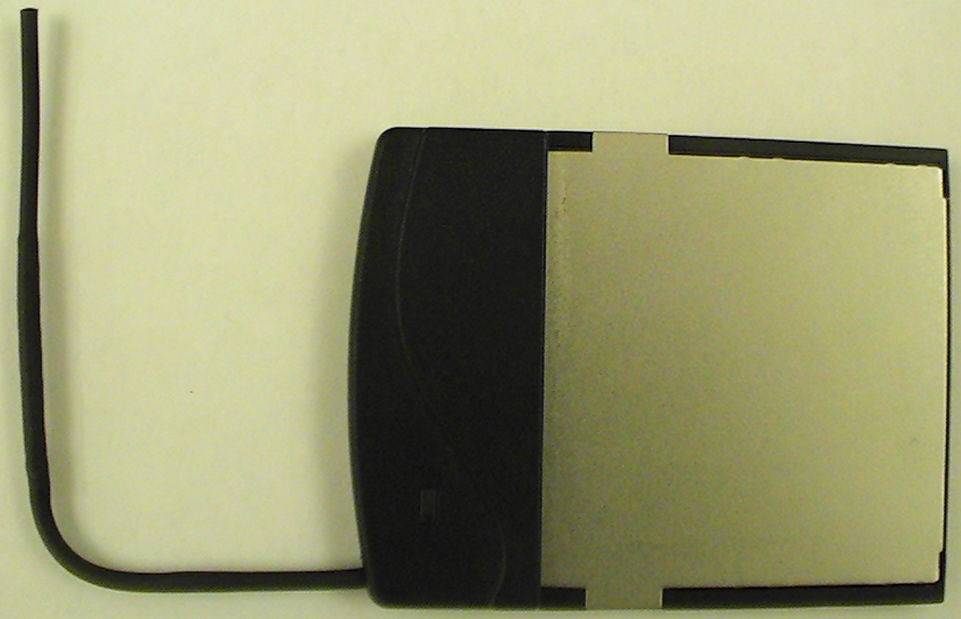

Compact Flash Reader Pictures Prepared (Also subject responsible if other) Date Security Class Christian Bornstein 2006-11-31 Approved Document No. Rev. A 1 (3) Compact Flash Reader Pictures Compact Flash Reader Pictures Prepared (Also subject responsible if other) Date Security Class Christian Bornstein 2006-11-31 Approved Document No. Rev. A 2 (3) 1 Case view 1.1 Front 1.2 Back

Compact Flash Reader Labeling Description Prepared (Also subject responsible if other) Date Security Class Christian Bornstein 2006-12-04 Approved Document No. Rev. A 1 (1) Compact Flash Reader Labeling Description 1 Product Label Location Fig 1: Label Location on the back of the CF card 2 Product Label Layout TM COMMERCEGUARD COMPACT FLASH READER Model No: CG-CFR03 PN: ATR 20107/1 R1G Date: 2006-01-11 s/n: 200000000 Realm: 0 FCC ID: UA3-ATR20107-1 IC: 6611A-ATR20107 This device complies with Part 15 of the FCC rules. See User Guide Fig 2: Label Sample 3 Product Label Material Dimensions: W 1.52” x L 2.0” Colors: Black on White Material: 0.005”, LG 1148 Adhesive Type: 0.003”, 3M Adhesive 7815

Compact Flash Reader Pictures Prepared (Also subject responsible if other) Date Security Class Christian Bornstein 2006-11-31 Approved Document No. Rev. A 1 (3) Compact Flash Reader Pictures Compact Flash Reader Pictures Prepared (Also subject responsible if other) Date Security Class Christian Bornstein 2006-11-31 Approved Document No. Rev. A 3 (3) 2 Printed Circuit Board 2.1 Top 2.2 Bottom

Coaxial Dipole Antenna Technical Specifications Frequency2400 -2488 MHz Type½ wavelength dipole antenna PolarizationHorizontal Return loss>8dB over band GainMax 2dBi ConnectionHirose U.FL or compatible Mechanical Size50x40x2.5mm Return Loss Smith Chart Solid=Impedance, Dashed=Admittance

Compliance with 47 CFR 15.247(i) “Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter.” The EUT is a 2.4 GHz transceiver. The antenna is a ½ wavelength dipole antenna with a maximum gain of +2 dBi gain. The maximum peak conducted output power is 0.92 mW. The maximum peak power is 1.46 mW (EIRP) for FCC ID: UA3-ATR20107-1. The single transmit frequency is 2440 MHz, therefore the EUT does not require routine SAR evaluation per “TCB Exclusions List”, footnote 3 (dated July 17, 2002). See below: The exposure category is “General Population”. The distance is < 2.5 cm. Therefore the “Low Threshold” is 24.5 mW (EIRP) – above which routine SAR evaluation would be required. Since the maximum peak power of the EUT is 1.46 mW (EIRP), routine SAR evaluation is not required. The applicant’s 2.4 GHz transceiver, FCC ID: UA3-ATR20107-1, is compliant with the requirements of 15.247(i).

CommerceGuard AB CG-CFR03 December 12, 2006 Report No. SUPR0062 Rev. 1 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2006 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Issue Date: December 12, 2006 CommerceGuard AB Model: CG-CFR03 Emissions Test Description Specification Test Method Pass Fail AC Powerline Conducted Emissions FCC 15.207:2006 ANSI C63.4:2003 Conducted Emissions FCC 15.107:2006 ANSI C63.4:2003 Radiated Emissions FCC 15.109:2006 ANSI C63.4:2003 Band Edge Compliance FCC 15.247:2006 DTS ANSI C63.4:2003, KDB No. 558074 Occupied Bandwidth FCC 15.247:2006 DTS ANSI C63.4:2003, KDB No. 558074 Output Power FCC 15.247:2006 DTS ANSI C63.4:2003, KDB No. 558074 Power Spectral Density FCC 15.247:2006 DTS ANSI C63.4:2003, KDB No. 558074 Spurious Conducted Emissions FCC 15.247:2006 DTS ANSI C63.4:2003, KDB No. 558074 Spurious Radiated Emissions FCC 15.247:2006 DTS ANSI C63.4:2003, KDB No. 558074 Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400; Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada. Approved By: Greg Kiemel, Director of Engineering This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested, the specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 05/05/03 Revision Number Description Date Page Number 01 Changed report number on cover page 12/19/06 Cover Page 01 Changed company information from Supra Products, Inc. to CommerceGuard AB. 12/19/06 Cover Page, 2, 7, 8, 9, 12, 16, 17, 20, 24, 28, 31, 35, 39, 43, 44 Northwest EMC Accreditations and Authorizations Revision 03/18/05 FCC: Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP: Northwest EMC, Inc. is accredited under the United States Department of Commerce, National Institute of Standards and Technology, and National Voluntary Laboratory Accreditation Program for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 89/336/EEC, ANSI C63.4, MIL- STD 461E, DO-160D and SAE J1113. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. NVLAP LAB CODE 200629-0 NVLAP LAB CODE 200630-0 NVLAP LAB CODE 200676-0 Industry Canada: Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS 212, Issue 1 (Provisional) and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. CAB: Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. TÜV Product Service: Included in TUV Product Service Group's Listing of Recognized Laboratories. It qualifies in connection with the TUV Certification after Recognition of Agent's Testing Program for the product categories and/or standards shown in TUV's current Listing of CARAT Laboratories, available from TUV. A certificate was issued to represent that this laboratory continues to meet TUV's CARAT Program requirements. Certificate No. USA0401C. TÜV Rheinland: Authorized to carryout EMC tests by order and under supervision of TÜV Rheinland. This authorization is based on "Conditions for EMC-Subcontractors" of November 1992. Northwest EMC Accreditations and Authorizations Revision 03/18/05 NEMKO: Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Australia/New Zealand: The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a M…

Text truncated - open the document above for the full version.

NORTHWEST EMC Spurious Radiated Emissions PSA 2006.10.30 NORTHWEST EMC Spurious Radiated Emissions PSA 2006.10.30 NORTHWEST EMC Radiated Emissions PSA 2006.10.30 NORTHWEST EMC Radiated Emissions PSA 2006.10.30 NORTHWEST EMC Power Spectral Density XMit 2006.08.24 NORTHWEST EMC Output Power XMit 2006.08.24 NORTHWEST EMC Occupied Bandwidth XMit 2006.08.24 NORTHWEST EMC photo CONDUCTED EMISSIONS PSA-ESCI 2006.12.01 NORTHWEST EMC Bandedge Compliance XMit 2006.08.24 NORTHWEST EMC Spurious Conducted Emissions XMit 2006.08.24
