UAB9371Wireless Towing Light

Many Wain Enterprise Co., Ltd
Wireless Towing Light - FCC ID UAB9371 - Many Wain Enterprise Co., Ltd
Click to zoom

Application Details

Equipment Class
DSR - Part 15 Remote Control/Security Device Transceiver
Date of Grant
Aug 13, 2026
Application Purpose
Original Equipment
Equipment Note
Wireless Towing Light
Frequency Range
434.00000000 - 434.00000000
Company
Many Wain Enterprise Co., Ltd
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual Template (FCC) Company: MANY WAIN ENTERPRISE CO., LTD. Product Name: Wireless Towing Light Model: PY-9371 1. Product Overview This product is a wireless truck lighting control system that transmits control signals via a wireless transmitter operating in the 433 MHz band, allowing remote control of vehicle lighting functions such as running lights, left/right turn signals, brake lights, and warning lights. The products are mainly used for lighting control of trailers, trucks, engineering vehicles, and other large vehicles. 2. Package Contents Wireless Towing lighting × 1 Wireless transmitter × 1 Wired control cable × 1 Cigarette lighter charger × 1 User manual ×1 3. Product Features - Two mode control: Supports both 433 MHz wireless and wired control modes. - Far distance wireless transmission: In unobstructed, open environments, wireless control distances can reach up to 80–100 meters. - High brightness LED light source: Uses high-brightness LEDs to provide clear and reliable warning lighting. - Rechargeable lead-acid battery: Built-in rechargeable lead-acid battery featuring stability, safety, and fire resistance. - Comprehensive battery protection mechanism: Equipped with multiple safety protection features, including: • UVP (Under Voltage Protection) • UVR (Under Voltage Recovery) • OVP (Over Voltage Protection) • Charge Timeout (7 Hours) • Charge OTP (Over Temperature Protection) • CC-CV Charging: Constant current/constant voltage charging control, automatic current adjustment 4. Specifications 1) Wireless Towing Light • Operating voltage: 12 VDC (lead-acid battery). • Maximum output current: 2.4 A (IPK) • Battery: 6 V / 7 Ah sealed lead-acid battery × 2 (series) • UVP (undervoltage protection): 9.8V • UVR (Undervoltage Recovery): 11.8V • Battery capacity indicator light 2) Wireless Transmitter • Operating frequency: 433 MHz 3) Wired Control Cable • Supports 12 VDC power for wired control. 4) Cigarette Lighter Charger • Output voltage: 13.6 VDC • Maximum charging current: 1.6 A • OVP (Overvoltage Protection): 13.7V • Charge OTP: Charger automatically shuts off charging at 150°C • Charge Timeout Protection: 7H (reconnect and recount). • When the battery is fully charged, the charging current is automatically adjusted 5. Installation The wireless towing lights and wireless transmitters are paired with a unique ID before leaving factory, with no need to re-pair. Install wireless truck lights fixedly at the appropriate rear of the vehicle. Install the wireless transmitter in the vehicle according to the installation instructions. 6. Operation After installation, press the red power switch on the wireless towing light to start the to start the system. Once activated, the system can normally control functions such as running lights, left/right turn signals, and brake lights.  The brake light of this product also functions as a warning light. To switch the warning light flashing mode, press the Yellow Warning Light Mode Switch button to sequentially switch between the following modes: • Off • Single Flash • Double Flash • Tripple Flash • Quad Flash  The system features a battery level indicator: • Full battery: The yellow-green indicator light goes off. • Battery about 50% remaining: yellow-green indicator light flashing. • Low battery: The yellow-green indicator light will continue to flash, and the system will automatically shut off to protect the battery. At this point, please use the included cigarette lighter charger to charge. • Note: This product does not support simultaneous charging.  When using the Wired Control Cable, the system is powered directly by the vehicle's 12 VDC power supply, eliminating the need for built-in batteries in the wireless towing lights. All lighting functions can be controlled directly from the vehicle's power supply. 7. Safety Information • Do not disassemble the product yourself. • Do not throw into fire. • Do not use non-original chargers. • Please charge regularly when not in use for extended periods. • Do not charge in high-temperature environments. 8. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not…

Text truncated - open the document above for the full version.

External Photos

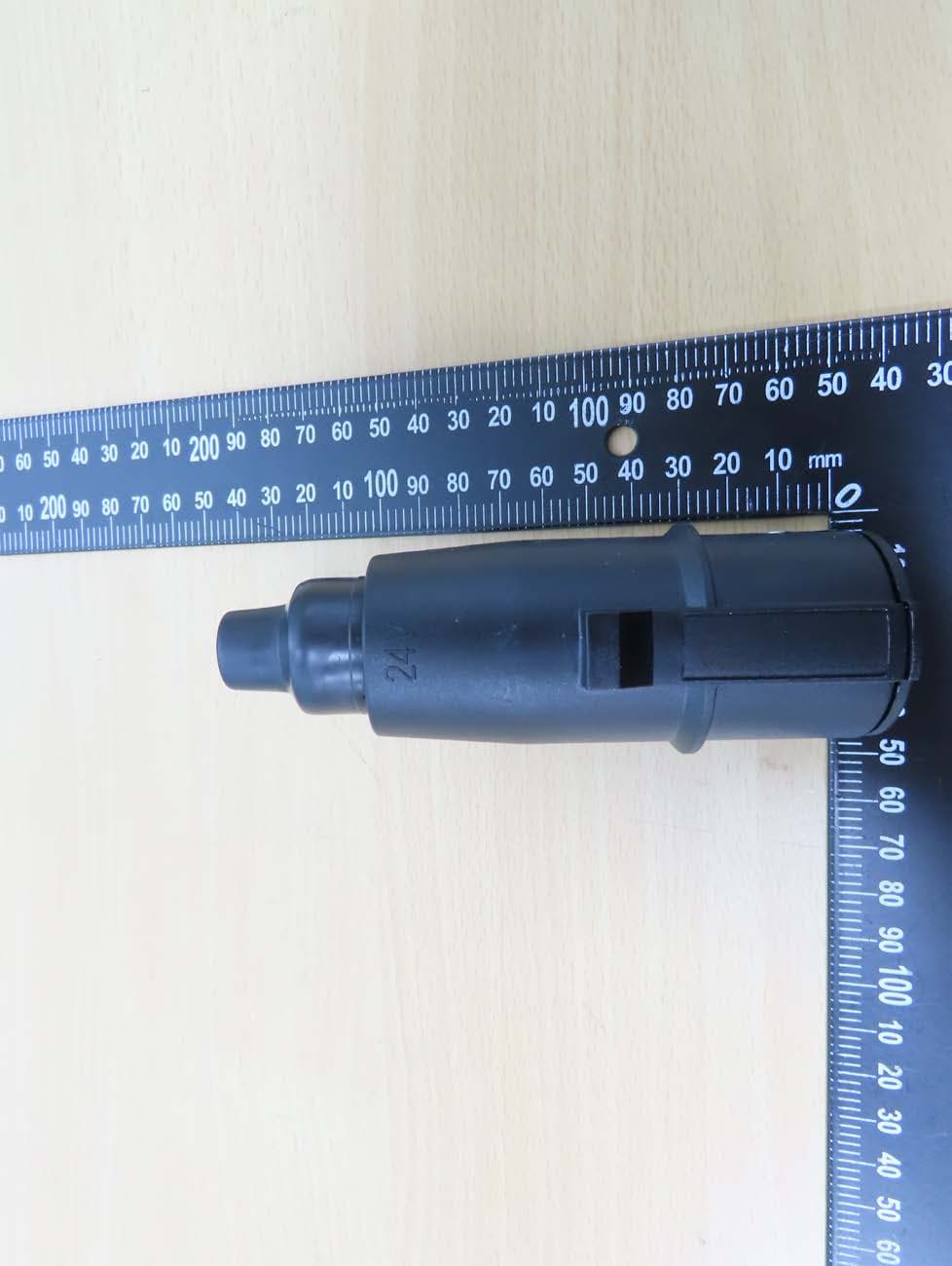

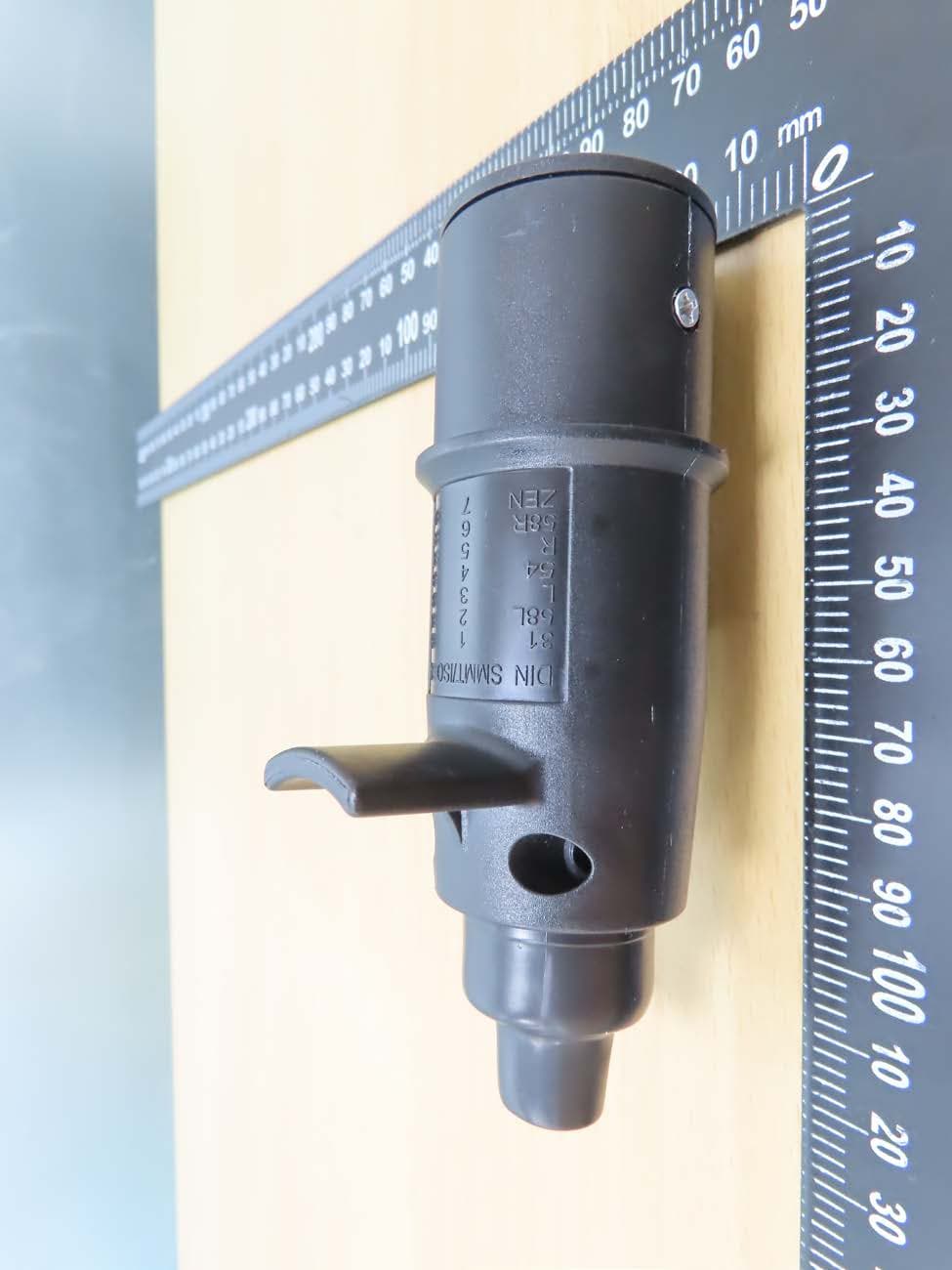

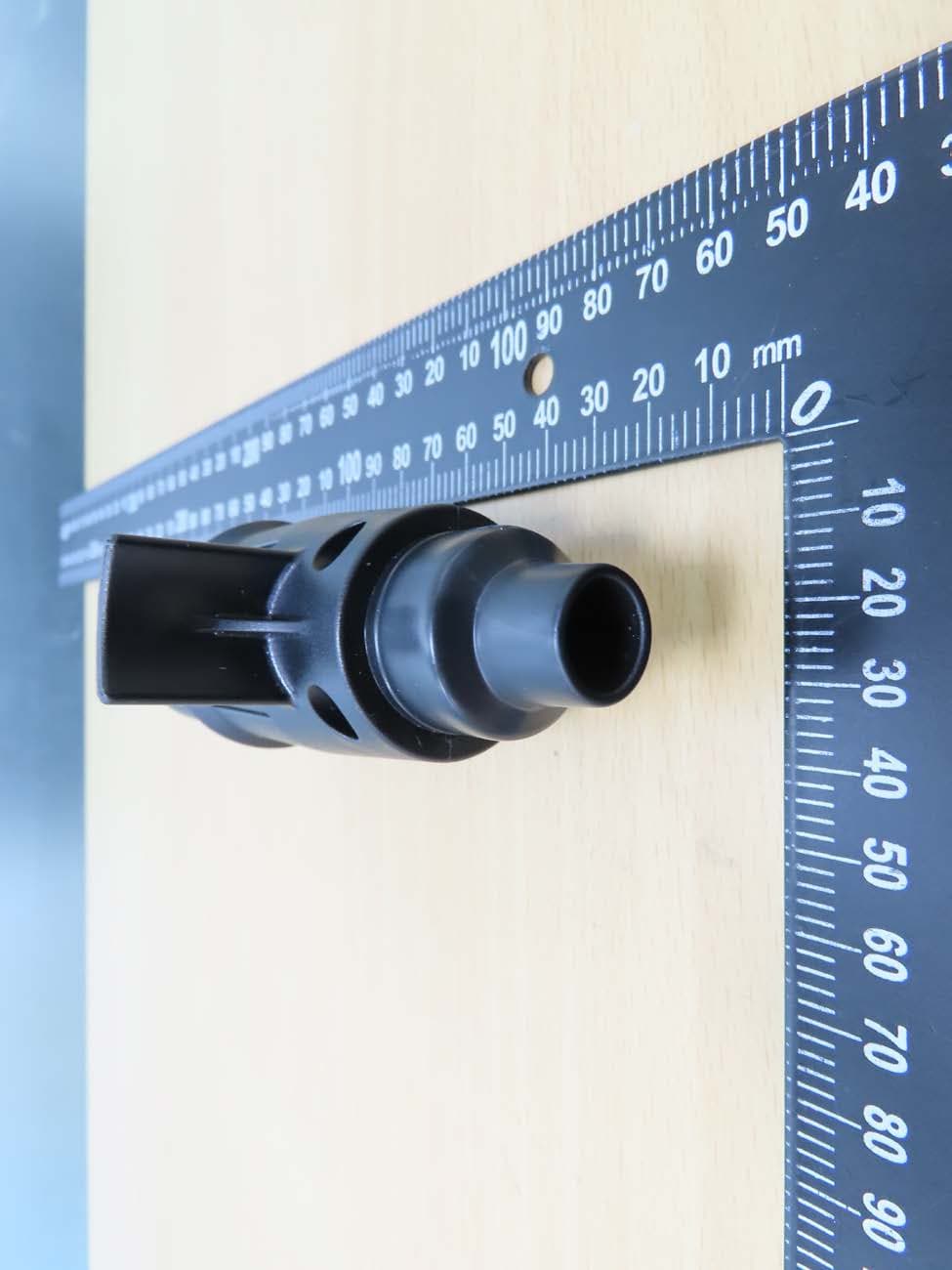

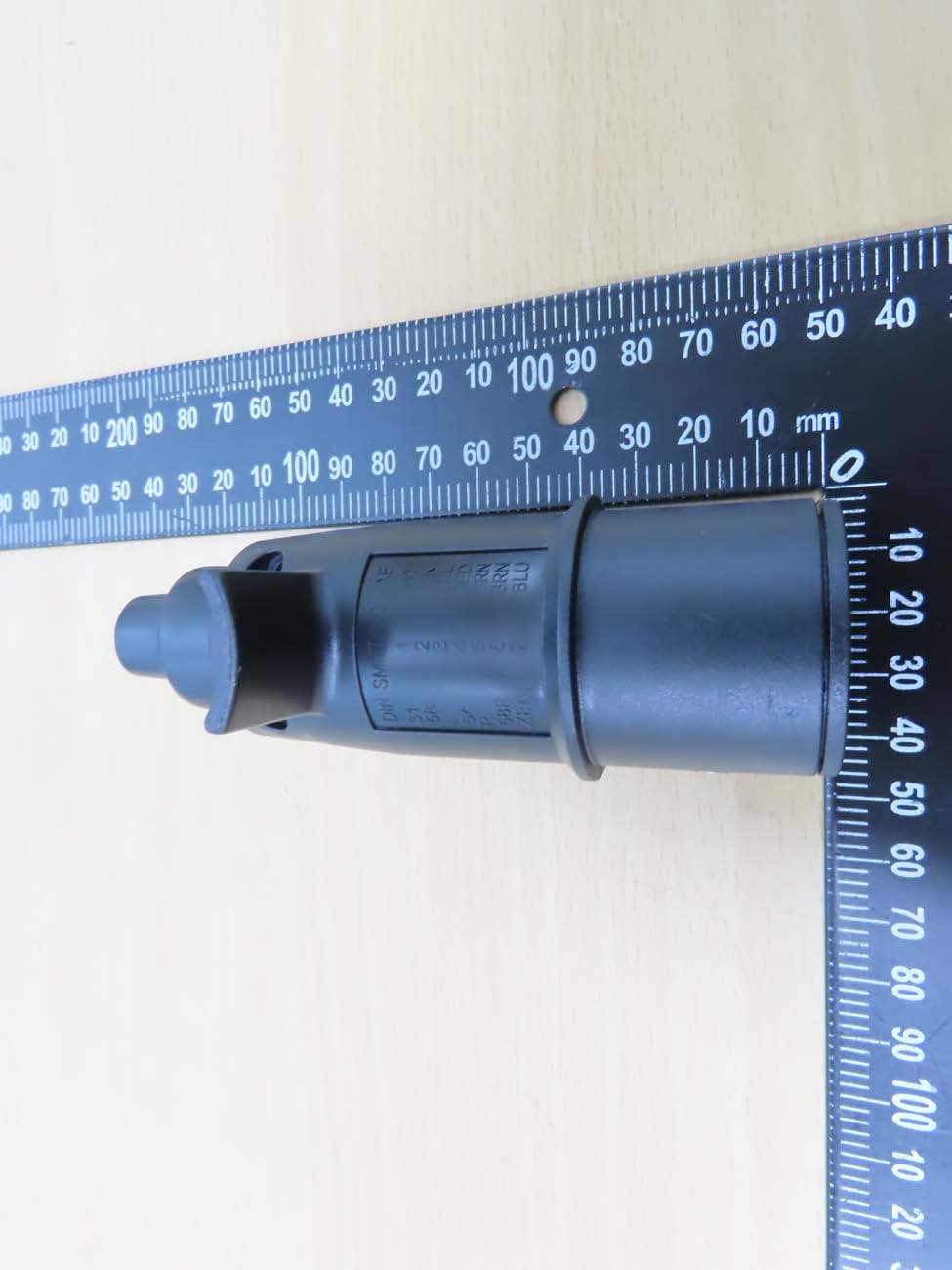

Registration number: W6M22605-25166-FCC FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 59 External Photos TX Registration number: W6M22605-25166-FCC FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 59 Registration number: W6M22605-25166-FCC FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 59 Registration number: W6M22605-25166-FCC FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 59 Registration number: W6M22605-25166-FCC FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 59 Registration number: W6M22605-25166-FCC FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 59

Internal Photos

Registration number: W6M22605-25166-FCC FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 20 of 59 Internal Photos TX Registration number: W6M22605-25166-FCC FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 21 of 59 Registration number: W6M22605-25166-FCC FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 22 of 59 Registration number: W6M22605-25166-FCC FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 23 of 59 Helical antenna / Gain: 1 dBi Registration number: W6M22605-25166-FCC FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 24 of 59

RF Exposure Info

of Applicant: Many Wain Enterprise Co., Ltd Address: 10, LANE 808, CHUNG SHAN ROAD, SHIN HWA TAINAN CITY 712 Taiwan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1072, TW1140, TW1146, TW1477, TW0037 Industry Canada filed test laboratory Reg. No.: 20037, 31634 Report No.: W6M22605-25166-EE 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E- mail: [email protected] FCC RF Exposure Exemption report for Wireless Towing Light Model No.: PY-9371 FCC ID: UAB9371 Registration number: W6M22605-25166-EE FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 7 TABLE OF CONTENTS 1 GENERAL INFORMATION .......................................................................................................... 2 1.1 NOTES .......................................................................................................................................... 2 1.2 TESTING LABORATORY ................................................................................................................ 2 1.3 APPLICATION DETAILS ................................................................................................................. 3 1.4 GENERAL INFORMATION OF TEST ITEM ........................................................................................ 4 1.5 TEST STANDARDS ......................................................................................................................... 4 2 TEST CONFIGURATION .............................................................................................................. 5 2.1 T EST ENVIRONMENT .................................................................................................................... 5 2.2 MEASUREMENT UNCERTAINTY .................................................................................................... 5 2.3 T EST EQUIPMENT LIST ................................................................................................................. 5 3 EQUIVALENT ISOTROPIC RADIATED POWER (EIRP)....................................................... 6 3.1 EXEMPTION LIMITS FOR ROUTINE EVALUATION .......................................................................... 6 Registration number: W6M22605-25166-EE FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 7 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. Laboratory disclaimer- 1. The test results of this test report relate exclusively to the item tested as specified in 1.5. 2. The test report may only be reproduced or published in full. 3. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. 4. Antenna gain is provided by applicant and laboratory issue relevant data and results. Tester: July 13, 2026 Rick Chen Date WTS-Lab. Name Signature Technical responsibility for area of testing: July 13, 2026 Kevin Wang Date WTS Name Signature Registration number: W6M22605-25166-EE FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 7 1.2 Testing laboratory 1.2.1 Location 10m OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber No. 99, Sec. 1, Balian Rd., Xizhi Dist., New Taipei City 221032, Taiwan (R.O.C.) Worldwide Testing Services (Taiwan) Co., Ltd. 6F., No. 58, Ln. 188, Ruiguang Rd., Neihu Dist., Taipei City 114 , Taiwan (R.O.C.) Tel: 886-2-6606-8877 1.2.2 Details of accreditation status Accredited testing laboratory FCC filed test laboratory Reg. No.: TW1072, TW1140, TW1146, TW1477, TW0037 Industry Canada filed test laboratory Reg. No.: 20037, 31634 Test location, where different from Worldwide Testing Services (Taiwan) Co., Ltd. : Name: ./. Accredited no.: ./. Street: ./. Town: ./. Country: ./. 1.3 Application details Approval holder Name: Many Wain Enterprise Co., Ltd Street: 10, LANE 808, CHUNG SHAN ROAD, SHIN HWA City: TAINAN CITY 712 Country: Taiwan Manufacturer: (if applicable) Name: ./. Street: ./. Town: ./. Country: ./. Registration number: W6M22605-25166-EE FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Page 4 of 7 Date of receipt of test item: June 04, 2026 Date of test: from June 05, 2026 to July 07, 2026 1.4 General information of Test item Description of test item: Wireless Towing Light Type identification: PY-9371 Brand name: MANY WAIN Multi-listing model number: ./. Transmitting frequency: 434 MHz Operation mode: Simplex Voltage supply: Battery 12V Antenna type: Helical antenna Antenna gain: 1 dBi Sample no.: #01 Classification: Fixed Device Mobile Device (Human Body distance > 20cm) Portable Device (Human Body distance < 20cm) 1.5 Test standards 47 CFR FCC Part 2 Subpart J, section 2.1091 FCC KDB Publication 447498 D01 General RF Exposure Guidance v06 Registration number: W6M22605-25166-EE FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Page 5 of 7 2 Test configuration 2.1 Test environment Relative humidity content: 20 ... 75 % Air pressure: 86 ... 103 kPa Extreme conditions parameters: ./. 2.2 Measurement uncertainty Test item Name Uncertainty Estimation Result of Uncertainty of Radiated Emissio…

Text truncated - open the document above for the full version.

Test Report

Tolerances (Unless otherwise specified) RIFO Technologies Corporation Website: www.rifo.com.tw X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Scale : Unit:mm THIS SPECIFICATION IS THE PROPERTY OF RIFO TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION Prepared By : Helen Checked By :Jeff Designed By :Jason Approved By :Allen TITLE:ISM Band 433.925/315MHz Helix Antenna DOCUMENT RA06LCHB01RA010S REV. NO. B PAGE 1 OF 10 R A HL CB1 A 106 (1) (2) (3) (4) (5) (6) R00 0 ISM Band 433.925/315MHz Helix Antenna 1. Explanation of Product Number: Product Code: (1) Dimensions: 06: 25.1x4.6x4.6(mm) (2) Polarization: L: linear polarization (3) Product categories: CH: copper helix (4) Working frequency: B: 433.925/315MHz (5) Applications: 01: ISM band system (6) Antenna series: RA010: serial number Tolerances (Unless otherwise specified) RIFO Technologies Corporation Website: www.rifo.com.tw X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Scale : Unit:mm THIS SPECIFICATION IS THE PROPERTY OF RIFO TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION Prepared By : Helen Checked By :Jeff Designed By :Jason Approved By :Allen TITLE:ISM Band 433.925/315MHz Helix Antenna DOCUMENT RA06LCHB01RA010S REV. NO. B PAGE 2 OF 10 2. Features: *Stable and reliable in performances *Compact size *Low temperature coefficient of frequency 3. Applications: *ISM Band system 4. Description: RIFO’s chip antenna series are specially designed for 433.925/315MHz band application. Based on RIFO’s proprietary designs and processes, this helix antenna has excellent stability and sensitivity to consistently provide high signal reception efficiency. 5. Electrical Specifications: No Item SPEC. Unit 1 Dimensions (LxWxH) 25.1*4.6*4.6 mm 2 Operating Frequency 433.925/315 MHz 3 VSWR 2 max. 4 Impedance 50 Ω 5 Polarization Linear 6 Peak gain 1.0 dBi 7 Bandwidth(typ.) 11 MHz 8 Efficiency(typ.) 50 % *The antenna performance is measured on 93*55mm test Board. *Center frequency will be offset to operating frequency according to the conditions of user’s ground plane and radome. Tolerances (Unless otherwise specified) RIFO Technologies Corporation Website: www.rifo.com.tw X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Scale : Unit:mm THIS SPECIFICATION IS THE PROPERTY OF RIFO TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION Prepared By : Helen Checked By :Jeff Designed By :Jason Approved By :Allen TITLE:ISM Band 433.925/315MHz Helix Antenna DOCUMENT RA06LCHB01RA010S REV. NO. B PAGE 3 OF 10 6. Layout Guide: (unit:mm) 6.1 Test Board Dimension ※ Te s t Board size is 93*55mm 6.2 PCB Design Guide Matching circuit Frequency tuning Tolerances (Unless otherwise specified) RIFO Technologies Corporation Website: www.rifo.com.tw X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Scale : Unit:mm THIS SPECIFICATION IS THE PROPERTY OF RIFO TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION Prepared By : Helen Checked By :Jeff Designed By :Jason Approved By :Allen TITLE:ISM Band 433.925/315MHz Helix Antenna DOCUMENT RA06LCHB01RA010S REV. NO. B PAGE 4 OF 10 7. Antenna Dimensions: (unit: mm) 8. Measurement Result: 8.1 Matching circuit for 433.925MHz System Matching Circuit Component Location Description Vendor 1 100nH DARFON(0402) 2 4.7pF YAGEO(0402) 3 N/A (0402) 4 0 ohm (0402) Tolerances (Unless otherwise specified) RIFO Technologies Corporation Website: www.rifo.com.tw X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Scale : Unit:mm THIS SPECIFICATION IS THE PROPERTY OF RIFO TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION Prepared By : Helen Checked By :Jeff Designed By :Jason Approved By :Allen TITLE:ISM Band 433.925/315MHz Helix Antenna DOCUMENT RA06LCHB01RA010S REV. NO. B PAGE 5 OF 10 (a) Return Loss (S11) (b) Smith Chart (S11) Tolerances (Unless otherwise specified) RIFO Technologies Corporation Website: www.rifo.com.tw X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Scale : Unit:mm THIS SPECIFICATION IS THE PROPERTY OF RIFO TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION Prepared By : Helen Checked By :Jeff Designed By :Jason Approved By :Allen TITLE:ISM Band 433.925/315MHz Helix Antenna DOCUMENT RA06LCHB01RA010S REV. NO. B PAGE 6 OF 10 (c) VSWR (S11) 8.2 Matching circuit for 315MHz System Matching Circuit Component Location Description Vendor 1 39nH DARFON(0402) 2 3.3pF YAGEO(0402) 3 N/A (0402) 4 100nH DARFON (0402) Tolerances (Unless otherwise specified) RIFO Technologies Corporation Website: www.rifo.com.tw X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Scale : Unit:mm THIS SPECIFICATION IS THE PROPERTY OF RIFO TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION Prepared By : Helen Checked By :Jeff Designed By :Jason Approved By :Allen TITLE:ISM Band 433.925/315MHz Helix Antenna DOCUMENT RA06LCHB01RA010S REV. NO. B PAGE 7 OF 10 (a) Return Loss (S11) (b) Smith Chart (S11) Tolerances (Unless otherwise specified) RIFO Technologies Corporation Website: www.rifo.com.tw X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Scale : Unit:mm THIS SPECIFICATION IS THE PROPERTY OF RIFO TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION Prepared By : Helen Checked By :Jeff Designed By :Jason Approved By :Allen TITLE:ISM Band 433.925/315MHz Helix Antenna DOCUMENT RA06LCHB01RA010S REV. NO. B PAGE 8 OF 10 (c) VSWR (S11) 9. Three D Radiation Pattern measurements: Z X Y Tolerances (Unless otherwise specified) RIFO Technologies Corporation Website: www.rifo.com.tw X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Scale : Unit:mm THIS …

Text truncated - open the document above for the full version.

Test Report

Of Applicant: Many Wain Enterprise Co., Ltd Address: 10, LANE 808, CHUNG SHAN ROAD, SHIN HWA TAINAN CITY 712 Taiwan Tested and Prepared By Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1072, TW1140, TW1146, TW1477, TW0037 Industry Canada filed test laboratory Reg. No.: 20037, 31634 Report No.: W6M22605-25166-C-1 6F., No. 58, Ln. 188, Rueiguang Rd., Neihu Dist., Taipei City , Taiwan (R.O.C.) TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] 47 CFR PART 15 SUBPART C TEST REPORT for Wireless Towing Light Model No.: PY-9371 FCC ID: UAB9371 Registration number: W6M22605-25166-C-1 FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 18 TABLE OF CONTENTS 1 General Information ........................................................................................................................ 2 1.1 Notes .......................................................................................................................................... 2 1.2 Testing laboratory ....................................................................................................................... 3 1.2.1 Location .................................................................................................................................. 3 1.2.2 Details of accreditation status ................................................................................................ 3 1.3 Details of approval holder ........................................................................................................... 3 1.4 Application details ...................................................................................................................... 4 1.5 Test item ..................................................................................................................................... 4 1.6 Test standards ............................................................................................................................. 4 2 Technical test .................................................................................................................................. 5 2.1 Summary of test results ............................................................................................................... 5 2.2 Test environment ........................................................................................................................ 5 2.3 Test Mode ................................................................................................................................... 5 2.4 Test equipment utilized ............................................................................................................... 6 2.5 General Test Procedure ............................................................................................................... 7 3 Test results (enclosure) ................................................................................................................... 8 3.1 Transmission Requirements ........................................................................................................ 9 3.1.1 Limit of Transmission Time .................................................................................................... 9 3.1.2 Active Time ............................................................................................................................. 9 3.2 Output Power (Field Strength) .................................................................................................. 10 3.3 Out of Band Radiated Emissions .............................................................................................. 12 3.4 Transmitter Radiated Emissions in restricted Bands ................................................................ 13 3.5 Spurious Emission radiated, Transmitter .................................................................................. 14 3.6 Channel Bandwidth ................................................................................................................... 15 3.7 Antenna requirement ................................................................................................................. 16 3.8 Duty Cycle ................................................................................................................................ 17 3.9 Conducted Measurement at (AC) Power Line .......................................................................... 18 Appendix: Diagrams Registration number: W6M22605-25166-C-1 FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 18 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. Laboratory disclaimer- 1. The test results of this test report relate exclusively to the item tested as specified in 1.5. 2. The test report may only be reproduced or published in full. 3. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. 4. Antenna gain is provided by applicant and laboratory issue relevant data and results. Tester: July 13, 2026 Rick Chen Date WTS-Lab. Name Signature Technical responsibility for area of testing: July 13, 2026 Kevin Wang Date…

Text truncated - open the document above for the full version.

Test Setup Photos

Registration number: W6M22605-25166-FCC FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 57 of 59 RF Below 1 GHz Registration number: W6M22605-25166-FCC FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 58 of 59 Above 1 GHz Registration number: W6M22605-25166-FCC FCC ID: UAB9371 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 59 of 59

Contact Information

Applicant

SHANG TA LIU(R&D Manager)
[email protected]Fax: 886-6-5972267

Technical Contact

Ivy HsuIvy Hsu
[email protected]

8 Ravendale, Irvine CA. 92602 · United States

Test Firm

Worldwide Testing Services (Taiwan) Co., Ltd.Rex Kao
[email protected]Fax: 886-2-6606-8879

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231434 MHz - 434 MHz-
Confidentiality
Long Term

Other Applications from Many Wain Enterprise Co., Ltd

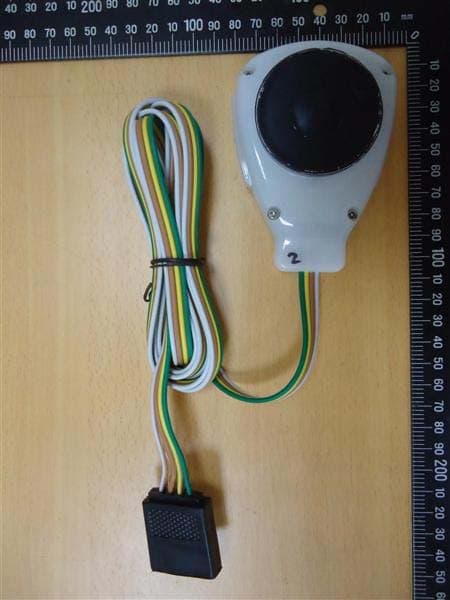

Wireless Towing lights - FCC ID UAB937T01 - Many Wain Enterprise Co., Ltd
UAB937T01

Wireless Towing lights

Aug 19, 2014

Equipment Class

DXX - Part 15 Low Power Communication Device Transmitter

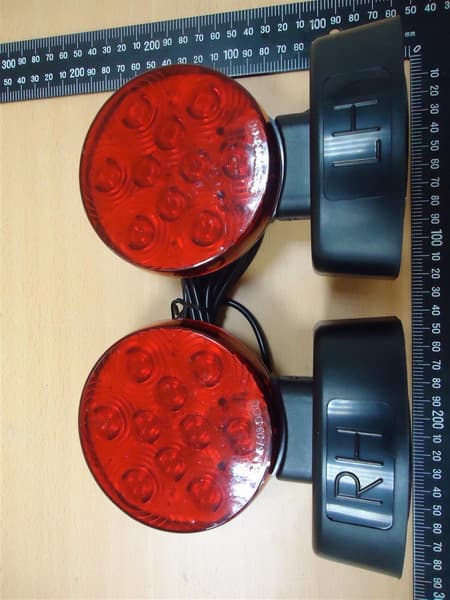

Wireless Towing lights - FCC ID UAB937R01 - Many Wain Enterprise Co., Ltd
