UAE-TE00

RSIAlarm

Remote Control of alarm system

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Apr 09, 2008
Application Purpose: Original Equipment
Date of Application: Apr 09, 2008
Equipment Note: Remote Control of alarm system
Frequency Range: 904.37800000 - 926.22000000
Company: RSIAlarm
Country: France

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

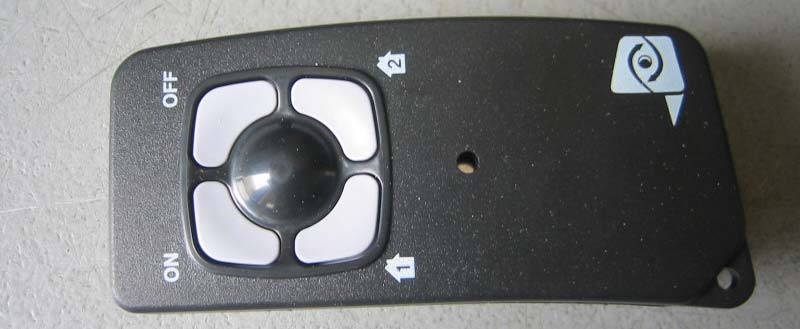

External Photos

ID Label/Location Info

Internal Photos

Test Report

Test Setup Photos

Document Text Content (7 documents)

Cover Letter(s)

The position of the FCC label: rear side of the device – will replace the company label shown on the photo bellow.

Cover Letter(s)

Internal view with antenna – PCB front side Internal view with antenna – PCB rear side

External Photos

Operational decription JA-80E The JA-80E is a component of Jablotron’s Oasis 80 alarm system and is designed to control and program the system. It has a built-in proximity access card reader and allows the wiring up of a separate door detector. The keypad should be wired to the control panel. RFID cards are passive, type Jablotron PC-01 or PC-02 The operating frequency of card reader is in the 125 kHz frequency band. It is powered via the OASIS bus from the control unit.

ID Label/Location Info

Jablotron s.r.o. / JA-80E 2-18 07KFE007857-Q-FCC-02 / 08-01-15 R_FCC 06-04 Table of Contents 1. General description.............................................................................................. 4 1.1. Product description ............................................................................................ 4 1.2. Related submittal(s) Grants................................................................................ 4 1.3. Test Methodology............................................................................................... 4 1.4. Test Facility ........................................................................................................ 4 1.5. List of exhibits .................................................................................................... 5 2. Measurements And Test Specifications............................................................. 6 3. Description Of EUT .............................................................................................. 7 3.1. Configuration / Operating Conditions ................................................................. 7 3.2. Major Subassemblies Or Internal Peripherals .................................................... 7 3.3. Peripheral Devices Used For Testing................................................................. 7 3.4. Supply- And Interconnecting Cables .................................................................. 7 4. Test Results - Overview ....................................................................................... 8 5. Measurement results detailed ............................................................................ 9 5.1. Duty cycle and Averaging factor......................................................................... 9 5.2. Radiated Emission 9 kHz – 1 GHz ..................................................................... 9 5.3.1. Field strength calculation...................................................

Contact Information

Applicant

Jean-Michel Reibel

[email protected]+33-390-206630Fax: +33-390-206636

Test Firm

EMITECH AngersMounir El Marzouki

[email protected]33-2-41-73-26-27Fax: 33-2-41-45-25-77

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	904.378 MHz - 926.22 MHz	4.00 mW

Confidentiality

Long Term

Grant Notes

Power output listed is peak conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Other Applications from RSIAlarm

UAE-CE00

central of an alarm system

DSS - Part 15 Spread Spectrum TransmitterSep 11, 2007

Internal Photos

The JA-80E hard-wired keypad MHE51201 1 The JA-80E hard-wired keypad The JA-80E is a component of Jablotron’s Oasis 80 alarm system and is designed to control and program the system. It has a built-in proximity access card reader and allows the wiring up of a separate door detector. The keypad should be wired to the control panel. Installation Installation shall only be undertaken by technicians holding a certificate issued by an authorized distributor. The keypad is for indoor installation only, typically by a main entrance door. 1. Open the keypad housing (by pressing the tab on the bottom) and disconnect the inter-housing connection cable inside (by pulling the connector from the board). 2. Install the rear housing to the desired location. 3. Connect the control panel bus cable. There are two possibilities: • Use a flat telephone cable with RJ connectors (max. 10 metres). There is a digital bus connector in the control panel, and in the keypad too. • Use a twisted-pair cable (max. 100m) – the correspondingly marked terminals in the keypad unit and in the control panel should be connected together via the cable (GND, A, B, +U) 4. Install the external door detector (if required) and connect its cable to the IN and GND terminals. 5. Connect the inter-housing cable to the keypad board. Attach the keypad to the rear housing. 6. Keypad operating instructions are found in the control panel manual. OASIS 80 A B C ABC ? B A IN GND +U B A GND GNDAB+U digital bus cable OASIS 80 A B C ABC ? B A Keypad menu – language selection and door bell function If the ∗ key is kept pressed while is being powered-up the internal keypad menu will be displayed allowing the selection of the desired language. Using the arrows choose your language and confirm selection by the ∗ key. In this menu the door bell function can also be enabled or disabled (if enabled the keypad makes a sound when its IN input is triggered). To exit the menu, press # (exiting also occurs after 10 seconds’ inactivity...
