UB52022CHINARemote Control Switch

2022 INSTRUCTION ● Channel Code : 6 code ● Remote Frequency : 315MHz ● Remote Range : 20meter ● Battery type : L1028 12V DC Alkaline OPERATIONS: ● Open the battery cover and put one battery into ● Control of the polar as battery(+&-) ● Press On/Off button to control receiver NOTICE: ● Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Alkaline Battery 12VDC Coding Circuit HS2262A Radioemitting Circuit 315MHz Internal Antenna

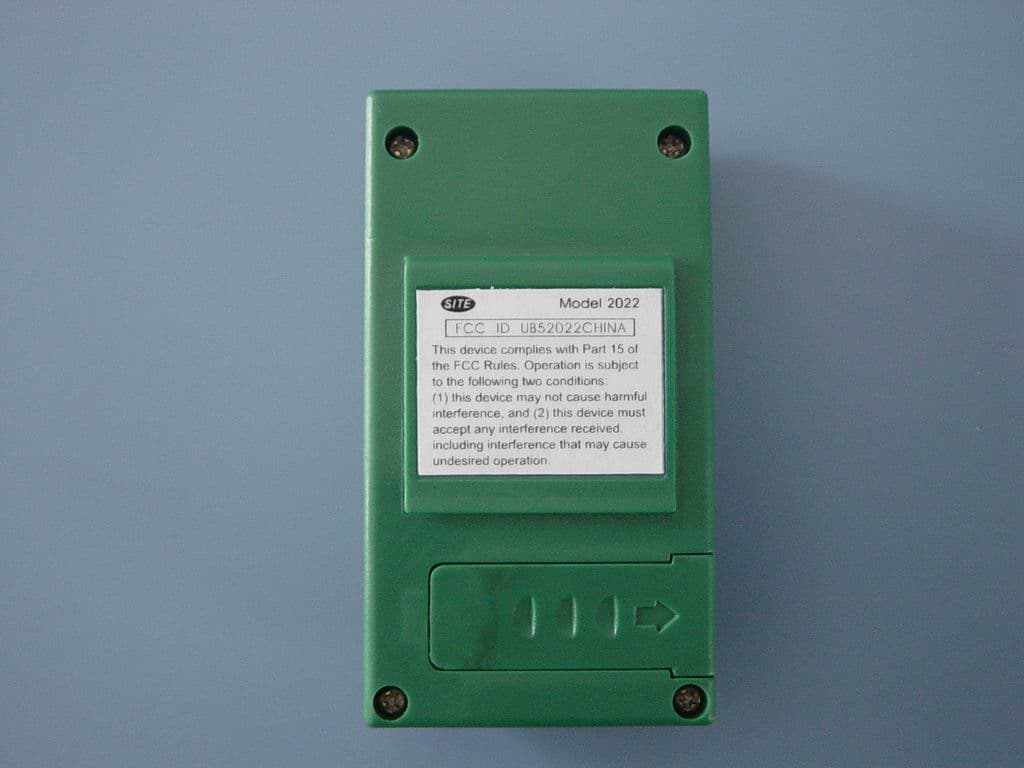

Front View Rear View

Main Board Front View Main Board Back View

Operation： ● Open the battery cover and put one battery in. ● Control of the polar as battery(+&-) ● Press On/Off button to see if the LED is on ● 1-6 channel be set by rotary switch which are marked on the rotary dial of each device, set the switch channel same as the receiver’s channel. Circuit description: About the Circuit, the 315MHz crystal can generate the 315MHz signal. Then the signal will be transferred through the coding chip (HS2262A), which can code the signal. The gear switch on the chip can be switched for 6 kinds of codes, which are called “6 channels “. Then the coding signal can be transmitted to the collector of the triode, and then transmit to the space through an internal antenna. The triode also amplifies the signal. The power of the circuit is controlled by a manual button.

TCB GRANT OF EQUIPMENT AUTHORIZATION TCB Certification Issued Under the Authority of the Federal Communications Commission By: EMCCert Dr. Rasek GmbH Boelwiese 5 D-91320 Ebermannstadt, Germany Date of Grant: 06/20/2006 Application Dated: 06/20/2006 NINGBO ALL-RF ELECTRONIC CO., LTD No.6, Tongtu RD., Jiangdong District, Ningbo City, China Attention: Hang Yonglian , QA NOT TRANSFERABLE EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. FCC IDENTIFIER: UB52022CHINA Name of Grantee: NINGBO ALL-RF ELECTRONIC CO., LTD Equipment Class: Part 15 Low Power Communication Device Transmitter Notes:Remote Control Switch Grant Notes FCC Rule Parts Frequency Range (MHZ) Output Watts Frequency Tolerance Emission Designator 15C315.08 - 315.08

670 National Avenue, Mountain View, CA 94043 Tel. (650) 988-0900 Fax (650) 988-6647 www.ecmg-global.com FCC CERTIFICATION RADIO MEASUREMENT TECHNICAL REPORT On Model Name: Remote Control Switch Model Number : 2022 Trademark : FCC ID : UB52022CHINA Prepared for NINGBO ALL-RF ELECTRONIC CO., LTD. According to FCC Part 15 (2006), Subpart C Test Report #: NIN-0604-0416SH-FCC Prepared by: Chris Huang Reviewed by: Harry Zhao QC Manager: Paul Chen Test Report Released by: 2006 June 15 ⎯⎯⎯⎯⎯⎯⎯⎯⎯ ⎯⎯⎯⎯⎯⎯ Paul Chen Date NVLAP Lab code: 200068-0 ISO/IEC 17025:1999, ISO 9002:1994 Test Location Tests performed at EMC Compliance Management Group (China) in a Certified ANSI Semi-Anechoic Chamber and Shielded Room performed testing. Test Site Location: Jiangsu Electronic Products Supervision & Inspection Institute No 107 Ge lane ZhongQiao WuXi JiangSu, China Tel: 86-510-5140037 Fax: 86-510-5105579 Registration Number: 399439 Accreditation Bodies EMC Compliance Management Group is a fully accredited Test Laboratory for ITE, ISM and Telecommunications Products. In compliance with the site registration requirements of Section 2.948 of the FCC Rules to perform EMI measurements for the general public. Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code # 200068-0. Table of Contents DISCLAIMER NOTICE _________________________________________ 1 REPRODUCTION CLAUSE _____________________________________ 1 OPINIONS AND INTERPRETATIONS ___________________________ 1 STATEMENT OF MEASUREMENT UNCERTAINTY _______________ 1 ADMINISTRATIVE DATA ______________________________________ 2 EUT DESCRIPTION ____________________________________________ 2 TEST SUMMARY ______________________________________________ 3 TEST MODE JUSTIFICATION __________________________________ 4 EUT EXERCISE SOFTWARE ____________________________________ 4 EQUIPMENT MODIFICATION __________________________________ 4 TEST SYSTEM DETAILS _______________________________________ 5 CONFIGURATION OF TESTED SYSTEM ________________________ 6 EUT SAMPLE PHOTOS OF 2022 _______________________________ 7 ATTACHMENT 1 – ANTENNA REQUIREMENT _________________ 11 ATTACHMENT 2 – RESTRICTED BAND OF OPERATION _______ 14 ATTACHMENT 3 – OPERATION MODE _______________________ 20 ATTACHMENT 4 –FIELD STRENGTH OF FUNDAMENTAL AND SPURIOUS EMISSIONS __________________________________________________ 23 ATTACHMENT 5 – BANDWIDTH TEST _____________________ 33-37 EMC Test Report #: NIN-0604-0416SH-FCC Prepared for NINGBO ALL-RF ELECTRONIC CO., LTD. Prepared by EMC Compliance Management Group Page 1 of 37 Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from EMC Compliance Management Group, 670 National Ave., Mountain View, CA 94043. Opinions and Interpretations This test report relates to the abovementioned equipment under test (EUT). Without the permission of EMC Compliance Management Group Test Lab this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. EMC Test Report #: NIN-0604-0416SH-FCC Prepared for NINGBO ALL-RF ELECTRONIC CO., LTD. Prepared by EMC Compliance Management Group Page 2 of 37 Administrative Data Test Sample : Remote Control Switch Model Number : 2022 Trade Mark : Date Tested : 2006, May 31 Applicant : NINGBO ALL-RF ELECTRONIC CO., LTD. No.6, Tongtu RD., Jiangdong District, Ningbo City, China Telephone : 86-574-87784581 Fax : 86-574-87770404 Manufacturer : NINGBO ALL-RF ELECTRONIC CO., LTD. No.6, Tongtu RD., Jiangdong District, Ningbo City, China EUT Description NINGBO ALL-RF ELECTRONIC CO., LTD Model number 2022 (referred to as the EUT in this test report) is a transmitter part of Remote Control Switch. The transmitter is manually operated and has a button. It also has a gear selector which can select from 6 codes. When gear selector of the receiver of power switch is adjusted corresponding with the transmitter, the remote control will be accomplished. The codes don’t influence the RF characteristics. EMC Test Report #: NIN-0604-0416SH-FCC Prepared for NINGBO ALL-RF ELECTRONIC CO., LTD. Prepared by EMC Compliance Management Group Page 3 of 37 Test Summary The Electromagnetic Compatibility requirements on TAT-E for this test are stated below. All results listed in this report relate exclusively to this above-mentioned model as the Equipment Under Test. This report confers no approval or endorsement upon any other component, host or subsystem used in the test set-up. EMC Test Items Reference FCC Part 15 (2006), Subpart C Specification Description Test Results Remark FCC Part 15.203 Antenna Requireme…

Text truncated - open the document above for the full version.

Field Strength Emissions Test Set-up – Front View (Below 1GHz) Field Strength Emissions Test Set-up – Rear View (Below 1GHz) Field Strength Emissions Test Set-up – Front View (Above 1GHz) Field Strength Emissions Test Set-up – Rear View (Above 1GHz)
