Page 1 of 2 1. INSTRUCTION • On the remote control, open the battery compartment and place the provided battery in the right position. • Select a position for the switches • This choice makes the difference between your remote control and the others. • Plug the receiver in a power plug. Press the ON switch on the receiver, then LED will light. And LED flashes one time per second. • Press the ON switch(lasting more than 2 seconds) of your choice on the remote control. The receiver will then learn the code and store it in memory. When LED flashes continuously in 2 seconds, it means the receiver learns the code successfully. • Repeat these last two operations for all receivers selecting a different ON button for each receiver. 2. OPERATION • Plug the device you want to remotely operate in a receiver. • Press the corresponding ON or OFF button of the remote control to operate the plug or • Press the direct ON/OFF switch on the receiver to activate or inactivate it. 3. TROUBLE SHOOTING • If a receiver does not react to the remote control operation it can be due to : o Low battery in the remote control – Replace it. o Distance too large between the remote control and the receiver o The pressing time on the buttons must be at least 2 seconds 4. HOW TO DECODE • Press ON/OFF switch on receiver and last for 3 seconds. After the LED flashes from quickly to once per second, decoding is successful. • Press ALL OFF switch on remote control and last for 3 seconds. After the LED flashes from quickly to once per second, decoding is successful. 5. BATTERY CHANGE
Type L1028 battery required
12V DC Alkaline battery required
Polarity of battery and match remoter RCT-21 REMOTE CONTROLLED SOCKET(LEARNING STYLE) Page 2 of 2
Learning code : More than 1 million
Remote Frequency : 434MHz
Remote Range : 20 Meter
Code setting : Learning
ON/OFF Indicate : LED
Battery Type : L1028 * 1-12V DC Alkaline Attention: Changes or modifications not expressly approved by this company could void the user’s authority to operate the equipment. Page 3 of 2

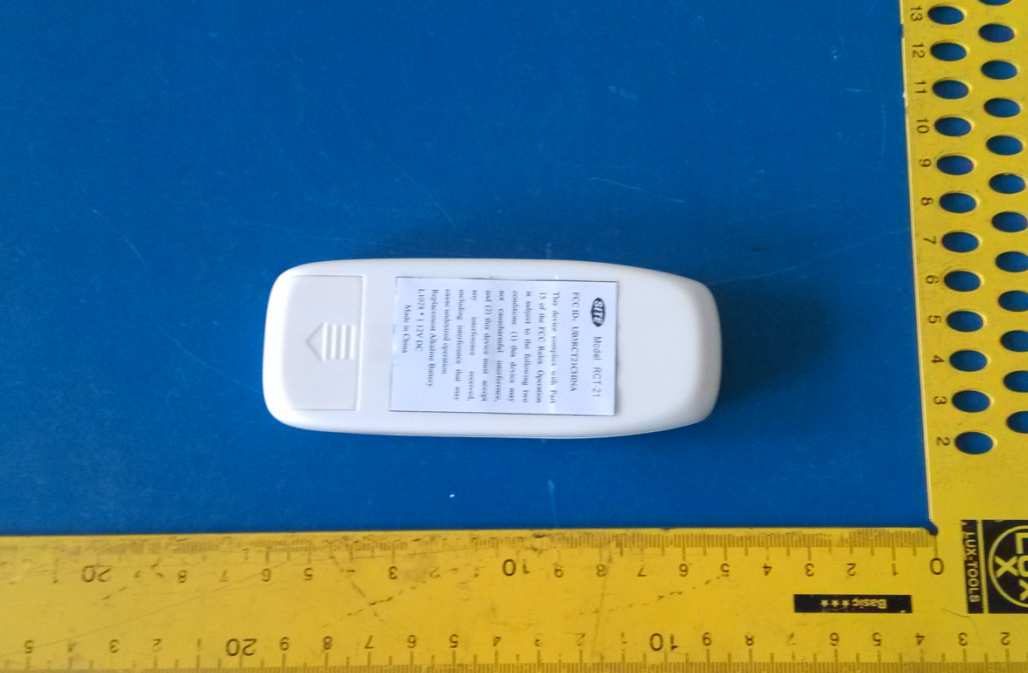

Label Placed on Back in Center of Remote Unit 32mm W X 50mm H FCC ID：UB5RCT21CHINA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not causeharmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Replacement Alkaline Battery L1028 * 1 12V DC Made in China

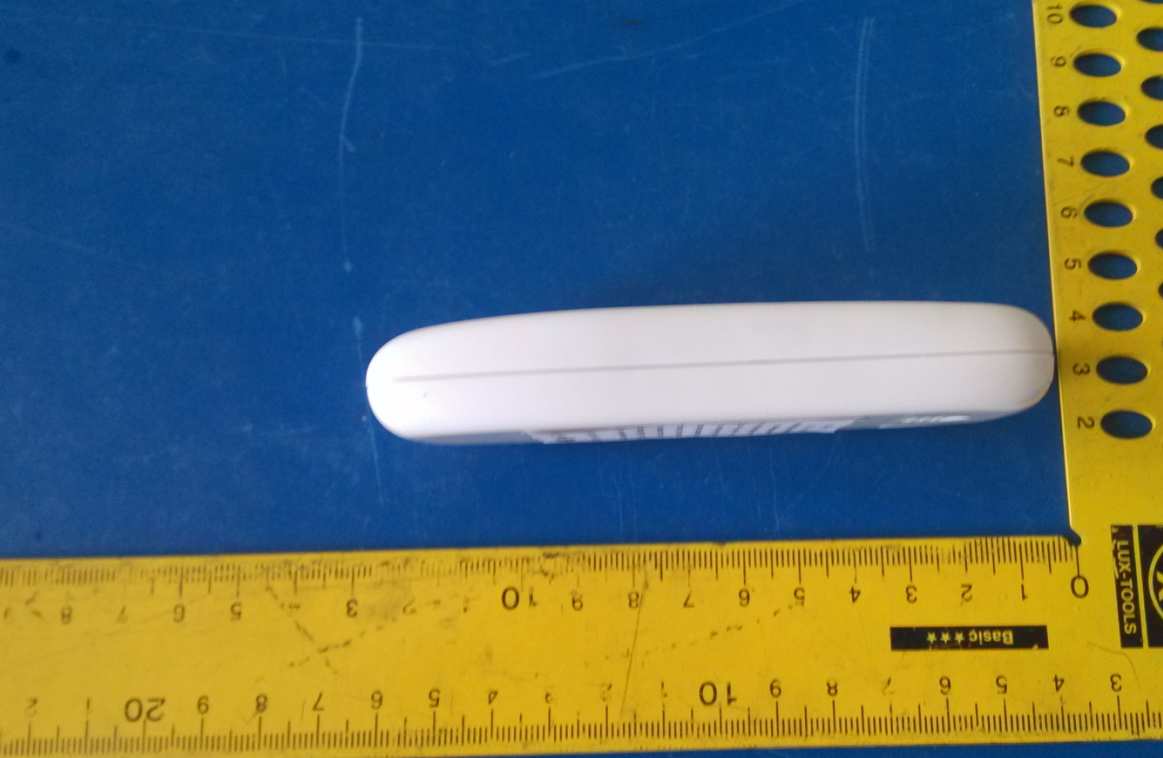

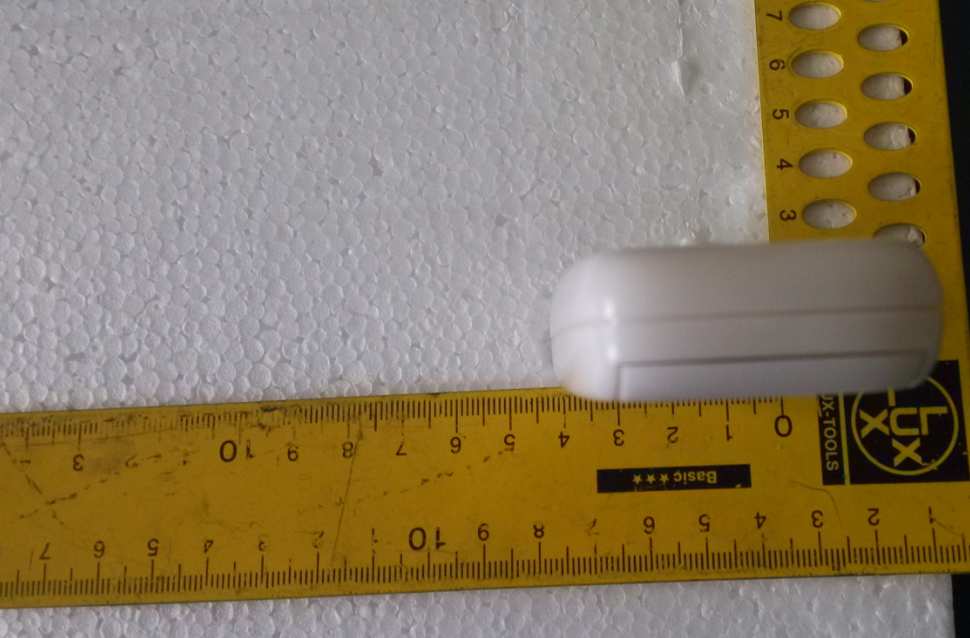

Operational Description The transmitter is a low powered, hand held unit for remote controlling the Plug-in remote control and other features. See the function descriptions in attached. The transmitter is powered by a 12 volt battery. It is designed to operate on a single fixed frequency at 434 MHz. See the attached block diagram and schematic. There are 6 buttons trigger the Microcomputer circuit which produces the digital control signals and will modulate the carrier signal. The carrier signal is generated by a crystal oscillator/ amplifier circuit comprised of a 13.560 MHz crystal and a 434MHz Modulate. The modulated output of the RF amplifier stage is coupled to the PCB strip antenna. The strip antenna isattached on PCB permanently around 20 mm. The transmitter is manually operated by the buttons pushed and will automatically deactivate within 3 seconds after the button being released. This feature is incorporated by the U1 internally. All tuning and verification are performed by the manufacture and there are no adjustments can be made by the user. No external ground is required or used with this transmitter.

Ningbo All-RF Electronic Co.,Ltd BOM Sheet page：1/1 Item No.：RCT-21 Item：remote File No.：ST/QW-JS-7-0** Edition： A/1 SPEC： DC12V/433.92MHz,L≥20m Date：2013-11-9 NO ITEM SPEC position unit qty 1 PCB FR1 1.6mm 79.5*33.8mm RCT-21-V2 EA 1 2 SMD resistor 39R 0603 R1 EA 1 3 SMD capacitor 1.5pF±0.25p 0603 C6 EA 1 4 SMD capacitor 18pF±0.25p 0603 C3 C4 EA 2 5 SMD capacitor 100pF±10% 0603 C1 C2 EA 2 6 SMD capacitor 10pF±0.25p 0603 6.8P代 C7 EA 1 7 SMD capacitor 104 0603 C12 EA 1 8 SMD inductor 100n 0603 L1 L2 L3 EA 3 9 SMD IC ST097-V3 SOP16 U1 EA 1 10 Plug-in carbon resistor 1K 1/16W±5% R2 EA 1 11 Plug-in crystals 13.56MHz DIP Y1 EA 1 12 Plug-in light diode φ3 red light LED1 EA 1 13 Plug-in touch switch 6*6*9.5 K1-K12 EA 12 14 Plug-in Electrolytic capacitor 47uF/10V 4*7mm C8 EA 1 15 Plug-in IC HT7130A-1 TO-92 U2 EA 1 16 jumper 9.5mm J1 EA 1 17 jumper 4.6mm J2 EA 1 18 jumper 6.3mm J3 EA 1 19 Upper cover(RCT-08) ABS PA—757 425C EA 1 20 Lower cover(RCT-08) ABS PA—757 EA 1 21 Battery cover ABS PA—757 425C EA 1 22 Positive cell PHOSPAOR—BRONZE HZ (T-08) EA 1 23 Negative cell PHOSPAOR—BRONZE HZ with spring (T-08) EA 1 24 Self-tapping screw ST2.5*7，F style“﹢” nibbed tip EA 1 25 battery A23, 12V EA 1 26 sticker PVC adhesive sticker (four lines, horizontal) EA 1 Check by： edit by： Wei Kelin

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:2-Dec-2013 Sheet of File:C:\Documents and Settings\Administrator\桌面\赖工 洪璐 文件夹\有全开K-21\RCT-21- VDrawn By: R1(39R) L1 100n VDD C1 100PF C6(1.5pf) L2100n C7 10P PAOUT PAOUT ANT ANT K1 1ON K2 1OFF K3 2ON K4 2OFF K5 3ON K6 3OFF K7 4ON K8 4OFF K9 5ON PVSS 1 PAOUT 2 PB3 3 GND 4 VDD 5 VPP 6 PA0 7 PA1 8 PA2 9 PA3 10 PA4 11 PB0 12 GND 13 XTLIN 14 XTLOUT 15 VCC 16 U1 HS2303-PT D1 LED R2 1K 1 2 Y1 13.56M C3 18pF C4 18pF VDD PAOUT VDD PA0 PA1PA2 PA3 PA4 PA1 PA3 PA4 PA0 PA2 P A 0 P A 1 K10 5OFF E1 Antenna C2 100PF VPP K11 ALL OFF K12 ALL ON V P P P A 2 L3 100n GND 1 V i n 2 Vout 3 U2 HT7130 C12 104 + C8 47uF/10V 12VVDD PDF 文件使用 "FinePrint pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
