UBIKG112GSM 850/PCS 1900 Terminal Equipment

KG112 USER’S MANUAL GPRS PhoneGPRS Phone Please read this manual carefully before operating your mobile phone. Retain it for future reference. ENGLISH 2 KG112 Introduction Congratulations on your purchase of the advanced and compact KG112 cellular phone,designed to operate with the latest digital mobile communication technology. S/N: n NOTE • Always use genuine LG accessories, the charger model name is TA-22 GT2. • Failure to do this may invalidate your warranty. • Accessories may be different in different regions;please check with our regional service company or agent forfurther enquires. KG112 3 Mobile Phones must be switched off at all times in an aircraft. Do not use your phone near petrol stations, fuel depots, chemical plants or blasting operations. Do not handle the phone with wet hands while it is being charged. It may cause an electric shock or seriously damage your phone. Do not hold the phone in your hand while driving. For your safety, use ONLY specified ORIGINAL batteries and chargers. Keep the phone in a safe place out of children’s reach. It includes small parts which if detached may cause a choking hazard. Warning Switch off the phone in any area where required by special regulations. For example, do not use your phone in hospitals or it may affect sensitive medical equipment. Only use ORIGINAL accessories to avoid damage to your phone. Batteries should be disposed of in accordance with relevant legislation. Emergency call may not be available under all cellular networks. Therefore, you should never depend solely on the phone for emergency calls. All radio transmitters carry risks of interference with electronics in close proximity. Minor interference may affect TVs, radios, PCs, etc. Do not dismantle the phone or battery. Caution For Your Safety 4 KG112 Read these simple guidelines. Breaking the rules may be dangerous or illegal. Further detailed information is given in this manual. Exposure to radio frequency energy Radio wave exposure and Specific Absorption Rate Radio wave exposure and Specific Absorption Rate (SAR) information(SAR) information This mobile phone model KG112 has been designed to comply with applicable safety requirement for exposure to radio waves. This requirement is based on scientific guidelines that include safety margins designed to assure this safety of all persons, regardless of age and health. • The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or SAR. Tests for SAR are conducted using standardized method with the phone transmitting at its highest certified power level in all used frequency bands. • While there may be differences between the SAR levels of various LG phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. • The SAR limit recommended by the international Commission on Non-Ionizing Radiation Protection (ICNIRP), which is 2W/kg averaged over ten (10) gram of tissue. • The highest SAR value for this model phone tested by DASY4 for use at the ear is 1.39 W/kg (10g). • SAR data information for residents in countries/ regions that have adopted the SAR limit recommended by the Institute of Electrical and Electronics Engineers (IEEE), which is 1.6 W/kg averaged over one (1) gram of tissue. Product care and maintenance Warning: Use only batteries, charger and accessories Warning: Use only batteries, charger and accessories approved for use with this particular phone model. approved for use with this particular phone model. The use of any other types may invalidate any The use of any other types may invalidate any approval or warranty applying to the phone, and may approval or warranty applying to the phone, and may be dangerous.be dangerous. • Do not disassemble this unit. Take it to a qualified service technician when repair work is required. • Keep away from electrical appliance such as a TV, radio or personal computer. • The unit should be kept away from heat sources such as radiators or cookers. • Do not drop. • Do not subject this unit to mechanical vibration or shock. Guidelines for safe and dffi cient use KG112 5 • The coating of the phone may be damaged if covered with wrap or vinyl wrapper. • Do not use harsh chemicals (such as alcohol, benzene,thinners, etc.) or detergents to clean your phone. There is a risk of this causing a fire. • Do not subject this unit to excessive smoke or dust. • Do not keep the phone next to credit cards or transport tickets; it can affect the information on the magnetic strips. • Do not tap the screen with a sharp object; otherwise, it may damage the phone. • Do not expose the phone to liquid or moisture. • Use the accessories like an earphone cautiously. Efficient phone operation To enjoy optimum performance with minimum power consumption please: • Hold the phone as you speak to any other telephone. While speaking directly into the microphone, angle the antenna in a direction up and over your shoulder. If the antenna is extendable/ retractable, it should be extended during a call. • Do not hold the antenna when the phone is in use. If you hold it, it can affect call quality, it also may cause the phone to operate as a higher power level that needed and shorten talk and standby times. • If your mobile phone supports infrared, never direct the infrared ray at anyone’s eye. Electronics devices All mobile phones may get interference, which could All mobile phones may get interference, which could affect performance.affect performance. • Do not use your mobile phone near medical equipment without equesting permission. Avoid placing the phone over the pacemaker, i.e. in your breast pocket. • Some hearing aids might be disturbed by mobile phones. • Minor interference may affect TVs, radios, PCs, etc. • Do not bend, scratch, or expose to static electricity. Road safety Check the laws and regulations on the use of mobile Check the laws and regulations on the use of mobile phones in the areas when you drive.phones in …

Text truncated - open the document above for the full version.

KG112 31 Settings [Menu 3-5-3] (SIM Dependent) ] Set tariff You can set the currency type and the unit price. Contact your service providers to obtain charging unit prices. To select the currency or unit in this menu, you need the PIN2 code. If you want to input €, ₤, $, clear all currency symbols and press 5 7 . If you want to change the symbols, press 5 7 again. nNote When all units have been used, no calls can be made except emergency calls. Depending on the SIM card, you need the PIN2 code to set a call cost limit. ] Set credit This network service allows you to limit the cost of your calls by selected charging units. If you select Read, the number of remaining unit is shown. If you select Change, you can change your charge limit. ] Auto display This network service allows you to see utomatically the cost of your last calls. If set to On, you can see the last cost when the call is released. GPRS information [Menu 3-6] You can check the amount of data transferred over the network through GPRS. In addition, you can view how much time you are online. Call duration [Menu 3-6-1] You can check the duration of Last call and All calls. You can also reset the call timers. Data volumes [Menu 3-6-2] You can check the Sent, Received or All data volumes and Reset all. 32 KG112 Favorites [Menu 4-1] You can set 9 common function lists in favorites and get into this function with navigation key-favorites. If you want to set a function list in favorite, select the (empty) column in the list for entry. For the set function list, please refer to the following illustration: Select: Open the set function list. Change: You can modify your favorites. Delete: Delete the selected function list in favourites. Delete All: Delete all function lists in favourites. Information: View information of function list in the favorites. My Folders [Menu 4-2] You can select a picture or an animation set as wallpaper and a sound set as ringtone. Images [Menu 4-2-1] Sounds [Menu 4-2-2] Submenu: ]Set as wallpaper/ ringtone Currently selected image/sound can be set as a wallpaper or ringtone. ]Delete Deleting image or sound is available. ]Rename Editing title of image or sound is available. ]Information You can view downloaded image and sound’s informations. Games [Menu 4-3] You can enjoy a game on the phone. For further details. use the on-screen instruction or help menu. Fun & Tools [Menu4] KG112 33 Calculator [Menu 4-4] This contains the standard functions such as +, -, x, / : Addition, Subtraction, Multiplication, and Division. 1. Input the numbers by pressing numeric keys. 2. Use a navigation key to select a sign for calculation. 3. Then input the numbers. 4. Press 5 7 [Result]to view the result. 5. Press 5 7 [Reset] or enter numbers to repeat the procedure above. 6. Use 5 7 to erase any numbers or signs. 7. If you press 5 7 key, you can input a negative number. In addition, if you press 5 7 key, you can input a decimal 8. To end Calculator, press 5 7 [Back]. Unit converter [Menu 4-5] This converts any measurement into a unit you want. There are 4 types that can be converted into units: Length,Area,Weight and Volume. 1. You can select one of four unit types by pressing 5 7 [Unit] key. 2. Select the standard value by using 5 7 , 5 7 . 3. Select the unit you want to convert by using 5 7 , 5 7 . 4. You can check the converted value for the unit you want. Also, you can input a decimal number by pressing 5 7 . World time [Menu 4-6] You can view time of the world’s major cities. 1. Select the city belonged to the time zone by using 5 7 , 5 7 . 2. You can set the current time to the city time you select by pressing 5 7 [Set]. Memory status [Menu 4-7] You can view the memory status like Free memory, Message, Inbox, Outbox,Draft,Message in SIM,Downloads,Save images, sound and so on. 34 KG112 This menu includes functions related to SMS (Short Message Service), voice mail, as well as the Templates. Write short message [Menu 5-1] You can write and edit text message, checking the number of message pages. 1. Enter the Messages menu by pressing 5 7 . 2. If you want to write a new message, select Write short message. 3. To make text input easier, use T9. For details, see How to use T9 . 4. Press [Insert] to attach the followings. nNote The phone which supports EMS release 5 is available to send colour pictures, sounds, text styles, etc.. The other party may not receive pictures, sounds or text styles you sent properly if the phone does not support such options. ] Insert Symbol : You can add special characters. Image : You can insert the Default images or images in My folder that are available for short messages. Sound : You can insert sounds that are available for short messages. Text templates : You can use Text templates already set in the phone. Phonebook : You can add phone numbers or e-mail addresses in Phonebook. Signature : You can add your business card to the message. 5. If you want to set option for your text, or to finish your writing, press 5 7 [Options]. ] Options Send : Sends text messages. 1. Enter numbers of recipient. 2. Push down 5 7 to add more recipients. 3. You can add phone numbers in the phone book. 4. Press 5 7 [Send] after entering numbers. All messages will be automatically saved in the outbox folder, even after a sending failure. Save : Stores messages in Outbox. Font : You can select Size and Style of fonts. Colour : You can select Colour of foreground and background. Alignment : You can make the message contents aligned Right, Centre or Left. Messages [Menu5] KG112 35 Add T9 dictionary : You can add your own word. This menu can be shown only when edit mode is Predictive (T9Abc/T9abc/ T9ABC). T9 languages : Select a T9 input mode. Exit : If you press Exit while writing a message, you can end the writing message and back to the Message menu. The message you have written is not saved. 36 KG112 Messages [Menu5] How to Use T9 T9 allows you to input text quickly. In T9, you only need to press the key with th…

Text truncated - open the document above for the full version.

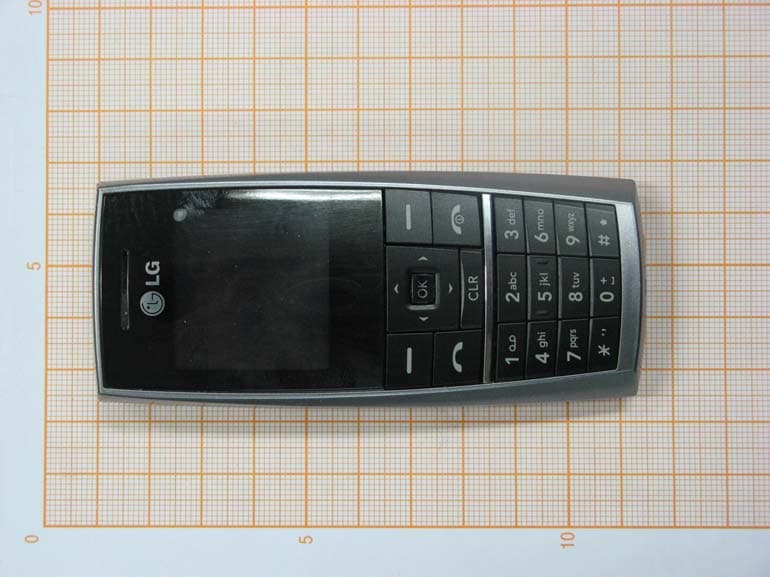

External Photos for KG112: 1. Front View of OUT 2. Back View of OUT without Battery 3. Back View of OUT with Battery

201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235

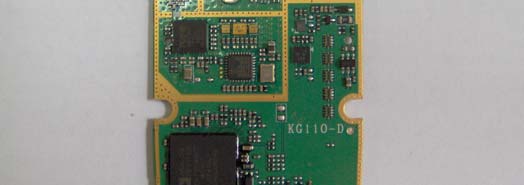

Internal Photos for KG112 Picture 1: Front view of PCB with the keypad and Screen removed Picture 2: Back view of the PCB with the Antenna removed Picture 3: Front view of PCB with the keypad and Screen Internal Antenna Picture 4: Back view of the PCB with the Antenna Picture 5: Front view of Antenna Picture 6: Back view of Antenna

FCC Part 2.1093 (2006-3-23), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: KG112 REPORT NO.: B06GE4866-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 2 of 65 China Telecommunication Technology Labs. ® FCC ID: UBIKG112 Report Date: 2006-7-13 Test Firm Name: China Telecommunication Technology Labs Registration Number: 840587 Statement The measurements shown in this report were made in accordance with the procedures described on test pages. All reported tests were carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Part 2.1093. The sample tested was found to comply with the requirements defined in the applied rules. FCC Part 2.1093 (2006-3-23), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: KG112 REPORT NO.: B06GE4866-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 3 of 65 China Telecommunication Technology Labs. ® Table of Contents 1 General Information ............................................ 4 1.1 NOTES........................................................................................................................... 4 1.2 TESTERS........................................................................................................................ 5 1.3 TESTING LABORATORY INFORMATION........................................................................... 6 1.4 DETAILS OF APPLICANT OR MANUFACTURER.................................................................. 7 2 Test Item ............................................................. 8 2.1 GENERAL INFORMATION................................................................................................ 8 2.2 OUTLINE OF EUT .......................................................................................................... 8 2.3 MODIFICATIONS INCORPORATED IN EUT....................................................................... 8 2.4 EQUIPMENT CONFIGURATION........................................................................................ 8 2.5 OTHER INFORMATION.................................................................................................... 8 2.6 EUT PHOTOGRAPHS...................................................................................................... 9 3 Measurement Systems ....................................... 10 3.1 SAR MEASUREMENT SYSTEMS SETUP........................................................................ 10 3.2 E-FIELD PROBE............................................................................................................ 11 3.3 PHANTOM.................................................................................................................... 12 3.4 DEVICE HOLDER......................................................................................................... 13 4 Test Results ....................................................... 14 4.1 OPERATIONAL CONDITION........................................................................................... 14 4.2 TEST EQUIPMENT USED............................................................................................... 14 4.3 APPLICABLE LIMIT REGULATIONS............................................................................... 15 4.4 TEST RESULTS............................................................................................................. 15 4.5 TEST SETUP AND PROCEDURES.................................................................................... 15 4.6 TISSUE EQUIVALENT LIQUIDS USED AND ITS PROPERTIES........................................... 16 4.7 SYSTEM VALIDATION CHECK....................................................................................... 17 4.8 TEST DATA.................................................................................................................. 19 4.9 MEASUREMENT UNCERTAINTY.................................................................................... 22 Annex A Photographs............................................ 23 Annex B Graphical Results .................................... 28 ANNEX C Probes Calibration Certificates ............... 64 ANNEX D Deviations from Prescribed Test Methods65 FCC Part 2.1093 (2006-3-23), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: KG112 REPORT NO.: B06GE4866-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 4 of 65 China Telecommunication Technology Labs. ® 1 General Information 1.1 Notes All reported tests were carried out on a sample equipment to demonstrate limited compliance with the requirements of FCC CFR 47 Part 2.1093. The test results of this test report relate exclusively to the item(s) tested as specified in section 2. The following deviations from, additions to, or exclusions from the test specifications have been made. See Annex D. China Telecommunication Technology Labs.(CTTL) authorizes the applicant or manufacturer (see section 1.4) to reproduce this report provided, and the test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of CTTL Mr. He Guili. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. CTTL accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. FCC Part 2.1093 (2006-3-23), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: KG112 REPORT NO.: B06GE4866-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 6 of 65 China Telecommunication Technology Labs. ® 1.3 Testing Laboratory information 1.3.1 Location N…

Text truncated - open the document above for the full version.

FCC Part 2.1093 (2006-3-23), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: KG112 REPORT NO.: B06GE4866-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 31 of 65 China Telecommunication Technology Labs. ® B.4 Tilted position on the right side of the head Test Date: 2006-6-12 Communication System: GSM850; Frequency: 824.2 MHz Phantom section: Right Section Probe: ET3DV6 - SN1742; ConvF(6.6, 6.6, 6.6) Electronics: DAE3 Sn549 Crest Factor: 8.3; Duty Cycle: 1:8.3 Liquid Parameters: ε r =42.98, σ=0.89 S/m Ambient Temperature: 23.2°C ; Liquid Temperature: 23.4°C GSM850 Right TILT/Zoom Scan (7x7x6)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 0.273 mW/g Peak SAR (extrapolated) = 0.338 W/kg SAR(1 g) = 0.255 mW/g; SAR(10 g) = 0.172 mW/g 0 dB = 0.273mW/g FCC Part 2.1093 (2006-3-23), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: KG112 REPORT NO.: B06GE4866-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 32 of 65 China Telecommunication Technology Labs. ® B.5 Tilted position on the right side of the head Test Date: 2006-6-12 Communication System: GSM850; Frequency: 836.6 MHz Phantom section: Right Section Probe: ET3DV6 - SN1742; ConvF(6.6, 6.6, 6.6) Electronics: DAE3 Sn549 Crest Factor: 8.3; Duty Cycle: 1:8.3 Liquid Parameters: ε r =41.70, σ=0.90 S/m Ambient Temperature: 23.3°C; Liquid Temperature: 23.4°C GSM850 Right TILT 2/Zoom Scan (7x7x6)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.8 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 0.398 mW/g Peak SAR (extrapolated) = 0.491 W/kg SAR(1 g) = 0.372 mW/g; SAR(10 g) = 0.252 mW/g 0 dB = 0.398mW/g FCC Part 2.1093 (2006-3-23), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: KG112 REPORT NO.: B06GE4866-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 33 of 65 China Telecommunication Technology Labs. ® B.6 Tilted position on the right side of the head Test Date: 2006-6-12 Communication System: GSM850; Frequency: 848.8 MHz Phantom section: Right Section Probe: ET3DV6 - SN1742; ConvF(6.6, 6.6, 6.6) Electronics: DAE3 Sn549 Crest Factor: 8.3; Duty Cycle: 1:8.3 Liquid Parameters: ε r =42.56, σ=0.91 S/m Ambient Temperature: 23.2°C; Liquid Temperature: 23.4°C GSM850 Right TILT 3/Zoom Scan (7x7x6)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.4 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 0.574 mW/g Peak SAR (extrapolated) = 0.714 W/kg SAR(1 g) = 0.538 mW/g; SAR(10 g) = 0.353 mW/g 0 dB = 0.574mW/g FCC Part 2.1093 (2006-3-23), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: KG112 REPORT NO.: B06GE4866-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 34 of 65 China Telecommunication Technology Labs. ® B.7 Cheek position on the left side of the head Test Date: 2006-6-12 Communication System: GSM850; Frequency: 824.2 MHz Phantom section: Left Section Probe: ET3DV6 - SN1742; ConvF(6.6, 6.6, 6.6) Electronics: DAE3 Sn549 Crest Factor: 8.3; Duty Cycle: 1:8.3 Liquid Parameters: ε r =42.98, σ=0.89 S/m Ambient Temperature: 23.1°C; Liquid Temperature: 23.3°C GSM850 Left CHEEK/Zoom Scan (7x7x6)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.3 V/m; Power Drift = 0.1 dB Maximum value of SAR (measured) = 0.576 mW/g Peak SAR (extrapolated) = 0.755 W/kg SAR(1 g) = 0.538 mW/g; SAR(10 g) = 0.345 mW/g 0 dB = 0.576mW/g FCC Part 2.1093 (2006-3-23), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: KG112 REPORT NO.: B06GE4866-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 35 of 65 China Telecommunication Technology Labs. ® B.8 Cheek position on the left side of the head Test Date: 2006-6-12 Communication System: GSM850; Frequency: 836.6 MHz Phantom section: Left Section Probe: ET3DV6 - SN1742; ConvF(6.6, 6.6, 6.6) Electronics: DAE3 Sn549 Crest Factor: 8.3; Duty Cycle: 1:8.3 Liquid Parameters: ε r =41.70, σ=0.90 S/m Ambient Temperature: 23.1°C; Liquid Temperature: 23.2°C GSM850 Left CHEEK 2/Zoom Scan (7x7x6)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.1 V/m; Power Drift = -0.7 dB Maximum value of SAR (measured) = 0.794 mW/g Peak SAR (extrapolated) = 1.07 W/kg SAR(1 g) = 0.745 mW/g; SAR(10 g) = 0.479 mW/g 0 dB = 0.794mW/g FCC Part 2.1093 (2006-3-23), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: KG112 REPORT NO.: B06GE4866-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 36 of 65 China Telecommunication Technology Labs. ® B.9 Cheek position on the left side of the head Test Date: 2006-6-12 Communication System: GSM850; Frequency: 848.8 MHz Phantom section: Left Section Probe: ET3DV6 - SN1742; ConvF(6.6, 6.6, 6.6) Electronics: DAE3 Sn549 Crest Factor: 8.3; Duty Cycle: 1:8.3 Liquid Parameters: ε r =42.56, σ=0.91 S/m Ambient Temperature: 23.1°C; Liquid Temperature: 23.2°C GSM850 Left CHEEK 3/Zoom Scan (7x7x6)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.6 V/m; Power Drift = 0.4 dB Maximum value of SAR (measured) = 1.15 mW/g Peak SAR (extrapolated) = 1.53 W/kg SAR(1 g) = 1.07 mW/g; SAR(10 g) = 0.667 mW/g 0 dB = 1.15mW/g FCC Part 2.1093 (2006-3-23), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: KG112 REPORT NO.: B06GE4866-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 37 of 65 China Telecommunication Technology Labs. ® B.10 Tilted position on the left side of the head Test Date: 2006-6-13 Communication System: GSM850; Frequency: 824.2 MHz Phantom section: Left S…

Text truncated - open the document above for the full version.

FCC Part 2.1093 (2006-3-23), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: KG112 Supplement to B06GE4866-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Pa ge 2 of 44 China Telecommunication Technology Labs. ® Table of Contents 1 General Information ............................................. 3 1.1 NOT ES........................................................................................................................... 3 1.2 TESTERS........................................................................................................................ 3 1.3 GENERAL JUDGMENT FOR SUPPLEMENT TEST............................................................... 3 2 Supplement Test Data .......................................... 4 2.1 OPERAT IONAL CONDIT ION............................................................................................. 4 2.2 TEST EQUIPMENT USED................................................................................................. 4 2.3 ABOUT ISS UE 2.............................................................................................................. 5 2.4 ABOUT ISS UE 4............................................................................................................ 12 2.5 ABOUT ISS UE 5............................................................................................................ 21 FCC Part 2.1093 (2006-3-23), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: KG112 Supplement to B06GE4866-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Pa ge 4 of 44 China Telecommunication Technology Labs. ® 2 Supplement Test Data 2.1 Operational Condition Spec ifica tio ns FCC OET 65C (01-01), IEEE Std 1528 TM -2003 Test Da te 2006.07.26 Tes t co nditio ns Ambient Temperature:22.0~24.0 °C Re la tive Hum idity :49.5~59.3% Operation Mode T X a t th e h ig he s t o u tp u t pe ak p owe r l eve l Method of measurement: FCC OET 65C (01-01), IEEE Std 1528 TM -2003 2.2 Test Equipment Used Desc ript ion Manuf act urer Model Nu mber Serial Nu mber Last Calibrat ion Calibrat ion Due DASY4 Schmid & Partner Engineering AG Version 4 1014 No need -- Data Acquisition Electronics SPEAG DAE3 549 2005-8-30 2006-8-29 Probe SPEAG ET3DV6 1742 2005-11-25 2006-11-24 Dipole SPEAG D835V2 473 2005-8-6 2006-8-5 Dipole SPEAG D835V2 5d024 2005-8-6 2006-8-5 Phantom SPEAG SAM twin phantom SM 000 T01 CA No need -- Scanning system STAUBLI UNIMATION RX90BL F02/5T 63A1/A /01 No need -- Device holder SPEAG Device holder 01 -- No need -- Vector Network Analyzer Agilent HP8753E JP3816 0437 2005-12-20 2006-12-19 Signal Generator A gilent E8247C US4234 0316 2005-12-22 2006-12-11 Power Meter Agilent E4418B GB4242 0805 2005-12-25 2006-12-14 Power Sensor Agilent E9327A VS4044 0198 2006-1-25 2007-1-24 Power Sensor Agilent E9327A VS4044 0326 2006-1-25 2007-1-24 Univ er sa l Rad io Communication s Tester R&S CMU200 100233 2006-2-24 2007-2-23 Thermometer Beijing YAGUANG Instrument company DWS508C 040007 47165 2005-11-11 2007-11-10 FCC Part 2.1093 (2006-3-23), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: KG112 Supplement to B06GE4866-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Pa ge 5 of 44 China Telecommunication Technology Labs. ® 2.3 About Issue 2 Issue 2: SAR values of low and high channels for worst case GPRS body tests for each band (a) For GPRS 850 band body-worn mode, the worst orientation is EUT’s back towards phantom and the worst frequency is 848.8 MHz, which is the high frequency. The results of the low and middle frequencies are updated as following: GPRS 850 Body-Worn Mode: E UT Co nf ig ura tio ns ARFCN /Freque ncy [MHz] SA R (1 g) [W/kg] EUT Power Bef ore/After test [dBm] Graphical re sult s Worst case: back towards phantom, at 848.8 MHz 251/848.8 1.260 25.36/24.89 Annex B.30 Update: back toward phantom, at 824.2MHz 128/824.2 1.130 25.45/25.18 Graphic 1 Update: back toward phantom, at 836.6MHz 190/836.6 1.210 25.84/25.62 Graphic 2 (b) For GPRS 1900 band body-worn mode, the worst orientation is EUT’s back towards phantom and the worst frequency is 1880.0 MHz, which is the middle fre que ncy. T he r es ults o f the low a nd high freque nc ies a re upda ted a s fo llowing: GPRS 1900 Body-Worn Mode: E UT Co nf ig ura tio ns ARFCN /Freque ncy [MHz] SA R (1 g) [W/kg] EUT Power Bef ore/After test [dBm] Graphical re sult s Worst case: back towards phantom, at 1880.0 MHz 661/1880.0 1.060 15.27/14.89 Annex B.36 Update: back toward phantom, at 1850.2 MHz 512/1850.2 1.030 15.14/15.68 Graphic 3 Update: back toward phantom, at 1909.8 MHz 810/1909.8 0.742 14.87/14.47 Graphic 4 FCC Part 2.1093 (2006-3-23), FCC OET 65C (01-01), IEEE Std 1528™-2003 Equipment: KG112 Supplement to B06GE4866-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Pa ge 6 of 44 China Telecommunication Technology Labs. ® B.30 GPRS850 Body-Worn mode Test Date: 2006-7-12 Configuration: Body-Worn mode, back towards phantom Separation Distance: 1.5 cm C omm unica tio n Sy s tem : GPR S850; Freque nc y: 848.8 MHz Phantom section: Flat Section Probe: ET3DV6 - SN1742; ConvF(5.4, 5.4, 5.4) Electronics: DAE3 Sn549 …
