UBIMG140ADual-Band PCS/GPRS Mobile Phone

USER GUIDE MG140a USER GUIDE MG140a Please r ead this manual car efully before opera ting your mobile phone. Ret ain it for future refer ence. USER GUIDE MG140a P/N : (1.0) ENGLISH http://www.lge.com G MG140n_ENG()_Cover_0104 2007.1.4 9:57 AM Page 1 MG140a USER GUIDE Please read this manual carefully before operating your mobile phone. Retain it for future reference. FCC Part 15 statement This device complies with part 15, part 22 and part 24 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different form that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. WARNING Changes or modifications made to this equipment no expressly approved by LG for compliance could void the user's authority to operate the equipment. MG140n Eng 070126 2007.1.26 5:8 PM Page 1 Table of Contents 2 Introduction5 For Your Safety6 Guidelines for safe and efficient use7 MG140a Features11 Parts of the phone11 Front view11 Rear view12 Key description 13 On-Screen icons14 Getting started15 Installing the SIM card and the battery15 Inserting the SIM card15 Removing the SIM card15 Installing the battery16 Charging the Battery16 Disconnecting the adapter17 General functions18 Making and answering calls18 Signal strength19 Entering text19 Phonebook22 In-call menu22 Multiparty or conference calls24 Selecting functions and options26 Menu tree27 Messaging29 New message29 Inbox31 Drafts32 Outbox32 Sent33 Listen voicemail33 Info messages33 Templates34 Settings34 Table of Contents MG140n Eng 070126 2007.1.26 5:8 PM Page 2 Call history37 All calls37 Missed calls37 Dialled calls37 Received calls38 Call duration38 Call costs38 Data information39 Contacts40 Search40 New contact40 Speed dials41 Groups41 Copy all42 Delete all42 Settings42 Information43 Multimedia44 Camera44 FM Radio45 Voice recorder46 My stuff47 Images 47 Sounds47 Others47 Games & Apps48 Browser49 Home49 Bookmarks50 Go to URL50 History50 Settings50 Information50 Tools51 Alarm clock51 Calendar51 Calculator51 Memo52 To do52 Stopwatch52 Unit converter52 World clock53 3 Table of Contents MG140n Eng 070126 2007.1.26 5:8 PM Page 3 Table of Contents 4 SIM Service54 Settings55 Date & Time55 Languages55 Profiles55 Display 56 Network 57 Call 58 Security 60 Flight mode 62 Power save 62 Reset 62 Memory status 62 Accessories63 Technical data64 Table of Contents MG140n Eng 070126 2007.1.26 5:8 PM Page 4 Congratulations on your purchase of the advanced and compact MG140a mobile phone, designed to operate with the latest digital mobile communication technology. Introduction 5 Introduction This user’s guide contains important information on the use and operation of this phone. Please read all the information carefully for optimal performance and to prevent any damage to or misuse of the phone. Any changes or modifications not expressly approved in this user’s guide could void your warranty for this equipment. Use of phone cases with magnetic locks with flip type phones has caused problems such as loss of network signal and phones powering off. MG140n Eng 070126 2007.1.26 5:8 PM Page 5 For Your Safety 6 For Your Safety Please read these simple guidelines. Not following these guidelines may be dangerous or illegal. Further detailed information is given in this manual. WARNING ]Mobile Phones must be switched off at all times in aircrafts. ]Do not hold the phone in your hand while driving. ]Do not use your phone near petrol stations, fuel depots, chemical plants or blasting operations. ]For your safety, use ONLY specified ORIGINAL batteries and chargers. ]Do not handle the phone with wet hands while it is being charged. It may cause an electric shock or seriously damage your phone. ]Keep the phone in a safe place out of small children’s reach. It includes small parts which, if detached, may cause a choking hazard. CAUTION ]Switch off the phone in any area where required any special regulations. For example, do not use your phone in hospitals or it may affect sensitive medical equipment. ]Emergency calls may not be available under all mobile networks. Therefore, you should never depend solely on your mobile phone for emergency calls. ]Only use ORIGINAL accessories to avoid damage to your phone. ]All radio transmitters carry risks of interference with electronics in close proximity. Minor interference may affect TVs, radios, PCs, etc. ]Batteries should be disposed off in accordance with relevant legislation. ]Do not dismantle the phone or battery. MG140n Eng 070126 2007.1.26 5:8 PM Page 6 Please read these simple guidelines. Not following these guidelines may be dangerous or illegal. Further detailed information is given in this manual. Exposure to radio frequency energy Radio wave exposure and Specific Absorption Rate (SAR) information This mobile phone model MG140a has been designed to comply with applicable safety requirement…

Text truncated - open the document above for the full version.

Agents Letter Date: Nov 19, 2006 BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD, Dear Sir or Madam: We, LG Electronics Inc, LG Twin Towers 20,Yeouido-dong, Yeongdeungpo-gu Seoul, Korea 150-721 , hereby authorize Mr.Sun Xiangqian from TMC,Telecommunication Metrology Center of MII, No 52,Huayuan bei Road,Haidian District, Beijing,China, +861062303288-2105 to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on March 31, 2007. Sincerely, (Lee Dongmin) Type Approval Project Manager of System Support Department LG Electronics Inc Tel: +82-2-2033-1121 Email: [email protected]

BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD, Confidentiality Request Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Company Name, hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, (Lee Dongmin) Date: 2007-02-02 Type Approval Project Manager of System Support Department LG Electronics Inc Tel: +82-2-2033-1121 Email: [email protected]

MG140a External Photo Mobile Phone Mobile Phone Mobile Phone Mobile phone Charger (AC/DC Adapter)

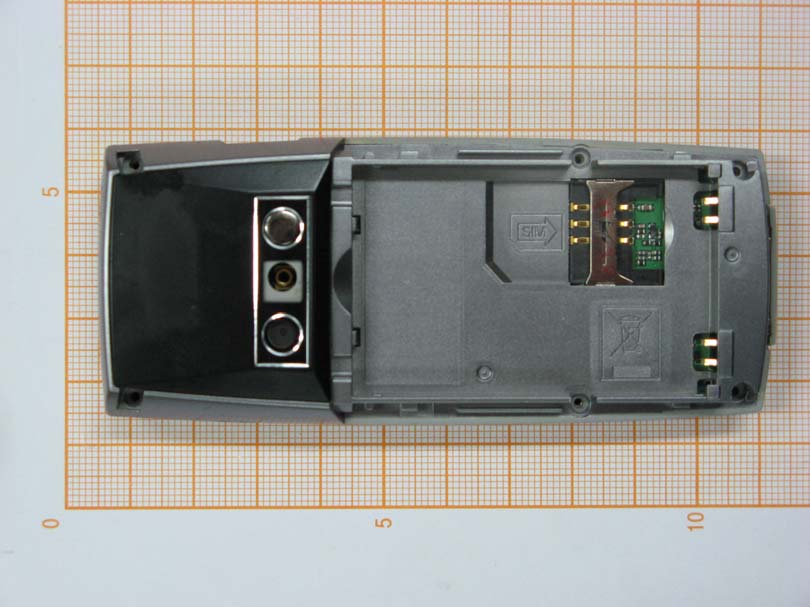

MG140a Internal Photo Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly

©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2007SAR00001 for LG Electronics Inc GSM 850/1900 Dual-band Terminal Equipment MG140a With FCCID˖ UBIMG140A Hardware Version: Rev.1.0 Software Version: V100 Issued Date: 2007-01-20 No. DAT-P-114/01-01 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Information Industry No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100083. Tel:+86(0)10-62303288-2105, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No. 2007SAR00001 Page 2 of 130 TABLE OF CONTENT 1 TEST LABORATORY............................................................................................................4 1.1 TESTINGLOCATION............................................................................................................ 4 1.2 TESTINGENVIRONMENT..................................................................................................... 4 1.3 PROJECT DATA................................................................................................................... 4 2 CLIENT INFORMATION........................................................................................................4 2.1 APPLICANT INFORMATION..................................................................................................................... 4 2.2MANUFACTURER INFORMATION............................................................................................................ 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE)................5 3.1 ABOUT EUT.............................................................................................................................................. 5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST....................................................... 5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST.......................................................... 5 4 OPERATIONAL CONDITIONS DURING TEST...............................................................6 4.1 SCHEMATIC TEST CONFIGURATION..................................................................................... 6 4.2 SAR MEASUREMENT SET-UP.............................................................................................. 6 4.3 DASY4 E-FIELDPROBE SYSTEM......................................................................................... 7 4.4 E-FIELD PROBE CALIBRATION............................................................................................ 8 4.5 OTHER TEST EQUIPMENT................................................................................................... 9 4.6 EQUIVALENT TISSUES......................................................................................................... 9 4.7 SYSTEM SPECIFICATIONS.................................................................................................. 10 5 CHARACTERISTICS OF THE TEST...............................................................................10 5.1 APPLICABLELIMIT REGULATIONS.................................................................................... 10 5.2 APPLICABLEMEASUREMENT STANDARDS........................................................................ 11 6 CONDUCTED OUTPUT POWER MEASUREMENT.................................................... 11 6.1 SUMMARY........................................................................................................................ 11 6.2 CONDUCTED POWER........................................................................................................ 11 7 TEST RESULTS....................................................................................................................12 7.1 DIELECTRIC PERFORMANCE............................................................................................. 12 7.2 SYSTEM VALIDATION........................................................................................................ 12 7.3 SUMMARY OF MEASUREMENT RESULTS (GSM 850MHZ) ................................................ 13 7.4 SUMMARY OF MEASUREMENT RESULTS (GSM 1900MHZ) .............................................. 14 7.5CONCLUSION..................................................................................................................... 15 8 MEASUREMENT UNCERTAINTY....................................................................................16 9 MAIN TEST INSTRUMENTS.............................................................................................17 ANNEX A˖ MEASUREMENT PROCESS........................................................................18 ANNEX B: TEST LAYOUT..................................................................................................19 ANNEX C: GRAPH RESULTS...........................................................................................24 ANNEX D: SYSTEM VALIDATION RESULTS..............................................................120 ANNEX E: PROBE CALIBRATION CERTIFICATE.....................................................122 No. 2007SAR00001 Page 4 of 130 1 Test Laboratory 1.1 Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MII Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100083 Telephone: 00861062303288 Fax: 00861062304793 1.2 Testing Environment Temperature: Min. = 15 q C,Max. = 30 qC Relative humidity: Min. = 30%, Max. = 70% Ground system resistance: < 0.5 : Ambient noise is checked and found very low and in compliance with requirement of standards. Reflection of surrounding objects is minimized and in compliance with requirement of standards . 1.3 Project Data Project Leader: Qian Dianyuan Test Engineer: Sun Qian Testing Start Da…

Text truncated - open the document above for the full version.

No. 2007SAR00001 Page 62 of 130 850 Body Towards Phantom Middle with GPRS Date/Time: 2007-1-16 15:25:04 Electronics: DAE3 Sn536 Medium: 850 Body Medium parameters used (interpolated): ı = 1.00 mho/m; İ r = 53.4; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 836.6 MHz Duty Cycle: 1:4 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Phantom Middle/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.120 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.0 V/m; Power Drift = 0.007 dB Peak SAR (extrapolated) = 0.149 W/kg SAR(1 g) = 0.111 mW/g; SAR(10 g) = 0.077 mW/g Maximum value of SAR (measured) = 0.118 mW/g   0 dB = 0.118mW/g Fig. 39 850 MHz CH190 No. 2007SAR00001 Page 63 of 130 Fig. 40 Z-Scan at power reference point (850 MHz CH190) No. 2007SAR00001 Page 64 of 130 850 Body Towards Phantom Low with GPRS Date/Time: 2007-1-16 15:53:39 Electronics: DAE3 Sn536 Medium: 850 Body Medium parameters used (interpolated): ı = 1.00 mho/m; İ r = 53.4; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:4 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Phantom Low/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.092 mW/g Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.56 V/m; Power Drift = 0.114 dB Peak SAR (extrapolated) = 0.117 W/kg SAR(1 g) = 0.086 mW/g; SAR(10 g) = 0.061 mW/g Maximum value of SAR (measured) = 0.093 mW/g   0 dB = 0.093mW/g Fig. 41 850 MHz CH128 No. 2007SAR00001 Page 65 of 130 Fig. 42 Z-Scan at power reference point (850 MHz CH128) No. 2007SAR00001 Page 66 of 130 850 Body Towards Ground High with GPRS Date/Time: 2007-1-16 17:09:43 Electronics: DAE3 Sn536 Medium: 850 Body Medium parameters used (interpolated): ı = 1.00 mho/m; İ r = 53.4; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 848.8 MHz Duty Cycle: 1:4 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Ground High/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.441 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.5 V/m; Power Drift = 0.003 dB Peak SAR (extrapolated) = 0.557 W/kg SAR(1 g) = 0.409 mW/g; SAR(10 g) = 0.287 mW/g Maximum value of SAR (measured) = 0.432 mW/g   0 dB = 0.432mW/g Fig. 43 850 MHz CH251 No. 2007SAR00001 Page 67 of 130 Fig. 44 Z-Scan at power reference point (850 MHz CH251) No. 2007SAR00001 Page 68 of 130 850 Body Towards Ground Middle with GPRS Date/Time: 2007-1-16 16:40:35 Electronics: DAE3 Sn536 Medium: 850 Body Medium parameters used (interpolated): ı = 1.00 mho/m; İ r = 53.4; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 836.6 MHz Duty Cycle: 1:4 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Ground Middle/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.317 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.3 V/m; Power Drift = 0.030 dB Peak SAR (extrapolated) = 0.401 W/kg SAR(1 g) = 0.296 mW/g; SAR(10 g) = 0.210 mW/g Maximum value of SAR (measured) = 0.315 mW/g   0 dB = 0.315mW/g Fig. 45 850 MHz CH190 No. 2007SAR00001 Page 69 of 130 Fig. 46 Z-Scan at power reference point (850 MHz CH190) No. 2007SAR00001 Page 70 of 130 850 Body Towards Ground Low with GPRS Date/Time: 2007-1-16 16:17:46 Electronics: DAE3 Sn536 Medium: 850 Body Medium parameters used (interpolated): ı = 1.00 mho/m; İ r = 53.4; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:4 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Ground Low/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.264 mW/g Toward Ground Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.9 V/m; Power Drift = 0.058 dB Peak SAR (extrapolated) = 0.327 W/kg SAR(1 g) = 0.248 mW/g; SAR(10 g) = 0.177 mW/g Maximum value of SAR (measured) = 0.261 mW/g   0 dB = 0.261mW/g Fig. 47 850 MHz CH128 No. 2007SAR00001 Page 71 of 130 Fig. 48 Z-Scan at power reference point (850 MHz CH128) No. 2007SAR00001 Page 72 of 130 1900 Left Cheek High Date/Time: 2007-1-17 08:43:52 Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used: ı = 1.45 mho/m; İ r = 39.2; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Cheek High/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.308 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.8 V/m; Power Drift = -0.035 dB Peak SAR (extrapolated) = 0.427 W/kg SAR(1 g) = 0.278 mW/g; SAR(10 g) = 0.164 mW/g Maximum value of SAR (measured) = 0.295 mW/g   0 dB = 0.295mW/g Fig. 49 1900 MHz CH810 No. 2007SAR00001 Page 73 of 130 Fig. 50 Z-Scan at power reference point (1900 MHz CH810) No. 2007SAR00001 Page 74 of 130 1900 Left Cheek Middle Date/Time: 2007-1-17 08:57:52 Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used: ı = 1.45 mho/m; İ r = 39.2; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Cheek Middle/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.250 mW/g Cheek Mid…

Text truncated - open the document above for the full version.

No. 2007SAR00001 Page 93 of 130 Fig. 70 Z-Scan at power reference point (1900 MHz CH661) No. 2007SAR00001 Page 94 of 130 1900 Right Tilt Low Date/Time: 2007-1-17 10:59:29 Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used: ı = 1.45 mho/m; İ r = 39.2; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Tilt Low/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.194 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.5 V/m; Power Drift = 0.033 dB Peak SAR (extrapolated) = 0.292 W/kg SAR(1 g) = 0.170 mW/g; SAR(10 g) = 0.094 mW/g Maximum value of SAR (measured) = 0.184 mW/g   0 dB = 0.184mW/g Fig.71 1900 MHz CH512 No. 2007SAR00001 Page 95 of 130 Fig. 72 Z-Scan at power reference point (1900 MHz CH512) No. 2007SAR00001 Page 96 of 130 1900 Body Towards Phantom High Date/Time: 2007-1-17 12:33:24 Electronics: DAE3 Sn536 Medium: 1900 Body Medium parameters used: ı = 1.57 mho/m; İ r = 51.5; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(4.88, 4.88, 4.88) Toward Phantom High/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.046 mW/g Toward Phantom High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.47 V/m; Power Drift = -0.022 dB Peak SAR (extrapolated) = 0.066 W/kg SAR(1 g) = 0.043 mW/g; SAR(10 g) = 0.029 mW/g Maximum value of SAR (measured) = 0.046 mW/g   0 dB = 0.046mW/g Fig. 73 1900 MHz CH810 No. 2007SAR00001 Page 97 of 130 Fig. 74 Z-Scan at power reference point (1900 MHz CH810) No. 2007SAR00001 Page 98 of 130 1900 Body Towards Phantom Middle Date/Time: 2007-1-17 12:58:28 Electronics: DAE3 Sn536 Medium: 1900 Body Medium parameters used: ı = 1.57 mho/m; İ r = 51.5; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(4.88, 4.88, 4.88) Toward Phantom Middle/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.034 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.13 V/m; Power Drift = -0.142 dB Peak SAR (extrapolated) = 0.051 W/kg SAR(1 g) = 0.031 mW/g; SAR(10 g) = 0.020 mW/g Maximum value of SAR (measured) = 0.033 mW/g   0 dB = 0.033mW/g Fig. 75 1900 MHz CH661 No. 2007SAR00001 Page 99 of 130 Fig. 76 Z-Scan at power reference point (1900 MHz CH661) No. 2007SAR00001 Page 100 of 130 1900 Body Towards Phantom Low Date/Time: 2007-1-17 13:23:43 Electronics: DAE3 Sn536 Medium: 1900 Body Medium parameters used: ı = 1.57 mho/m; İ r = 51.5; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Toward Phantom Low/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.021 mW/g Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.52 V/m; Power Drift = -0.005 dB Peak SAR (extrapolated) = 0.033 W/kg SAR(1 g) = 0.020 mW/g; SAR(10 g) = 0.010 mW/g Maximum value of SAR (measured) = 0.023 mW/g   0 dB = 0.023mW/g Fig. 77 1900 MHz CH512 No. 2007SAR00001 Page 101 of 130 Fig. 78 Z-Scan at power reference point (1900 MHz CH512) No. 2007SAR00001 Page 102 of 130 1900 Body Towards Ground High Date/Time: 2007-1-17 14:49:26 Electronics: DAE3 Sn536 Medium: 1900 Body Medium parameters used: ı = 1.57 mho/m; İ r = 51.5; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(4.88, 4.88, 4.88) Toward Ground High/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.183 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.10 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 0.261 W/kg SAR(1 g) = 0.161 mW/g; SAR(10 g) = 0.096 mW/g Maximum value of SAR (measured) = 0.171 mW/g   0 dB = 0.171mW/g Fig. 79 1900 MHz CH810 No. 2007SAR00001 Page 103 of 130 Fig. 80 Z-Scan at power reference point (1900 MHz CH810) No. 2007SAR00001 Page 104 of 130 1900 Body Towards Ground Middle Date/Time: 2007-1-17 14:23:15 Electronics: DAE3 Sn536 Medium: 1900 Body Medium parameters used: ı = 1.57 mho/m; İ r = 51.5; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(4.88, 4.88, 4.88) Toward Ground Middle/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.141 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.78 V/m; Power Drift = 0.164 dB Peak SAR (extrapolated) = 0.228 W/kg SAR(1 g) = 0.126 mW/g; SAR(10 g) = 0.076 mW/g Maximum value of SAR (measured) = 0.132 mW/g   0 dB = 0.132mW/g Fig. 81 1900 MHz CH661 No. 2007SAR00001 Page 105 of 130 Fig. 82 Z-Scan at power reference point (1900 MHz CH661) No. 2007SAR00001 Page 106 of 130 1900 Body Towards Ground Low Date/Time: 2007-1-17 13:59:23 Electronics: DAE3 Sn536 Medium: 1900 Body Medium parameters used: ı = 1.57 mho/m; İ r = 51.5; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(4.88, 4.88, 4.88) Toward Ground Low/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.101 m…

Text truncated - open the document above for the full version.

No. DAT-P-114/01-01 TEST REPORT No. 2007FCC001 Test name FCC Test Product GSM 850/1900 Dual-band Terminal Equipment Model MG140a Client LG Electronics Inc Telecommunication Metrology Center of Ministry of Information Industry Telecommunication Metrology Center of Ministry of Information Industry No. 2007FCC001 Page 2 of 52 Notice 1. The test report is invalid if not marked with “exclusive stamp for the test report” or the stamp of the test center. 2. Any copy of the test report is invalid if not re-marked with the “exclusive stamp for the test report” or the stamp of the test center. 3. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 4. The test report is invalid if there is any evidence of erasure and/or falsification. 5. If there is any dissidence for the test report, please file objection to the test center within 15 days from the date of receiving the test report. 6. Normally, entrust test is only responsible for the samples that have undergone the test. 7. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the test center. Address: No. 52, Huayuanbei Road, Beijing, P. R. China Post code: 100083 Cable: 04282 Telephone: +86 10 62302041 Fax: +86 10 62304793 Telecommunication Metrology Center of Ministry of Information Industry No. 2007FCC001 Page 4 of 52 TABLE OF CONTENT 1. COMPETENCE AND WARRANTIES .............................................................................. 5 2. TESTING LABORATORY ................................................................................................. 5 2.1 TESTING LOCATION ..................................................................................................... 5 2.2 TESTING ENVIRONMENT ........................................................................................... 5 2.3 TESTING PERIOD .......................................................................................................... 6 3. APPLICANT INFORMATION .......................................................................................... 6 3.1 CLIENT INFORMATION ............................................................................................... 6 3.2 MANUFACTURER INFORMATION ............................................................................ 7 4. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............ 7 4.1 ABOUT EUT ..................................................................................................................... 7 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................... 7 4.3 PHOTOGRAPHS OF EUT .............................................................................................. 7 5. SUMMARY OF TEST RESULTS ....................................................................................... 8 6. MAIN TEST INSTRUMENTS ............................................................................................ 8 ANNEX A MEASUREMENT RESULTS .................................................................................. 9 ANNEX B PHOTOGRAPHS OF EUT .................................................................................... 48 ANNEX C TEST LAYOUT ...................................................................................................... 52 Telecommunication Metrology Center of Ministry of Information Industry No. 2007FCC001 Page 5 of 52 1. COMPETENCE AND WARRANTIES Telecommunication Metrology Center of Ministry of Information Industry(hereinafter TMC) is a test laboratory accredited by DAR (DATech) – Deutschen Akkreditierungs Rat (Deutsche Akkreditierungsstelle Technik), for the tests indicated in the Certificate No. DAT-P-114/01-01. TMC is a test laboratory accredited by CNAL – Accreditation Certificate of China National Accreditation Board for Laboratories, for the tests indicated in the Certificate No. L0442. TMC is FCC listed lab. FCC listed number is 7331…

Text truncated - open the document above for the full version.
