UFR2350070809Radio Control Construction (Radio Control Dump Truck)

FCC ID: UFR2350070809 Model: 2350-07 Block Diagram of Transmitter 27.145 MHz (B1) (2 x 1.5V AA batteries) Control Switches (SW1, SW2, SW3, SW4) Encoder (U1) RF Modulator (Q2) RF Oscillator 27.145 MHz (TX1, Q1)

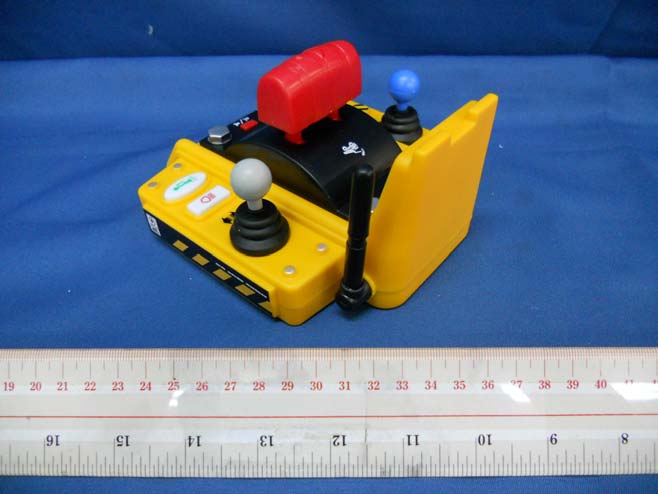

INTERTEK TESTING SERVICE Report No.: HK11051557-1 FCC ID: UFR2350070809 Equipment Photographs Model : 2350-07 (External)

FCC ID: UFR2350070809 Model: 2350-07 Labeling Artwork

INTERTEK TESTING SERVICE Report No.: HK11051557-1 FCC ID: UFR2350070809 Equipment Photographs Model: 2350-07 (Internal) INTERTEK TESTING SERVICE Report No.: HK11051557-1 FCC ID: UFR2350070809 Equipment Photographs Model: 2350-07 (Internal) INTERTEK TESTING SERVICE Report No.: HK11051557-1 FCC ID: UFR2350070809 Equipment Photographs Model: 2350-07 (Internal) INTERTEK TESTING SERVICE Report No.: HK11051557-1 FCC ID: UFR2350070809 Equipment Photographs Model: 2350-07 (Internal)

FCC ID: UFR2350070809 Model: 2350-07 Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls a receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit consisting: SW1, SW2, SW3, SW4, U1 2. An RF Oscillator consisting: TX1, Q1 3. A Filter consisting: C2, L3 4. A Modulator consisting: Q2 5. A Power Supply consisting: two 1.5V AA batteries The transmitter uses an external, integral and non-detachable antenna.

INTERTEK TESTING SERVICES Report No. : HK11051557-1 Sample No. : 1/2 (Mod) Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11051557-1 Goldlok Toys Holding (Guangdong) Company Limited Application For Certification (Original Grant) (FCC ID: UFR2350070809) Transmitter Prepared and Checked by: Approved by: Signed On File Lee Kin Lok, Brian Assistant Engineer Chan Chi Hung, Terry Assistant Supervisor Date: June 13, 2011 INTERTEK TESTING SERVICES Report No.: HK11051557-1 FCC ID: UFR2350070809 i GENERAL INFORMATION Goldlok Toys Holding (Guangdong) Company Limited MODEL: 2350-07 FCC ID: UFR2350070809 Grantee: Goldlok Toys Holding (Guangdong) Company Limited Grantee Address: Room 701-706, 7/F., Tower B, New Mandarin Plaza, 14 Science Museum Road, Tsim Sha East East, Kowloon, Hong Kong. Contact Person: Ms. Sandy Mui Tel: (852) 2312-1577 Fax: (852) 2312-0490 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: 2350-07 (Asst No.: 2350, 2350-A) Additional Model: 2350-01, 2350-02, 2350-03, 2350-04, 2350-05, 2350-06, 2350-08, 2350-09, 2350-10, 2350-11, 2350-12 Type of EUT: Transmitter Description of EUT: Radio Control Construction (Radio Control Dump Truck) Serial Number: N/A FCC ID : UFR2350070809 Date of Sample Submitted: May 25, 2011 Date of Test: May 26, 2011 Report No.: HK11051557-1 Report Date: June 13, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11051557-1 FCC ID: UFR2350070809 ii SUMMARY OF TEST RESULT Goldlok Toys Holding (Guangdong) Company Limited MODEL: 2350-07 FCC ID: UFR2350070809 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11051557-1 FCC ID: UFR2350070809 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty..........................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK11051557-1 FCC ID: UFR2350070809 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 2350-07 INTERTEK TESTING SERVICE Report No: HK11051557-1 FCC ID: UFR2350070809 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 2350-07
