UFSINK06ACross Wireless to USB Router

Product Manual Page 1 of 21 Wireless Internet for more comfortable, more fast and more easily Make your network on Internet wirelessly IN-ROUTER-UW Manual Cross Wireless AP to USB Router INEW Digital Company Technical Support: [email protected] TEL: 82-42-933-7328 FAX: 82-42-934-4829 www.inewdc.com Product Manual Page 2 of 21 Wireless Internet for more comfortable, more fast and more easily Make your network on Internet wirelessly FCC STATEMENT FCC NOTICE: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This devices may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. Product Manual Page 3 of 21 Wireless Internet for more comfortable, more fast and more easily Make your network on Internet wirelessly Table of Contents Copyright..................................................................................................................................4 Purpose.....................................................................................................................................4 1. Introduction.............................................................................................................................5 1.1 IN-ROUTER-UW Overview........................................................................................5 1.2 Appearance.....................................................................................................................6 1.3 Features..........................................................................................................................7 1.4 Specification...................................................................................................................8 2. Composition...........................................................................................................................11 3. Operation process................................................................................................................12 3.1 PPP mode......................................................................................................................12 3.2 PPPoE mode...............................................................................................................12 4. Setting Host PC.....................................................................................................................14 3.1 Setting Host PC...........................................................................................................14 5. Connecting with IN-ROUTER-UW’s web configuration page....................................16 6. PPP mode Configuration......................................................................................................18 7. Firmware Upgrade...............................................................................................................20 Product Manual Page 4 of 21 Wireless Internet for more comfortable, more fast and more easily Make your network on Internet wirelessly Copyright This Product manual describes features including hardware, software and operation and so on. INEWDC has made best effort to ensure that the information contained in this document is accurate and reliable. This document is the property of INEWDC and implies no license under patents, copyrights, trade secrets. No part of this publication should be copied, reproduced, stored in a retrieval system, or transmitted, in any form or by any means (electronic, mechanical, photographic, or otherwise) without the prior permission of INEWDC. Purpose This manual includes how to configure and use the IN-ROUTER-UW. Product Manual Page 5 of 21 Wireless Internet for more comfortable, more fast and more easily Make your network on Internet wirelessly 1. Introduction 1.1 IN-ROUTER-UW Overview IN-ROUTER-UW, Cross Wireless AP to USB Router performs data communication functions between LAN(Local Area Network) and wireless WAN(Wide Area Network) using USB type mobile modem like IS-95A/B, CDMA2000-1x EVDO CDMA Cellular station for Small Office Home Office. IN-ROUTER-UW…

Text truncated - open the document above for the full version.

INEW Digital Company Supply Bureau 3rd floor KT&G #203-1 Pyongchon-dong, Daedeog-gu, Daejeon, Korea TEL. 82-42-933-7328 FAX. 82-42-934-4829 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentleman: We, INEW Digital Company used the module approved in our device.(Module FCC ID: TE7WN56XG) This module is exactly same module with FCC ID: Q72WLANTPBG. Please refer to following. 1. Cover letter of CHUNG NAM ELECTRONICS CO., LTD. 2. External Photo of Module 3. ID Label Info of Module Sincerely, Jong-gun Lee Project Manager INEW Digital Company CHUNG NAM ELECTRONICS CO., LTD. 12/F, CHUNG NAM BUILDING,NO.1 LOCKHART ROAD HONG KONG Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Change in Identification per Sect.2.933 of the FCC rules Reference: FCC ID: TE7WN56XG To Whom It May Concern: This Change in Identification request applies for a new FCC ID; as established in 47CFR 2.933(b) for a currently approved device. This application by TP-Link Technology Co. Ltd. will establish a new FCC ID under her grantee code, for the purpose of marketing. The original grant to Chung Nam Electronics Co., Ltd. will remain in effect. An authorization letter by Q72WLANTPBG is attached. Per 2.933(b) 1. The original identification is Q72WLANTPBG 2. The original grant date is Aug 18 2005 3. The equipment is electrically identical. Only the model name, trade name, and FCC ID number are different. 4. The original test results are applicable and representative of the changed device. 5. Exterior photographs are included in the application. The following files are electronically submitted as attachments: A. Cover Letter B. External Photos C. FCC ID label format and location

INEW Digital Company Supply Bureau 3 rd floor KT&G #203-1 Pyongchon-dong, Daedeog-gu, Daejeon, Korea TEL. 82-42-933-7328 FAX. 82-42-934-4829 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentleman: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, INEW Digital Company would like the following documents regarding this submission for FCC ID: UFSINK06A to be kept confidential. 1. Schematics 2. Parts List 3. Block diagram 4. Theory of operation The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Jong-gun Lee Project Manager INEW Digital Company

Helen Zhao Subject: FW: INEW DIGITAL COMPANY, FCC ID: UFSINK06A, Assessment NO.: AN06T6179, Notice#1 11/13/2006 From: Ryu, Erwin (Gunpo) Sent: Tuesday, November 07, 2006 6:13 PM To: Helen Zhao Subject: RE: INEW DIGITAL COMPANY, FCC ID: UFSINK06A, Assessment NO.: AN06T6179, Notice#1 Dear Helen, I am sorry for late reply. Please refer to below. Best Regards, Erwin ============================= Sent: Sun 10/1/2006 10:14 PM Subject: INEW DIGITAL COMPANY, FCC ID: UFSINK06A, Assessment NO.: AN06T6179, Notice#1 Question #1: The report indicates the device uses a certified module FCC ID: TE7WN56XG. But if you check FCC website, you will find that TE7WN56XG is certified through "change in identification filing" to a certified device (FCC ID: Q72WLANTPBG). Anyway, since this filing is a brand new certification filing, please submit test report. We can accept the test report of FCC ID: Q72WLANTPBG, but you need to provide an attestation statement to indicate the device in this filing uses the exactly the same module: FCC ID: TE7WN56XG and the grandfathered FCC ID: Q72WLANTPBG. [Erwin] I submit the test report of FCC ID: Q72WLANTPBG and attestation statement as attached. Question #2: Please submit the Schematics, Theory of Operation and Parts list of the wireless module. [Erwin] These documents will submit to you from Chung Nam Electronics Co., Ltd. Question #3: The user manual shows the device has the capability to operate at 802.11a/b/g mode, but the test report only covers test data at 802.11b/g. Please explain. [Erwin] The user manual is wrong. The device has the capability to operate at 802.11b/g mode. I submit the user manual to be revised as attached. Question #4: The user manual indicates "One USB Host for mobile technologies like CDMA, WCDMA, GSM, HSDPA etc" can be connected with the device, so WAN radio card will be co-located with WLAN radio module (within 20cm separation distance). Since colocation mode has not been evaluated, the grant will say" this device can not be colocated with any other transmitter and antennas". Colocation with other transmitter and antennas requires a Class II permissive change filing or new certification. [Erwin] Acknowledged. Best regards, Helen Zhao Compliance Certification Services 561F Monterey Rd. Morgan Hill, CA 95037 Tel: (408) 463-0885 ext. 131 Fax: (408) 463-0888 email: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

FCC ID : UFSINK06A Report File No. : STROR-06-070 Page : 27 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr Appendix B – Photos of the EUT View of EUT Rear View of EUT

FCC ID LABEL 1. FCC ID label location - Bottom side of set 2. FCC ID label drawing FCC ID : UFSINK06A Model : IN-ROUTER-UW Manufacur : INEW DIGITAL COMPANY This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This devices may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID : UFSINK06A Report File No. : STROR-06-070 Page : 28 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr Top View of Main Board Bottom View of Main Board FCC ID : UFSINK06A Report File No. : STROR-06-070 Page : 29 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr Top View of Wireless LAN Module Bottom View of Wireless LAN Module

FCC ID : UFSINK06A Report File No. : STROR-06-070 Page : 23 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 8. RF Exposure Evaluation According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 8.1. Friis transmission formula (Pd) Pd = (Pout*G)/(4*pi*R 2 ) Where, Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 8.2. EUT Operating Condition A software provided by client enabled the EUT to transmit and receive data at low, middle and high channel individually. Frequency Range (MHz) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational /Control Exposures 300 – 1500 -- -- F/300 6 1500 - 100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300 – 1500 -- -- F/1500 6 1500 - 100000 -- -- 1 30 FCC ID : UFSINK06A Report File No. : STROR-06-070 Page : 24 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 8.3. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 8.3.1. Output Power into Antenna & RF Exposure Evaluation Distance Antenna gain : 4.33 dBi 801.11b (11 Mbps) Channel Channel Frequency (MHz) Output Peak Power to Antenna (dBm) Antenna Gain (dBi) Power Density at 20cm (mW/cm 2 ) LIMITS (mW/cm 2 ) Low 2412 13.20 4.33 0.01127 1 Middle 2437 13.14 4.33 0.01112 1 High 2462 11.60 4.33 0.01117 1 801.11g (54 Mbps) Channel Channel Frequency (MHz) Output Peak Power to Antenna (dBm) Antenna Gain (dBi) Power Density at 20cm (mW/cm 2 ) LIMITS (mW/cm 2 ) Low 2412 13.18 4.33 0.01122 1 Middle 2437 13.12 4.33 0.01106 1 High 2462 11.60 4.33 0.00780 1 NOTE : The power density Pd (4th column) at a distance of 20cm calculated from the friis transmission formula is far below the limit of 1 mW/ cm 2 .

Compliance Certification Services (Shenzhen) Inc. Report No: SZ050624B06-RP FCC ID: Q72WLANTPBG Date of Issue: July 13, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 64 FCC 47 CFR PART 15 SUBPART C TEST REPORT For IEEE 802.11b/g WLAN mini-PCI Card Model: WLAN TP BG Trade Name: N/A Prepared for CHUNG NAM ELECTRONICS CO., LTD. 12/F, CHUNG NAM BUILDING, NO.1 LOCKHART ROAD HONG KONG Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO. 6, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 LAB CODE:200577-0 Compliance Certification Services (Shenzhen) Inc. Report No: SZ050624B06-RP FCC ID: Q72WLANTPBG Date of Issue: July 13, 2005 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES 8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT.........................................................................................................9 6.2 SUPPORT EQUIPMENT .................................................................................................................9 7. FCC PART 15.247 REQUIREMENTS...................................................................................... 10 7.1 6DB BANDWIDTH.............................................................................................................................10 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................22 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................31 7.5 SPURIOUS EMISSIONS.................................................................................................................37 7.6 POWERLINE CONDUCTED EMISSIONS..............................................................................................59 APPENDIX 1 PHOTOGRPHS OF TEST SETUP .......................................................................... 63 Compliance Certification Services (Shenzhen) Inc. Report No: SZ050624B06-RP FCC ID: Q72WLANTPBG Date of Issue: July 13, 2005 Page 3 1. TEST RESULT CERTIFICATION Applicant: CHUNG NAM ELECTRONICS CO., LTD. 12F, Chung Nam Building, No.1 Lockhart Rd., | Wanchai, Hongkong Equipment Under Test: IEEE 802.11b/g WLAN mini-PCI Card Trade Name: N/A Model: WLAN TP BG Date of Test: June 28 ~ July 10, 2005 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services (Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Reviewed and Approved by Clinton Kao Manager of the Engineering Dept. Compliance Certification Services (ShenZhen) Inc. Compliance Certification Services (Shenzhen) Inc. Report No: SZ050624B06-RP FCC ID: Q72WLANTPBG Date of Issue: July 13, 2005 Page 4 2. EUT DESCRIPTION Product IEEE 802.11b/g WLAN mini-PCI Card Trade Name N/A Model Number WLAN TP BG EUT Power Rating Powered from the host device (via mini-PCI interference) Frequency Range 802.11b mode: 2412 ~ 2462 MHz 802.11g mode: 2412 ~ 2462 MHz Transmit Power 802.11b mode: 13.20 dBm 802.11g mode: 13.18 dBm Modulation Technique 802.11b: DSSS (CCK; DQPSK; DBPSK) 802.11g: OFDM Transmit Data Rate 802.11b: 11Mbps(CCK) with fall back rates of 5.5, 2, and 1Mbps 802.11g : 54Mbps with fall back rates of 48/36/24/18/12/9/6 Mbps (OFDM) Number of Channels 11 Channels Antenna Specification 1.8 dBi (Max) Note: This submittal(s) (test report) comply with Sec…

Text truncated - open the document above for the full version.

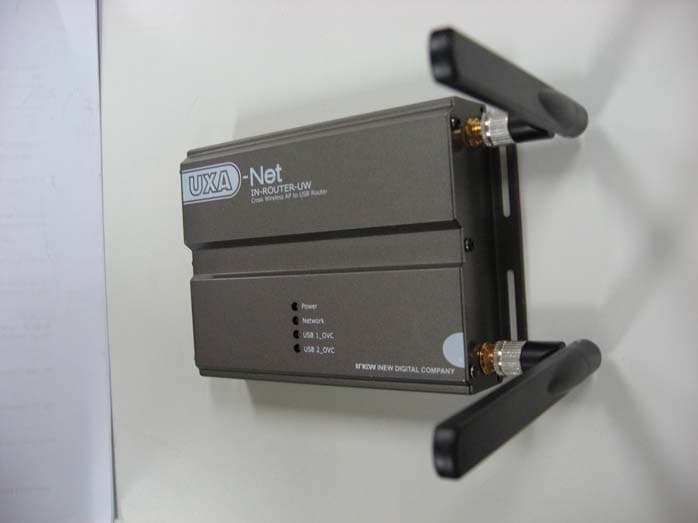

FCC ID : UFSINK06A Report File No. : STROR-06-070 Page : 1 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr TEST REPORT OF FCC Part 15 Subpart C FCC ID : UFSINK06A Equipment Under Test : Cross Wireless AP to USB Router Model Name : IN-ROUTER-UW Serial No. : N/A Applicant : INEW DIGITAL COMPANY Manufacturer : INEW DIGITAL COMPANY Date of Test(s) : 2006-08-25 ~ 2006-09-11 Date of Issue : 2006-09-11 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Testing Korea Co., Ltd. or testing done by SGS Testing Korea Co., Ltd. in connection with distribution or use of the product described in this report must be approved by SGS Testing Korea Co., Ltd. in writing. FCC ID : UFSINK06A Report File No. : STROR-06-070 Page : 2 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr VERIFICATION OF COMPLIANCE Applicant : INEW DIGITAL COMPANY Kind of Product : Cross Wireless AP to USB Router Brand Name : N/A Model Name : IN-ROUTER-UW Report File No. : STROR-06-070 Date of test : 2006-08-25 ~ 2006-09-11 APPLICABLE STANDARDS STANDARD TEST RESULT Part 15, Subpart B and Subpart C §15.247 Complied The above equipment was tested by SGS Testing Korea Co., Ltd. for compliance with the requirements set forth in the FCC RULES Part 15, Subpart B and Subpart C §15.247. The results of testing in this report apply to the product system that was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Te s t e d B y : Date 2006-09-11 Feel Jeong Approved By Date 2006-09-11 Albert Lim FCC ID : UFSINK06A Report File No. : STROR-06-070 Page : 3 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr INDEX TABLE OF CONTENTS Page 1. General Information ------------------------------------------------------------------------- 4 2. Conducted Power Line Test ----------------------------------------------------------------- 7 3. Spurious Emission, Band Edge, and Restricted Band Test --------------------------- 13 4. 6 dB Bandwidth Measurement ------------------------------------------------------------- 19 5. Maximum Peak Output Power Measurement ------------------------------------------ 20 6. Power Spectral Density Measurement ---------------------------------------------------- 21 7. Antenna Requirement ------------------------------------------------------------------------ 22 8. RF Exposure Evaluation --------------------------------------------------------------------- 23 Appendix A -1. Photo of Spurious Radiated Emission Test Appendix A -2. Photos of Conducted Power Line Test Appendix B Photo of the EUT FCC ID : UFSINK06A Report File No. : STROR-06-070 Page : 4 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 1. General Information 1-1. Testing Laboratory SGS Testing Korea Co., Ltd. Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-Si, Gyeonggi-do, Korea 435-040 www.sgstesting.co.kr Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1-2. Details of Applicant Applicant : INEW DIGITAL COMPANY Address : Supply Bureau 3th floor KT&G #203-1, Pyong chon-dong, Daedeog-gu, Daejeon, Korea Contact Person : Young-Jin Jin Phone No. : 82-42-933-7328 Fax No. : 82-42-934-4829 1-3. Description of EUT Kind of Product Cross Wireless to USB Router Model Name IN-ROUTER-UW Serial Number N/A Power Supply AC 100 ~ 250 V (50 Hz ~ 60 Hz) Frequency Range 2412~2462 MHz Transmit Power 802.11b mode: 13.20 dBm 802.11g mode: 13.18 dBm Modulation Technique 802.11b: DSSS (CCK; DQPSK; DBPSK) 802.11g: OFDM Number of Channels 11 CH.(DSSS 11b, OFDM 11g) Transmit Data Rate 802.11b: 11Mbps(CCK) with fall back rates of 5.5, 2, and 1Mbps 802.11g : 54Mbps with fall back rates of 48/36/24/18/12/9/6 Mbps (OFDM) Operating Conditions -20 °C ~ + 55 °C Antenna Type Monopole Antenna(left-handed SMA Type) Antenna Gain 4.33 dBi Note : This Product is used FCC Certified RF module ( FCC ID : TE7WN56XG). 1-4. Details of modification -N/A FCC ID : UFSINK06A Report File No. : STROR-06-070 Page : 5 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SG…
