UFSINK650DWireless Router

FAE Manual Page 1 of 62 Connect your network on wireless Internet easily CDM-650PRO FAE manual Wireless CDMA Docking Station INEW Digital Company Technical Support: [email protected] TEL: 82-42-933-7328 FAX: 82-42-934-4829 www.inewdc.com Regulatory Information & Safety notices 1. Regulatory Notices This device is compliant with Parts 15, 22 and 24 of the FCC Rules. Operation of this device is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesirable operations. FCC RF EXPOSURE COMPLIANCE In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. This device should not be operated in conjunction with another transmitter in order to comply with the FCC's RF Exposure requirements. During operation, a 20 cm separation distance should be maintained between the antenna, whether extended or retracted, and the user’s/bystander’s body (excluding hands, wrists, feet, and ankles) to ensure FCC RF exposure compliance. CAUTION Unauthorized modification or change not expressly approved by INEW Digital Company could void compliance with regulatory rules and thereby your authority to use this equipment. Regulatory Information & Safety notices WARNING (EMI) This equipment has been tested and found to comply with the limits pursuant to Part 15, 22 & 24 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and the receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. Regulatory Information & Safety notices 2. Safety and Notices Important Notice Because of the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors), or be totally lost. Although significant delay or losses of data are rare when wireless devices such as the CDM- 650PRO are used in a normal manner with a well-constructed network, they should be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss or property. INEW Digital Company accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the CDM-650PRO or failure of CDM-650PRO to transmit or receive such data. Safety and Hazards Do not operate the CDM-650PRO in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, life support equipment, or any equipment which may be susceptible to any form of radio interference. In such areas, the CDM-650PRO MUST BE POWERED OFF . It can transmit signals that could interfere with this equipment. Do not operate the CDM-650PRO in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the CDM-650PRO MUST BE POWERED OFF . When operating, it can transmit signals that could interfere with various onboard systems. The driver or operator of any vehicle should not operate the CDM-650PRO while in control of a vehicle. Doing so will detract from the driver or operator’s control and operation of that vehicle. In some jurisdictions, operating such communications devices while in control of a vehicle is an offense. Regulatory Information & Safety notices POTENTIALLY UNSAFE AREAS Posted facilities -Turn off this modem in any facility or area when posted notices require you to do so. Blasting areas - Turn off Modem where blasting is in progress. Observe restrictions and follow any regulations or rules. Potentially explosive atmospheres: Turn off Modem when you are in any area with a potentially explosive atmosphere. Obey all signs and instructions. Sparks in such areas could cause an explosion or fire, resulting in bodily injury or death. Areas with a potentially explosive atmosphere are often but not always clearly marked. They include: - fuelling areas such as gas or petrol stations - below deck on boats - transfer or storage facilities for fuel or chemicals - vehicles using liquefied petroleum gas, such as propane or butane - areas when the air contains chemicals or particles such as grain, dust or metal powders - any other area where you would normally be advised to turn off your Modem. FAE Manual Page 2 of 62 Connect your network on wireless Internet easily Copyright .................................................................................................... 4 Purpose ..............................................................................…

Text truncated - open the document above for the full version.

INEW Digital Company Supply Bureau 3 rd floor KT&G #203-1 Pyongchon-dong, Daedeog-gu, Daejeon, Korea TEL. 82-42-933-7328 FAX. 82-42-934-4829 Date: JUNE 8, 2007 Compliance Certification Services Certification Division 47173 Benicia Street, Fremont CA 94538, USA To whom it may concern: We, INEW Digital Company, the undersigned, hereby authorize SGS Testing Korea Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Testing Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). In authorizing SGS Testing Korea Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that INEW Digital Company Supply Bureau 3 rd floor KT&G #203-1 Pyongchon-dong, Daedeog-gu, Daejeon, Korea TEL. 82-42-933-7328 FAX. 82-42-934-4829 contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Ha-Youn Lee Chief INEW Digital Company

Compliance Certification Services July 18, 2007 Certification Division 47173 Benicia Street, Fremont, CA 94538, USA Re: Model name : CDM-650PRO INEW Digital Company Supply Bureau 3th floor KT&G #203-1, Pyong chon-dong, Daedeog-gu, Daejeon, Korea Subject : Authorization to use technical material and test report for C-motech’s CDU-650 Model (FCC ID : TARCDU-650). To Whom It May Concern: This letter grants authorization for representatives of INEW Digital Company to use all existing compliance technical material and test reports of CDU-650 model from C-motech Co., Ltd. for the above referenced model. We understand and agree that INEW Digital Company will submit applicable C-motech Co., Ltd. ’s test reports to regulators for the purpose of gaining new regulatory approvals. Sincerely, Mr. Byung-Young Choi Senior Research Engineer C-motech Co., Ltd. 5F., Etronix BLD., 17-10 Yoido-dong Youngdungpo-gu, Seoul, Korea (150-874) Email: [email protected] URL: http://www.cmotech.com TEL:82-2-785-5540 FAX:82-2-785-2369

INEW Digital Company Supply Bureau 3 rd floor KT&G #203-1 Pyongchon-dong, Daedeog-gu, Daejeon, Korea TEL. 82-42-933-7328 FAX. 82-42-934-4829 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentleman: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, INEW Digital Company would like the following documents regarding this submission for FCC ID: UFSINK650D to be kept confidential. 1. Schematics 2. Parts List 3. Block diagram 4. Theory of operation The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Ha-Young Lee Chief INEW Digital Company Friday, 18 August 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: C-motech Co., Ltd. FCC ID: TARCDU-650 FCC Part 22 and FCC Part 24 Certification Request for Confidentiality Dear Sir’s/Madam’s: In accordance with 0.457 and 0.459 of CFR 47, C-motech Co., Ltd. hereby requests confidentiality treatment of information accompanying this application as outlined below: - CDU-650 block diagram, parts list, and schematics - CDU-650 Theory of operation - CDU-650 antenna specifications These documents contain detailed system and equipment description and related information about the product in which C-motech Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, C-motech Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Mr. Byung-Young Choi Senior Research Engineer C-motech Co., Ltd. 5F., Etronix BLD., 17-10 Yoido-dong Youngdungpo-gu, Seoul, Korea (150-874) Email: [email protected] URL: http://www.cmotech.com TEL:82-2-785-5540 FAX:82-2-785-2369

Mike Kuo From: Kwon, James (Gunpo) [[email protected]] Sent: Wednesday, October 18, 2006 5:37 AM To: Mike Kuo Cc: Ham, Denny (Gunpo); Jeong, Feel (Gunpo); [email protected]; [email protected]; Ryu, Erwin (Gunpo) Subject: RE: C-motech Co., Ltd., FCC ID: TARCDU-650, Assessment NO.: AN06T6194, Notice#1  10/18/2006 Hi Mike, Regarding your findings, pls find our reply embedded at below . There are 2 items to be revised on 731 form, pls change at your side : 1) emission designator : 1M28F9W ---> 1M43F9W 2) Transmit Power to be revised : CDMA : ERP 21.90 dBm (0.155 W) US PCS :EIRP 21.84 dBm (0.153 W) James/SGS -----Original Message----- From: Mike Kuo Sent: Sunday, October 08, 2006 5:10 PM To: Mike Kuo Subject: C-motech Co., Ltd., FCC ID: TARCDU-650, Assessment NO.: AN06T6194, Notice#1 Administrative Review portion: Question #1:Please update theory of operation to provide the following radio capabilities : -> Updated and uploaded it. A. What is MS protocol revision number that this device is supporting -> IS-2000 & IS-856 (1xRTT & EVDO Revision 0) B.What is revision number of 1xEVDO that this device is capable of -> 1xEVDO Revision 0 (No 1xEVDO RevisionA) C.This radio is design per which version of 3GPP standard. -> IS98E & IS-856-2 D. Please list the Radio configuration ( RC ) and Service option ( SO ) that this device is capable of -> See below table (As you know, similar to Question11.A ) Radio Configurations Radio Programming C.S0002-A Standard Test Mode in Radio Configuration can be changed at any time, but is not applicable till next connection if having connected. Config Mnemonic Forward Traffic Channel Radio Configuration Reverse Traffic Channel Radio Configuration TIA/EIA-98-E (Fwd1, Rvs1) F1R1 RC1 RC1 1 (Fwd2, Rvs2) F2R2 RC2 RC2 2 (Fwd3, Rvs3) F3R3 RC3 RC3 3 (Fwd4, Rvs3) F4R3 RC4 RC3 4 (Fwd5, Rvs4) F5R4 RC5 RC4 5 The traffic channel may consist of one or more code channels such as fundamental channel, supplemental channel. Service Options Service Option Setup Description IS-95 System IS-2000 System (Fwd1, Rvs1) (Fwd2, Rvs2) (Fwd3, Rvs3) (Fwd4, Rvs3) (Fwd5, Rvs4) SO1 (Voice) Basic Variable Rate Voice Service (8 kbps) x x x x SO2 (Loopback) Mobile Station Loopback (8 kbps) x x x x SO3 (Voice) Enhanced Variable Rate Voice Service (8 kbps) x x x x SO6 (SMS) Short Message Services (Rate Set 1) x x x x SO9 (Loopback) Mobile Station Loopback (13 kbps) x x x SO14 (SMS) Short Message Services (Rate Set 2) x x x SO17 (Voice) High Rate Voice Service (13 kbps) x x x SO32 (+F- SCH) * Test Data Service Option (TDSO) x x SO32 (+ SCH) * Test Data Service Option (TDSO) x x SO33 * cdma2000 High Speed Packet Data Service, Internet or ISO Protocol Stack x x x SO33 (+F- cdma2000 High Speed Packet Data Service,  10/18/2006 Question #2: In page 6 of user manual, it indicates that this device has option to have rod antenna, extended antenna and internal type of antenna. However, in the antenna specification, Telescopic and Helical antenna specification were provided. Are telescopic and Helical antennas transmitting antennas ? How these two antennas will be functioned during the normal operation ? Please provide internal antenna specification ( as mentioned in the user manual ). (또는 매뉴얼 내용이 틀리면 매뉴얼을 수정하면 됩니다) -> Rod type antenna is also so called "Telescopic antenna ", they are same meaning. The Antenna type of internal antenna is a Helical type. So the antenna specification has 2 antenna specs. Telescopic antenna(=Rod antenna) is used for transmitting, and internal antenna(Helical type) is used for receiving only which is for Receiver diversity purpose. Extended antenna is meaningless one, so we deleted it from the manual. Updated manual is uploaded. Question #3: In the regulatory information attachment, it mentioned CDMA modem organizer and indicates that this data modem can only be used with CDMA modem organizer. Please explain this requirement. -> This is mis-translation. Corrected and uploaded. Question #4: Please provide tune up procedure. -> Uploaded. Question #5 : In the revised request for confidentiality letter, technical specification ( user manual ) is one of requested item for ong term confidential. Per FCC policy, user manual can only be granted as short term confidential document. In this technical specification ( user manual ) also contain block diagram which is requested for long term confidential as well. Please : A. revise request for confidentiality letter by removing user manual from the request. B. remove block diagram from user manual C. Make sure revised user manual does not contain sensitive information. ( James: 이 부분은 매뉴얼을 수정할 것입니다.) -> confidentiality letter and user manual are revised accordingly, and uploaded. EMC portion : Question #6: Part 24 PCS band shall be identified as PCS 1900 band. Do not use PCS 1800 which may be confused with EU band. Please make necessary changes in the test report. SCH) * Internet or ISO Protocol Stack x x SO55 (Loopback) Loopback Service Option (LSO) x x x x x SO32768 (Voice) Proprietary Service Option (Qualcomm Inc.) x x x * The service option is only applicable in Lab Application.  10/18/2006 -> Updated test report accordingly, and uploaded. Question #7: The test report indicates the transmitting frequency range for PCS band is from 1851.25 - 1988.75 MHz which is outside the licensing band of 1850 - 1910 MHz. Please explain . -> Typo error. 1851.25 ~ 1908.75 MHz is correct. Updated test report accordingly. Question #8:Fundamental ERP/EIRP measurement: section 3 of test report is related to fundamental ERP/EIRP measurement. FCC only recognize TIA /EIA 603 rev. B as the published measurement procedures. The procedure indicated in section 3 does not comply this measurement procedure. Please explain or justify why the procedures used in section 3 can comply with EIA/TIA 603 procedures. If justification can not be made, please redo ERP/EIRP measurement and submit the test data with detail procedure used. -> We redo all measurement upon your comment…

Text truncated - open the document above for the full version.

FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 30 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Appendix D. Photos of the EUT Top View of Product Bottom View of Product FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 31 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Front View of Product Rear View of Product FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 32 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Right View of Product Left View of Product

FCC ID LABEL 1. FCC ID label location 2. FCC ID label drawing INEW Digital Company Model : CDM-650PRO FCC ID : UFSINK650D Made in Korea This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This devices may not cause harmful interference, and (2)This device must accept any interference received including interference that may cause undesired operation.

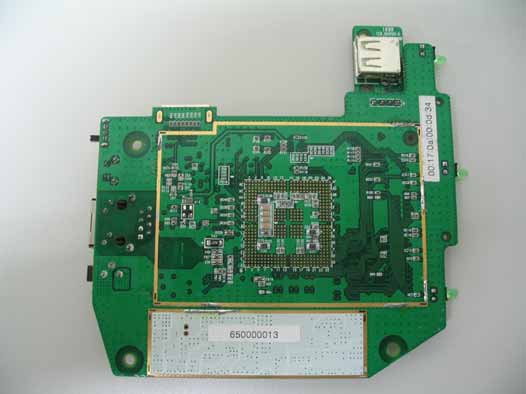

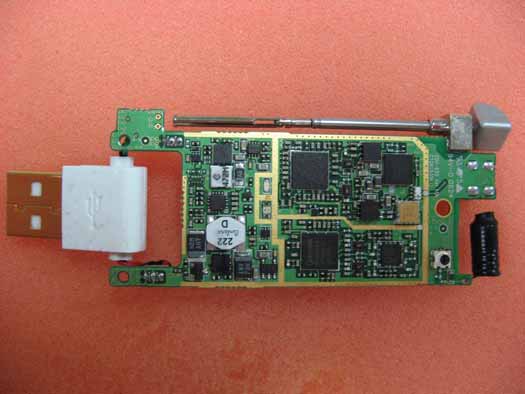

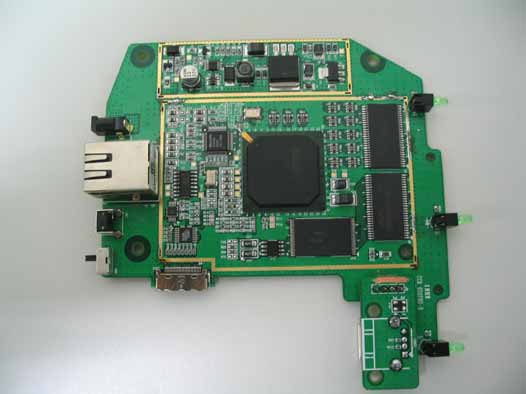

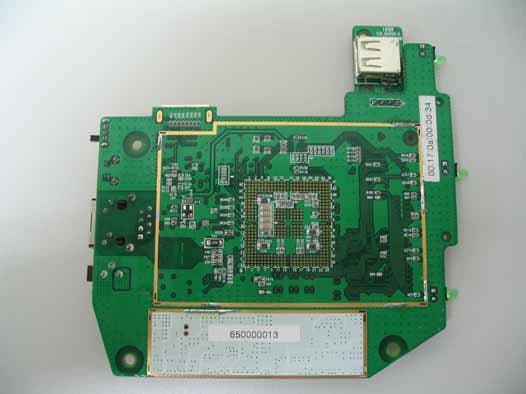

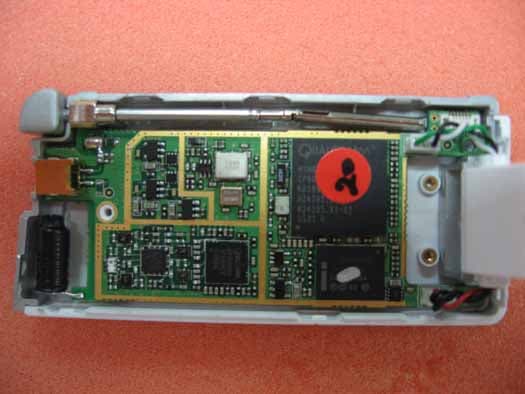

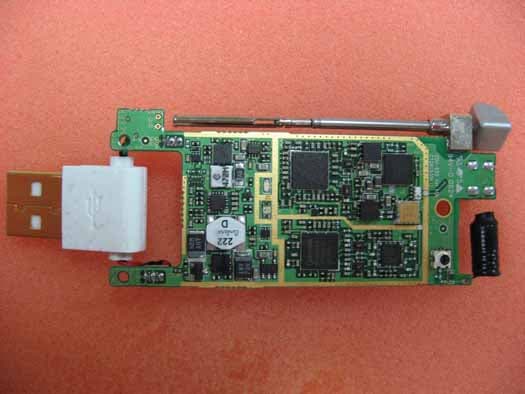

FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 33 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Inside View of Product Top View of Main Board FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 34 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Top View of Main Board (Removed shield cap) Bottom View of Main Board FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 35 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Bottom View of Main Board (Removed shield cap) Top View of Modem FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 36 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Bottom View of Modem Top Main-Board of Modem FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 37 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Bottom Main-Board of Modem

FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 1 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com TEST REPORT OF FCC Part 22H, Part 24E and Part 15 FCC ID : UFSINK650D Equipment Under Test : Wireless Router Model Name : CDM-650PRO Serial No. : N/A Applicant : INEW DIGITAL COMPANY Manufacturer : INEW DIGITAL COMPANY Date of Test(s) : 2007-05-10 ~ 2007-06-04 Date of Issue : 2007-07-06 In the configuration tested, the EUT complied with the standards specified above. Te s t e d B y : Date: 2007-07-06 Feel Jeong Approved By: Date: 2007-07-06 Denny Ham FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 2 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX TABLE OF CONTENTS Page 1. General Information ------------------------------------------------------------------------- 3 2. AC Power Line Conducted Emissions ---------------------------------------------------- 7 3. RF Radiated Output Power ----------------------------------------------------------------- 15 4. Spurious Radiated Emissions --------------------------------------------------------------- 18 5. Field Strength of Radiated Emissions ---------------------------------------------------- 22 6. RF Exposure Evaluation ----------------------------------------------------------------- 25 Appendix A. Photos of AC Power Line Conducted Emissions Test Appendix B. Photos of Field Strength Radiated Emission Test Appendix C. Photo of RF Rated output power & Spurious Emissions Test Appendix D. Photos of the EUT FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 3 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General Information 1-1. Testing Laboratory SGS Testing Korea Co., Ltd. Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.electrolab.kr.sgs.com Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1-2. Details of Applicant Applicant : INEW DIGITAL COMPANY Address : Supply Bureau 3th floor KT&G #203-1, Pyong chon-dong, Daedeog-gu, Daejeon, Korea Contact Person : Yeon-Ha Lee Phone No. : 82-42-933-7328 Fax No. : 82-42-934-4829 1-3. Description of EUT Kind of Product Wireless Router Model Name CDM-650PRO Serial Number N/A Power Supply AC 110 V Frequency Range TX: 824.70 ~ 848.31 MHz, 1851.25 ~ 1908.75 MHz RX: 869.70 ~ 893.31 MHz, 1931.25 ~ 1988.75 MHz Transmit Power CDMA : ERP 20.35 dBm (108.39 mW) US PCS :EIRP 20.08 dBm (101.86 mW) Modulation Technique OQPSK, QPSK Number of Channels 20 CH for CDMA, 48 CH for US PCS Emission Designation CDMA, PCS Operating Conditions -30~60 Antenna Type Monopole Type 1-4. Details of modification -N/A FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 4 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.5. Test Equipment List EQUIPMENT MANUFACTURER MODEL CAL DUE. Signal Generator Agilent E4438C May 2008 Spectrum Analyzer Agilent E4440A May 2008 Spectrum Analyzer H.P 8593E Sep. 2007 Power Meter Agilent E4416A May 2008 Power Sensor Agilent E9327A May 2008 DC Power Supply Agilent 6674A May 2008 Attenuator Agilent 8494B May 2008 Two-Line V-Network NNB 41 Schaffner Sep. 2007 Test Receiver Rohde & Schwarz ESVS10 May 2008 Test Receiver Rohde & Schwarz ESHS10 Aug. 2007 Ultra-Broadband Antenna Rohde & Schwarz HL562 Sep. 2007 Horn Antenna Electro-Metrics RGA-60 Dec. 2007 Horn Antenna SCHWARZBECK BBHA9120D(0600) Jul. 2008 Dipole Antenna VHAP/UHAP 975/958 Jun. 2008 Communication AntennaAR AT 4002 N.C.R Band Reject Filter Wainwright WRCG824/849-814/85960/10SS May 2008 Highpass Filter Wainwright WHK3.0/18G-10SS Dec.2007 Mobile Test Unit Agilent E5515C May 2008 FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 5 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com EQUIPMENT MANUFACTURER MODEL CAL DUE. Pulse Limiter Rohde & Schwarz EHS3-Z2 Jan.2008 Preamplifier Agilent 8449B May 2008 Preamplifier Agilent 8447F Jun.2008 Dual Directional CouplerAgilent 778D Dec. 2007 Anechoic Chamber SY Corporation L WH 9.66.46.4 Aug. 2008 FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 6 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.6. Summary of Test Results Description of Test FCC Rule Result AC Power Line Conducted Emissions §15.107 Complied Field Strength of Radiated Emission §15.109(a) Complied Spurious Radiated Emission §22.917(a) §24.238(a) Complied RF Radiated Output Power §2.1046 §22.913(a) §24.232(c) Complied RF Exposure 15.247(i) 1.1307(b)(1) Compiled 1.7. Description of Support Units Product Model No. Serial No. Manufacturer Note PC R40e 99-F1442 LG IBM FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 7 of 37 The results shown in this test report refer only to the sample(s) tested unless oth…

Text truncated - open the document above for the full version.

FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 27 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Appendix A. Photos of AC Power Line Conducted Emissions Test Front View of Conducted Emission Rear View of Conducted Emission FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 28 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Appendix B. Photos of Field Strength Radiated Emission Test FCC ID : UFSINK650D Report File No. : STROR-07-038 Page : 29 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Appendix C. Photo of RF Rated output power & Spurious Emission Test
