UGB-UHI-BTIMBT Handsfree Car Kit with HFP

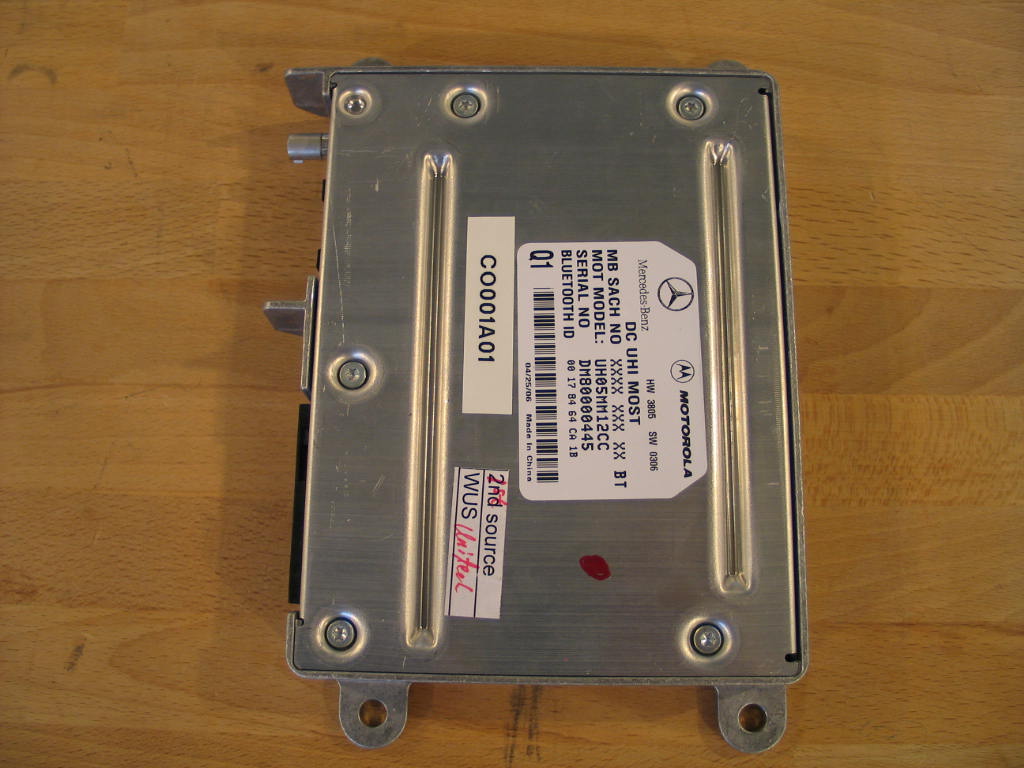

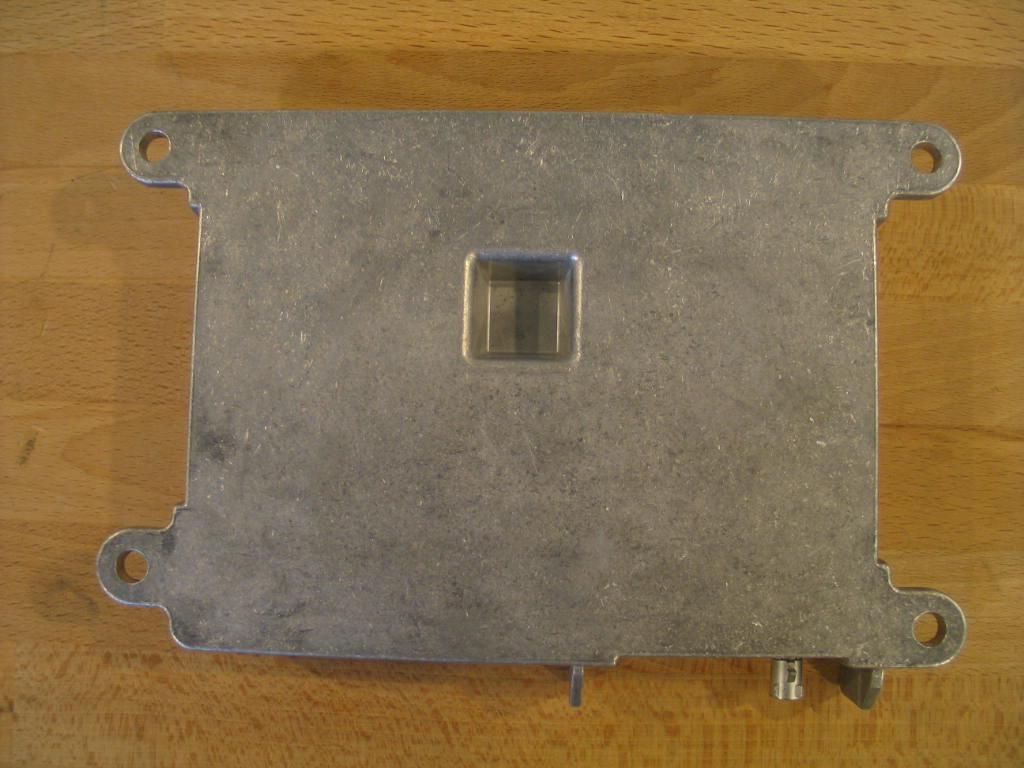

UHI-BTIM Labelling 2/ Ulrich Schaefer/ 27.07.2006©Continental AG UHI-BTIM Product labelling Bottom side: No label Top side: xxx = variable data Mmddyy = date code

Product Description Document Version: V1.0 UHI-BTIM Date: 10-Aug-06 UHIe: 1 (11) File Name: UHI-BTIM PDD fnal.doc Continental Internal Use Only Automotive Systems Product Description Document (PDD): UHI-BTIM Version: Draft 1 Date: 20-June-2006 Abstract: This document defines the functional baseline for the UHI-BTIM release including the system and subsystem architectures, itemized feature list, and high-level feature descriptions. Product Description Document Version: V1.0 UHI-BTIM Date: 10-Aug-06 UHIe: 2 (11) File Name: UHI-BTIM PDD fnal.doc Continental Internal Use Only Revision History: Date dd-mm-yyy Revision Revision Author Comments 20-06-2006 Draft U. Schaefer Initial Version 10-08-2006 V1.0 Kunitz/Zoidl Various corrections Product Description Document Version: V1.0 UHI-BTIM Date: 10-Aug-06 UHIe: 3 (11) File Name: UHI-BTIM PDD fnal.doc Continental Internal Use Only Table of Contents: 1. PURPOSE....................................................................................................................4 2. OVERVIEW..................................................................................................................4 2.1 SYSTEM ARCHITECTURE.................................................................................................................................5 2.2 UHI-BTIM SUB-SYSTEM ARCHITECTURE.....................................................................................................6 3. FEATURE MATRIX.....................................................................................................7 4. SYSTEM FEATURE DESCRIPTION..........................................................................9 4.1 BLUETOOTH PROFILES....................................................................................................................................9 4.1.1 Core..........................................................................................................................................................9 4.1.2 Hands Free Profile (HFP)......................................................................................................................9 4.2 OPERATIONS AND MAINTENANCE....................................................................................................................9 4.2.1 BTIM Self Diagnostics...........................................................................................................................9 4.2.2 BTIM End of Line Configuration Parameter Management..............................................................9 4.2.3 BTIM Service/Dealer Diagnostics.......................................................................................................9 4.3 HANDSFREE....................................................................................................................................................9 4.3.1 BTIM Noise Suppression and Echo Cancellation............................................................................9 4.4 HMI.................................................................................................................................................................9 4.4.1 BTIM Status Reporting...........................................................................................................................9 4.4.2 Command Interface.............................................................................................................................10 4.5 PERSONAL CALLING.....................................................................................................................................10 4.5.1 Bluetooth Device Status.....................................................................................................................10 4.5.2 Mobile Originating/Terminating..........................................................................................................10 4.5.3 Calling Line ID (CLI)............................................................................................................................10 4.5.4 DTMF Send..........................................................................................................................................10 4.6 PHONEBOOK.................................................................................................................................................10 4.6.1 Calling and Scrolling............................................................................................................................10 4.7 POWER MANAGEMENT.................................................................................................................................10 4.7.1 Wake-up................................................................................................................................................10 4.7.2 Delayed Power Down..........................................................................................................................10 4.8 SYSTEM INTERFACE.....................................................................................................................................11 4.8.1 MOST....................................................................................................................................................11 4.8.2 BT Antenna Support............................................................................................................................11 4.9 PHONE MANAGEMENT..................................................................................................................................11 4.9.1 Dock/Undock........................................................................................................................................11 4.10 ENABLER......................................................................................................................................................11 4.10.1 Processor – MGT5200.....................…

Text truncated - open the document above for the full version.

-Mobile Kommunikation- ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ 07.07.06 WISI Bluetooth AG 91 M 1(2) Technical data AG 91 M Technische Daten WISI AG 91 M Vorteile advantages: • Sehr kleine flache Bauform small and flat housing, housing appealing and compact • Montage auf Metall möglich antenna works also on metal surfaces • Antennengehäuse IP 67 water proof • Montage mit Klebepad easy mounting by adhesive tape • Geeignet für Bluetooth und WLAN designed for Bluetooth and Wireless Lan Frequenzbereich frequency range 2400-2500 MHz Bluetooth /WLAN Gewinn gain 3 dBi Eingangsimpedanz input impedance 50 Ohm Polarisation polarization linear Abmessungen dimensions (W x L x H ) 28 mm x 60mm x 8 mm Temperaturbereich temperature range -40- 105 degree Celsius Anschluß connection cable RG 174 lenght specified by customer Steckverbinder connector Fakra Kuppler Fakra jack (female) -Mobile Kommunikation- ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ 07.07.06 WISI Bluetooth AG 91 M 2(2) Radiation Pattern: z x y f=2.45 GHz E-plane H-plane θ

7 layers AG Aufsichtsratsvorsitzenderh Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr h VAT Nr: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. Hans-Jürgen Meckelburg www.7Layers.com René Schildknecht InterLab ® is a registered trademark of 7 layers AG FCC Measurement/Technical Report on Bluetooth ® transceiver UHI5200 BTIM Report Reference: 4_MDE_CONTI_0601_FCCa Test Laboratory: 7 layers AG Borsigstrasse 11 40880 Ratingen Germany email: [email protected] DAT-P-192/99-01 Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Test report Reference: 4_MDE_CONTI_0601_FCCa Page 2 of 55 Table of Contents 0 Summary 3 0.1 Technical Report Summary 3 0.2 Measurement Summary 4 1 Administrative Data 6 1.1 Testing Laboratory 6 1.2 Project Data 6 1.3 Applicant Data 6 1.4 Manufacturer Data 6 2 Product labeling 7 2.1 FCC ID label 7 2.2 Location of the label on the EUT 7 3 Test object Data 8 3.1 General EUT Description 8 3.2 EUT Main components 9 3.3 Ancillary Equipment 9 3.4 EUT Setups 9 3.5 Operating Modes 9 4 Test Results 10 4.1 Occupied bandwidth 10 4.2 Peak power output 12 4.3 Spurious RF conducted emissions 14 4.4 Spurious radiated emissions 16 4.5 Band edge compliance 21 4.6 Dwell time 23 4.7 Channel separation 25 4.8 Number of hopping frequencies 26 5 Test Equipment 27 6 Photo Report 30 7 Setup Drawings 35 8 Annex measurement plots 36 8.1 Occupied bandwidth 36 8.2 Peak power output 39 8.3 Band edge compliance conducted and Spurious RF conducted emission42 8.4 Radiated emissions (f<30MHz) 49 8.5 Dwell time 51 8.6 Channel separation 54 8.7 Number of hopping frequencies 55 Test report Reference: 4_MDE_CONTI_0601_FCCa Page 3 of 55 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Frequency Hopping Spread Spectrum). Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 2 (10-1-05 Edition) and 15 (10-1-05 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Part 15, Subpart C – Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz Note: The tests were selected and performed with reference to the FCC Public Notice DA 00- 705, released March 30, 2000 Instead of applying ANSI C63.4-1992 which is referenced in the FCC Public Note, the newer ANSI C63.4-2003 is applied. Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Test report Reference: 4_MDE_CONTI_0601_FCCa Page 4 of 55 0.2 Measurement Summary FCC Part 15, Subpart C § 15.207 Conducted emissions (AC power line) The measurement was performed according to ANSI C63.4 2003 OP-Mode Setup Port Final Result op-mode 2 Setup_a01 AC Port (power line) N/A FCC Part 15, Subpart C § 15.247 (a) (1) Occupied bandwidth The measurement was performed according to FCC § 15.31 10-1-05 OP-Mode Setup Port Final Result op-mode 1 Setup_b01 Antenna connector passed op-mode 2 Setup_b01 Antenna connector passed op-mode 3 Setup_b01 Antenna connector passed FCC Part 15, Subpart C § 15.247 (b) (1) Peak power output The measurement was performed according to FCC § 15.31 10-1-05 OP-Mode Setup Port Final Result op-mode 1 Setup_b01 Antenna connector passed op-mode 2 Setup_b01 Antenna connector passed op-mode 3 Setup_b01 Antenna connector passed FCC Part 15, Subpart C § 15.247 (d) Spurious RF conducted emissions The measurement was performed according to FCC § 15.31 10-1-05 OP-Mode Setup Port Final Result op-mode 1 Setup_b01 Antenna connector passed op-mode 2 Setup_b01 Antenna connector passed op-mode 3 Setup_b01 Antenna connector passed FCC Part 15, Subpart C § 15.247 (d), § 15.35 (b), § 15.209 Spurious radiated emissions The measurement was performed according to ANSI C63.4 2003 OP-Mode Setup Port Final Result op-mode 1 Setup_a01 Enclosure passed op-mode 2 Setup_a01 Enclosure passed op-mode 3 Setup_a01 Enclosure passed FCC Part 15, Subpart C § 15.247 (d) Band edge compliance The measurement was performed according to FCC § 15.31 (10-1-05) / ANSI C63.4 (2003) 10-1-05 / 2003 OP-Mode Setup Port Final Result op-mode 1 Setup_b01 Antenna connector passed op-mode 3 Setup_b01 Antenna connector passed op-mode 3 Setup_a01 Enclosure passed Test report Reference: 4_MDE_CONTI_0601_FCCa Page 6 of 55 1 Administrative Data 1.1 Testing Laboratory Company Name: 7 Layers AG Address Borsigstr. 11 40880 Ratingen Germany This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716 . The test facility is also accredited by the following accreditation organisation: - Deutscher Akkreditierungs Rat DAR-Registration no. DAT-P-192/99-01 Responsible for Accreditation Scope: Dipl.-Ing. Bernhard Retka Dipl.-Ing. Robert Machulec Dipl.-Ing. Thomas Hoell Report Template Version: 2006-05-09 1.2 Project Data Responsible for testing and report: Dipl.-Ing. Robert Machulec Date of Test(s): 2006-07-20 - 2006-07-21 Date of Report: 2006-07-21 1.3 Applicant Data Company Name: Temic Automotive of North America, Inc Address: 21440 West Lake Deer Park, Illinois, 60010 USA Contact Person: Hassan Waheed 1.4 Manufacturer Data Company Name: Continental Automotive Systems (Tjanjin) Ltd. Co. Address: No.2, BoHai Road, TEDA Tianjin, 300457 P.R. China Contact Person: Z.H. Qi Test report Reference: 4_MDE_CONTI_0601_FCCa Page 7 of 55 2 Product labeling 2.1 FCC ID label At the time of the report there was no FCC label available. 2.2 Location of the label o…
